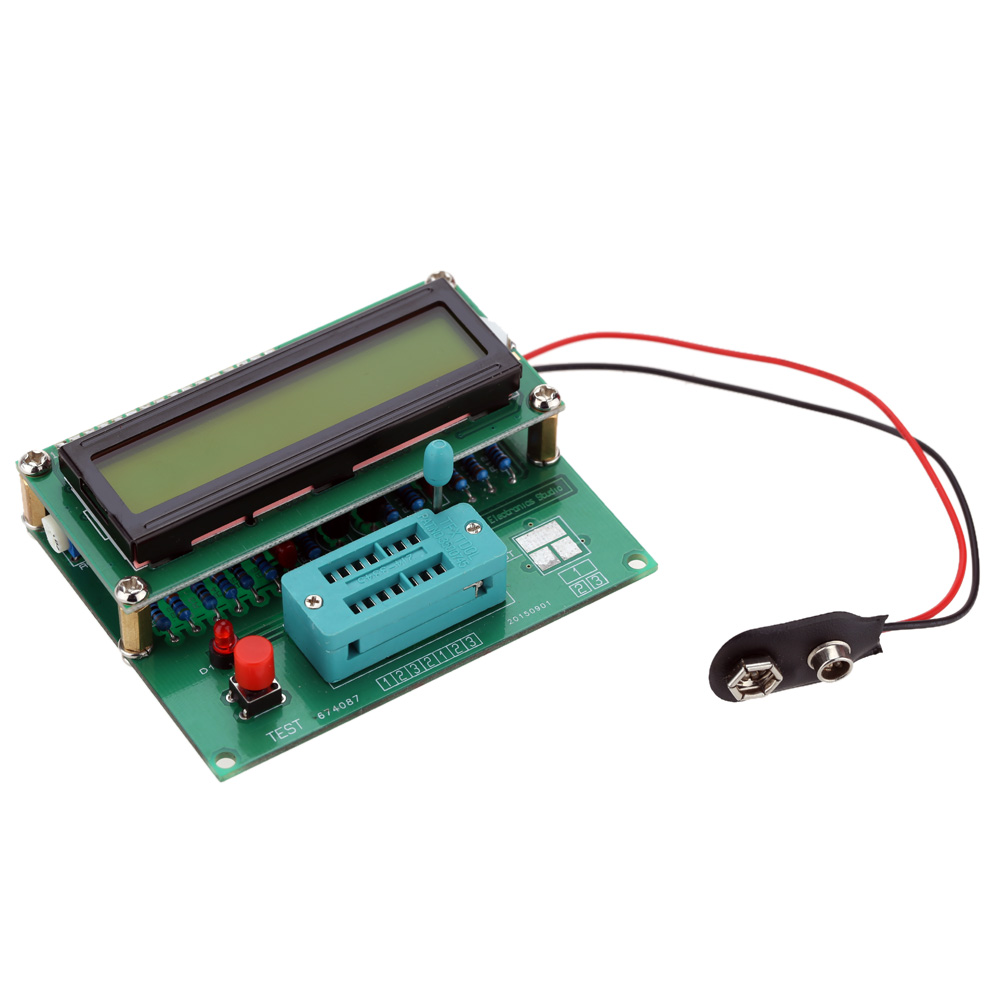

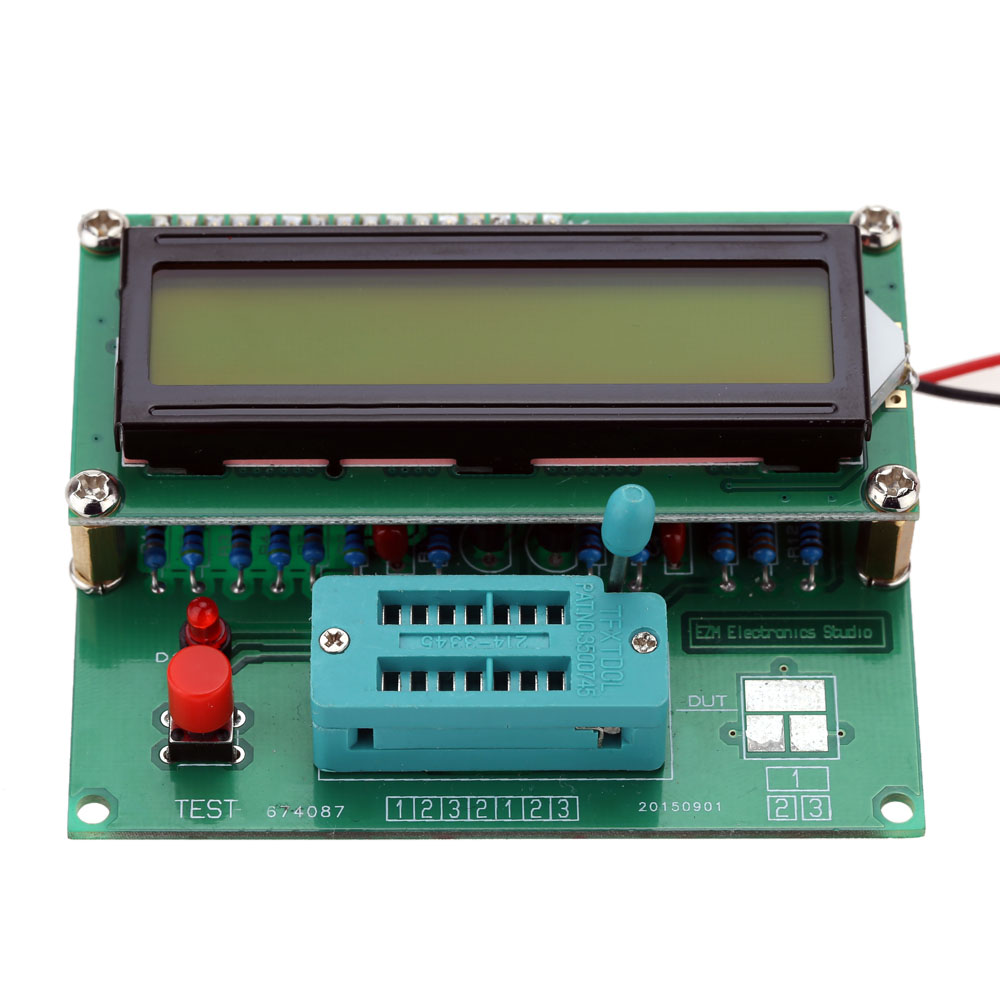

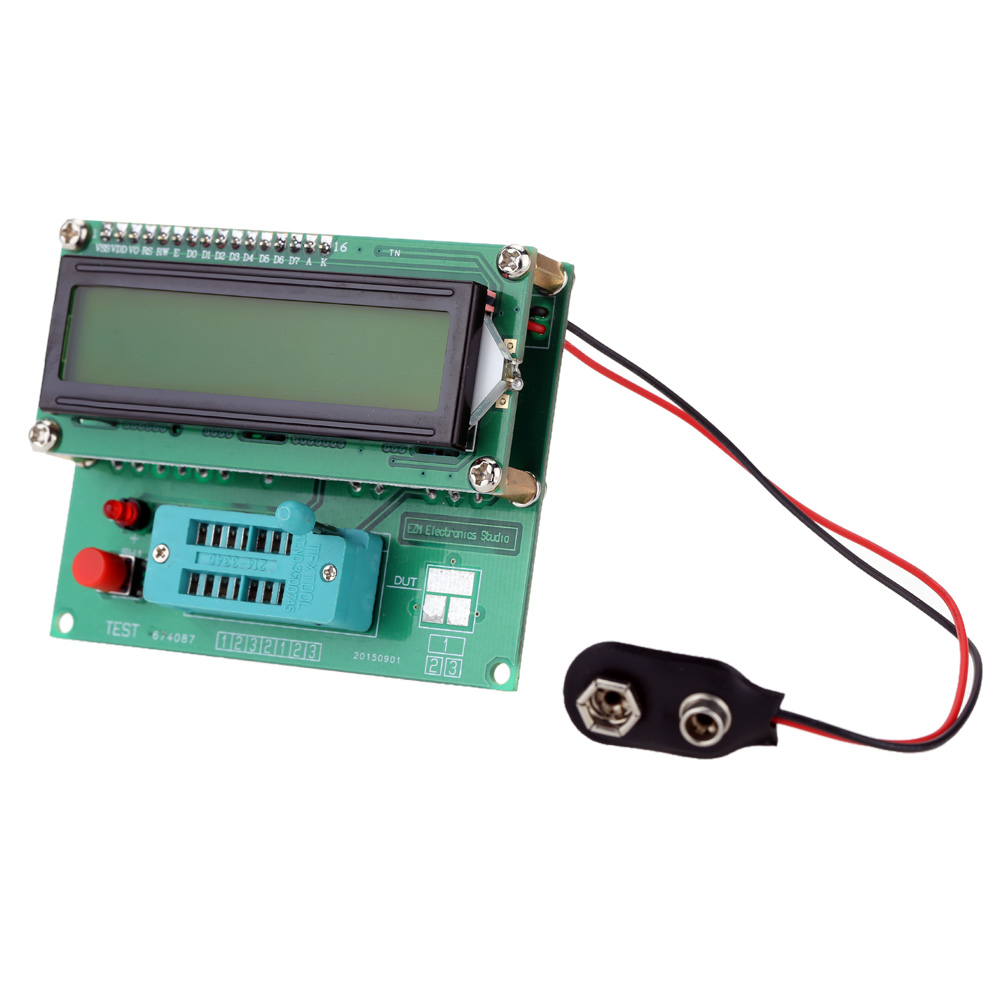

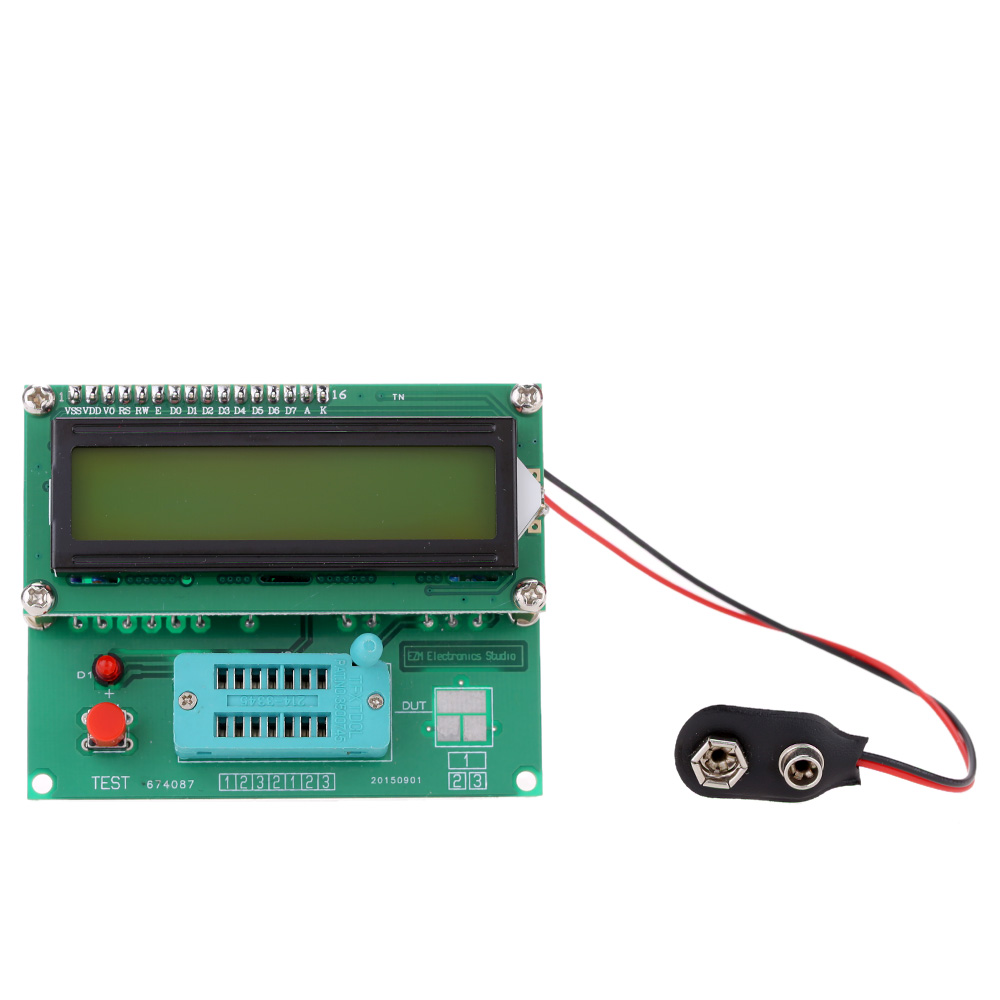

M328 Multifunctional Resistors Transistor Tester Diode ESR MOS PNP NPN L/C/R Frequency Meter Square Wave Signal Generator

Multi-functional transistor tester for automatic detection of NPN and PNP transistors, N-channel and P-channel MOSFET, diodes, thyristors, resistors, capacitors or other devices. Also can be used as square signal and PWM signal generator. Features:
Digital LCD backlight display for easy readings, high accuracy.

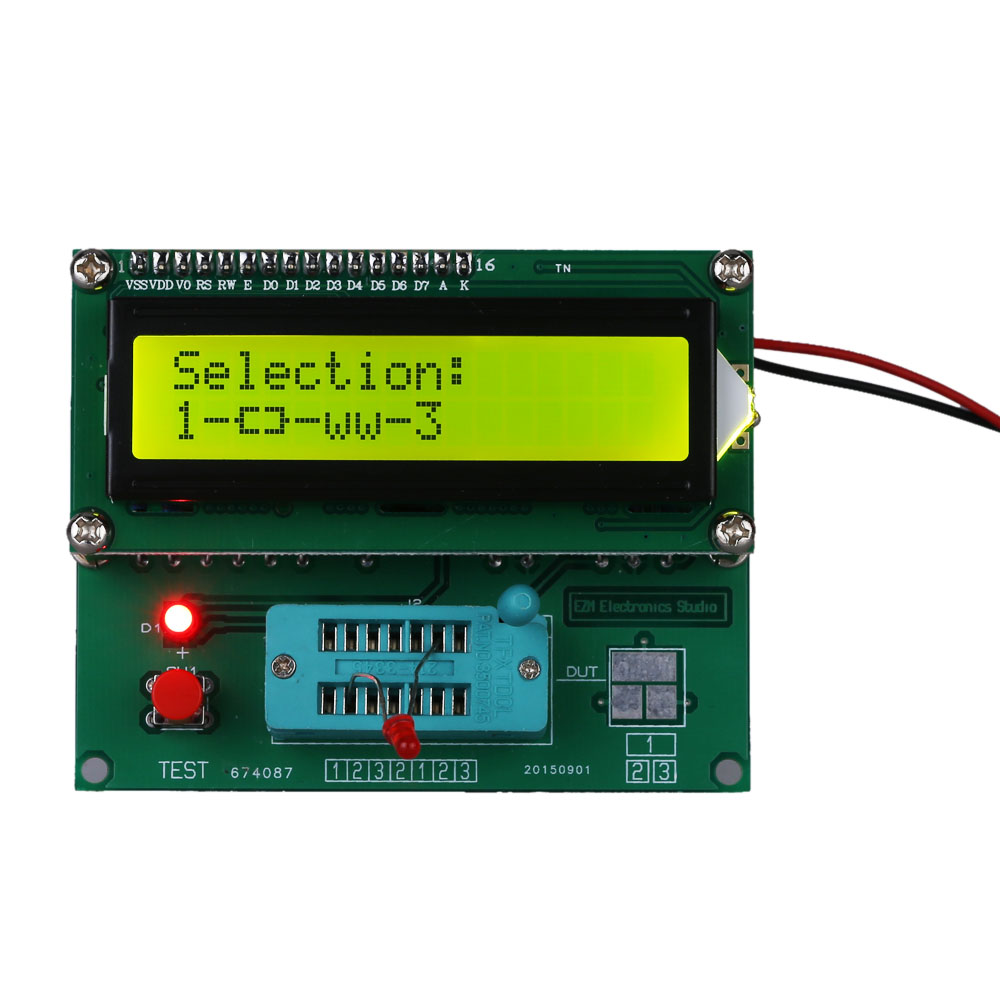

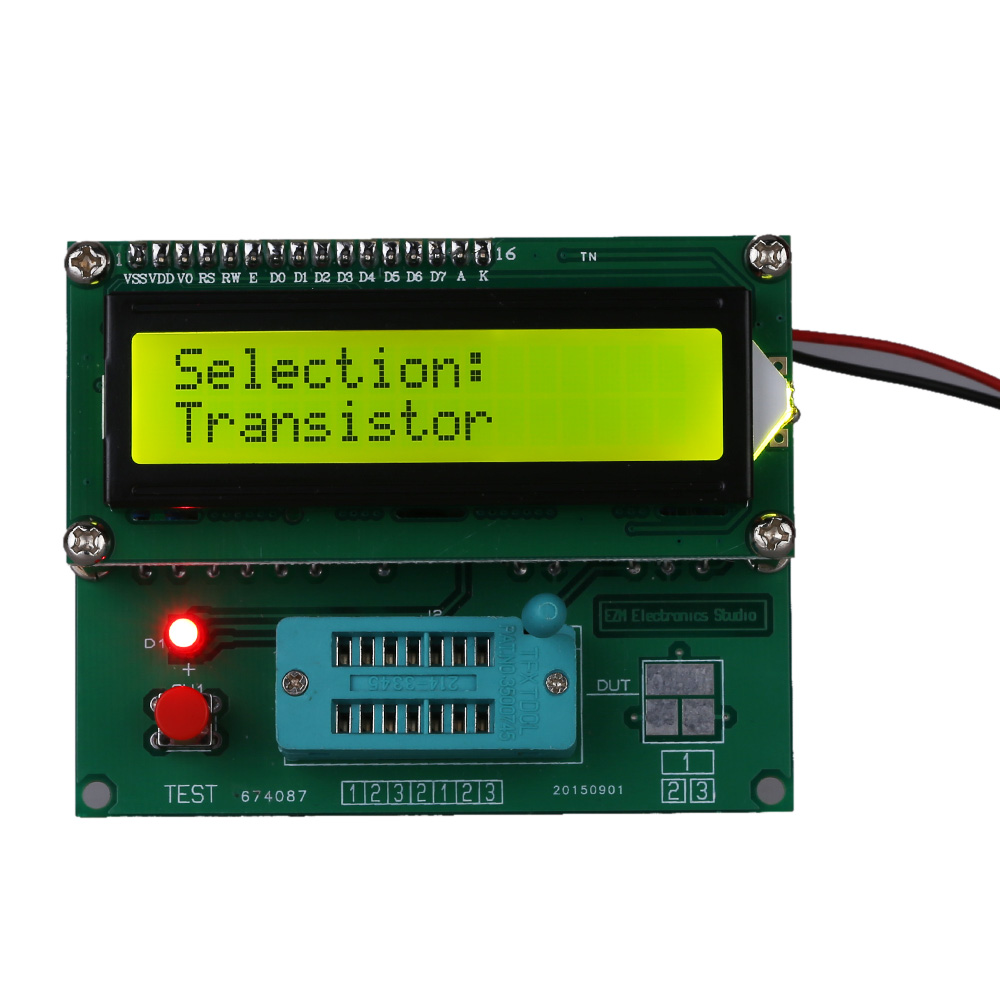

One button operation, easy for use(long press the button and enter the menu selection).
Main chip is the DIP, easy for electronic enthusiasts to DIY or update the main chip.
Can be powered by 9V battery(not included).
Automatically detect NPN and PNP transistors, N-channel and P-channel MOSFET, JFETs, diodes, inductors, resistors, capacitors, thyristors, etc.

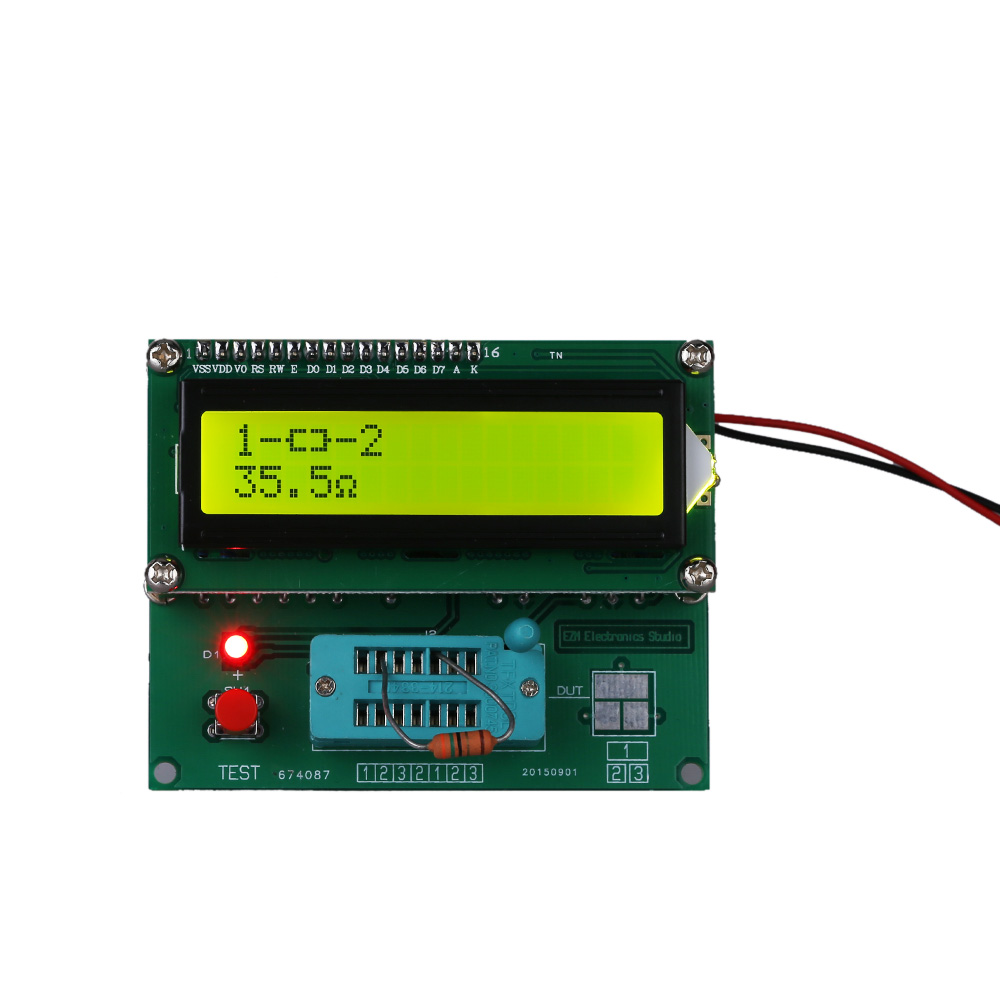

Support 2 resistors measurement, also support potentiometer measurement.
Resistance measurement resolution is 0.1 ohms, 50M ohms can be measured.
Automatically test the pins of a component and show on the display.
Measure the gate threshold voltage and gate capacitance of the MOSFET.
Measure bipolar transistor current amplification factor and base-emitter threshold voltage.
Can be used as signal generator and frequency meter: built-in square signals from 1Hz-2Mhz and can generate 1-99% PWM(pulse width modulation) signals.Notice:
Before measuring capacitance, the capacitor must be discharged, otherwise very likely damage the meter.
Users need to add an interface with some components by themselves if they want to measure the frequency(1Hz-2MHz)!
Specifications:
Display: LCD Backlight
Backlight Current: 2mA
Input Voltage: 9V
Power Supply: 1 * 9V Battery(NOT Included)
Resistance Measurement: Max. 50MΩ
Resistance Resolution: 0.1Ω
Capacitance Measurement: 25pF~100mF
Capacitance Resolution: 1pF
Screen Size: 6.5 * 1.5cm / 2.56 * 0.6in
PCB Size: 8 * 6.2cm / 3.15 * 2.44in
Product Weight: 75g / 2.64oz
Package Size: Approx. 10 * 7.5 * 3cm / 3.94 * 2.95 * 1.18in
Package Weight: 82g / 2.9oz
Package List:
1 * Transistor Tester
