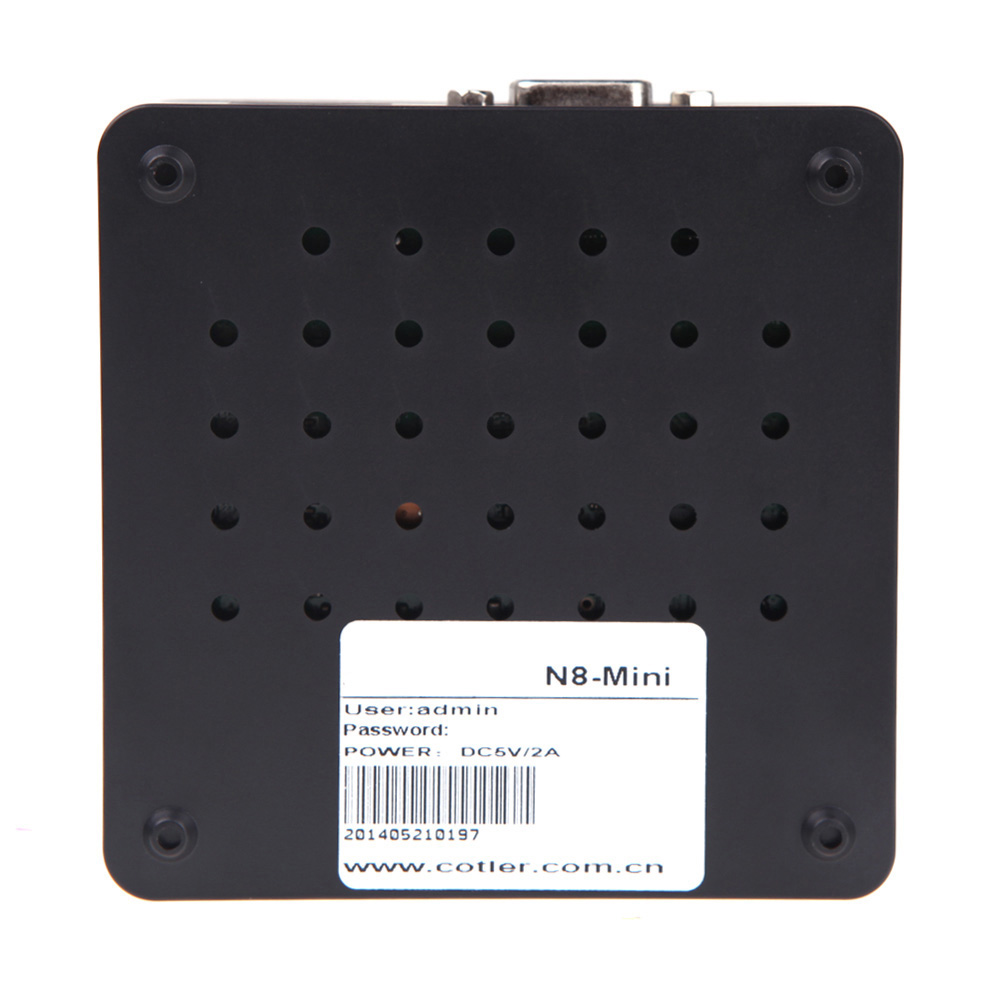

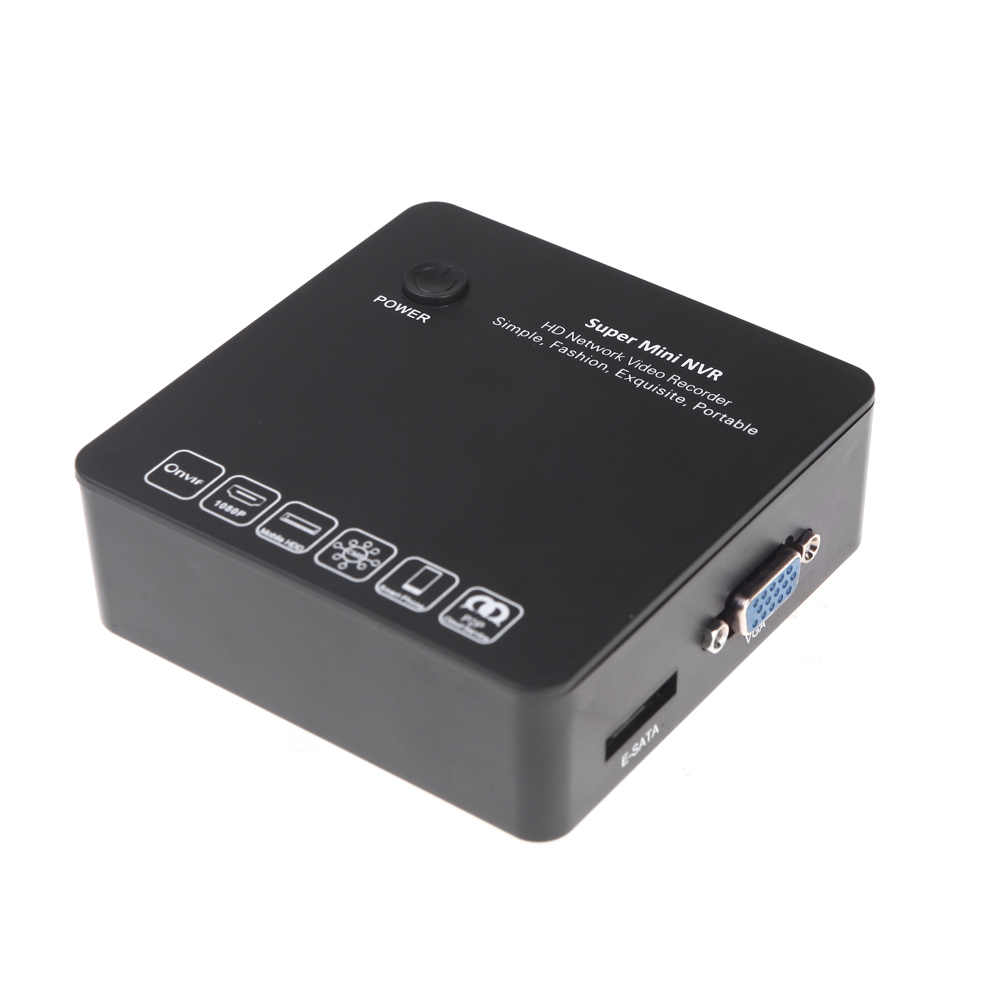

8CH Mini NVR IP Camera Recorder Surveillance 1080P/960P/720P HD Cloud P2P ONVIF HDMI E-SATA HDD Connection 2 USB Black

Features:
An ultra-small NVR which can record the feed of up to 8 separate IP Cameras.
Embedded Linux operating system.
Support P2P cloud service, including cloud monitoring, cloud connecting, cloud transmitting to access IPC and NVR at any anytime anywhere.
With 3G, WIFI wireless connection functions.
Can connect with IP camera, IP speed dome camera and DVS.
Conform to Onvif protocol.
Up to 1080p recording resolution with crystal clear images and can be operated by hooking up a mouse.
Support megapixel HD network video preview, storage and 8ch playback simultaneously.
Immediate snapshot and immediate view; pictures will be stored in an independent area in the HDD ( Not included).
Support search, playback and backup by event.
Recording backup can be accurate to second. Any time period of backup is available.
Notes:
Compatible with main branded IP cameras for AXIS, SONY, Panasonic, SANYO, BOSCH, SAMSUNG, Honeywell, VIVOTEK, Ambarella, HIKVISION, DAHUA, Histream, Grandstream, TOPSEE, Launch, WISION, HYVISION, WAPA.

Specifications:

Operating system	Embedded LINUX operating system
Image code control	Image code quality adjustable, variable bitstream and constant bitstream optional
Dual stream	Each channel can set main stream and sub stream
Video standard	1080P (1920 * 1080) 30fps / 960P / (1280*960) / 720P (1280 * 720) 30fps
Monitoring image quality	1080P (1920 * 1080) / 960P / (1280 * 960) / 720P (1280 * 720)
Image motion detection	Each screen can set mutiple detection areas and set 6-level sensitivity (IPC Support)
Recording playback quality	8ch 720P/960P Model: 4ch simultaneously Playback, 8ch 1080P Model: 1ch 1080P Playback
Region cover	Every channel can set 4 cover regions (IPC Support)
Recording mode	Support manual , auto, dynamic detection, alarm trigger record mode (Partly needs IPC Support)
Backup way	Support U disk, USB mobile HDD, USB DVD-RW, network storage and backup
Operation way	Mouse
Local login	User name and password
Recording storage	Local HDD, network
External ports	Video input(Model Optional)	8 * (1280 * 720) + sub [640 * 360] + 1Ref. + 4Play 8ch 1MP IP camera
		8 * (1280 * 960) + sub [640 * 480] + 4Ref. + 1Play 8ch 1.3MP IP camera
		8 * (1920 * 1080) + sub [640 * 480] + 2Ref. + 1Play 8ch 2MP IP camera
		8 * (720 * 576) + sub [352 * 288] + 2Ref. + 8Play 8ch 0.4MP IP camera
	Audio input	8ch network audio input

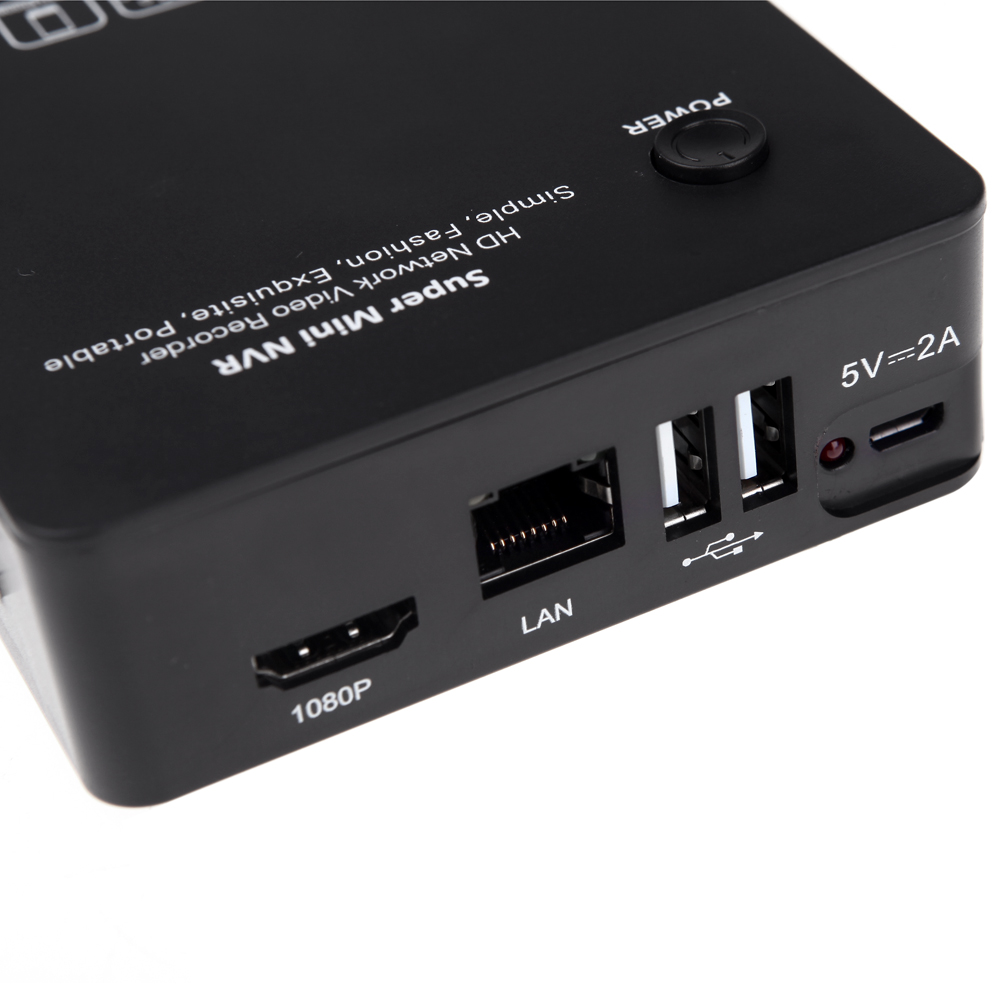

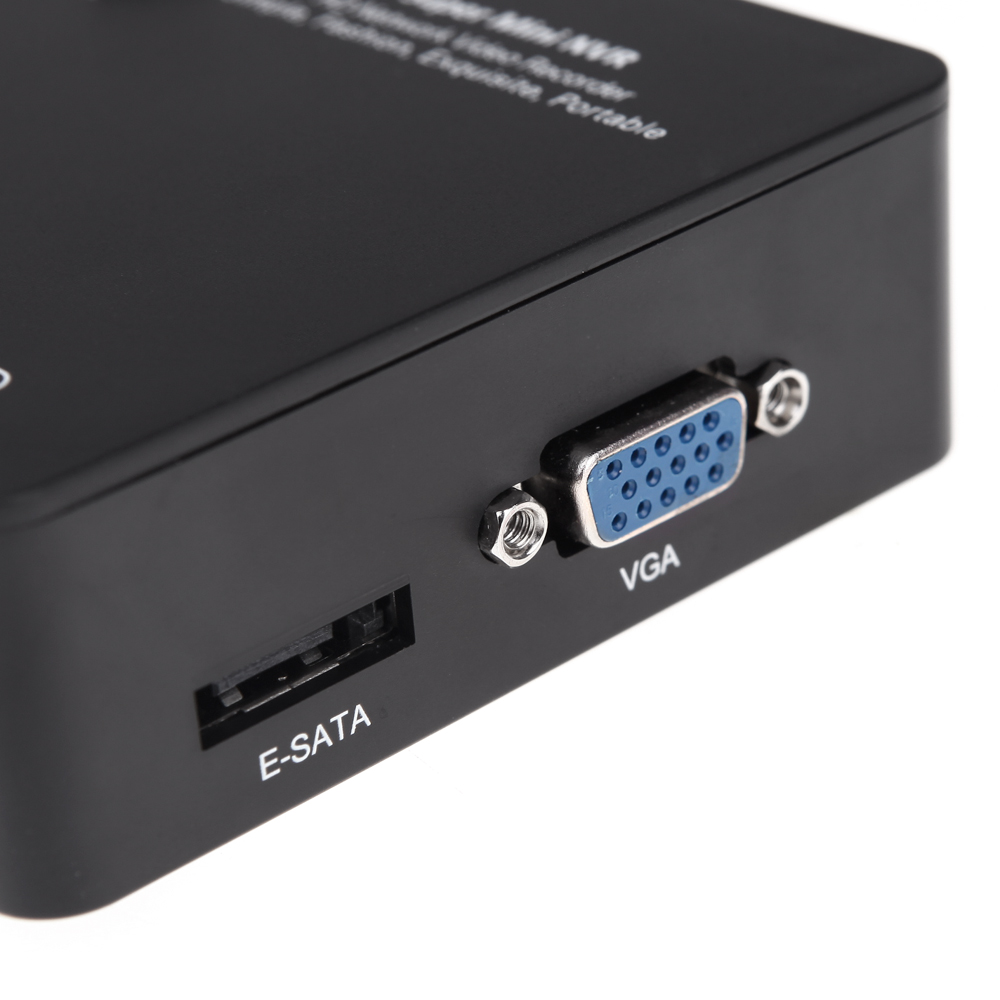

	Video output	1ch VGA + 1ch HDMI
	Network port	1 RJ45, 10M/100M self-adaptive LAN port
	USB port	2 USB 2.0 ports (one on front panel, two on rear panel)
	Wireless Port	3G, WIFI
HDD	Mobile HDD ( Maximum 4TB) / E-SATA / U Disk
Mobile surveillance	Support ( iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart phone
Power supply	5V 2A
Power consumption	≤10W (without HDD)
Working temperature	-10? ??55?
Working humidity	10? ? 90?
Installation way	Desktop installation
Product size	88 * 88 * 32mm / 3.5 * 3.5 * 1.3in
Product weight	105g / 3.7oz
Package size	186 * 116 * 36mm / 7.3 * 4.6 * 1.4in
Package weight	231g / 8.2oz

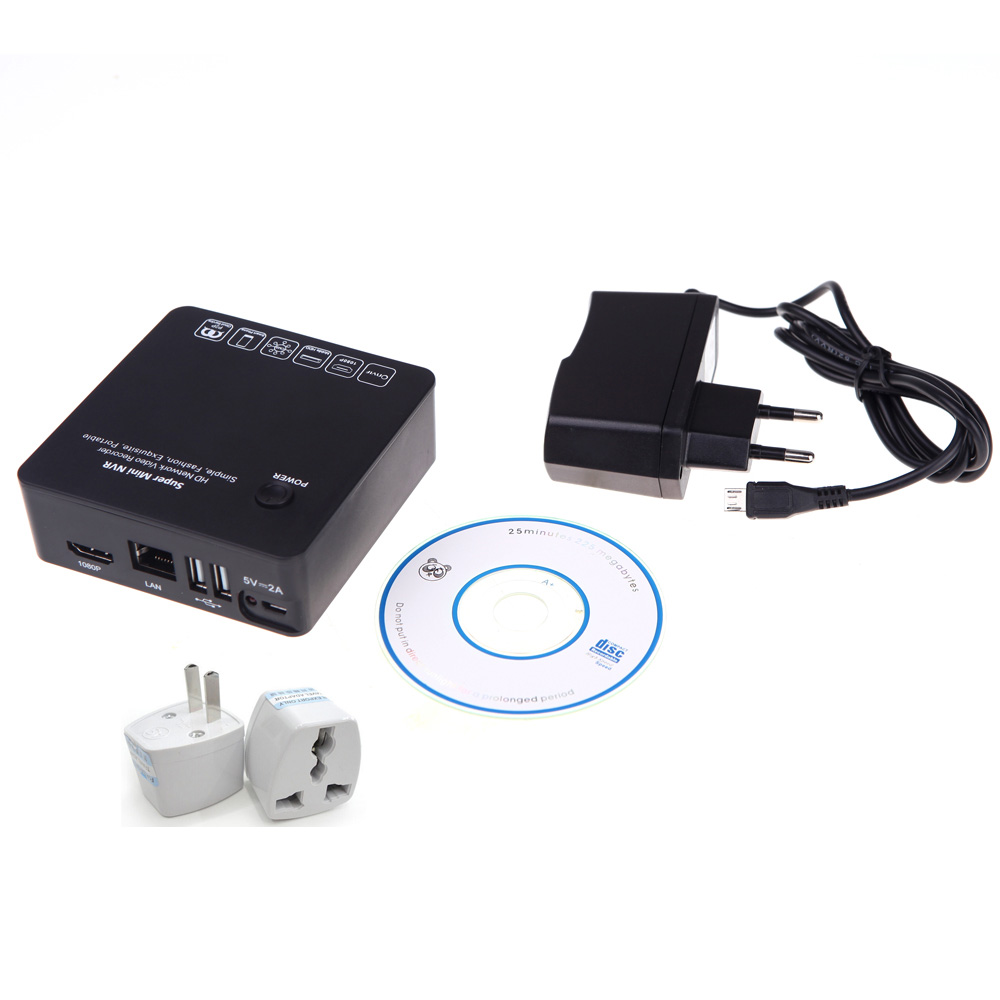

Package List:
1 *  Mini NVR
1 *  Power Adapter
1 * Software CD
