Digital Capacitance Meter DIY Kit 1pF-500uF+LCD ESR Meter LCR led Transistor Tester Diode Triode Capacitance MOS PNP/NPN

The DIY kit is a capacitance meter which is simple in operation and practical in use, especially for measuring low-capacitance. It can easily measure capacitance of lead. The transistor tester can automatically detect NPN and PNP transistors, n-channel and p-channel MOSFET, diode (including double diode), thyristor, transistor, resistor and capacitor and other components.
Features:
The capacitance meter is mini in size, portable for use.
The capacitance meter is simple in operation and practical in use, especially for measuring low-capacitance.
Measuring range of the capacitance meter: 1pF-500uF with auto range switch.
Real time serial output of measurement read-outs with time stamp. High precision, with zeroing function.
This DIY kit is suitable for electronic enthusiasts and students greatly.
The transistor meter is powered by 9V layer-built battery, can use 2 li-ion batteries to form a 8.4V battery pack for long time power.
The transistor meter can measure bipolar transistor current amplification factor and base-emitter threshold voltage.
The transistor meter can automatically test the pin of a component, and display on the 128 * 64 LCD backlight.
The transistor meter can measure the gate and gate capacitance of the MOSFET threshold voltage.
One -button operation, automatic shutdown, only 20nA shutdown current.
Eeverse breakdown voltage is less than 4.5V, Zener diode can be identified.
2uF more capacitors can simultaneously measure the equivalent series resistance ESR values.
Via the base - emitter threshold voltage and high current amplification factor to identify Darlington transistors.
The transistor meter can simultaneously measure two resistors and resistor symbol is displayed. Displayed on the right with a decimal value of 4.
The transistor meter can detect the transistor, MOSFET protection diode amplification coefficient and the base to determine the emitter transistor forward biased voltage.
Automatic detection of NPN and PNP transistors, n-channel and p-channel MOSFET, diode (including double diode), thyristor, transistor, resistor and capacitor and other components.
Specifications:
The DIY Kit:
Input Voltage: DC 8-16V
Supply Current: <30mA
Measuring Range: 1pF-500uF (Auto Switch)
Accuracy: 1%

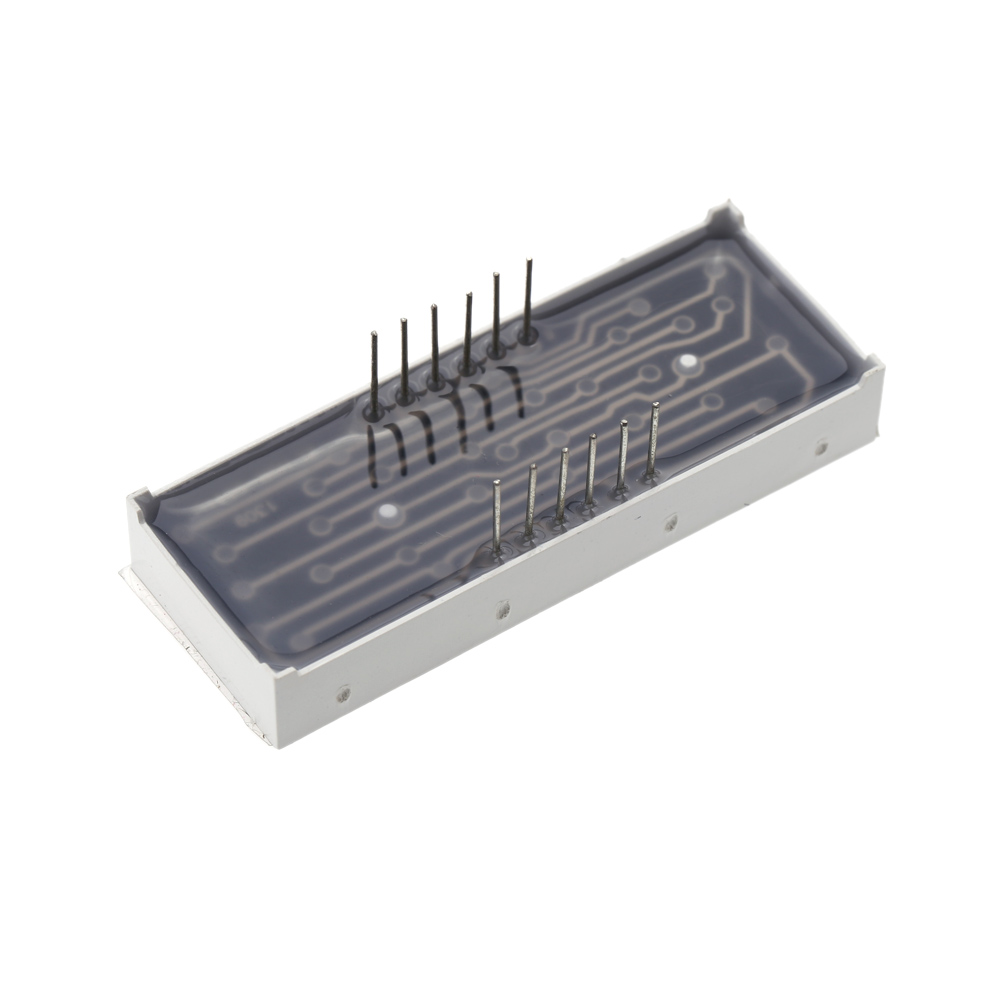

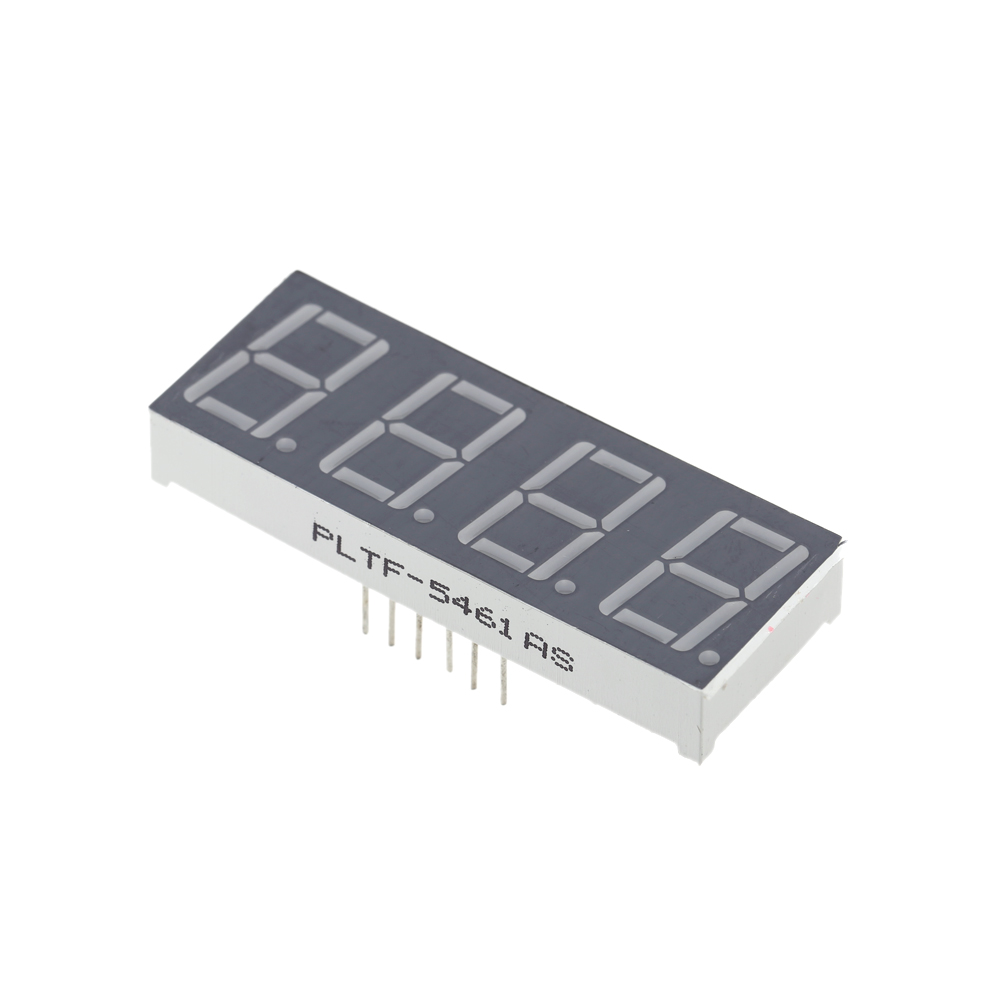

Display: 4 Bit Nixie Tube
Dimension: Approx. 75 * 58 * 15mm / 2.95 * 2.3 * 0.6in
The Transistor Meter:
Material: PCB
Power Mode: 6F22
Display: 128 * 64 LCD backlight
Testing Speed: 2 seconds (1 minute is normal for large capacitor)
Shutdown Current: 20nA
Displayed Value: 25pf-100mF (resolution 1pF)
Inductance: 0.01mH-20H
Resistance: ≤2100Ω
Power Volatge: 9V layer-built battery / 2 li-ion batteries to form a 8.4V battery pack
Resolution of Resistance Measurement: 0.1 ohms
The Highest Measured Value: 50M ohms
Provided Testing Current: Approx. 6mA
Product Size: 7 * 6.3cm / 2.76 * 2.48in (L * W)
Product Weight: 44g / 1.55oz
Package Size: 20.5 * 9 * 2cm / 8.1 * 3.5 * 0.8in
Package Weight: 79g / 2.8oz

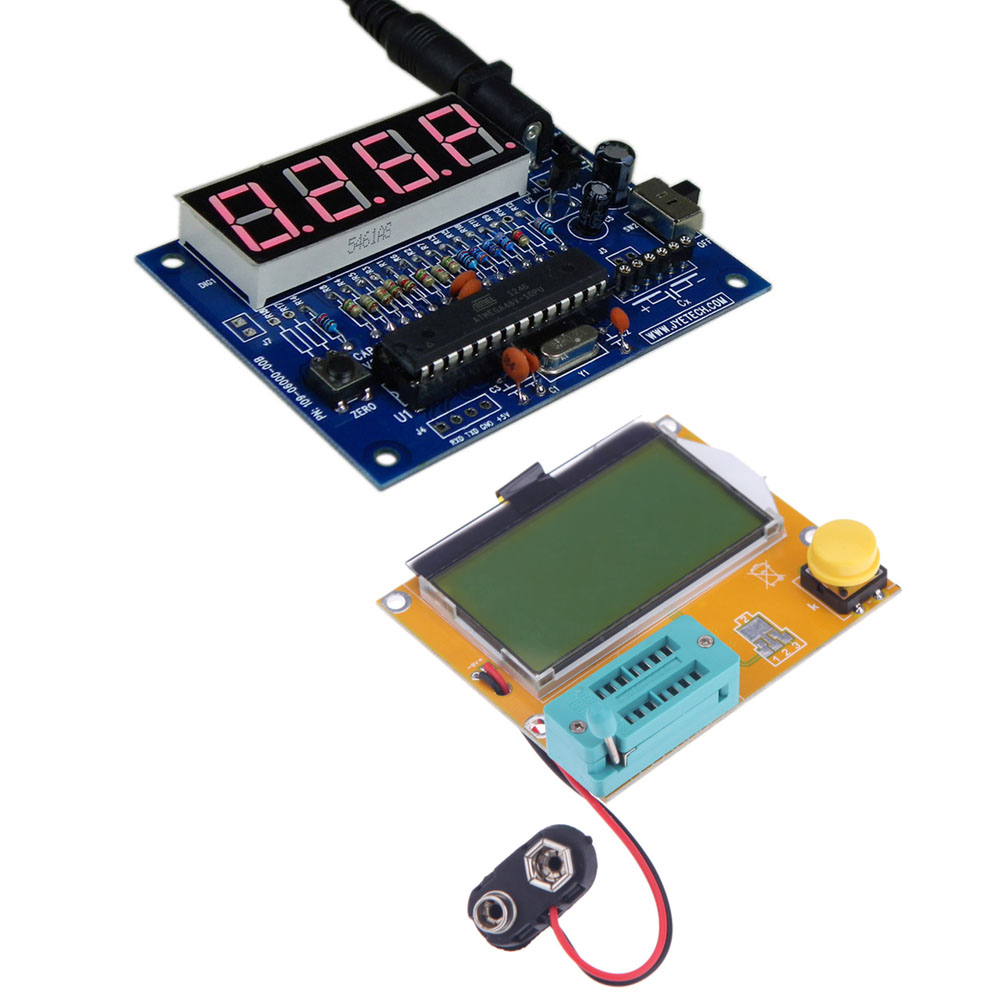

Package List:

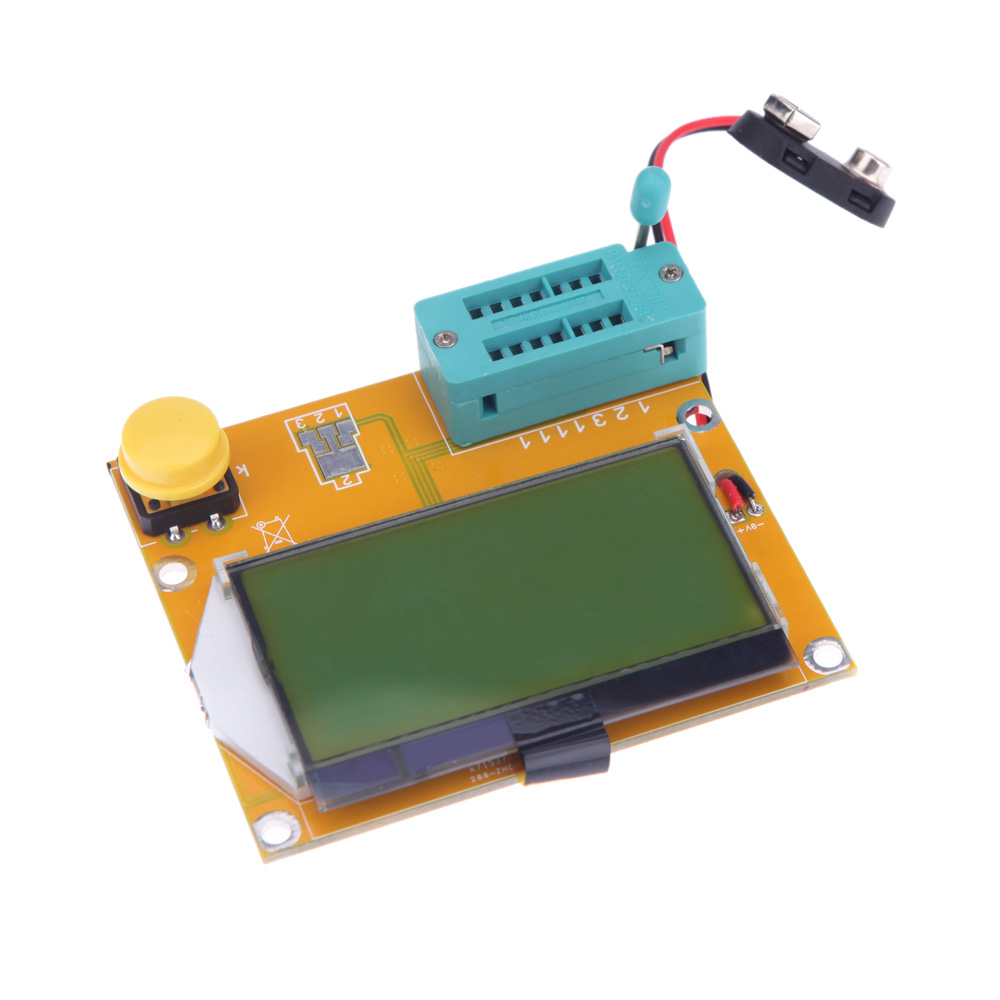

1 * ESR Meter Transistor Tester

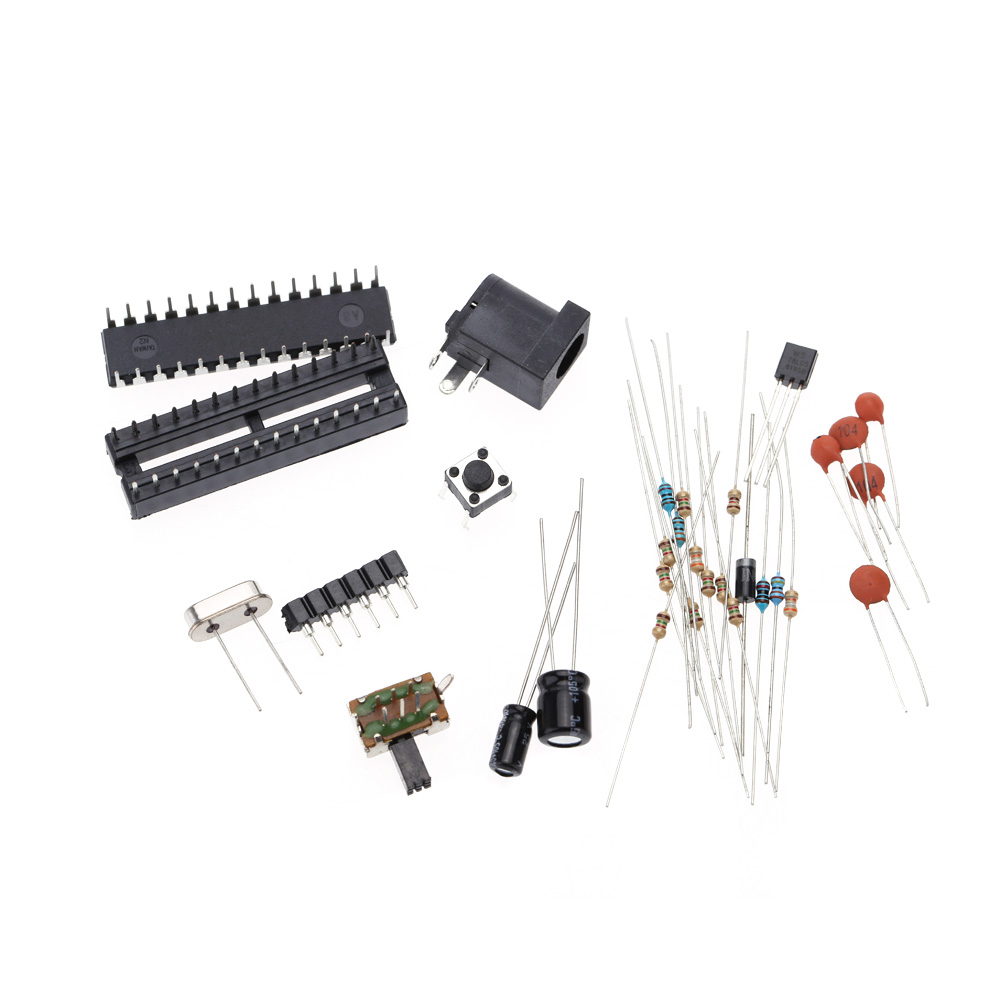

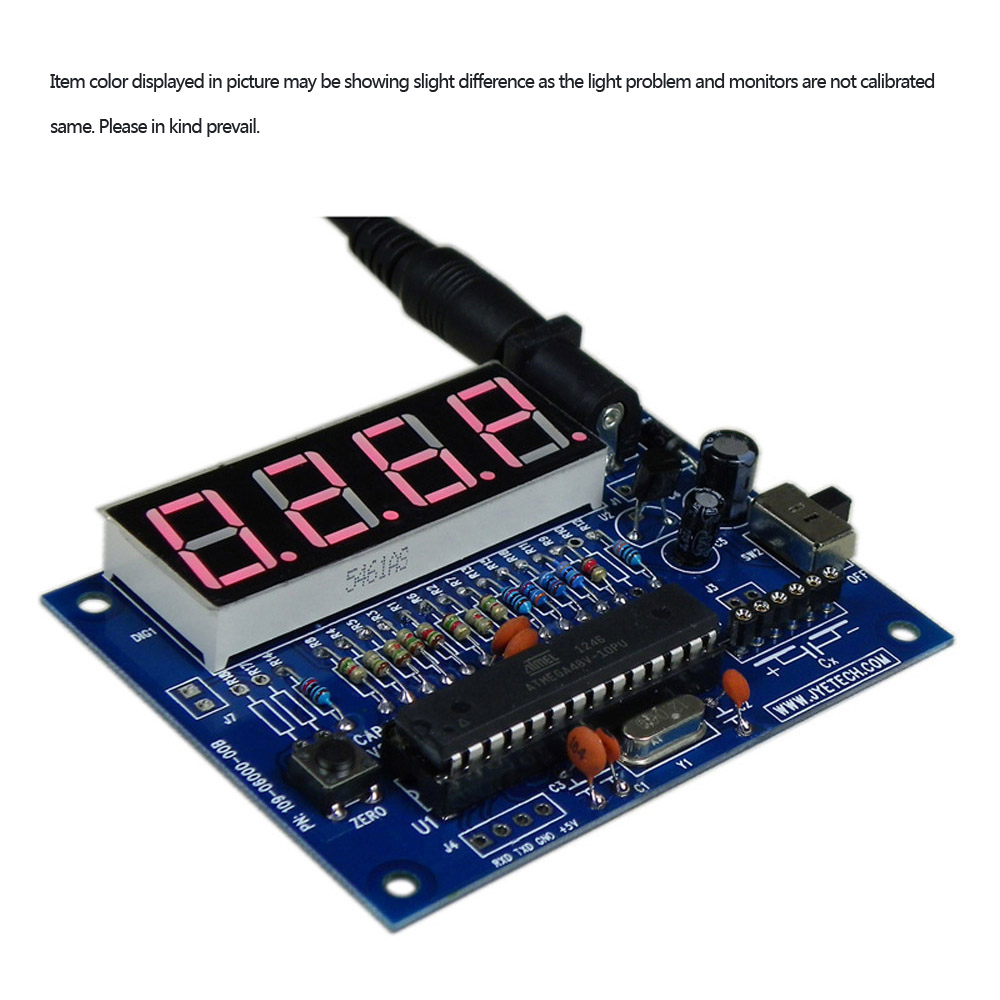

1 * Capacitance Meter DIY Kit
1 * User Manual (English)
