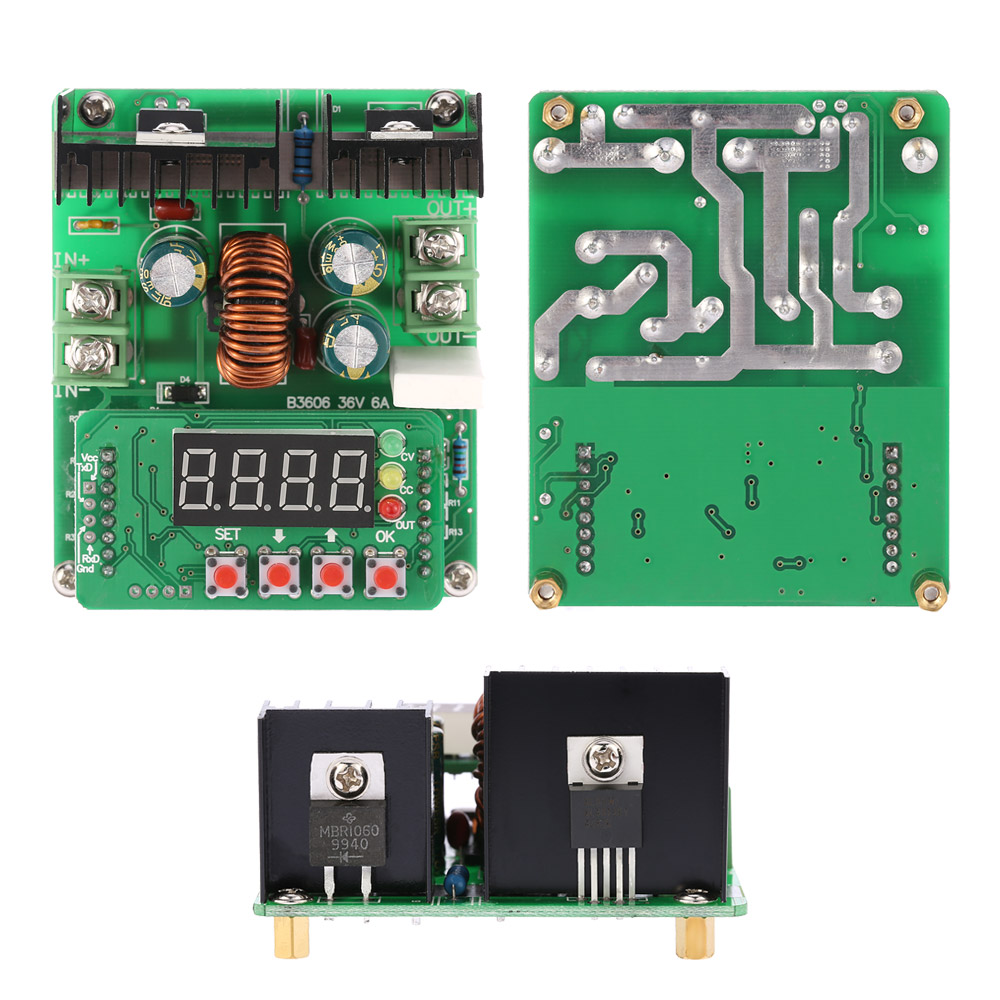

B3606 Digital DC-DC Adjustable Step Down Module Precision NC Constant Voltage Current Power Input 6-40V Output 0-36V 6A Charger

This DC-DC step-down module is digitally controlled buck step-down power with digital display, small size, high power, high efficiency, stable performance. Input voltage 6-40V and output 0-36V, output current 0-6A; with 4 LED display, it can display the output voltage/current, preset voltage/current and other parameters in real time.
Features:
Uses advanced microprocessor, can precisely regulate the output voltage and current.
With memory save function, can store 10 groups parameters, and can freely store or recall.
Fully digital display, easy and convenient to use.
Has a constant voltage, constant current status.
Uses four LED to display the output voltage, current, power and capacity and other parameters in real time.
Auto / manual switch to display voltage, current, power, capacity and other parameters.

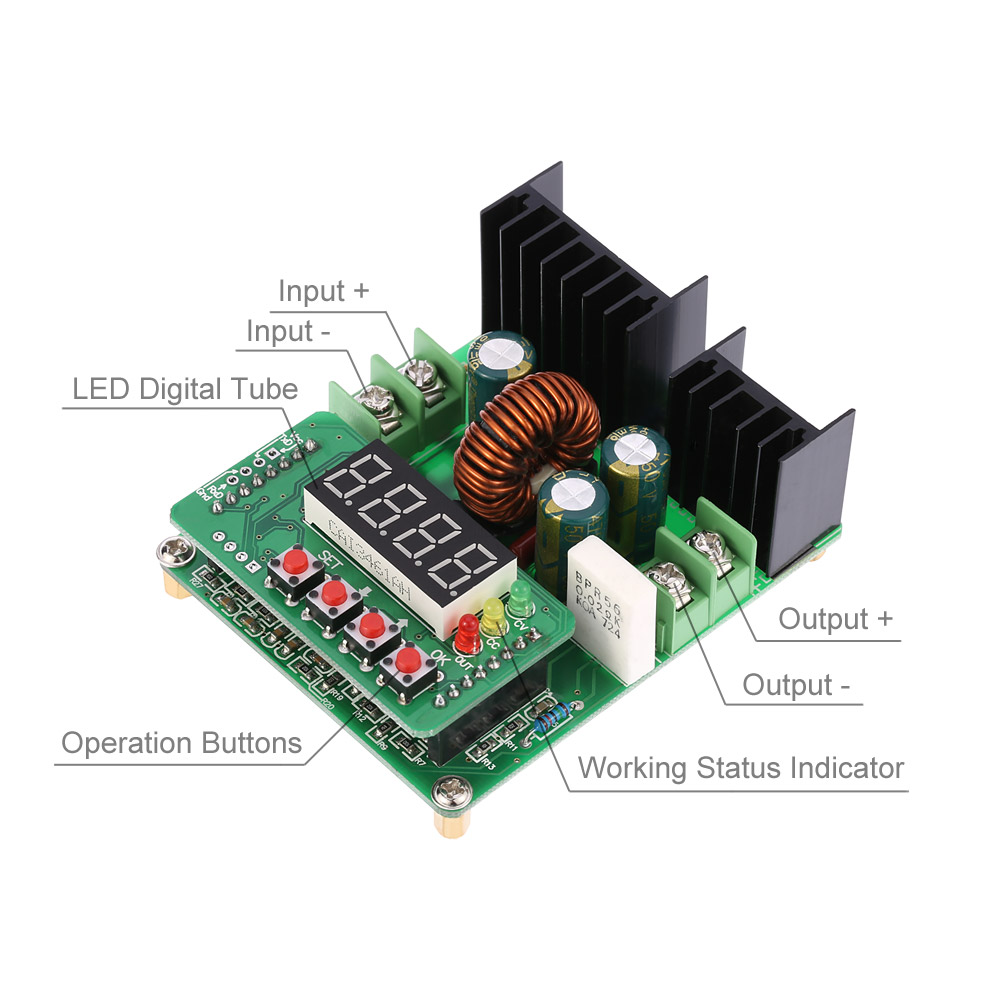

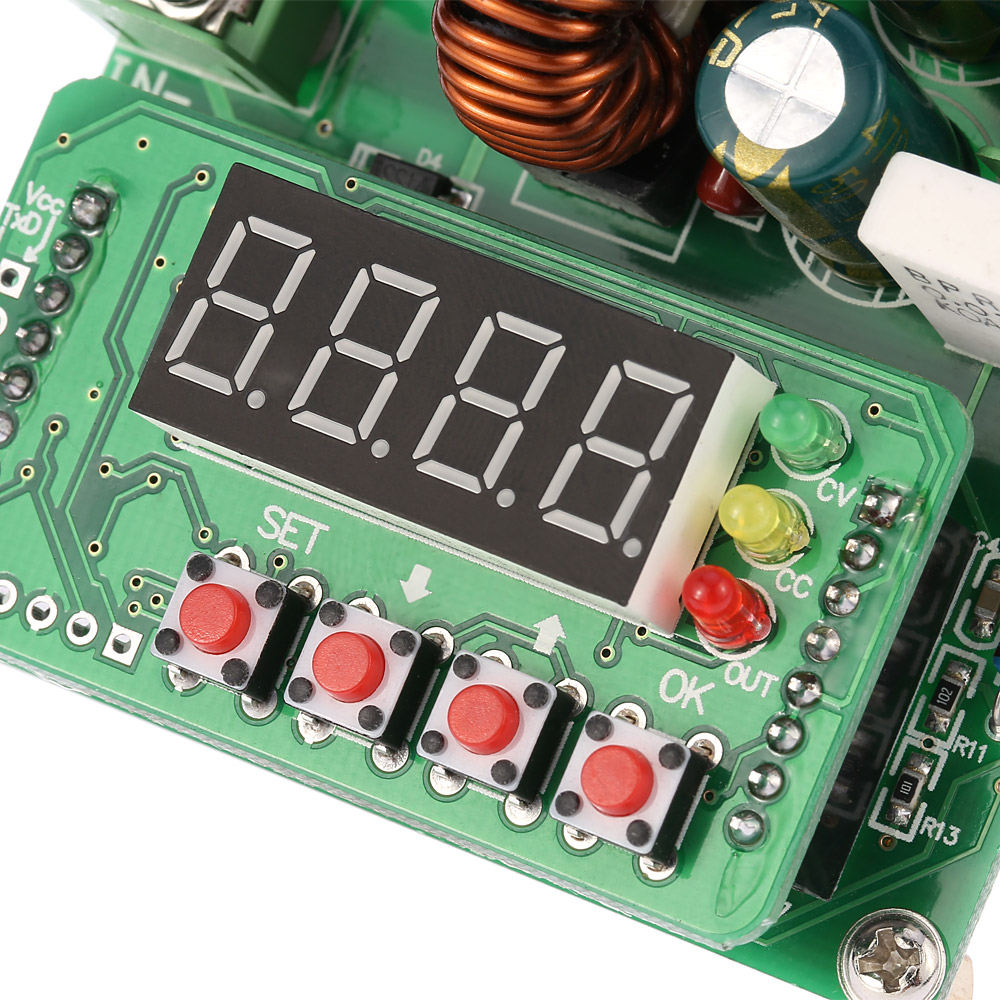

Has an output (OUT), constant voltage (CV), constant current (CC) indicator, you can view real-time working status.
You can set whether to automatically output after power-on.
Can press a key to save the current/voltage values you set.
Specifications:
Module Properties: Non-isolated Step-down (BUCK)
Input Voltage: 6V-40V
Output Current: 0-6A
Output Voltage: 0-36V
Conversion Efficiency: 92% Max.
Operating Frequency: 150KHz
Short Circuit Protection: Constant Current
Operating Temperature: -40°C to +85°C
Control: Digital Control + LED Display
Voltage Regulator / Display Resolution: 0.01V
Power Display Minimum Resolution: 0.001W
Current Regulation / Display Resolution: 0.001A
Capacity Display Minimum Resolution: 0.001AH
Output Ripple: ≤50mV
Weight: 90g / 3.19oz
Dimensions: 80 * 66 * 33mm / 3.15 * 2.6 * 1.2in
Package Weight: 133g / 4.7oz
Package Size: 105 * 105 * 50mm / 4.13 * 4.13 * 1.97in
Note:
No input reverse polarity protection, if you need please add install diode.
Properly connected input and output, non-reverse, reverse will burn the module.
This module is a step-down module, input is higher than output 1.5V or more.

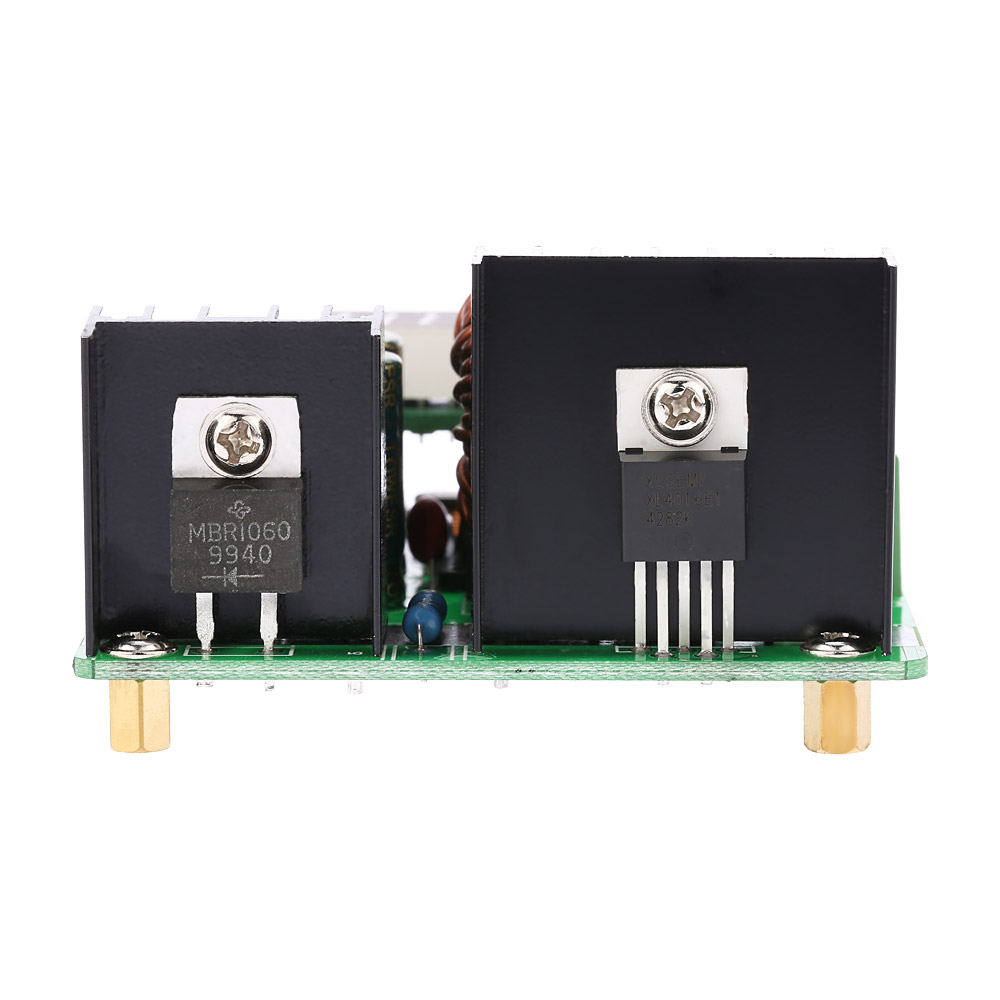

Output under 5A just need natural cooling, output 5A above shall enhance heat dissipation.
English Manual: https://www.dropbox.com/s/43autp9nciqs18q/E1593%20%20User%27s%20manual%20of%20B3606.doc?dl=0
Package List:
1 * B3606 Digital DC-DC Step Down Module
