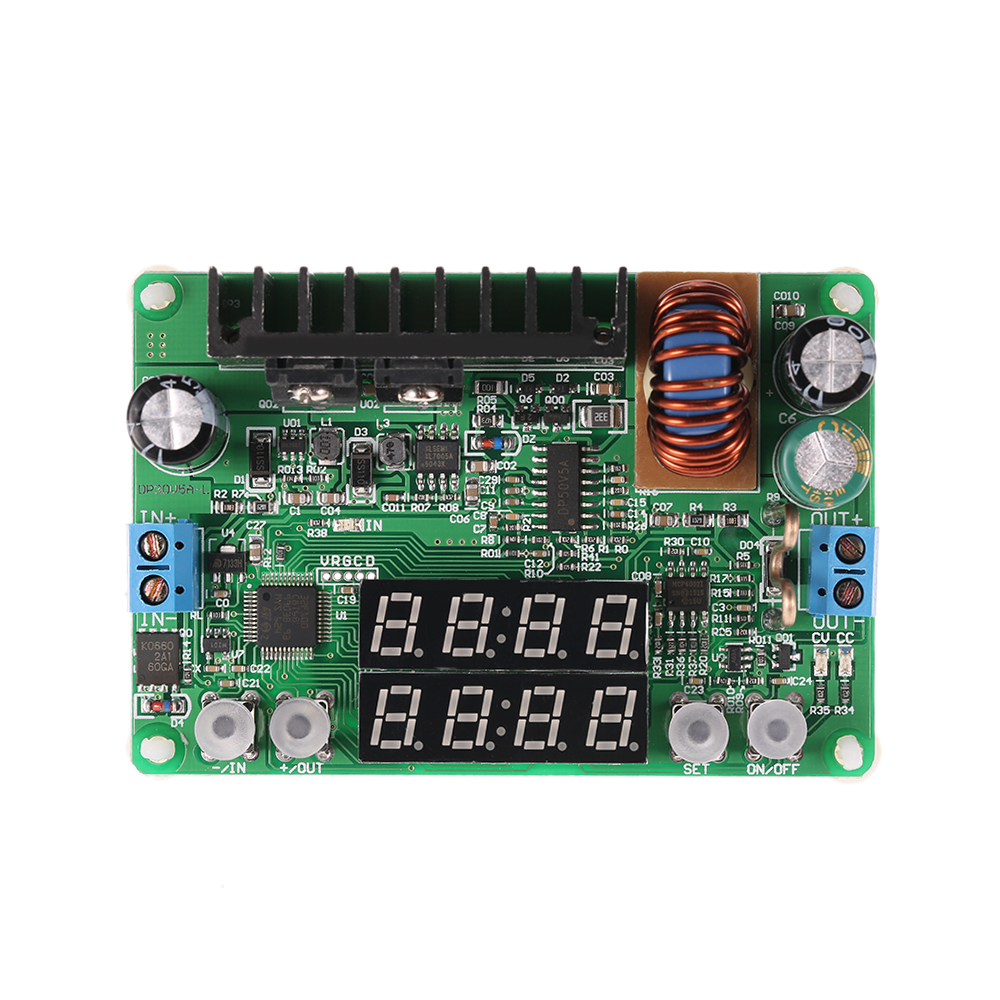

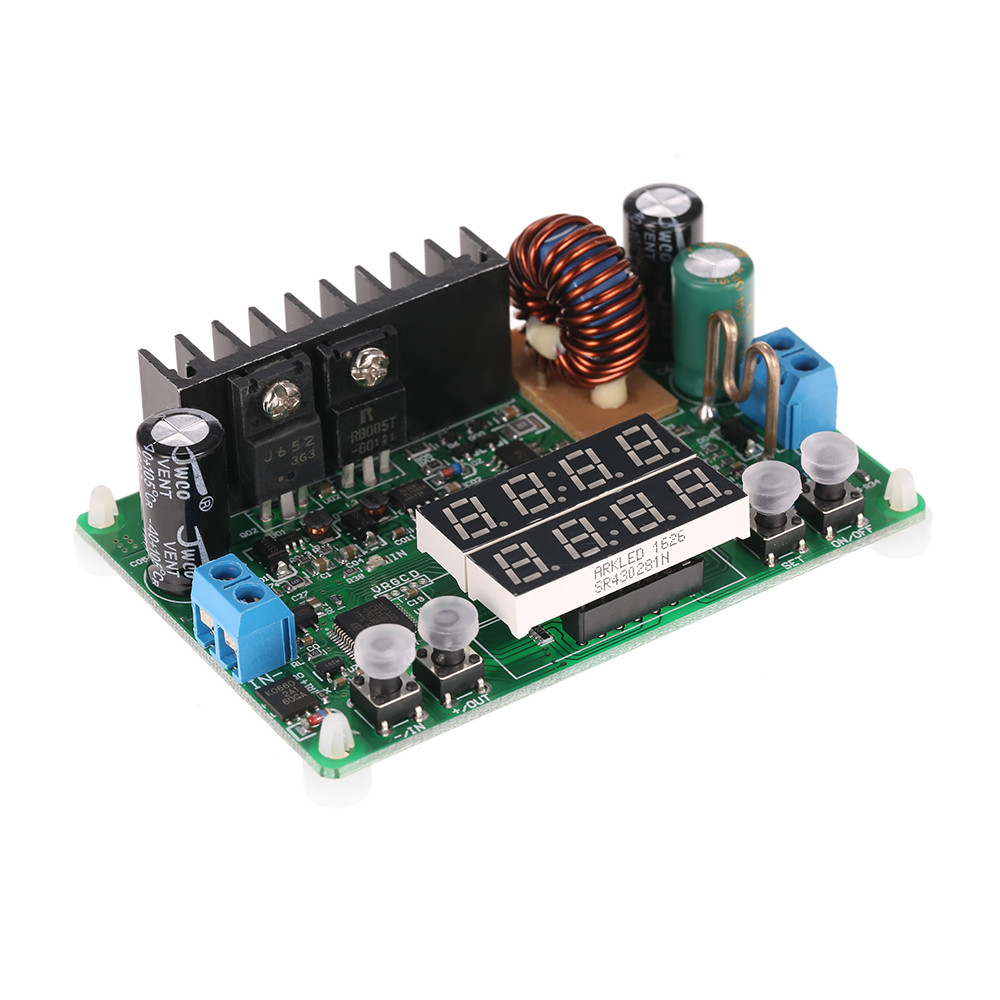

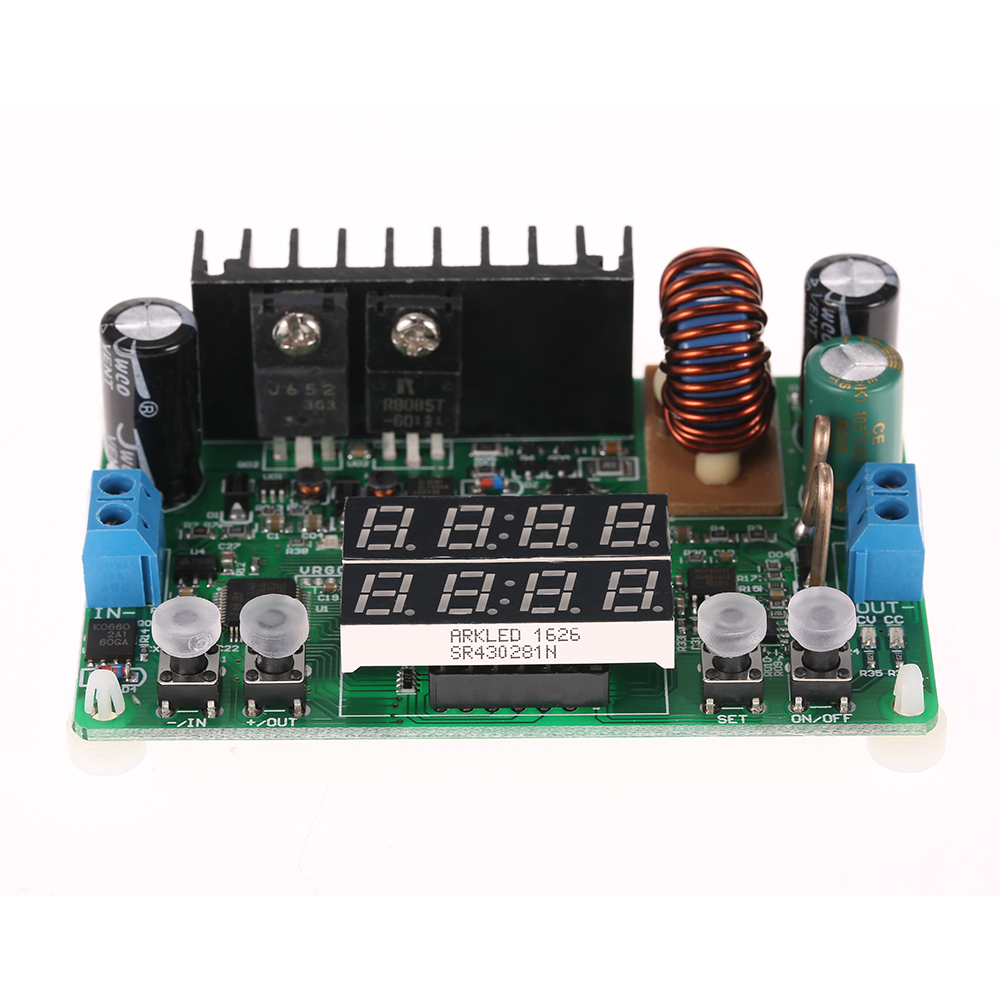

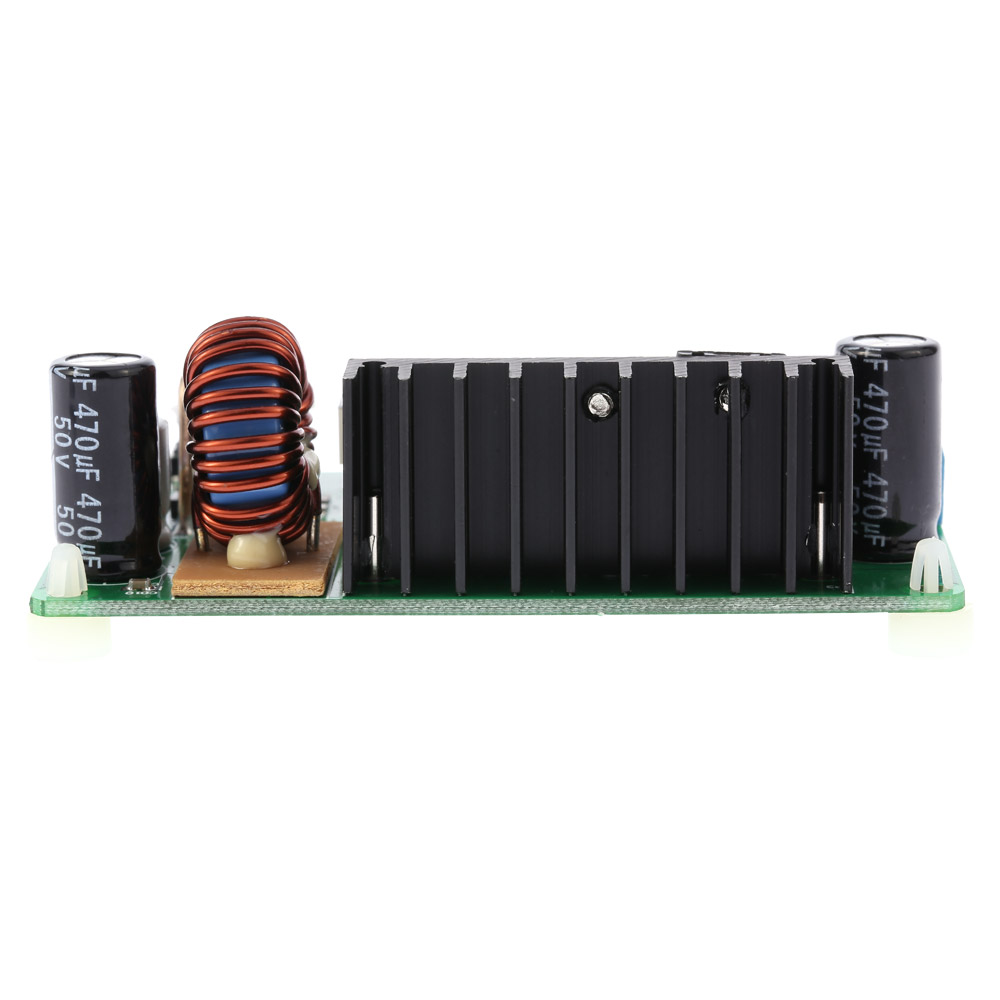

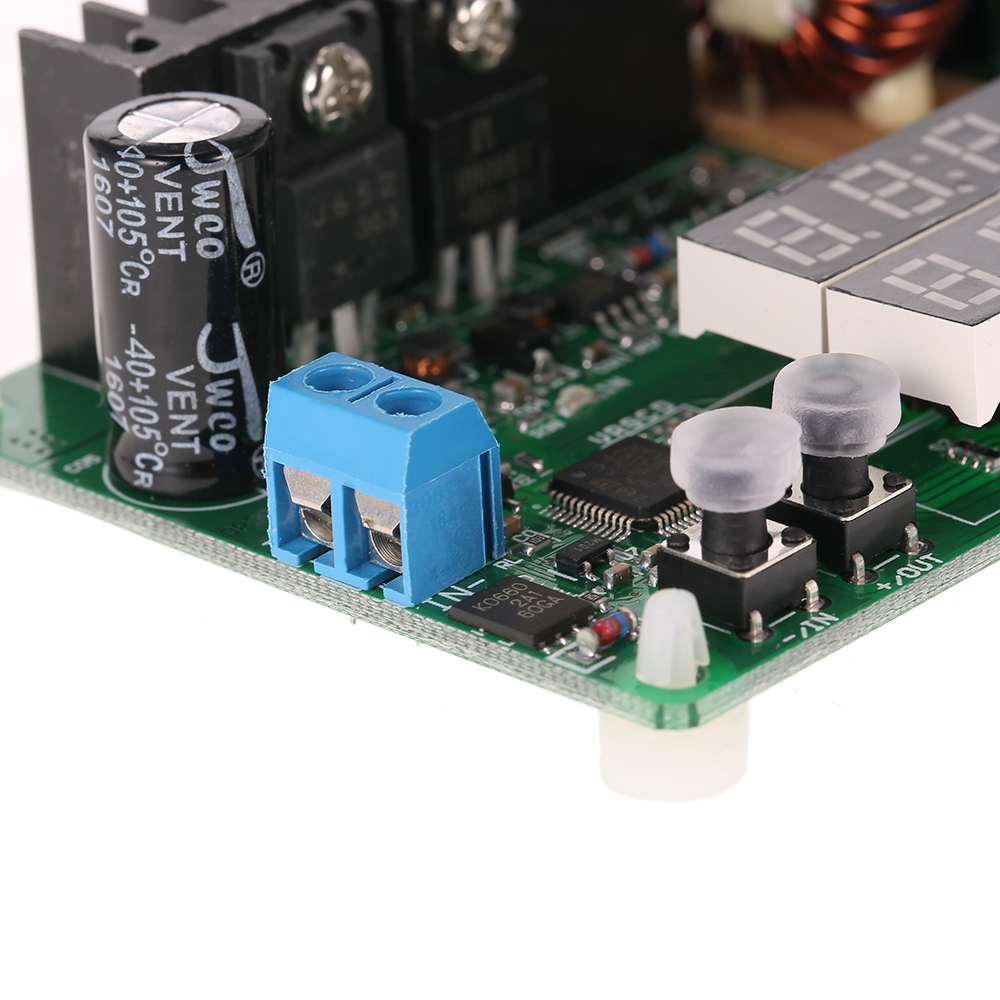

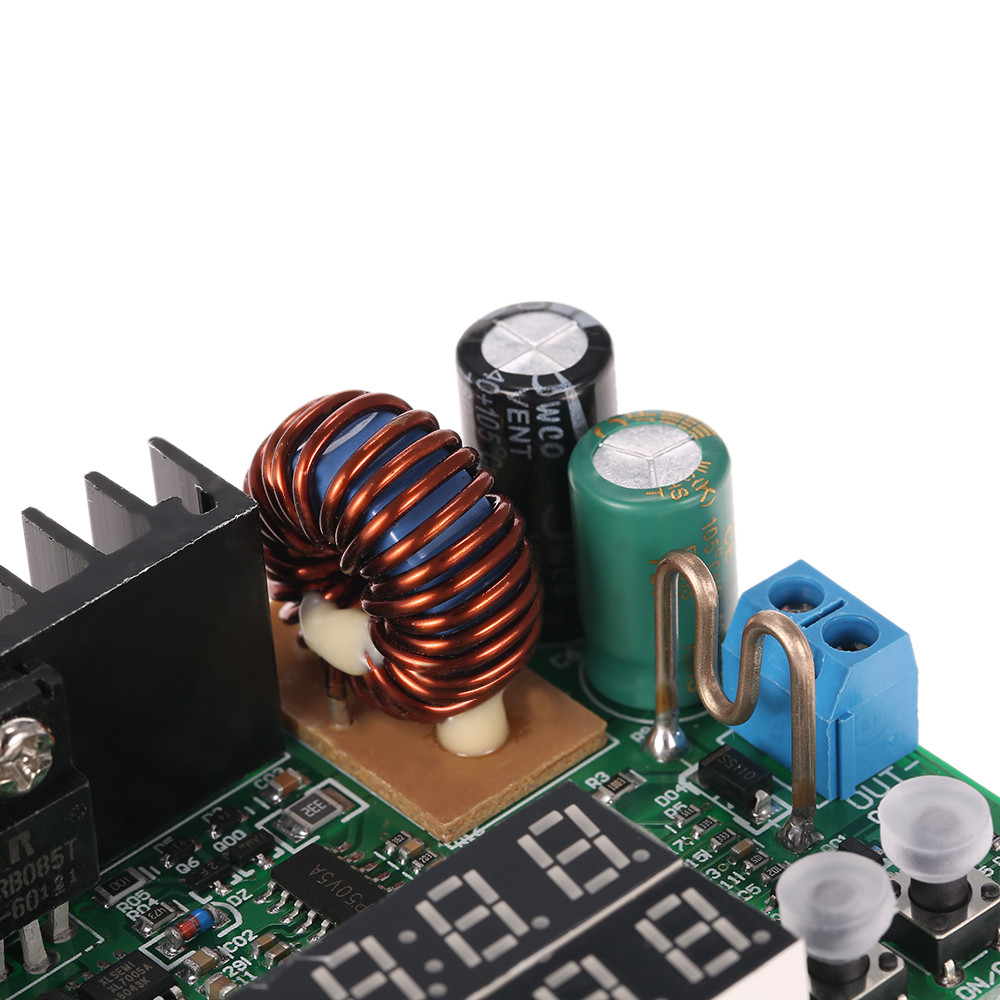

Digital Regulated Power Supply Step-down Module Useful Constant Voltage Current Input DC 6-40V Output 0-32V 5A
This DC-DC power supply module is digitally controlled step-down power with digital display, high power, high efficiency, stable performance. Input voltage 6-40V and output 0-32V, output current 0-5A; with LED digital display, it can display the output voltage/current, preset voltage/current and other parameters in real time.Features: Can precisely regulate the output voltage and current. Store setting value automatically: when power on next time, the default working state is the stored state. Fully digital display, easy and convenient to use. CC and CV indication: lED will lights corresponding to show CV or CC state. Digital LED display the output voltage, current and other parameters in real time. Open or close output by pressing "ON/OFF" button. Can set output voltage and current by pressing "SET" button. Switch input and output display function.Operating Instructions: 1. Open or close output: press ON/OFF button one time to open or close output in any state; press again, output will be closed or open, followed by recycling. When closed output, the LED display will show "OFF" 2. Set output voltage and current: Press SET shortly, the led display will be blinking. You can press the two buttons (+ key and - key) on the tube left to increase or decrease the value. Press SET key shortly again to switch 0.01V to 0.1V to 1V to 0.01A to 0.1A to 1A to exist adjustment, followed by recycling. At the corresponding value place, you can press the two buttons (+ key and - key) to increase or decrease the value. if you don't press the set key, the set mode will be automatically exited after 6s and the current set value will be automatically stored. 3. Switch input and output display: At no output state, press the two buttons on the tube left (IN key and OUT key) to switch the tube display between the current input voltage and the current output voltage. When show input voltage, "IN" LED lights; when show output voltage, "OUT" LED lights. 4. 4. CC and CV indication: When the module is in the state of constant voltage (CV) or constant current (CC), the CC or CV led will lights correspond to show CV or CC state. 5. Output current zero calibration: In the no-load state, Keep pressing SET key to power on, when the led display flashed, the calibration is done. Then you can loosen the SET key. 6. Store set value automatically: in operation process, the led display state, output current and output voltage setting value and output state are automatically stored. When power on next time, the default work state is the stored state.Specifications: Type: Non-removeable Digital Tube / Removable Digital Tube(Optional) Input Voltage: 6V-40V Output Voltage: 0-32V Output Current: 0-5.100A Output Power Range: 0-160W Output Voltage Resolution: 0.01V Output Current Resolution: 0.001A Output Voltage Accuracy: ±(0.5% + 1 digits) Output Current Accuracy: ±(1% + 3 digits) Ripple Wave(full load 40V to 32V/5A): About 100 mV VPP Product Weight: 67g / 2.39oz Product Dimension: 85 * 58 * 31mm / 3.35 * 2.3 * 1.22in(L * W * H)Note: The module with removable digital tube is convenient to refit with case. On the status of output, the Input must be 1 V higher than the output. Please strengthen the heat dissipation when working with big current.Package List: 1 * Digital DC-DC Step Down Module
