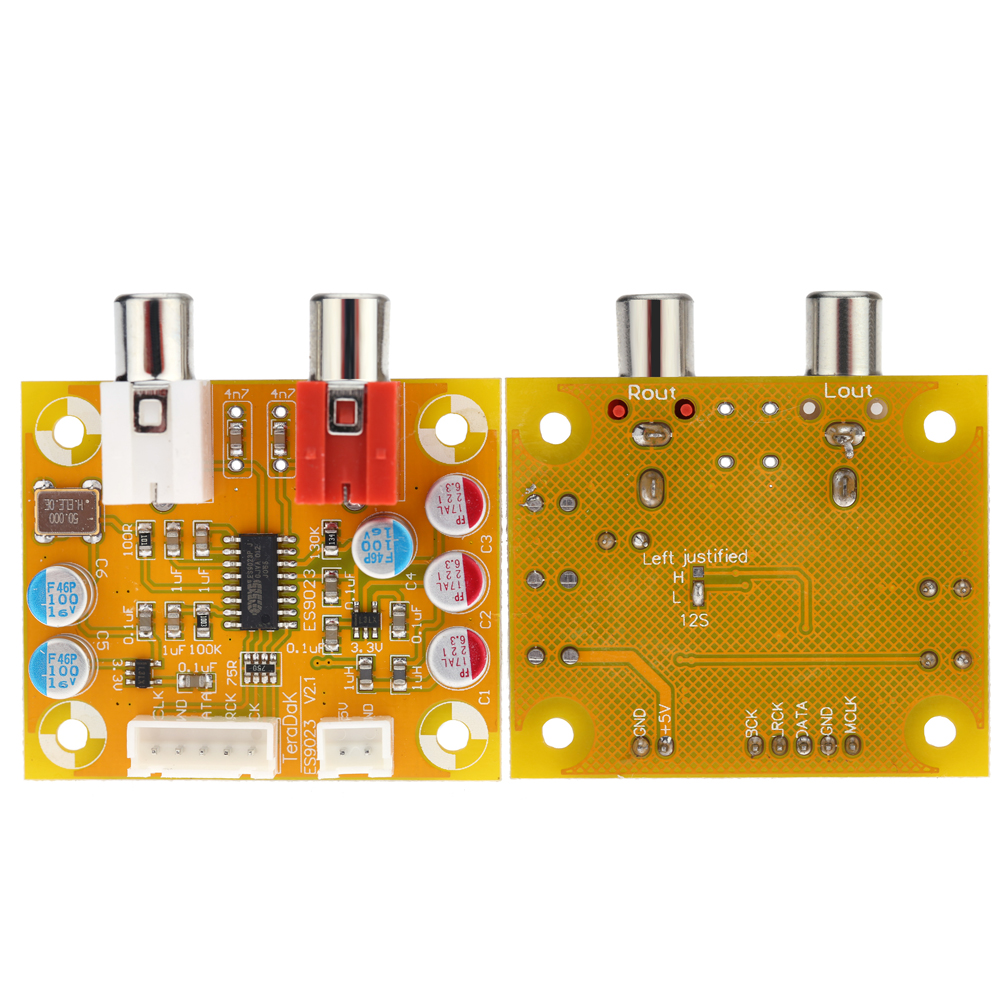

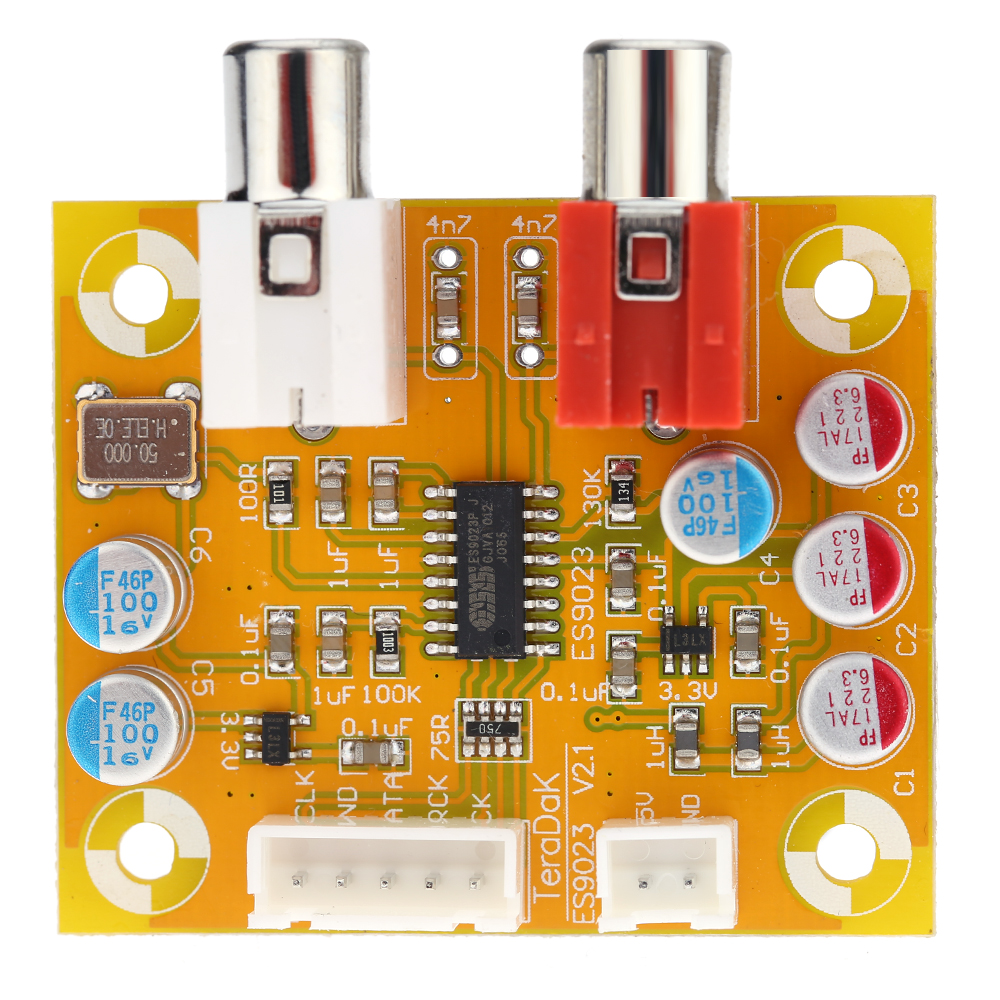

DAC Sabre ES9023 Analog I2S 24 Bit 192 KHz Decoder Board Mode Conversion stereo sound frequency mode conversion chip

ES9023 is a 24bit stereo sound frequency mode conversion chip (DAC), the use of advanced SABRE digital-analog conversion technology. The chip set the best sound quality, so that it's a good choice for a number of mode conversion.
Features:
ES9023 is a 24bit 192 KHz stereo sound frequency mode conversion chip (DAC).
Uses advanced SABRE digital-analog conversion technology.
Offering direct analog outputs, this module is great for all DIY projects.
Its high versatility enables it to be used directly.
Specifications:
Input: I2S
Output: RCA
Sampling Rates Supported: 16 / 24 bit 192KHz
Connectors Delivered
Remote Connections: 29cm
RCA Distance: 20mm
Spacing: 40 * 32mm
PCB Size: 50 * 42mm

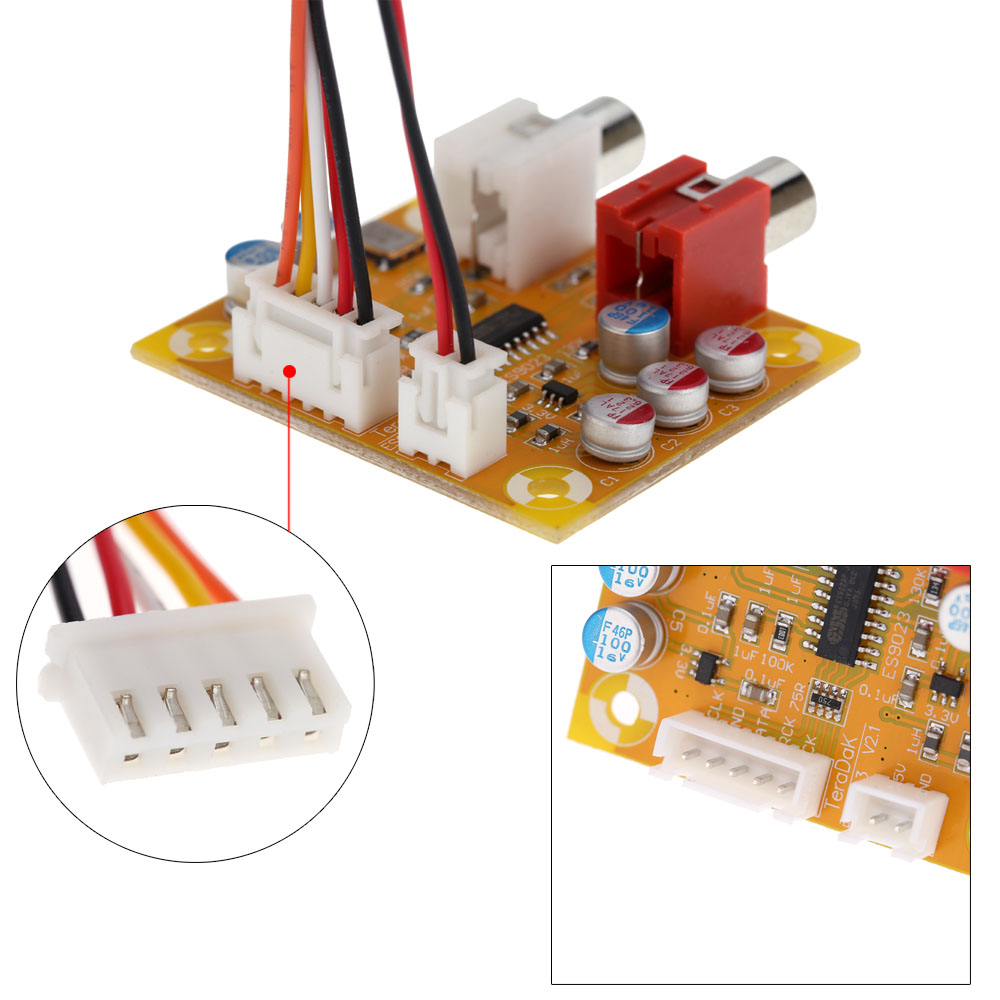

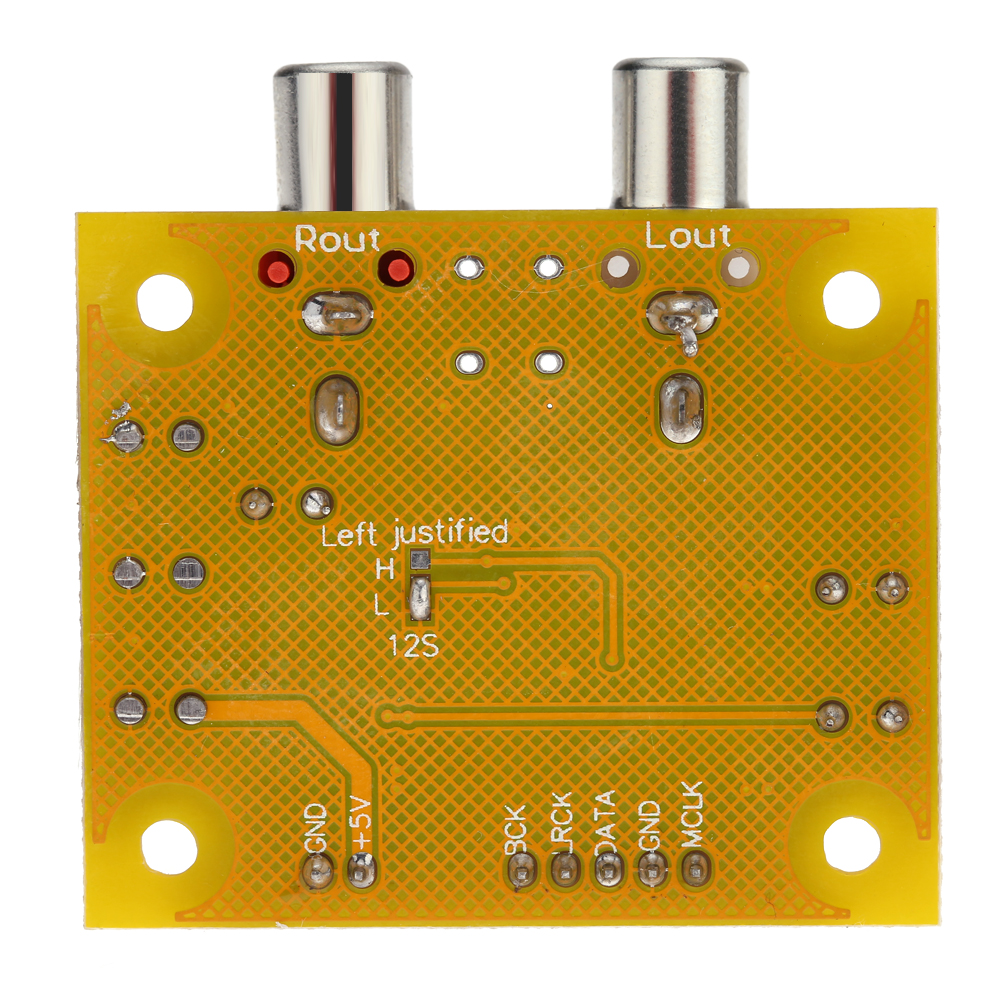

I2S Link Line:
Orange Line: MCLK
Yellow line: GND
White Line: DATA
Red Line: LRCK
Black Line: BCK

5V Power Input:
Black Line: GND
Red Line: +5V

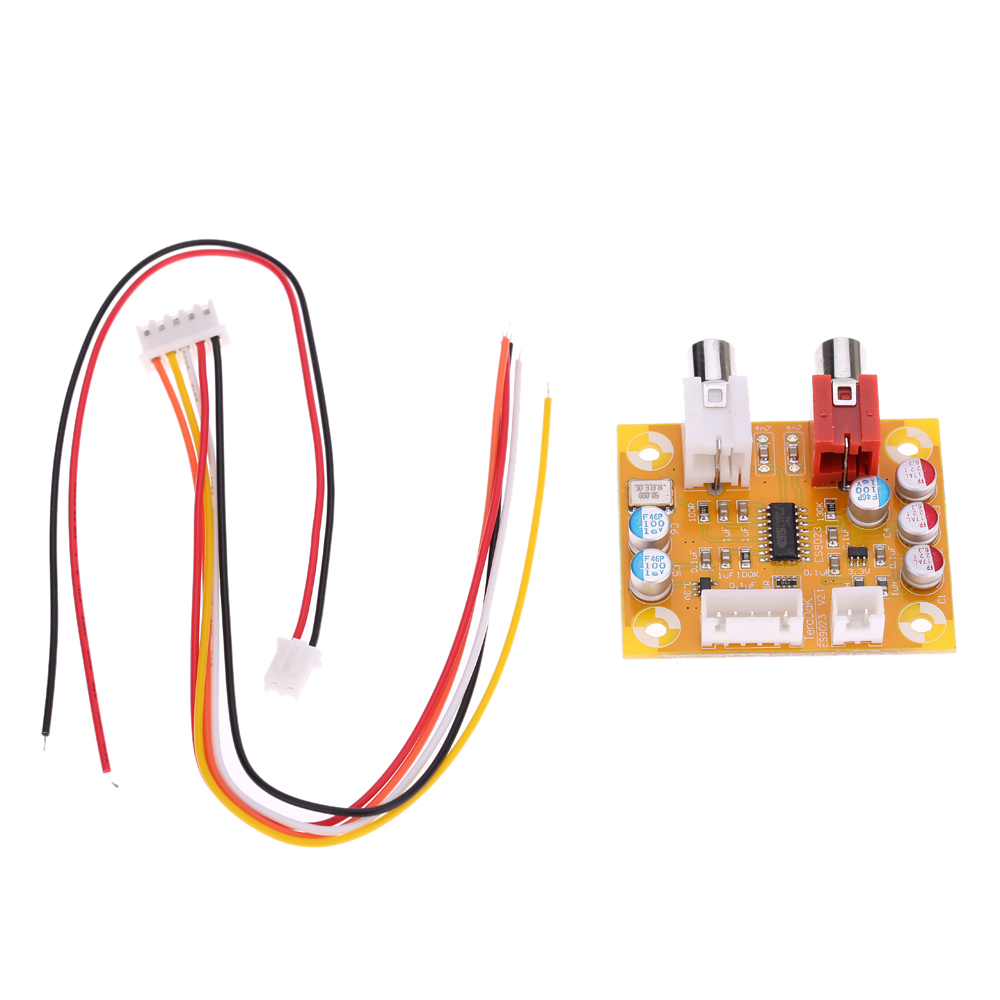

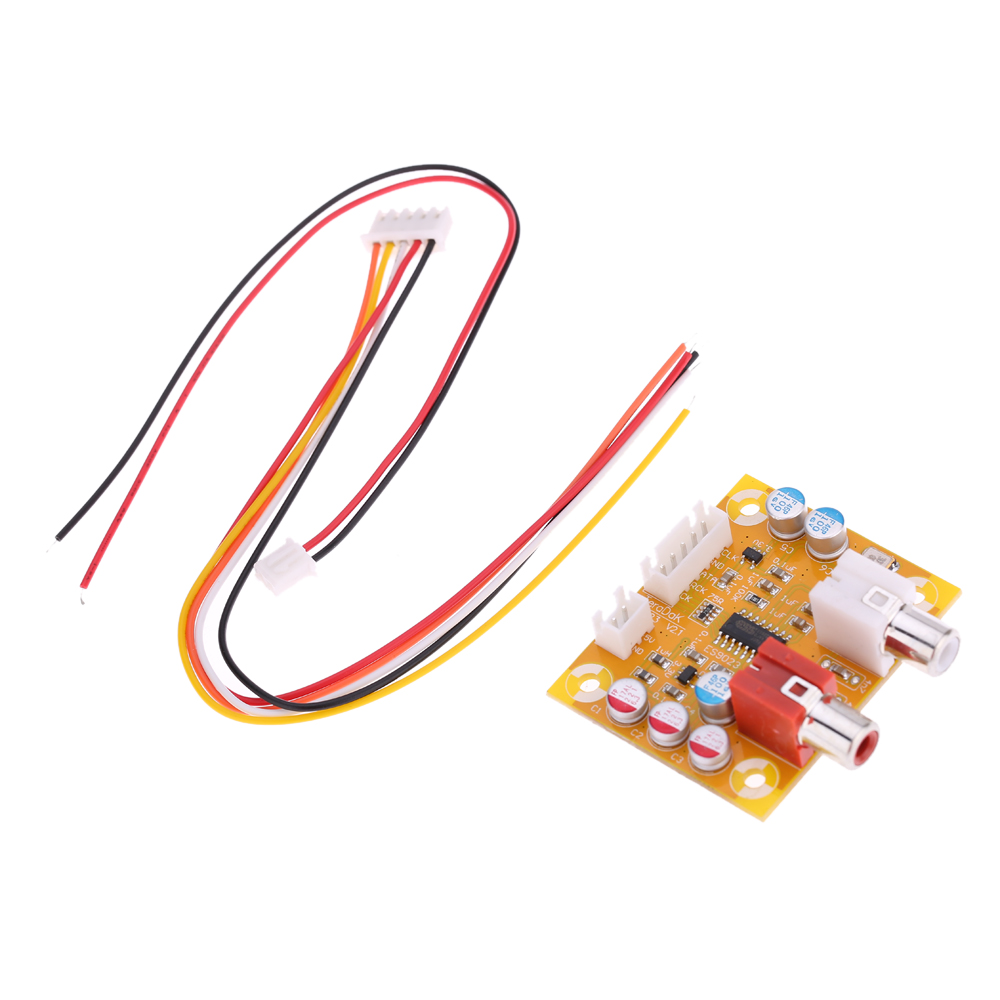

Package List:
1 * ES9023 Decoder Board
