DDS Function Signal Generator DIY Kit Signal Sine Square Sawtooth waveform generator Wave DIY Parts Source Electronic Components

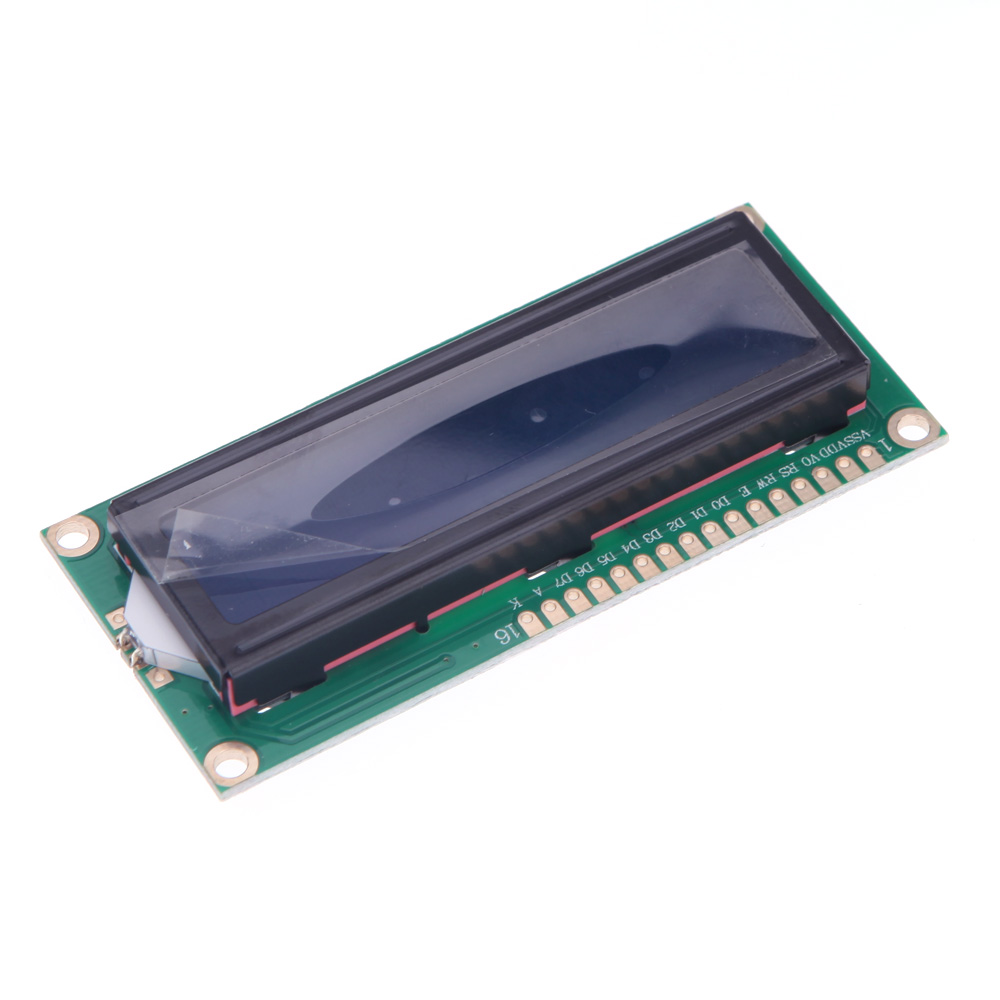

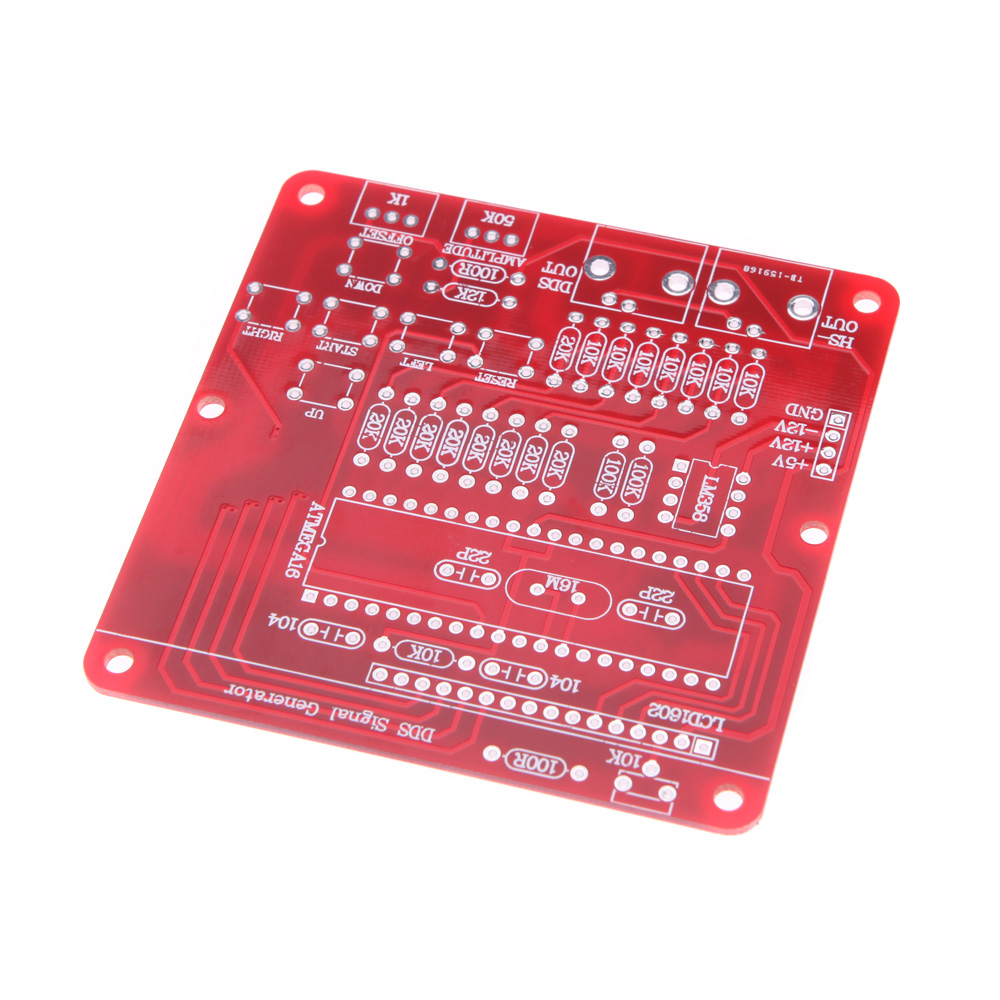

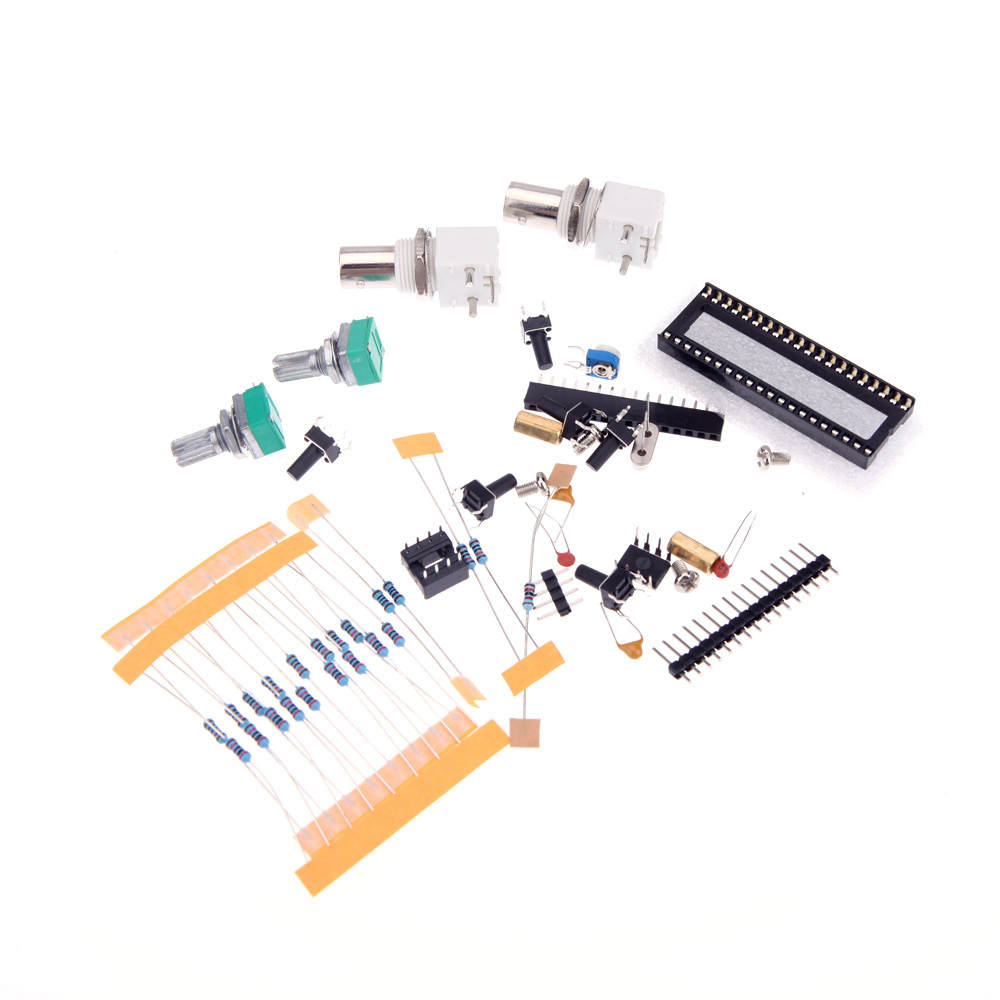

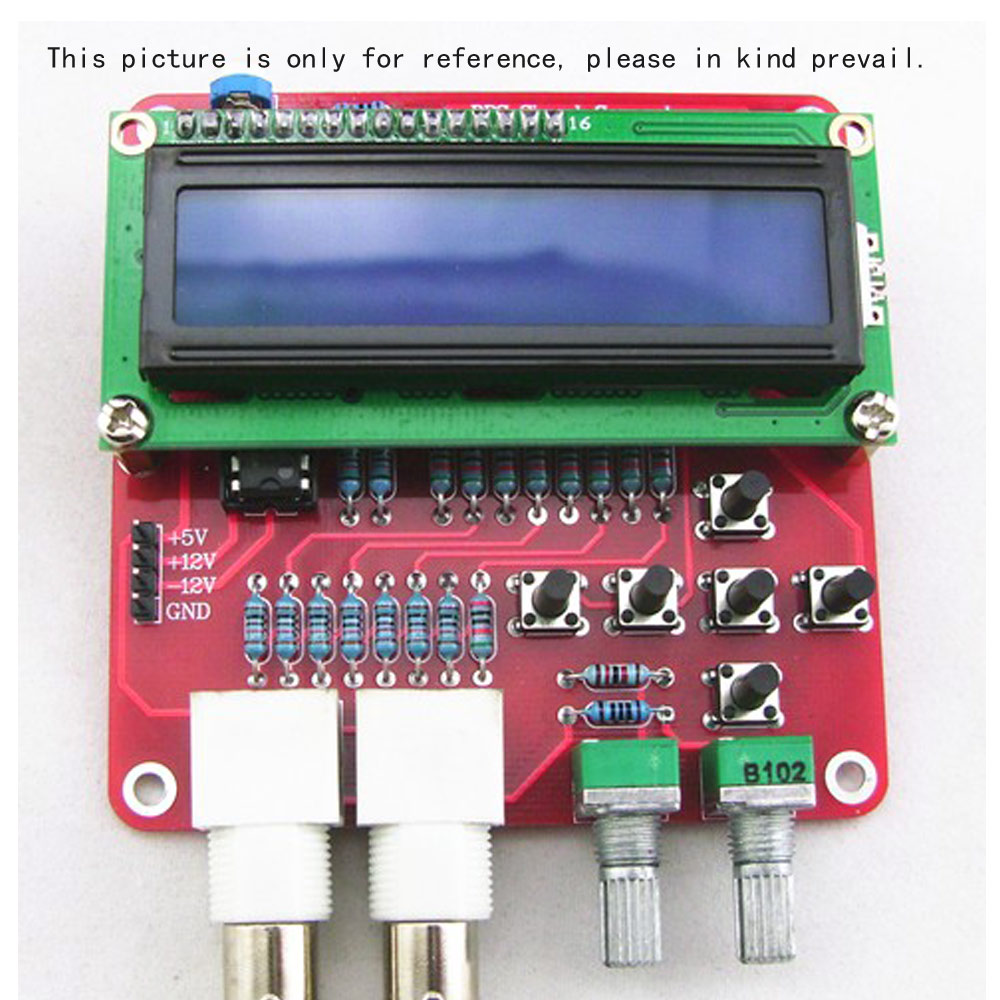

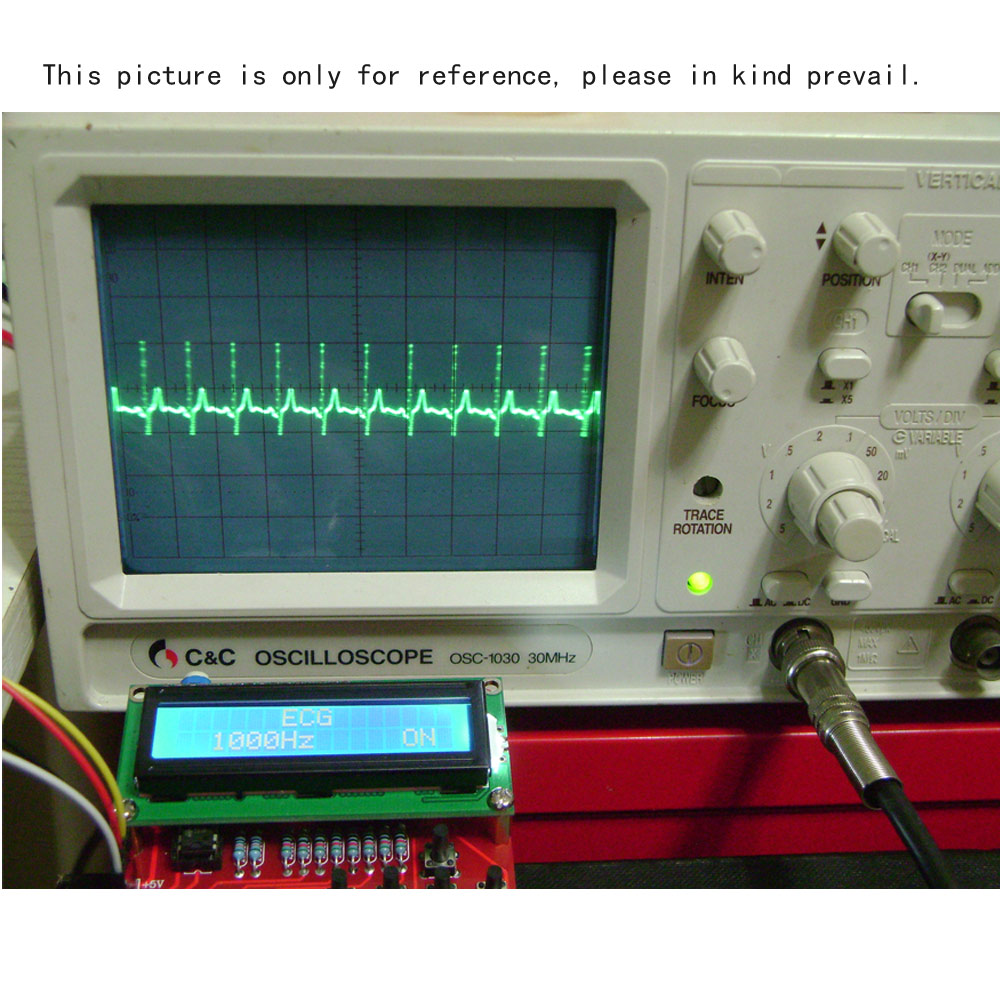

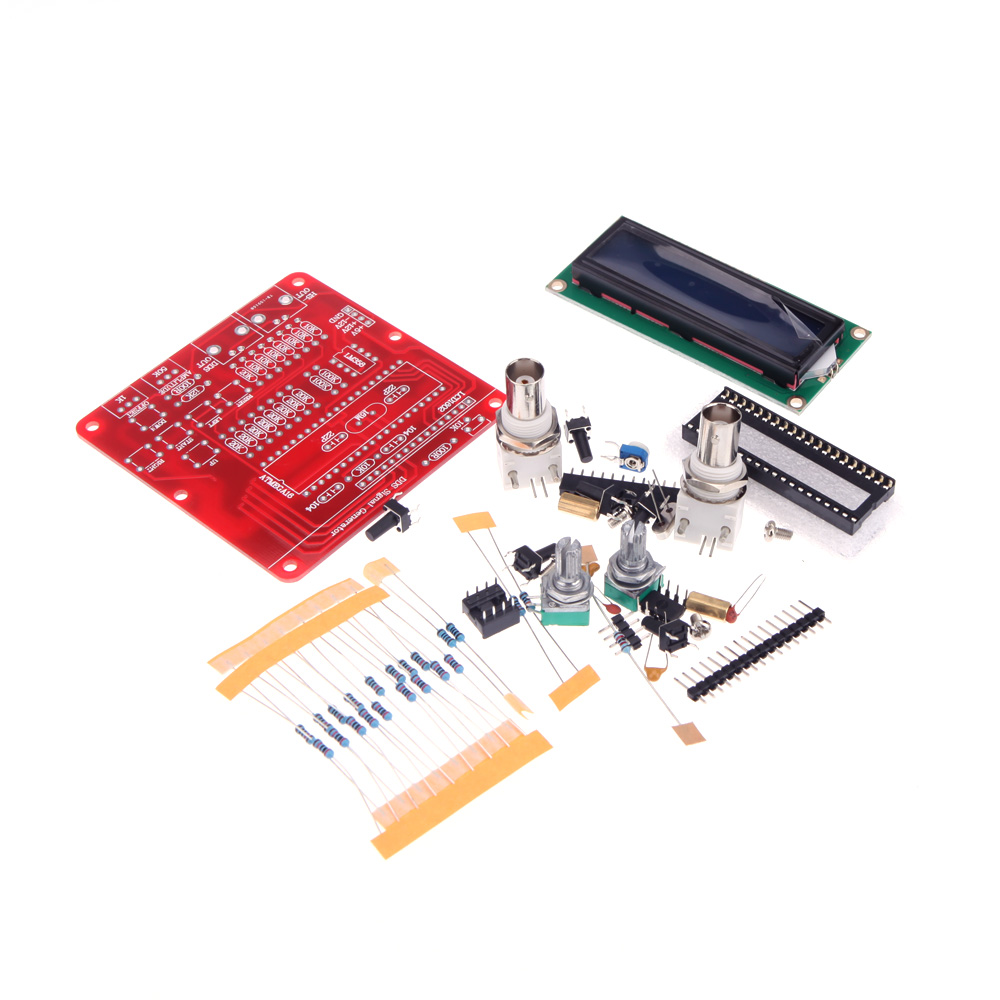

Features: Provided lots of electronic components for you to do it by yourself. Simple circuit with easily accessible and cheap components. Delicated high speed (HS) signal output up to 8MHz. DDS signal with variable amplitude and offset. DDS signals: sine, square, saw, rev saw ,triangle, ECG and noise. 2 * 16 LCD menu, intuitive 5 button keypad. Frequency adjusting steps: 1, 10, 1000, 10000MHz. Restoring last configuration after power up. Has two outputs-one for DDS signal and another for high speed aquare signal.Installation Detail: https://www.dropbox.com/s/z0ktc666sct1gj1/H11887install.pdf?dl=0Specifications: Material: PCB + Electronic Components Power Supply: +5V / +12V / -12V Menu Displey: 2 * 16 LCD HS Signal Frequency: 1, 2, 4, 8MHz Red Board Size: 8 * 8cm / 3.15 * 3.15in (L * W) Red Board Weight: 20g / 0.7oz Screen Size: 6.5 * 1.5cm / 2.6 * 0.6in (L * W) Screen Board Weight: 29g / 1.04oz Package Size: 15 * 11 * 2cm / 5.9 * 4.3 * 0.8in (L * W * H) Package Weight: 101g / 3.58ozPackage List: 1 * Bag of Electronic Components
