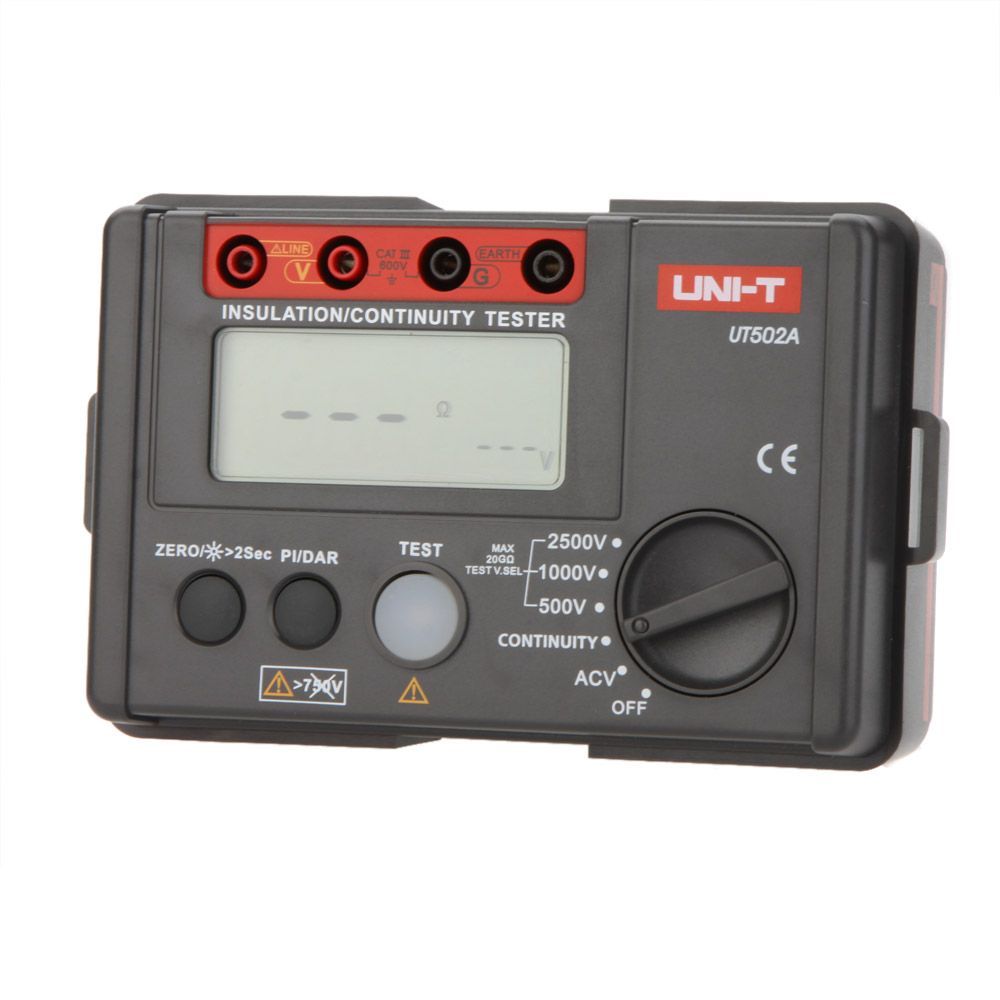

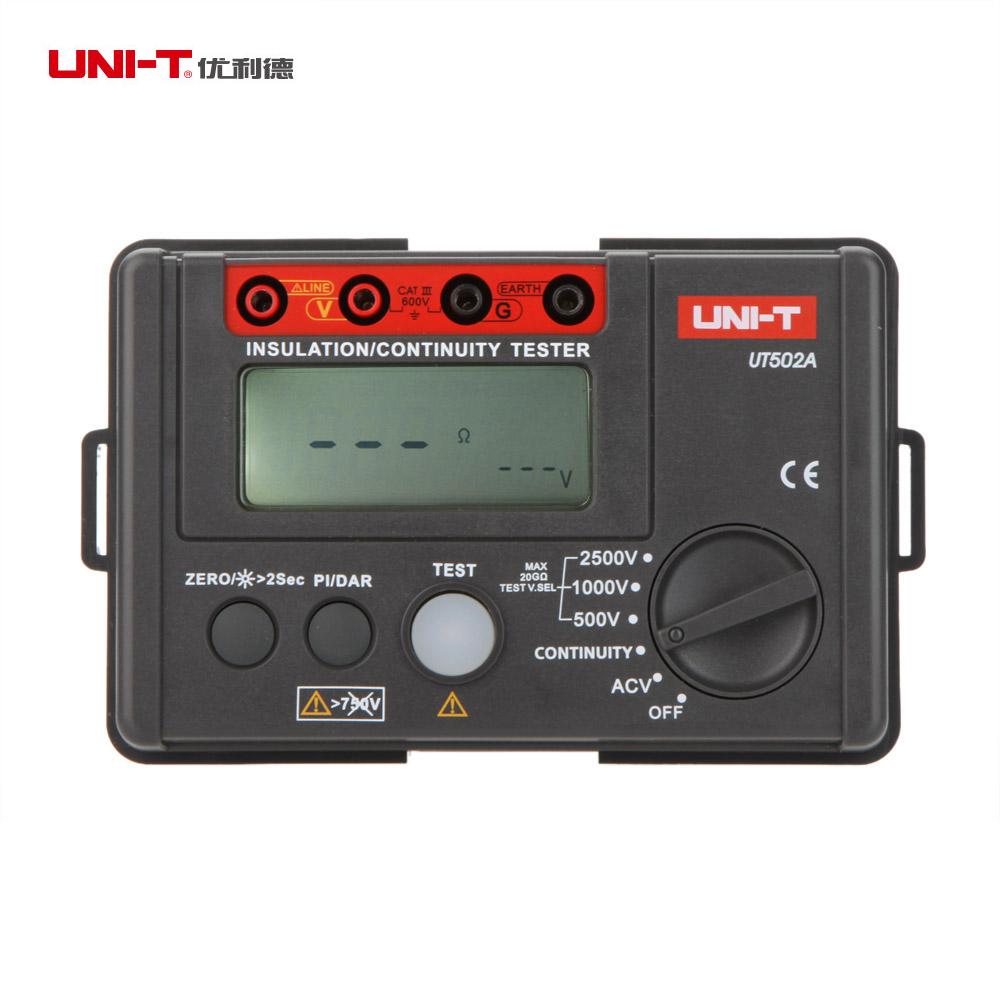

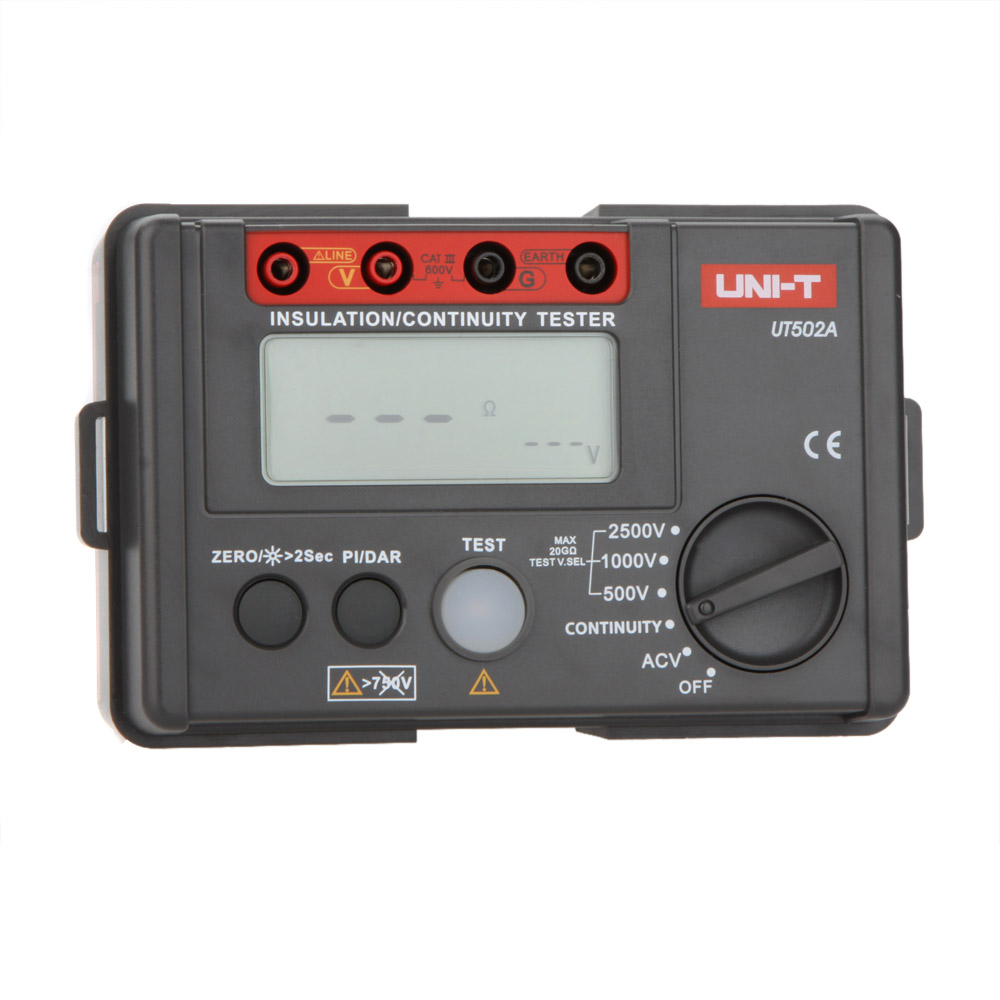

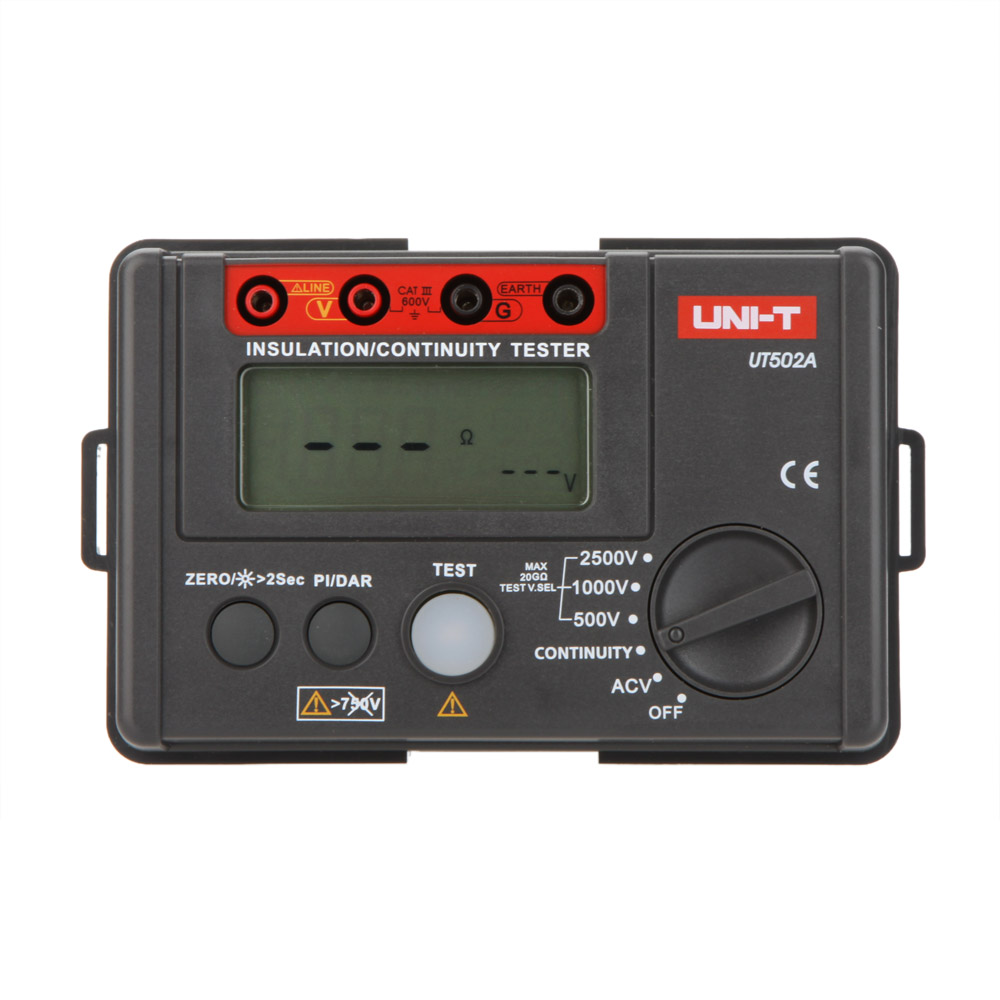

UNI-T UT502A esr meter 2500V Insulation Resistance Tester Megohmmeter Voltmeter Continuity Tester megger diagnostic-tool

Features:
DAR: √
PI: √
Auto Range: √
Low Battery Indication: √
LCD Backlight: √
Alarm Light Display: √
Alarm Buzzer: √
High Voltage Indication: √
Over Load Indication: √
Auto Disharge: √
Test Voltage Vice Display: √
Specifications:
Model: UT502A
Insulation Resistance(Ω): Test Voltage: 500V/1000V/2500V 0%~10%
500V: 0.00MΩ~99.9MΩ ±(3%+5) ; 100MΩ~5.5GΩ ±(5%+5)
1000V: 0.00MΩ~99.9MΩ ±(3%+5) ; 100MΩ~5.5GΩ ±(5%+5)
2500V: 0.00MΩ~99.9MΩ ±(3%+5) ; 100MΩ~9.9GΩ ±(5%+5) ; 10.0GΩ~20.0GΩ ±(10%+5)
Load Current: 500V(R=500KΩ) 1mA 0%~10% ; 1000V(R=1MΩ) 1mA 0%~10% ; 2500V(R=2.5MΩ) 1mA 0%~10%
Short Circuit Current: <2mA
CONTINUITY(Ω): Test Voltages: about 5.0V ±(2%+3) ; 0.01Ω~200Ω ±(2%+3); Max Current: >200mA
AC Voltage (V): 30V~750V ±(2%+3)
General Characteristics:

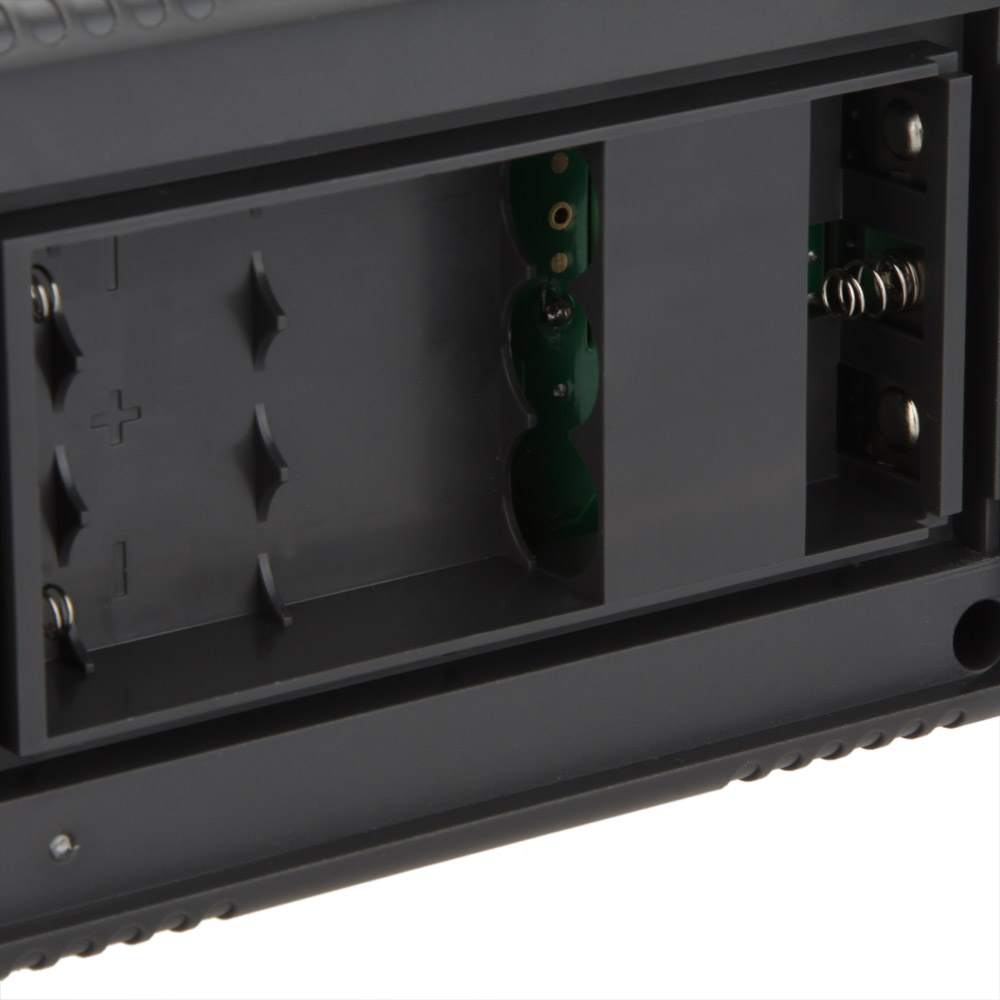

Power: 6 * 1.5V Alkaline Batteries (not included)
LCD Size: 65mm x 27mm
Product Net Weight: 500 g
Product Size: 150mm * 100mm * 71mm
Product Color: Red and Grey
Package Size: 18.5 * 15 * 9cm / 7.3 * 5.9 * 3.7in
Package Weight: 757g / 1.7lb

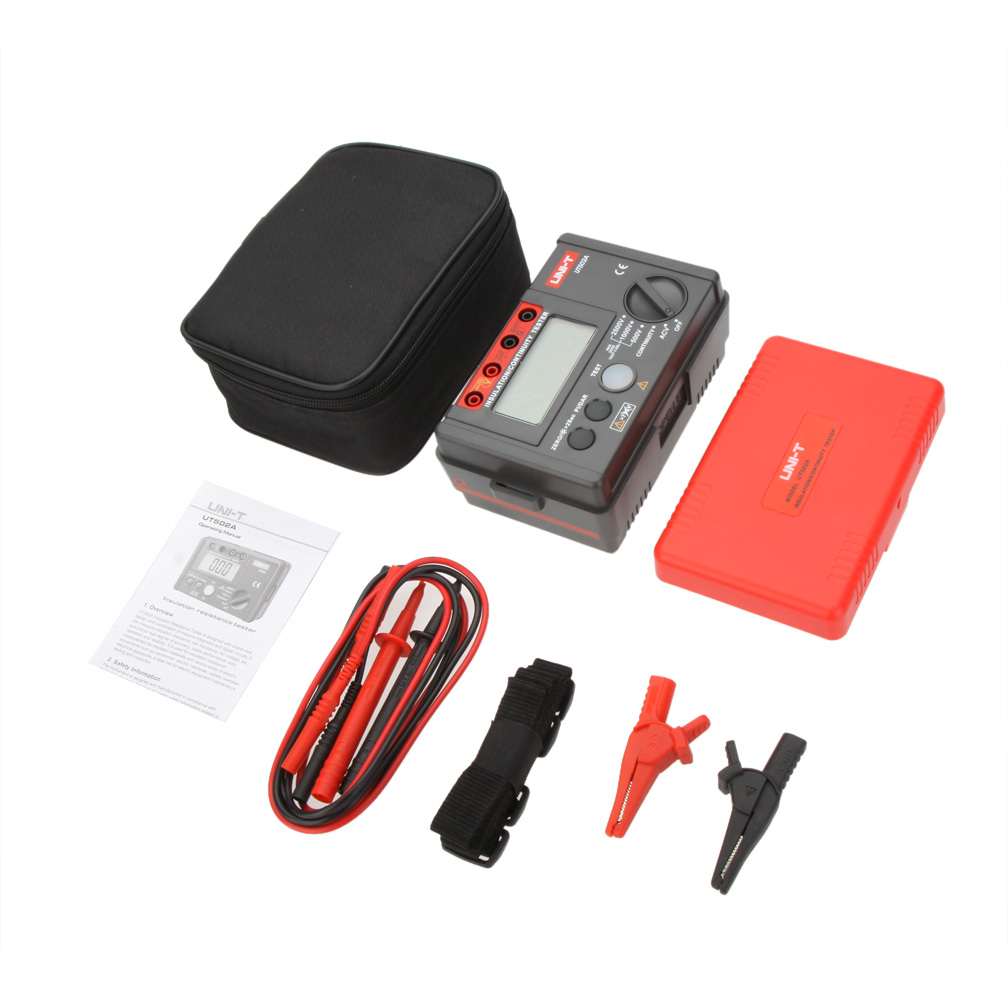

Package List:

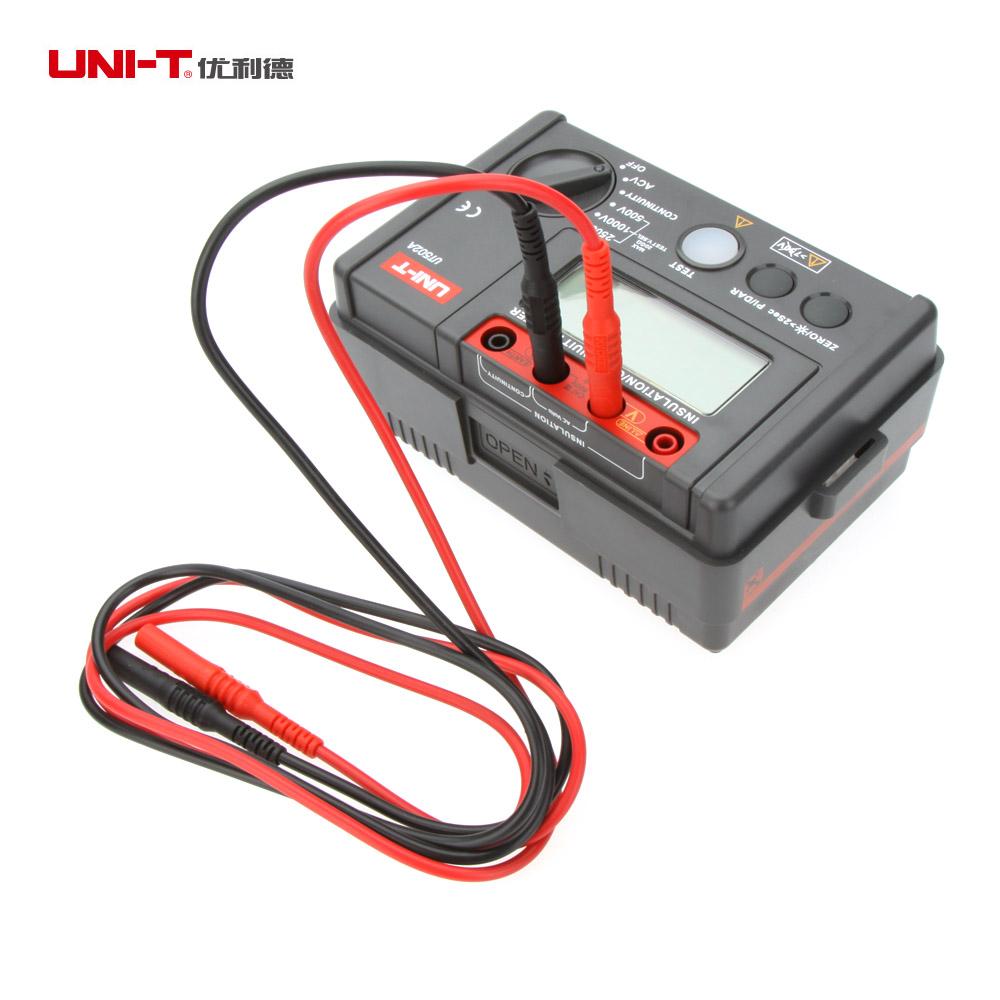

1 * UNI-T UT502A Insulation Resistance Meter
1 * Pair Test Lead
1 * Pair Alligator Clips
1 * Carrying Bag
1 * English Manual
