Digital Ammeter Voltmeter Coulomb Counter Wireless Voltage Current Tester Power Meter Bi-directional DC 0.01-120VDiagnostic-tool

This meter can measure DC voltage, current, power, charge and discharge capacity, watt, time and other parameters in both directions. With LCD display, several parameters displayed on the screen at the same time, is convenient for readings. At the same time, it also has many protecting functions, such as over-voltage protection, over-current protection, under-voltage protection, limit protection, etc.
Features:

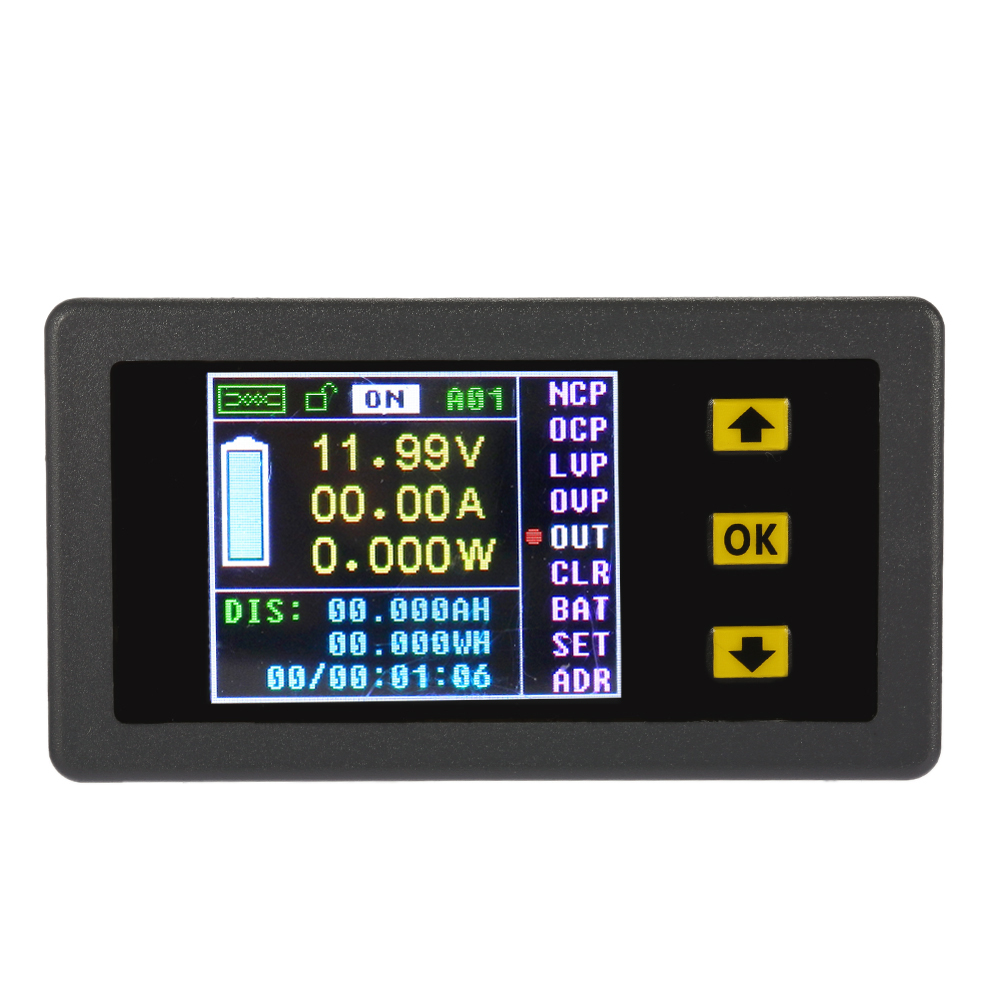

LCD color display voltage, current, power, capacity and time, etc.
Several parameters displayed on the screen at the same time, easy to read.
Bi-directional measurement of the current, no need to change the wiring direction.
Wireless data transmission between the meter and measuring board, convenient for use.
Set each address individually, and view the measurement parameters from plurality of measuring board in one meter.
When use multiple machines simultaneously, the machine can be set individually for each channel to avoid mutual interference.

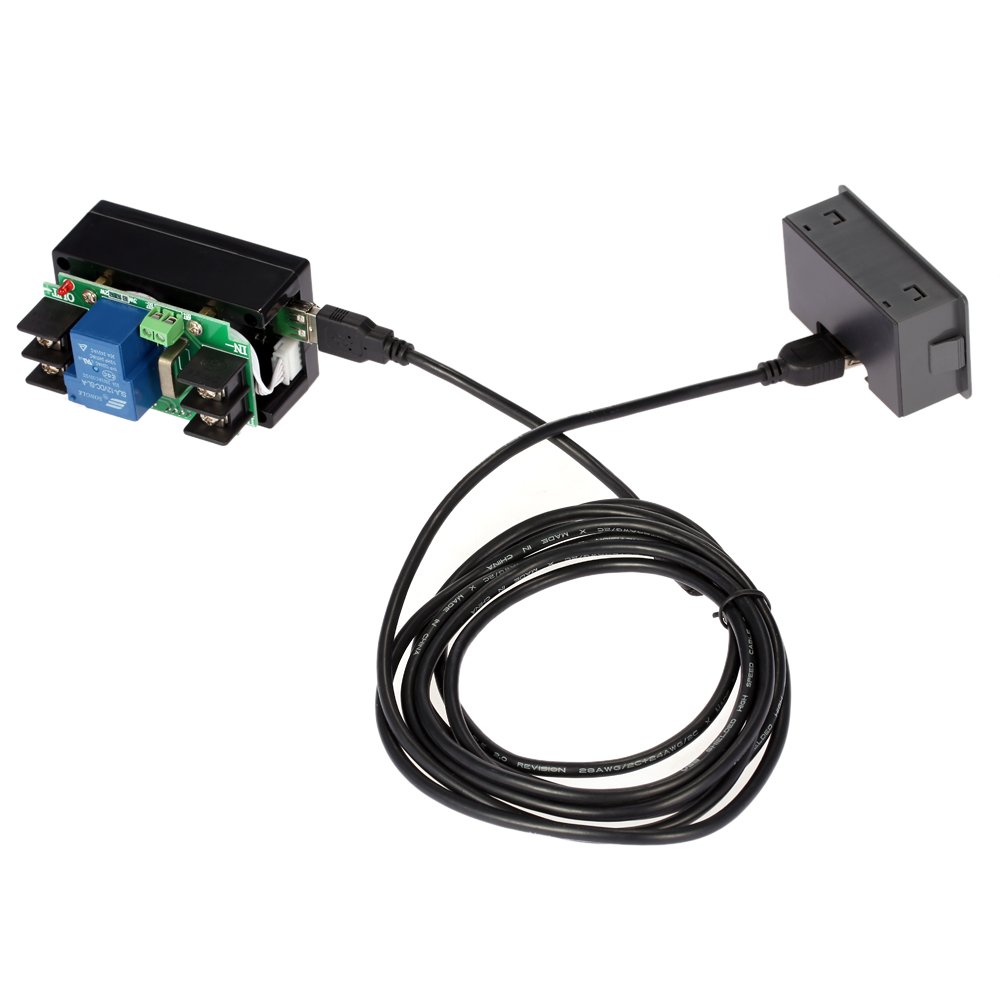

You can also use standard USB cable for wired communication.
With memory function when powered off.
Screen lock, timing off, adjustable brightness functions.
VAC-1030A equipped with relay to achieve over-voltage/over-current/under-voltage, limit protection, etc.
Suitable for monitoring the output voltage and current, as well as the battery charge and discharge applications.
Small size, light weight, convenient to carry.
Note:
VAC-1100A and VAC-4300A can also achieve the protecting functions like VAC-1030A's, but users need to buy the relay separately.
Specifications:
Model Type: VAC-1030A
Voltage Measuring Range: 0.01-120V(VAC-1030A);
Voltage Accuracy: 0.01V
Voltage Error: (+/-)1%+5 figures
Current Measuring Range: 0.01-30A(VAC-1030A);
Current Accuracy: 0.01A(VAC-1030A);
Current Error: (+/-)2%+5 figures
Power Measuring Range: 0-200KW
Capacity Measuring Range: 0-2000KAH
Watt Measuring Range: 0-4000KWH
Time Measuring Range: 0-999 Days
Address Range: A01-A99
Wireless Channel Setting Range: A-Z
Decimal display section will change automatically as data bits shift, for example, it display as 00.000AH,
when the display exceeds 100AH, the display becomes 000.00AH
NCP: 0.01-30A(VAC-1030A);
OCP: 0.01-30A(VAC-1030A);
OVP: 0.01-120V(VAC-1030A);
LVP: 0.01-120V(VAC-1030A);
Display: LCD display
Time Delay Protection: 0-10S
Measurement Power Consumption: 0.4W
Display Power Consumption: 0.5W
Sampling Rate: 5 times/s
Communication Distance: 10m for single group in open area
Meter Power Supply: USB DC 5V or DC 10-30V
USB Cable Length: 3m

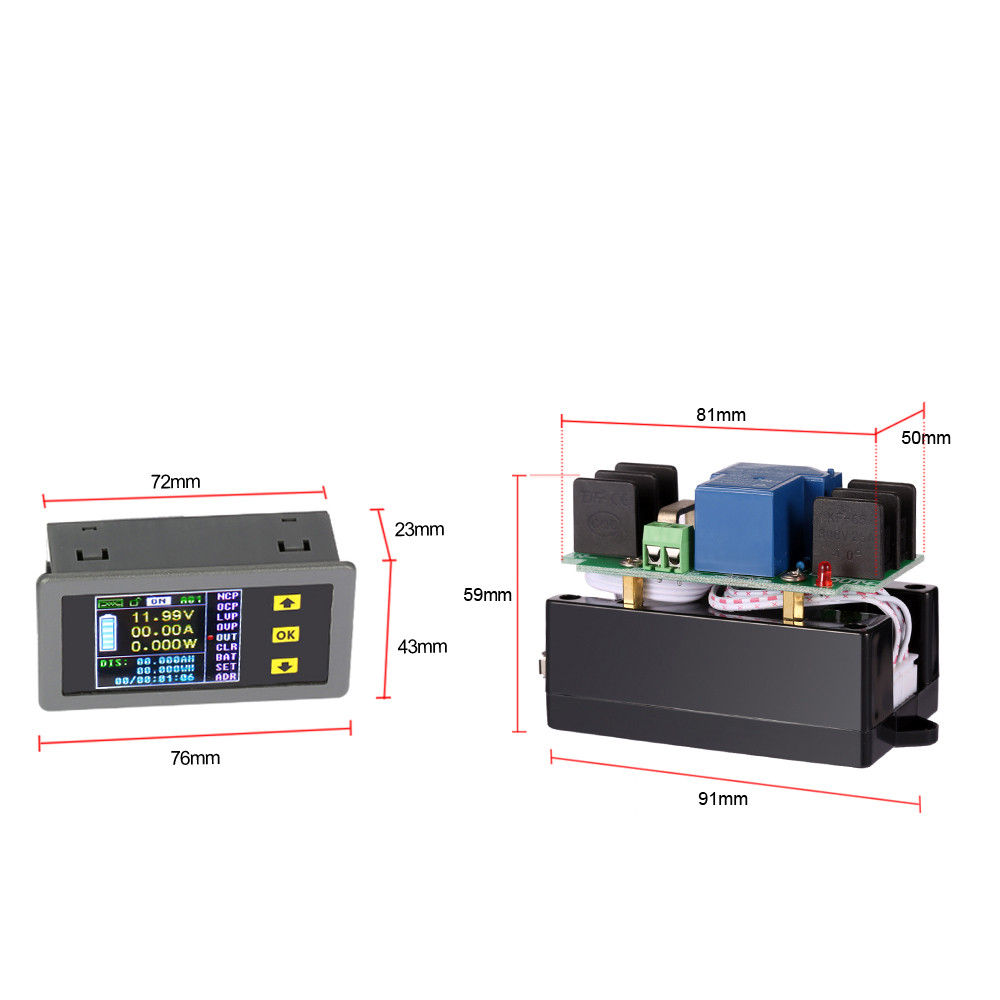

Meter Size: 76 * 43 * 23mm / 3 * 1.7 * 0.9in
Meter Weight: 37g / 1.32oz
Measuring Module Size: 91 * 59 * 50mm / 3.58 * 2.32 * 1.97in
Measuring Module Weight: 133-271g / 4.71-9.58oz
Package Size: 13 * 11 * 9cm / 5.12 * 4.33 * 3.54in
Package Weight: 340-480g / 12-17oz

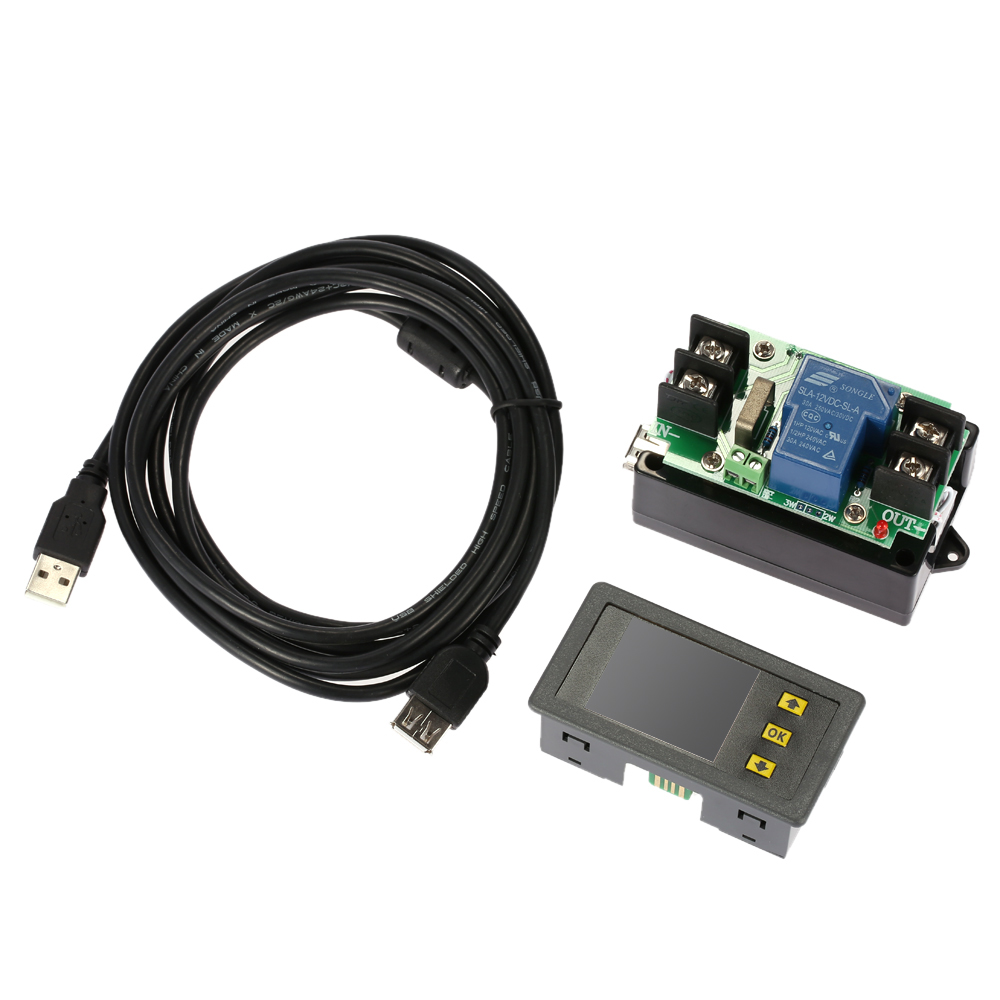

Package List:

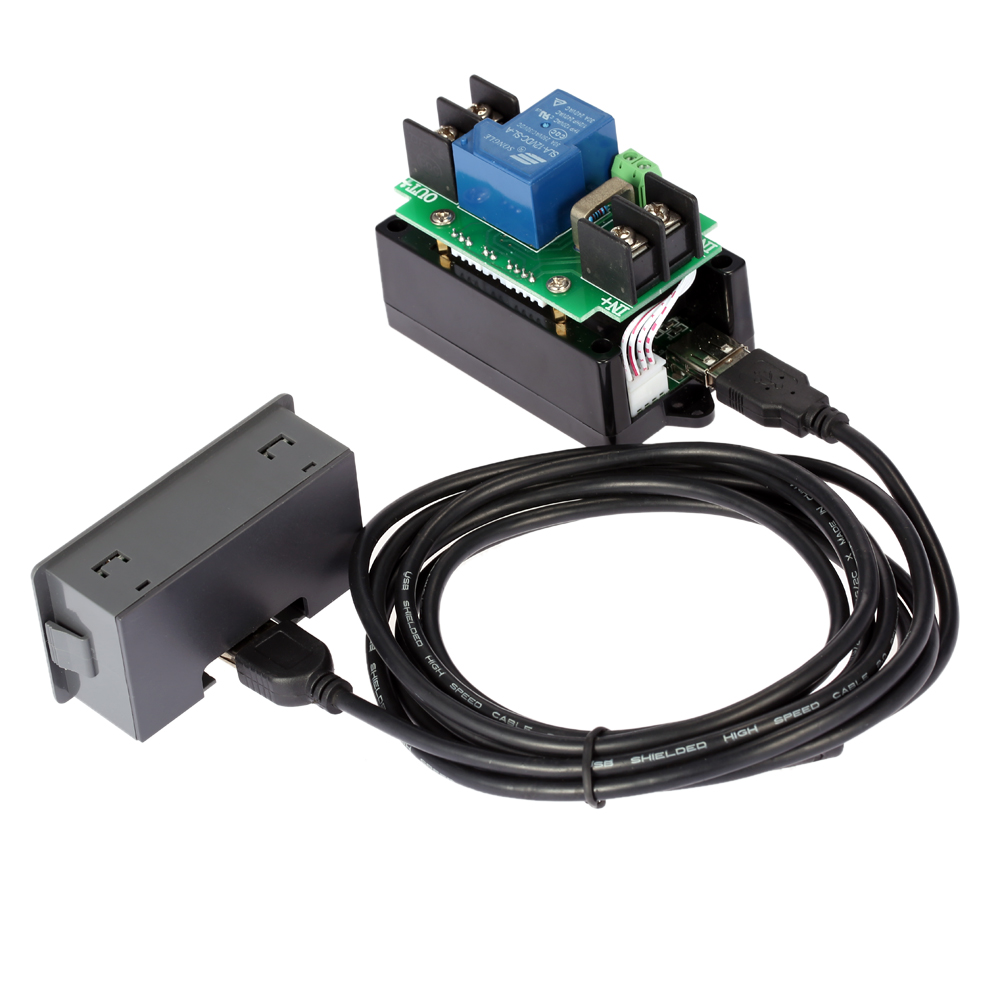

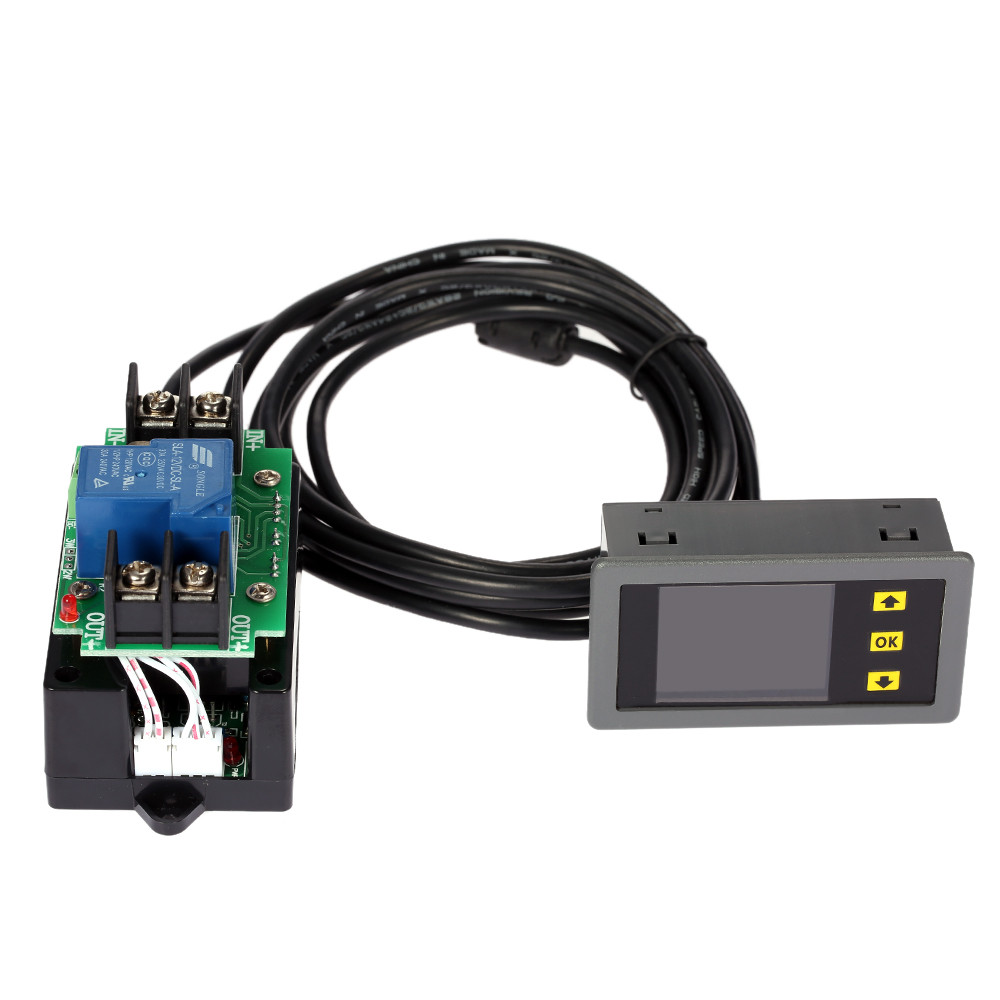

1 * Wireless DC Voltmeter

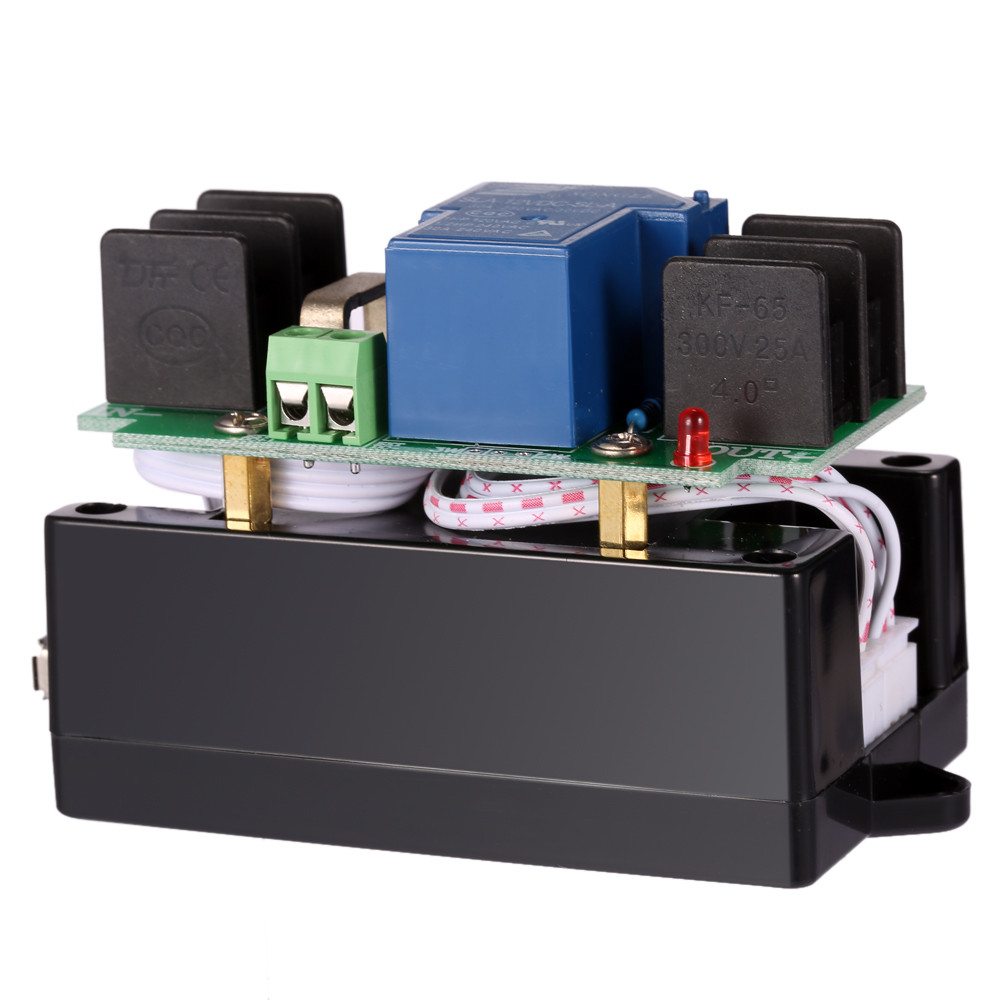

1 * Measuring Module Board
1 * 3m USB Expansion Cable
English User Manual:
VAC-1030A: https://www.dropbox.com/s/6vlyoyxrtnkks2x/E1834-1%20User%27s%20manual.doc?dl=0
