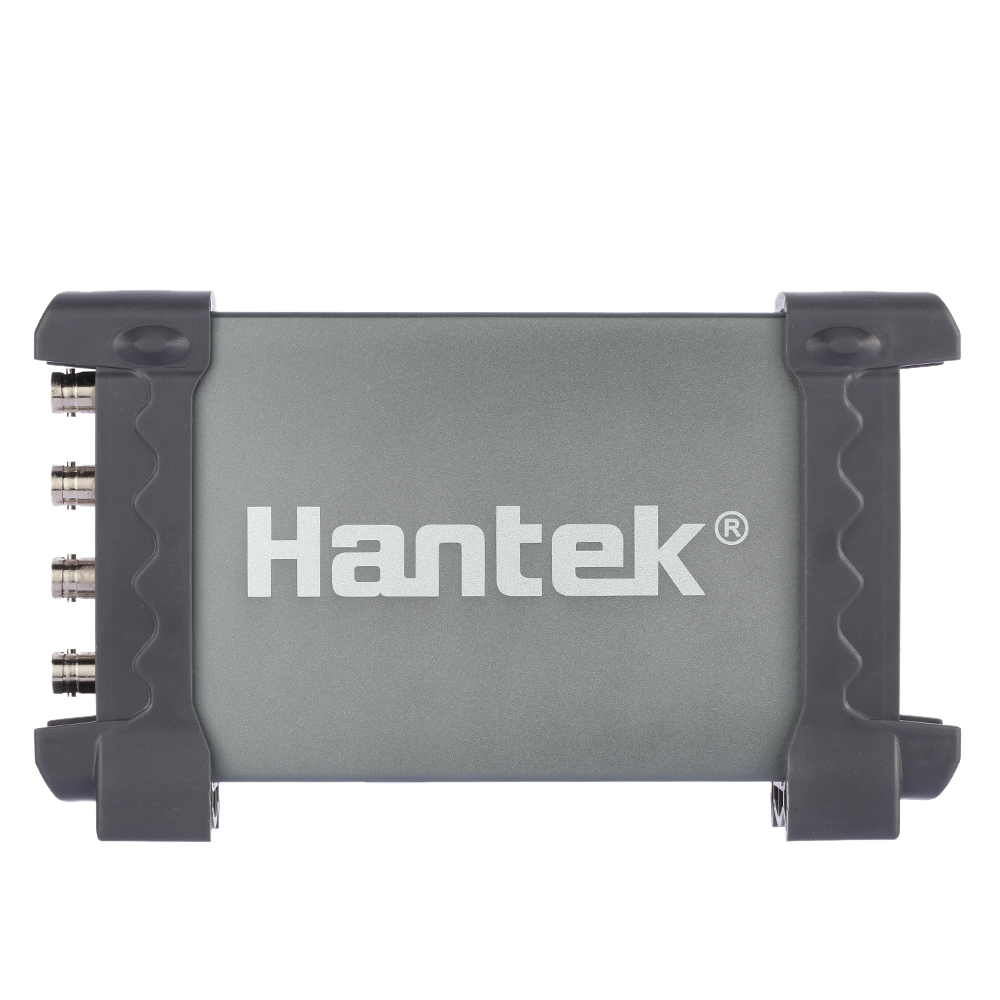

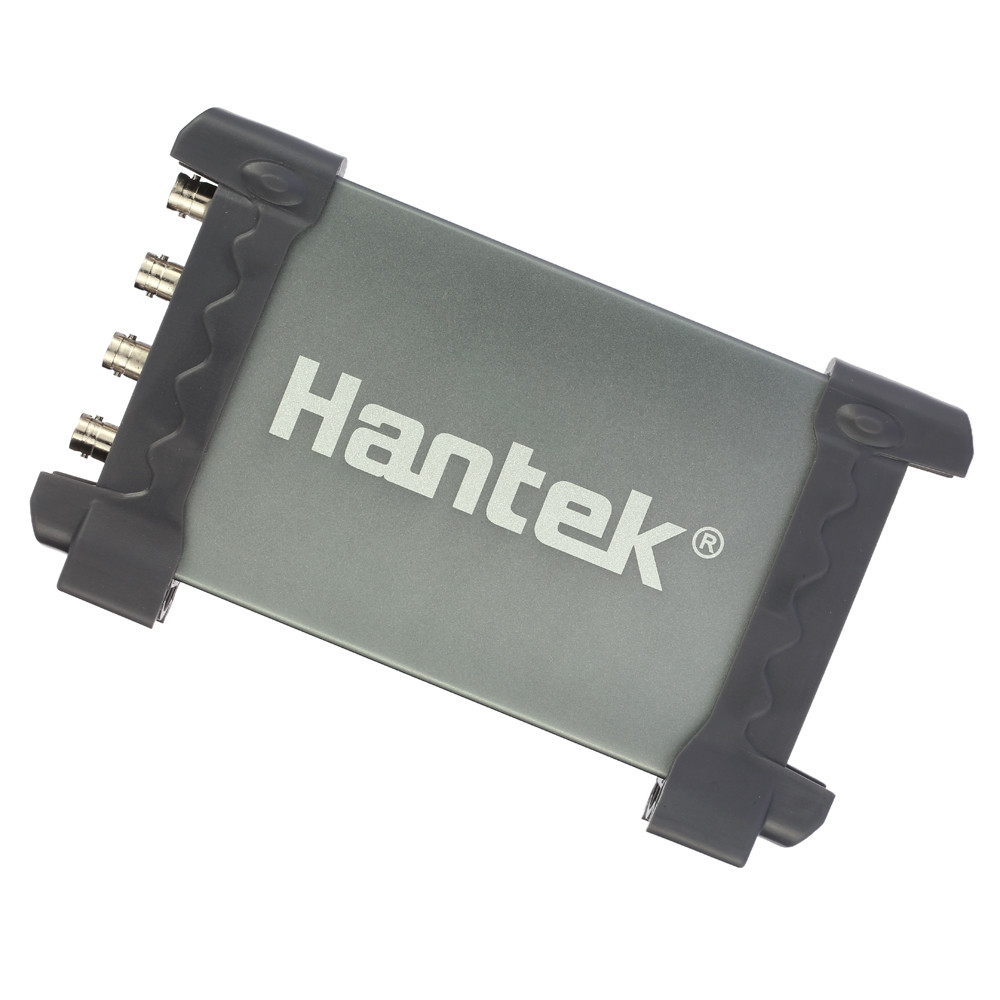

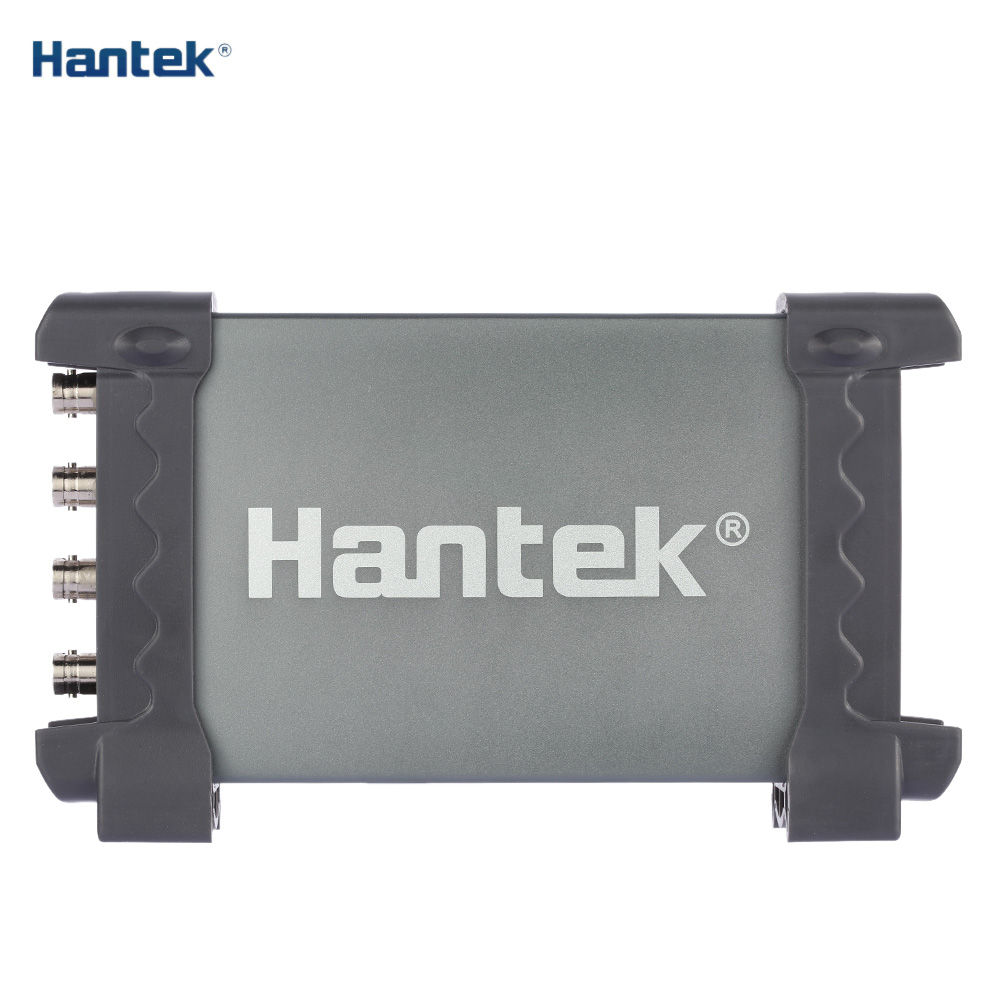

Professional Car Diagnostic Oscilloscope PC USB2.0 100MHz 4 CH Automotive Diagnosis Equipment Automobile Diagnostic Instrument

Standard equipped over 80 types of automotive measurement function (Ignition Action/The Sensor/Bus Diagnosis/Performer/Startup&Charge), USB 2.0 interface plug and play, and need no extra power supply, Support tablet PC, Support WIN10/ WIN8/WIN7 etc. Free software upgrading constantly, higher cost performance, Support USBXI, easy to operate. 4 isolated channels oscilloscope, 1GSa/s real time sampling rate, 2mV-10V/DIV high input sensitivity and large input range, 70MHz/100MHz/200MHz/250MHz high bandwidth, small size, easy to carry. Dynamic cursor tracking, waveform record and replay function.
Features:
Standard equipped over 80 types of automotive measurement function:
      First Diagnosis: Intake manifold vacuum & ignition, Petrol fumes adjusting valve vacuum & ignition, Idle exhaust ignition, Starting exhaust ignition;
      Ignition: primary and secondary;
      Sensor: Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position;
      Bus Diagnosis: CAN bus data examine, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus;
      Performer: Petrol/Diesel;
      Starter and charging circuits.
Fit for the portable computers, table PC, and suitable for wild mobile use and business trip use. Support WIN10/ WIN8/WIN7 etc.

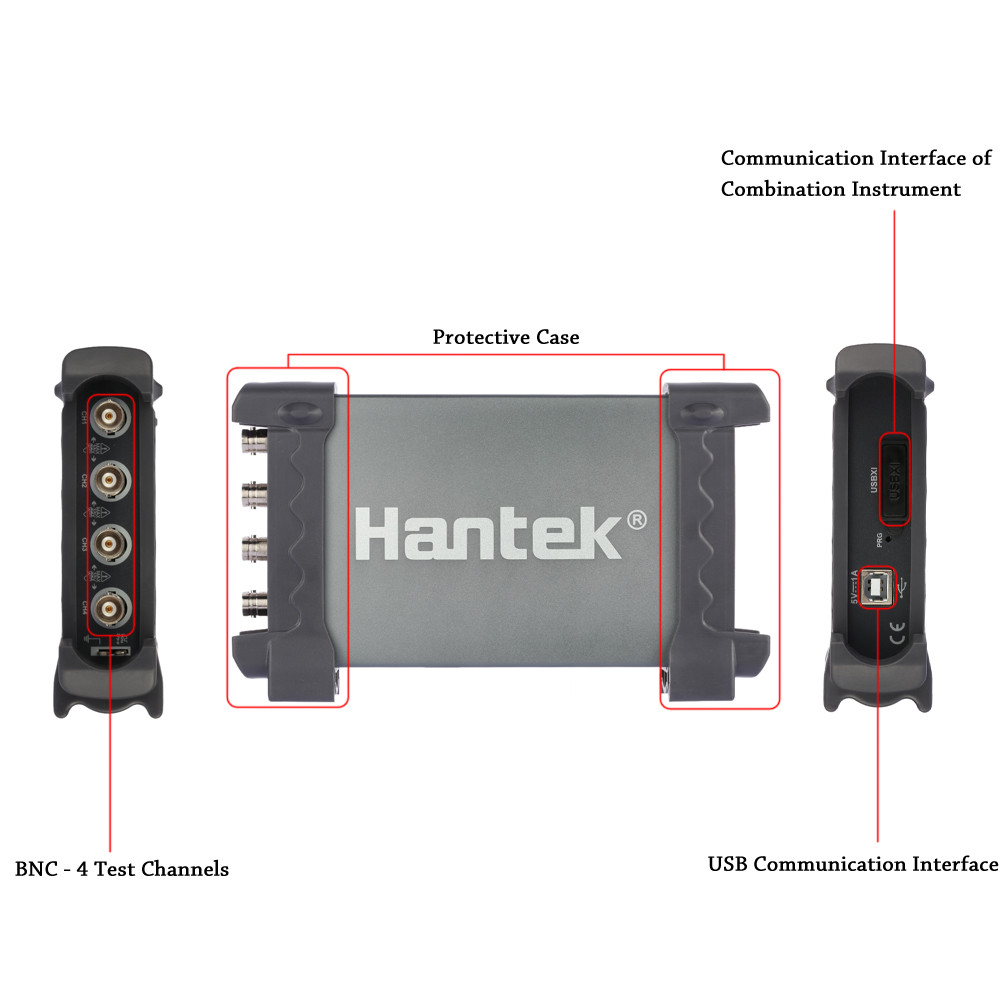

USB 2.0 interface plug and play, and no need extra power supply.
Great function, More than 20 kinds of automatic measurement function, PASS/FAIL Check function. Resourceful trigger function, dynamic cursor tracking, waveform record and replay function.

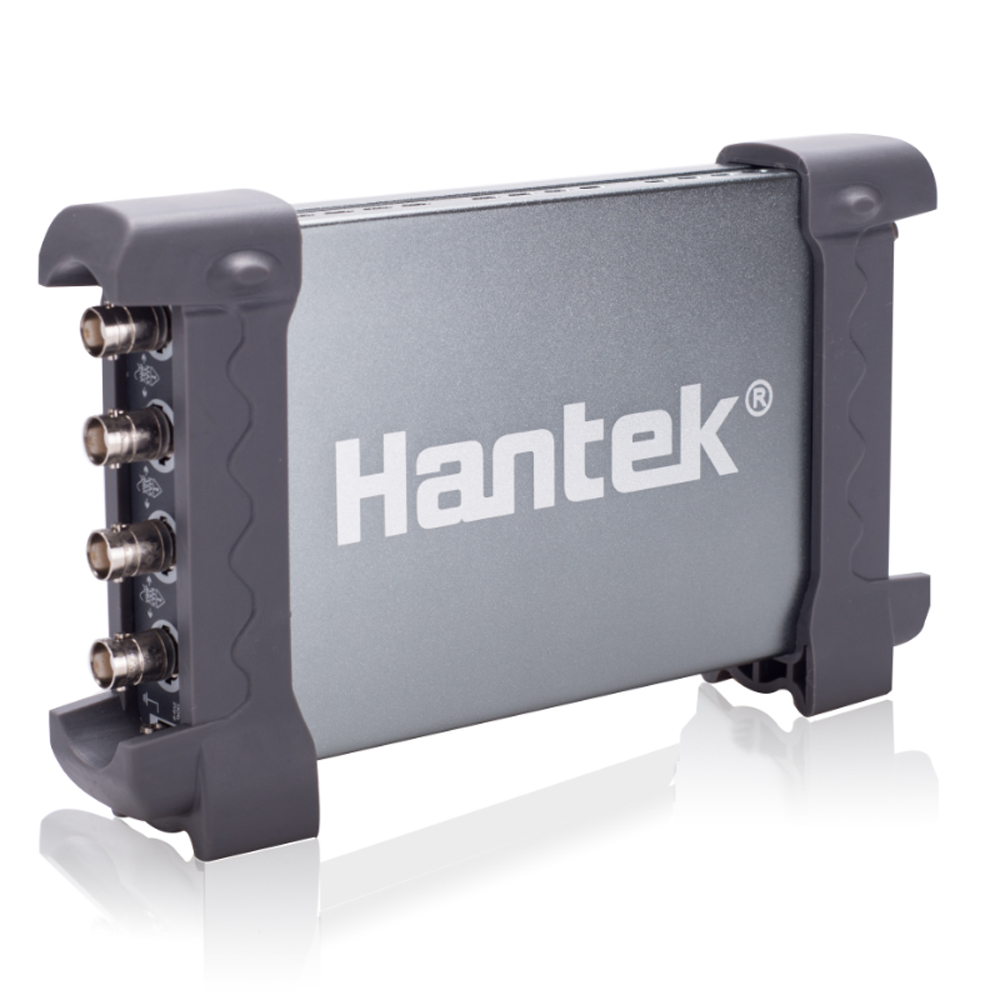

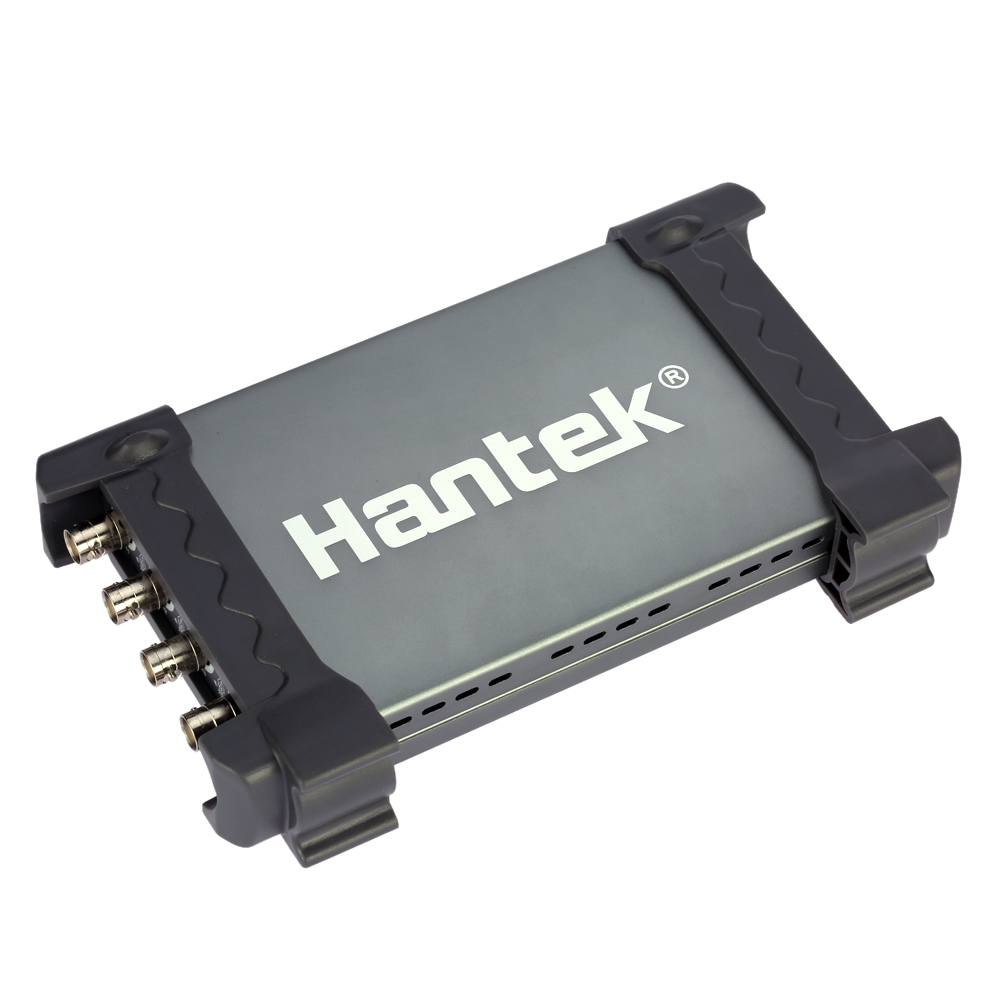

Good mechanical design with small size which is easy for carrying. The outer case is made by the same material with iPad - Anodised aluminium. It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminium alloy surface is greatly improved.

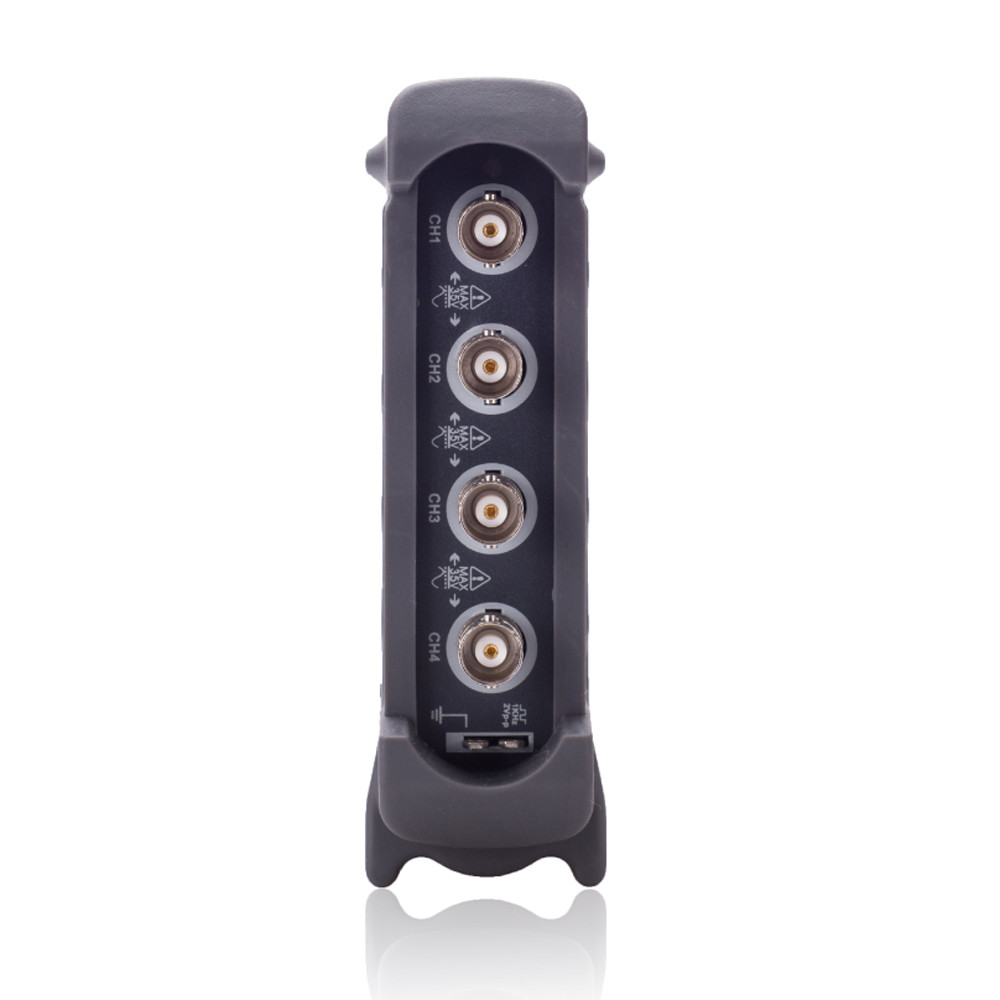

4 isolated channels oscilloscope, 1GSa/s real time sampling rate, 2mV-10V/DIV high input sensitivity and large input range, 70MHz/100MHz/200MHz/250MHz high bandwidth.
The waveform data could be output to EXCEL,BMP,JPG.

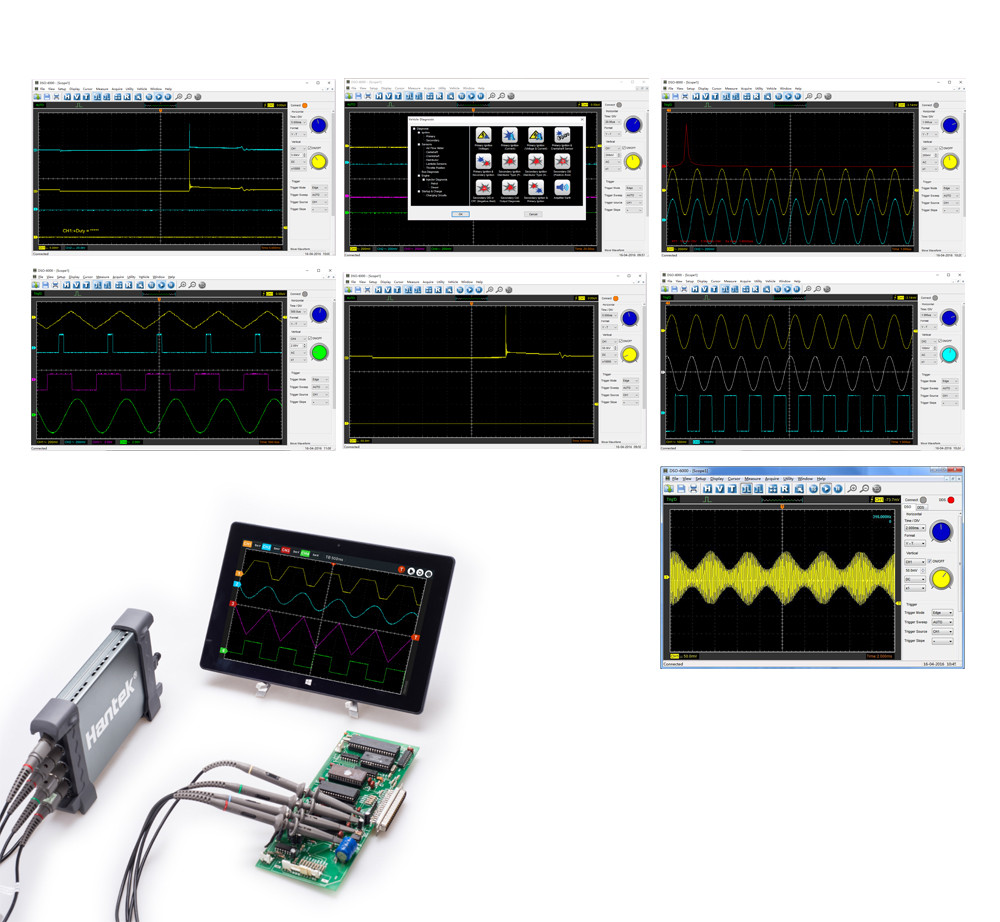

Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X-Y display.
FFT spectrum analyzer.
One computer could connect with multiple oscilloscopes, expand the channel number easily.
Provide secondary development library DLL; Provide Labview\\VB\\VC\\QT developing examples.
Specifications:
Brand Name: Hantek
Material: Aluminium Alloy + Plastic
Model: Hantek6104BE
Bandwidth: 70MHz / 100MHz (Correspondingly Optional)
Oscilloscope Probe Model: PP-90 / PP-150 / PP-200 / PP-250 (Corresponding)
Item Size: Approx. 210 * 125 * 37mm / 8.3 * 4.9 * 1.5in
Item Weight: Approx. 453g / 16.0oz
Package Size: Approx. 25 * 18.5 * 11cm / 9.8 * 7.3 * 4.3in
Package Weight: Approx. 1310g / 46.2oz
Parameters:

Model	Hantek6074BE / Hantek6104BE
Bandwidth	70MHz / 100MHz
Automotive Measurement Function	Intake manifold vacuum & ignition, Petrol fumes adjusting valve vacuum & ignition, Idle exhaust ignition, Starting exhaust ignition; Sensor: Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position; CAN bus data examine, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus; Performer: Petrol/Diesel; Starter and charging circuits
Channel	4 CH
Real-time Sampling Rate	1GSa/s
Memory Depth	64K
Time Base Precision	±50ppm
Time Base Range	2ns/div-1000s/div (1-2-4 sequences)
Input Impedance	1MΩ 25pF
Input Sensitivity	2mV/div~10V/div
Vertical Resolution	8Bit
Vertical Displacement Range	2mV ~ 10V/div @ x1 probe; 20mV ~ 100V/div @ x10 probe; 200mV ~ 1000V/div @ x100 probe; 2V ~ 10000V/div @ x1000 probe
DC Gain Accuracy	±3%
Bandwidth	20MHz
Trigger Mode	Edge, Pulse, Video, Alternative
Trigger Source	CH1, CH2, CH3,CH4
Waveform Signal Process	+,-,x,÷,FFT, Invert
Cursors Measurement	Cross, Trace, Horizontal, Vertical
Auto Measurement	Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Volume	210mm * 125mm * 37mm
Weight	0.45KG
Accessory	2 passive probes, 2 gator clip lines

Note:

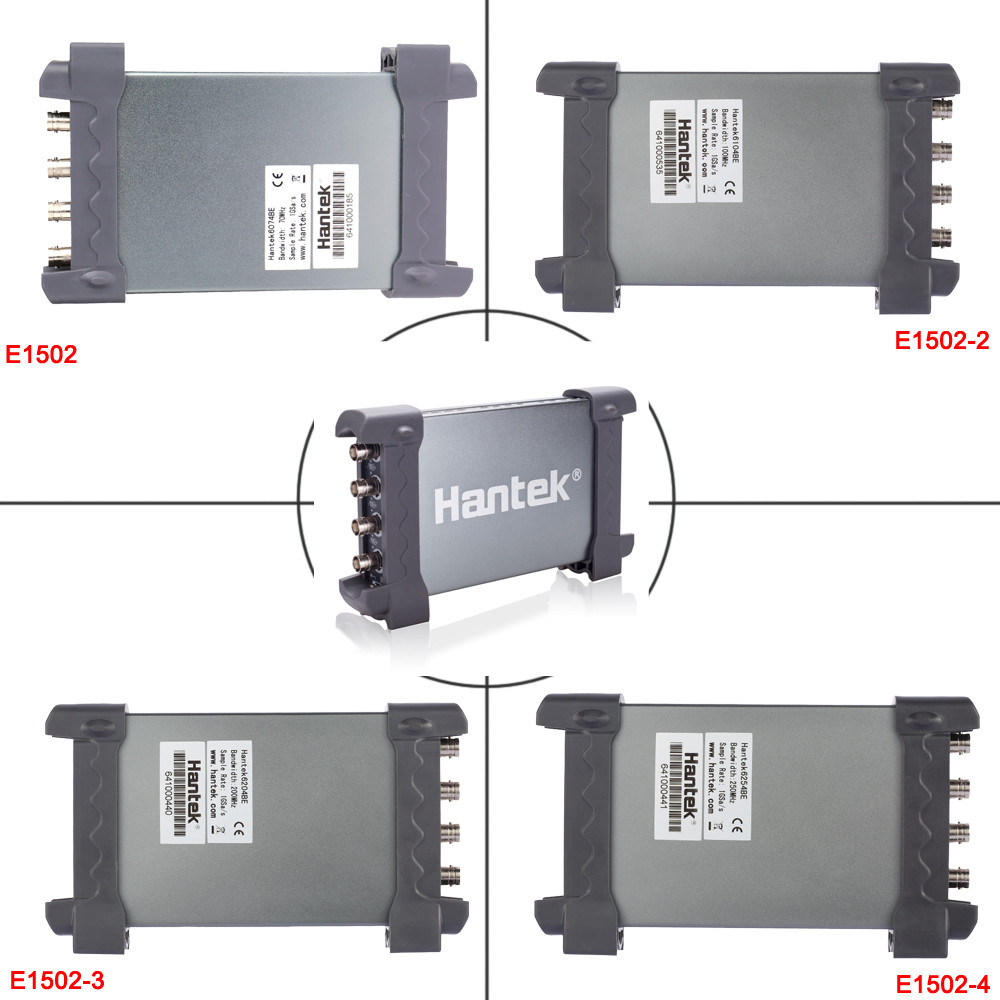

Hantek 6074BE/6104BE/6204BE/6254BE Oscilloscope is for 3 years Warranty!
Please read the instruction manual data CD carefully to avoid injury and prevent damage to this product.

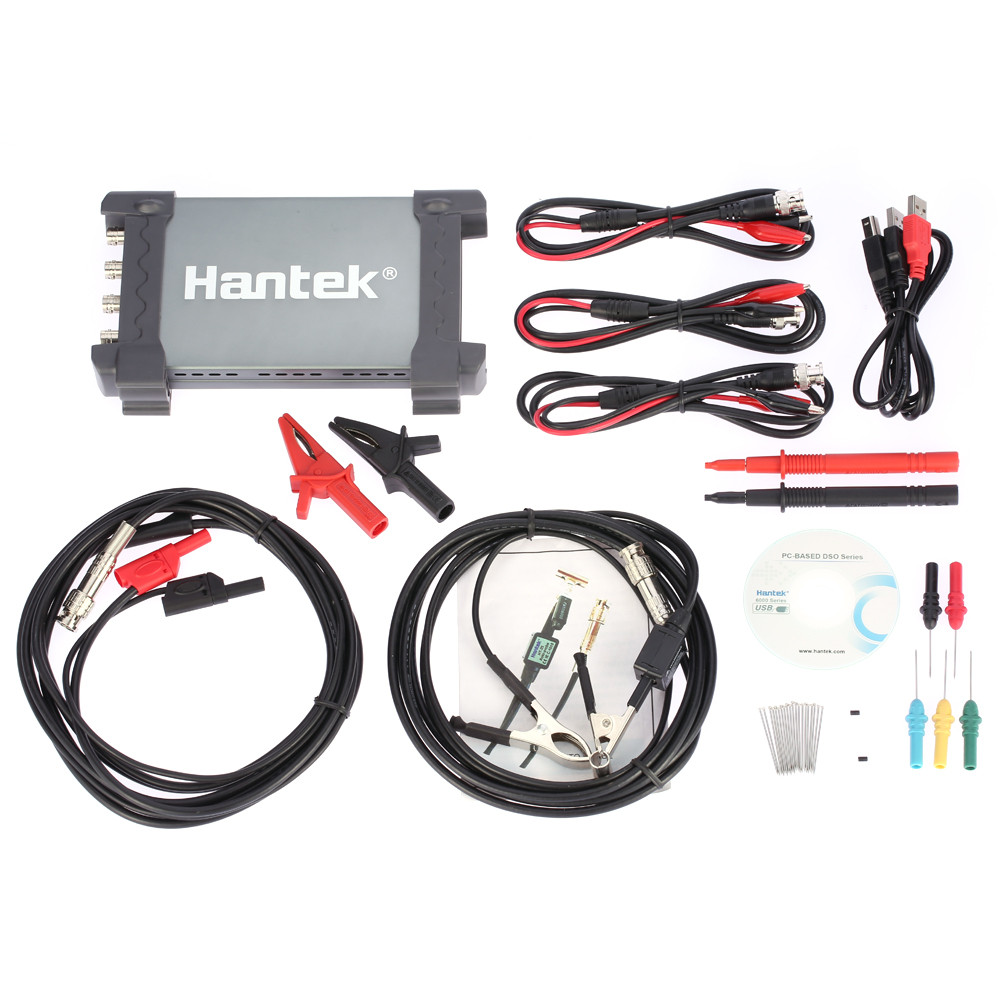

Package List:
1 * Car Diagnostic Oscilloscope
1 * Large Dolphin/Gator Clip
1 * Multimeter Probe
1 * Auto High-Pressure Ignition
1 * Auto Test Cable

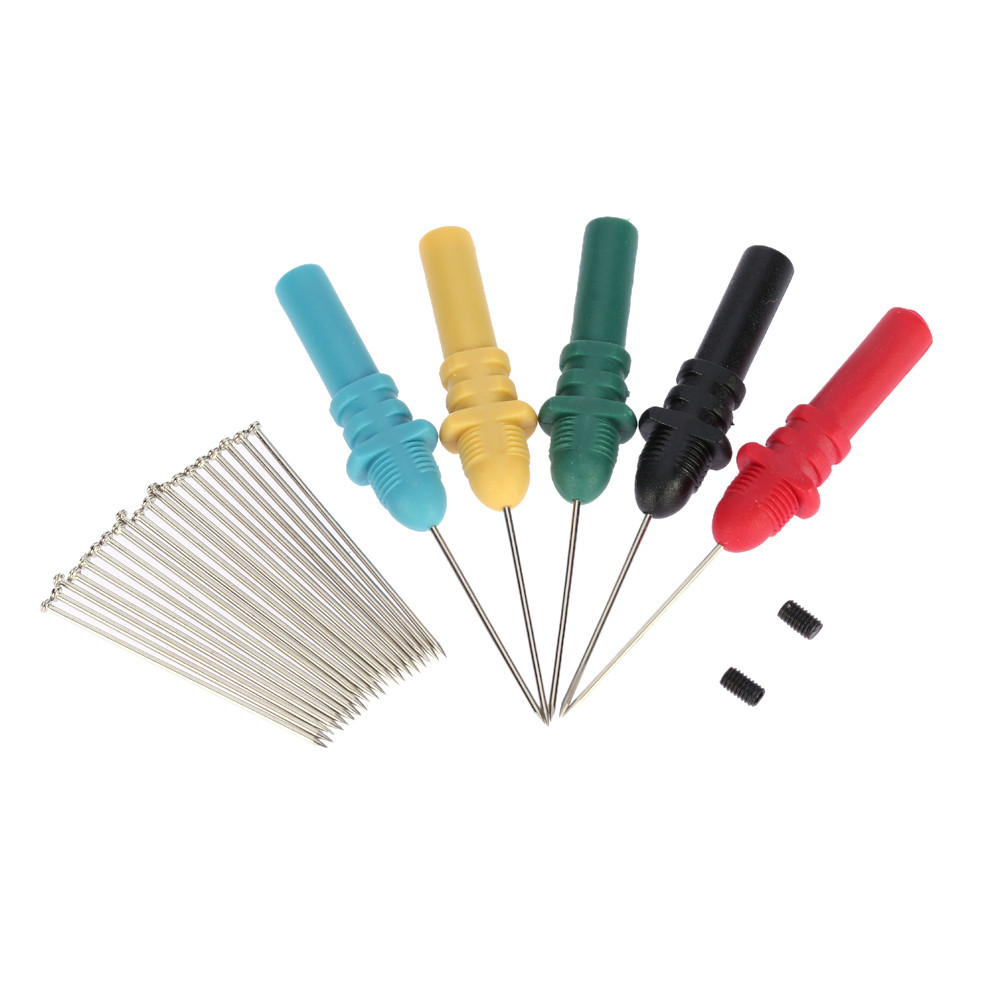

1 * Acupuncture Probe Set

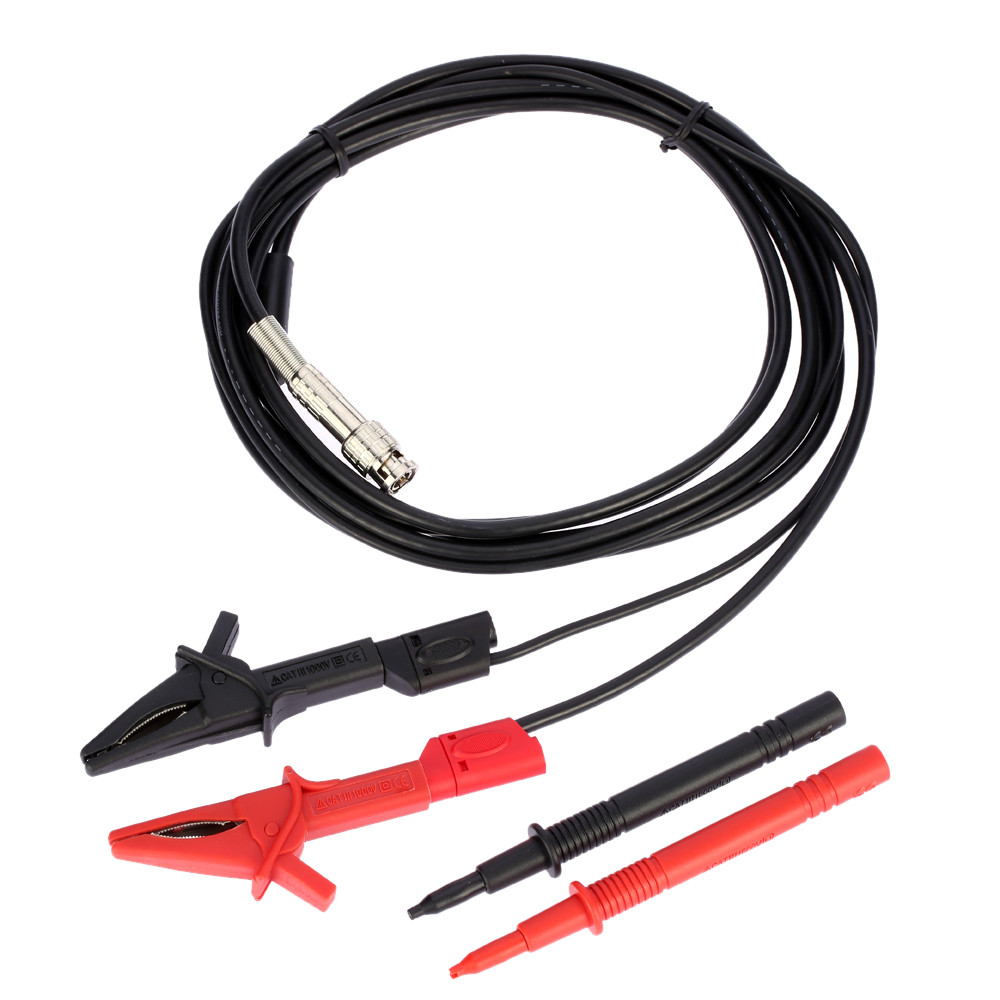

3 * Dolphin/Gator Clip Cable
1 * USB Power Line
1 * Upper-computer Software CD with User Manual
