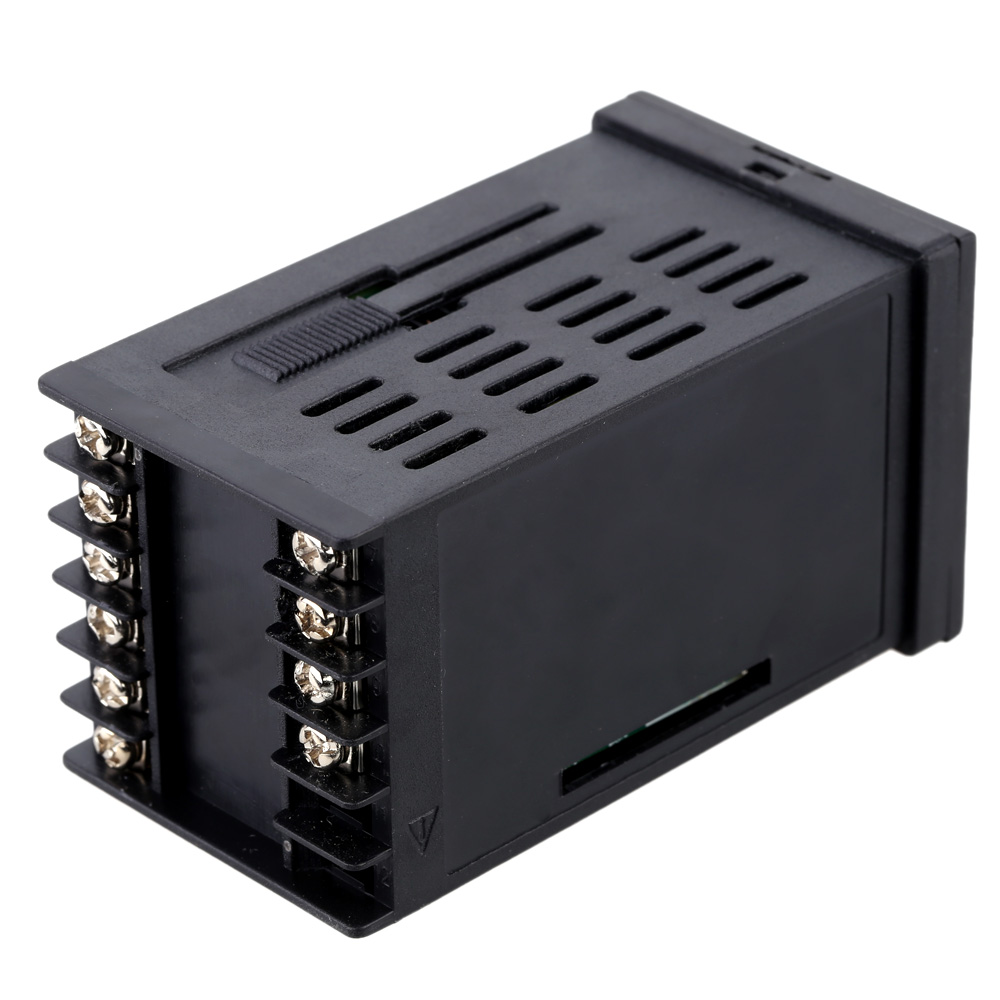

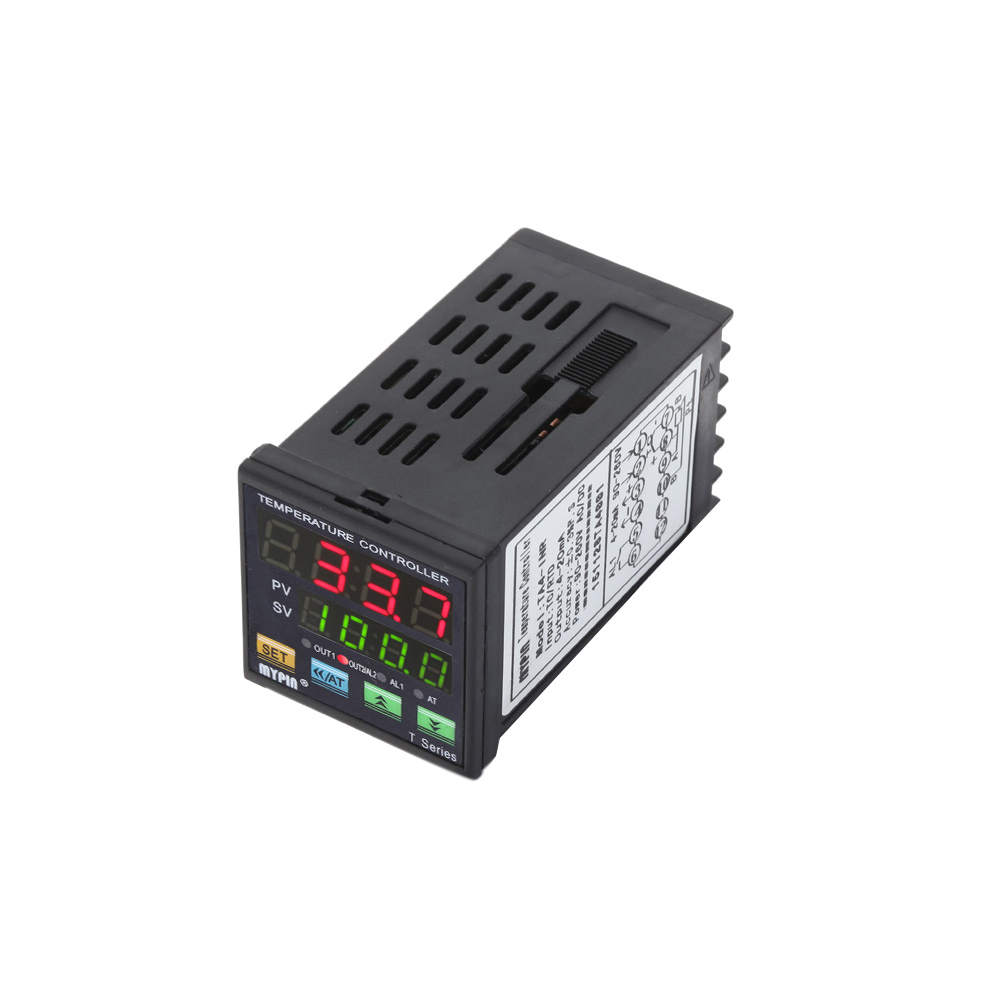

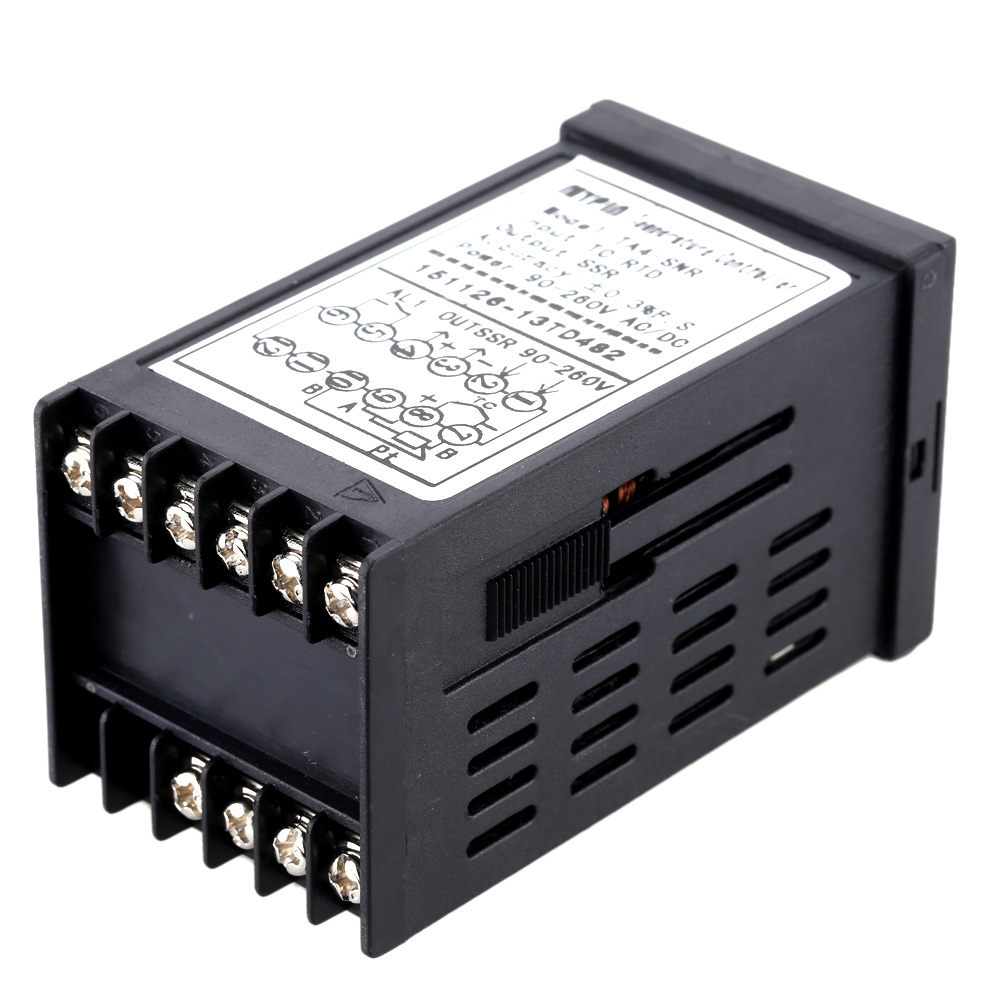

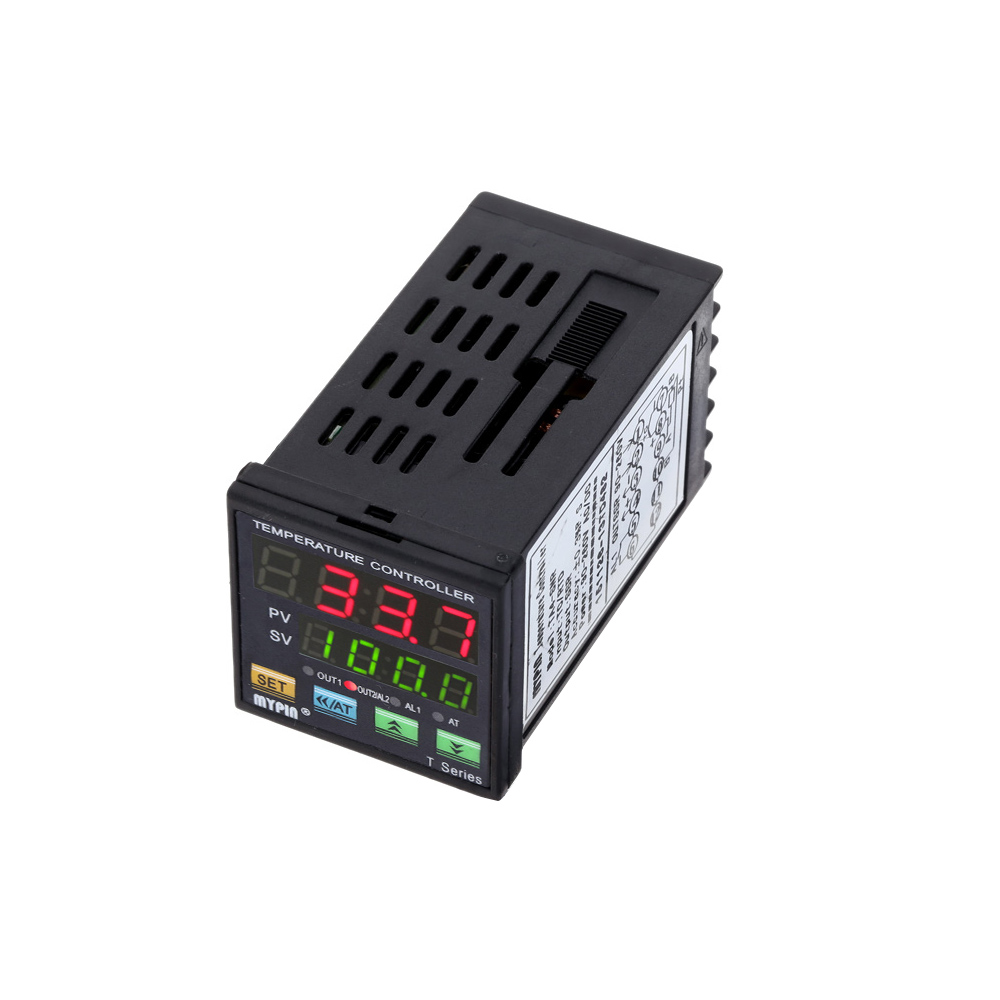

Digital LED PID Temperature Controller Thermal Regulator Dual LED Display Thermocouple Diagnostic-tool SNR 1 Alarm Relay Output

This is a dual display digital temperature controller that can be applied to automatic system of chemical industry, light industry, chemistry, machine, metallurgy(etc.) to control the temperature. It can be powered by AC/DC 90-260V.
Features:
Dual LED display, settable unit for Fahrenheit(°F) and Celsius(°C).
The temperature display range is -199~1800°C, accuracy: 0.3%F.S±2dgt.
Auto-tuning PID adjustment to choose for different applications or environments to be controlled.
Available for many TC or RTD input, precise, stable and simple for use.
Widely applied to automatic system of chemical industry, light industry, chemistry, machine, metallurgy(etc.) to control the temperature.
Note:
I: 4-20mA S: SSR N: None R: Relay
INR model represents the main control is 4-20mA, with only 1 alarm(RELAY).
SNR model represents the main control is SSR, with only 1 alarm(RELAY).
Specifications:

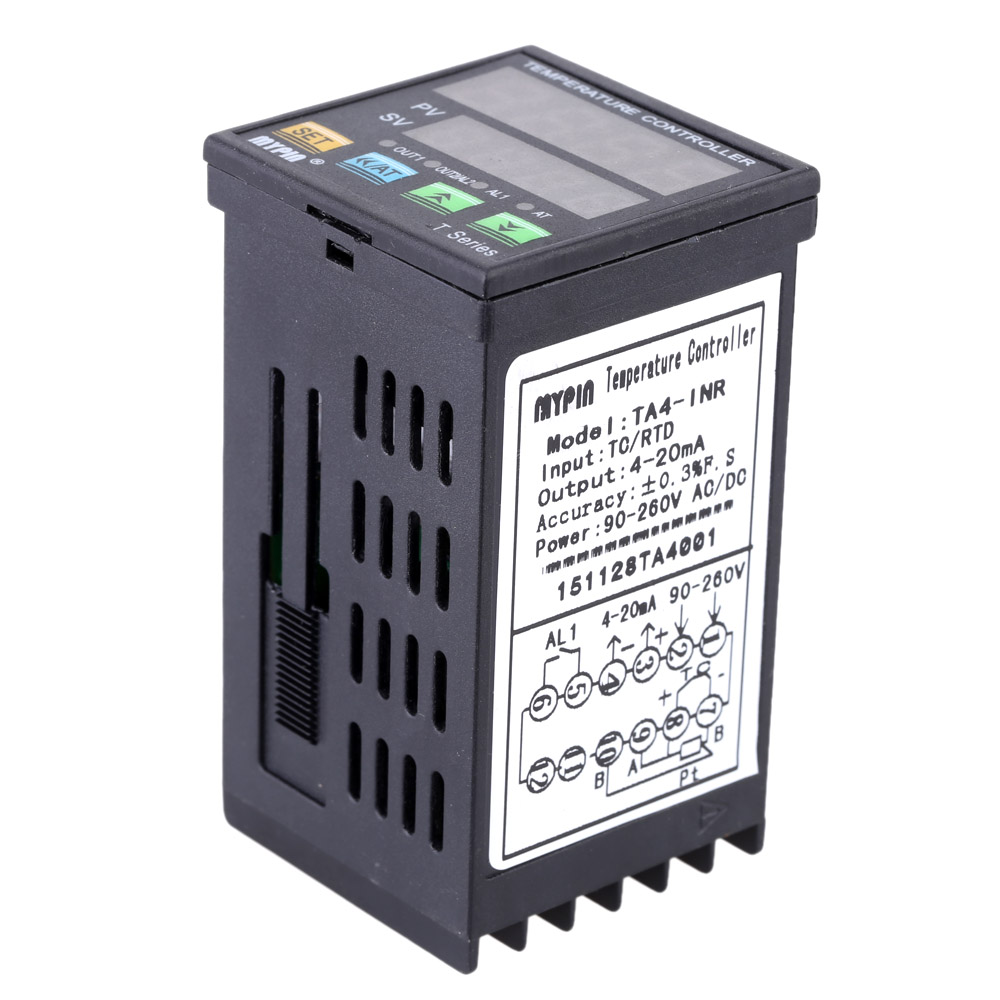

Model: TA4-INR / TA4-SNR(optional)
Power Supply: 90-260V AC/DC 50/60Hz
Consumption: <=5VA
Display Range: -199~1800°C
Accuracy: 0.3%F.S±2dgt
Sampling Cycle: ≤300ms
Main Output: RELAY: Normal Open AC250V/5A DC 30V/5A COSφ=1; SSR: 24V DC ±2V/ 20mA
Alarm: RELAY: Normal Open AC250V/5A DC 30V/5A COSφ=1; SSR: 24V DC ±2V/ 30mA
Thermocouple Support: T/C(K,J,S,E) / Rt(Pt100,Cu50)
T/C Input: K: 0~1200°C; J: 0~1200°C; S: 0~1600°C; E: 0~1000°C
Rt Input: Pt100: -199~600°C Cu50: -50~150°C
Withstand Voltage Strength: 1500V Rms(Between Power Terminal and the Housing)
Installation Resistance: Min. 50MΩ(Between Power Terminal and the Housing)
Environment Temperature: 0~50°C
Storage Temperature: -10~60°C
Environment Humidity: 35~85%RH
Item Size: 4.8 * 4.8 * 8.5cm / 1.89 * 1.89 * 3.35in
Item Weight: 110g / 3.9oz
Package Size: 10 * 5.5 * 6.5cm / 3.94 * 2.16 * 2.56in
Package Weight: 139g / 4.9oz

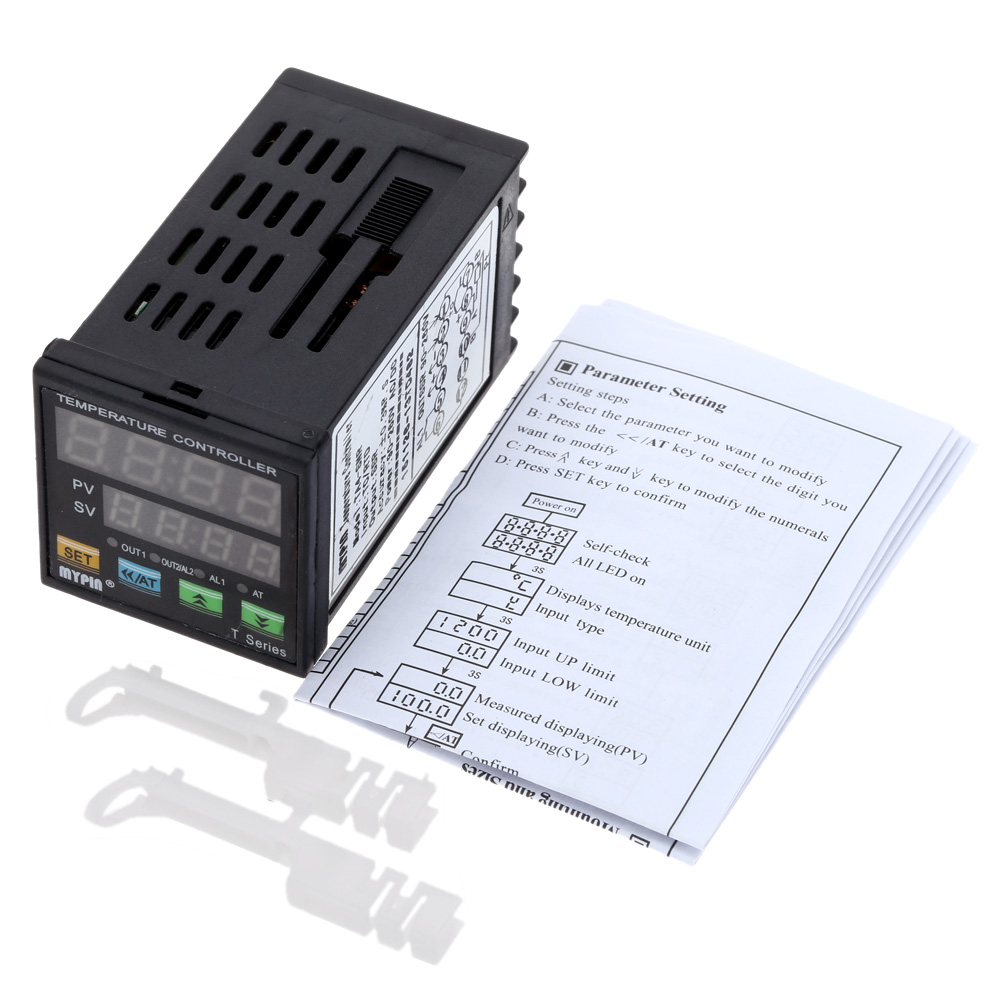

Package List:
1 * Temperature Controller
2 * Bracket
1 * User Manual(English)
