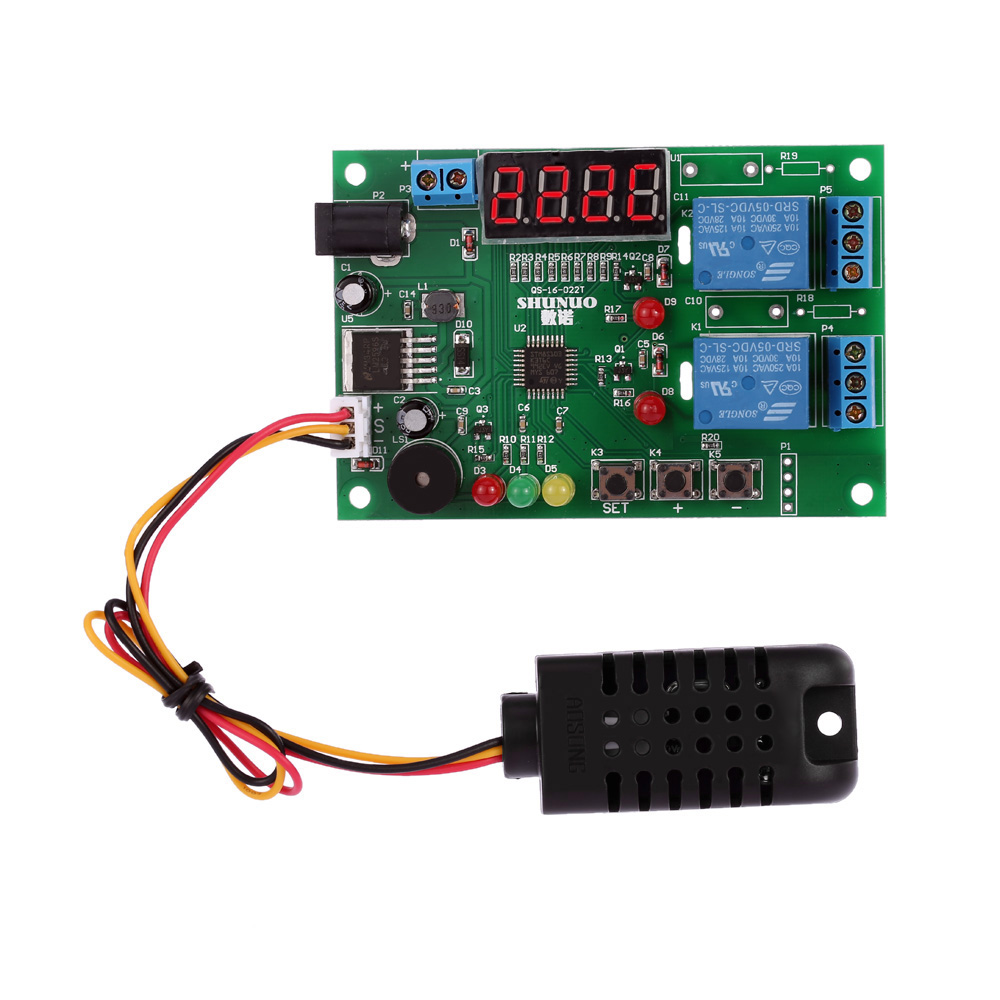

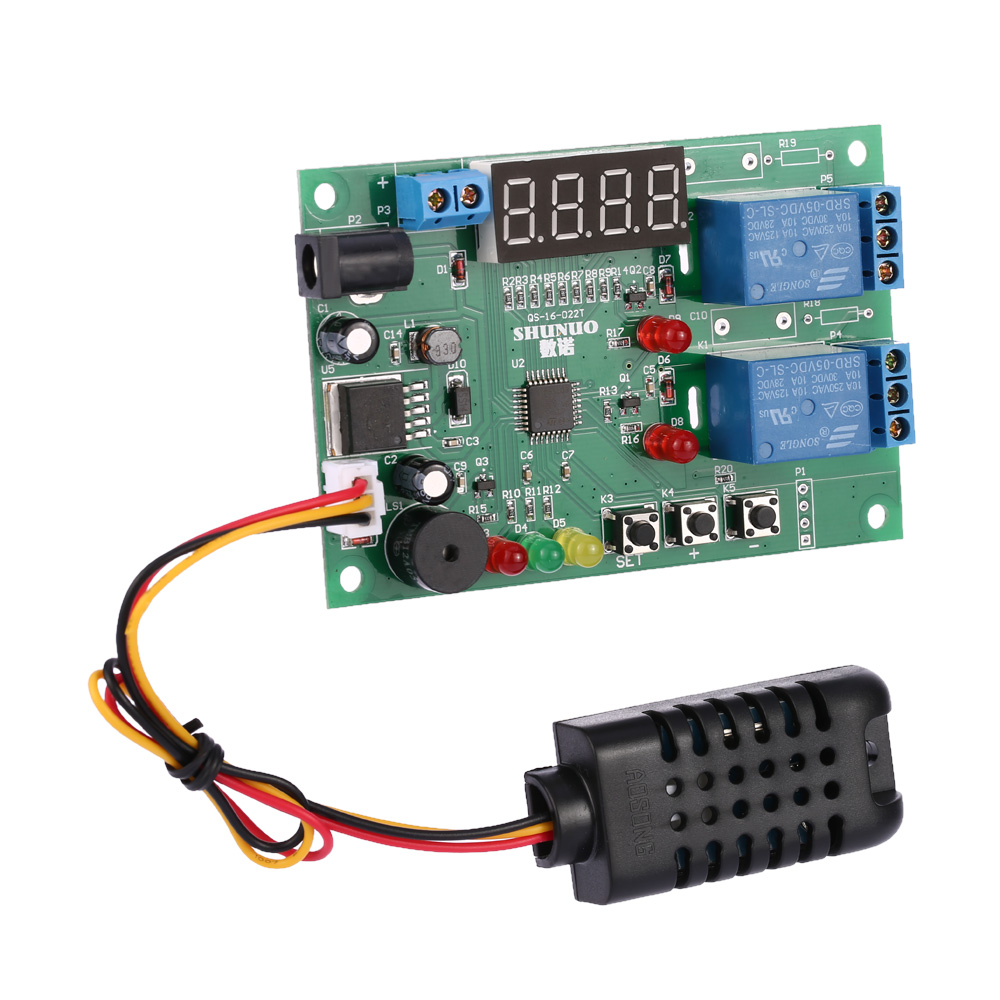

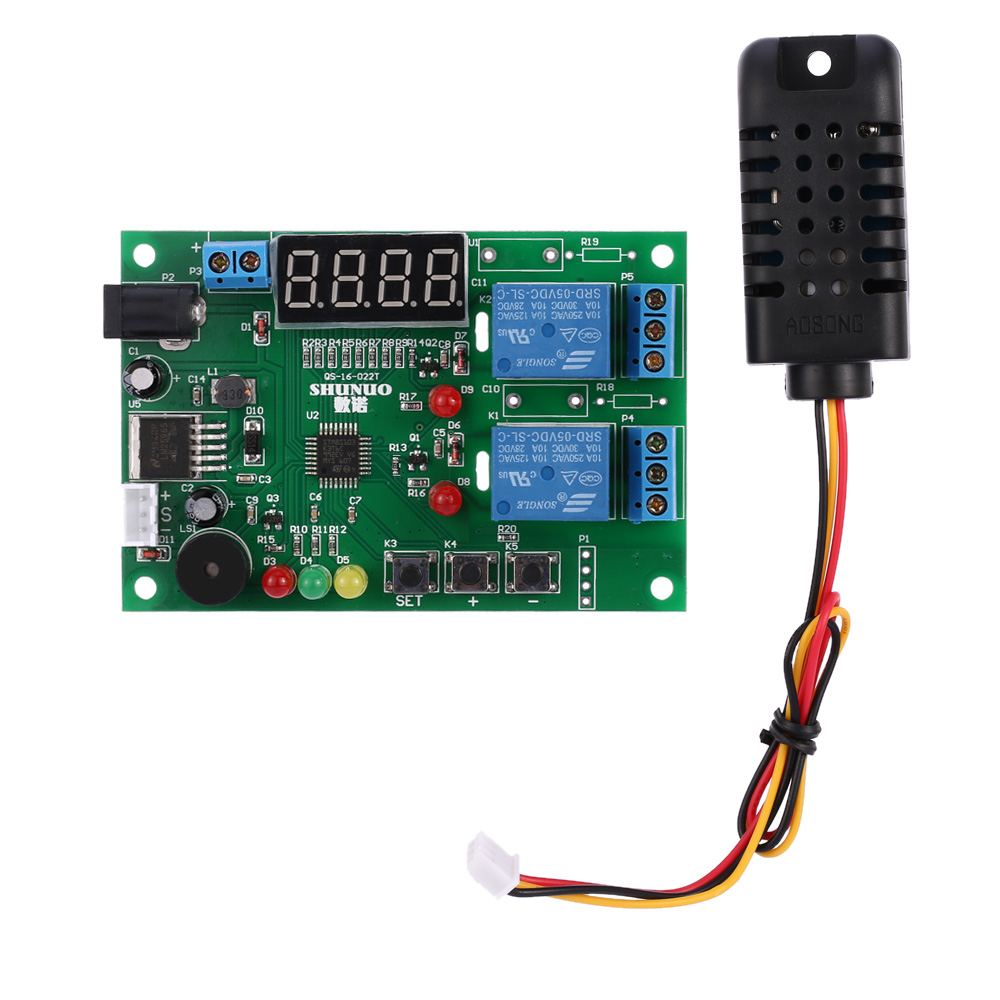

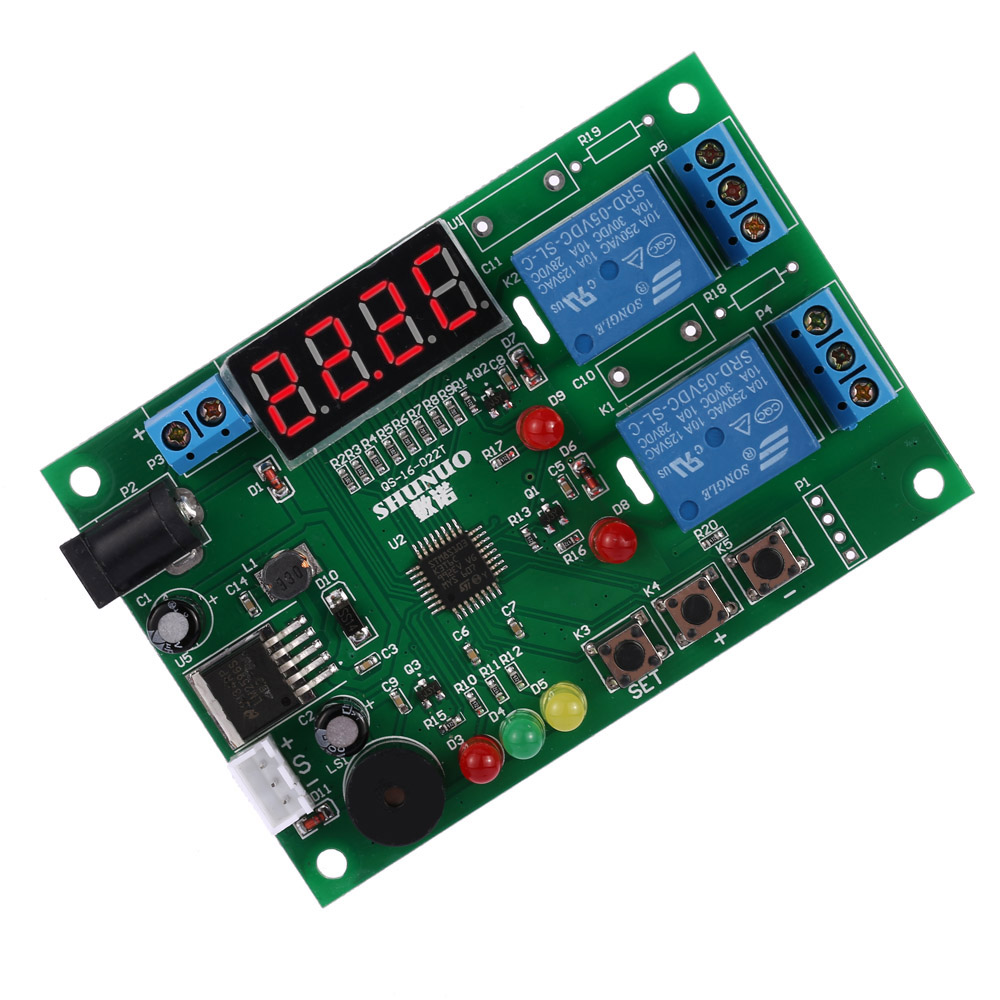

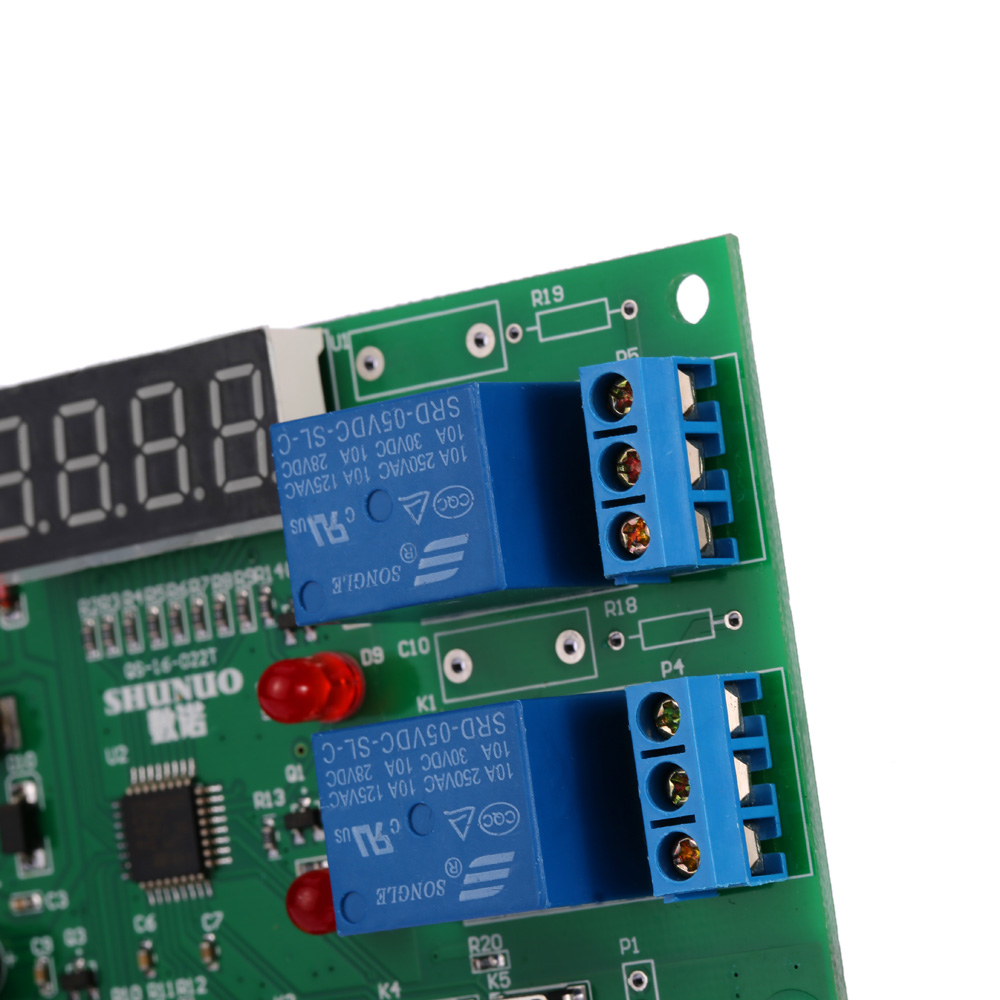

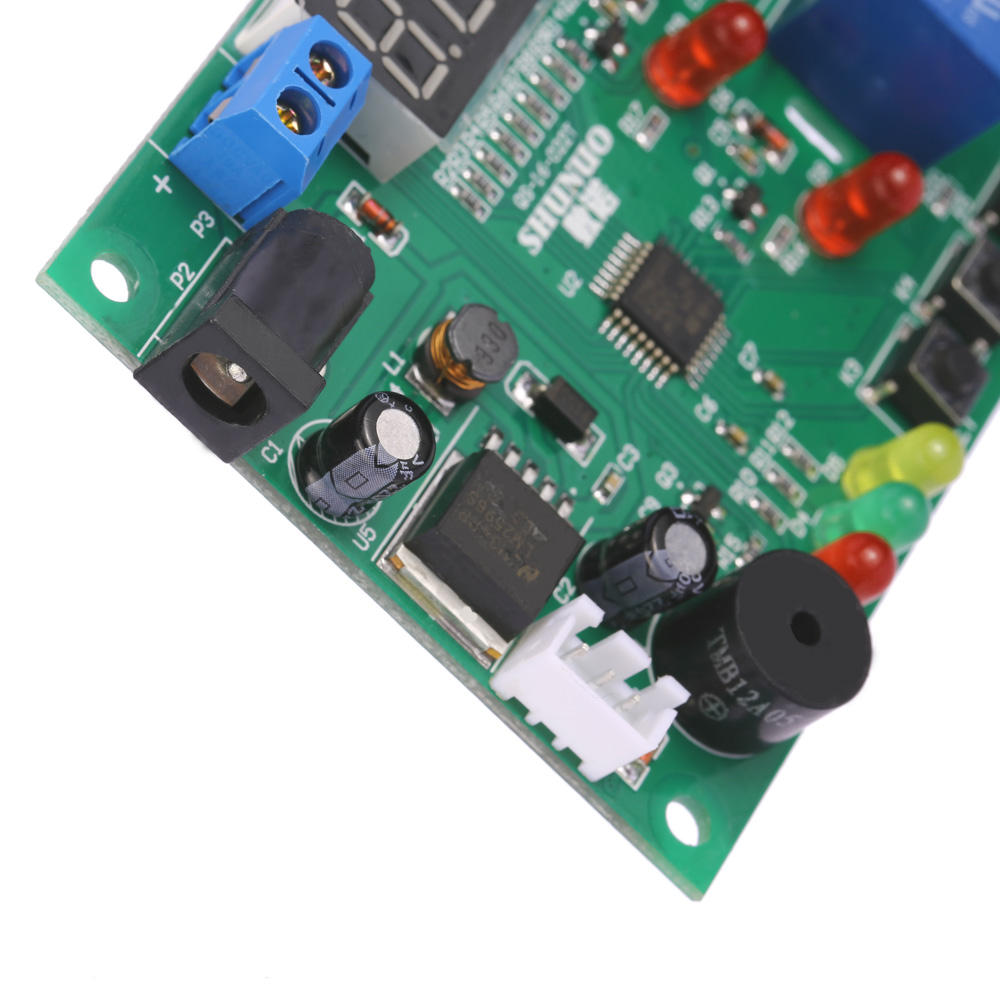

DC 5V~24V Digital Intelligent Temperature & Humidity Controller Control Board Module Relay with LED Indicator Alarm Function

This product can control temperature & humidity and display real-time temperature and humidity. 5 function modes(with indicator): high temperature start-cooling mode, low temperature start-heating mode, high humidity start-dehumidification mode, low humidity start-humidification mode and temperature alarm mode. It's suitable for greenhouse, incubator, barton, etc.
Features:
Measure and display temperature & humidity.
5 function modes: cooling, heating, dehumidification, humidification and temperature alarm.
Temperature unit-conversion between °C and °F.
With highlight LED display and working indicator, convenient for operation.
Store setting parameters automatically when power off.
Reverse polarity protection: the controller will not work if connected reversely.
Wide input voltage range DC 5V~24V, dual 10A relay for high power output.
Suitable for controlling the temperature and humidity in greenhouse, incubator, barton, etc.
User Manual:
https://www.dropbox.com/s/7g5areea3ln45hc/E0472-User%20Manual.docx?dl=0
Specifications:
Temperature Measuring Range: -40°C~80°C
Humidity Measuring Range: 0%RH~99.9%RH
Temperature Resolution: 0.1°C
Humidity Resolution: 0.1%RH
Measuring Accuracy: (+/-)3%RH, (+/-)0.5%°C
Control Accuracy: 0.1%RH, (+/-)0.1%°C
Refresh Rate: 1s
Input Voltage: DC 5V~24V
Measurement Input: AM2301 Temperature and Humidity Integrated Sensor
Output: Dual 10A Relay
Environmental Requirement: -10°C~60°C, 20%~85% Humidity
Quiescent Current: ≤20mA
Pull Current: ≤50mA
Board Size: 90 * 60 * 20mm / 3.54 * 2.36 * 0.8in
Board Weight: 54g/ 1.93oz
Package Size: Approx. 13 * 8 * 2.5cm / 5.12 * 3.15 * 0.98in
Package Weight: 72g / 2.56oz
Package List:
1 * Temperature & Humidity Control Board

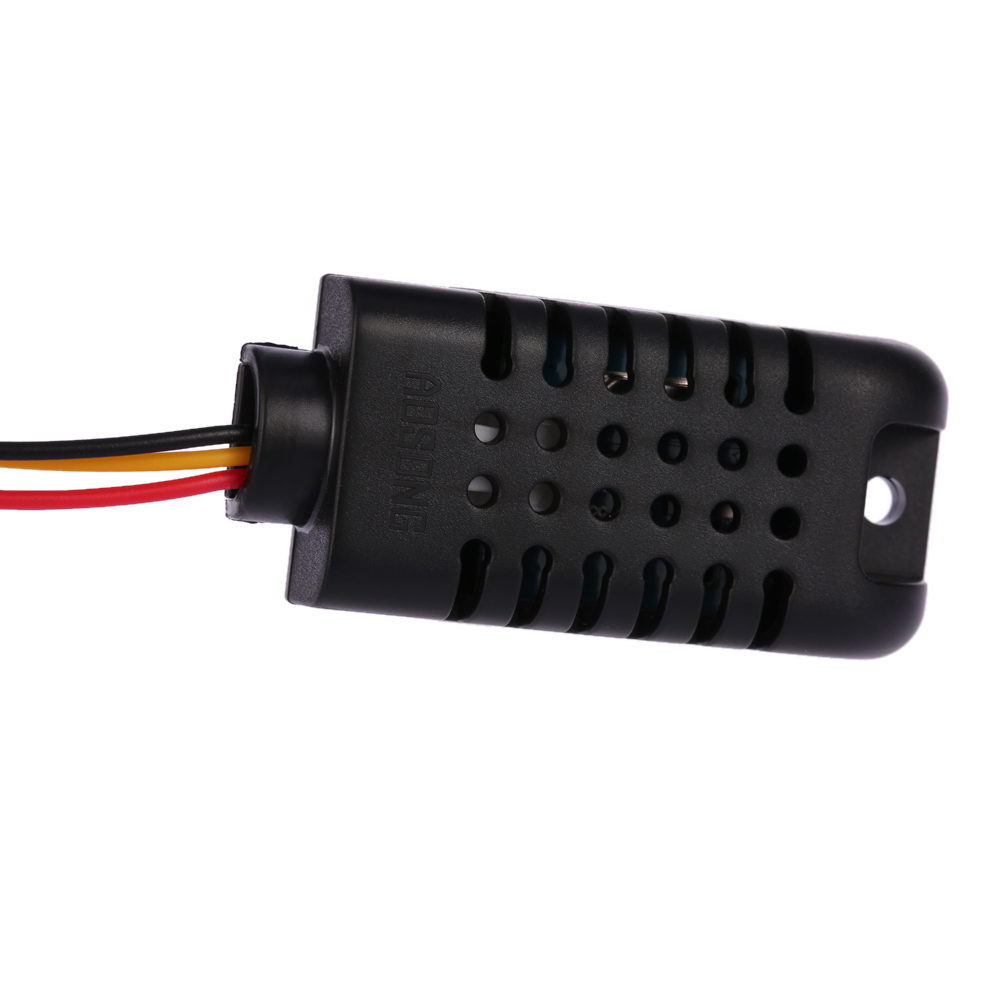

1 * Resistive Temperature & Humidity Sensor
