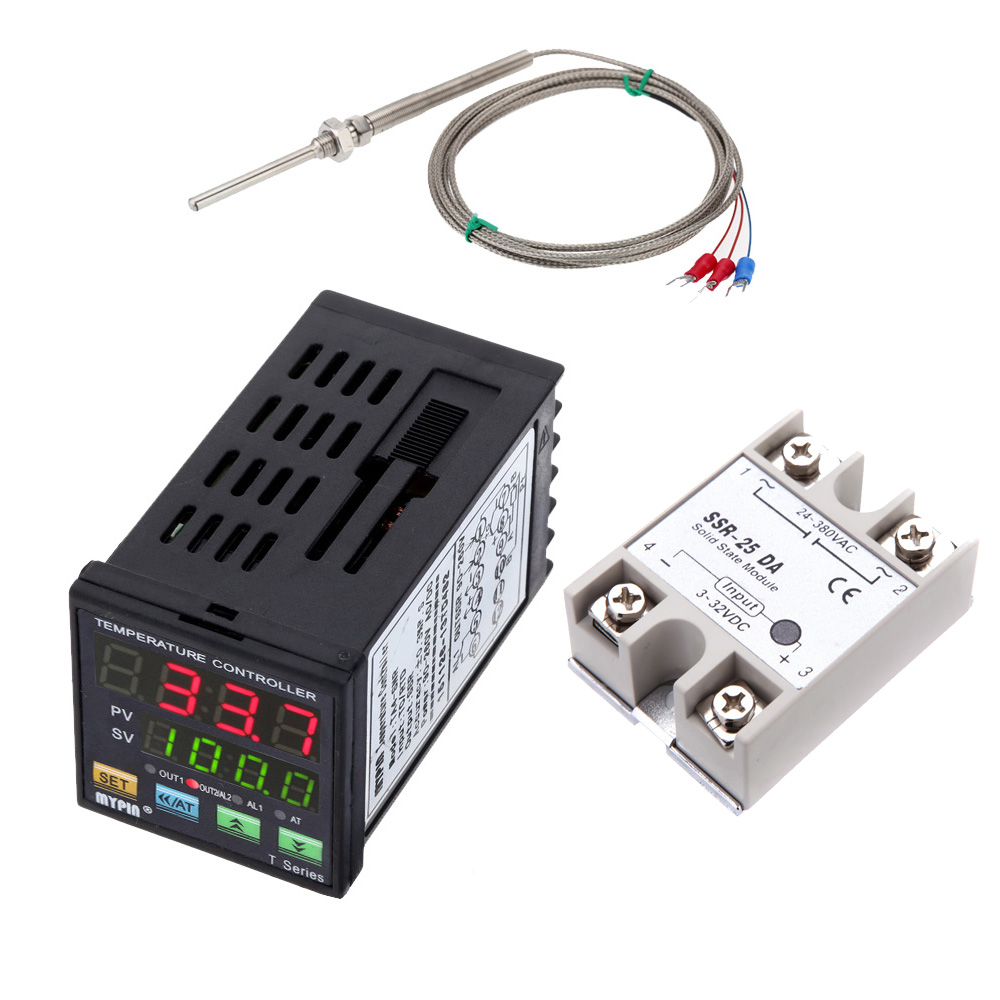

Mini Digital PID Temperature Controller LED Thermometer SNR TC/RTD + Solid State Relay Module+ PT100 RTD Thermistor Sensor Probe

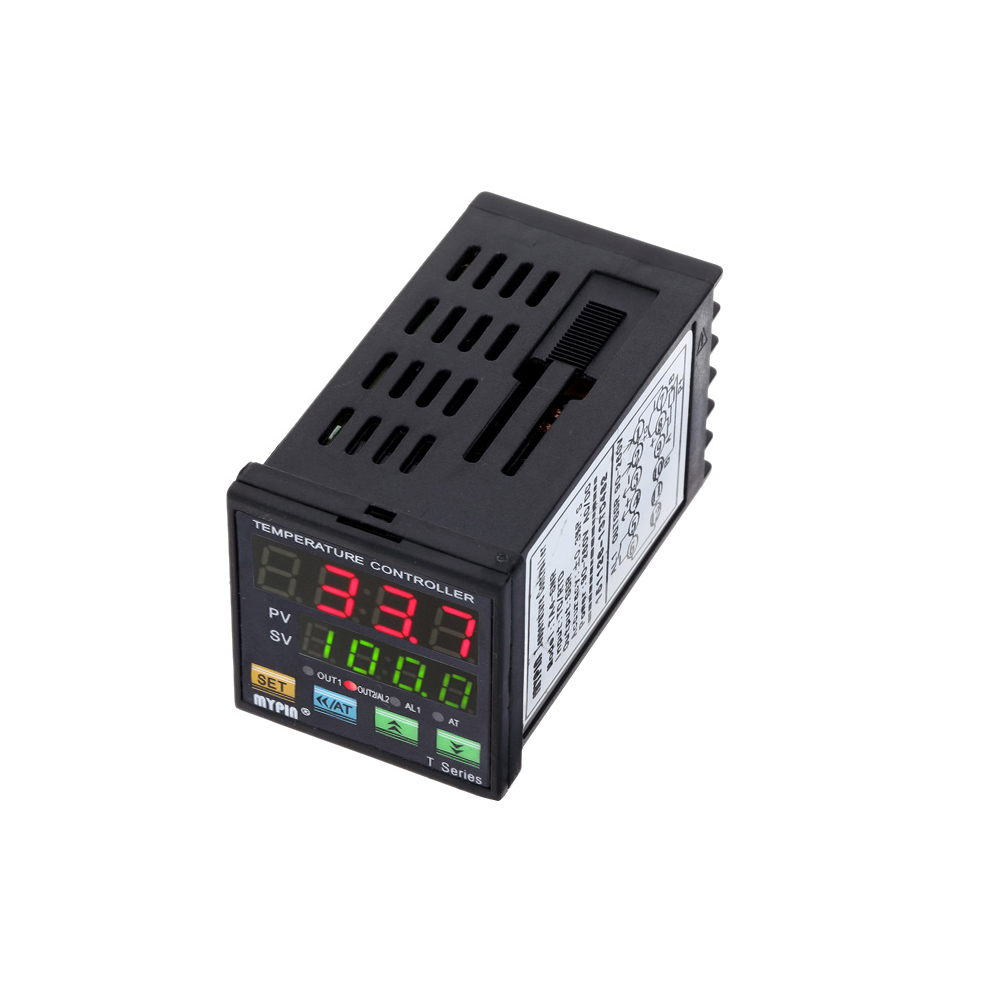

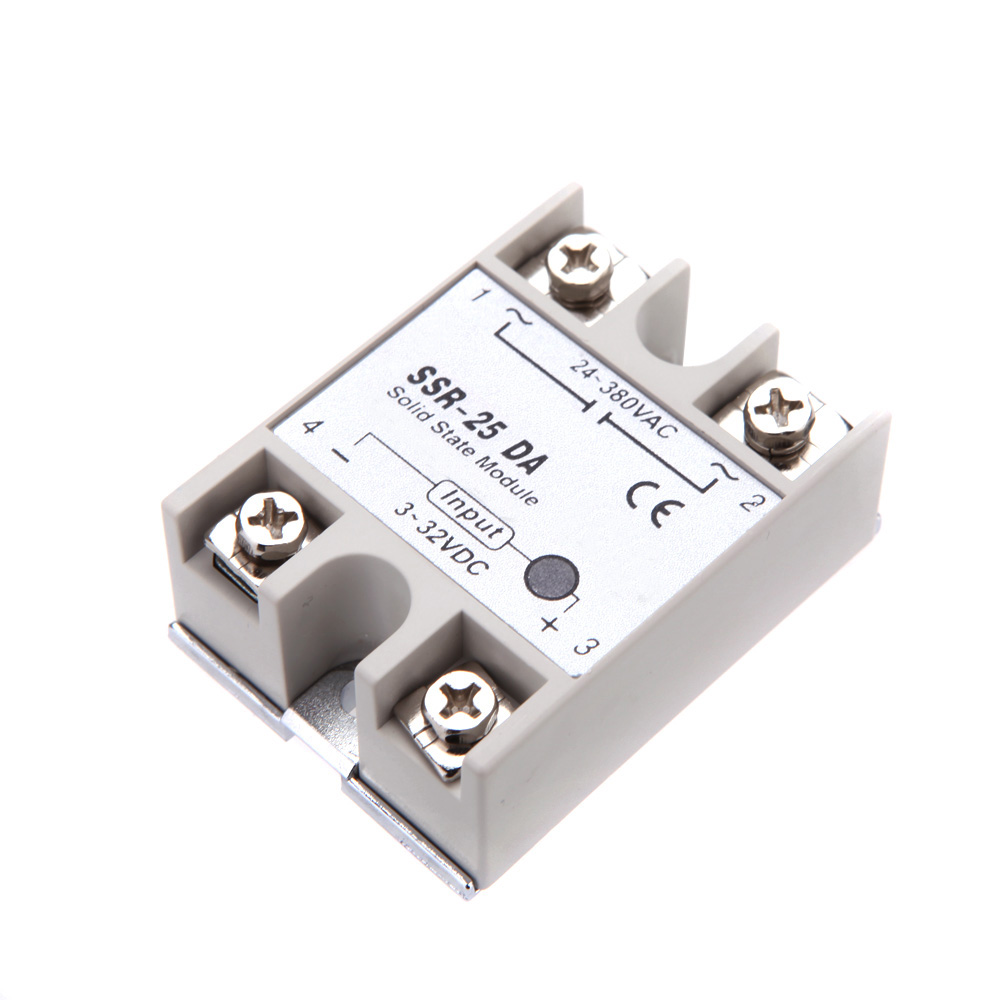

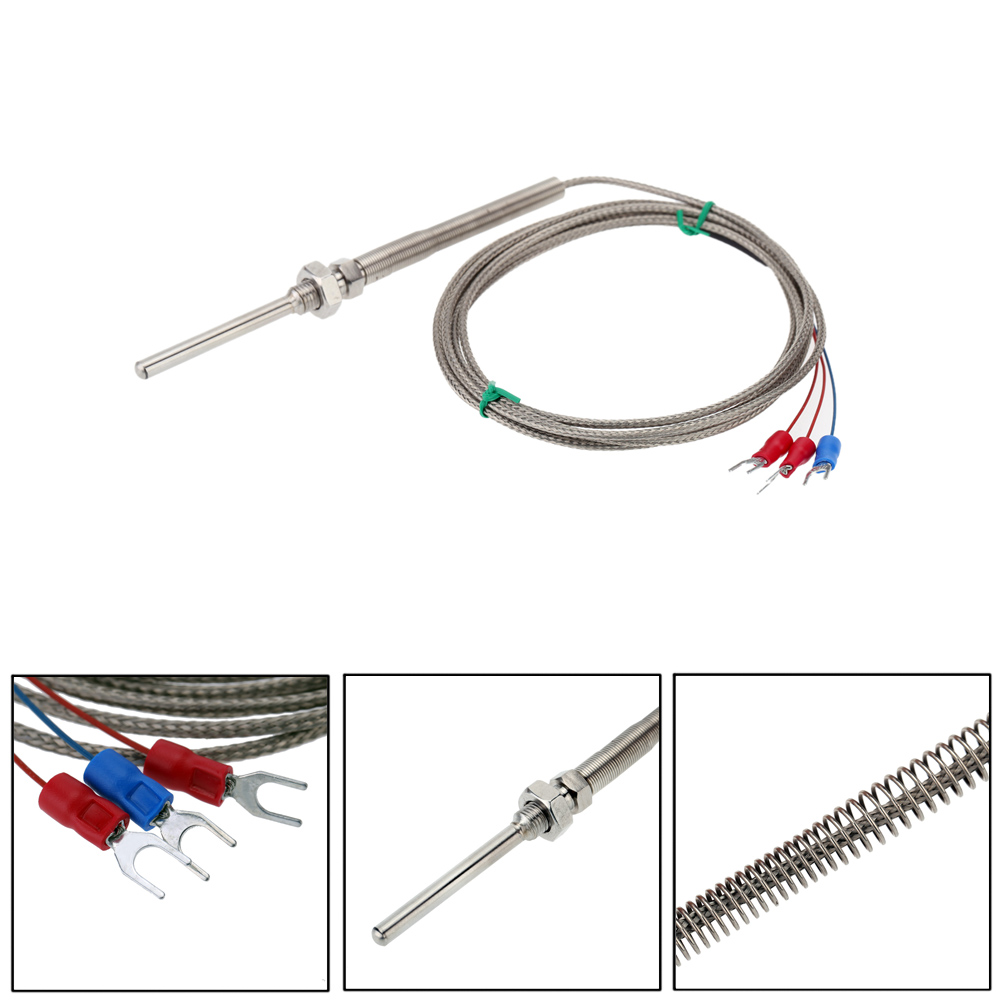

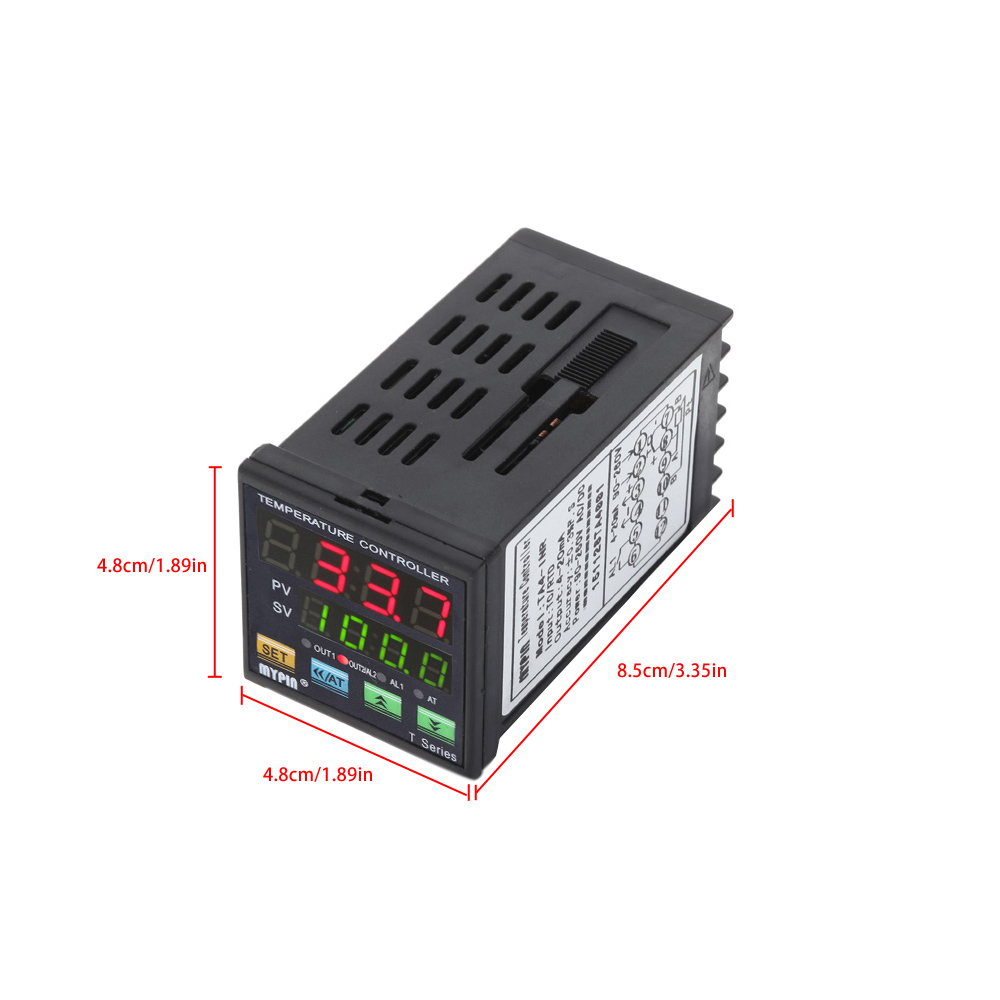

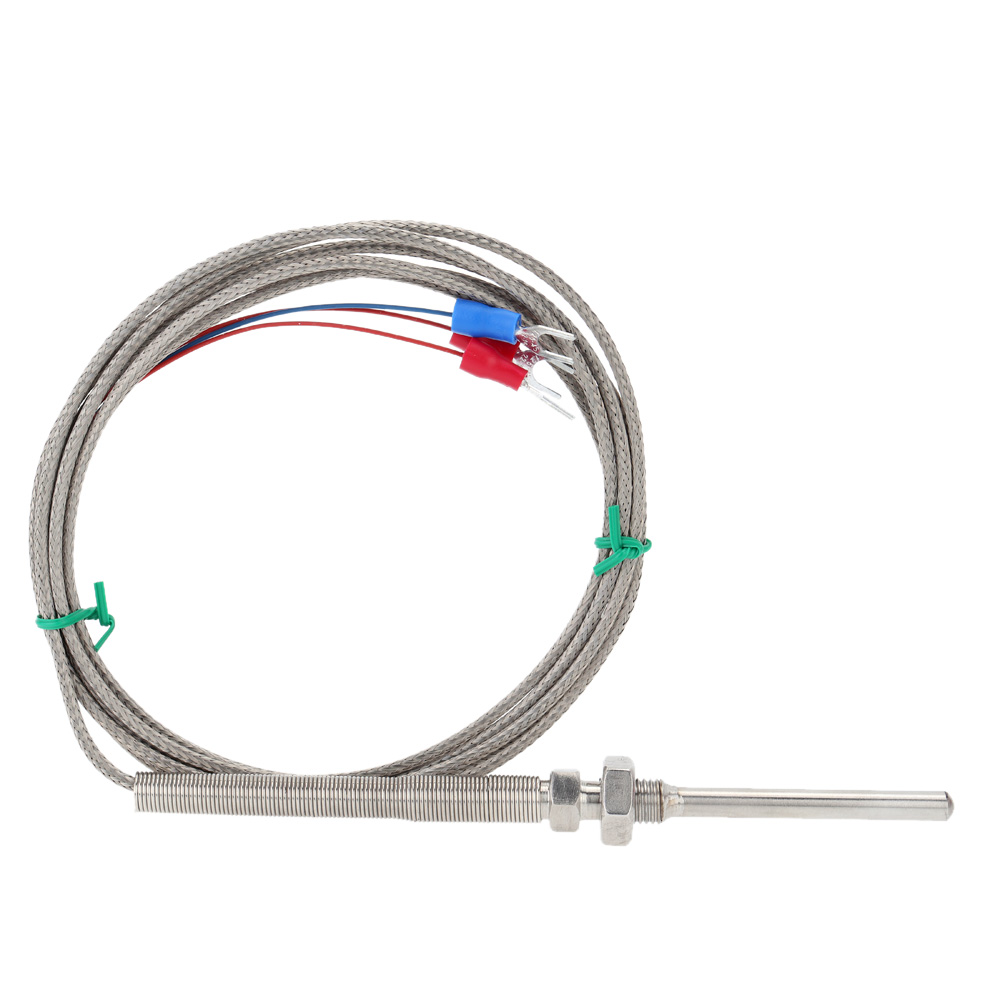

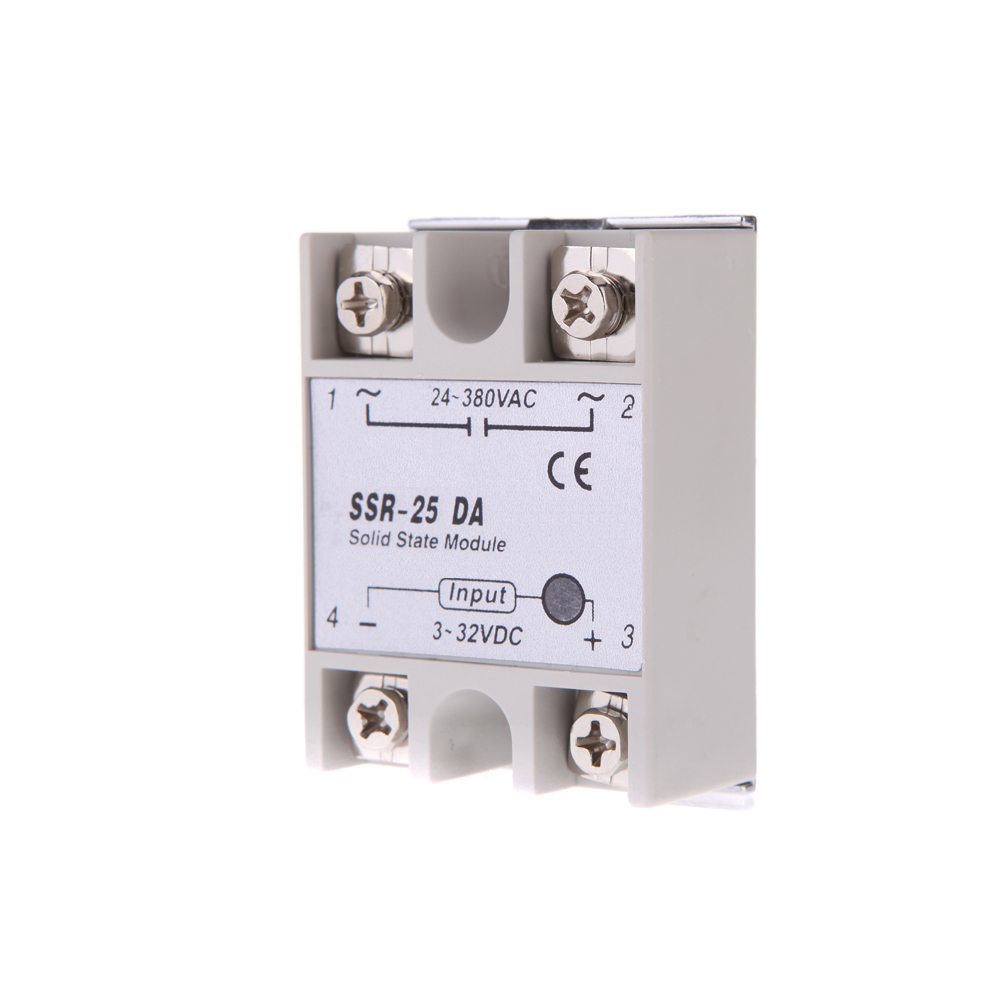

This is a dual display digital temperature controller that can be applied to automatic system of chemical industry, light industry, chemistry, machine, metallurgy(etc.) to control the temperature. The temperature range of RTD is -20~420°C.Features:Temperature Controller: Dual LED display, settable unit for Fahrenheit(°F) and Celsius(°C). The temperature display range is -199~1800°C, accuracy: 0.3%F.S±2dgt. Auto-tuning PID adjustment to choose for different applications or environments to be controlled. Available for many TC or RTD input, precise, stable and simple for use. Widely applied to automatic system of chemical industry, light industry, chemistry, machine, metallurgy(etc.) to control the temperature.Note: I: 4-20mA S: SSR N: None R: Relay INR model represents the main control is 4-20mA, with only 1 alarm(RELAY). SNR model represents the main control is SSR, with only 1 alarm(RELAY).Thermistor Sensor Probe: Made of stainless steel material, durable for use. The sensor head, threading, and nut all seem pretty solid. Temperature range is -20~420°C. High precision and stable performance. Suitable for using in machine room, cooling and heating equipment, etc.Solid State Relay: 25A Solid State Relay for PID Temperature Controller. Long service life and high reliability. Highly reliable, compact size designed to offer users maximum simplicity. Fast switching. Reduced electromagnetic interference.Specifications:Temperature Controller: Model: TA4-INR / TA4-SNR(optional) Power Supply: 90-260V AC/DC 50/60Hz Consumption: <=5VA Display Range: -199~1800°C Accuracy: 0.3%F.S±2dgt Sampling Cycle: ≤300ms Main Output: RELAY: Normal Open AC250V/5A DC 30V/5A COSφ=1; SSR: 24V DC ±2V/ 20mA Alarm: RELAY: Normal Open AC250V/5A DC 30V/5A COSφ=1; SSR: 24V DC ±2V/ 30mA Thermocouple Support: T/C(K,J,S,E) / Rt(Pt100,Cu50) T/C Input: K: 0~1200°C; J: 0~1200°C; S: 0~1600°C; E: 0~1000°C Rt Input: Pt100: -199~600°C Cu50: -50~150°C Withstand Voltage Strength: 1500V Rms(Between Power Terminal and the Housing) Installation Resistance: Min. 50MΩ(Between Power Terminal and the Housing) Environment Temperature: 0~50°C Storage Temperature: -10~60°C Environment Humidity: 35~85%RH Item Size: 4.8 * 4.8 * 8.5cm / 1.89 * 1.89 * 3.35in Item Weight: 110g / 3.9ozThermistor Sensor Probe: Material: Stainless Steel Temperature Rang: -20~420°C Element: Pt100(Platinumi) Protection Tube Length: 5.2mm Coil Spring: 50mm Total Length: 2m / 6.56ft Product Weight: 43g / 1.54ozSolid State Relay: Control mode: DC-AC Loading current: 25A Loading voltage: 24 - 380VAC Control voltage: : 3 - 32VDC Control current: 3-25MaDC On voltage: ≤1V One-off Time: ≤10ms Off leakage Current: ≤2Ma Dielectrics voltage-resistance: 2500VAC Insulation resistance: 500MΩ/500VDC Installation method: Bolt fixation Environment temperature: -30 Degrees-+75 Degrees Working indicator: LED Color: White Item size: 60 * 45 * 23mm / 2.4 * 1.8 * 0.9in Net weight: 97g / 3.35ozPackage List: 1 * Temperature Controller 2 * Bracket 1 * User Manual(English) 1 * PT100 Thermistor Sensor Probe 1 * SSR-25 DA Solid State Relay for PID Temperature Controller
