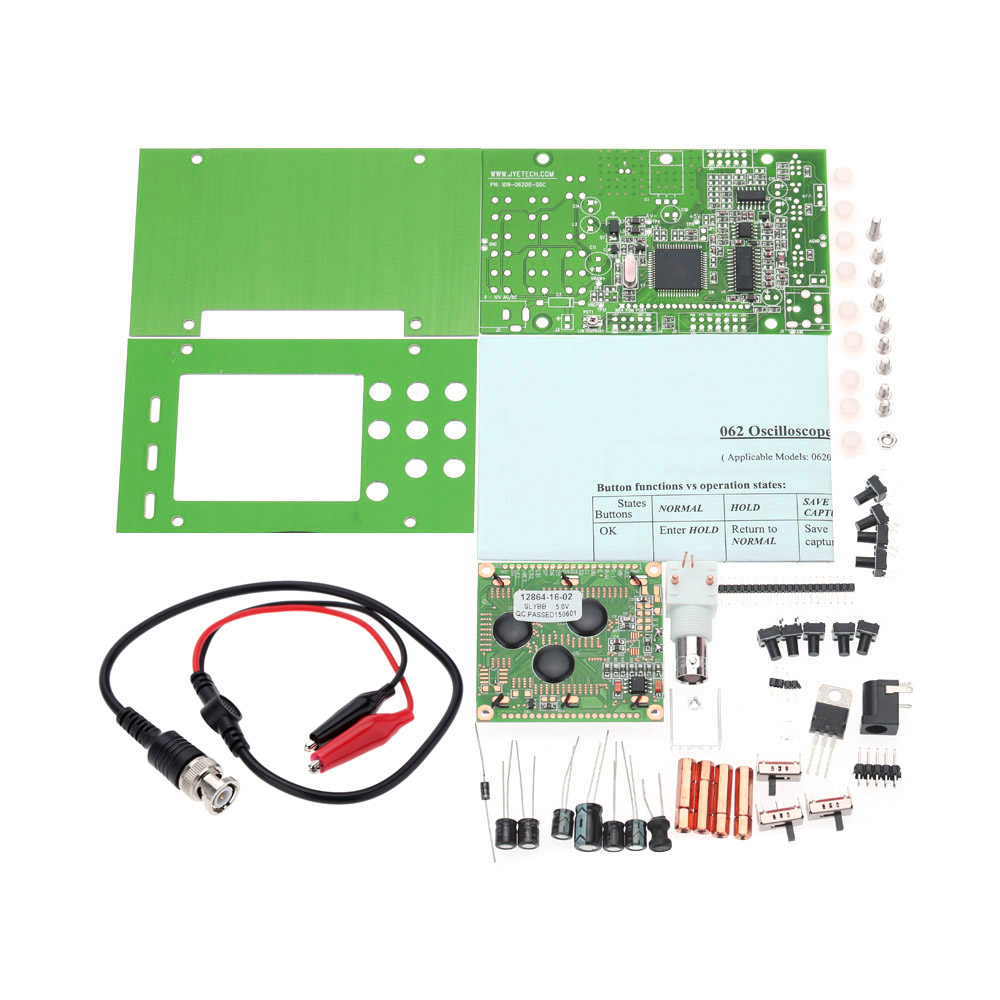

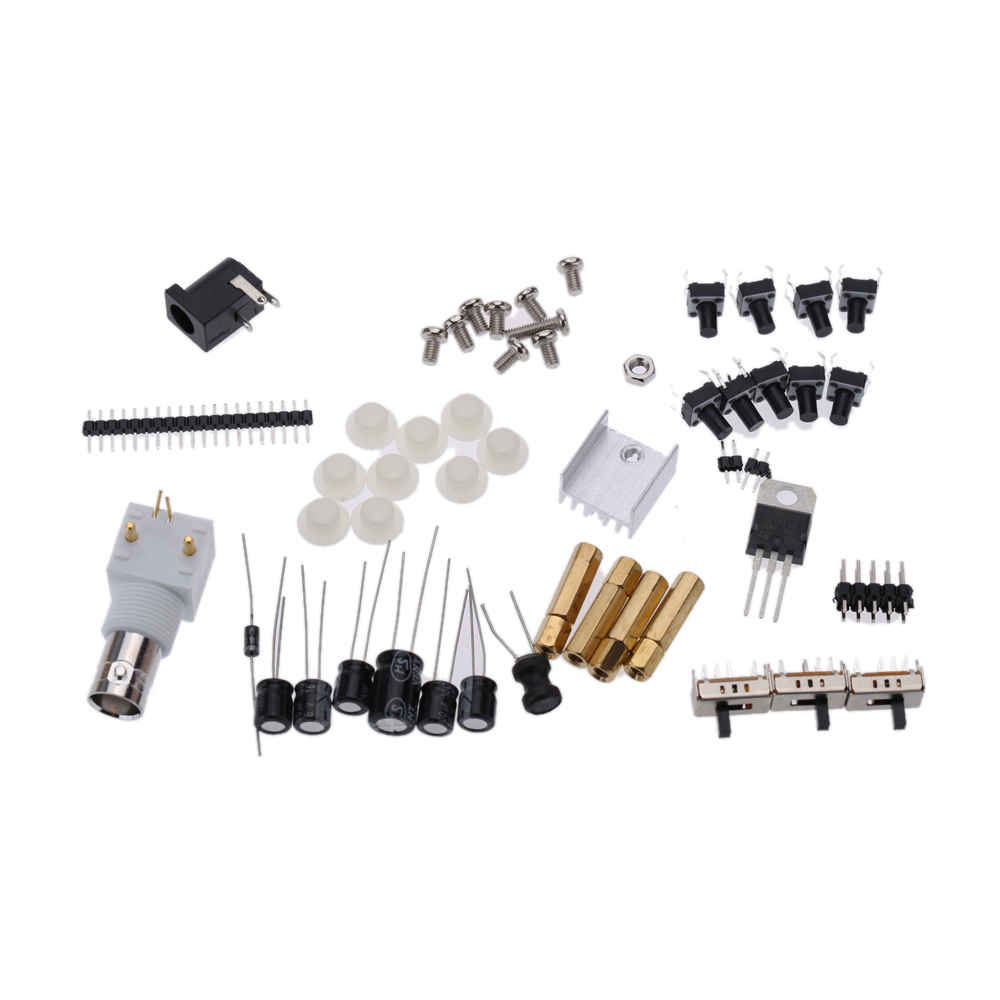

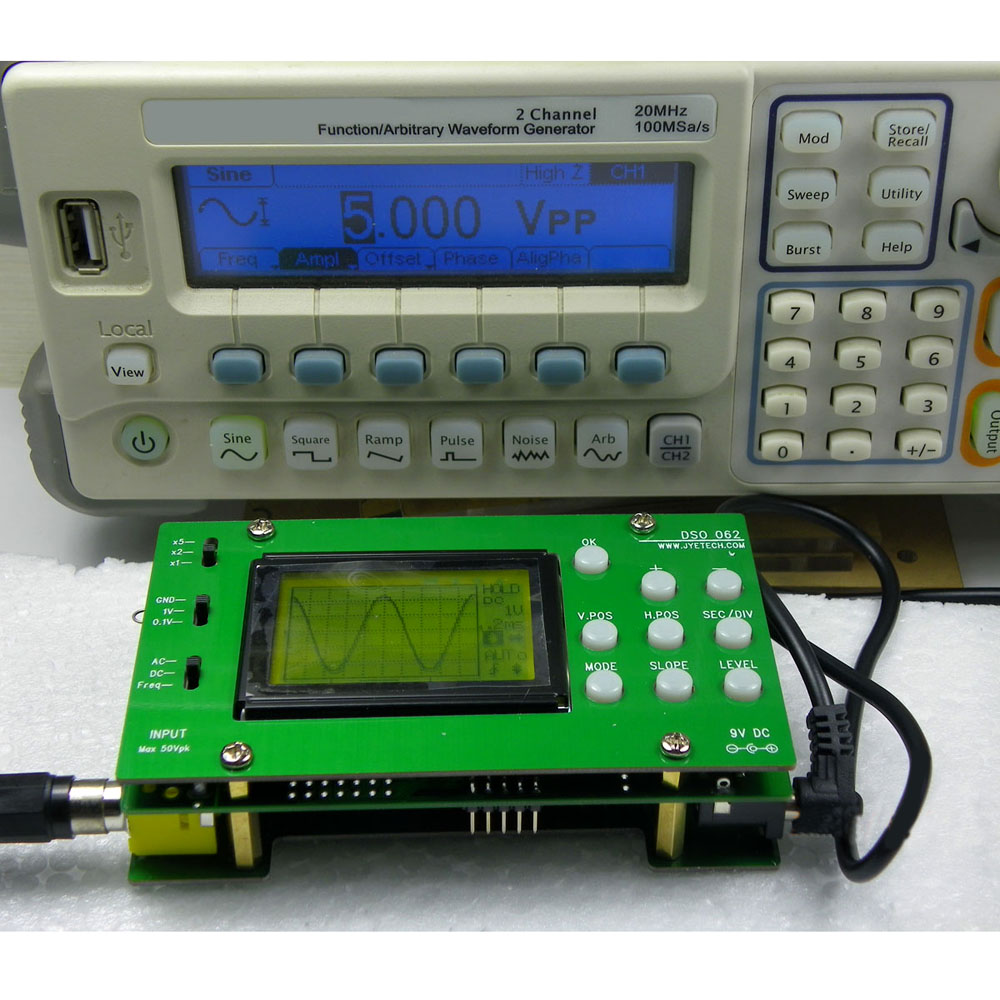

DSO062 Mini LCD Digital Oscilloscope DIY Kit Real-time Sampling Rate Oscilloscopio 1M Banwidth 2Msps DIY parts

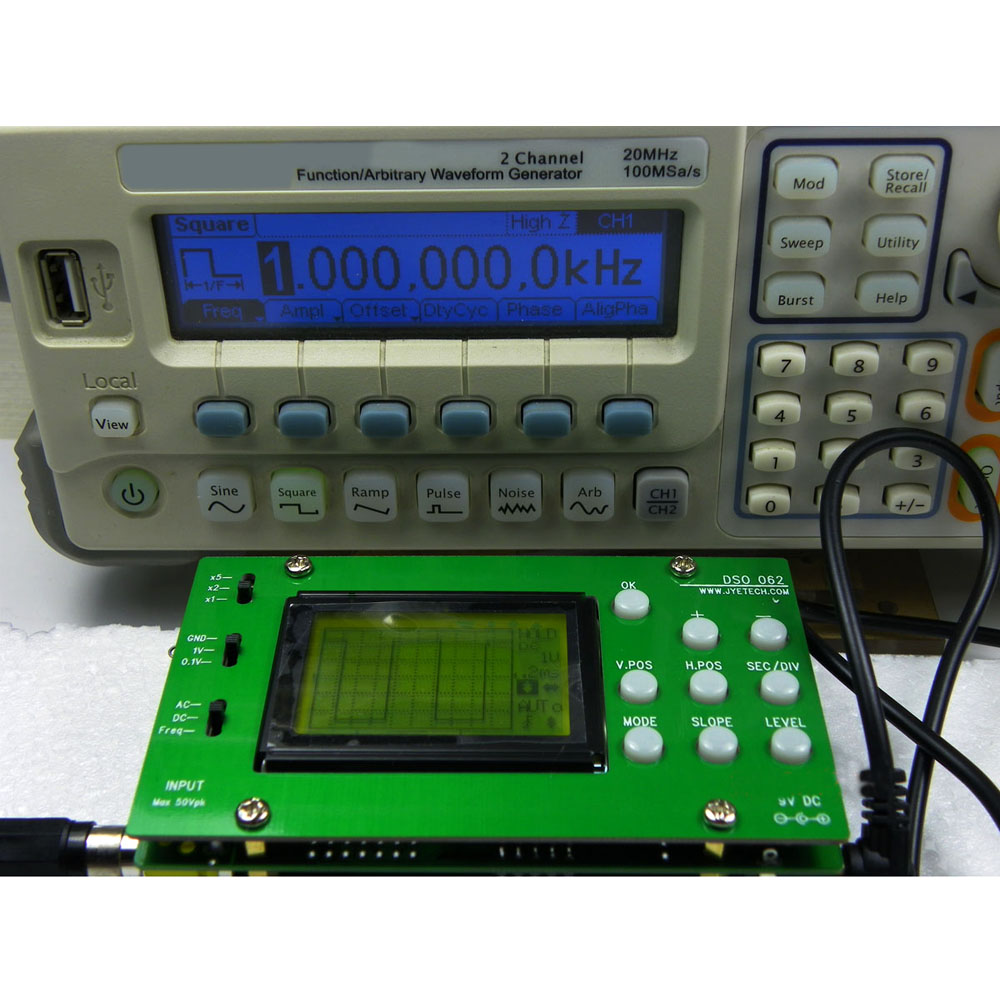

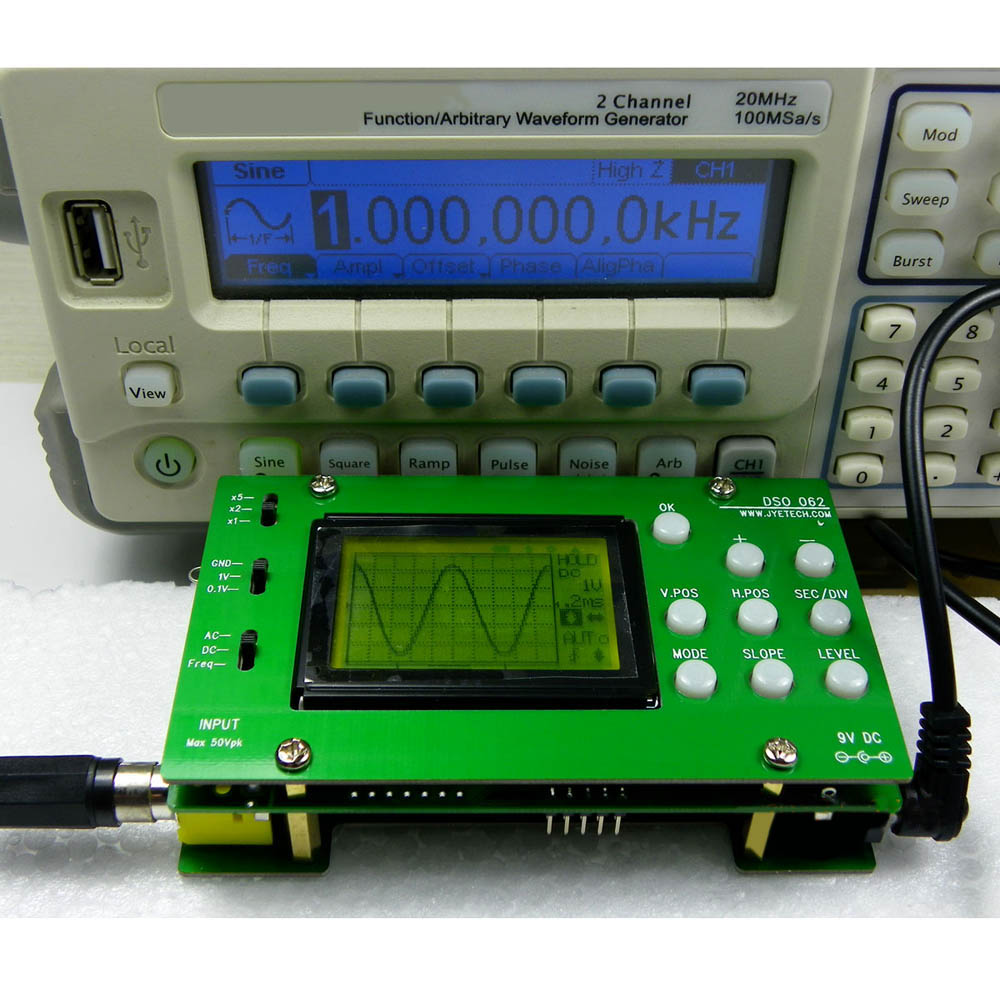

This product is a starter DIY kit especially for electronic enthusiasts and students. It's simple and practical for use.Features:Auto/Normal/Single trigger modes, convenient for instantaneous waveform capture.Can choose internal/external trig source.Rising/Falling edge trigger.Can observe the waveform before triggering(negative delay).Trigger output is available, which makes it possible to cascade scopes to do multi-channel capture.Vertical Position Adjustable with indicator.Trigger level adjustable with indicator.Hold/run feature.Save/recall up to 6 captures.FFT function available: 256 points and 512 points selectable, sampling rate of 1Ksps to 2Msps selectable.Transfer screen to PC as bitmap file via serial connection.Built-in 500Hz/5Vpp test signal.Frequency meter can measure frequency up to 5MHz.Specifications:Max. Equivalent-time Sampling Rate(Repetitive Signal): 20MSa/sMax. Real-time Sampling Rate: 2MspsResolution: 8 bitsRecord Length: 256 bytesAnalog Bandwidth: 1MHzVertical Sensitivity: 100mV/Div - 5V/DivInput Impedance: 1M ohmMax. Input Voltage: 50Vpk (1x probe) [500Vpk for 10x probe]Coupling: DC / ACHorizontal Time Base Range: 0.2us/Div - 10min/DivPCB Board Size: 10.5 * 6.3cm / 4.13 * 2.48in (L * W)PCB Board Weight(3pcs): 45g / 1.58ozScreen Size: 4.3 * 3cm / 1.7 * 1.18in (L * W)Screen Board Weight: 29g / 1.02ozPackage Size: 15 * 11 * 2.5cm / 5.9 * 4.33 * 0.98inPackage Weight: 150g / 5.29ozPackage List:1 * DSO062 Digital Oscilloscope DIY Kit
