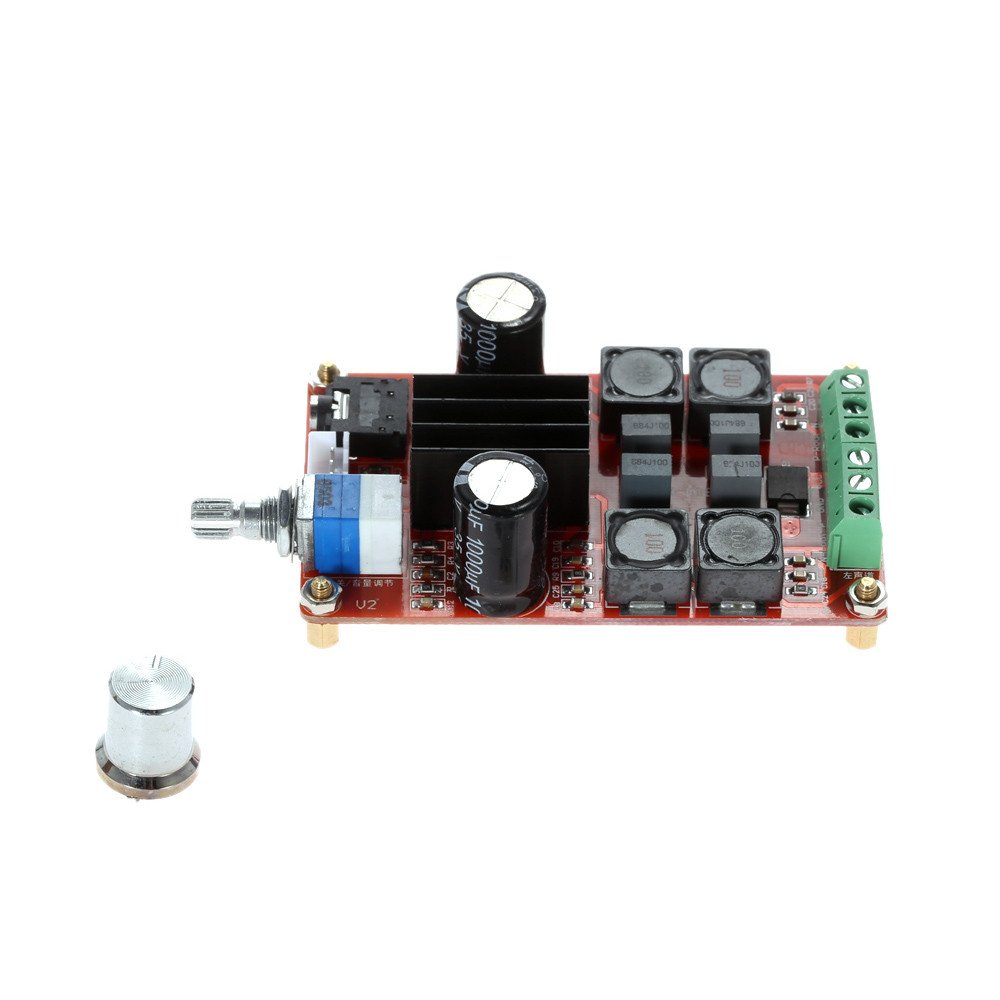

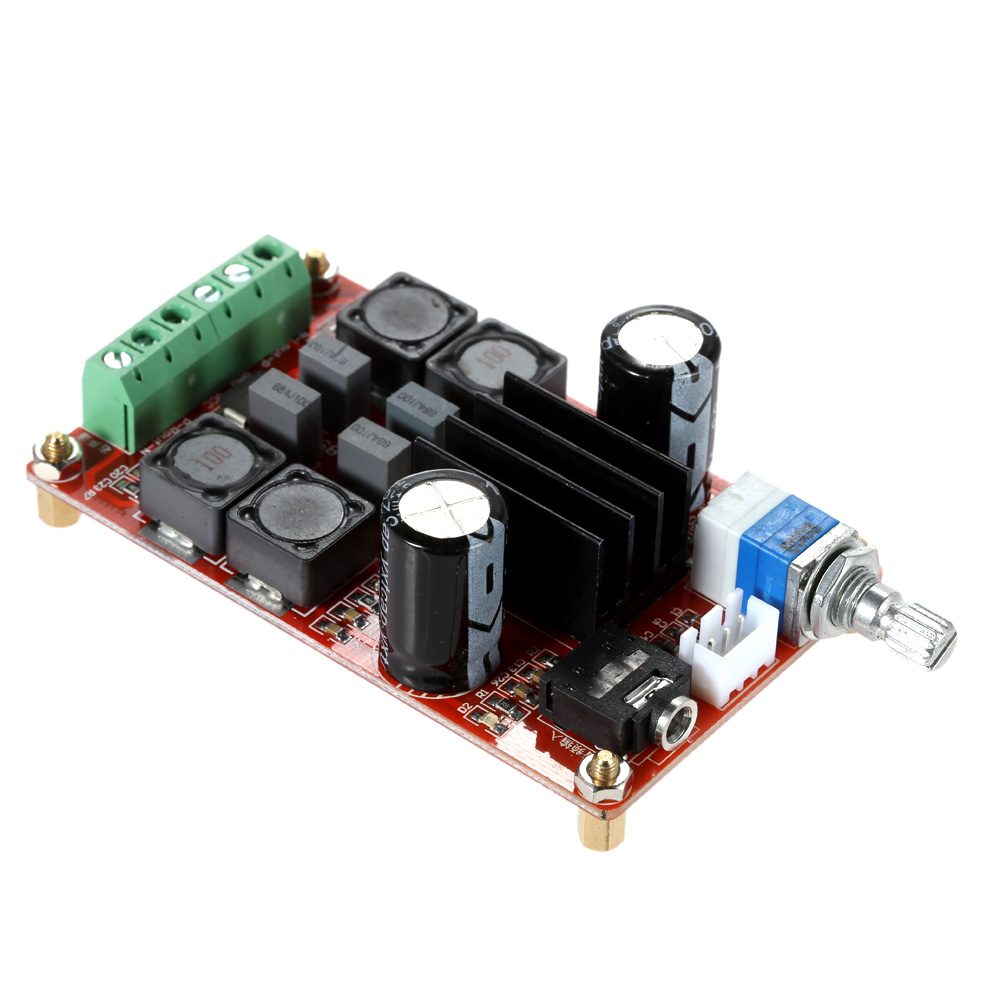

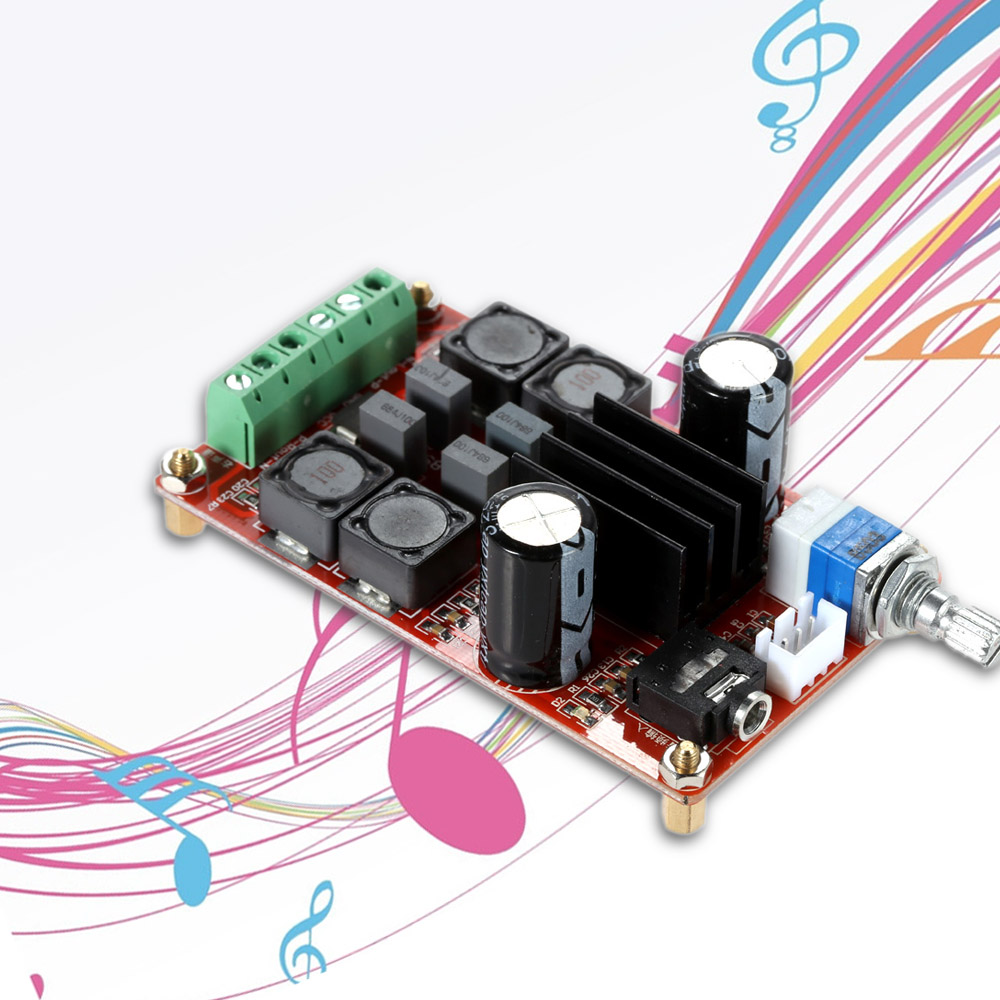

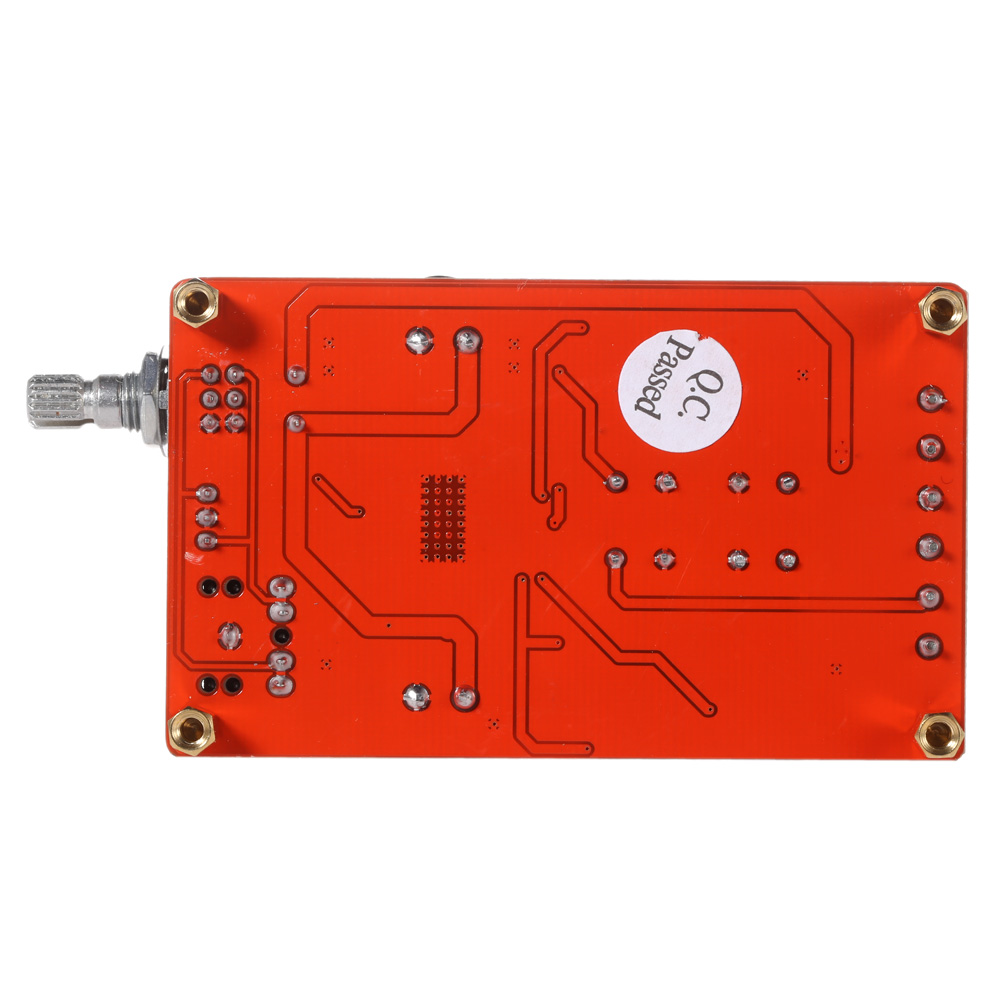

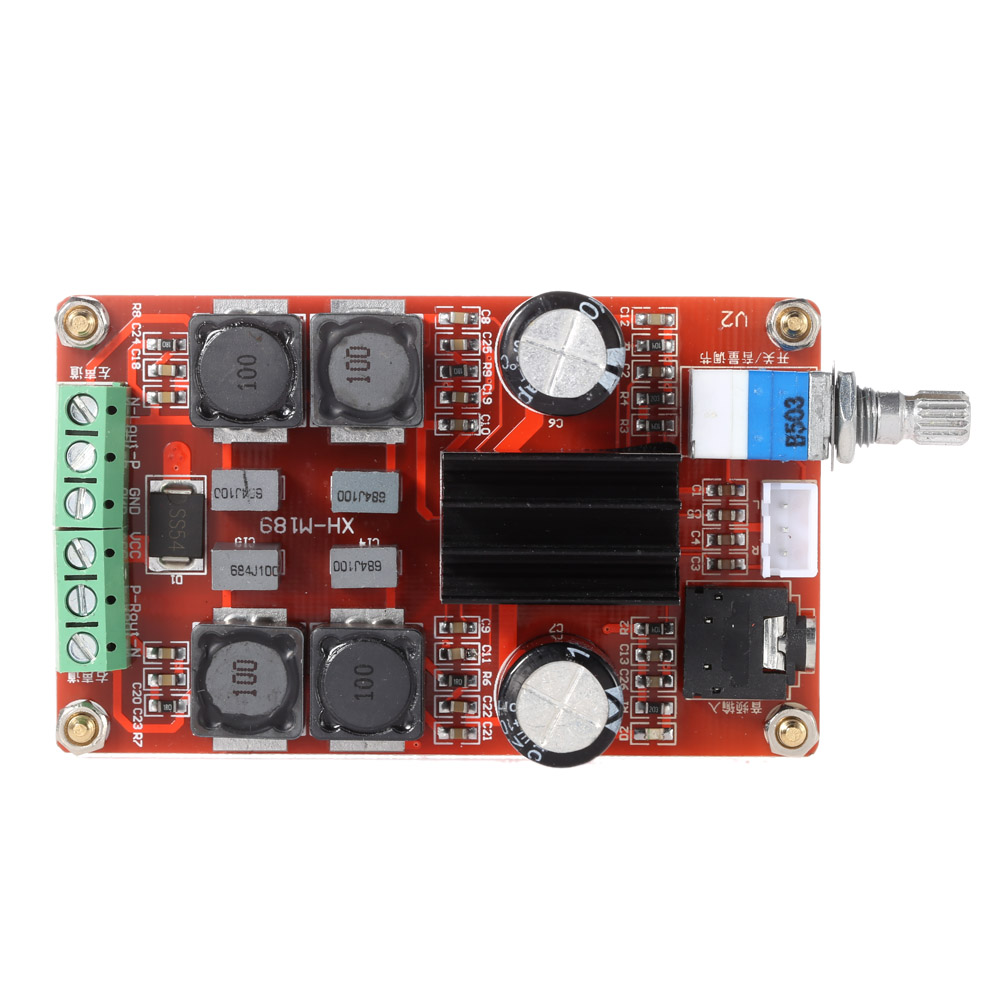

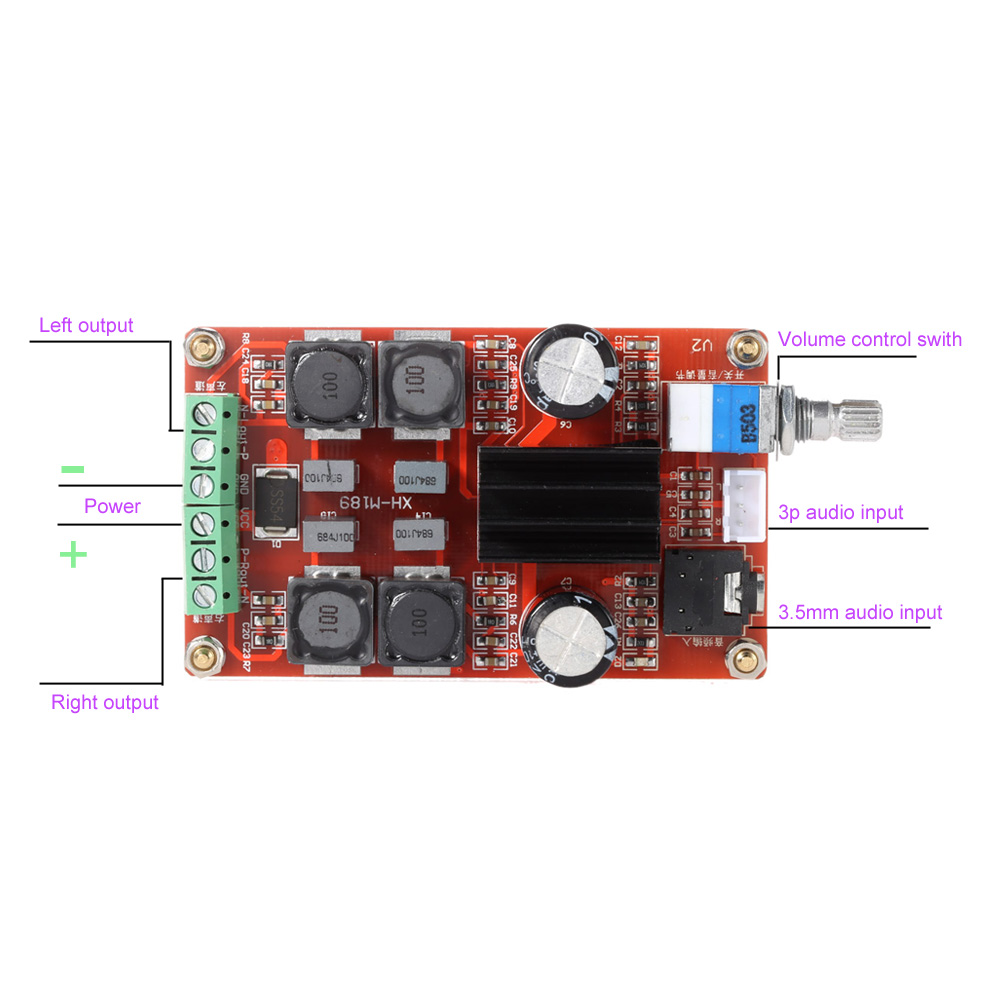

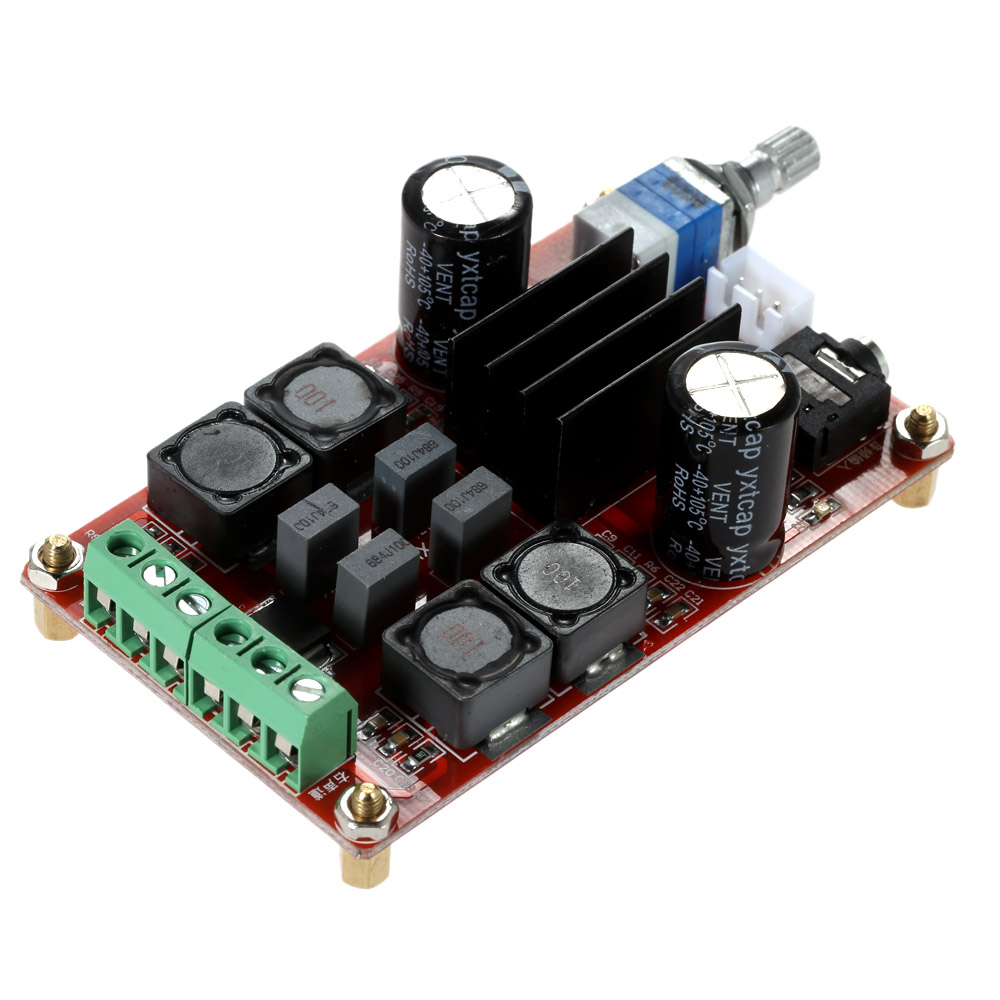

2*50W Dual channel Digital Power Amplifier Board Class Dual Channel Audio Stereo AMPD DC12V 24V
The amplifier board adopts high quality TPA3116D2 digital amplifier chip, which features clear sounds, small size, high efficiency and high power.Features: Adopts TPA3116 stereo audio power amplifier chip. Sound quality is very clear, strong amplifying power. Dual channel 2*50W, high efficiency and low-heat. Powered by DC 5-24V(best for 24V), wide input voltage. With reverse power supply protection and horn output short-circuit protection. Just connect the power supply and loudspeaker box, enjoy the pure digital music!Notice: This amplifier board must be powered by DC power(DC5-24V), it's better to use high-performance switch power. Don't use transformer!Specifications: Supply Voltage: DC 5-24V(Best for 24V) Chip: TPA3116 Audio Type: Class D Channel Type: Two-channel Stereo Output Power: 2*50W Output Match: 4-8 ohm Frequency Response Range: 20Hz-20Hz SNR: 100dB PCB Board Size: 84 * 51 * 29mm / 3.3 * 2 * 1.14in (L * W * H) Weight: 63g / 2.23oz Package Size: 13.5 * 11 * 5cm / 5.31 * 4.33 * 1.97in (L * W * H) Package Weight: 113g / 4oz Package List: 1 * Digital Amplifier Board
