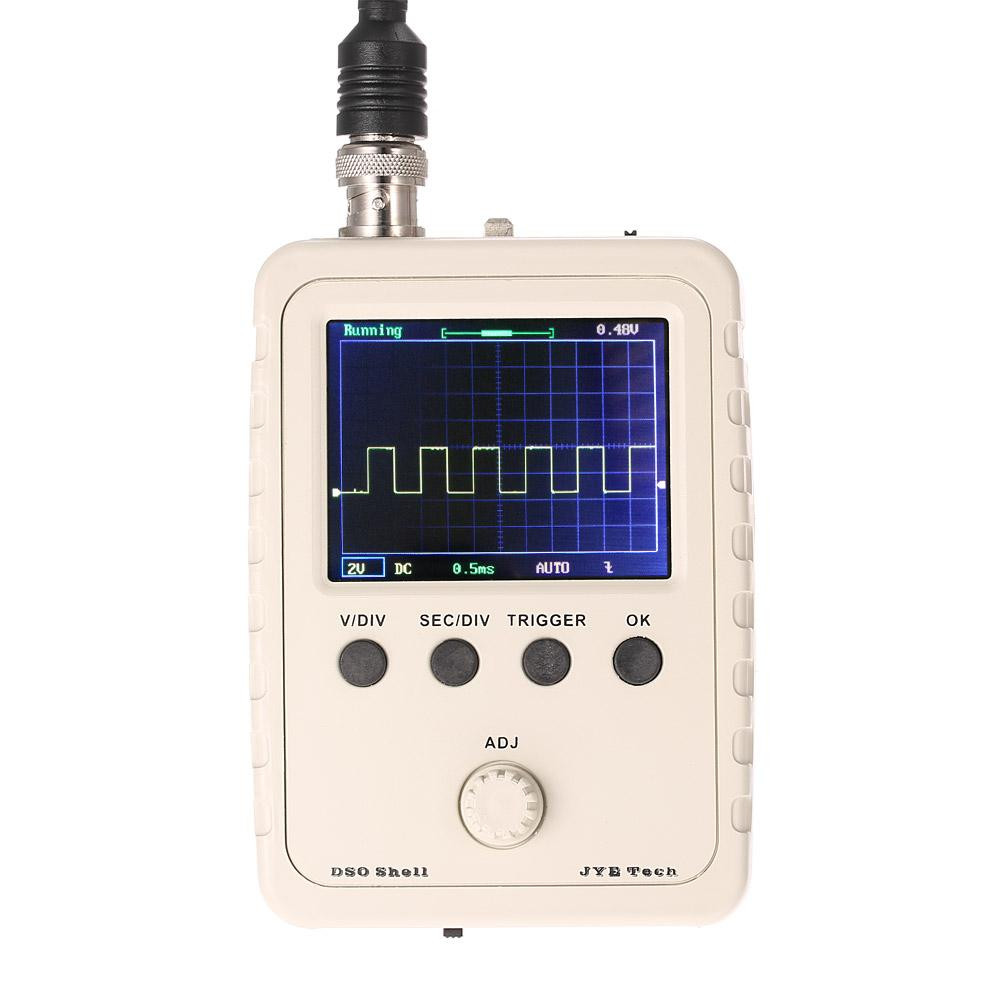

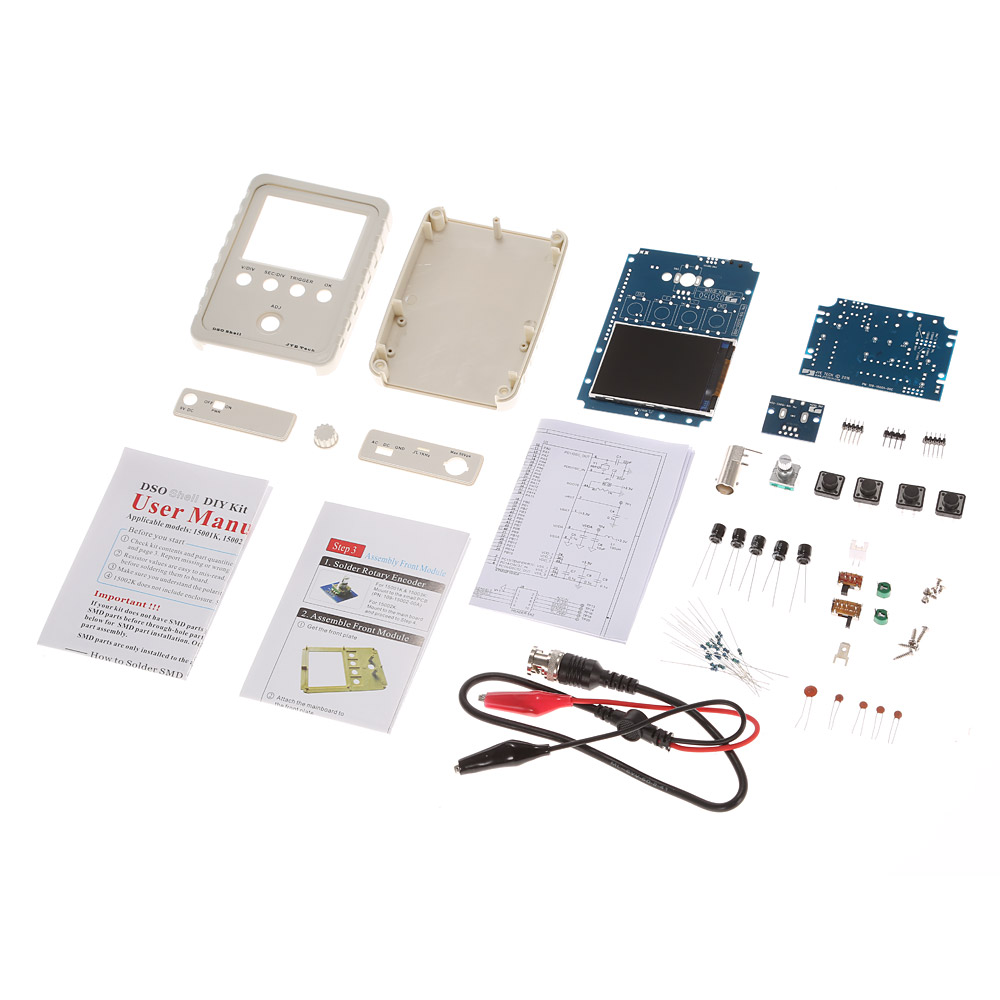

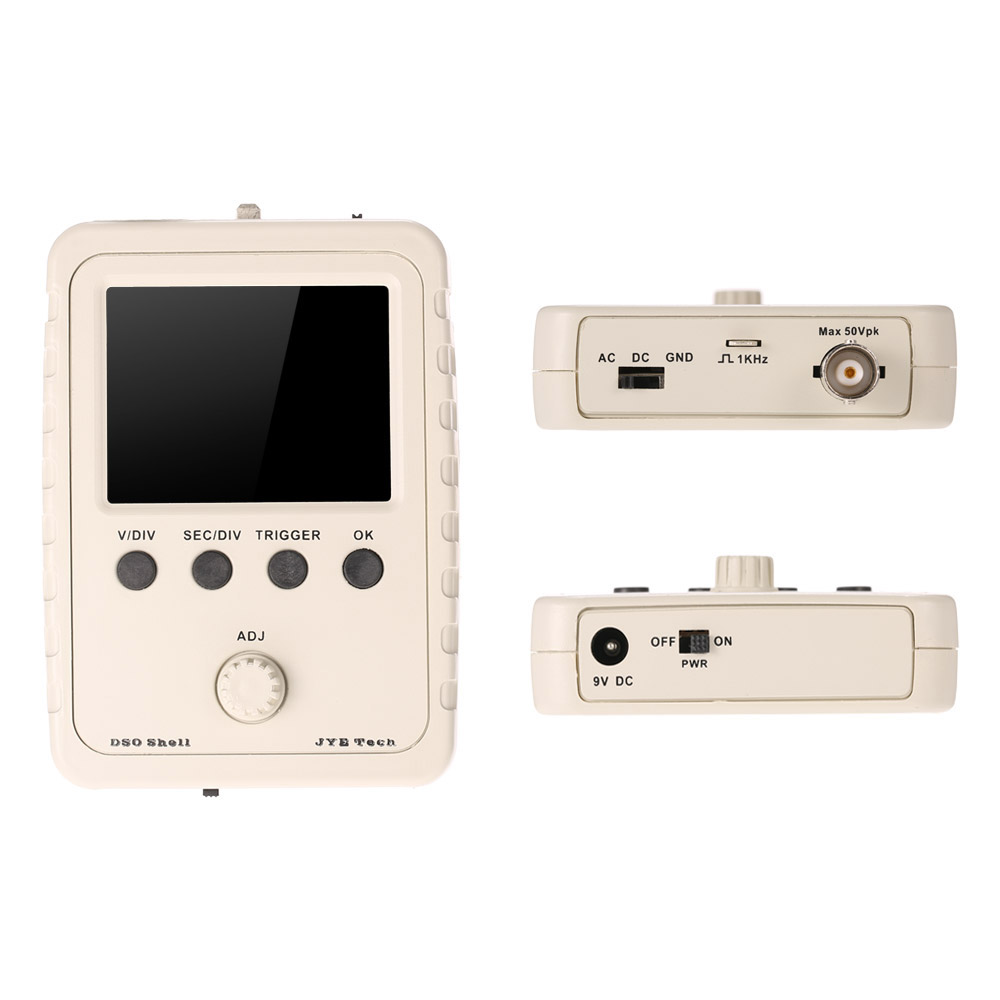

Digital Oscilloscope DIY Kit Parts with Case SMD Soldered Electronic Learning Set 1MSa/s 0-200KHz 2.4" TFT Handheld Pocket-size

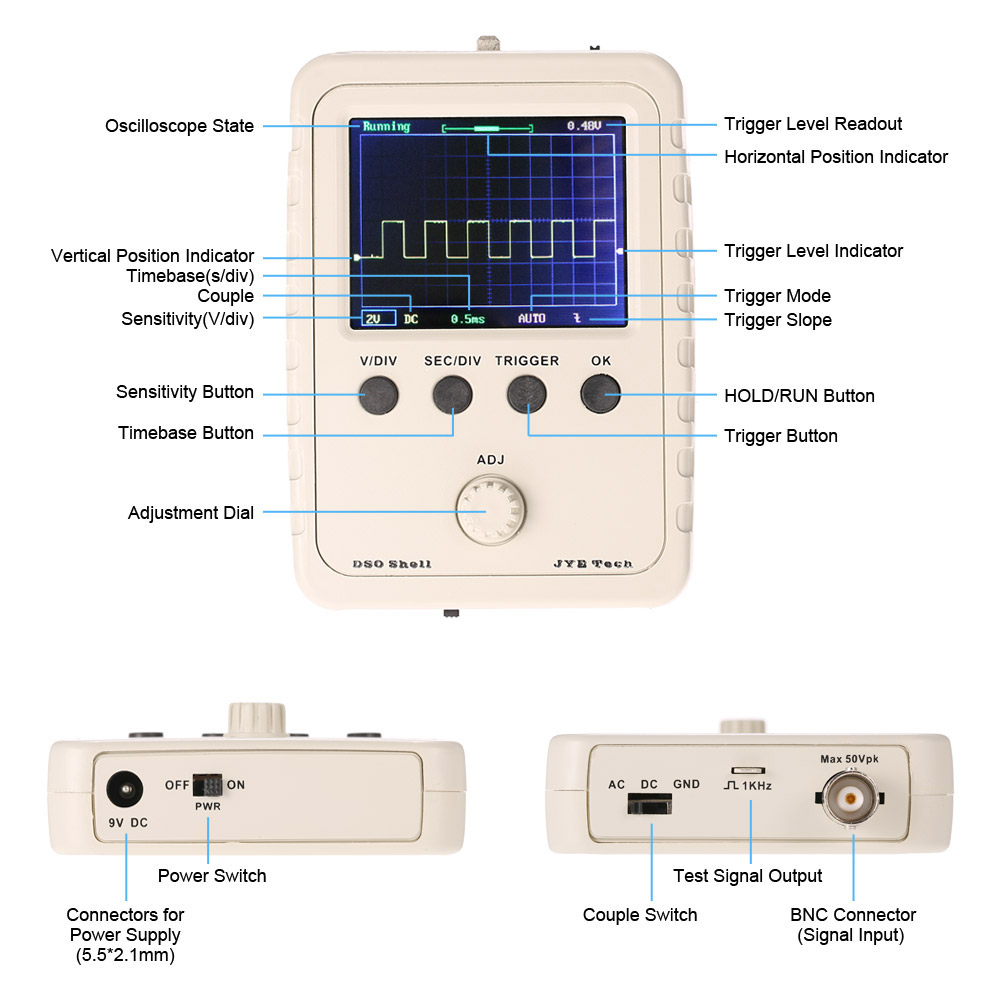

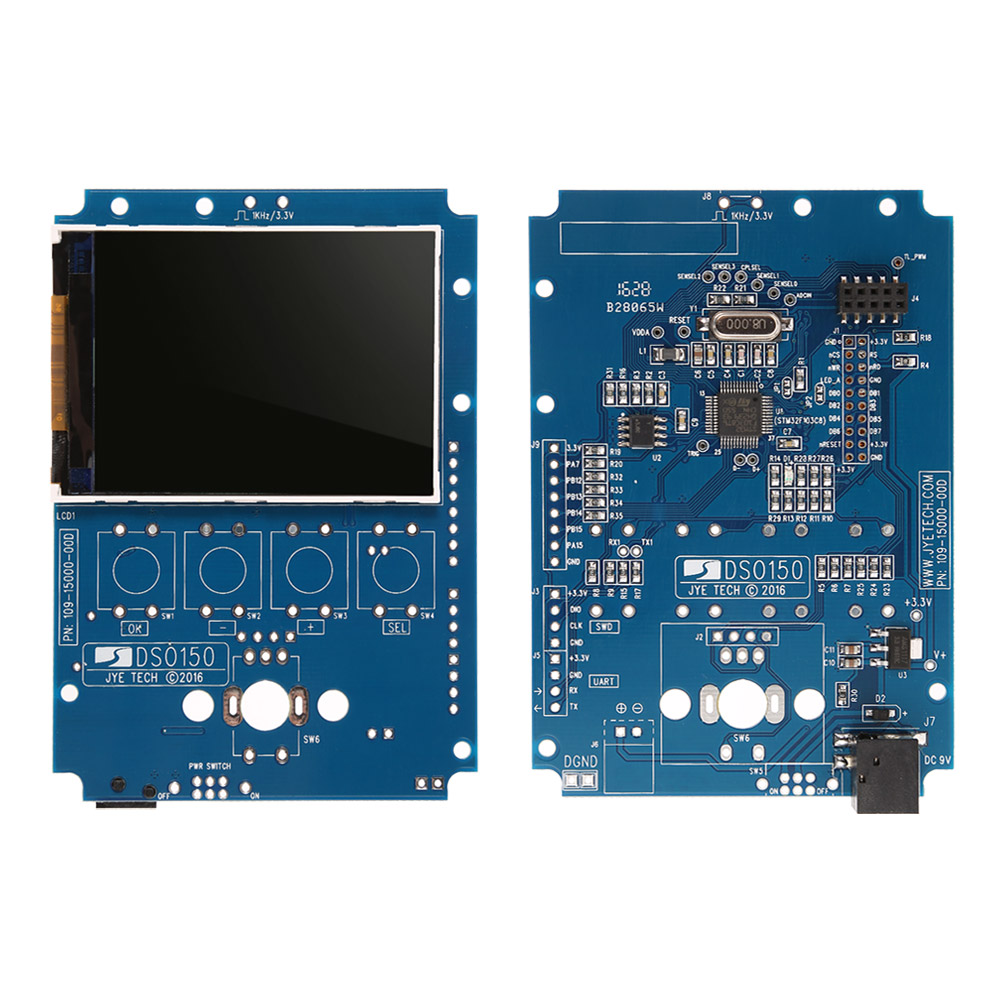

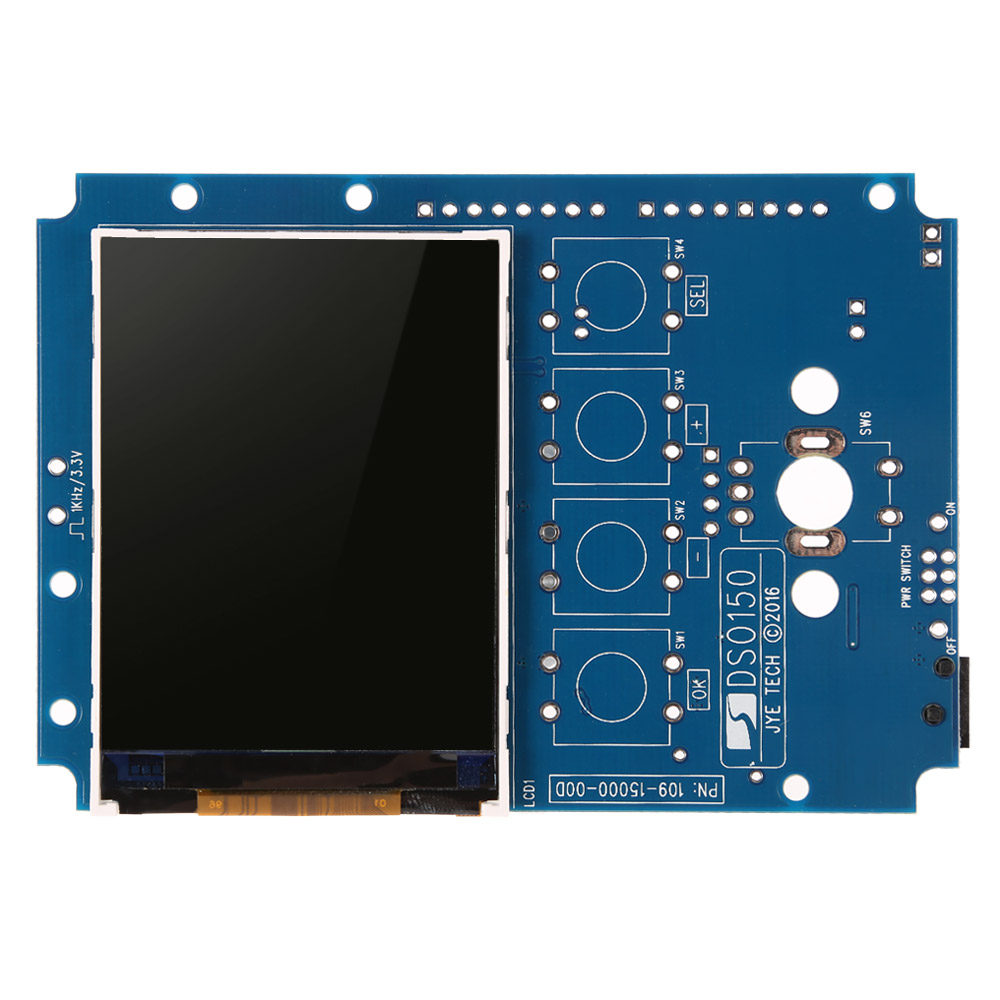

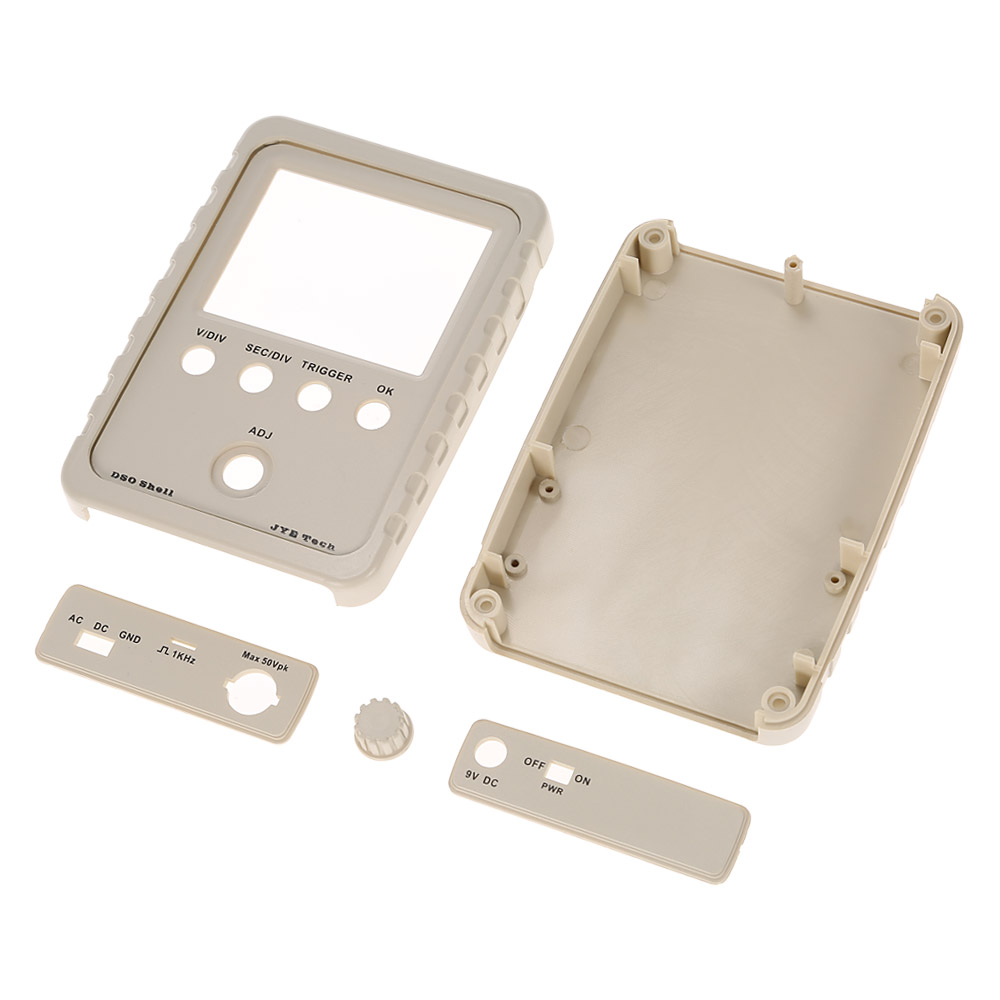

This DIY digital oscilloscope kit adopts ARM Cortex-M3 processor and with 2.4-inch TFT screen and protective case. It's easy and reliable for circuit operation. It can display waveform parameters, such as frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.Features:Adopt ARM Cortex-M3 processor (STM32F103C8), and include a 2.4-inch color TFT display screen.Used for secondary development on the basis of this kit, for example, it can be changed to Millivoltmeter, data loggers.Come with instructions, easy to install and operate.With Auto/Normal/Single trigger modes, easy to capture the moment waveform.Available rising or falling edge trigger.Observable previous waveform before trigger(negative delay).Can freeze waveform display at any time(HOLD function).With waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.Waveform storage function: will not lose the waveform after power off.Short-circuit and open-circuit detection: can help the user find out the soldering error.TFT controller recognition function.The SMD has been soldered, more suitable for electronic beginner.Specifications:Maximum Real-time Sampling Rate: 1MSa/sAnalog Bandwidth: 0-200KHzSensitivity Range: 5mV/div-20mV/idvMaximum Input Voltage: 50Vpk (1X probe)Input Impedance: 1M ohms/20pFAccuracy: 12 BitsRecord Length: 1024 pointsCoupling Modes: DC / AC / GNDTime Base Range: 500s/Div - 10us / DivTrigger Modes: Auto, Normal, and SingleTrigger Position: Center of BufferSupply Voltage: DC 9V(8-10V)Current Consumption:~120mA @ 9VMain Board Size: 94 * 65mm / 3.7 * 2.56inAnalog Board Size: 65 * 47mm / 2.56 * 1.85inScreen Size: 52 * 40mm / 2 * 1.57inPackage Size: 14.5 * 10 * 3.7cm / 5.7 * 3.94 * 1.45inPackage Weight: 179g / 6.33ozPackage List:1 * Digital Oscilloscope DIY Kit1 * Probe1 * DIY Case3 * User Manual(English)
