YSUP-15 Hot Sale Low Cost Cold Chain Disposable PDF USB Single Use Temperature Data Logger

<<prev

YSUP-15 Hot Sale Low Cost Cold Chain Disposable PDF USB Single Use Temperature Data Logger

SKU:

CK216522

Category: Electrical Instrument & Meters

$10.08

$7.56 - $10.08

Enquiry

Footer Group

Description

Product Description

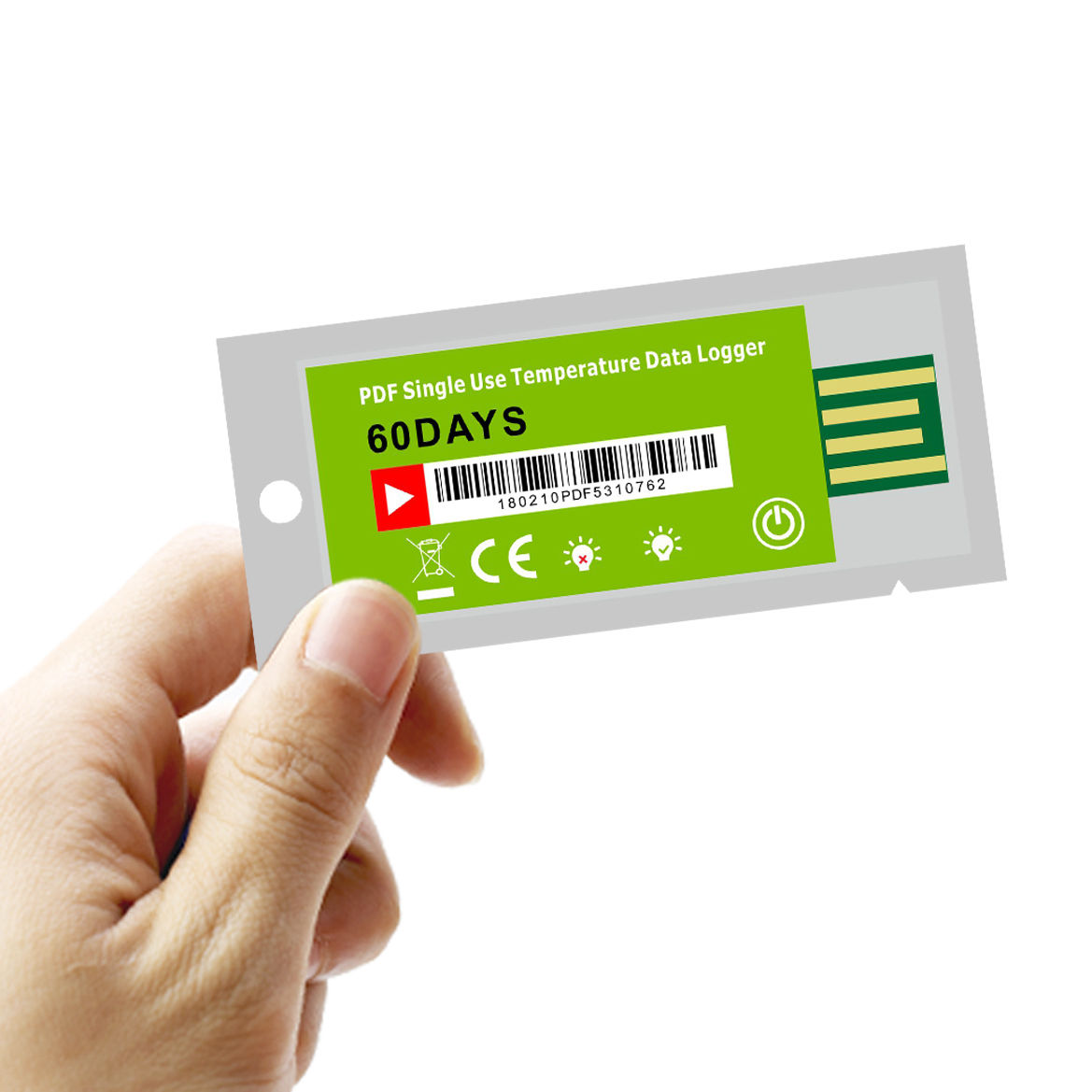

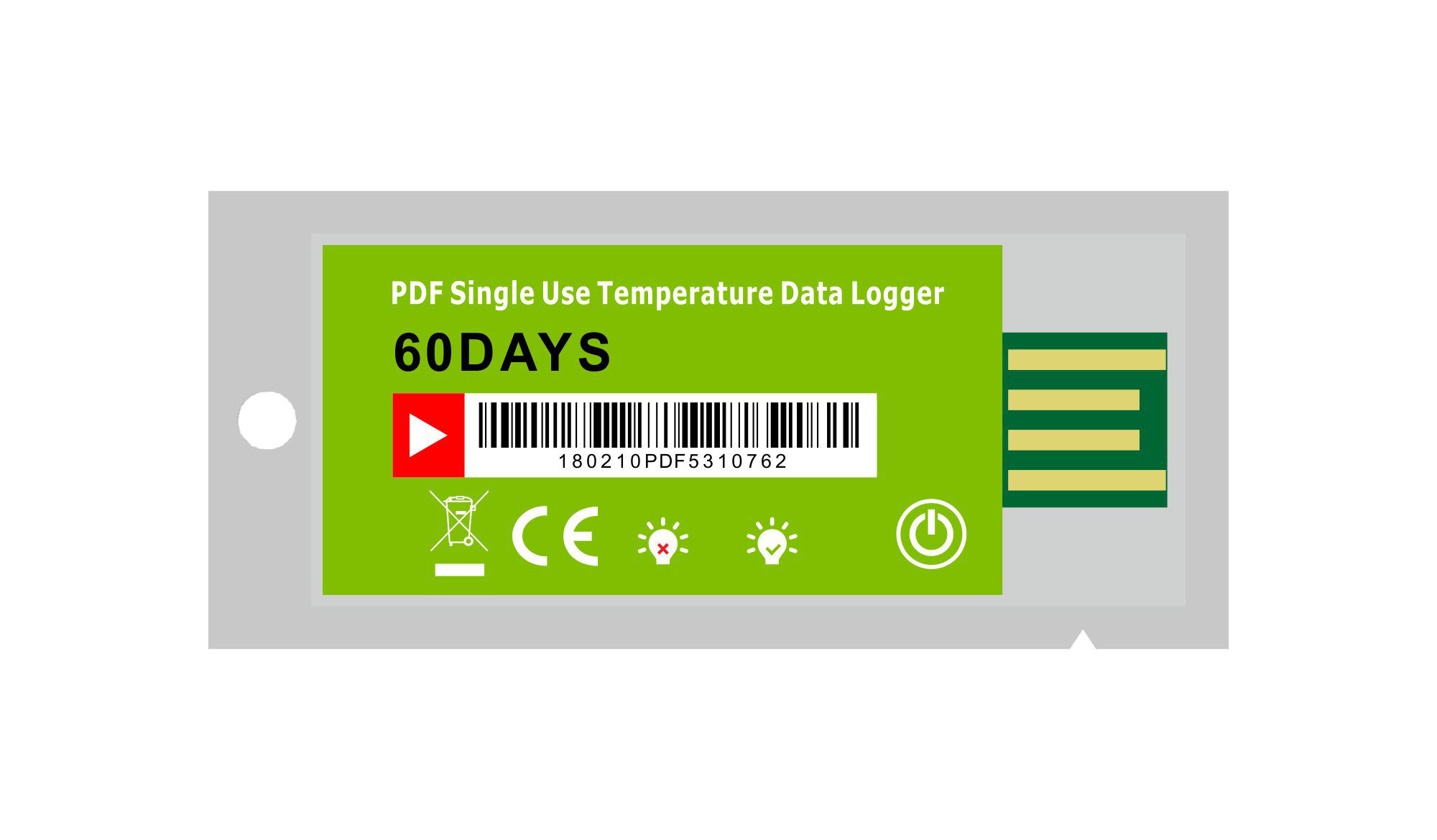

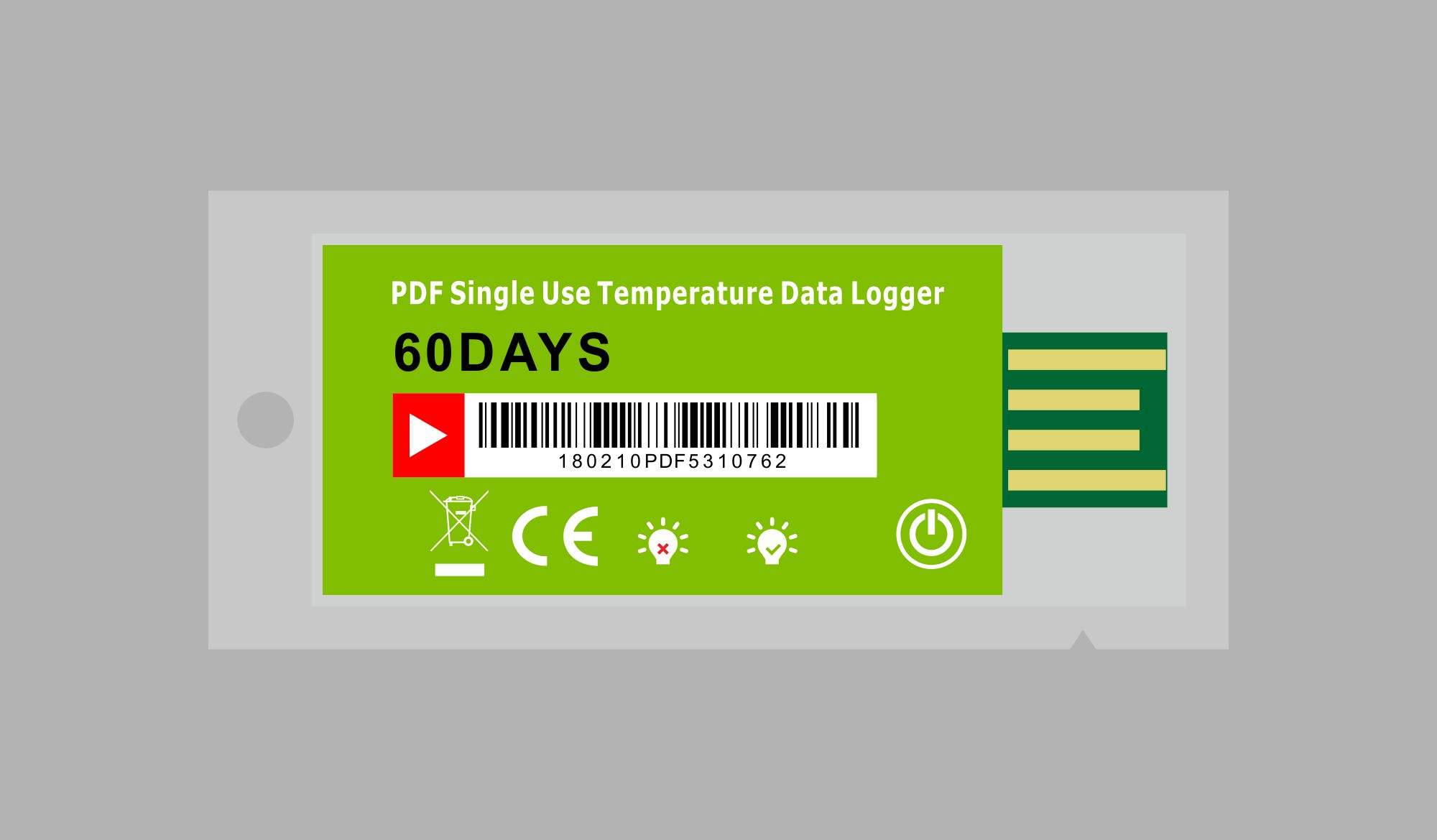

YSUP series is a disposable PDF temperature data logger, which is used for cold chain transportation and frozen storage of temperature sensitive goods, such as storage of fruits, fresh, vegetables, drugs, vaccines, etc. and temperature monitoring during transportation.

These data loggers are ideal for monitoring the temperature in transport, storage and testing process. The recording is started and stopped by pressing a button. And place into the USB slot on any computer to get PDF report directly without any software and driver.

FEATURES:

Generate PDF report without any software and driver	Storage capacity up to30240groupsof values
Food grade plastic bags	One button, easy to operate
The sampling interval is 10 seconds to 18 hours	Up to 6 marker points are supported
LED status and alarm indication	Equipped with PC software, users can configure parameters by themselves
Comply with food and drug industry specifications	The csv/xsl/txt/dlg format can beexported by software

Specifications	YSUP-15P	YSUP-15U	YSUP-15X	YSUP-15
Probe type	Built-in probe
Use type	Single-use
Measurement range	-30ºC~70ºC
Accuracy	±0.5ºC
Resolution	±0.1ºC
Data storage capacity	8640 groups of measurements		30240 groups of measurements	8640 groups of measurements
Sample interval	10 sec. to 18 hours
Record days	Before leaving the factory, the user can choose from 1 day to 360 days
High and low limit alarm value	Can be set according to user requirements			Factory configuration
Alarm delay	0 to 960min.
Alarm type	SSingle time; Cumulative
Start delay	0~254min.
Start recording mode	Press the button to start
Stop recording mode	Press the button to stop; Automatic stop when the storage is full; Insert USB and stop automatically
Operation/Storage environment	-30~70ºC
Communication interface	Build-in USB2.0
Software	PoChain; PidifiX (Windows 7/8/vista/10 32/64bits)
Power Supply	Non rechargeable CR2032 3V lithium battery
Dimensions	62274mm	65305mm
Protection class	IP67	IP65	IP65	IP67
Shell material	PET
Weight	About 10g
Certification and standards	CE; ROHS; EN12830
Shelf life	2 years
