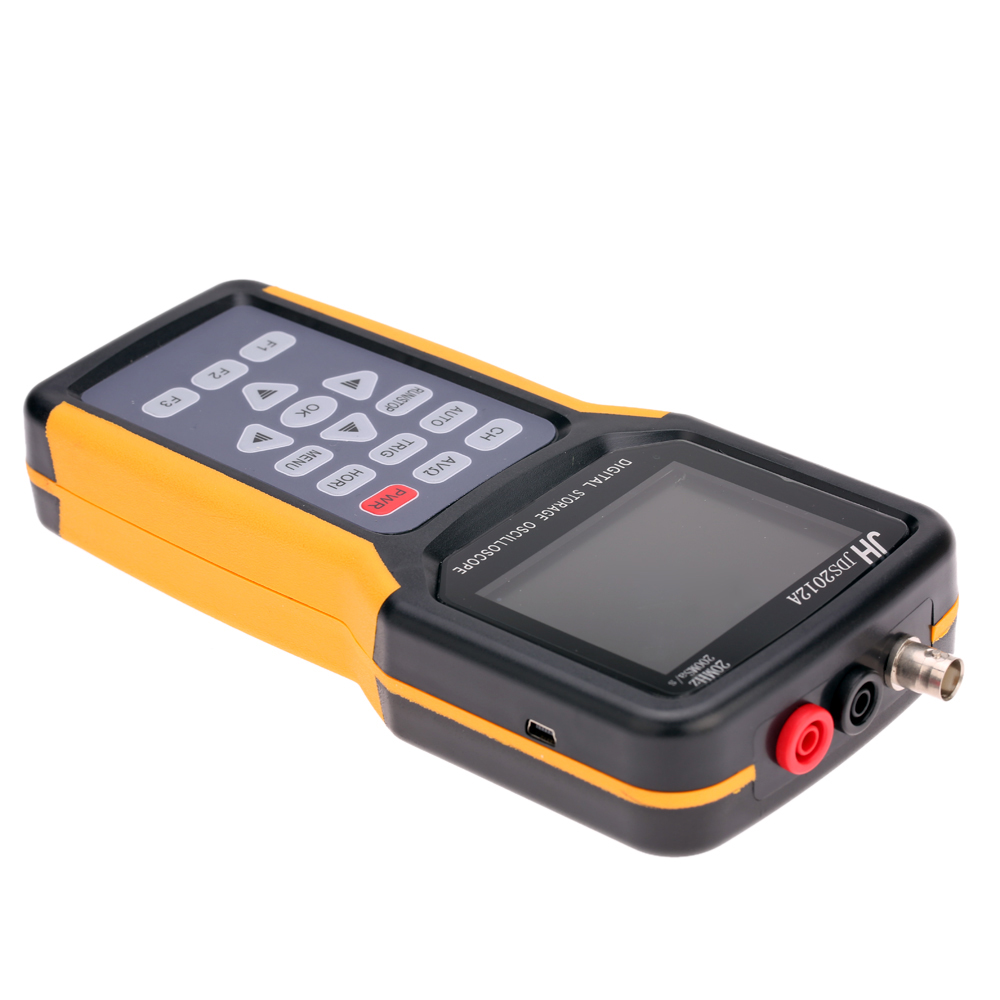

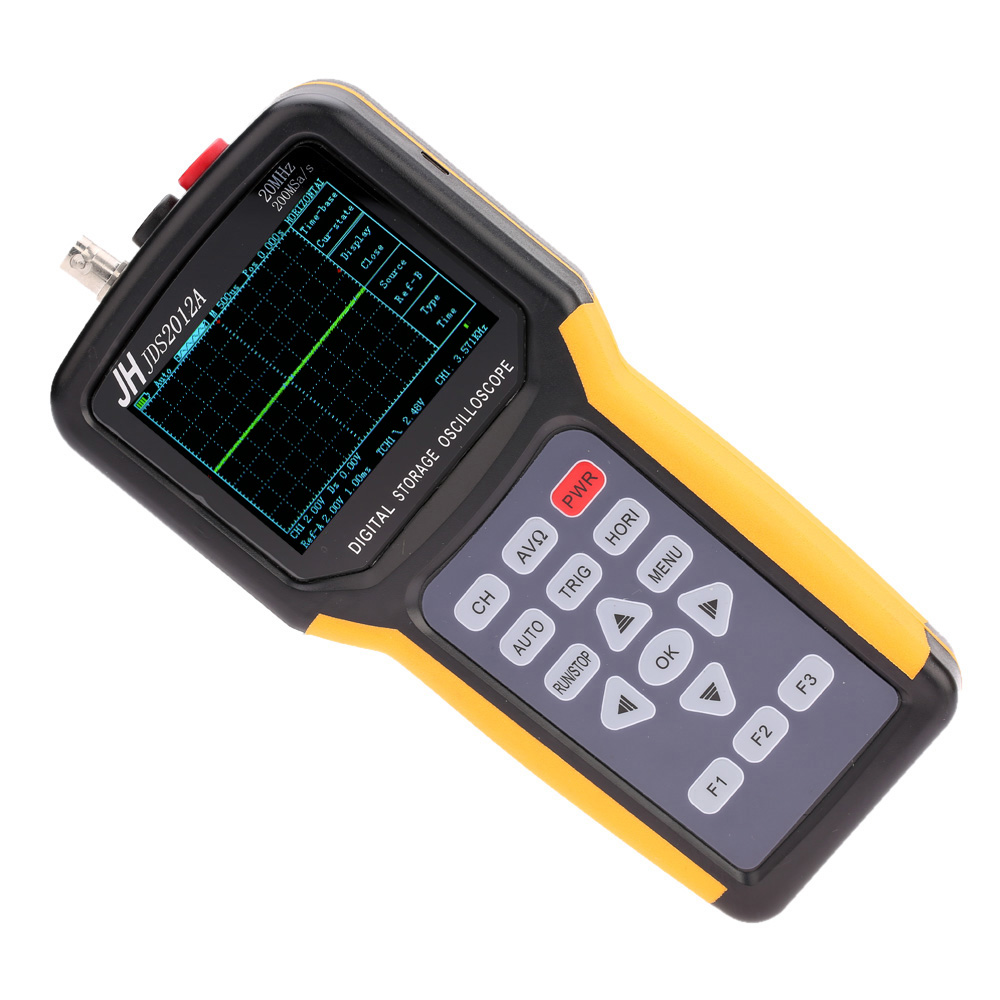

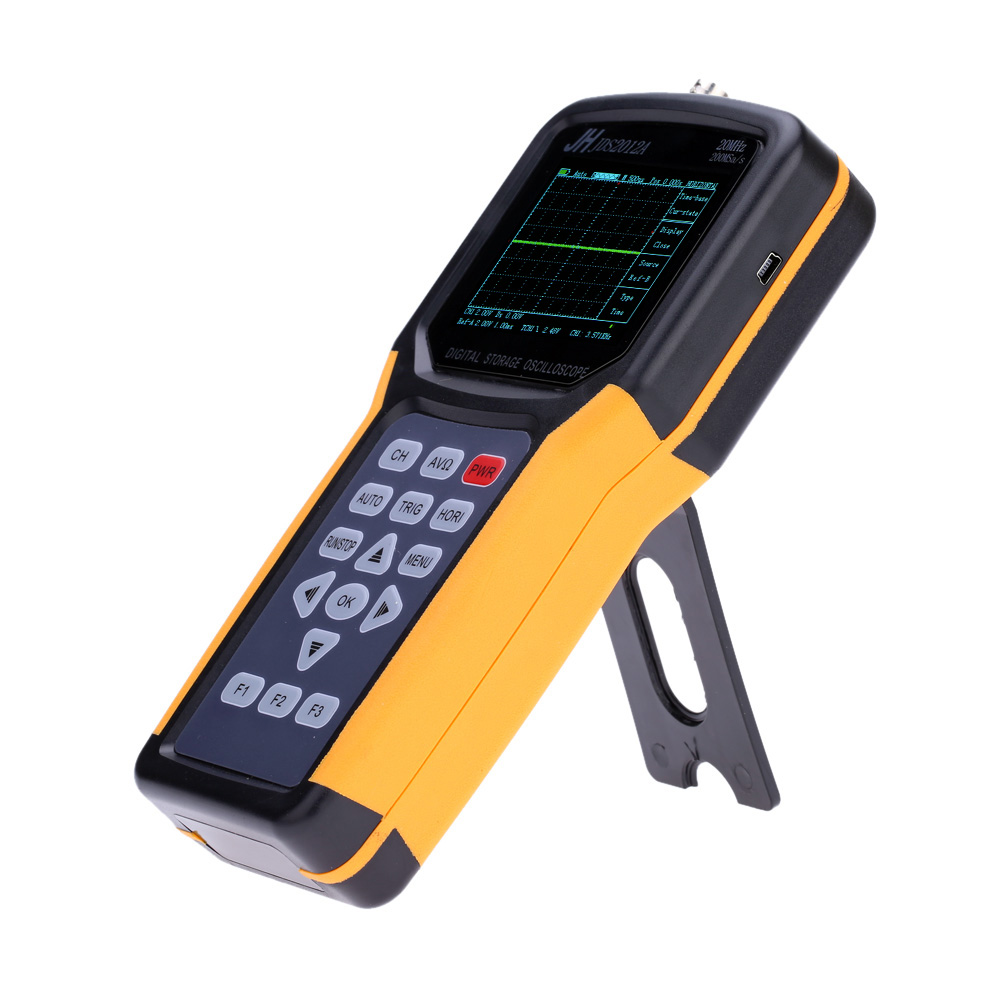

Handheld Multi-functional Digital 1CH Oscilloscope Portable Scope Meter 20MHz 200MSa/s Multimeter 4000 Counts logic Analyzer

This handheld digital oscilloscope with multiple functions is really practical for use. Its sampling rate is 200MSa/s and its bandwidth is 20MHz. It also has the multimeter function which can measure DC/AC voltage, resistance, capacitance and test diode and continuity.
Features:
Professional digital oscilloscope with 1CH, 200MSa/s Max. sampling rate and 20MHz bandwidth.
Colorful TFT LCD display with 320*240 pixels resolution, easy and clear for reading.
Backlight brightness can be adjusted; color display/black and white display for selection.
Supports Chinese and English menu display.

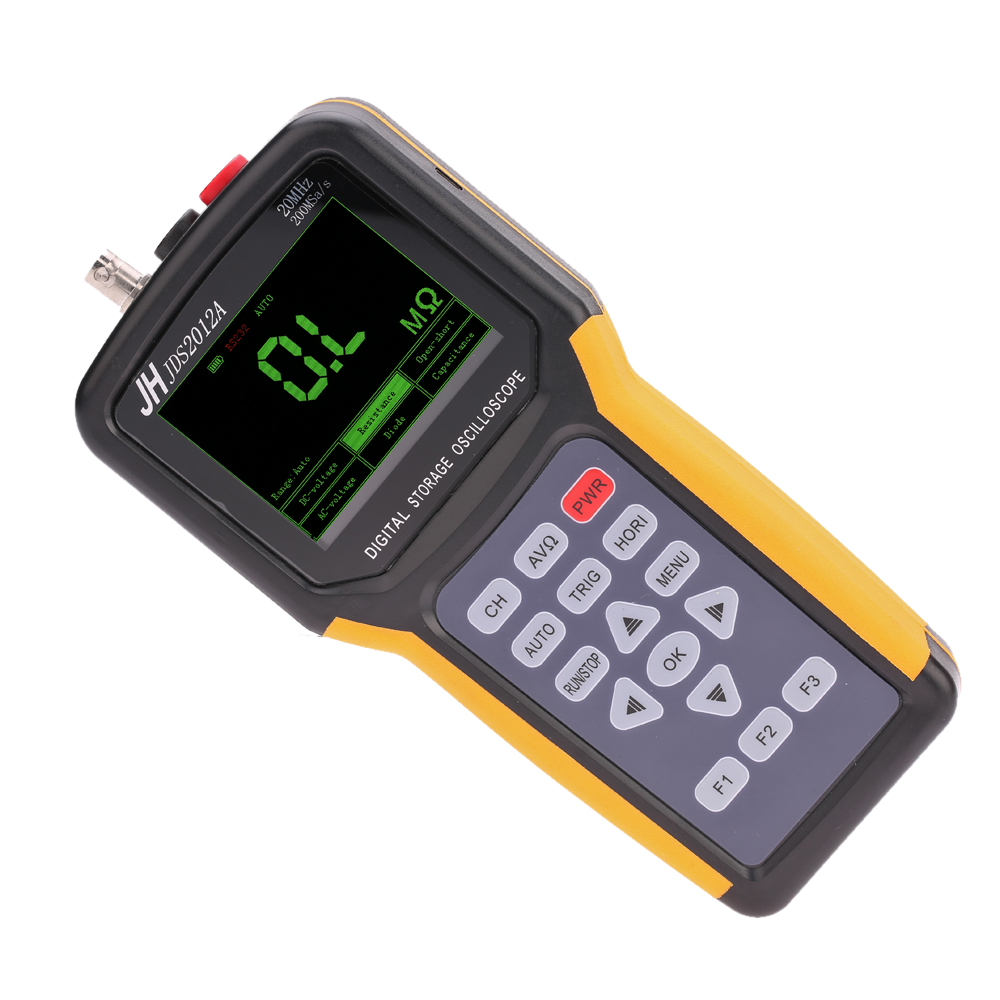

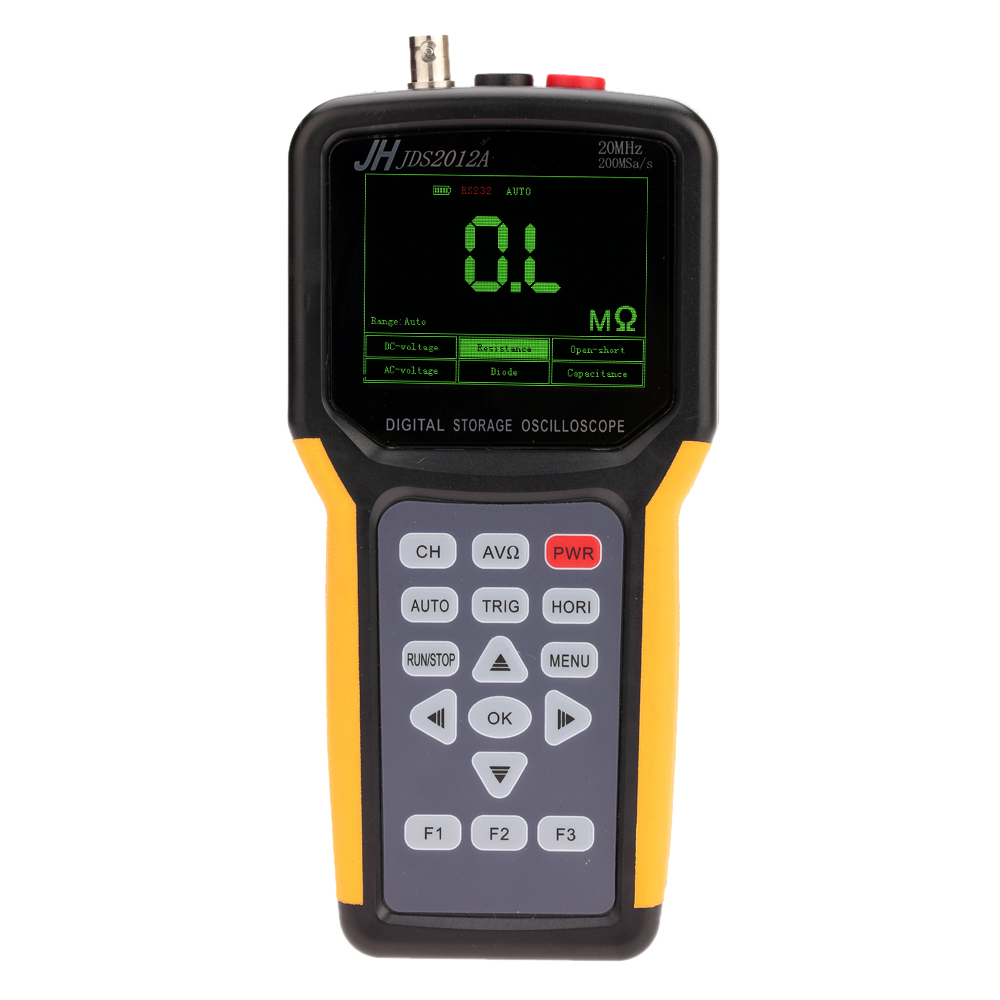

Combined with multimeter function, can measure DC/AC voltage, resistance, capacitance and test diode and continuity.

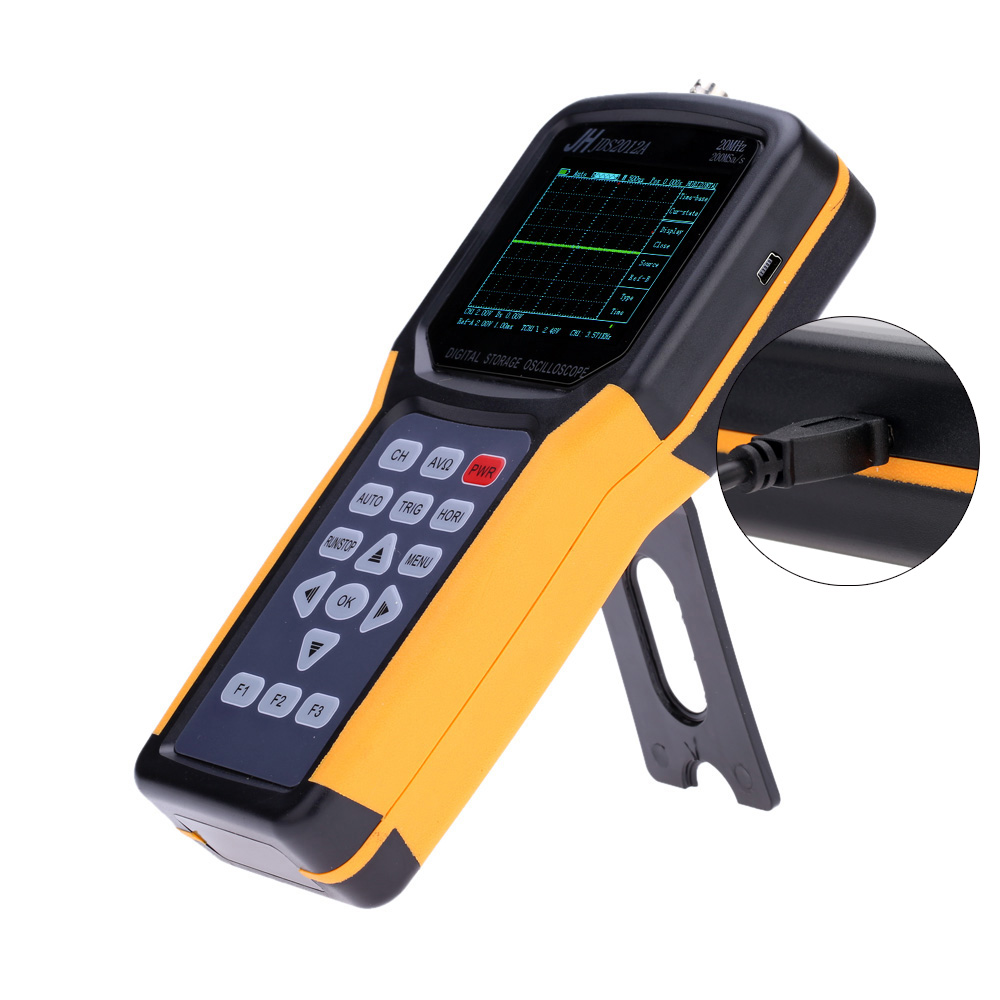

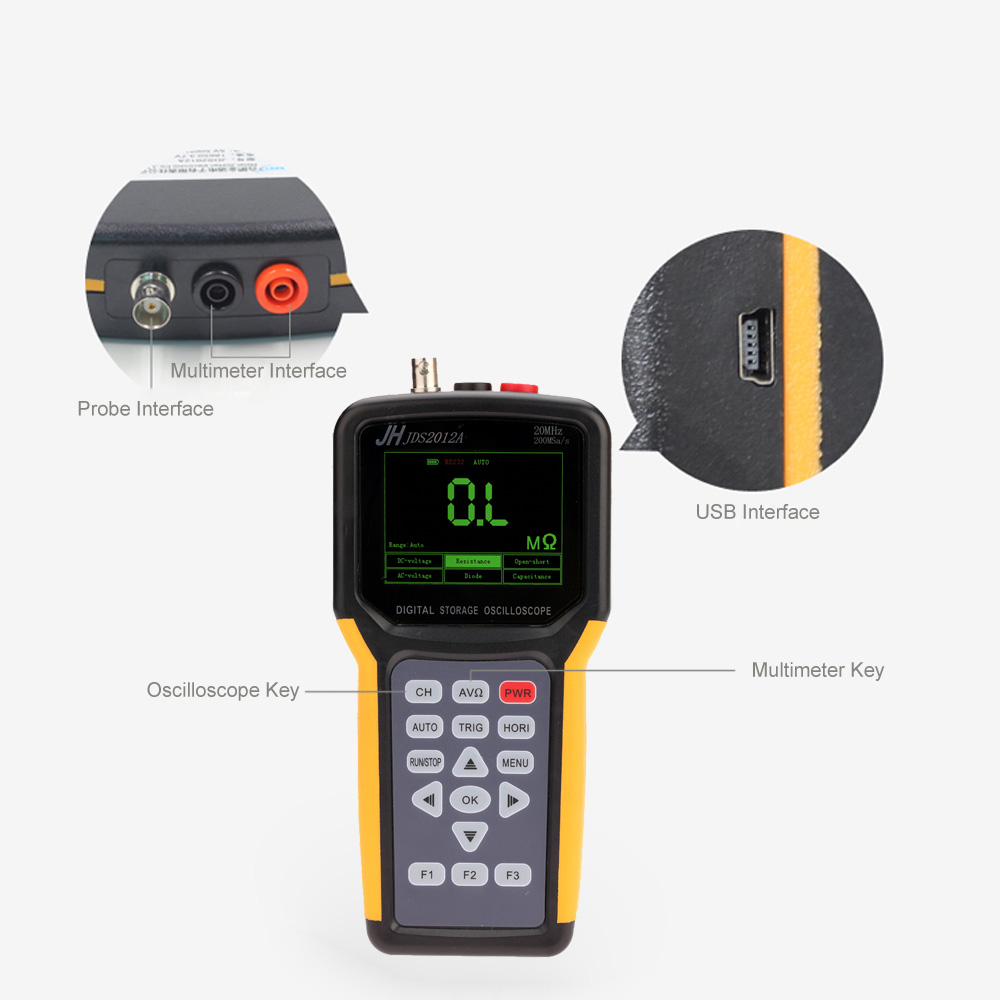

Data storage with USB interface, 2K storage depth.
Triggering modes: Automatic, Normal, Single.
Rising/falling edge trigger available, which can measure 50Hz to 40MHz.
Time and voltage cursor, peak to peak/duty cycle/frequency measurement.
Powered by 1*18650 3.7V lithium battery(not included), with battery charger for convenient charging.
Specifications:
Display: Full Color TFT LCD Display(320*240 pixels)
Sampling Rate: 200MSa/s
Channel: 1
Bandwidth: 20MHz
Input Range: 10mV-5V x1; 100mV-50V x10; 1V-500V x100(1-2-5 Step)
Vertical Resolution: 8bit
Vertical Accuracy: +/-3%
Impedance: 1MΩ 25pF
Coupling: AC/DC
Display Mode: YT
Input Voltage: 40V(x1); 400V(x10); 4000V(x100)
Time Range: 10ns-50ms(1,2.5,5 step) 100ms-5s(scan scan)
Storage Depth: 2K
Trigger Mode: Automatic, Normal, Single
Trigger Type: Rising/Falling Edge Trigger
Automatic Measurement: 50Hz-40MHz
Measurement: Peak to Peak/Duty Cycle/Frequency
Cursor: Time, Voltage
Multimeter Display: 4000 Counts
DC Voltage: 40mV/400mV/4V/40V/400V/4000V
AC Voltage: 40mV/400mV/4V/40V/400V/4000V
Resistance Range: 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ
Capacitance Range: 51.2nF/512nF/5.12μF/51.2μF/512μF(30sec)
Diode: 0V-1.5V
Continuity Test(Build-in buzzer sounds when resistance is less than 60Ω)
Power Supply: 1 * 18650 3.7V Battery(NOT Included)

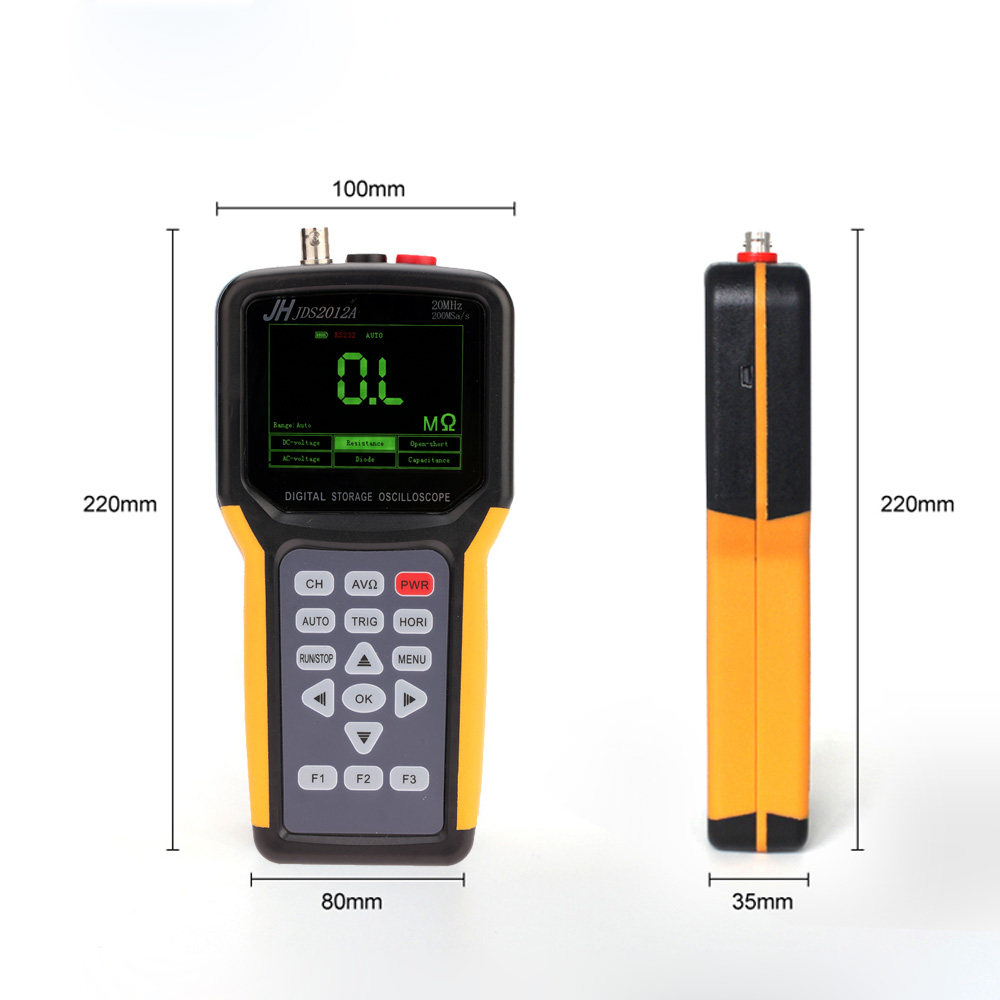

Product Size: 220 * 100 * 35mm / 8.66 * 3.94 * 1.4in
Product Weight: 340g / 12.01oz
Package Size: 25 * 20.5 * 6.6cm / 9.84 * 8.07 * 2.6in
Package Weight: 772g / 27.23oz

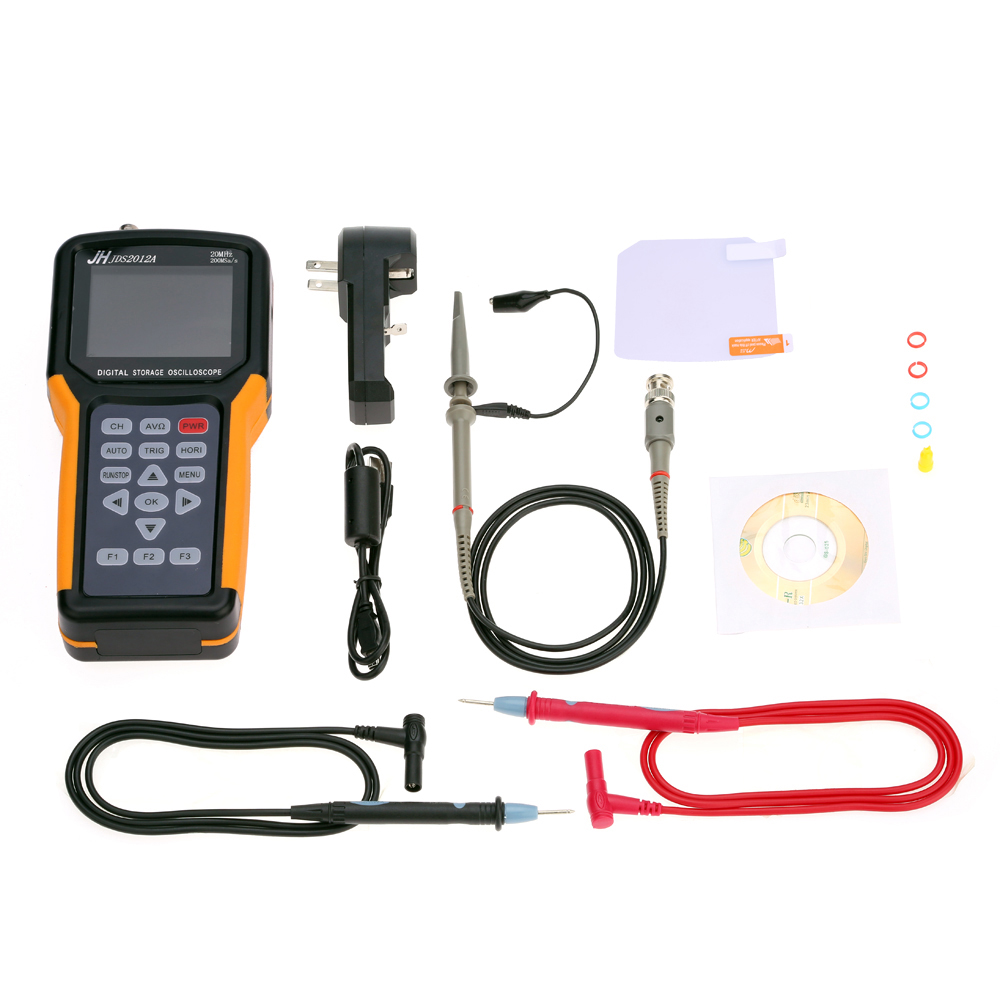

Package List:
1 * Oscilloscope

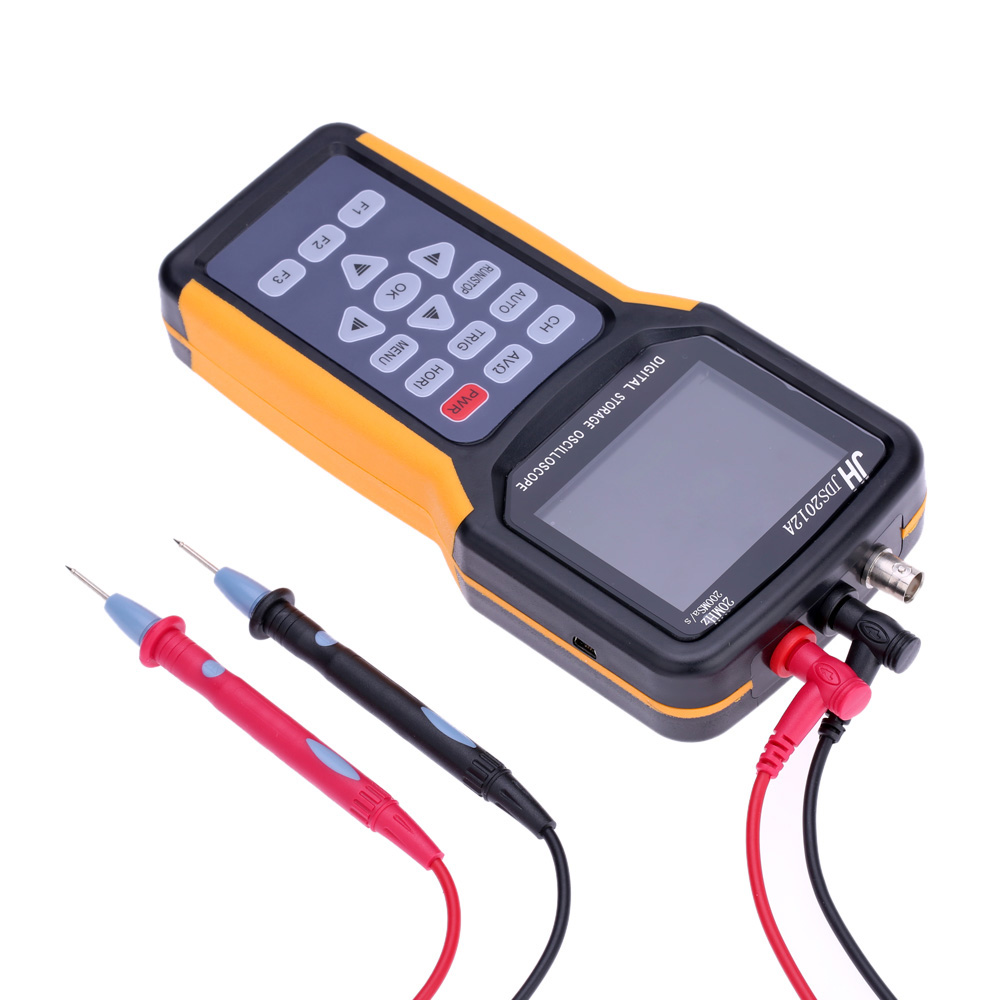

1 * Pair of Test Probe for Multimeter
1 * Oscilloscope Probe
1 * Battery Charger
1 * USB Cable
1 * Screen Protector
1 * CD
