Yowexa EC-910 Wide Measure Range 10000um Car Paint Tester Coating Thickness Gauge

<<prev

Yowexa EC-910 Wide Measure Range 10000um Car Paint Tester Coating Thickness Gauge

SKU:

CK216450

Category: Electrical Instrument & Meters

$282.24

$231.00 - $282.24

Enquiry

Footer Group

Description

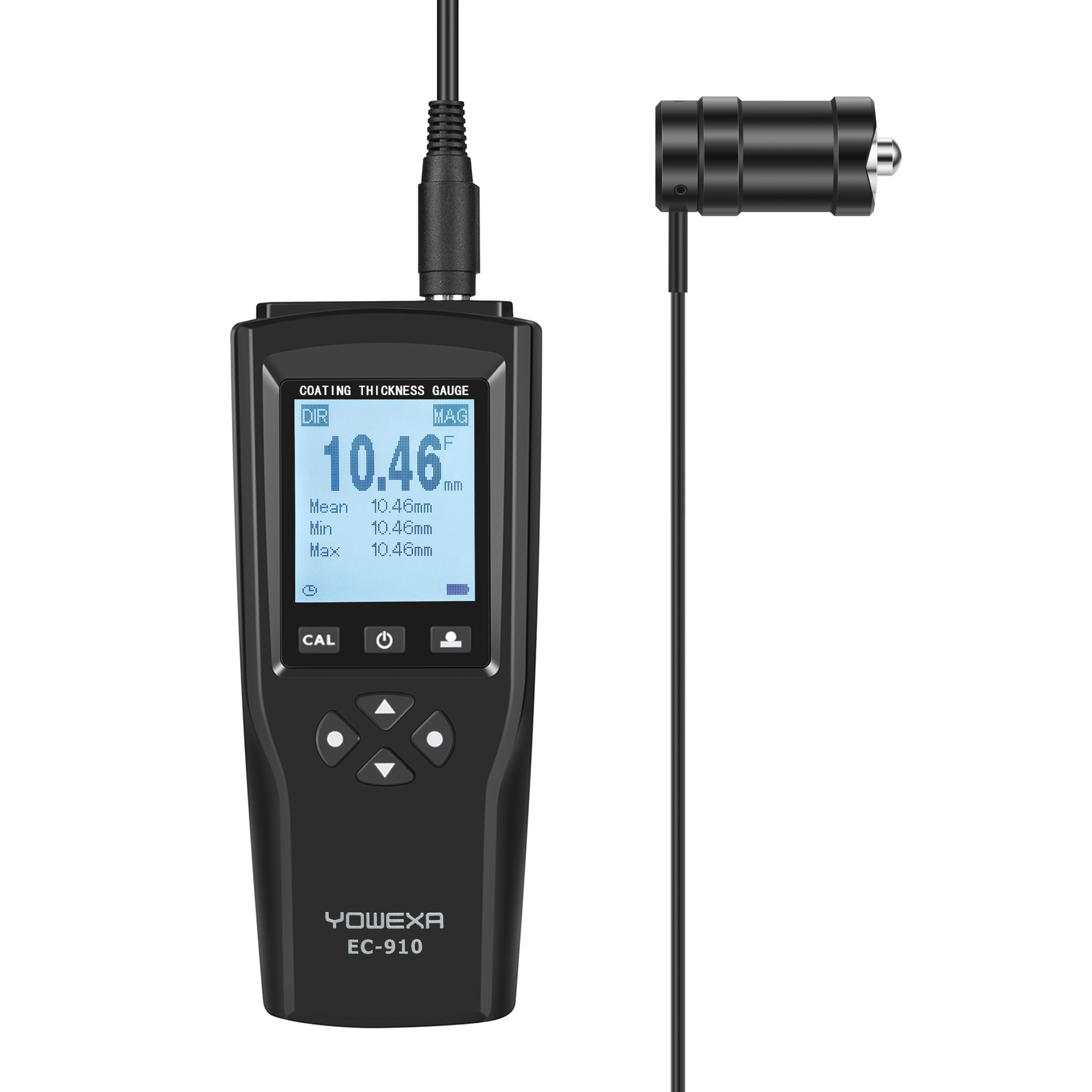

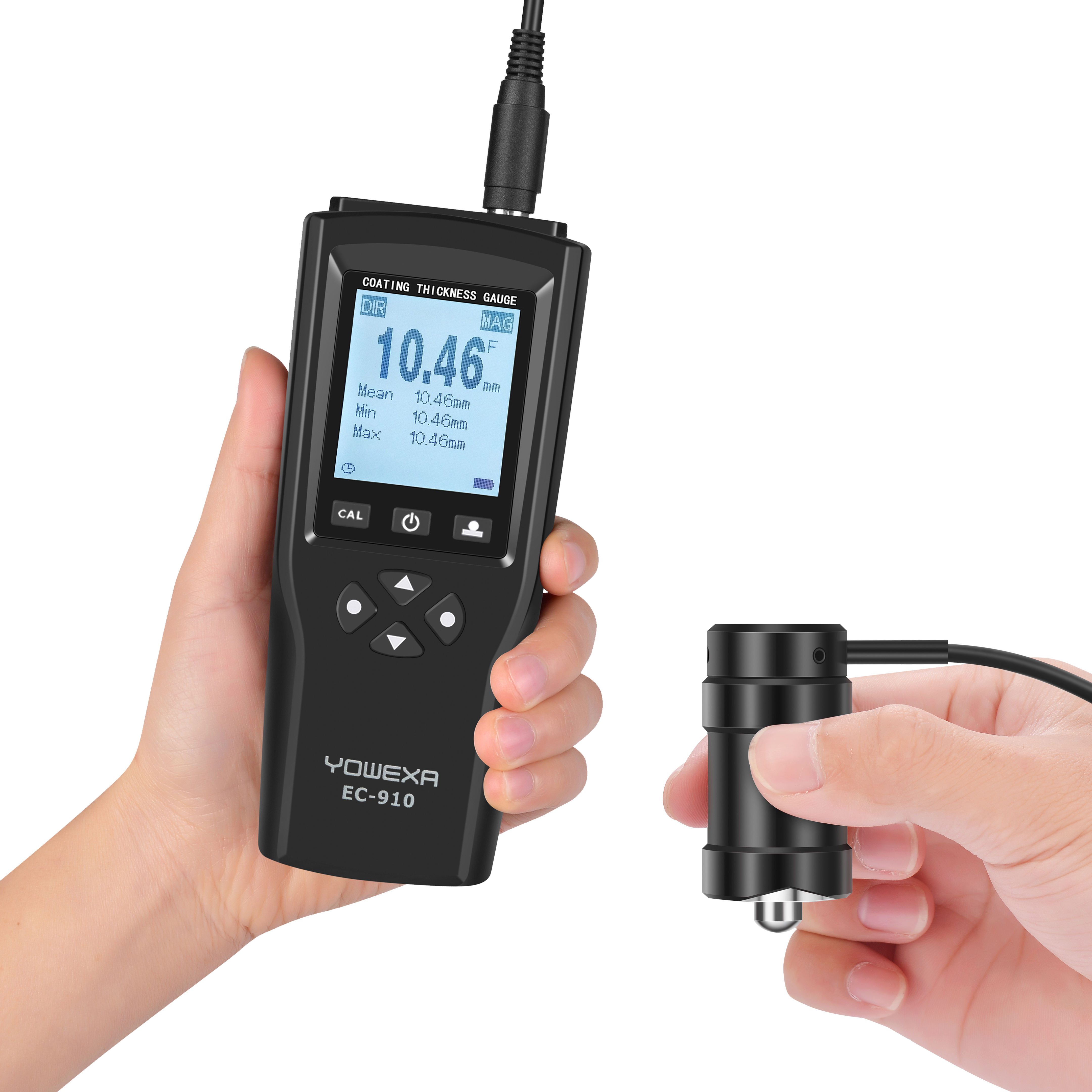

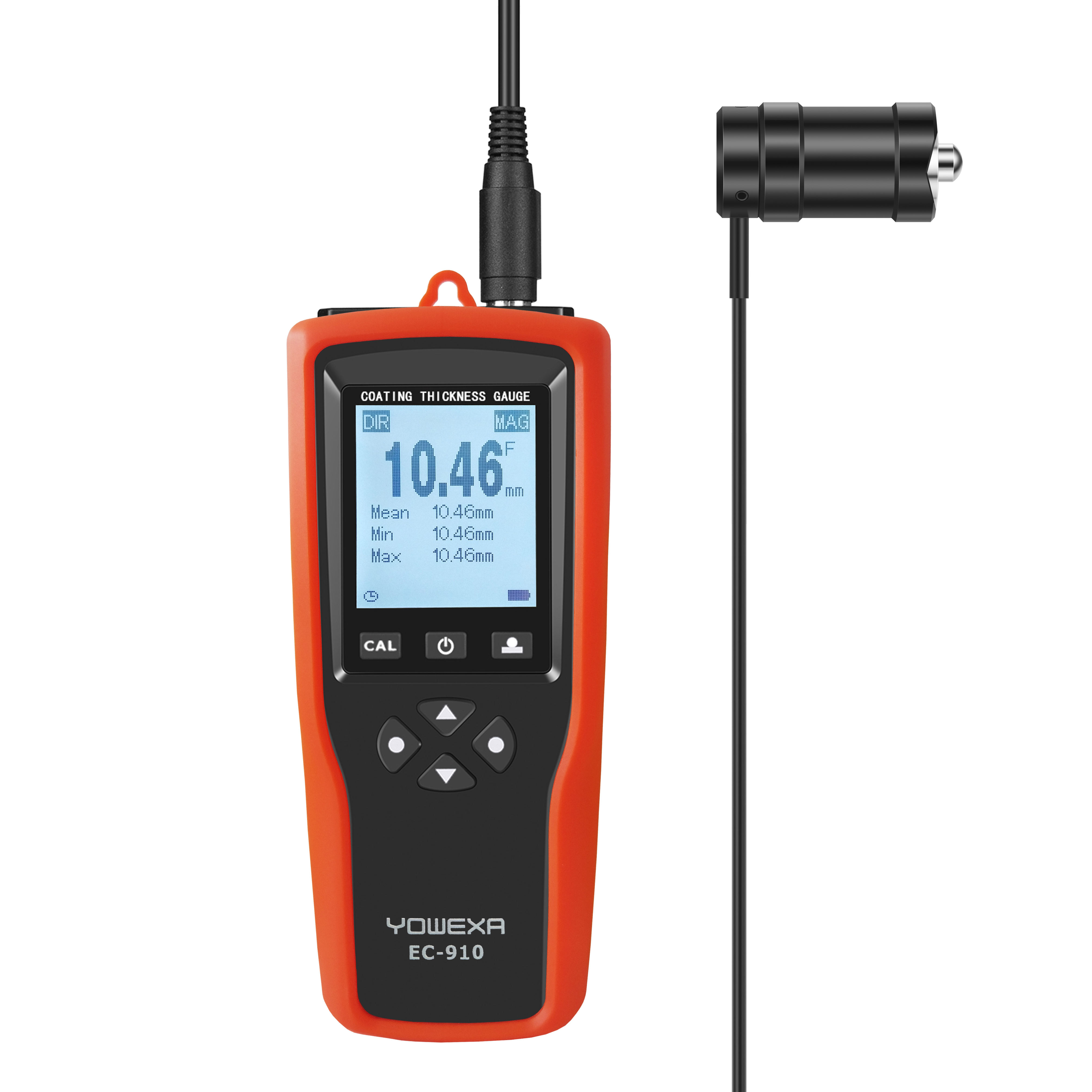

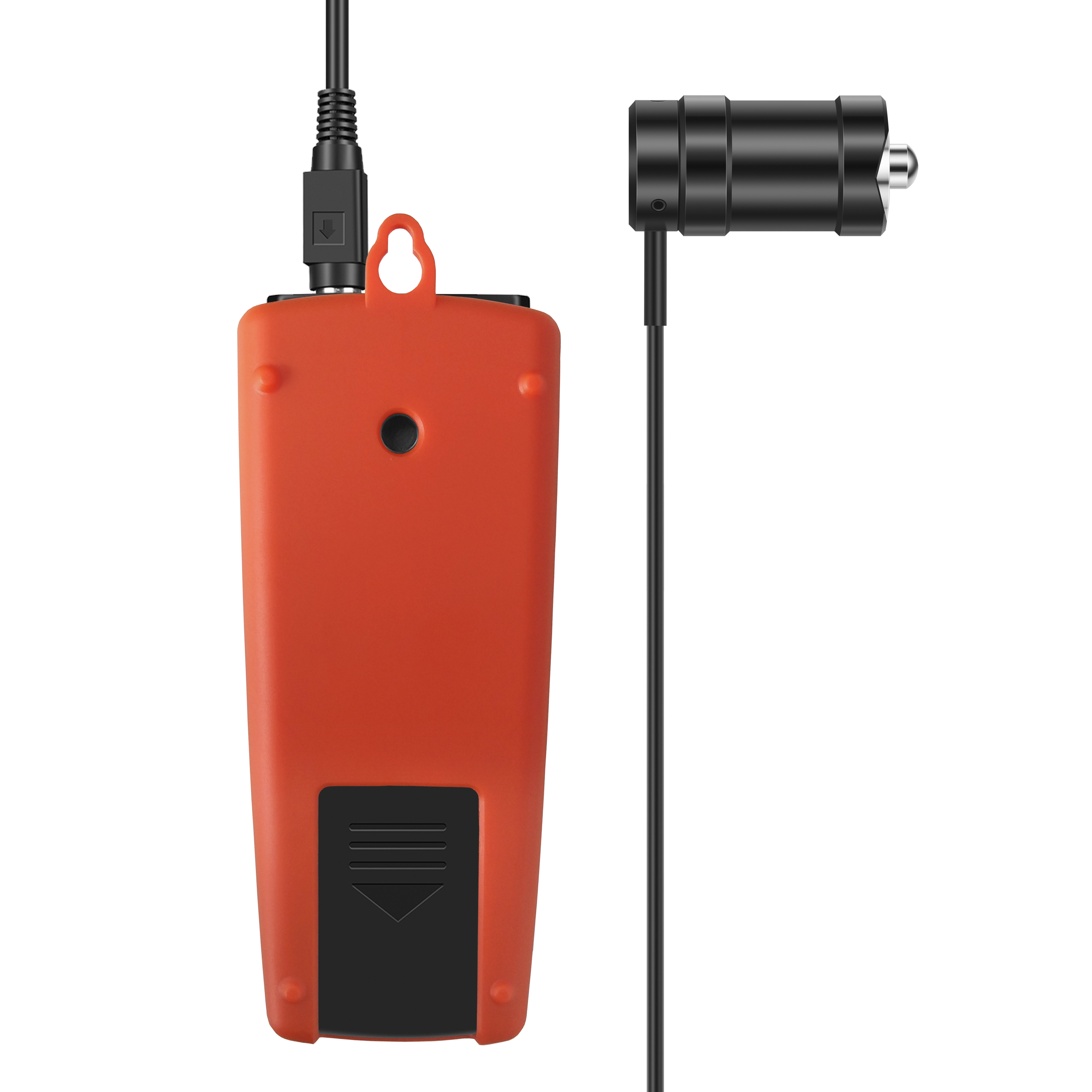

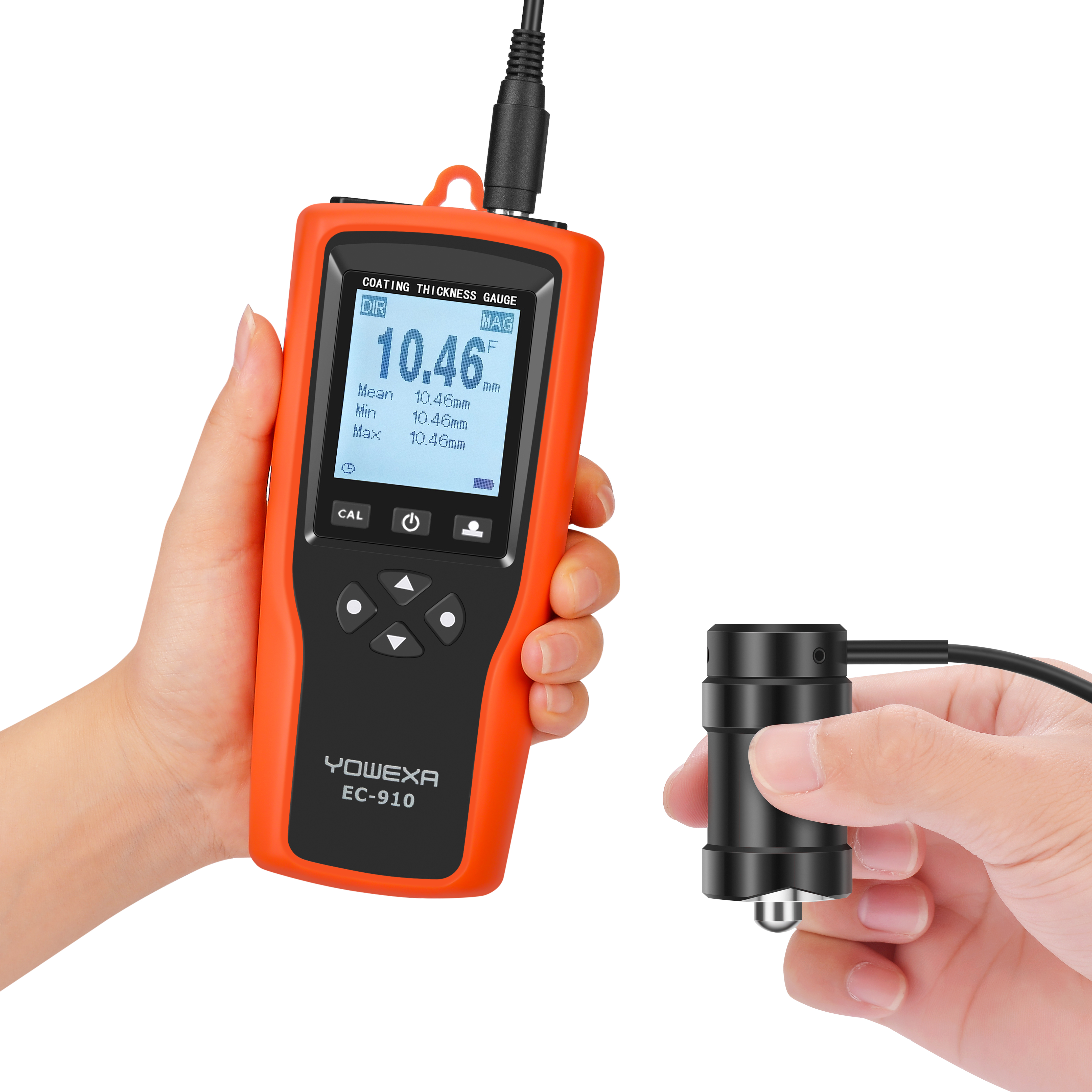

Yowexa EC-910 Wide Measure Range 10000μm Car Paint Tester Coating Thickness Gauge

Product Description

EC-910 thickness gauge can nondestructive measure the thickness of non-conductive coating on metal surface and non-ferromagnetic metal coating on ferromagnetic metal (such as iron, nickel and cobalt) surface. It is mainly used to measure the thickness of paint, anticorrosive coating, fire proof layer, enamel or ceramic protective layer on iron, stainless steel, aluminum or copper surface.

EC-910 can be matched with a variety of easy to replace the separation probe, its maximum range of 20mm, resolution of up to 1μm. When measuring, the user only needs to quickly fit the probe end to the surface of the object under test. In the process of the probe shrinking into the instrument, the thickness of the metal surface coating can be measured by the instrument.

EC-910 has a streamlined menu and data display interface to display both average, minimum and maximum values.In addition, the instrument contains large capacity memory. In the process of measurement, the instrument can count and record the measurement results. Data recorded can be transmitted to the computer through USB data lines.

Specification:

Mainframe Type	EC-910
Measuring units	μm, mm, mils
User calibration methodology	Zero calibration, point calibration
Measurement mode	Single, continuous
Statistics	Number of data, maximum, minimum, mean, standard variance
USB data transmission	Support
Storage capacity	2000 measurements
Display	Dot Display
Operating environment	Temperature: -10~+50°C; Humidity: 20~90% RH (non-condensing)
Storage environment	Temperature: -20~+60°C; Humidity: 20~90% RH (non-condensing)
Power supply	3 AAA 1.5V alkaline batteries; 3 AAA 1.2V rechargeable batteries
Protection class	IP40
Dimensions	1747340mm
Shell material	ABS
Weight	About 200g (without batteries)
Standards	CE, ROHS, ISO 2178, 2360, GB/T 4956-2003, 4957-2003, JJG-818-2005

Probe Type	F10( default collocation)	F20	N10		N20
Measuring principles	Electromagnetic induction		Eddy current effect
Applicable substrate	Magnetic metal such as iron, nickel, cobalt or martensitic stainless steel		Non-magnetic metals such as aluminium, copper, gold or austenitic stainless steel
Resolution	1μm (0~5mm ); 10μm(≥5mm)
Scope of measurement	0~10mm	0~20mm	0~10mm	0~20mm
Typical Precision	after calibration ±(1%+5μm)	---	---
Maximum measuring speed	2 readings/sec
Minimum radius of curvature of substrate	Convex 5mm; Concave 16mm	---	---
Minimum substrate thickness	2mm		0.05mm
Minimum measurement area	Diameter 40mm		---
Operating environment	Temperature: -10~+50°C; Humidity: 20~90% RH (non-condensing)
Storage environment	Temperature: -20~+60°C; Humidity: 20~90% RH (non-condensing)
Protection class	IP40
Dimensions	Line: Φ3.51000mm Probe: Φ2858mm	---	---	---
Shell material	POM
Weight	About 96g	---	---	---
