Description

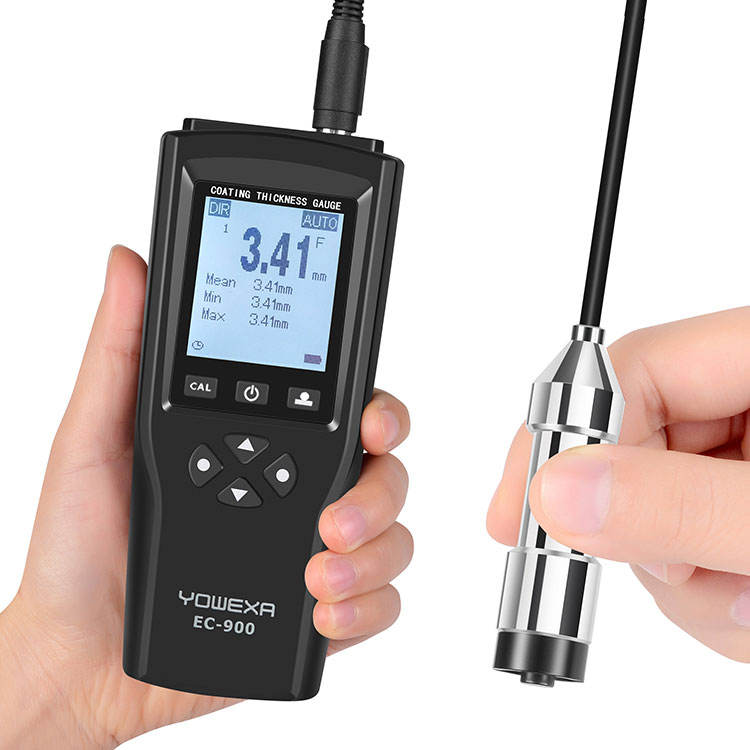

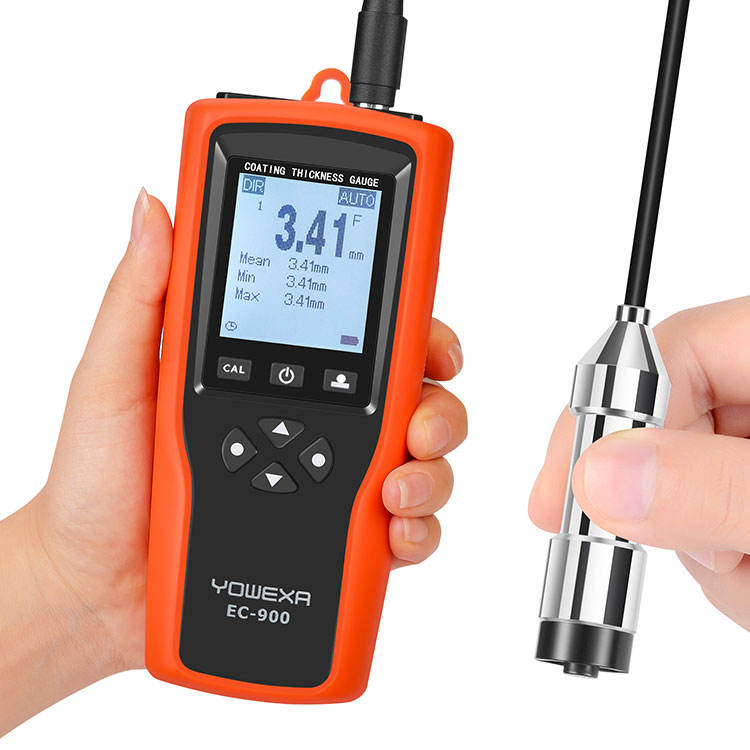

Yowexa EC-900 High Accuracy Coating Thickness Gauge Car Paint Tester with Separate Probe

Product Description

EC-900 thickness gauge can measure the thickness of non-conductive coating on metal surface and non-ferromagnetic metal coating on ferromagnetic metal (such as iron, nickel, cobalt, etc.) surface, the specific uses include measuring the thickness of iron, stainless steel surface paint or galvanized layer, measuring the thickness of aluminum, copper surface paint or plastic film, etc.

The EC-900 can be matched with a variety of separate probes for user replacement. The maximum range is 5000μm, the measurement accuracy is ±(2%+1μm), and the resolution is up to 0.1μm. When measuring, the user only needs to quickly fit the probe end to the surface of the object under test. In the process of shrinking the probe into the instrument, the instrument can automatically distinguish the properties of the substrate and measure the thickness of the coating layer.

EC-900 has a streamlined menu and data display interface to display both average, minimum and maximum values. In addition, the instrument contains large capacity memory. In the process of measurement, the instrument can count and record the measurement results. Data recorded can be transmitted to the computer through USB data lines.

Specification:

Mainframe Type	EC-900
Measuring units	μm, mm, mils
User calibration methodology	Zero calibration,point calibration
Statistics	Number of data, maximum, minimum, mean, standard variance
USB data transmission	Support
Storage capacity	2000 measurements
Display	Dot Display
Operating environment	Temperature: -10~+50°C; Humidity: 20~90% RH (non-condensing)
Storage environment	Temperature: -20~+60°C; Humidity: 20~90% RH (non-condensing)
Power supply	3 AAA 1.5V alkaline batteries 3 AAA 1.2V rechargeable batteries
Protection class	IP40
Dimensions	1747340mm
Shell material	ABS
Weight	About 200g (without batteries)
Standards	CE, ROHS, ISO 2178, 2360, GB/T 4956-2003, 4957-2003, JJG-818-2005

Probe Type	FN2.0	FN3.0	F5.0N3.0( recommendation)
Measuring principles	Fe: electromagnetic induction; NFe: eddy current effect
Resolution	0.1μm (0~99.9μm ); 1μm (≥100μm)
Scope of measurement	0~2000μm	0~3000μm	Fe: 0~5000μm NFe: 0~3000μm
Precision	±(2%+1μm)
Probe trigger force	0.3~0.8N
Maximum measuring speed	2 readings/sec
Minimum radius of curvature of substrate	Convex 5mm; Concave 25mm
Minimum measurement area	Diameter 10mm
Minimum substrate thickness	Fe: 0.20mm; NFe: 0.03mm
Operating environment	Temperature: -10~+50°C; Humidity: 20~90% RH (non-condensing)
Storage environment	Temperature: -20~+60°C; Humidity: 20~90% RH (non-condensing)
Protection class	IP40
Dimensions	Line: Φ3.51000mm; Probe: Φ1767mm
Shell material	Stainless Steel
Weight	About 60g
