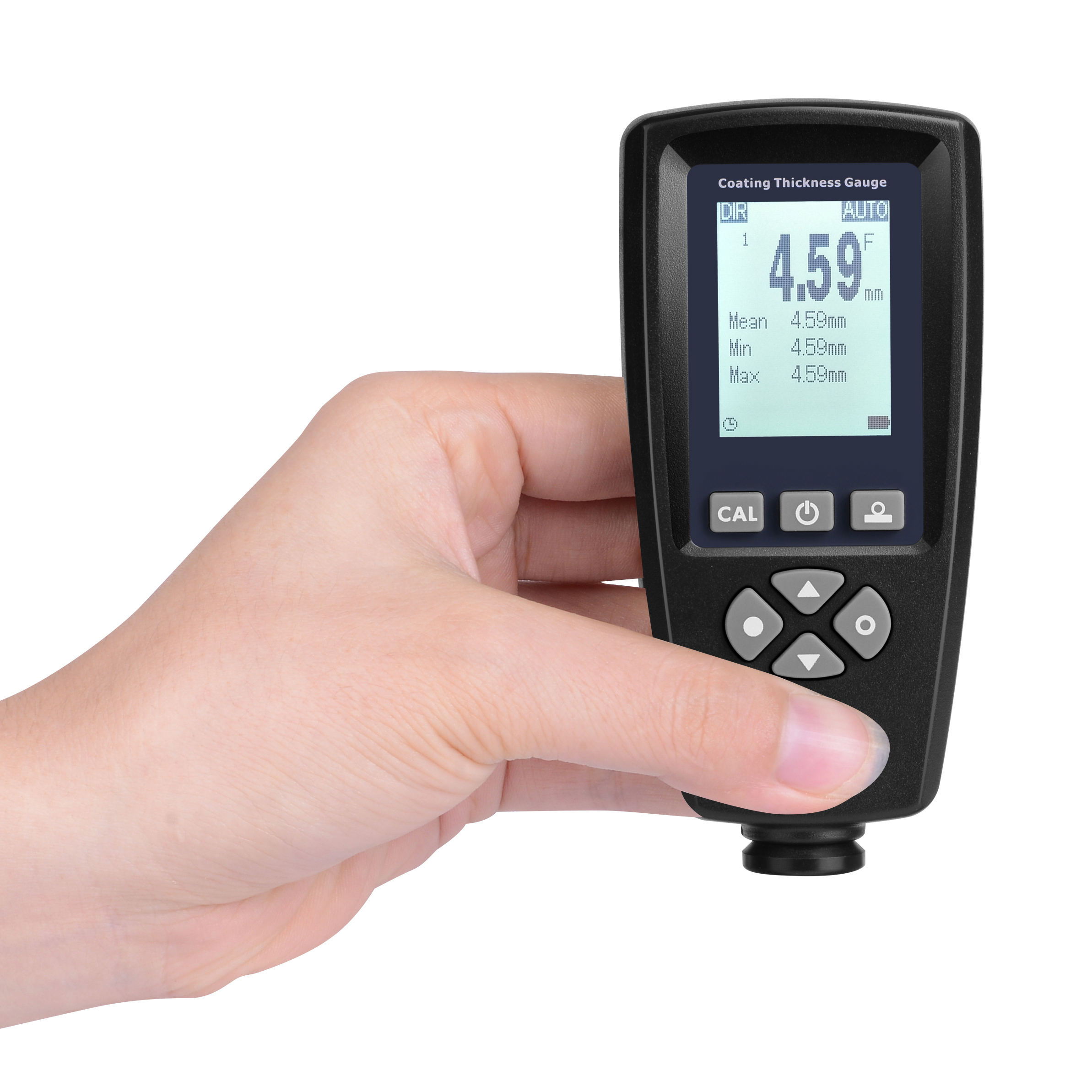

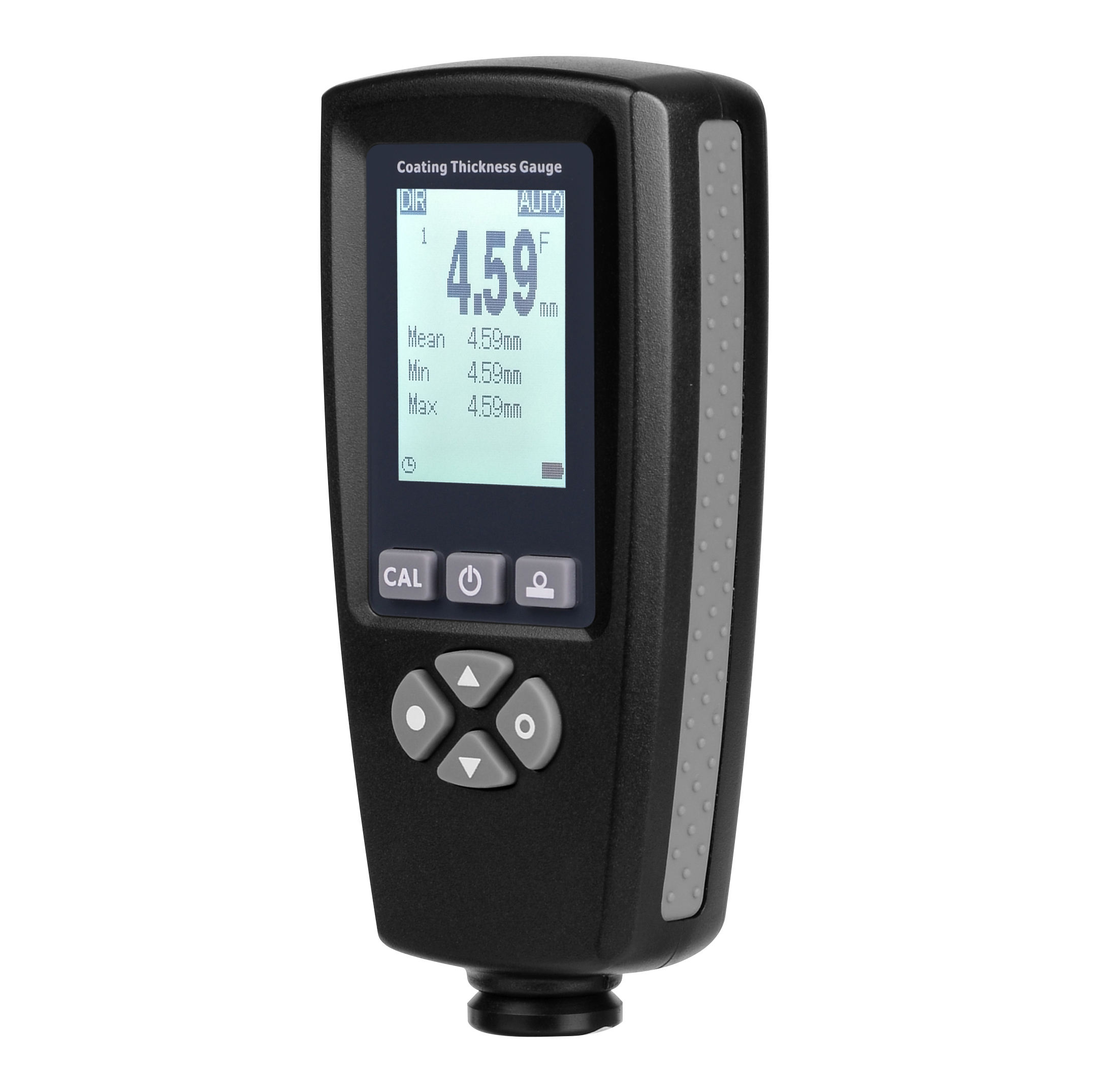

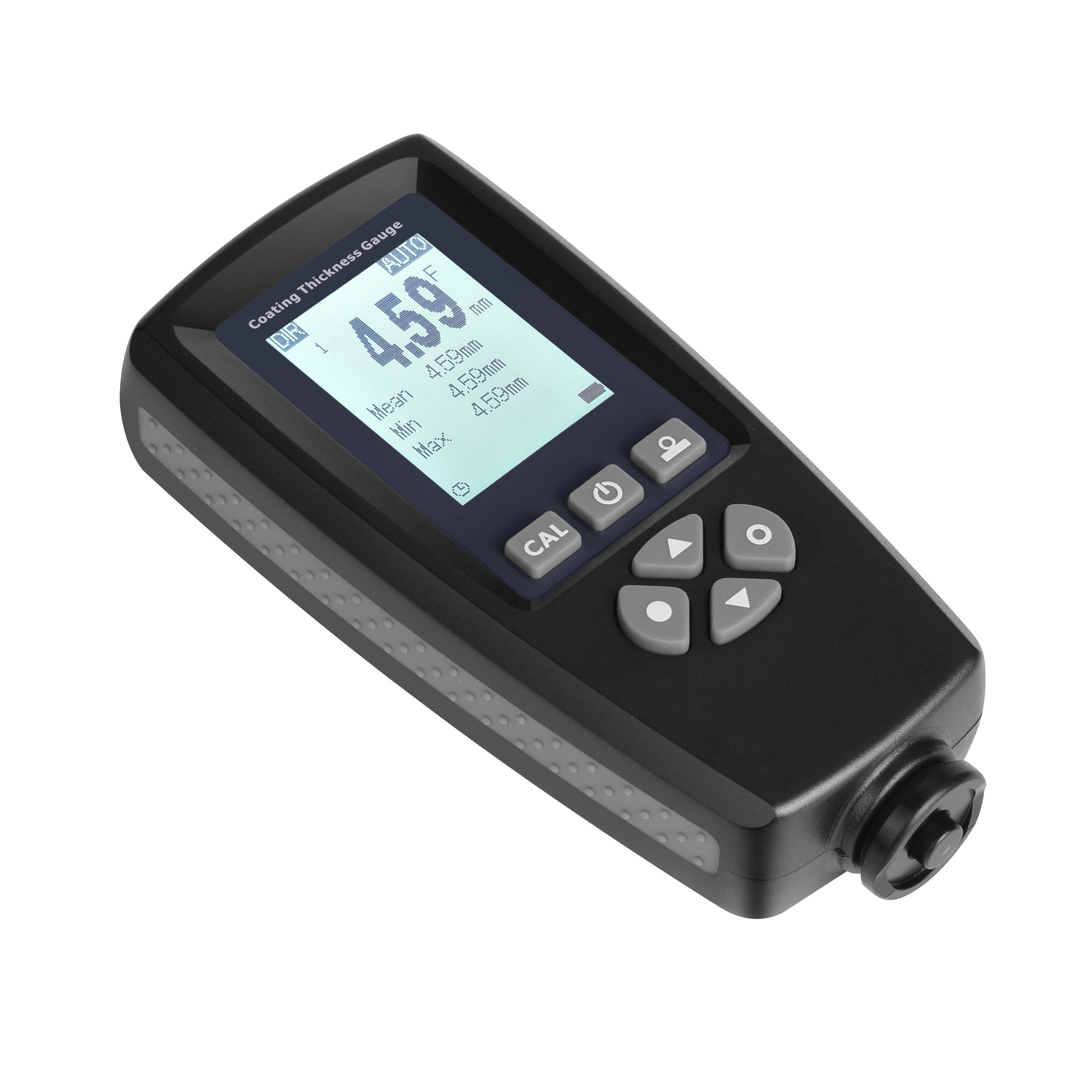

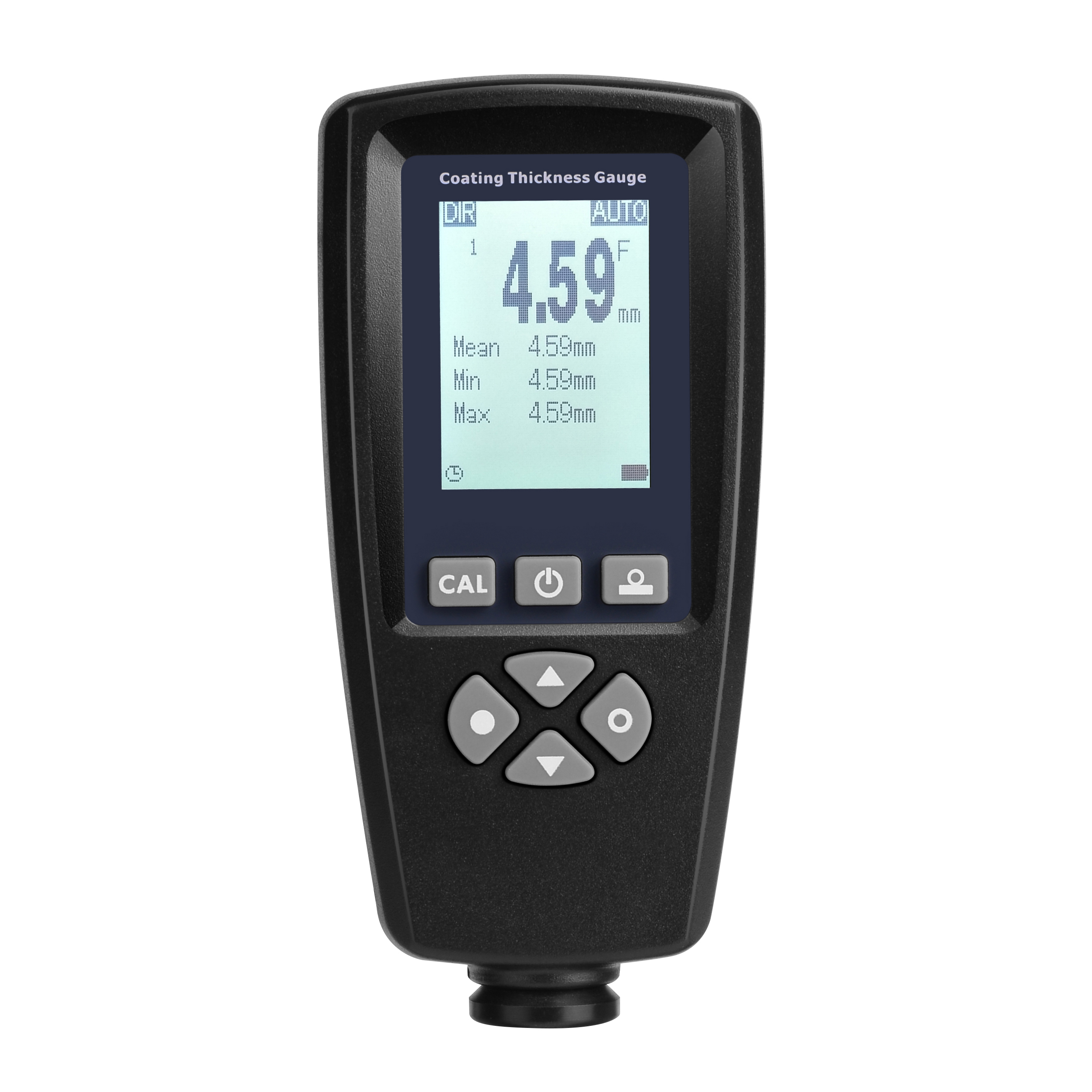

Yowexa EC-770X High Accuracy Coating Thickness Gauge Car Paint Tester

Product Description

EC-770X a precise probe with built-in magnetic induction and eddy current effect, the thickness of the non-conductive coating on the metal surface and the non-ferromagnetic metal coating on the ferromagnetic metal (such as iron, nickel and cobalt) surface can be measured nondestructive.

EC-770X has strong anti-interference ability and can work in complex electromagnetic field environment. When measuring, the user only needs to quickly fit the probe end to the surface of the object under test. In the process of shrinking the probe into the instrument, the instrument can automatically distinguish the properties of the substrate and measure the thickness of the coating layer.

EC-770X has a streamlined menu and data display interface, can display the average, minimum and maximum, and can indicate and alarm data over the limit. In addition, the instrument contains large capacity memory. In the process of measurement, the instrument can count and record the measurement results. Data recorded can be transmitted to the computer through USB data lines.

Specification:

Model	EC-500X	EC-500XE	EC-770X	EC-770XE
Probe position	Internal	External	Internal	External
Measuring principle	Fe: magnetic induction; NFe: eddy current effect
Measuring range	0~500μm		Fe: 0~5000μm; NFe: 0~3000 Other measurements can be customized
Accuracy	±(1%+1μm)		±(2%+1μm)
Resolution	0.1μm (0~99.9μm ); 1μm (≥100μm)
Unit	μm, mm, mils
Calibration	Zero calibration, point calibration
Statistics	Number of data, maximum, minimum, mean, standard variance
USB data transmission	Support
Storage capacity	2000 measurements
Probe triggering force	0.3~0.8N
Minimum radius of curvature of substrate	Convex 5mm Concave 25mm
Minimum measurement area	Diameter 10mm
Minimum substrate thickness	Fe: 0.20mm; NFe: 0.03mm
Maximum measured speed	2 readings/sec
Display	Dot Display
Operating environment	Temperature: -10~+50°C; Humidity: 20~90% RH (non-condensing)
Storage environment	Temperature: -20~+60°C; Humidity: 20~90% RH (non-condensing)
Power supply	2 AAA 1.5V alkaline batteries 2 AAA 1.2V rechargeable batteries
Protection class	IP40
Dimensions	1145430mm	Host:1145430mm Line:Φ3.51000mm Probe:Φ1767mm	1135325mm	Host:1135325mm Line:Φ3.51000mm Probe:Φ1767mm
Material	ABS	Host: ABS Probe:stainless steel	ABS	Host:ABS Probe:stainless steel
Weight	About 80g (without batteries)	About 140g (without batteries)	About 80g (without batteries)	About 140g (without batteries)
Standard	CE, ROHS,ISO 2178, 2360, GB/T 4956-2003, 4957-2003, JJG-818-2005
