Description

Product Description

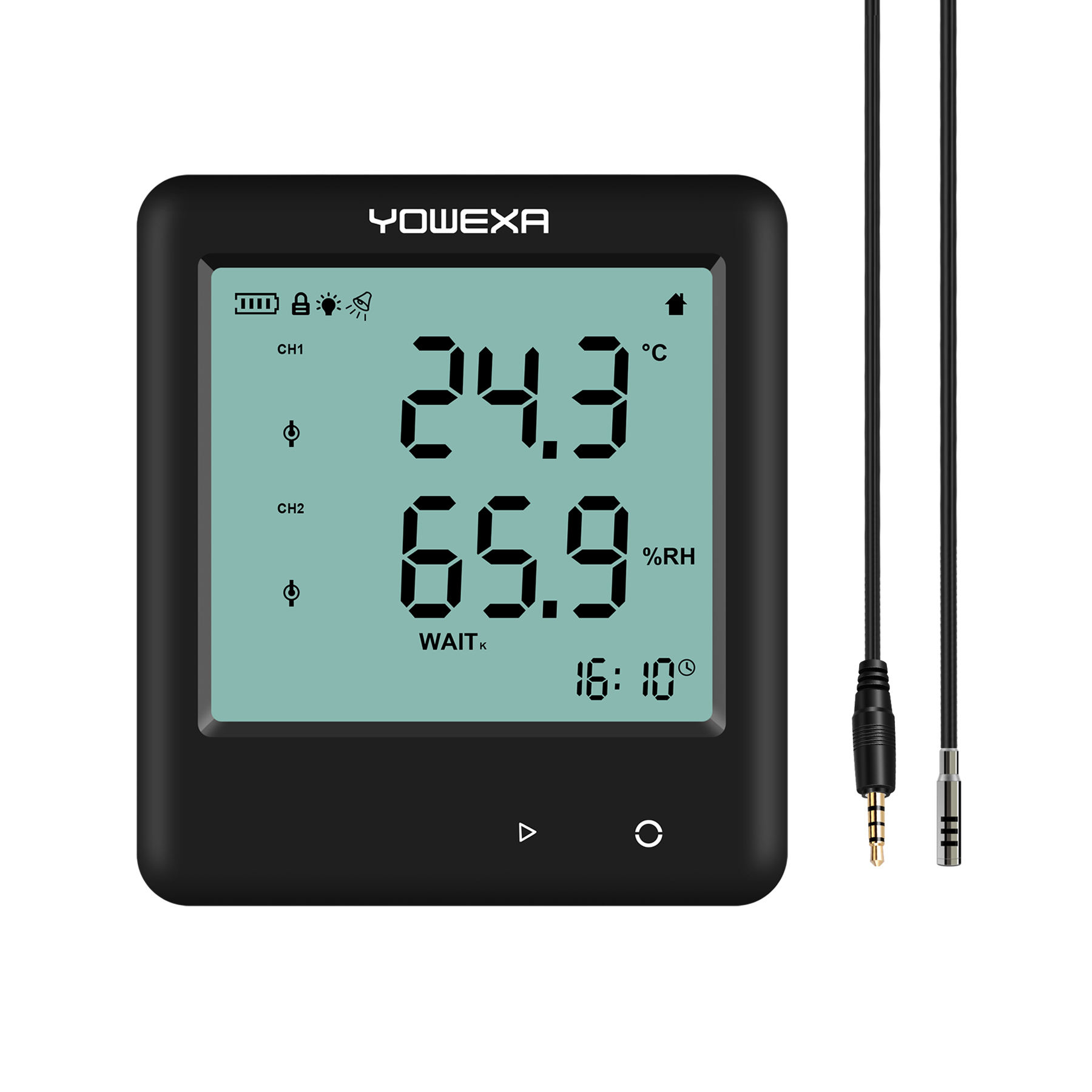

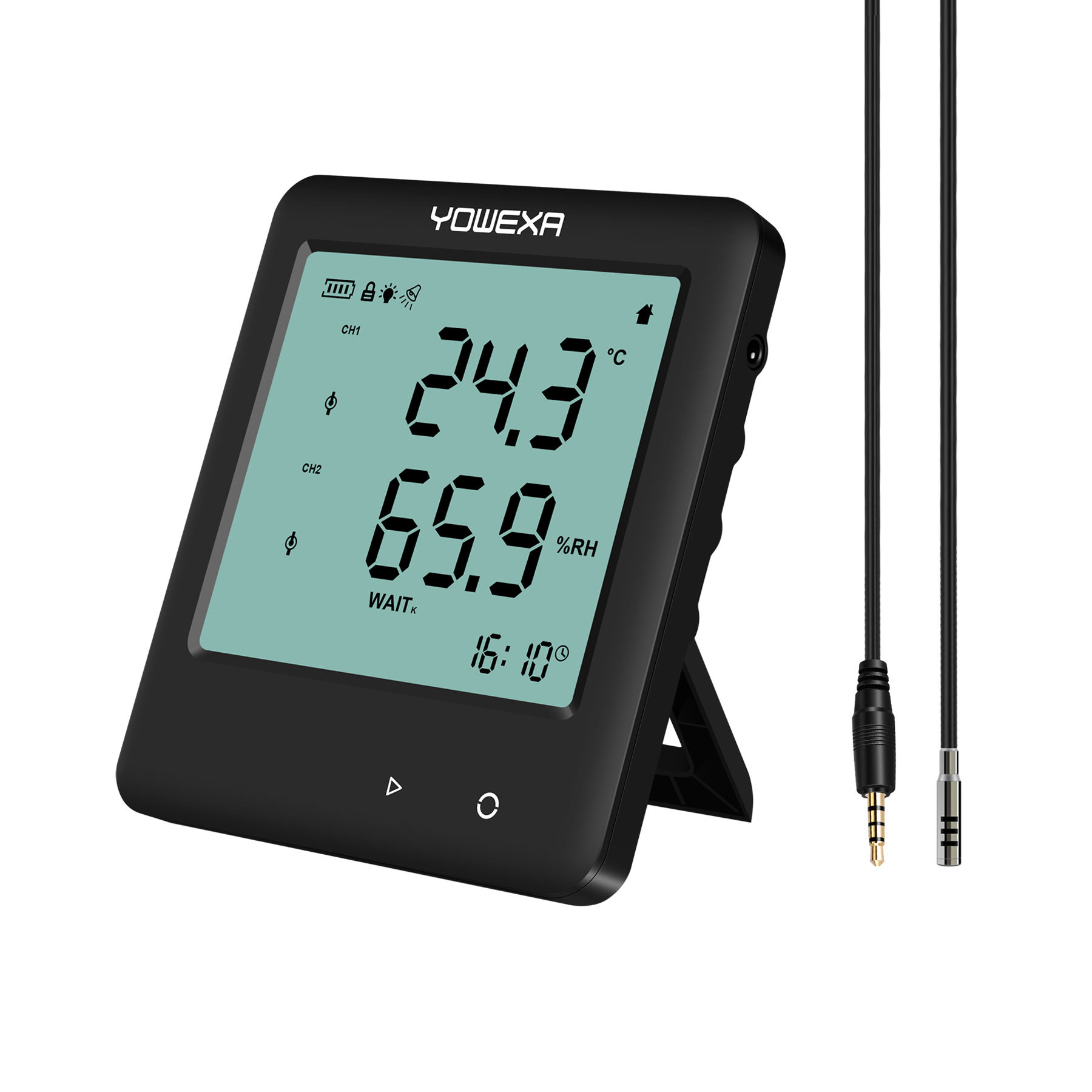

YDP series are used to monitor the environment temperature and humidity, which are also with data logger function.

YDP-10E is used external probe to measure the temperature, and its measuring range is -40~+125 °C . This instrument is with huge storage capacity, which is up to 500000 measurement data. It can be connected to PC via USB, and generate encrypted data report automatically. User can also export files in multiple formats via PC software. This instrument supports calibration, and user can enter the calibration data through the PC software to correct its parameters.

YDP-20/20E optimizes on the basic of YDP-10E, and it added the humidity measuring function. For these two models, YDP-20 is using internal probe, and YDP-20E is using external probe.

FEATURES:

3.9 inch LCD screen with backlight	Bluetooth & Mobile APP (YDP-10EB/700EB/20B/20EB)
Touch-sensitive buttons	Display maximum, minimum and average
Exceed-limit alarm	Multiple probes optional
txt/csv/xls/dlg files are available	With PC software
Read encrypted PDF data by USBwithoutany drive	Calibration
Large storage capacity	Long standby time
Data anti-lost when power off	Support multiple power supply
Low battery protection

Specifications

Model	YDP-10E	YDP-700E	YDP-20	YDP-20E
Measuring Parameter	Temperature		Temperature, Humidity
Probe Type	Normal external temperature probe	External platinum resistance probe	Internal temperature & humidity probe	External temperature & humidity probe
Unit	°C, ℉		Temperature : °C, ℉ Humidity: %RH
Measuring Range	-40~+125°C	-200~+250°C	Temperature : -30~+65°C Humidity : 0~100%RH(Non-condensing)
Measuring Accuracy	±0.3°C(-10~+65°C)	±0.5°C(-100~+100°C)	Temperature : ±0.3°C(-10~+65°C); ±0.6°C(Others) Humidity : ±3%RH(10~90%RH, 25°C); ±4%RH(Others)
	±0.5°C(Others)	±1°C(Others)
Resolution	0.1°C		Temperature : 0.1°C Humidity : 0.1%RH
Response Time(t90)	5 minutes		15 minutes	5 minutes
LCD Refresh Interval	5 seconds
Display Refresh Interval	5 seconds
Storage	25920 or 500000 measurement data(Optional on the specified version of software)
Display	Dot matrix LCD display
Bluetooth & APP	Not Supported
Operation Temperature	-30~+65°C
Storage Temperature	-30~+65°C(No battery)
Power Supply	3 pcs 1.5V AAA alkaline battery; USB 5V/2A
Battery Life	About 1 year(Condition: battery capacity 1200mAh, environment temperature 25°C, turn off the backlight, beep and Bluetooth)
Protection Class	IP20
Size	1089620mm
Material	ABS
Weight	About 120g(No battery)
Warranty	12 months
