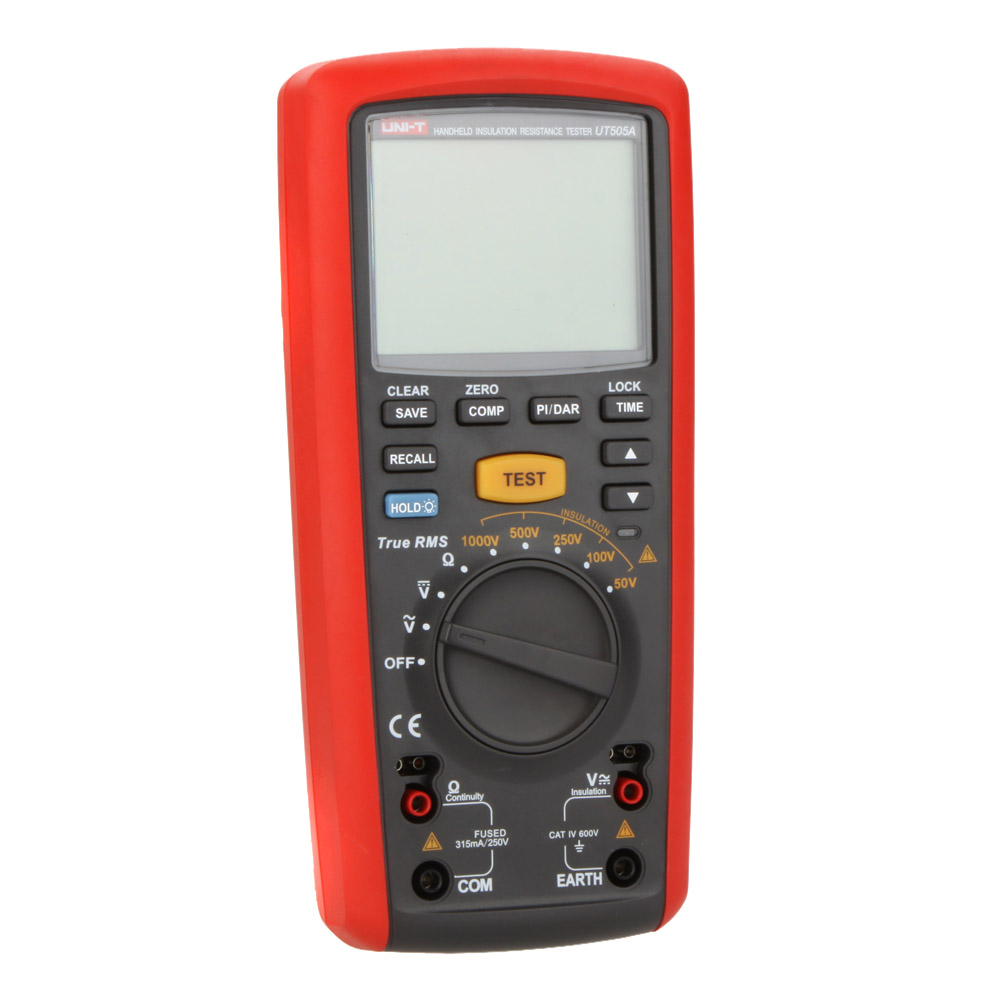

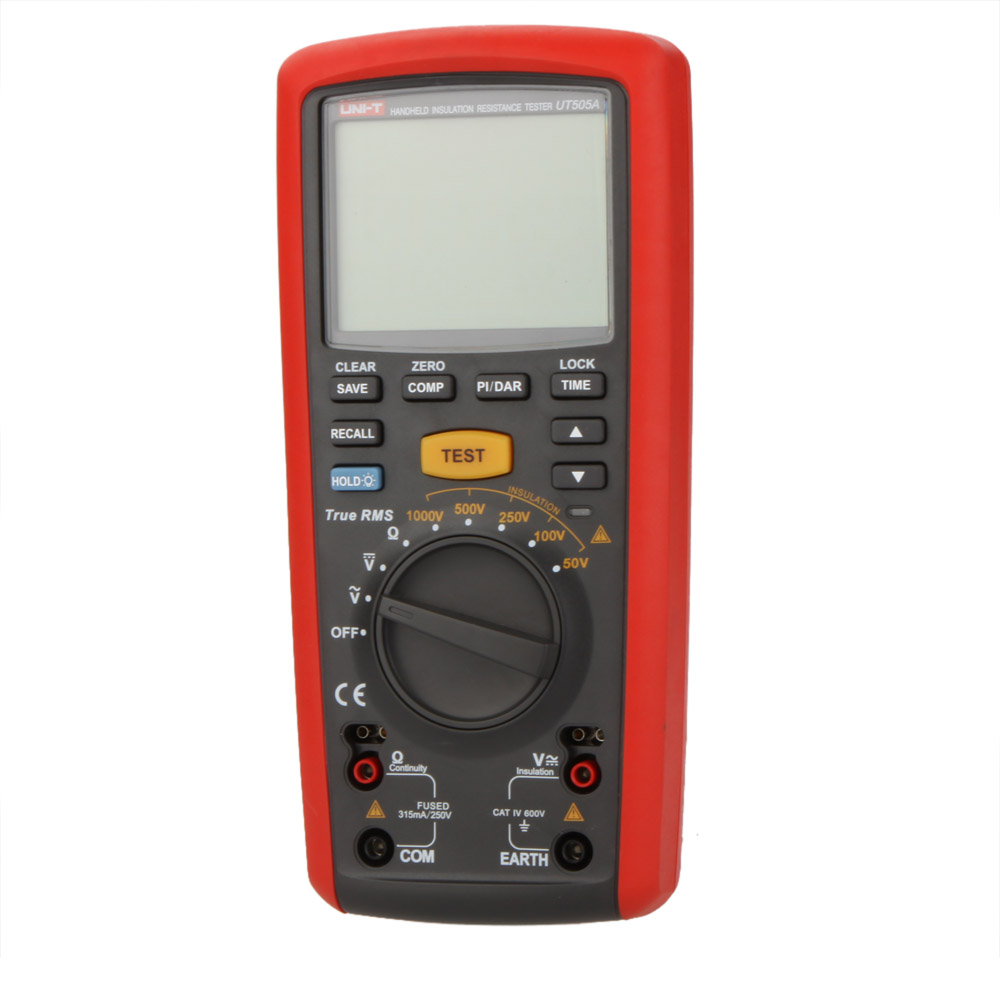

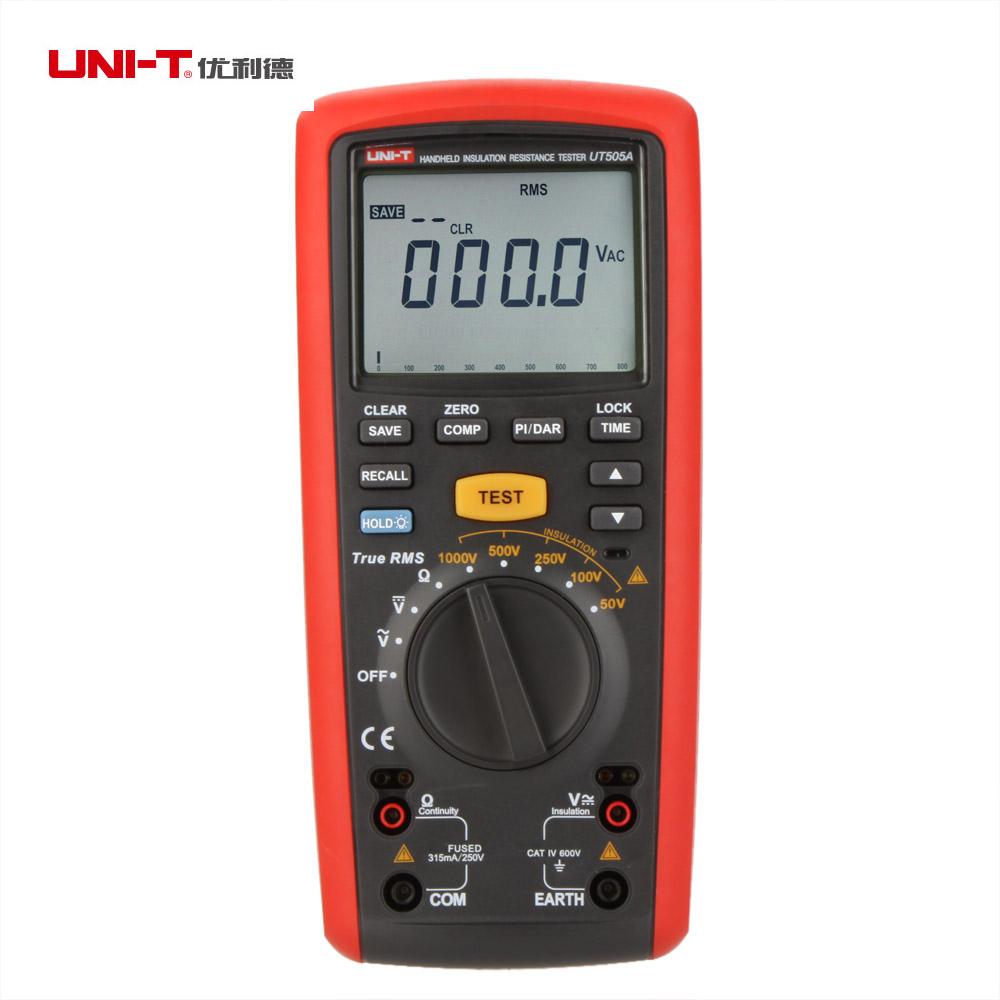

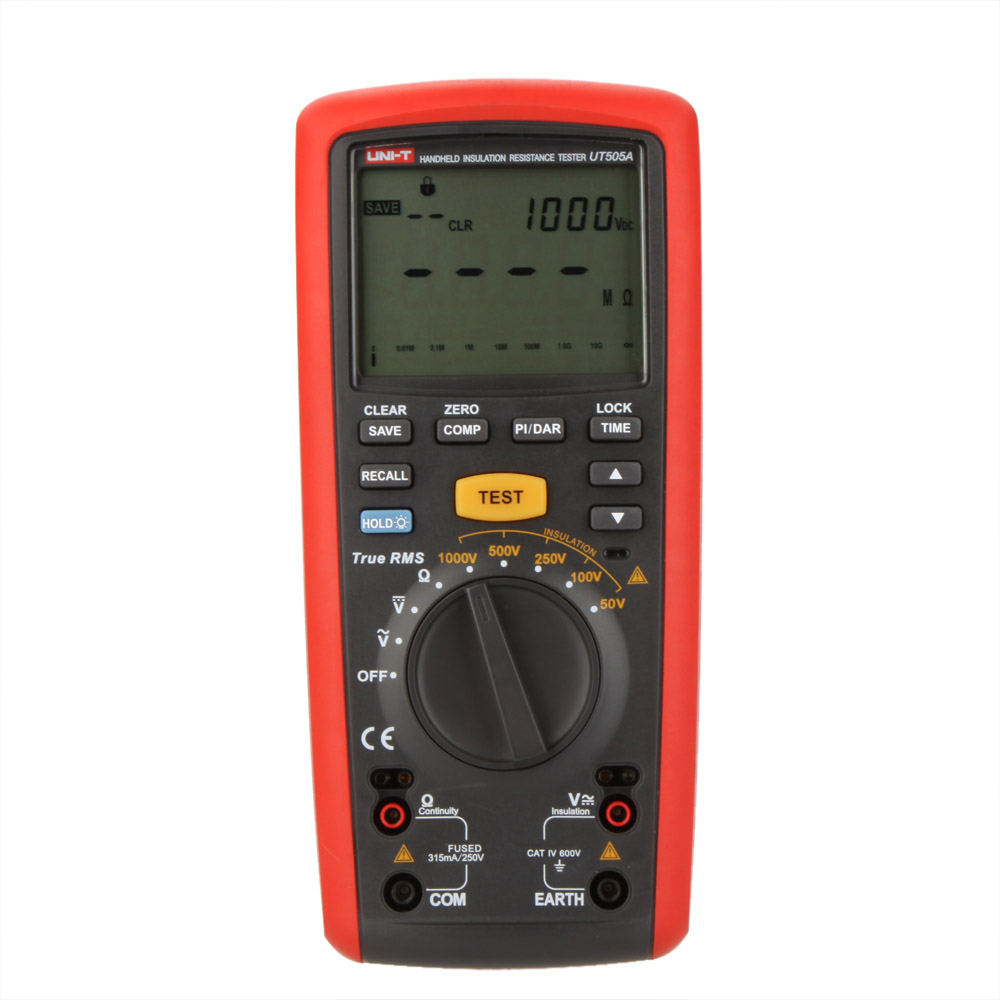

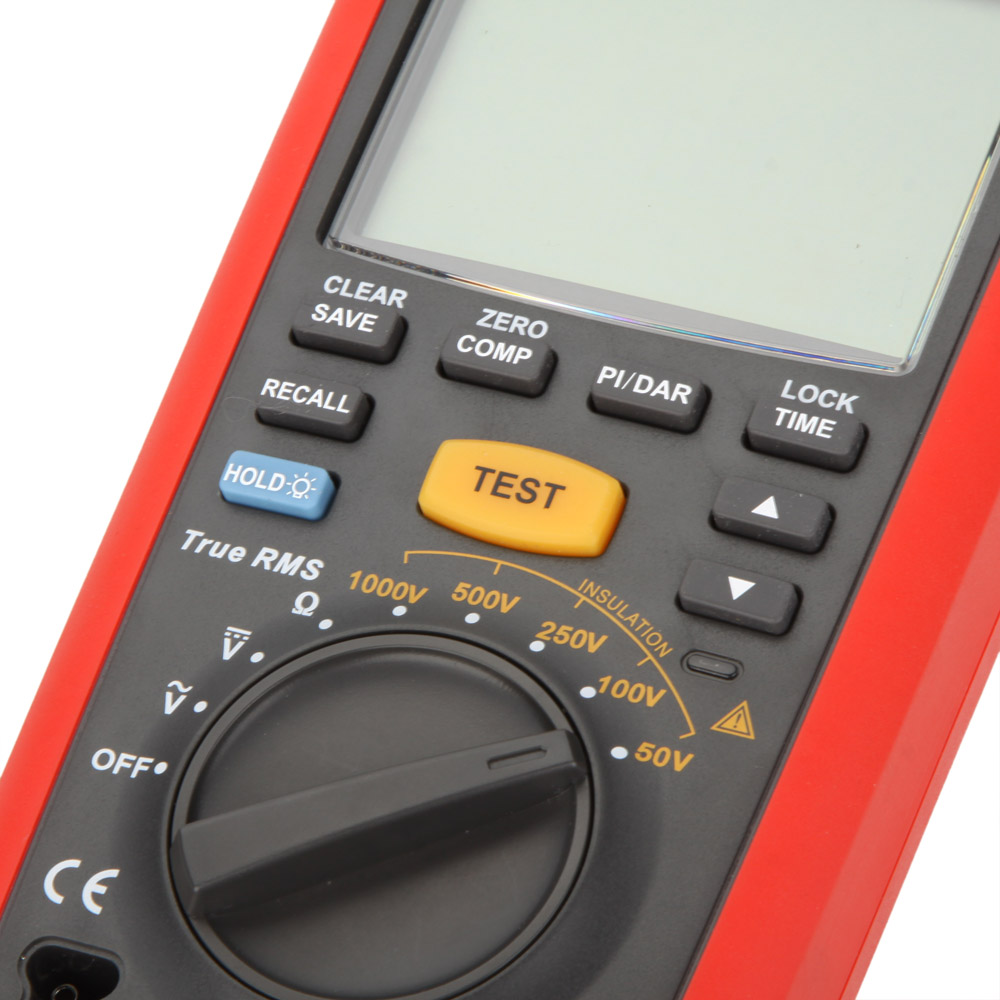

UNI-T UT505A 1000V Handheld esr meter True RMS Megger Insulation Resistance Tester Multimeter Ohm Voltmeter diagnostic-tool

Features:
Display Count: 6000
Auto Range: √
True RMS: √
Step Voltage: 10% Steps at 50% ~ 120% of range
DAR: 60s/15s and 60s/30s
PI: √
Timer: √
High Voltage Indication: √
Auto Discharge: √
Analogue Bar Graph: √
Auto Power Off: √
Continuity Buzzer: √
Data Hold: √
Data Storage: 99
Comparison: √
LCD Backlight: √
Low Battery Indication: √
Specifications:
Model: UT505A
Insulation Resistance(Ω): Test Voltage: 50V/100V/250V/500V/1000V 0%~10%
50V: 0.01MΩ~50.0MΩ ±(3%+5)
100V: 0.01MΩ~100.0MΩ ±(3%+5)
250V: 0.01MΩ~200.0MΩ ±(1.5%+5)
500V: 0.01MΩ~500MΩ ±(1.5%+5)
1000V: 0.1MΩ~2000MΩ ±(1.5%+5); 2.0GΩ~9.9GΩ ±(10%+3) ; 10.0GΩ~20GΩ ±(20%+10)
Load Current: 50V(R=50KΩ) 1mA 0%~10% ; 100V(R=100KΩ) 1mA 0%~10% ; 250V(R=250KΩ) 1mA 0%~10%
500V(R=500KΩ) 1mA 0%~10% ; 1000V(R=1MΩ) 1mA 0%~10%
Short Circuit Current: <2mA
Low Resistance (Ω): 0.01Ω~20.00KΩ(about 5.0V/>200mA) ±(1.5%+3)
DC Voltage (V): 0.0V~600.0V ±(2%+3)
AC Voltage (V): 0.0V~600.0V ±(2%+3)
General Characteristics:

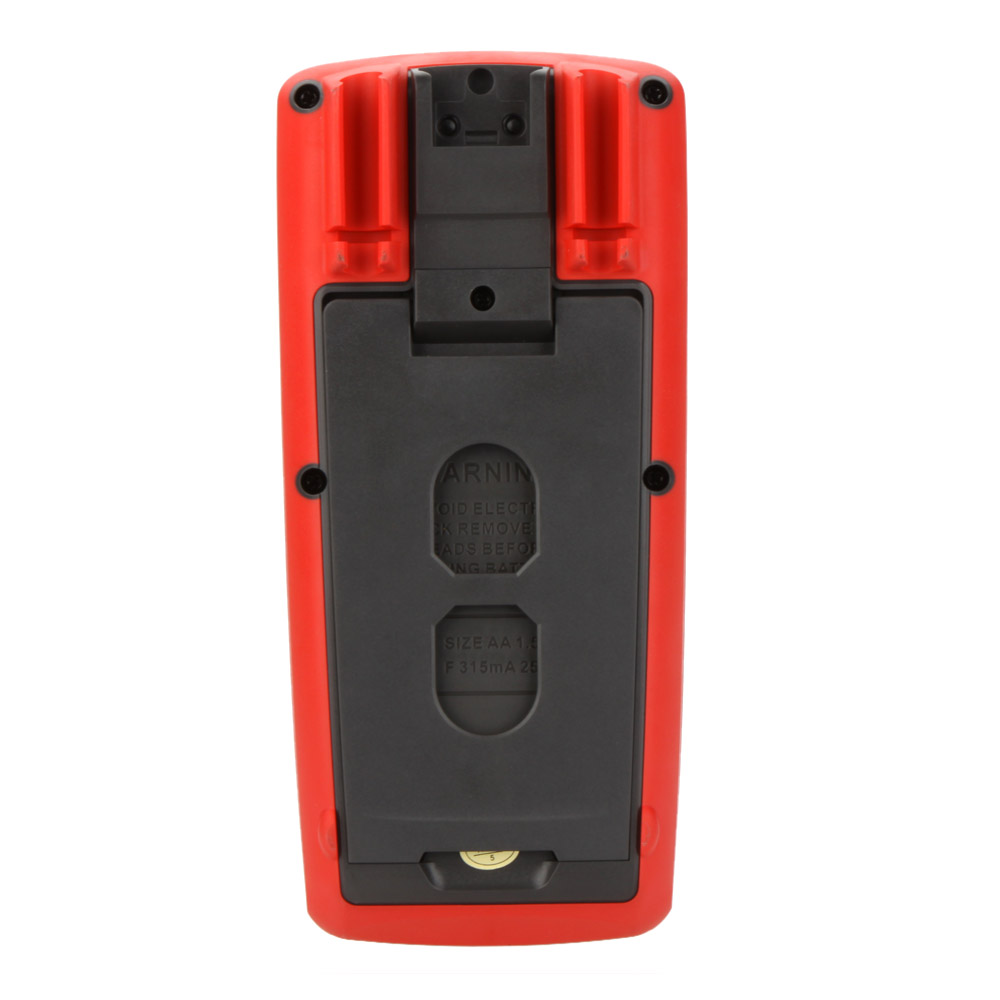

Power: 6 * 1.5V AA Batteries (not included)
LCD Size: 78mm * 59mm
Product Net Weight: 630g
Product Size: 103mm * 225mm * 59 mm
Product Color: Red and Grey
Package Size: 24.5 * 18 * 7cm / 9.6 * 7 * 2.7in
Package Weight: 916g/ 2lb

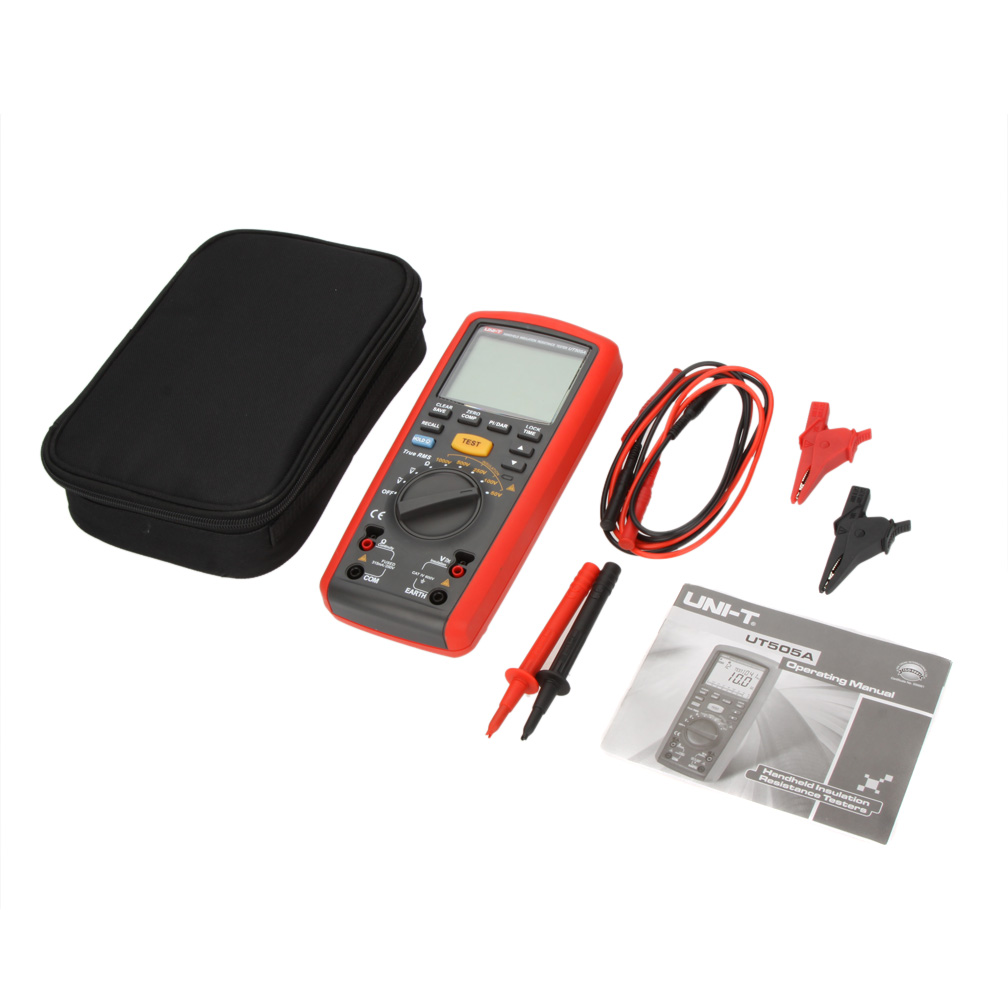

Package List:
1 * UNI-T UT505A Insulation Resistance Tester

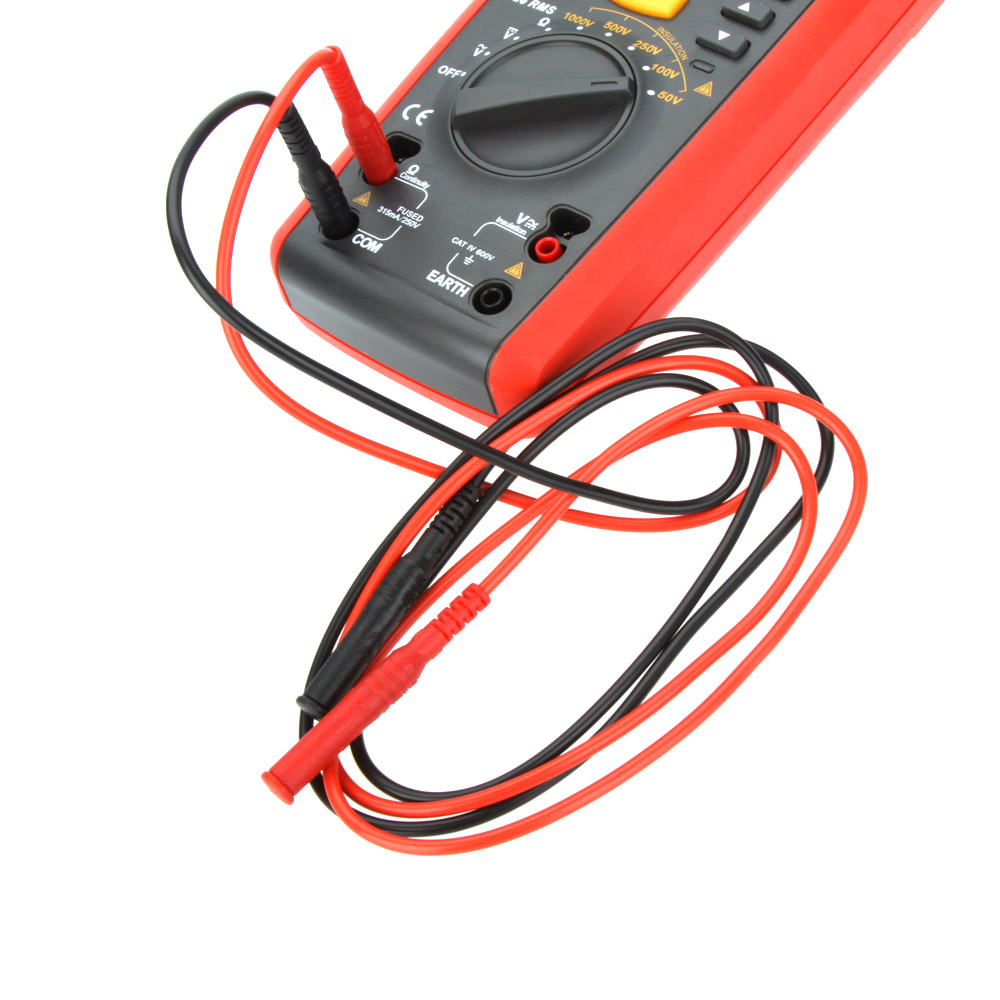

1 * Pair Test Lead
1 * Pair Probe
1 * Pair Alligator Clip
1 * English Manual
1 * Carrying Bag
