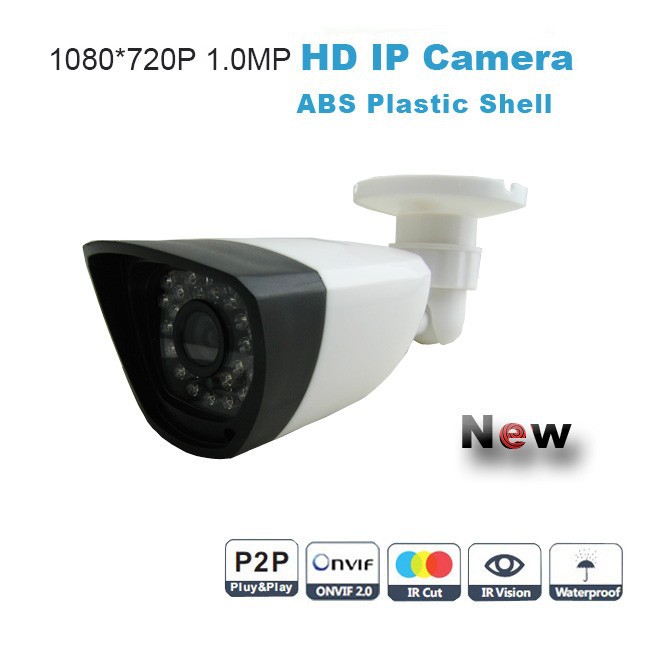

Star 720P 1.0MP Bullet IP Camera Outdoor Security ONVIF Waterproof Night Vision 30 Infrared LED P2P Cloud IR Cut Filter New

1. This module uses Huawei Hass Hi3518E + OV9712 (38 or 32) as the core,High Resolutiion 1.0 Megapixel 1/4" CMOS Sensor

2. 1280*720P Resolution 25fps real time.

3. Using XM CMS client, Supports P2P remote, does not need to open router ports without port mapping, Easy remote access.

4. Support IE, Firefox,Google browser

5. Supports mobile phone remote access easily, AS: Apple, Android, Win, Symbian, Blackberry.

6. Support for international Onvif agreement, compatible XM,Hikvision, Dahua and other well-known manufacturers of NVR.

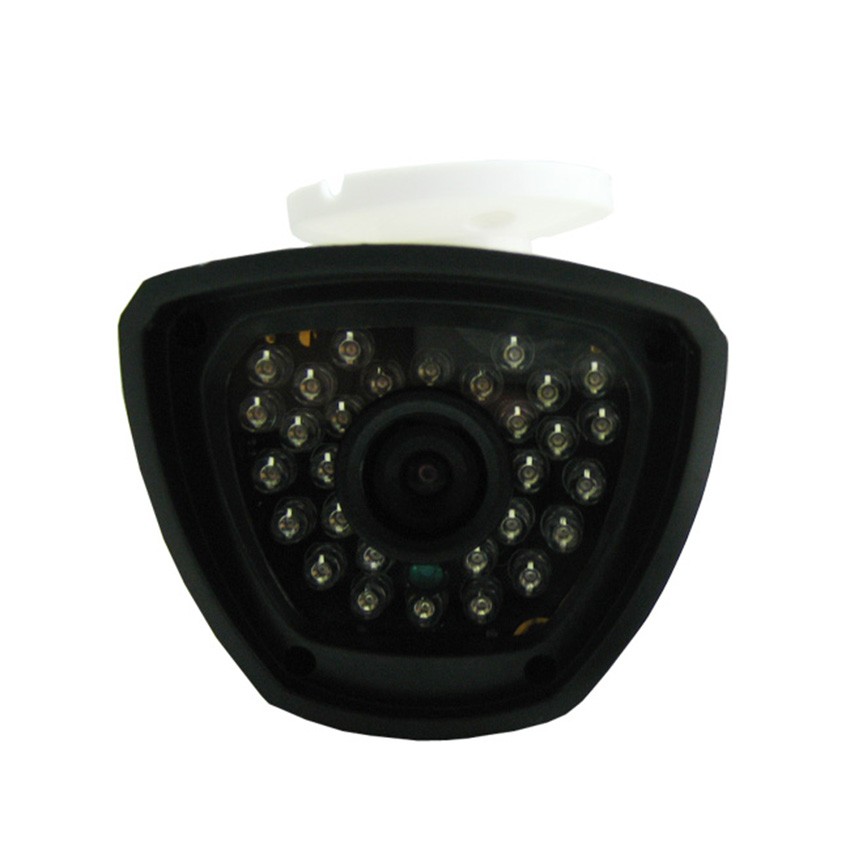

7. 30 IR LED With 25m IR Distance

8. Built in IR-CUT Filter

9.Day & Night Vision

10. Waterproof/Weatherproof

11. High Quality ABS Plastic

12. Standard lens:3.6mm, if you need other lens,please leave a message to us in your order.

Model NO.                                                             60-NX4C1001S

 Camera

 Image Device                                                      1/4"High Sensitivity CMOS

 Image senser                                                       OV 9712

 DSP                                                                       Hi3518E

 TV System                                                            PAL/NTSC

 Effective Pixels                                                    1280(H) x 720(V)

 Min. Illumination                                                  0Lux(IR-ON )

 Day/Night                                                              ICR

 Infrared LED                                                      30pcs Taiwan Dingyuan IR LED

 IR Distance                                                          15-20 Meters

 Infrared Spectrum                                              850nm

 Lens

 Focal Length                                                      (Default:3.6mm)2.8mm/6mm/8mm Optional

 Compression

 Video compression                                           H.264 Main Profile/JPEG capture

 Video Bite Rate                                                100Kbps~6Mbps

 Audio compression                                          G.711a


 Max Resolution                                                 1280(H) x 720(V)

 Frame Rate                                                        PAL50Hz:25fps (1280*720);NTSC60Hz:30fps (1280*720);

 Image settings                                                  Saturation, Brightness, Contrast adjustable through Client software or web server

 Network Function

 Storage                                                               Network storage

 Intelliget Alarm                                                 Motion detect, video loss ,network disconnection, IP address conflict, storage full, storage error

 Protocol                                                              TCP/IP,HTTP,DHCP,DNS,DDNS, PPPoE, SMTP,NTP(HTTPS,SIP ,802.1x,IPv6 optional)

 Basic                                                                  Anti-flicker, dual stream, heartbeat, password protection

 Interface

 Communication Interface                               1 RJ45 10M/100M self-adaptive Ethernet interface

 Video output                                                     1Vp-p Composite Output(75/BNC)

 General

 Operating condition                                         -10°~60°,humidity 90% less (non-condensing)

 Power supply                                                    DC12V±10%

 Current                                                              <300mA

 ProtectionRange                                            IP66

 Dimensions                                                      195*105*98 mm

 Net Weight                                                        350g/pcs

1 x 720P IP Camera

1 x CD

Indoor picture

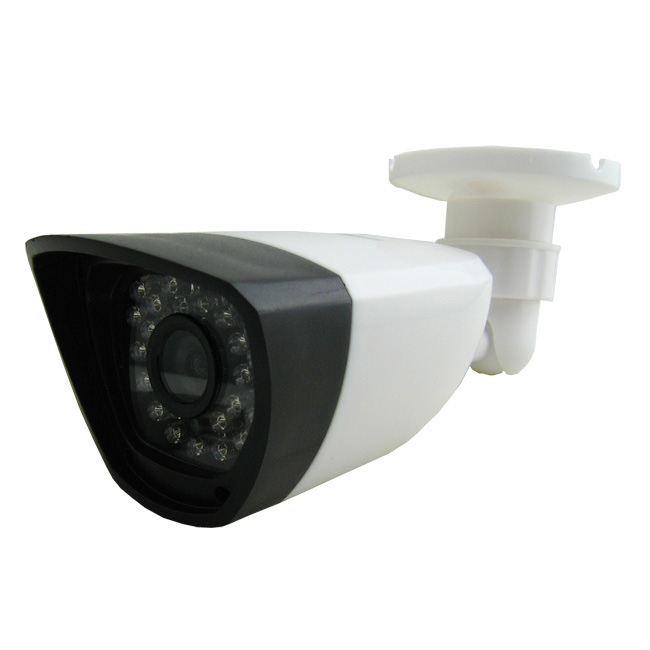

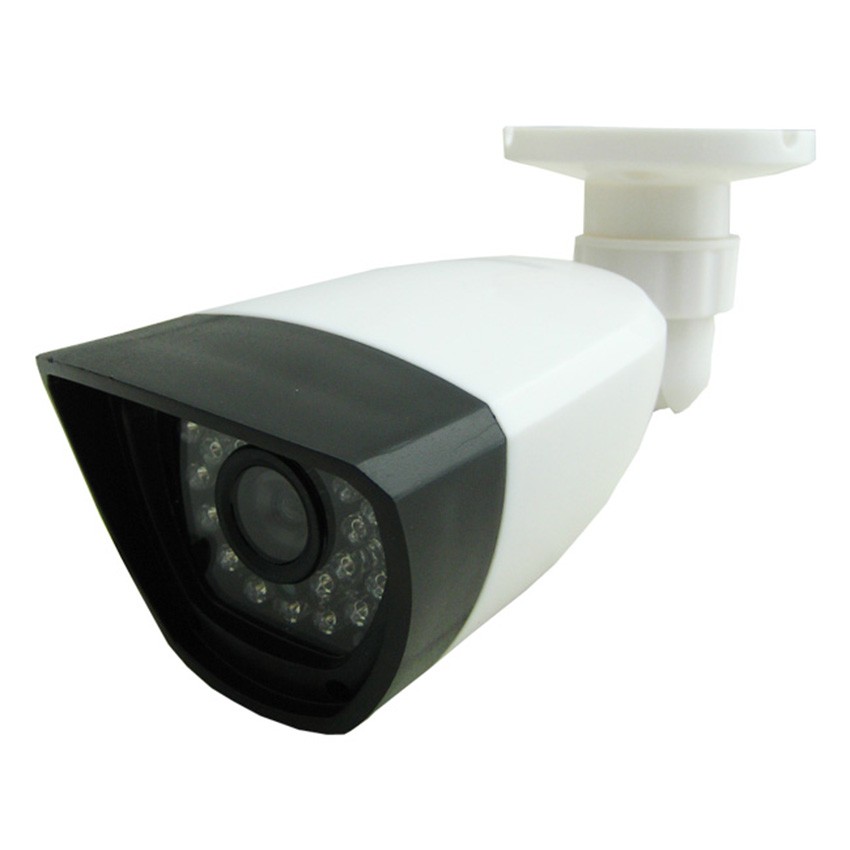

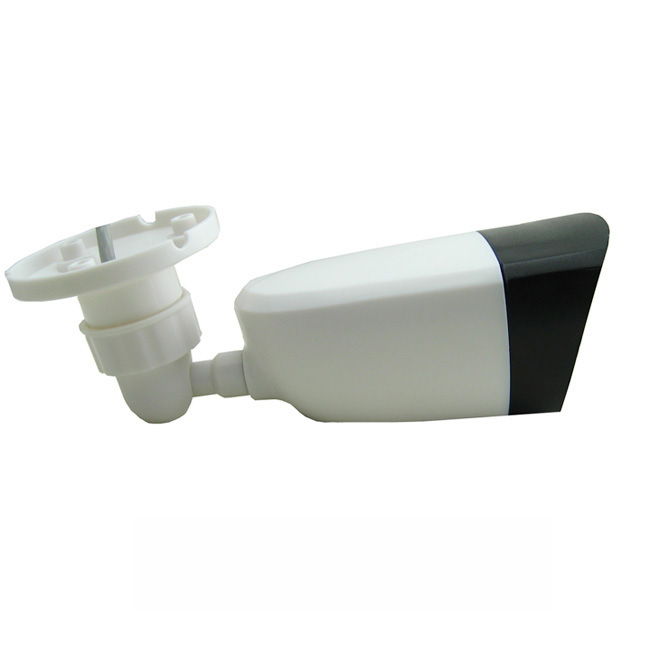

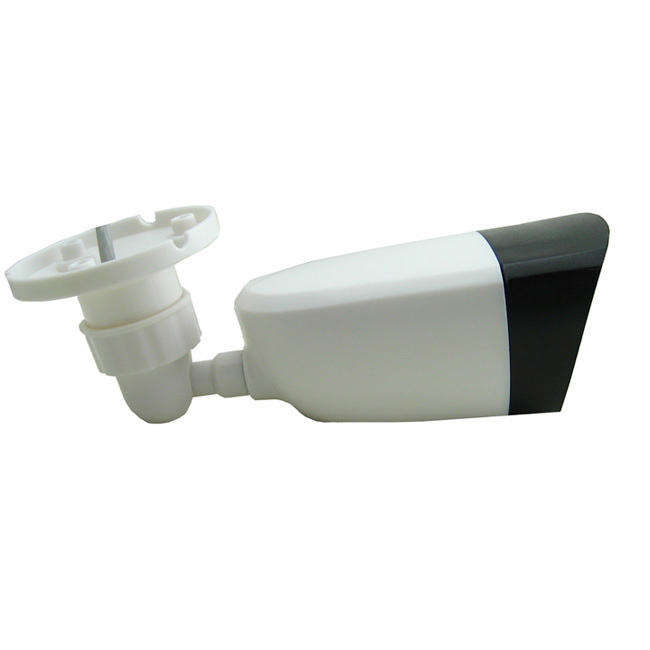

outdoor picture

The Standard IP is:192.168.1.10

User name:amdin

Password: None

Remind: If you use the software first time, you need to install a plugin.

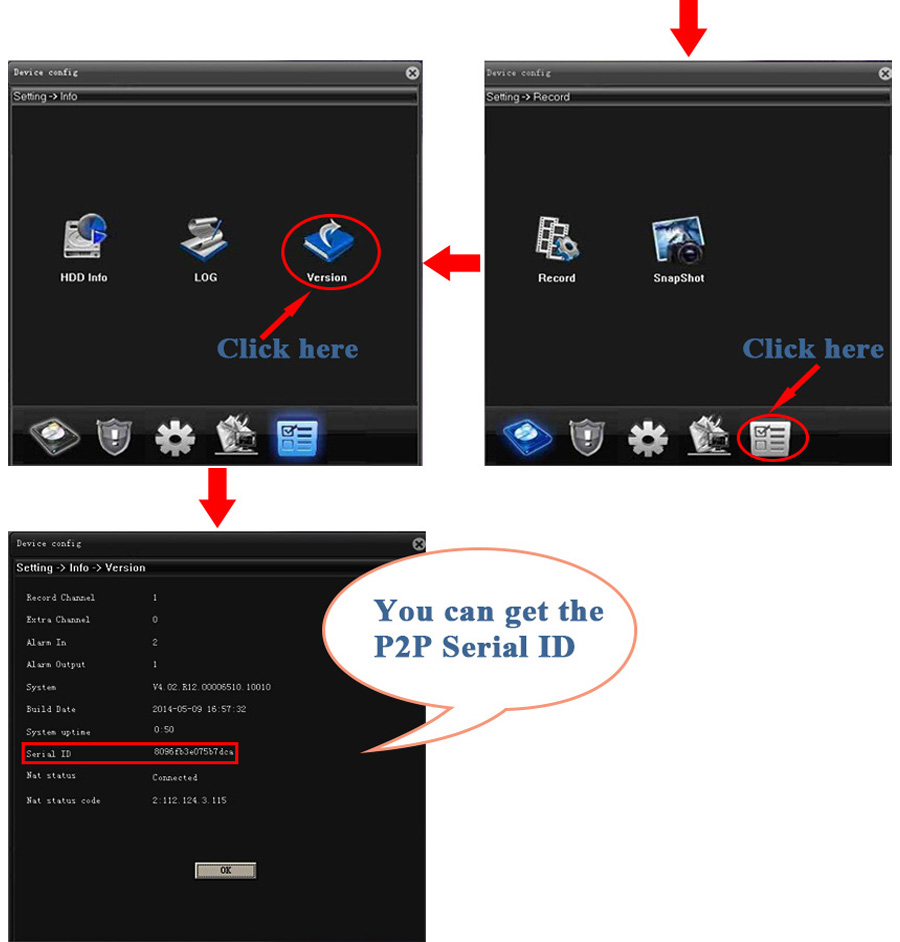

P2P on the browser

www.xmeye.net

If you lo gin first time,you need to register an account freely.

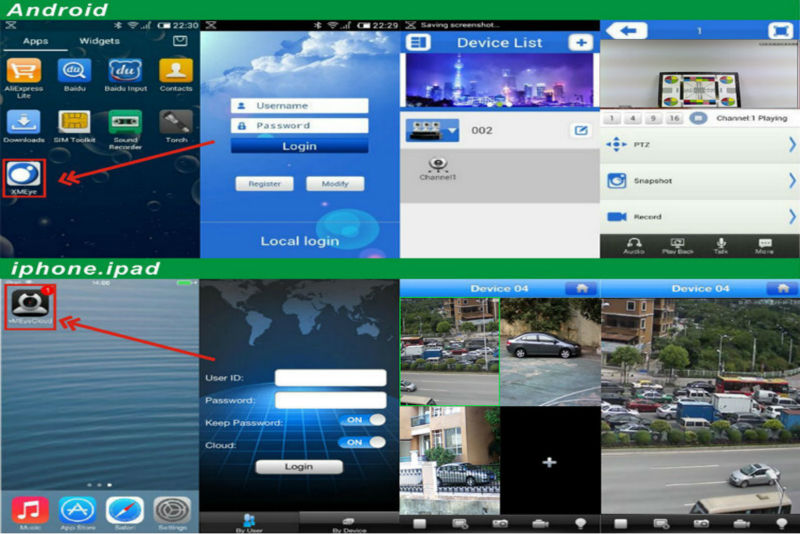

1.   Android System Installation(Two ways)

(1).Android user can install directly.The APP is in the CD.

Install the app "XMEye"

(2)Please visit www.xmeye.net,Then use your smartphone toscan this image

Then complete the download and installation.

2.Iphone user can download app on Apple Store.

How to use?

If you have the account already,you can view directly.

If you login first time,you also need to register.
