Specification:

Features

System security

Account, password authority management

Free DDNS

Free DDNS, supports dynamic IP.

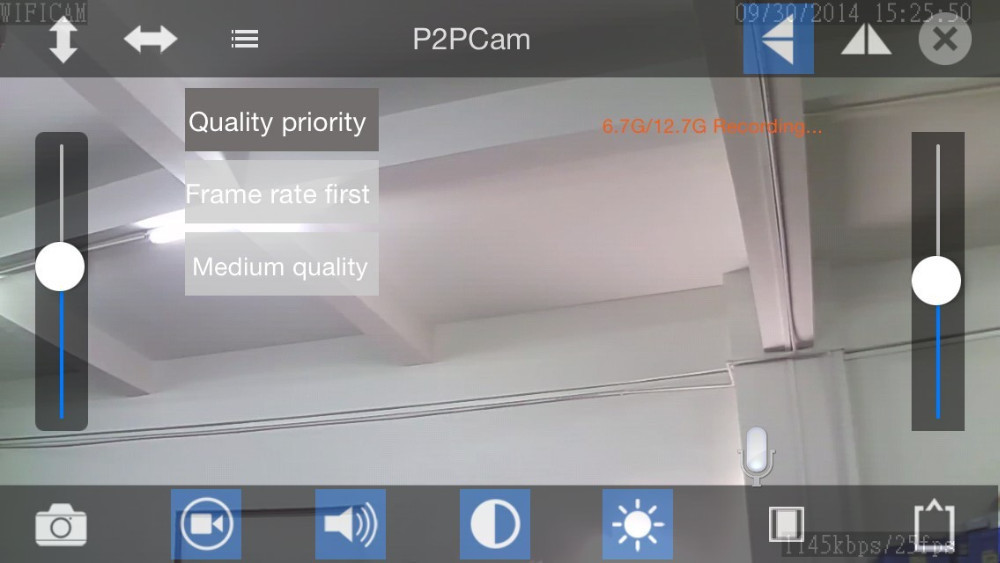

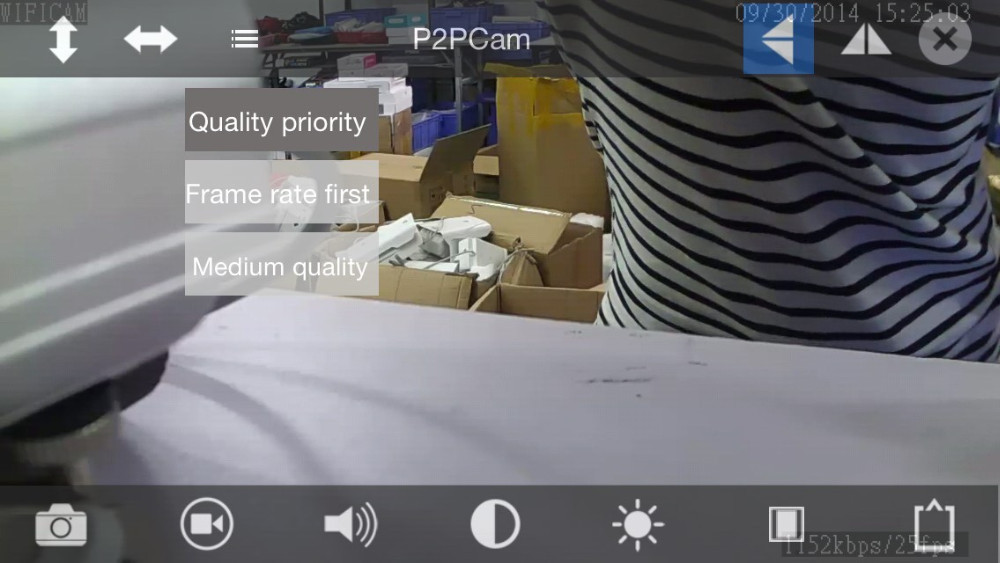

View by phone

Support HD pic IOS, Android mobile view (iOS 4.3,Android OS 2.3 above)

Local Storage

support up to 64GB MicroSD card ,24-hour loop recording.

Monitor Advantage

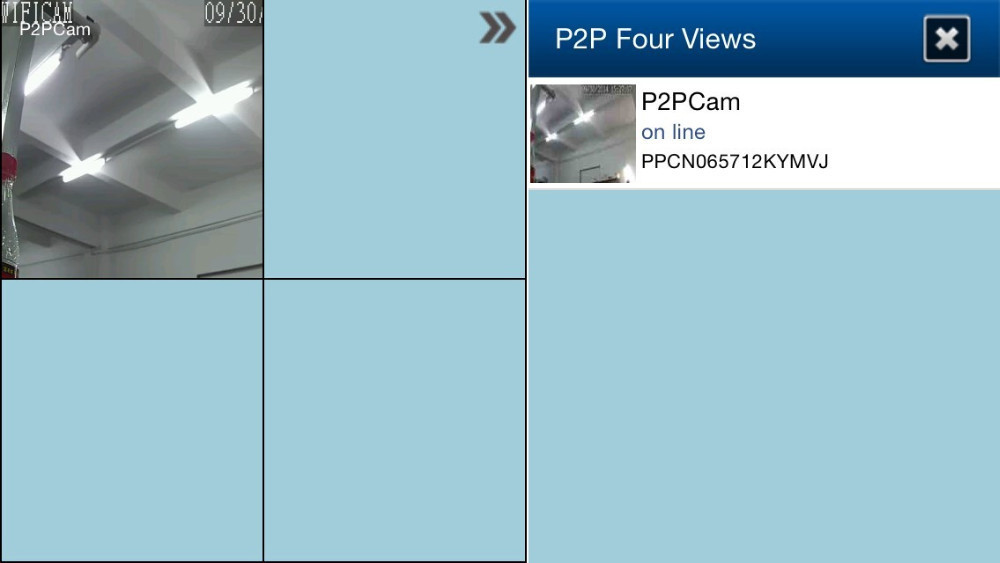

Support PC computer monitoring, Smartphone multi-pic view.

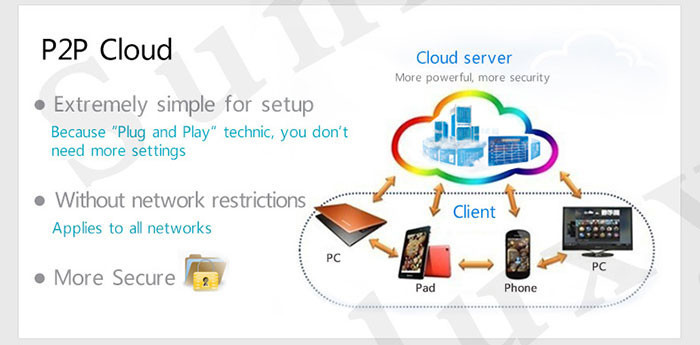

P2P

Plug & Play,99%penetration rate, Easy to setup: 1. connect the network

cable and power adapter, 2.install APP, scan UID code to add camera. 3.Click online camera to view the camera.

QR Code Scanning.

UID scan technology applied, easy to operate, and highly confidential.

Super Client

1,4,9,16,25,36, 64,81-channel central management software, no user number limitation,

centralized surveillance, remote record and playback, alarm email ect.

System

OS

Embedded Linux OS

Control protocol

ONVIF 2.0 protocol, high interoperability

Video coding

Multi stream:720P 30fps+VGA 30fps+QVGA 30fps+720P 1fsJPEG capture

Bit Rate

CBR/VBR, output bit rate range:128~4096kbps

Processor

Hi processor, built in ARM926 Max. 440MHz and high-speed video co-processor

Video

Compression Format

H.264 baseline profile levels:3.1/Motion-JPEG

Frame rate

30fps/24fps(720p)

Resolution

720P(1280*720), VGA(640*480), QVGA(320*240)

Sensor

1/4 720p Progressive CMOS sensor

Minimum illumination

0.8Lux/F1.4(colorful model ),0.3Lux/F1.(B&W mode)

SNR

39dB

IR control

IR turned on: night vision view enabled, infrared Ray, ICR auto detect.IR turned off:

night vision disabled, infrared ray off,ICR stay in day view mode.

Electronic shutter

1/50s(1/60s)-1/100,000s

CMOS

support AWB, AGC, BLC

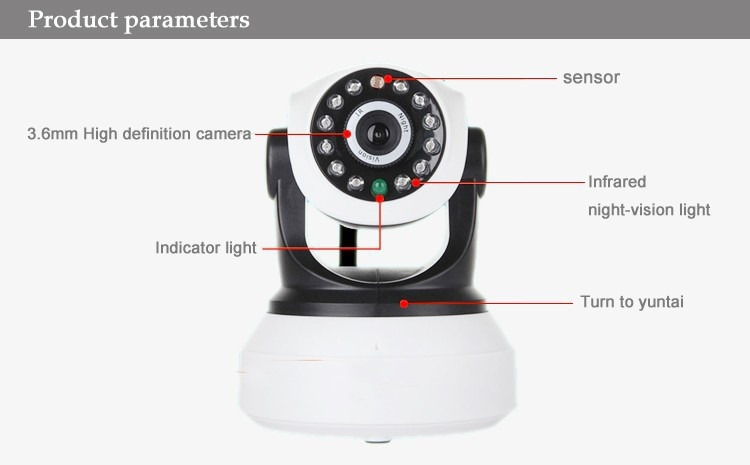

Lens/viewing angle

3.6mm F1.4/56.14

Night Vision

Night vision

Dual IR-CUT Filter auto switch,12pcs 850nm 5mm LED,10m IR distance

Audio

Compression format

ADPCM/32kbps

Input

1 Channel Line in (3.5mm phone jack)&1 Channel Internal-48dB Microphone

Output

1 Channel Line out(3.5mm phone jack)&Internal speaker(8 1W)

P/T

Network

P/T

Pan:355 degree,Tilt:120 degree

Preset Position

support up to 15 preset positions

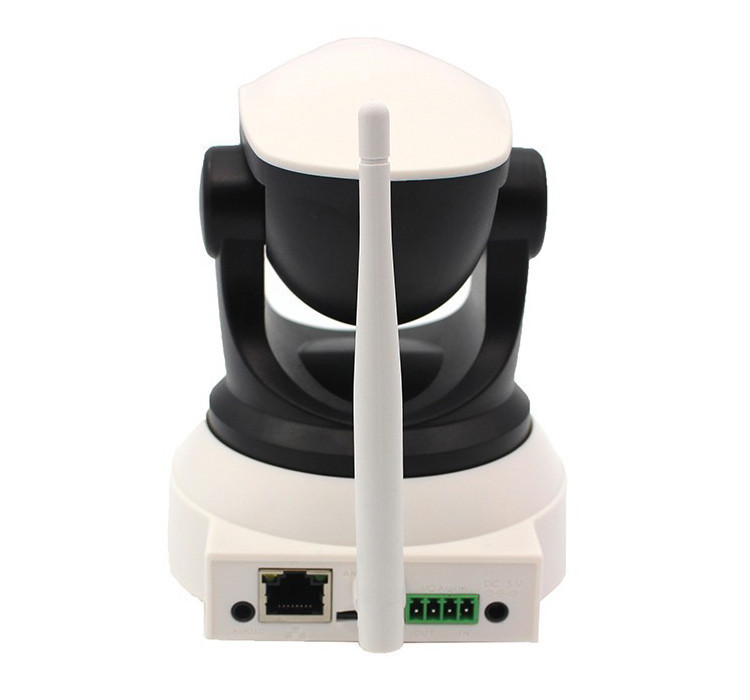

network interface

10Base-T/100Base-TX Ethernet interface

Network Protocol

TCP/IP, HTTP, TCP, UDP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPnP, RTSP, P2P, etc.

wireless network security

WPS encryption

Online visitor

Support 4 online visitors simultaneously

IP address

Dynamic IP and static IP address

WIFI

WIFI 802.11 b/g/n

Others

housing material

engineering plastics

Application environment

Indoor

Rated Voltage

DC5V

Temperature

-10~50 degree

Power consumption

rated power:3.5W (IR opening)/maximum power:7W(P/T working)

Package size

179x120x200mm (LxWxH)

Weight

Gross Weight:755g(Note: in kind prevail)

Accessories

Power adapter, user manual, warranty card, mounting bracket, screws.

Alarm

Motion Detection

Support motion detecting

System Requirement

System configuration

Win98 SE/ME/2000/XP,Vista,iPhone iOS4.3,The android version 2.3 or higher
