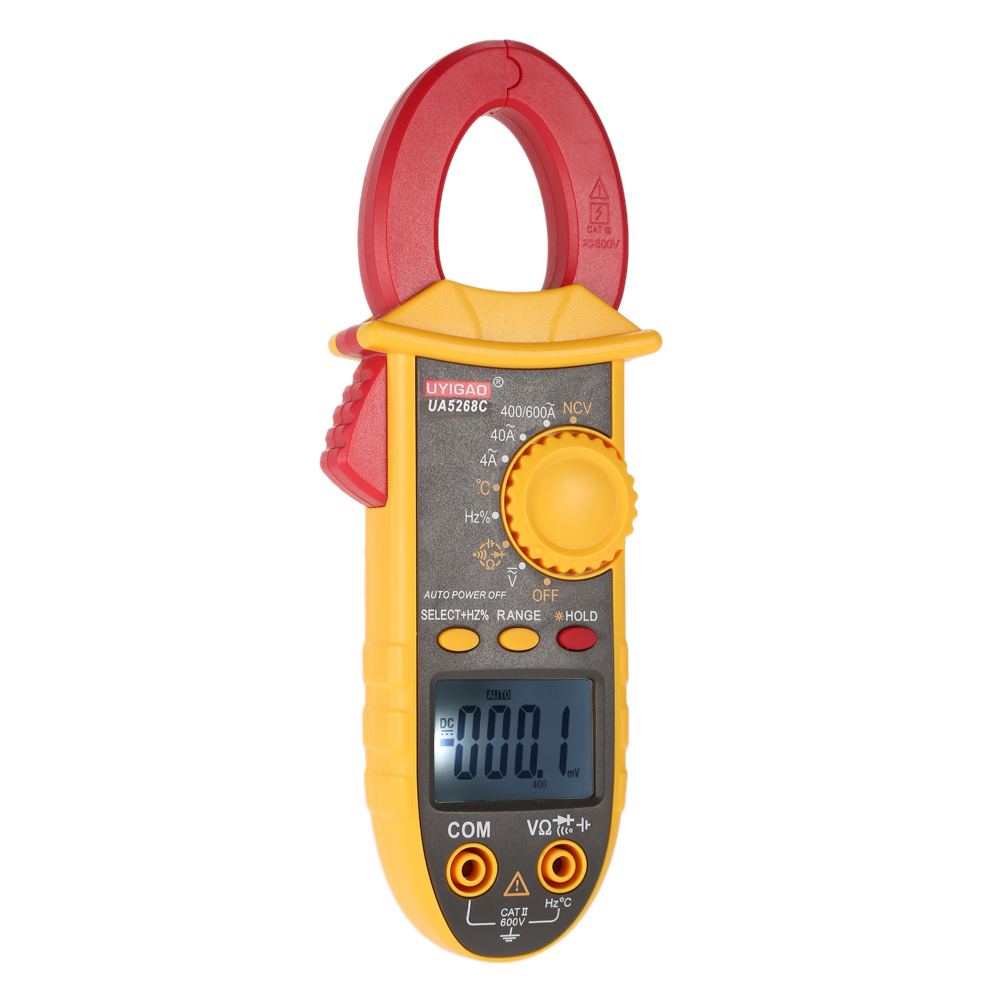

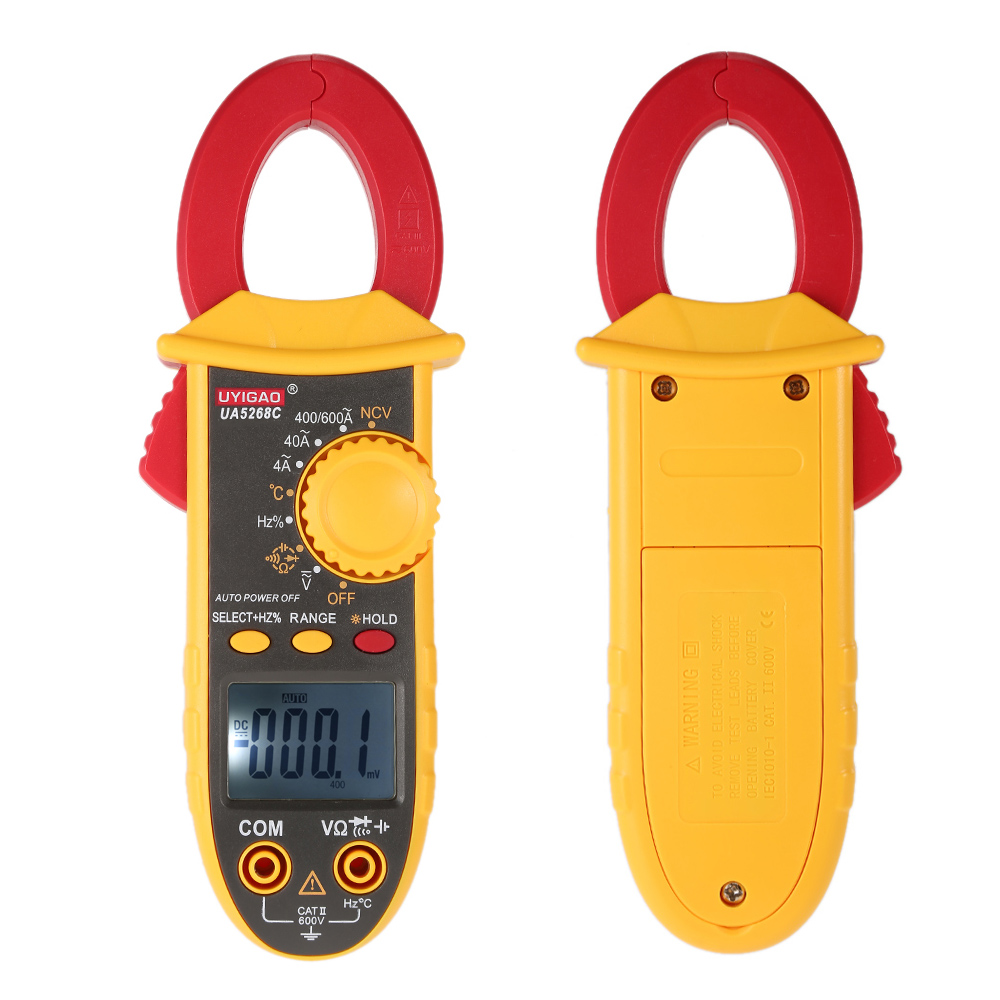

Portable LCD Digital Clamp Meter Electronic Multimeter multimetro Voltage Current Tongs Resistance Temperature Frequency Tester

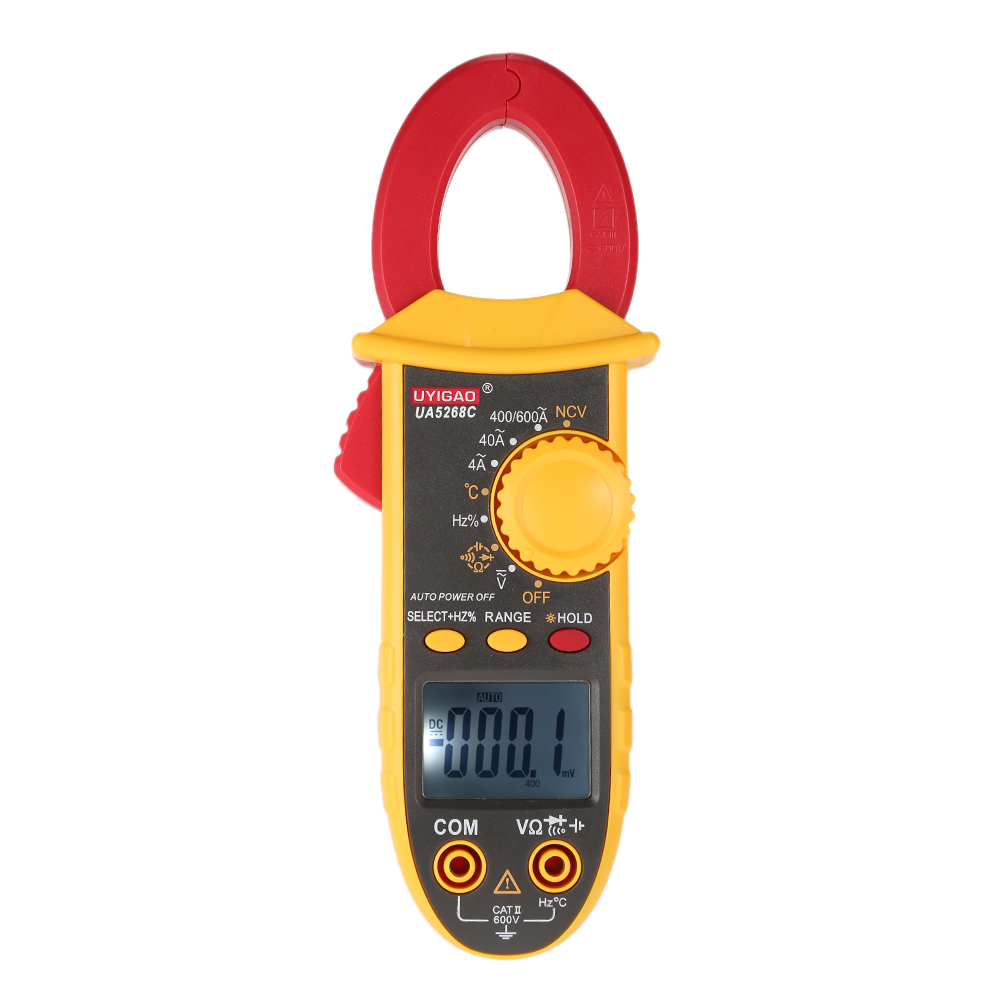

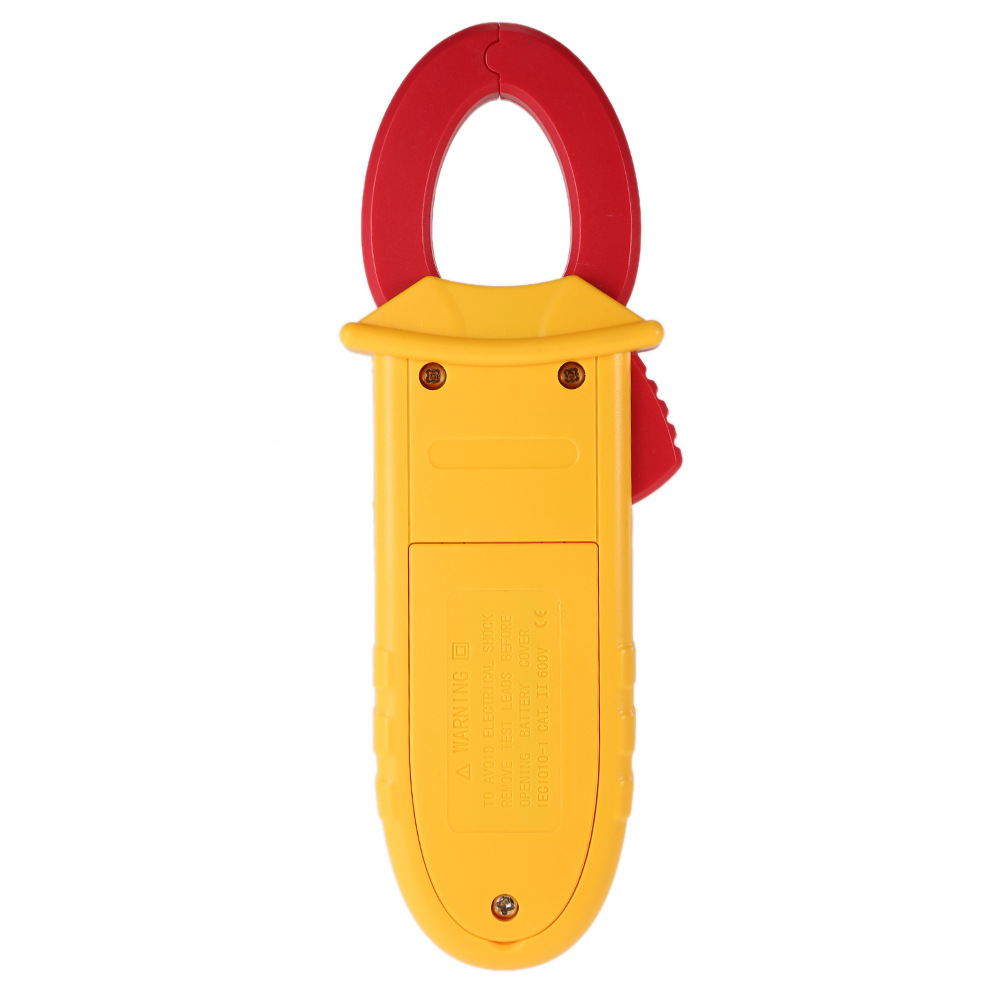

This LCD Digital AC/DC clamp multimeter is a portable clamp meter. It is ideally suited for field, laboratory, shop and home applications.
Features:
3 3/4 digit LCD screen, the maximum display value is 3999.
Multi-purpose clamp meter can measure AC/DC voltage, AC current, temperature, frequency, capacitance measurement and the continuty test, resistance and diode.
With NCV function(Non-contact voltage detection function).
Low voltage indication and overload protection.
High resolution and auto range(some current range is manual range).
Small and portable to carry and use.
Data hold, auto range and auto power off.
Note:
This meter can't measure DC current.
Specifications:

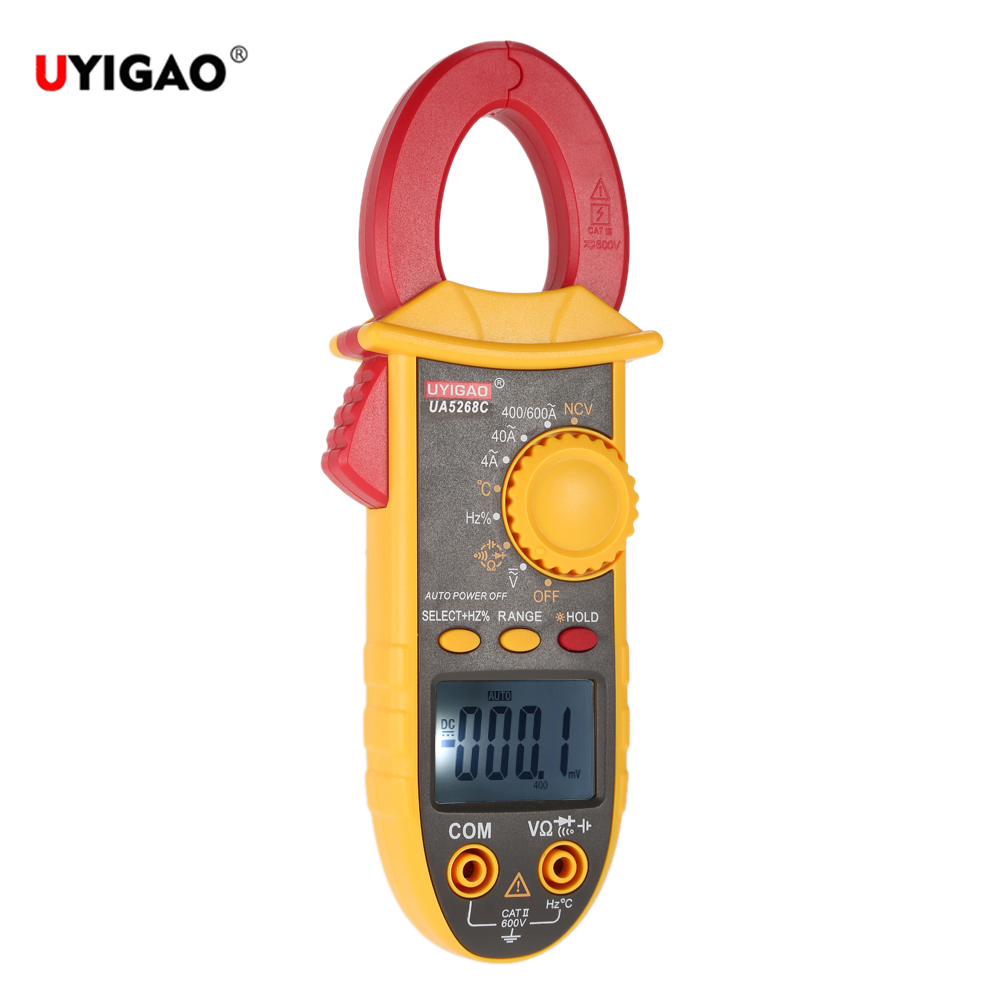

Brand Name: UYIGAO
Color: Grey + Yellow + Red
Material: ABS

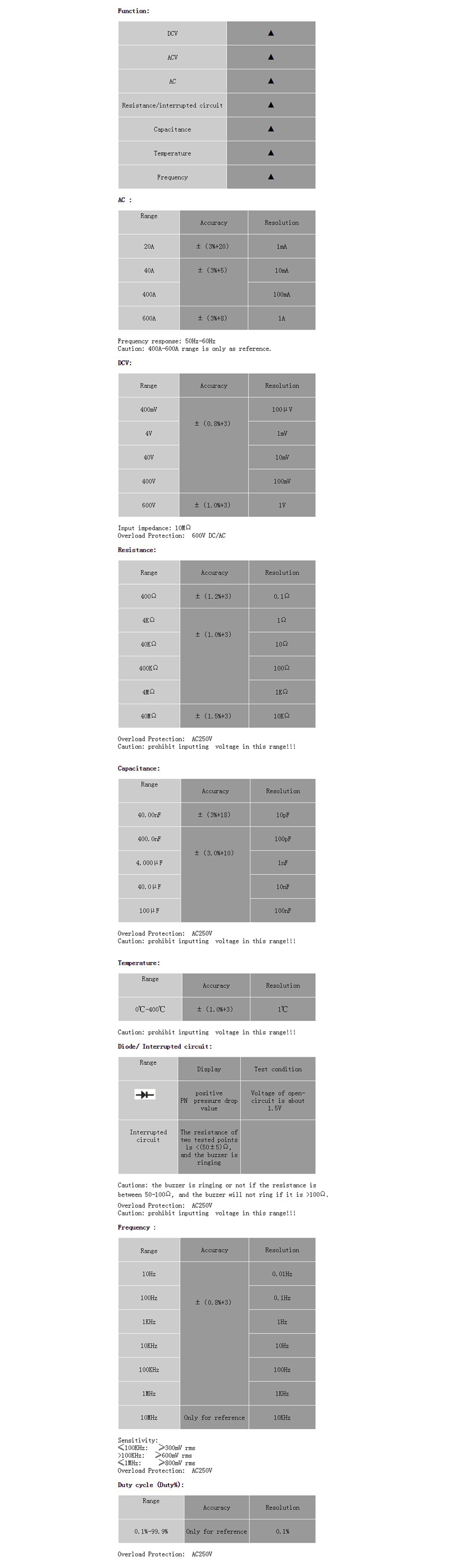

Technical Index:

Function:

DCV	▲
ACV	▲
AC	▲
Resistance/interrupted circuit	▲
Capacitance	▲
Temperature	▲
Frequency	▲

AC :

Range	Accuracy	Resolution
20A	±(3%+20)	1mA
40A	±(3%+5)	10mA
400A		100mA
600A	±(3%+8)	1A

Frequency response: 50Hz-60Hz
Caution: 400A-600A range is only as reference.

DCV:

Range	Accuracy	Resolution
400mV	±(0.8%+3)	100μV
4V		1mV
40V		10mV
400V		100mV
600V	±(1.0%+3)	1V

Input impedance: 10MΩ
Overload Protection: 600V DC/AC

Resistance:

Range	Accuracy	Resolution
400Ω	±(1.2%+3)	0.1Ω
4KΩ	±(1.0%+3)	1Ω
40KΩ		10Ω
400KΩ		100Ω
4MΩ		1KΩ
40MΩ	±(1.5%+3)	10KΩ

Overload Protection: AC250V
Caution: prohibit inputting voltage in this range!!!

Capacitance:

Range	Accuracy	Resolution
40.00nF	±(3%+18)	10pF
400.0nF	±(3.0%+10)	100pF
4.000μF		1nF
40.0μF		10nF
100μF		100nF

Overload Protection: AC250V
Caution: prohibit inputting voltage in this range!!!

Temperature:

Range	Accuracy	Resolution
0°C-400°C	±(1.0%+3)	1°C

Caution: prohibit inputting voltage in this range!!!

Diode/ Interrupted circuit:

Range	Display	Test condition
	positive PN pressure drop value	Voltage of open-circuit is about 1.5V
Interrupted circuit	The resistance of two tested points is <(50±5)Ω, and the buzzer is ringing

Cautions: the buzzer is ringing or not if the resistance is between 50-100Ω, and the buzzer will not ring if it is >100Ω.
Overload Protection: AC250V
Caution: prohibit inputting voltage in this range!!!

Frequency :

Range	Accuracy	Resolution
10Hz	±(0.8%+3)	0.01Hz
100Hz		0.1Hz
1KHz		1Hz
10KHz		10Hz
100KHz		100Hz
1MHz		1KHz
10MHz	Only for reference	10KHz

Sensitivity:
≤100KHz:  ≥300mV rms
>100KHz:  ≥600mV rms
≤1MHz:   ≥800mV rms
Overload Protection: AC250V

Duty cycle (Duty%):

Range	Accuracy	Resolution
0.1%-99.9%	Only for reference	0.1%

Overload Protection: AC250V

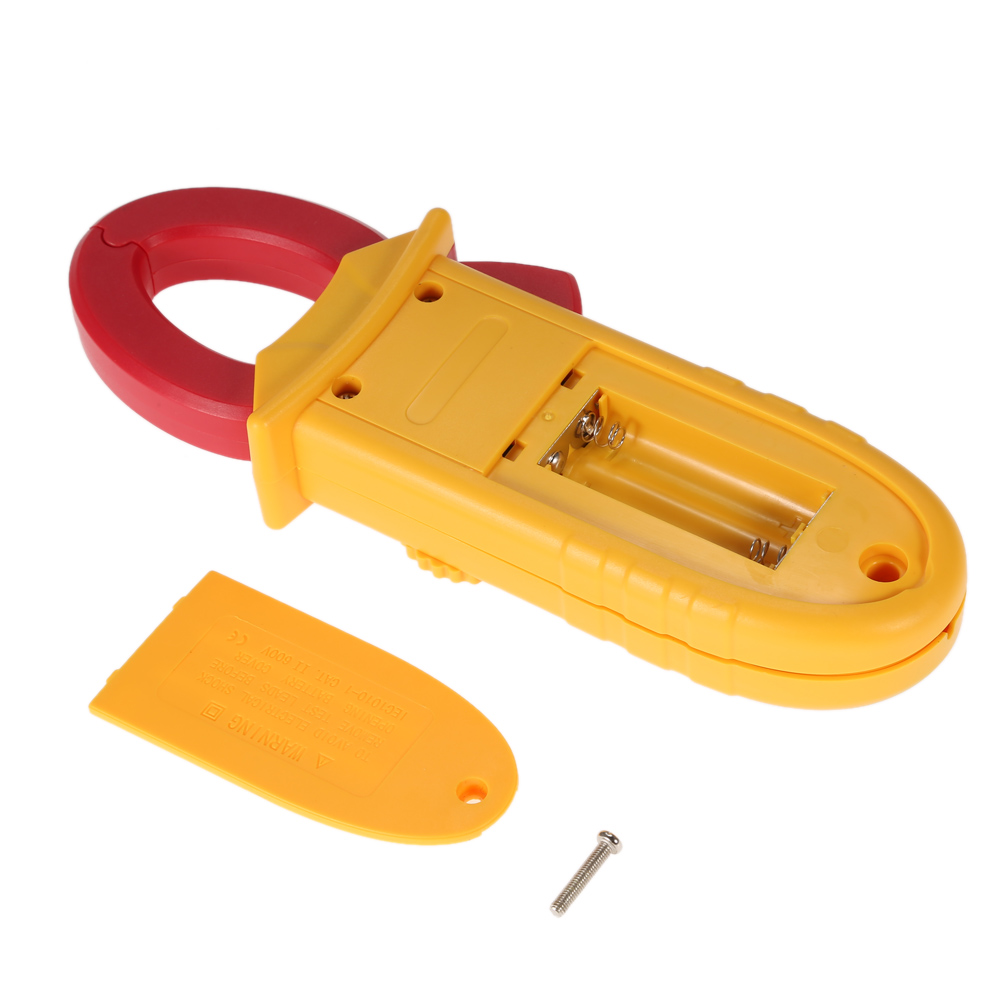

Power Supply: 2 * AAA 1.5V Batteries (Not included)
Maximum Display: 3999 (3 3/4)

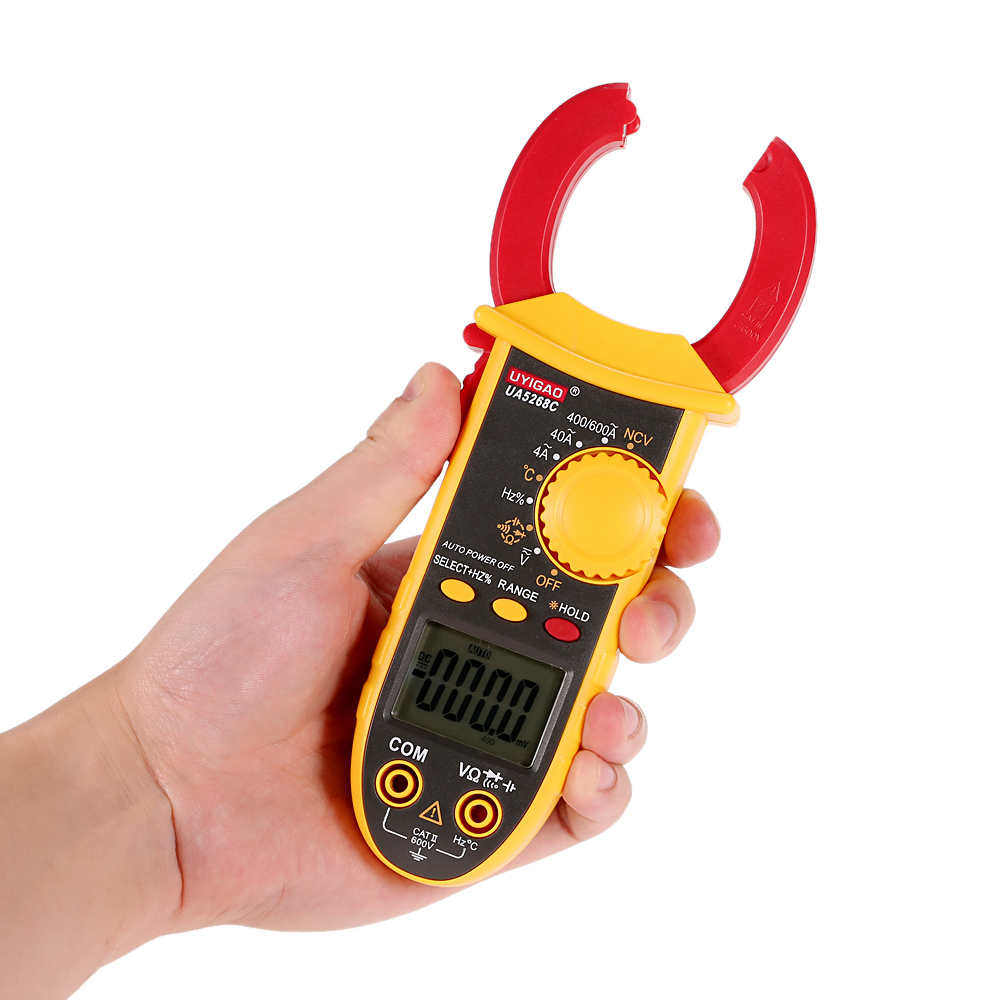

Opening Size of Jaw: 28mm / 1.10in
Display Size: 35 * 24mm / 1.38 * 0.94in
Item Size: Approx. 185 * 70 * 30mm / 7.28 * 2.75 * 1.18in (L * W * H)
Item Weight: Approx. 164.3g / 5.79oz
Package Size: Approx. 25 * 13 * 4cm / 9.84 * 5.12 * 1.57in (L * W * H)
Package Weight: Approx. 369g / 13oz

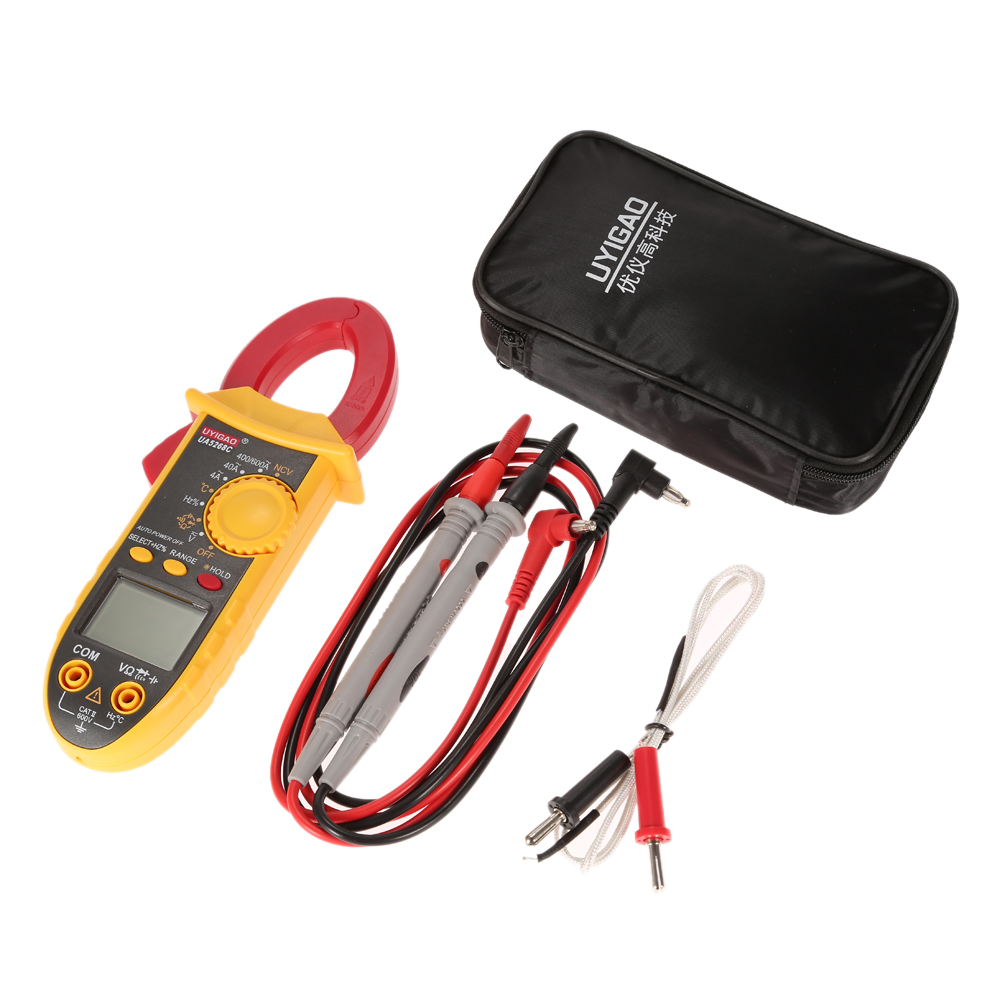

Package List:
1 * Clamp Meter

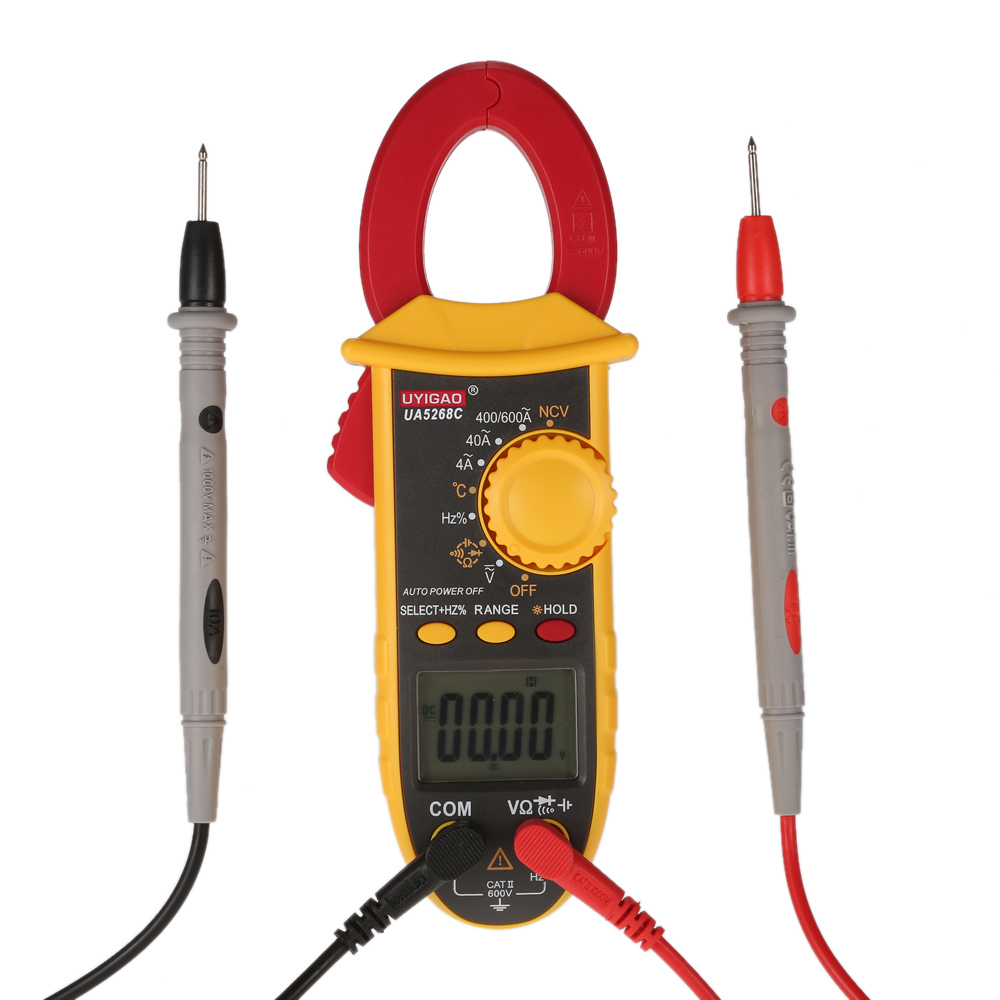

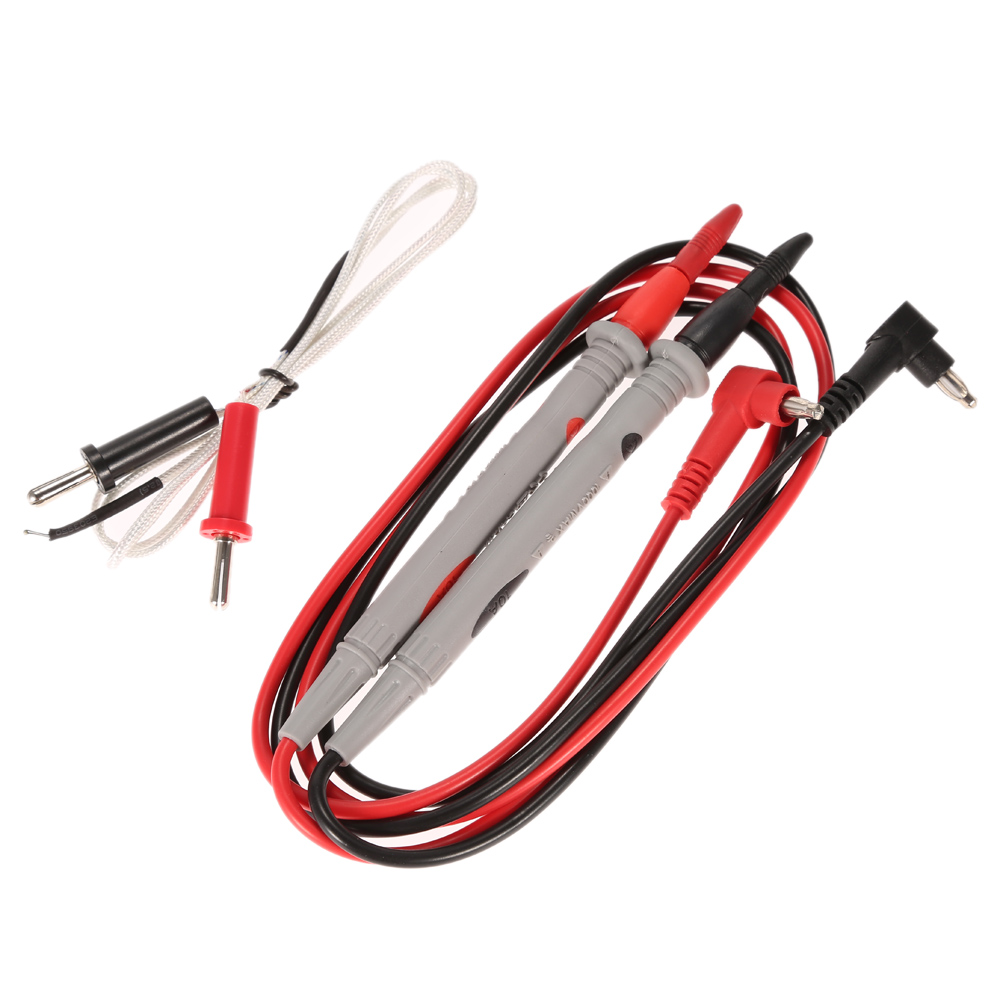

2 * Test Leads
1 * Temperature Probe(K type thermocouple)
1 * Shockproof Sheath
1 * User Manual
