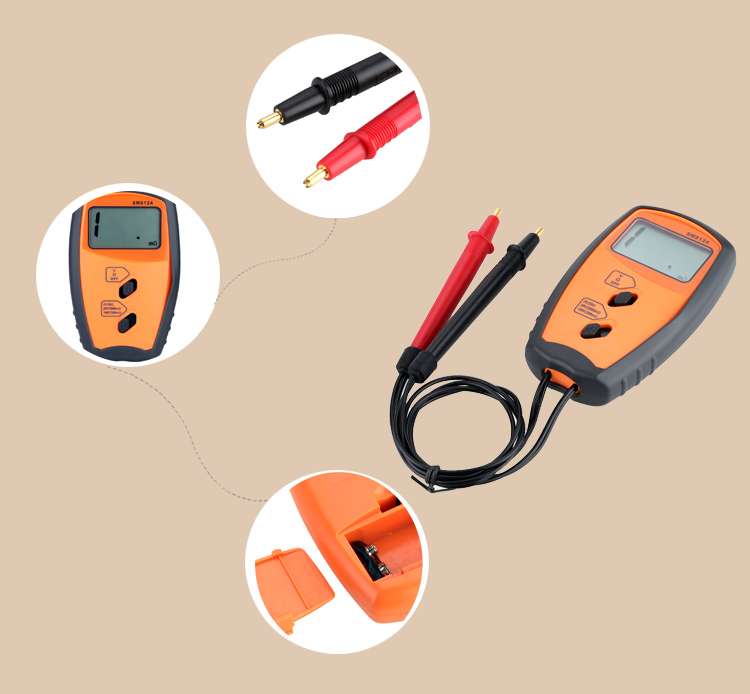

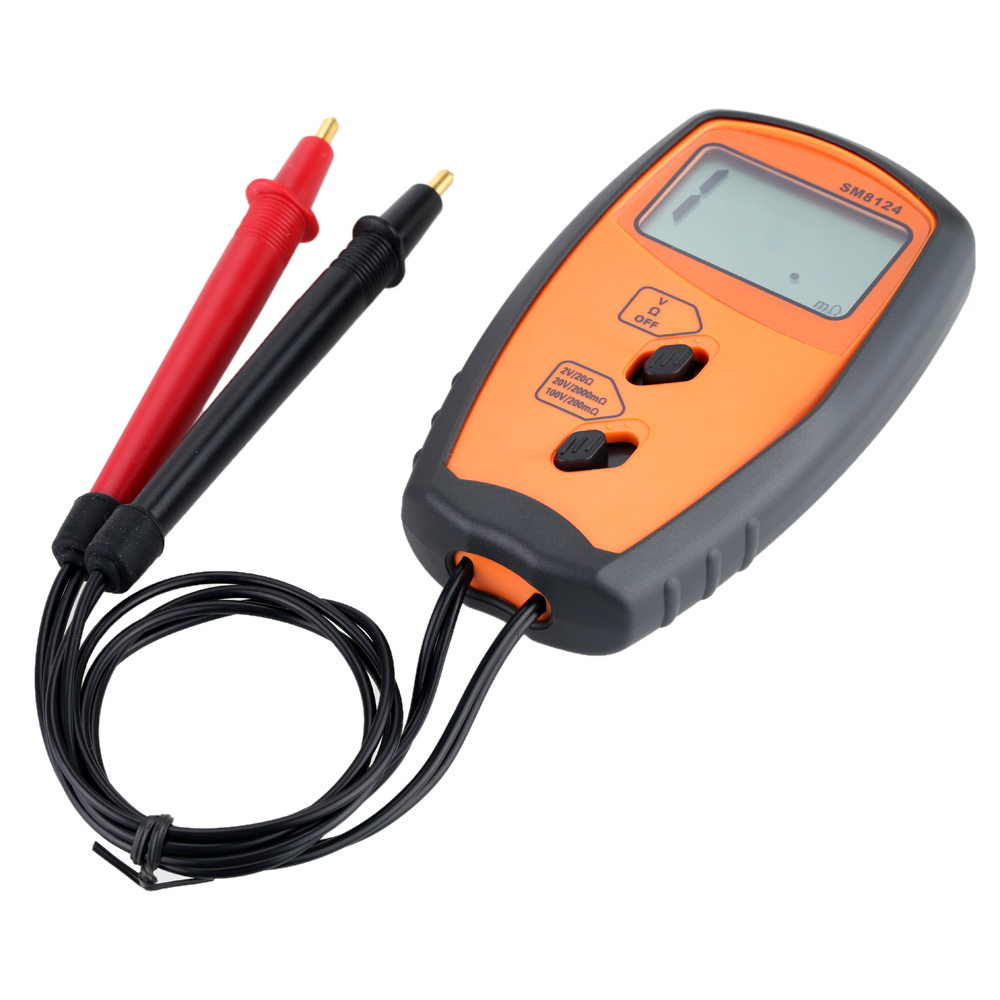

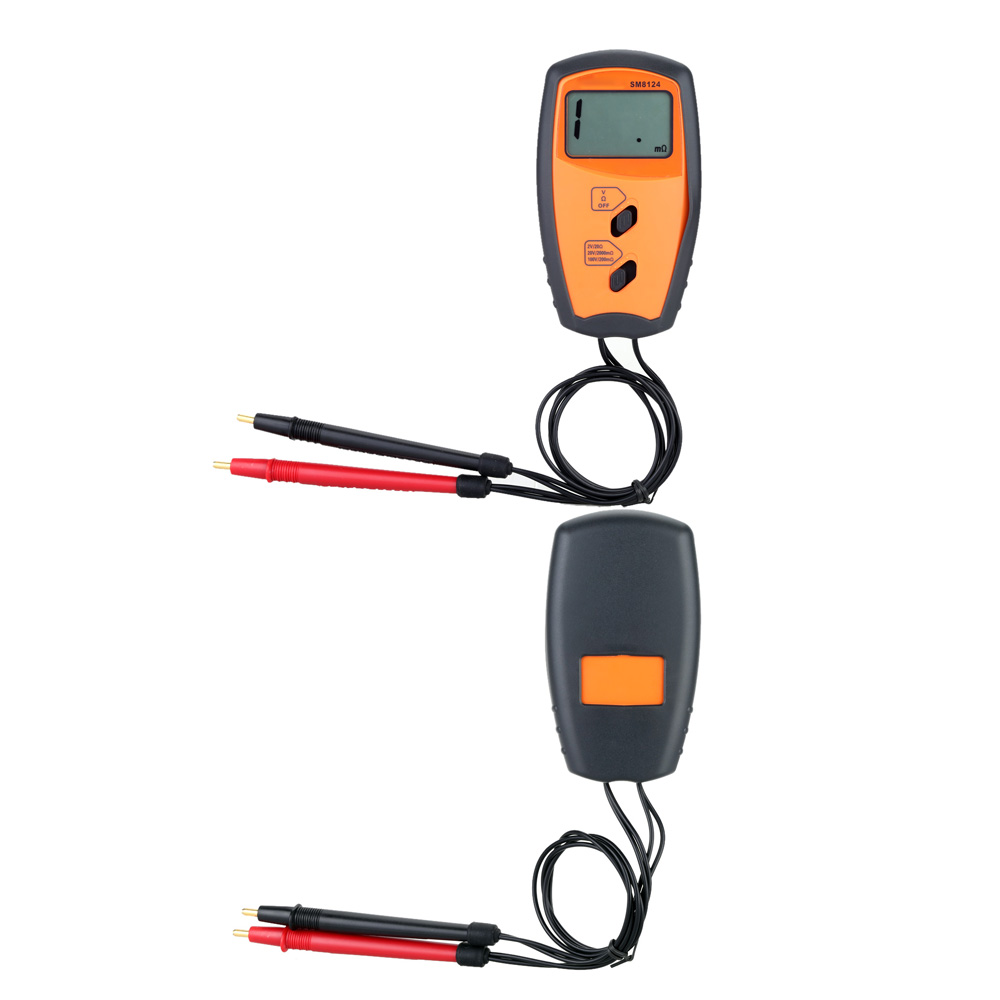

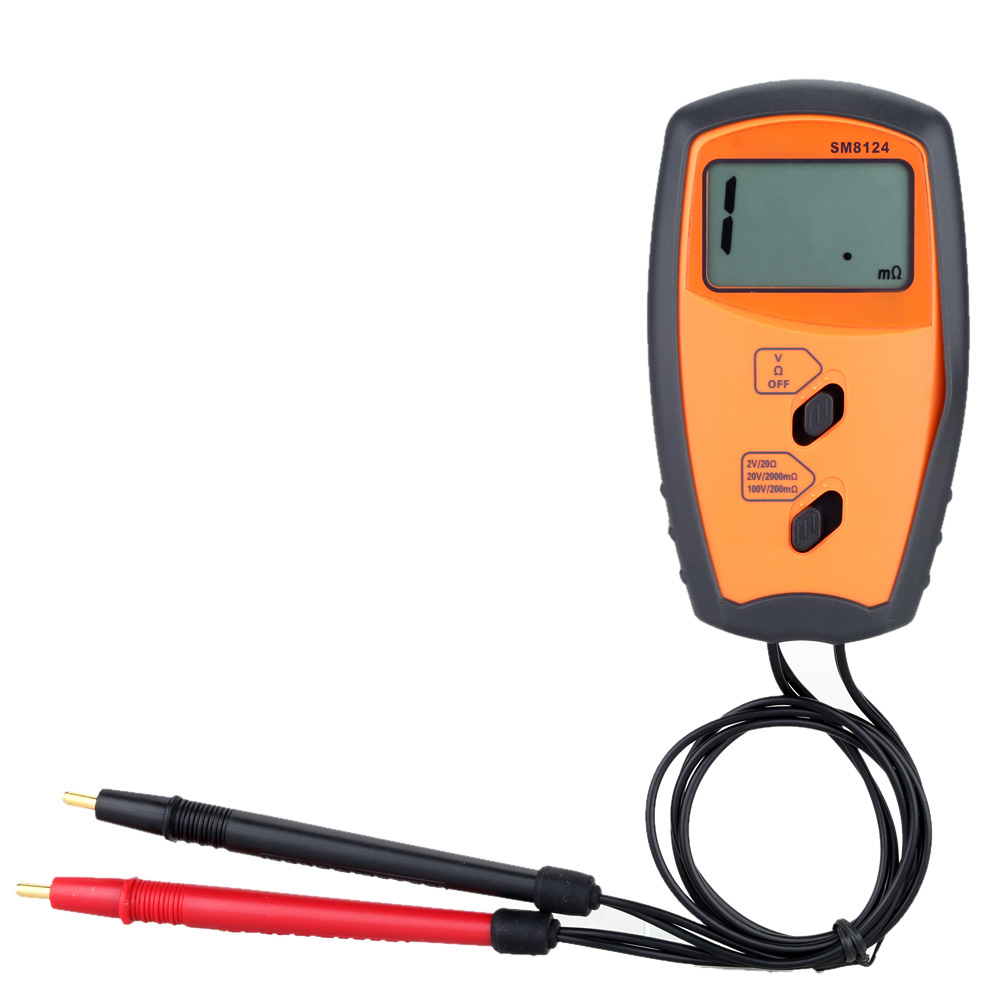

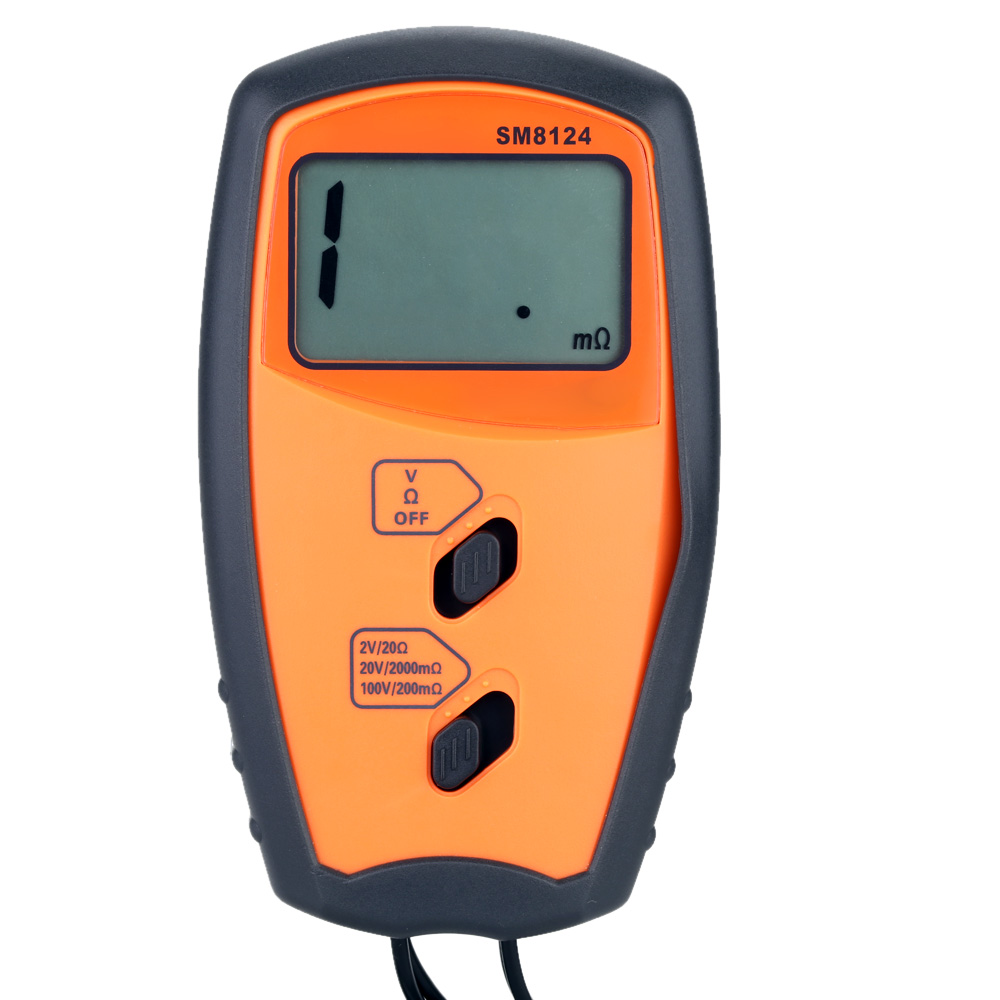

Portable Battery Internal Resistance Voltage Meter Voltmeter SM8124 0-100V Battery Measurement Tool Diagnostic-Tool for Battery

The battery internal resistance voltmeter is mainly used to measure battery terminal voltage and internal resistance. It can be widely applied to measurement of lithium-ion, nickel-hydroxide, zinc-manganese cells or assembled battery.
Features:
The battery internal resistance voltmeter is an intelligent instrument for battery measurement.
It is mainly used to measure battery terminal voltage and internal resistance.
Adopt four-wire method which helps to ensure the accuracy of the measured value.

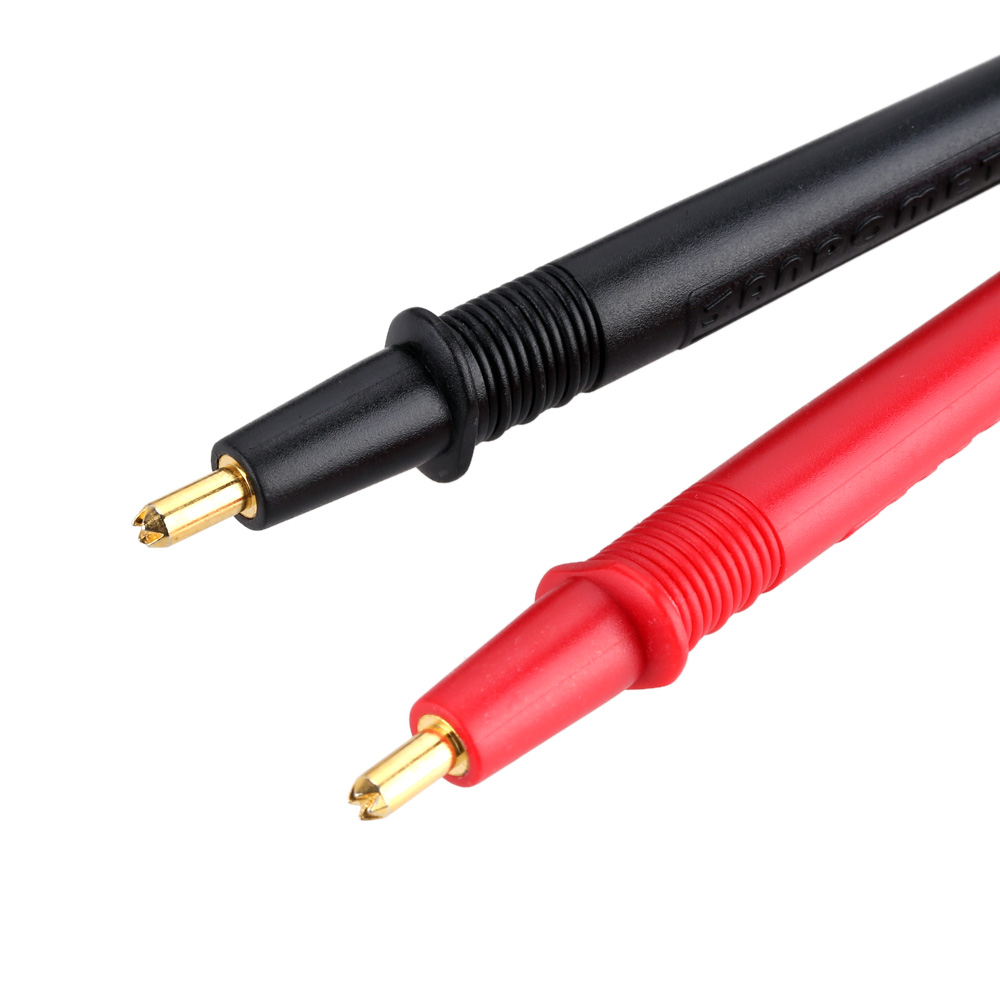

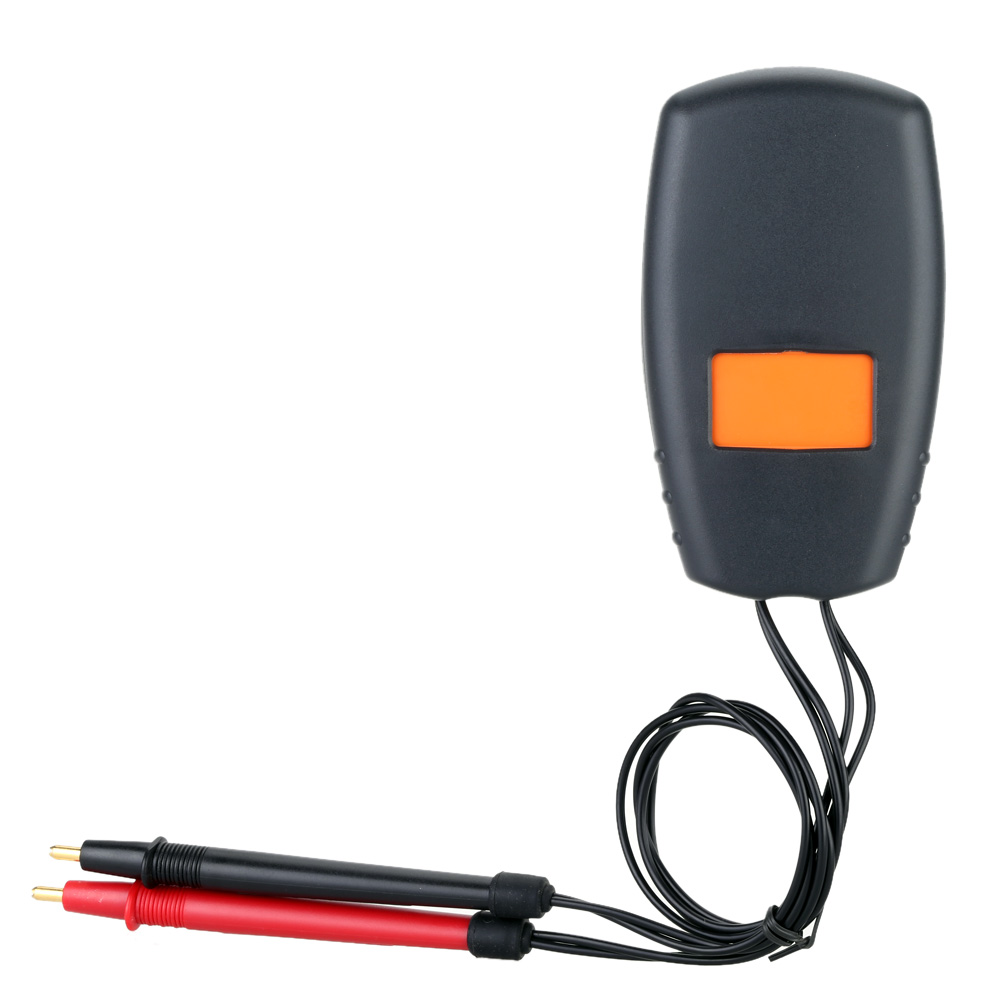

Come with a pair of test probe, convenient to use.
Widely applied to measurement of lithium-ion, nickel-hydroxide, zinc-manganese cells or assembled battery.
Specifications:
Display: LCD Display
Voltage Measuring Range: 0-1.9V / 2-19.9V / 20-100V
Voltage Resolution: 1mV / 10mV / 100mV
Internal Resistance Measuring Range: 0-199.9mΩ / 200-1999.9mΩ / 2-20Ω
Internal Resistance Resolution: 0.1mΩ / 1mΩ / 10mΩ

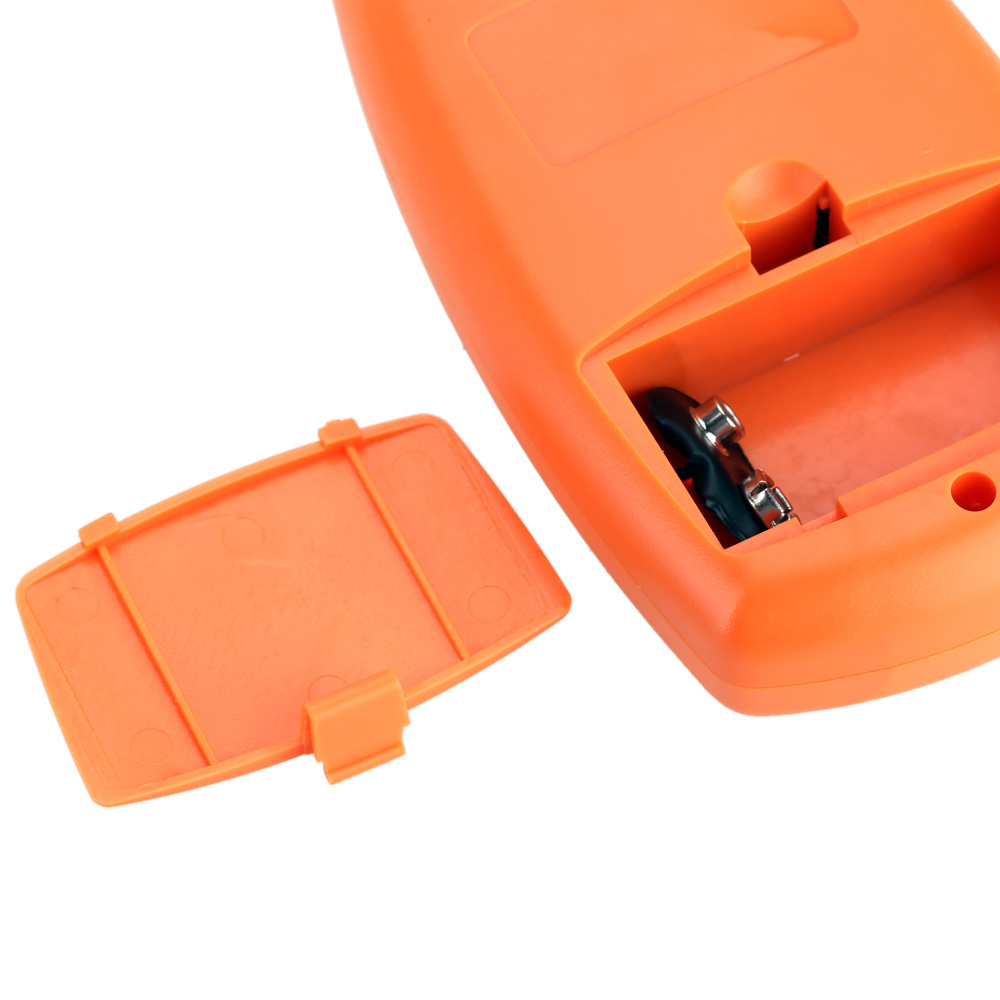

Power Supply: 1 * 9V Battery(not included)
Item Size: 13 * 7 * 2.5cm / 5.1 * 2.8 * 1in
Item Weight: 174g / 6.2oz
Package Size: 26 * 17 * 5.5cm / 10.2 * 6.7 * 2.2in
Package Weight: 538g / 19oz

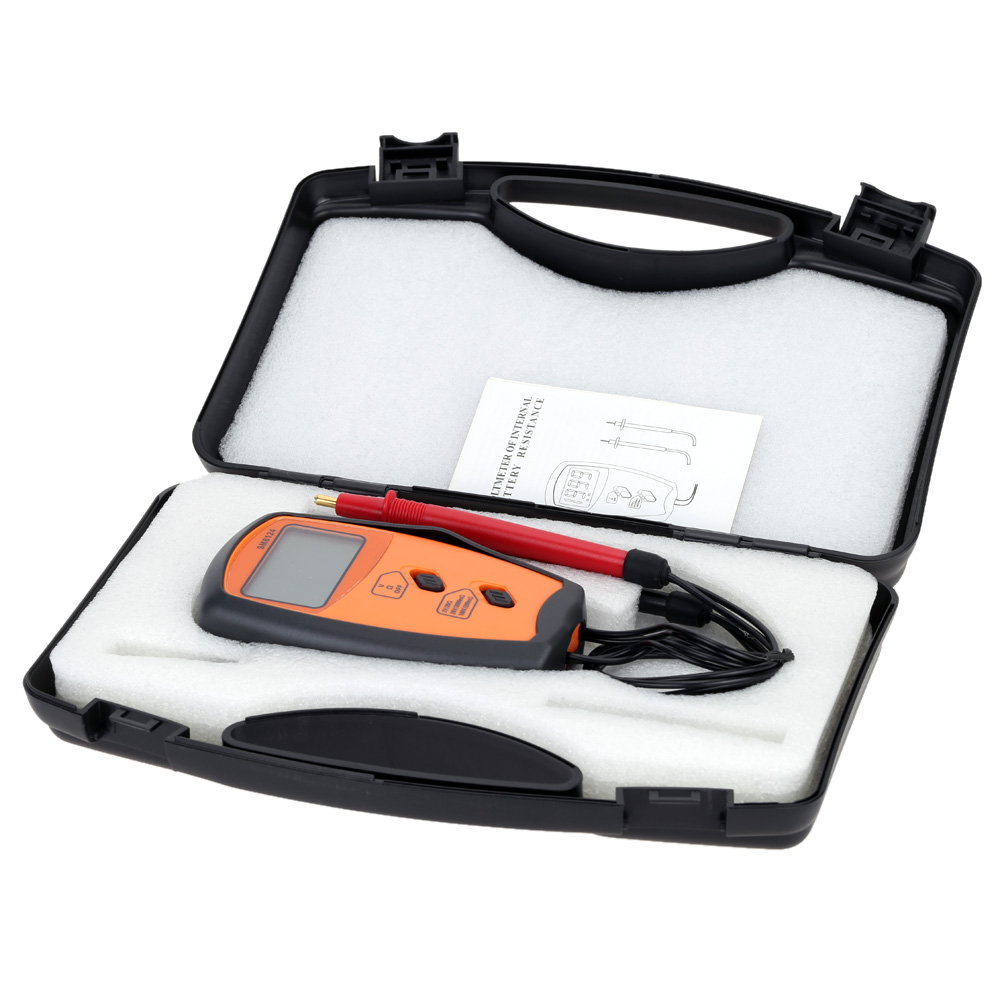

Package List:
1 * Battery Internal Resistance Voltmeter(battery not included)

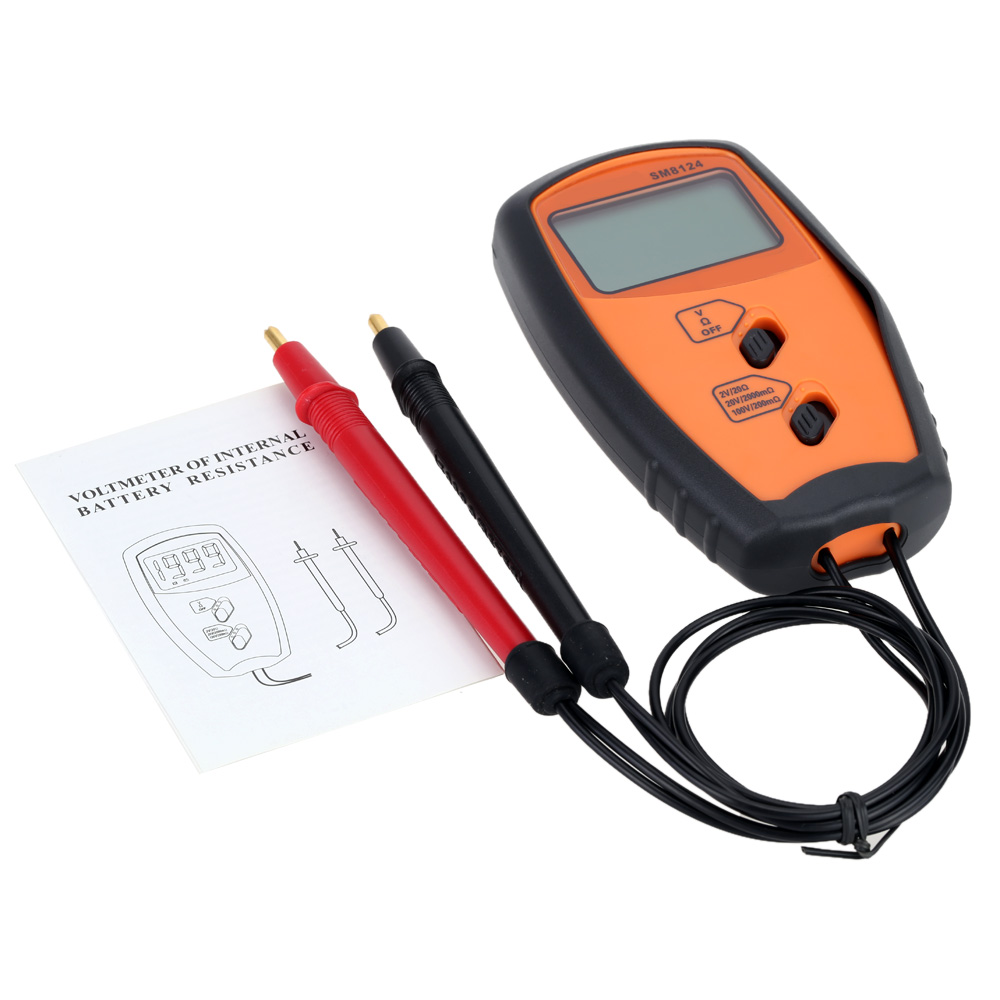

1 * User Manual
