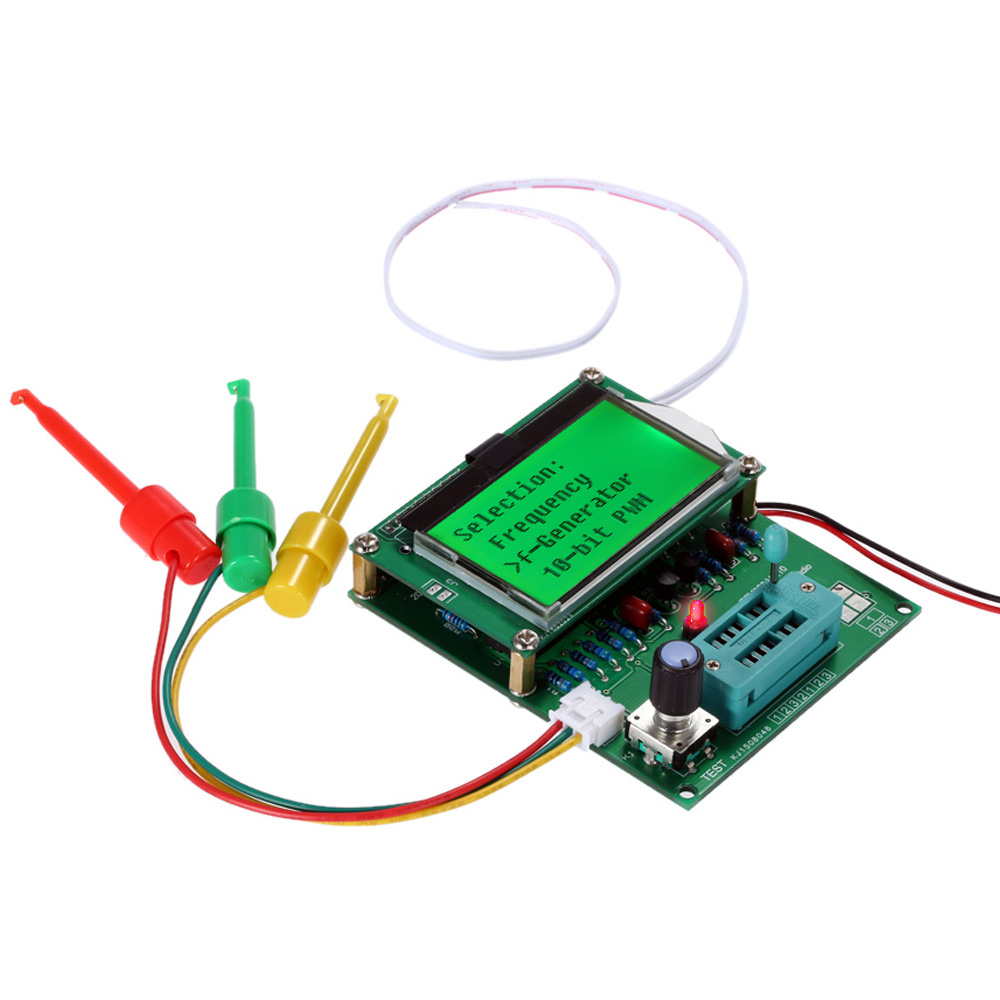

New Multi-purpose LCD Transistor Tester Diode ESR MOS PNP NPN L/C/R Tester Frequency Meter Square Wave Generator Diagnostic-tool

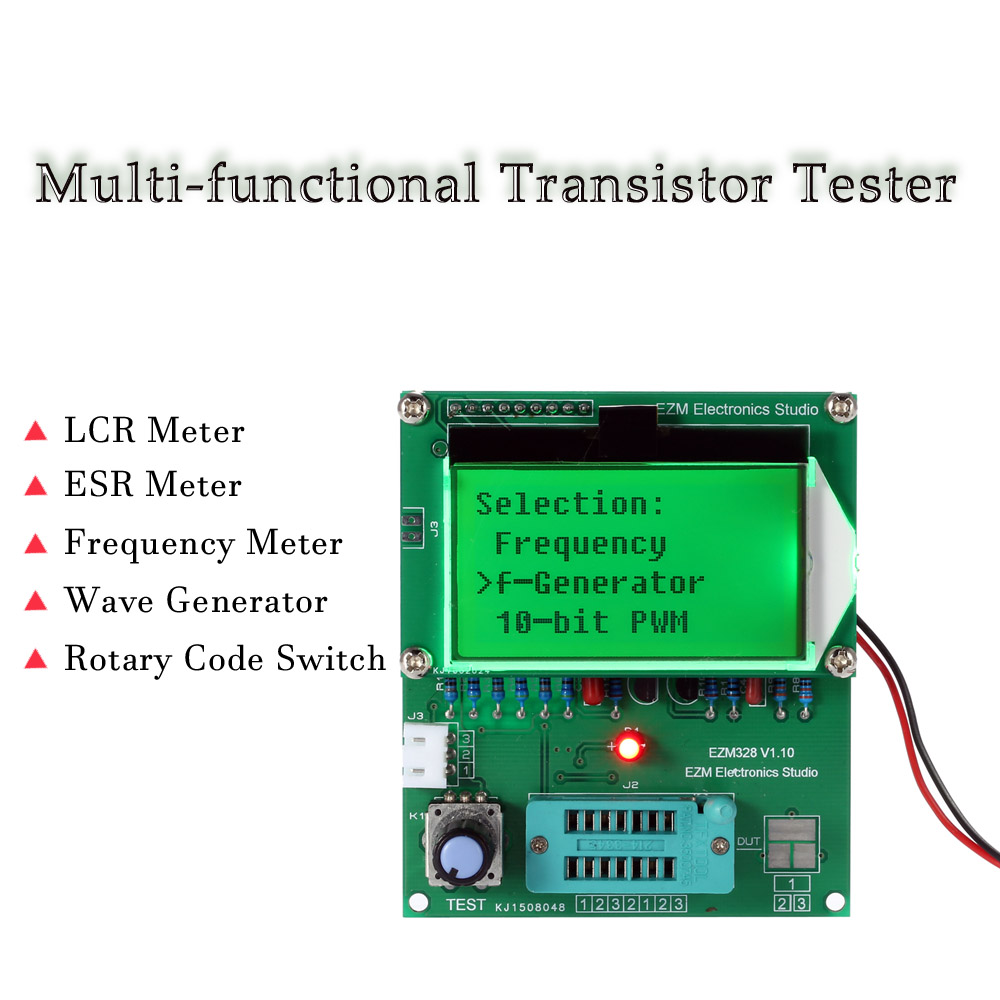

Multi-functional transistor tester for automatic detection of NPN and PNP transistors, N-channel and P-channel MOSFET, JFETs, diodes, double diodes, thyristors, bidirectional thyristors. It also can be used as frequency meter, square signal and PWM signal generator.
Features:
Adopts dual-in-line Mega328 chip.

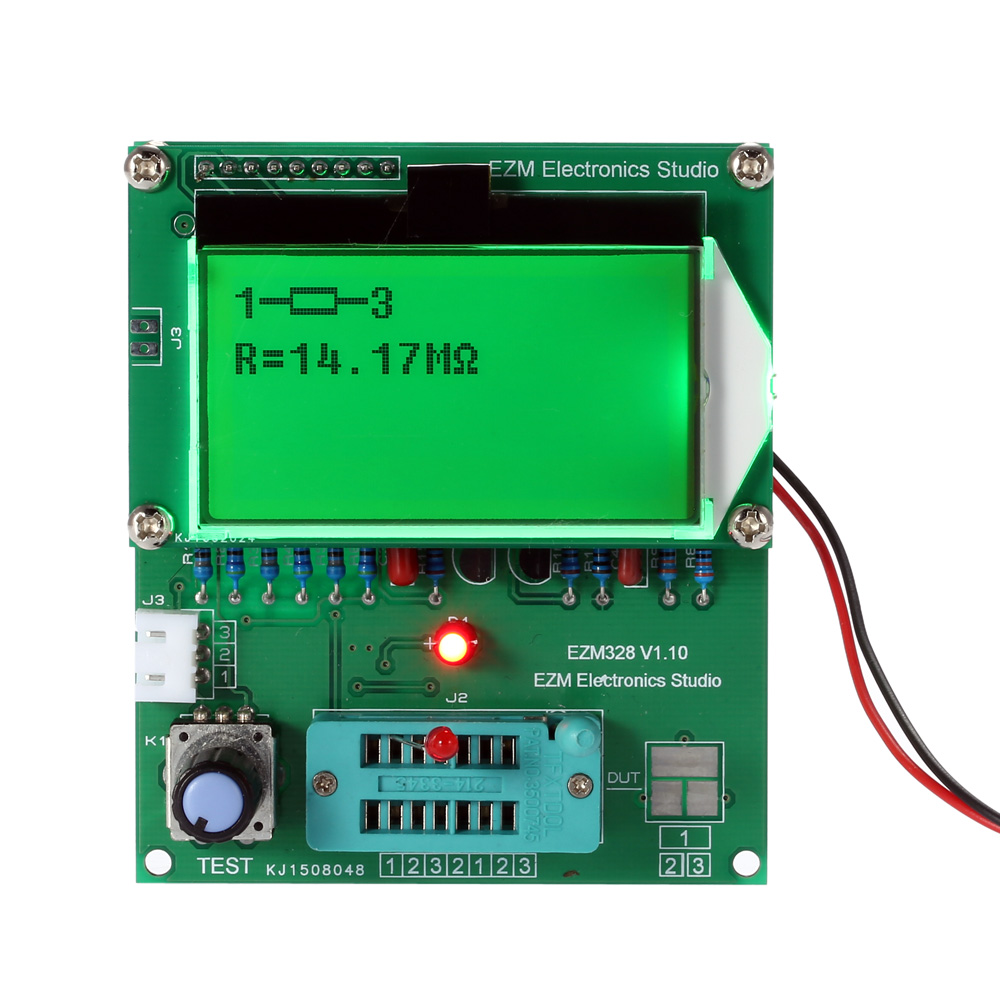

Digital LCD backlight display for easy readings, can display measured data and graphics.
Micro-controller uses 8MHz external crystal, the measurement accuracy is better.
One button operation, easy for use(long press the button and enter the menu selection).

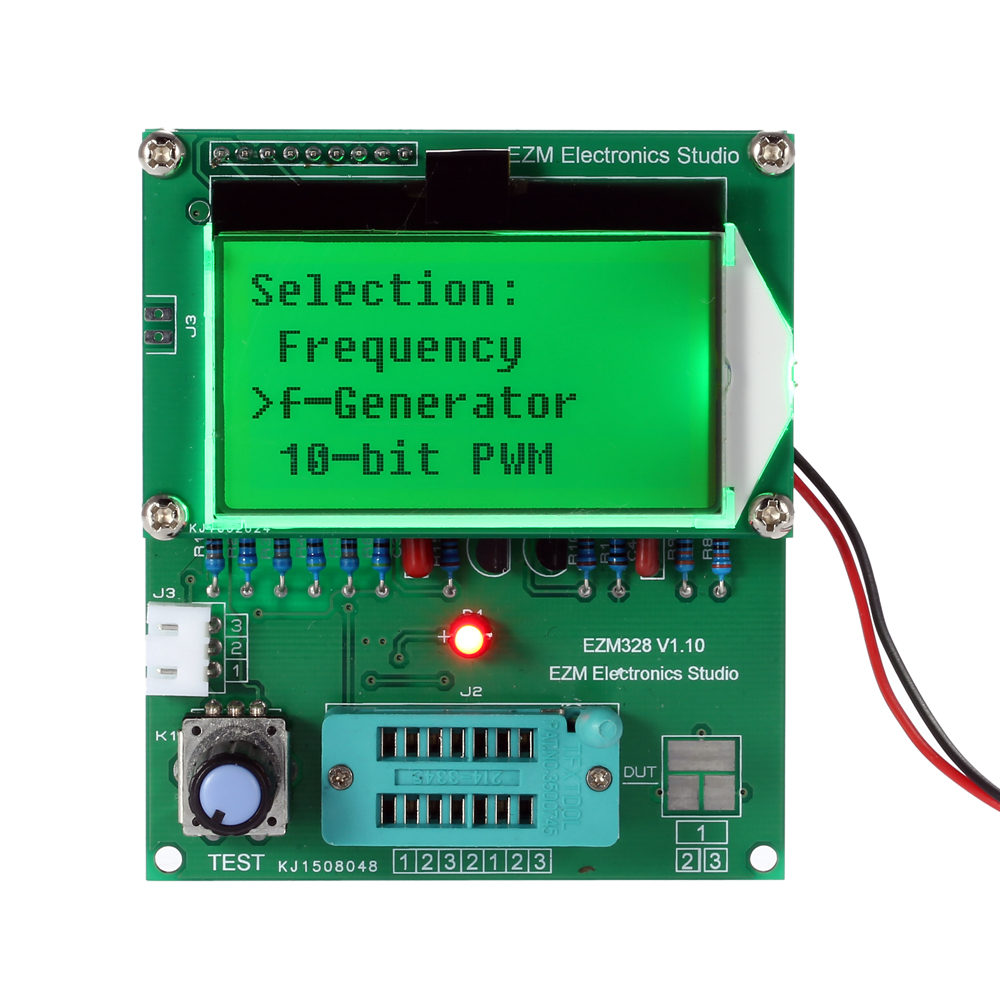

Can select functions with the rotary code switch conveniently.

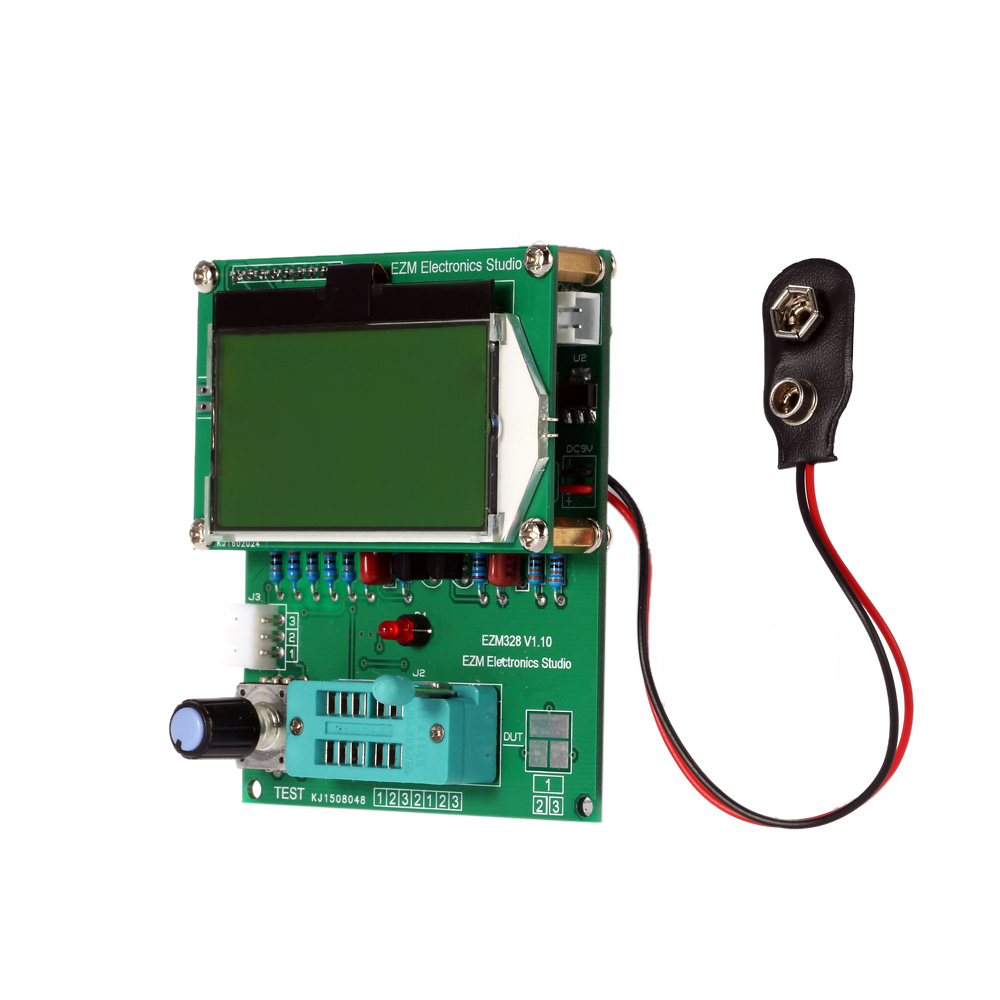

Can be powered by 9V battery(not included).
Automatic shutdown, shutdown current is only about 20nA.
Automatically detect NNPN and PNP transistors, N-channel and P-channel MOSFET, JFETs, diodes, double diodes, thyristors, bidirectional thyristors.

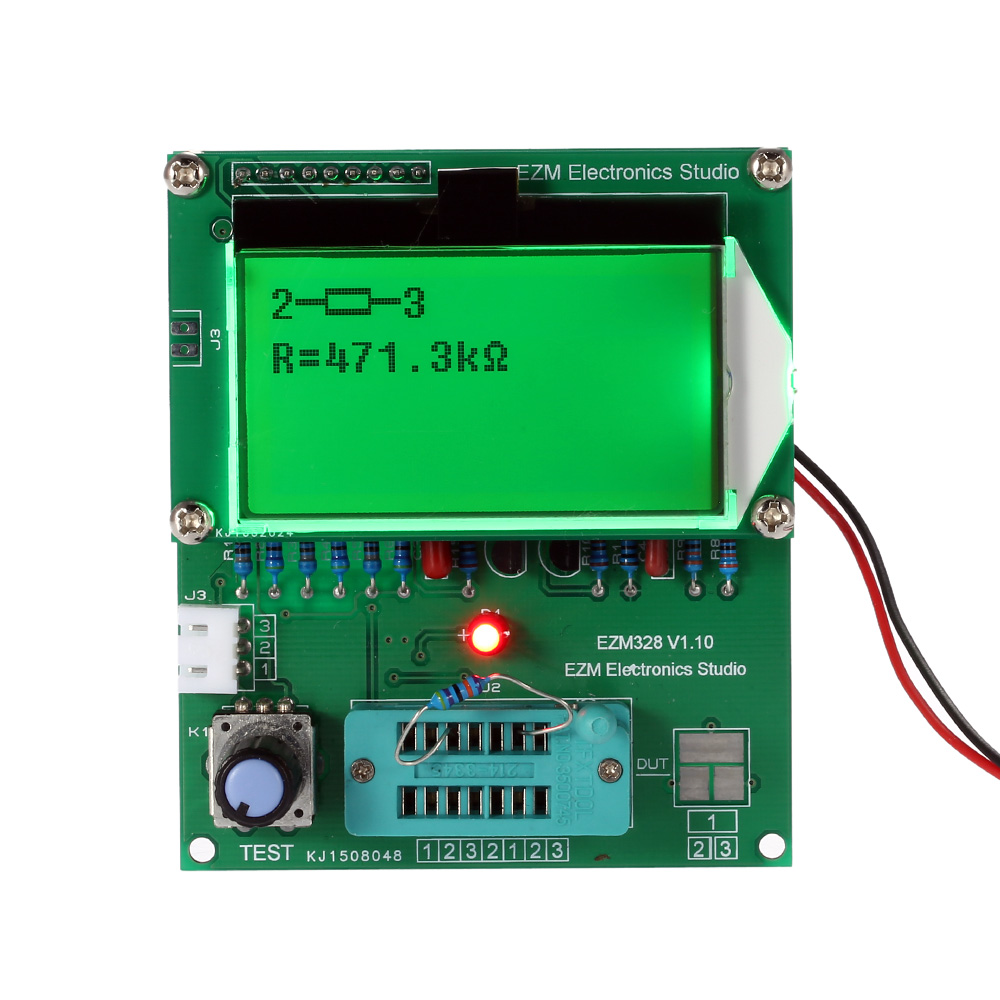

Support 2 resistors measurement, also support potentiometer measurement.
Resistance measurement resolution is 0.1 ohms, 50M ohms can be measured.
Automatically test the pins of a component and show on the display.
Measure the gate threshold voltage and gate capacitance of the MOSFET.
Measure bipolar transistor current amplification factor and base-emitter threshold voltage.
Can be used as signal generator and frequency meter(Max. 3.5MHz), built-in square signals from 1Hz-2MHz and can generate 10-bit PWM(pulse width modulation) wave.Notice:
Before measuring capacitance, the capacitor must be discharged, otherwise very likely damage the meter.
Specifications:
Display: 12864 LCD with Backlight
Input Voltage: 9V
Current: Approx. 20mA

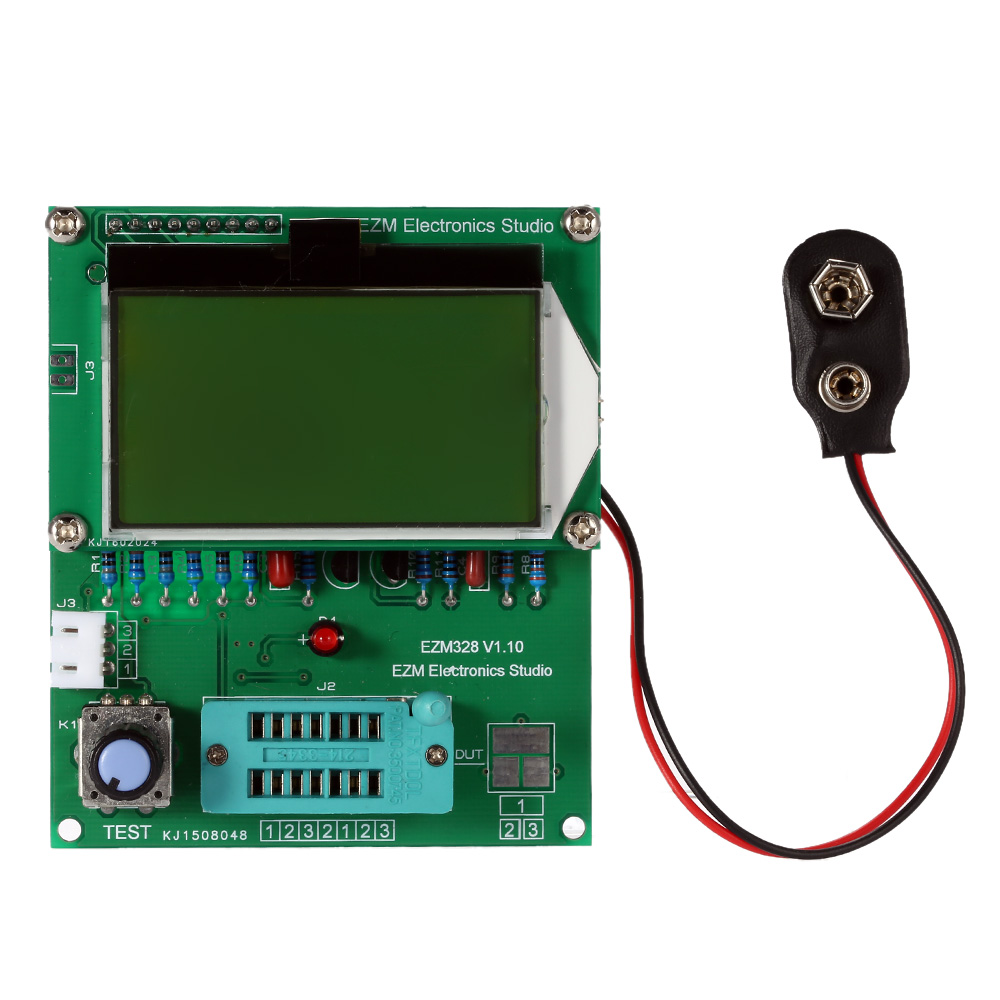

Power Supply: 1 * 9V Battery(NOT Included)
Resistance Measurement: Max. 50MΩ
Resistance Resolution: 0.1Ω
Capacitance Measurement: 25pF~100mF
Capacitance Resolution: 1pF
Screen PCB Size: 7 * 4.5cm / 2.75 * 1.77in

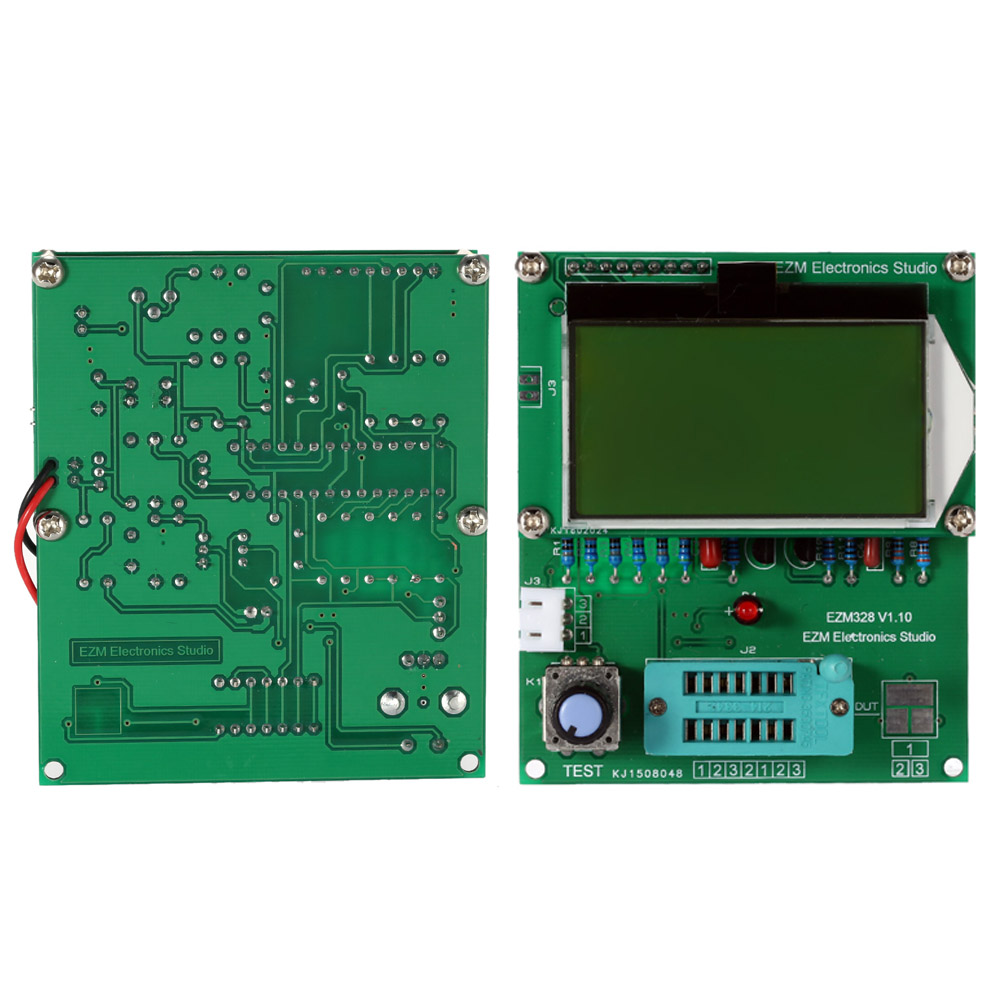

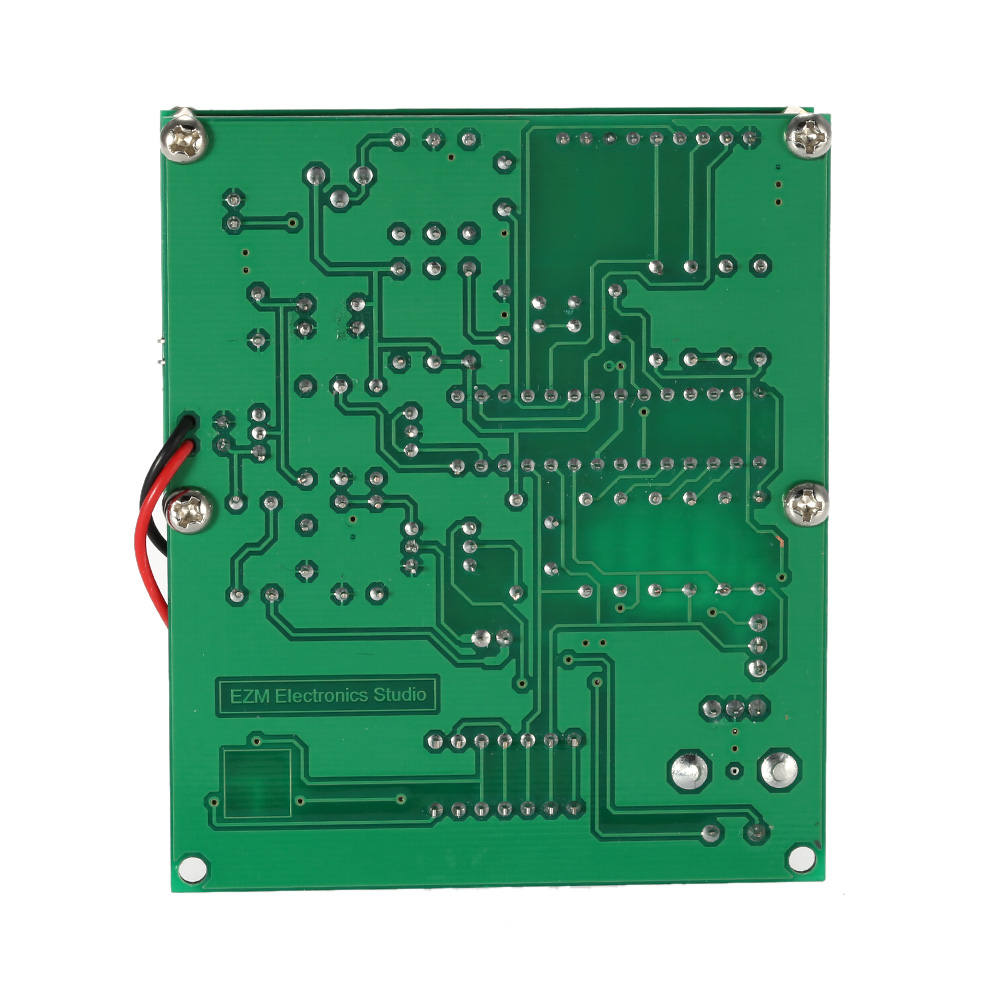

PCB Size: 8.4 * 7.2cm / 3.3 * 2.8in
Product Weight: 78g / 2.76oz
Package Weight: 98g / 3.48oz

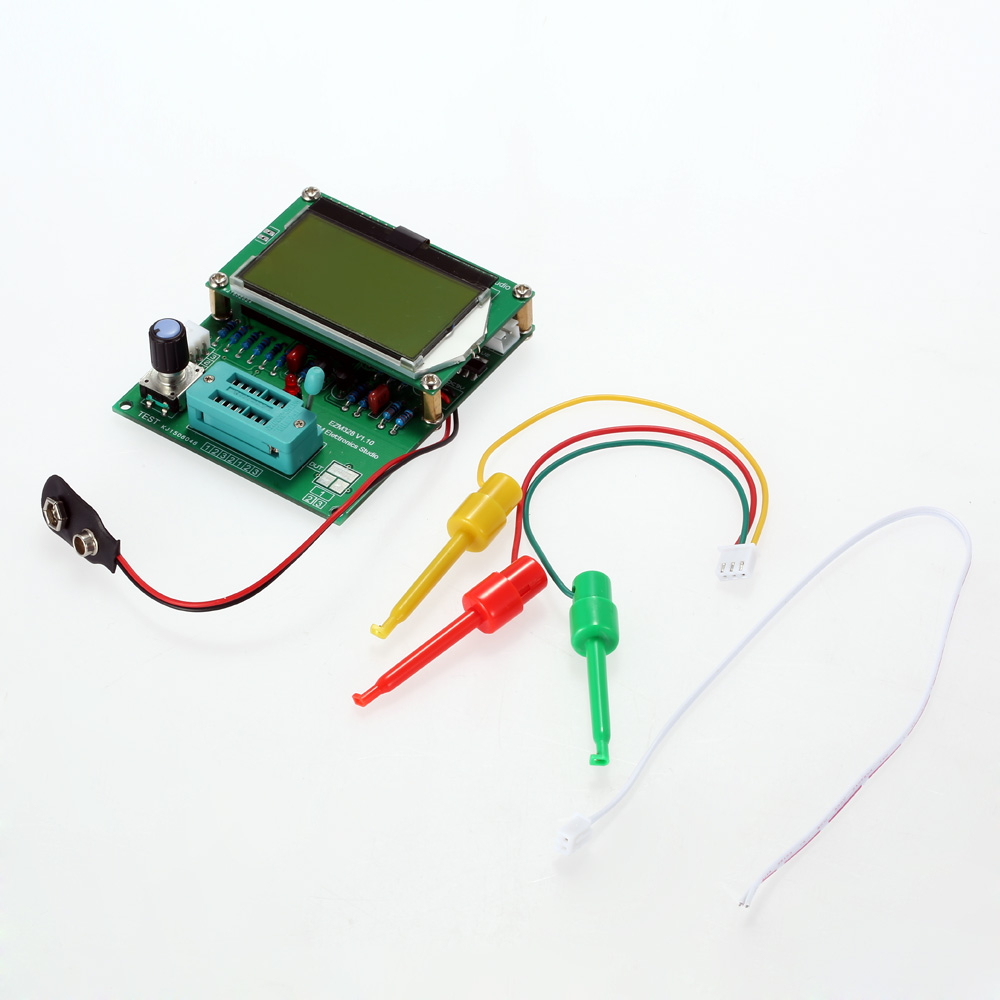

Package List:

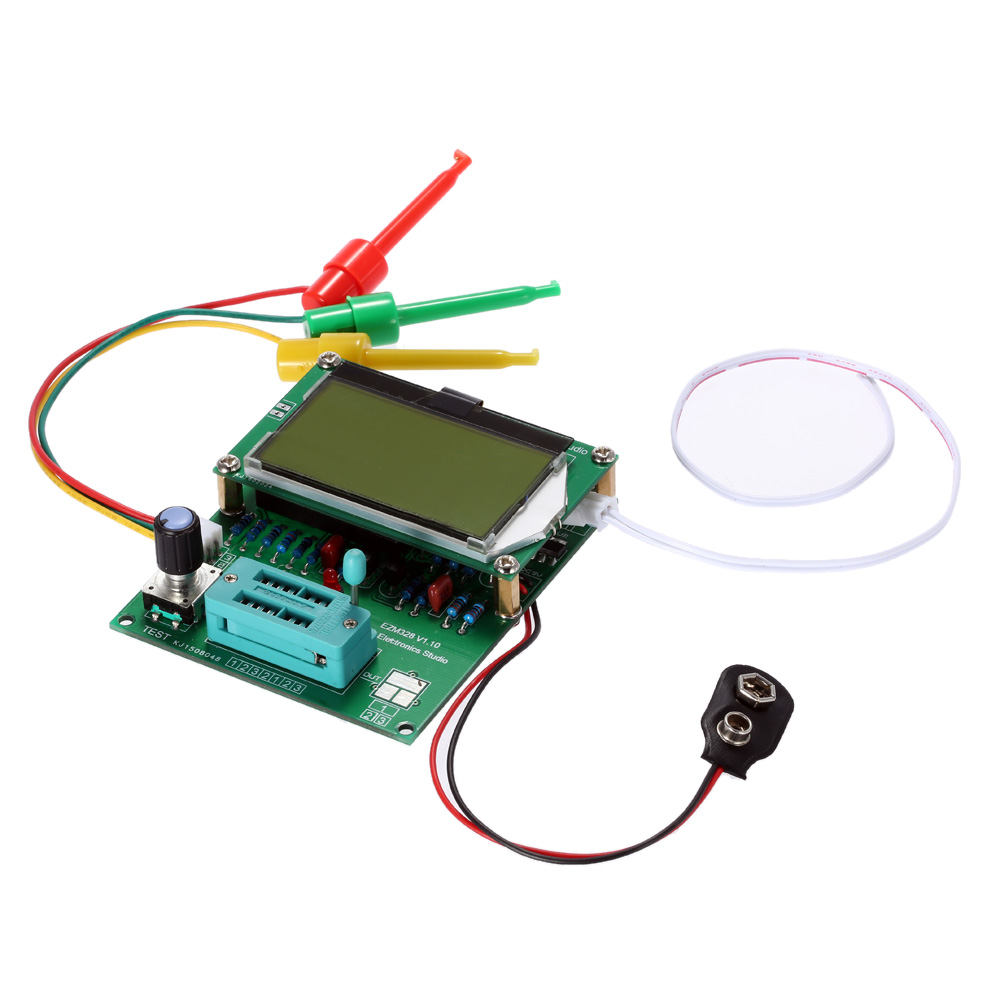

1 * Transistor Tester
1 * Frequency Testing Line
1 * Test Cable with Hooks
