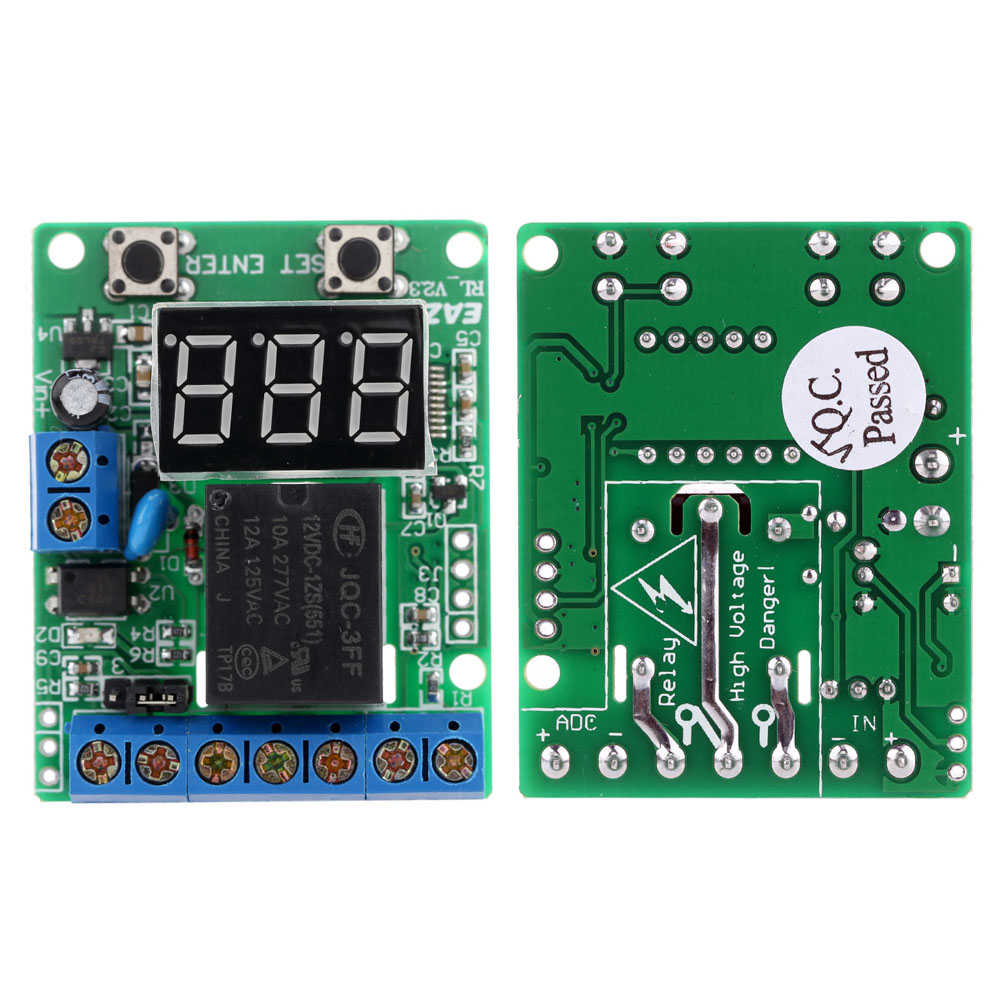

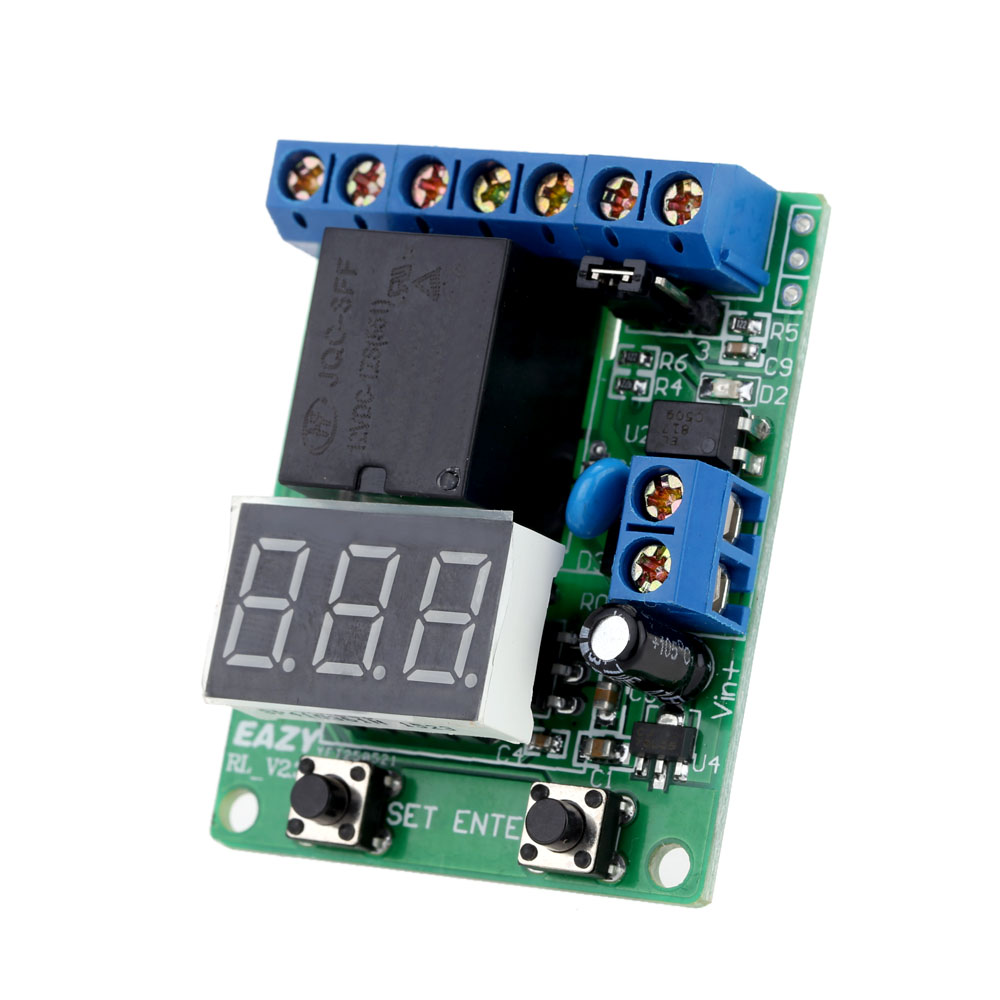

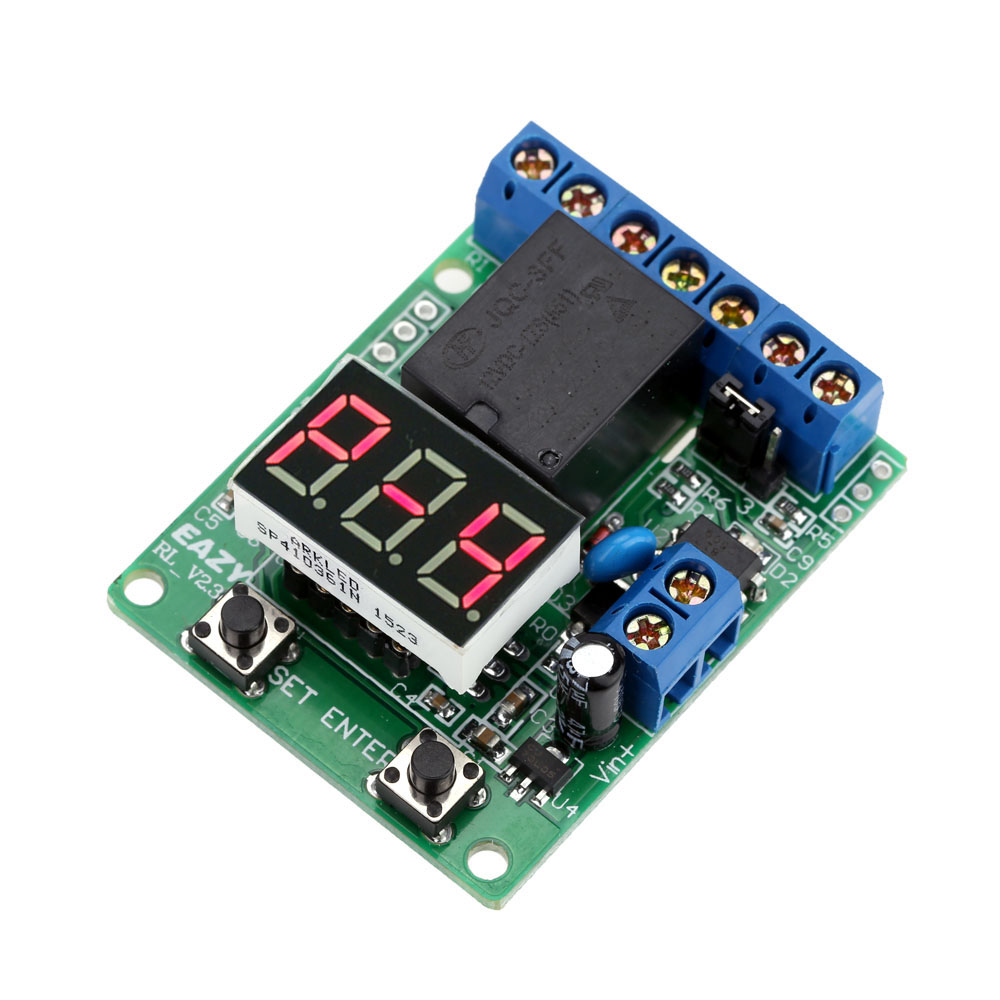

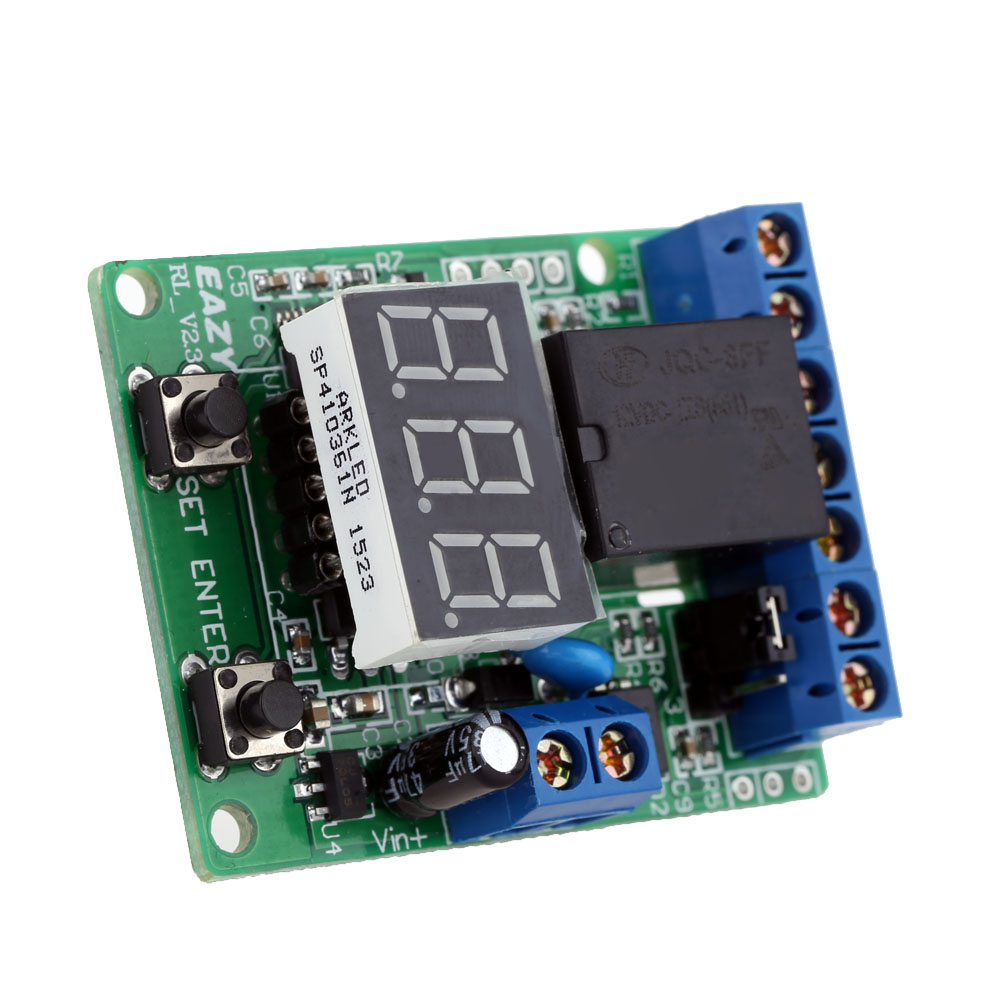

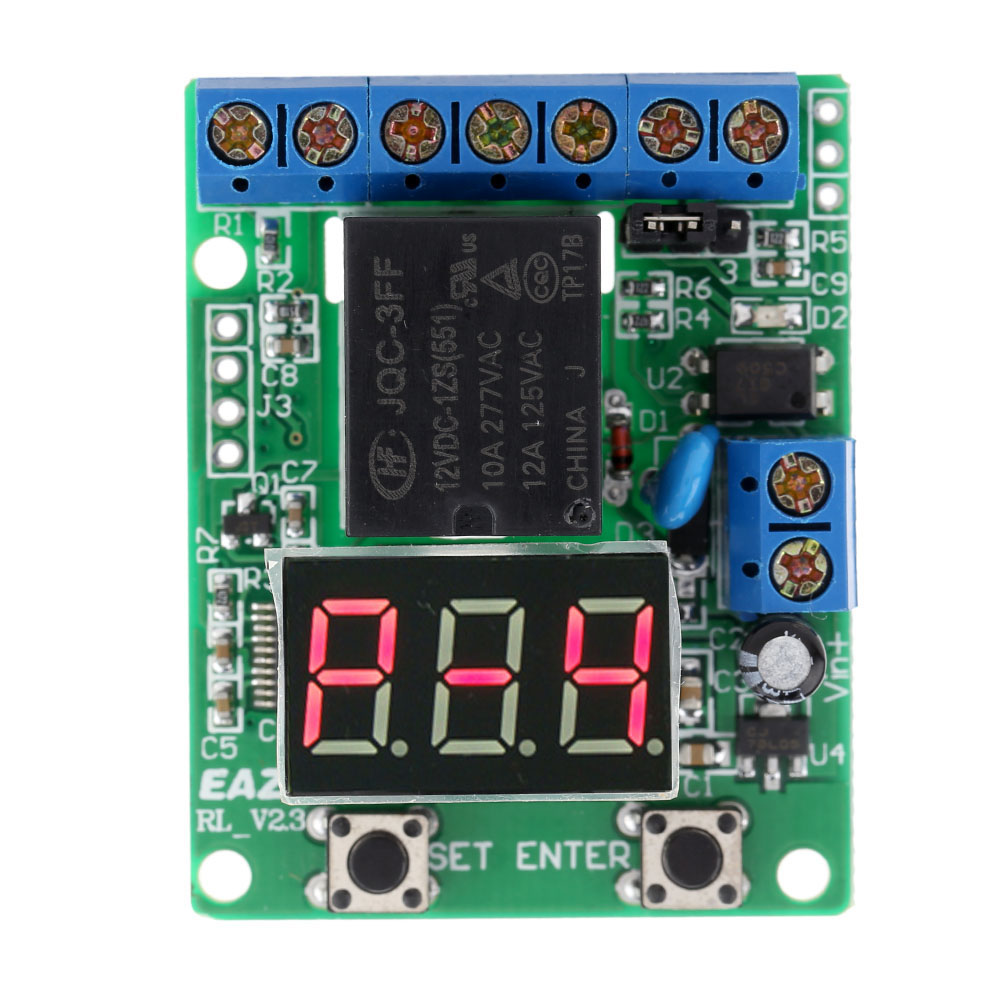

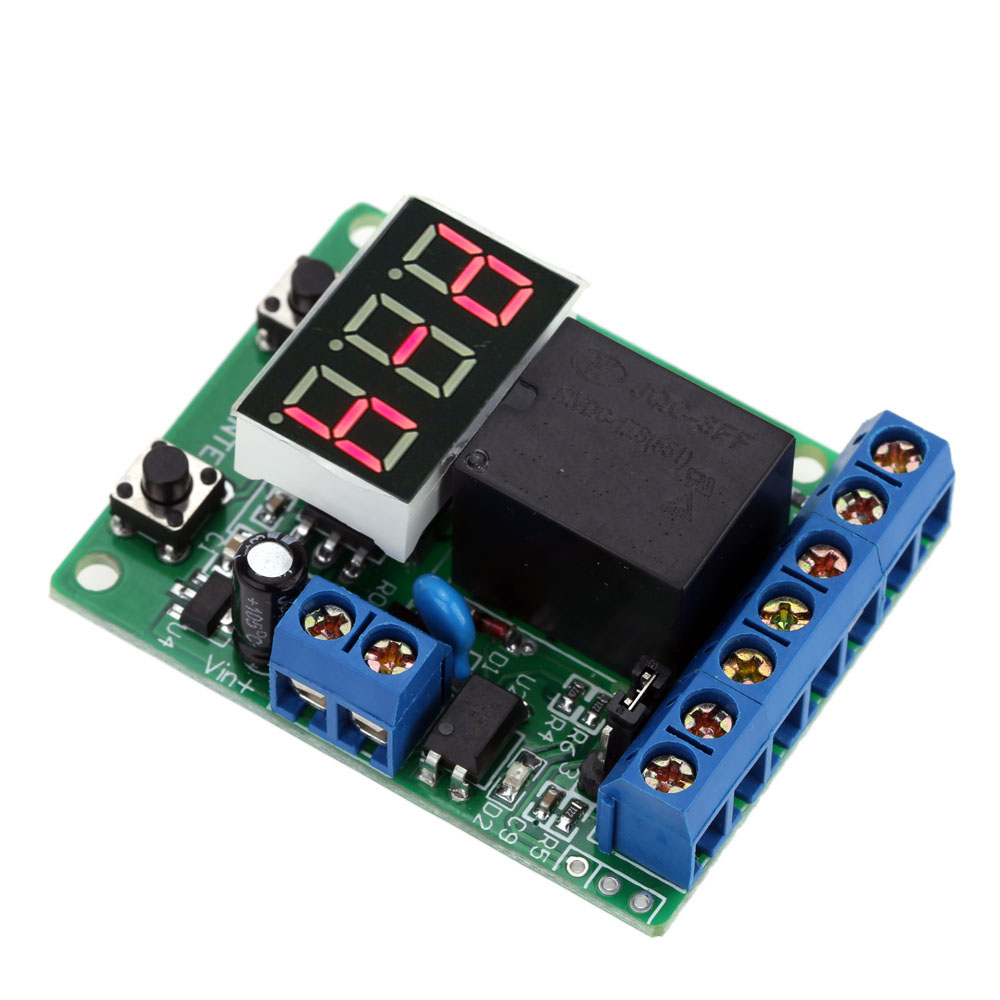

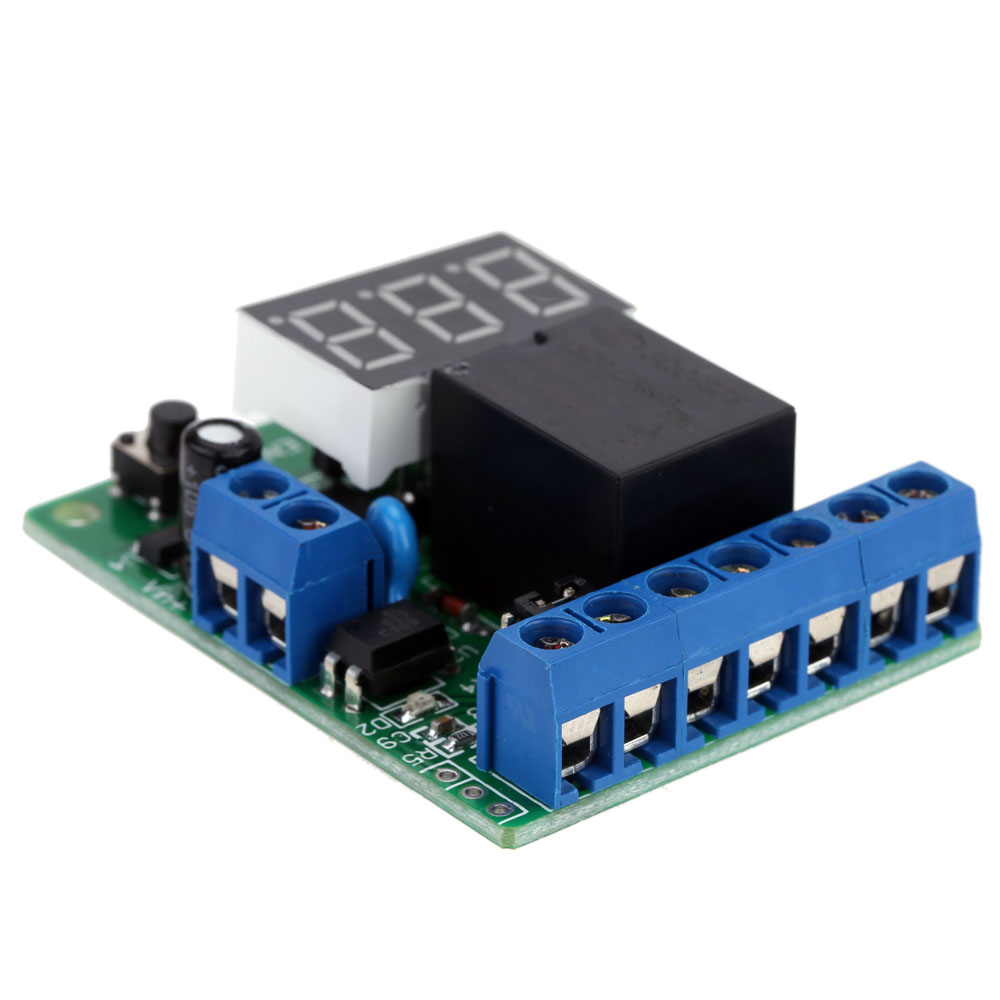

Multifunction Relay Control Module PLC Counting Cycle Timer Control Module 12V DC Relay Delay Time Switch Voltage Detection

This relay control panel is compatible with multiple operating modes, using three digits LED display, the program of intelligent control. It features time relay function, counting function, voltage detection control, etc. It's applicable to timer, cycle control switch, voltage detecting switch, counting trigger switch, etc.
Features:
Voltage display range: 0-99.9V, resolution: 0.1V.
The modes setting values can be memorized after power off, convenient for use.
Digital tube socket mounting module can be removed directly.
Time relay function, counter/timer function, voltage detection control function, etc.
Wide application: can be used as a timer, cycle control switch, voltage control switch, timing trigger switch, etc.
Modes Display:
P-1: Time Relay(0.1-99.9s timing)
P-2: Time Relay(1-999s or 1-999m timing)
P-3: Timing Control Time Realy
P-4: Voltage Detection Control Relay
P-5: Switch Timing Trigger(when the input switch or level timing reach the setting value)
P-6: The LED Display Automatically Close Setting
User Interface:
Three Digits LED display; Two Keys: (Select Key: Set) and (OK Key: Enter).
Specifications:
Coil Input: DC 12V
Working Power: DC 10-16V
Voltage Detection Range: 0-99.9V
Timing Range: 0.1-999 seconds or 1-999 minutes
Contract Load: 10A/277V AC
Contract Resistance: ≤100mΩ(1A-6V DC)
A set of transformations(normally open/normally closes)
Mechanical Durability: >10 million times
Electrical Durability: >100,000 times (10A-250V AC)
Standby Current: 16mA 12V, Digital Closed Smallest 6mA/12V, Relay Timely 45mA/12V
Working Temperature: -40-85°C

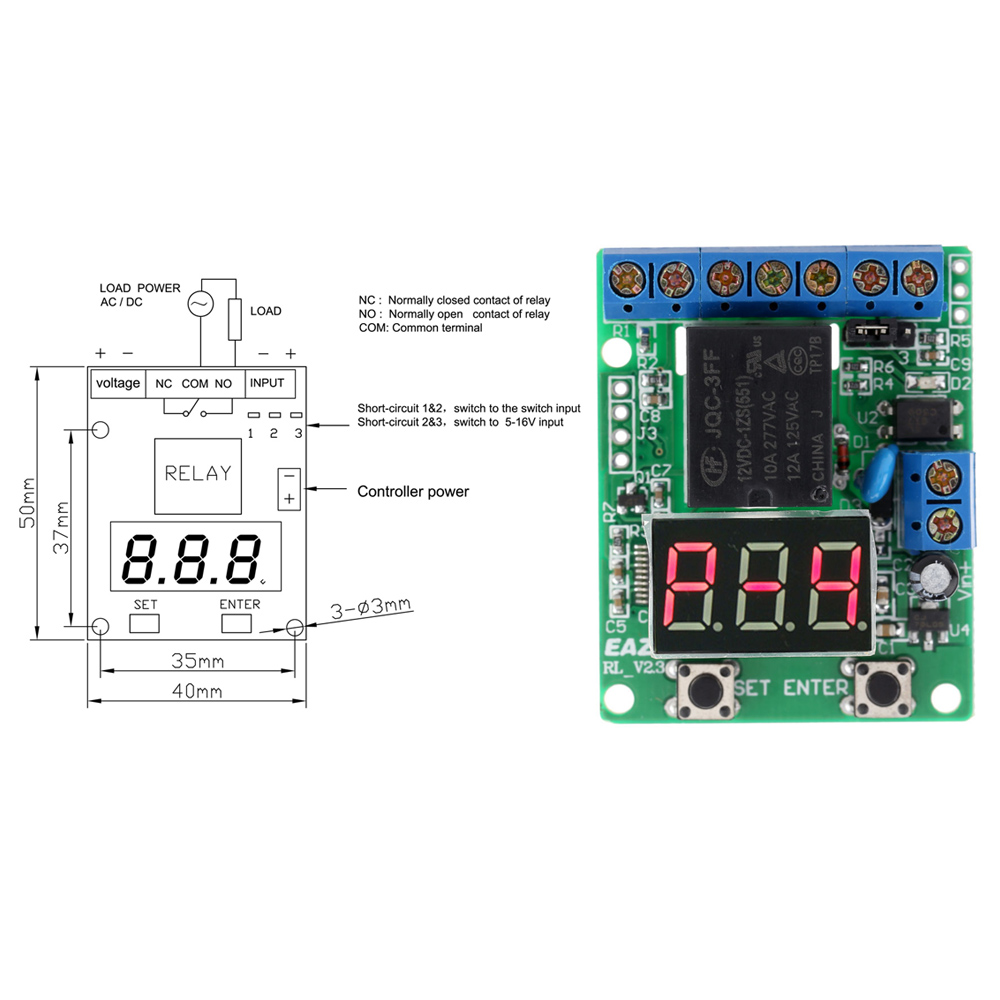

Dimension: 50 * 40 * 20mm
Weight: 27g / 0.95oz
Package List:
1 * DC 12V Time Delay Relay Module
