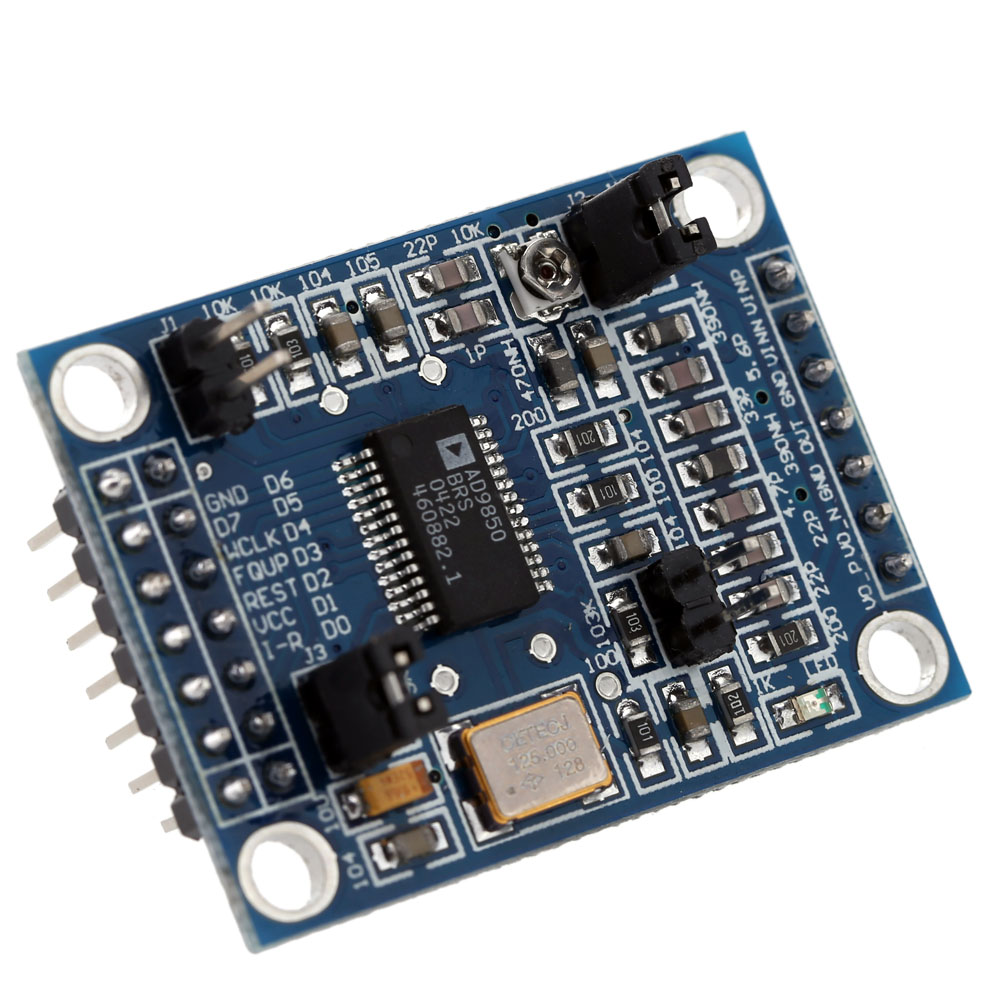

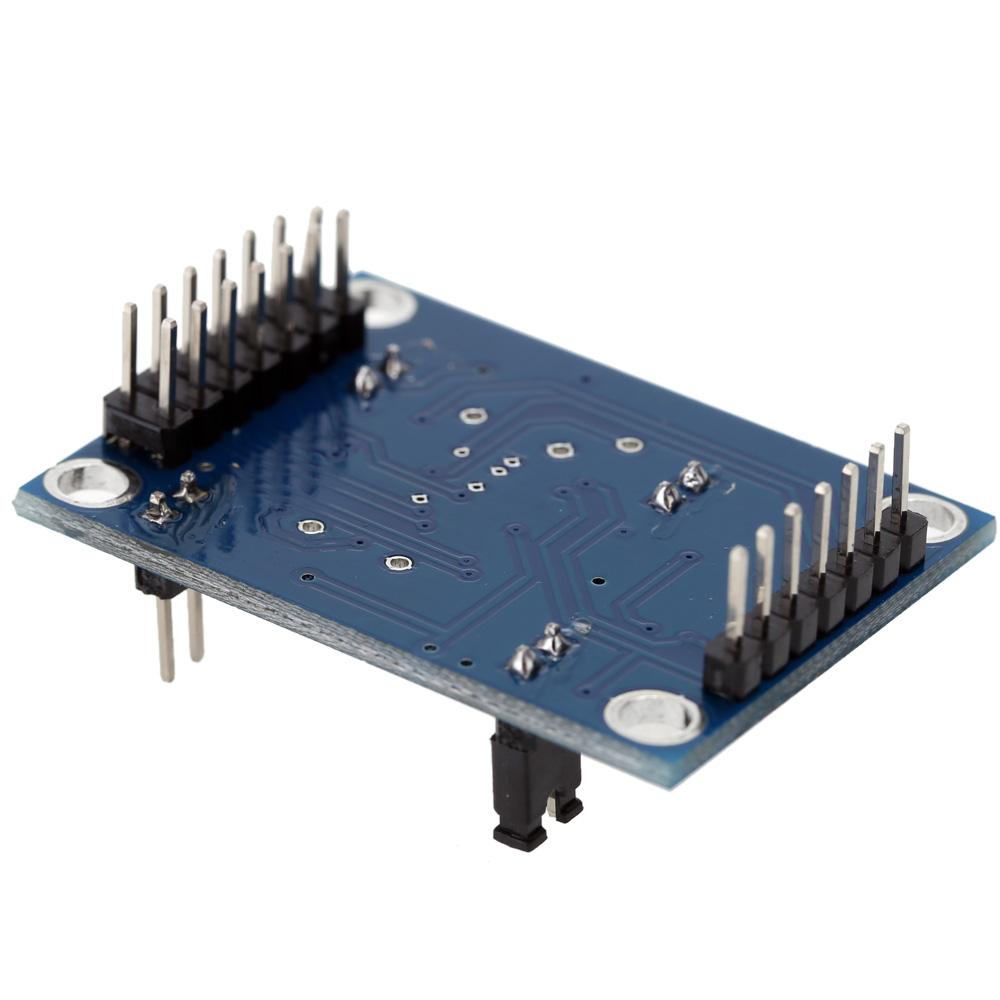

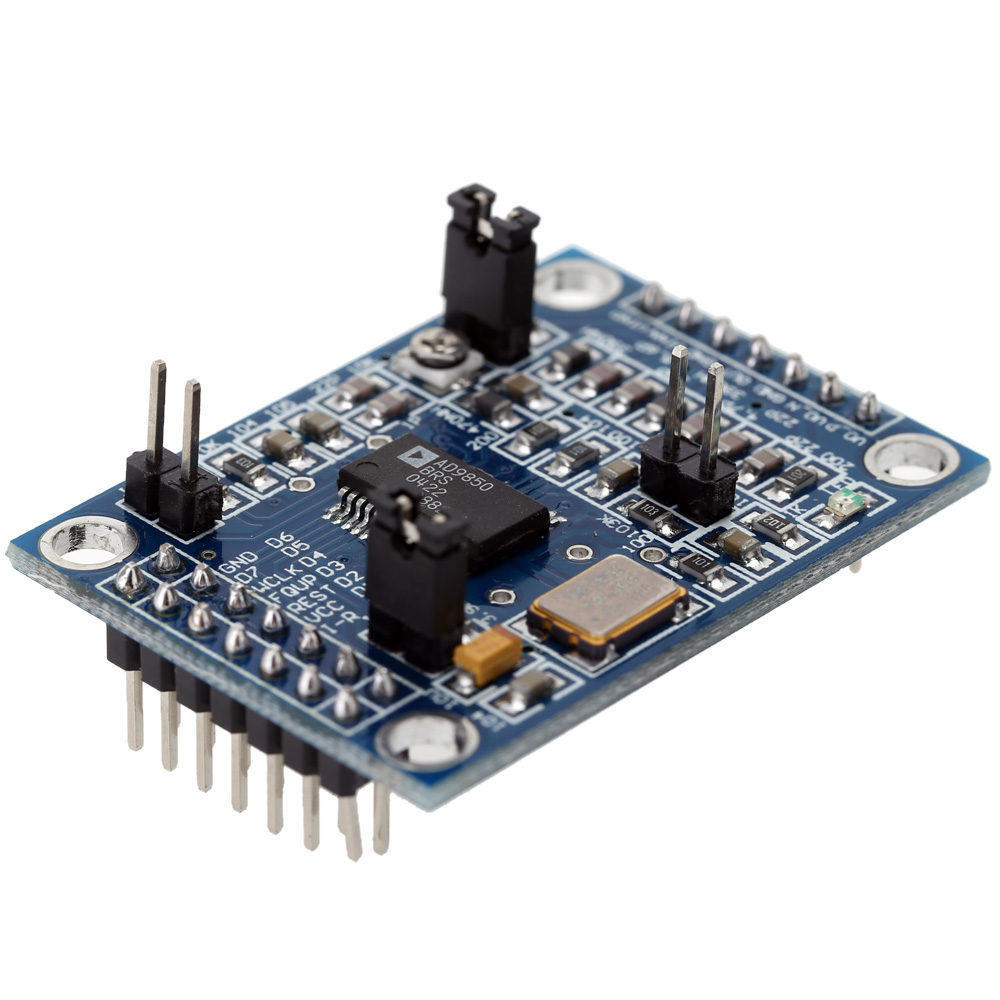

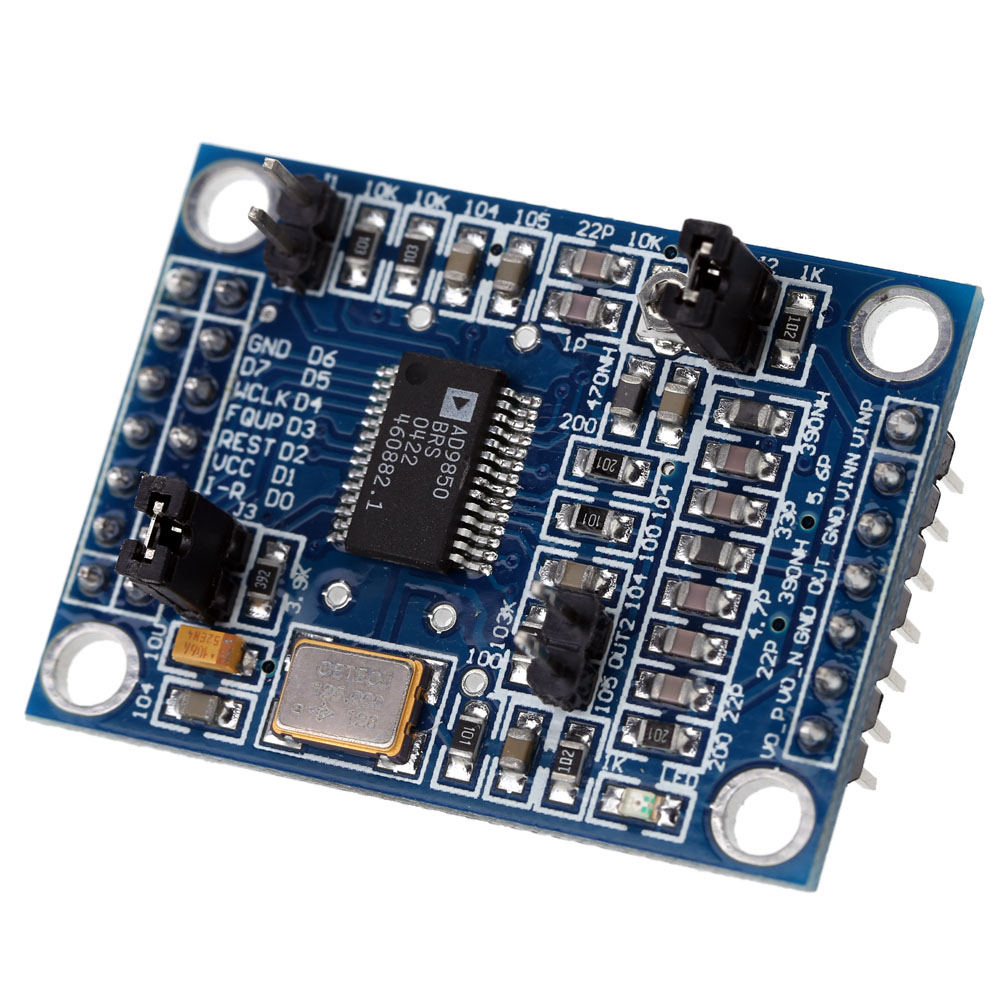

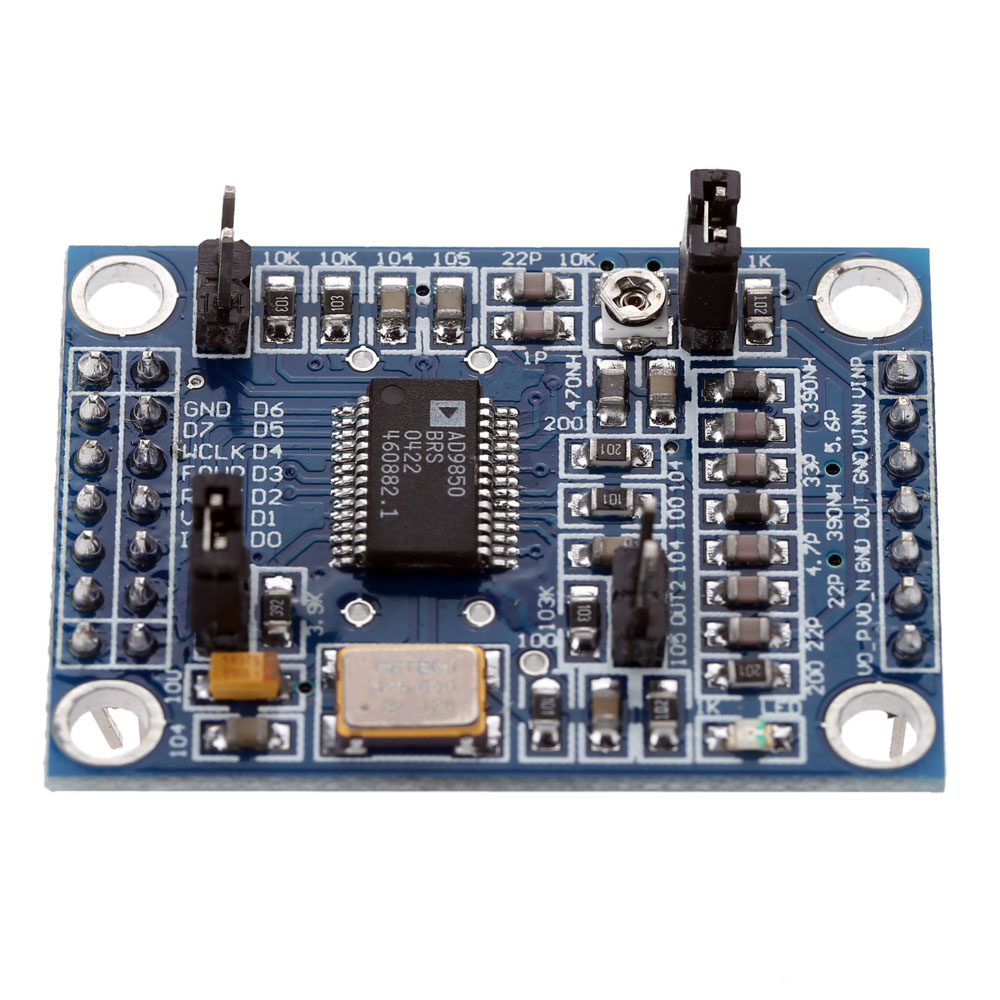

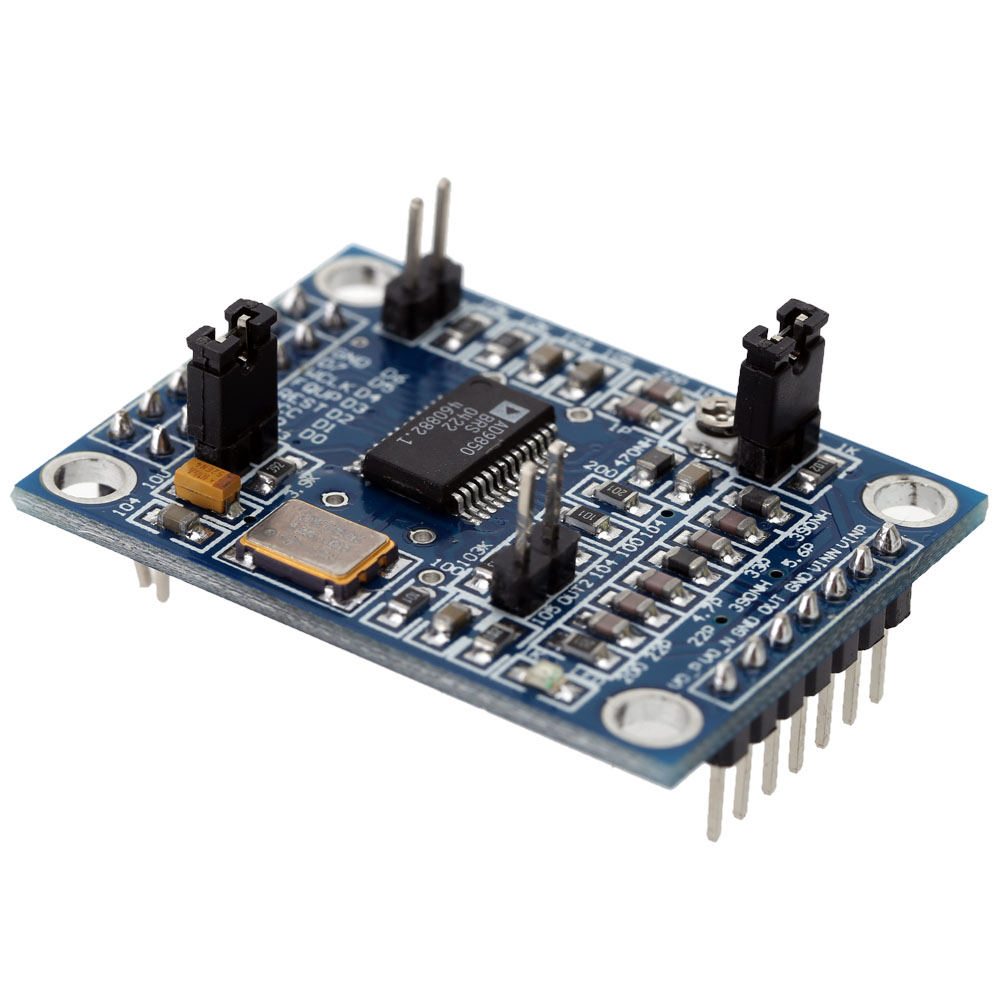

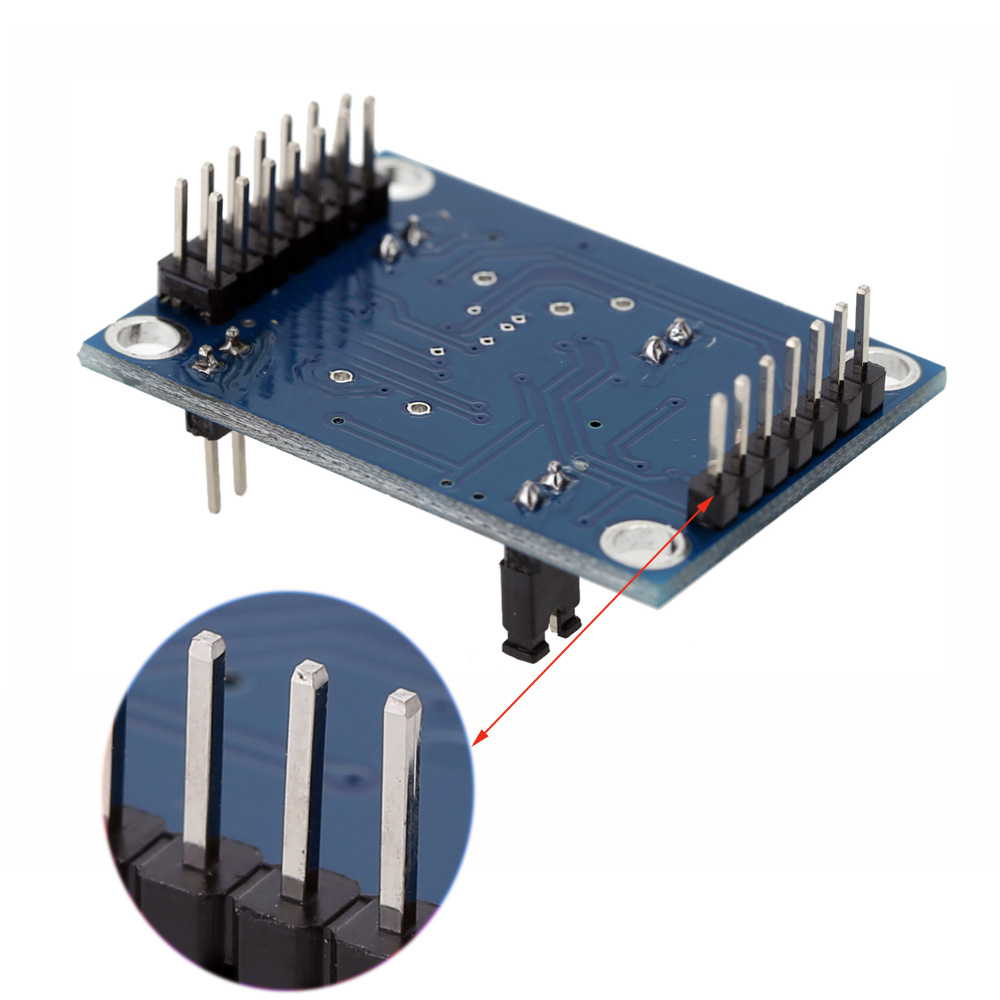

AD9850 DDS Signal Generator Module 0-40MHz Signal Source Frequency Square Wave Electronic DIY Parts Electronics Component

This module can output sine/square wave. The frequency range is 0-40MHz.
Features:
2 sine wave and 2 square wave output.
AD9850: 0-40MHz.
After the 20-30MHz frequency harmonics increases, the waveform will be less and less clean.
Square Wave: 0-1MHz.
Parallel and serial data input can be selected via a jumper.
DA produced the benchmark pin (PIN12) leads for easy adjustment to do the magnitude of the output waveform Application.
AD9850 module adopts 125MHz crystal oscillator.
Specifications:
AD9850: 0-40MHz
Square Wave: 0-1MHz
PCB Size: 42 * 30mm / 1.65 * 1.18in
Weight: 7g / 0.26oz
Package List:
1 * AD9850 DDS Signal Generator Module
