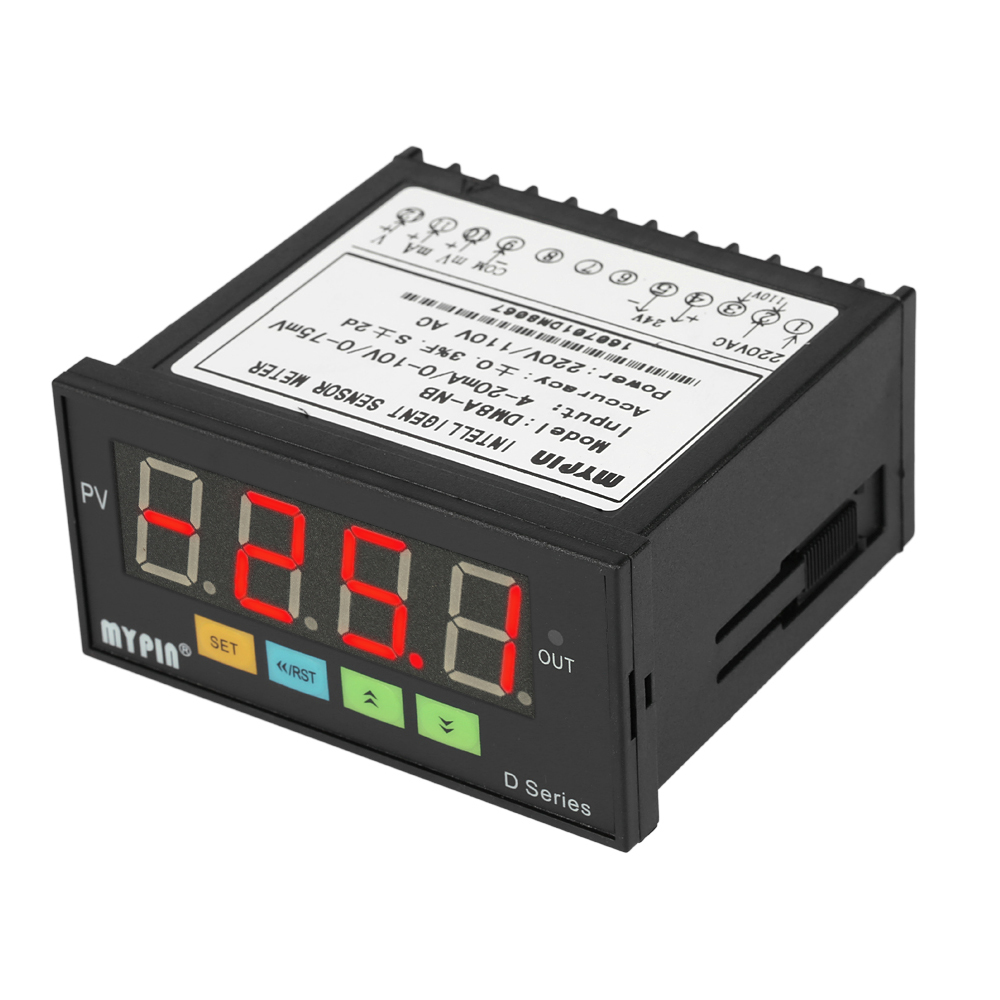

Multi-functional Intelligent Digital Sensor Meter LED Pressure Sensors Current Voltage resistance Tester 0-75mV/4-20mA/0-10V

This multi-functional sensor meter can measure Current or Voltage signal input in the range of 0-75mV/4-20mA/0-10V. It can be used with 2-wire transformer, pressure sensor, 4-wire weighing sensor, remote pressure meter resistance transmitters, potentiometers, transducers and other sensor measuring devices.

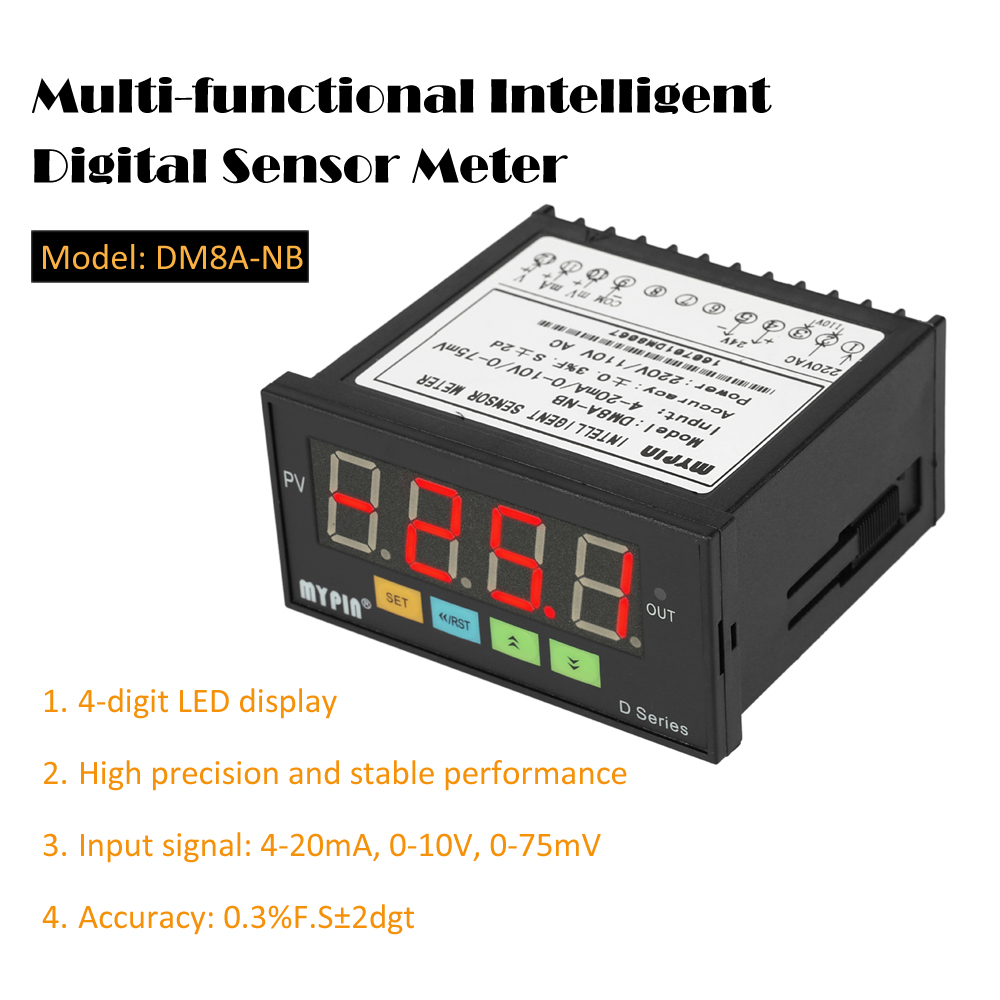

Features:
High precision, stable performance and easy operation.

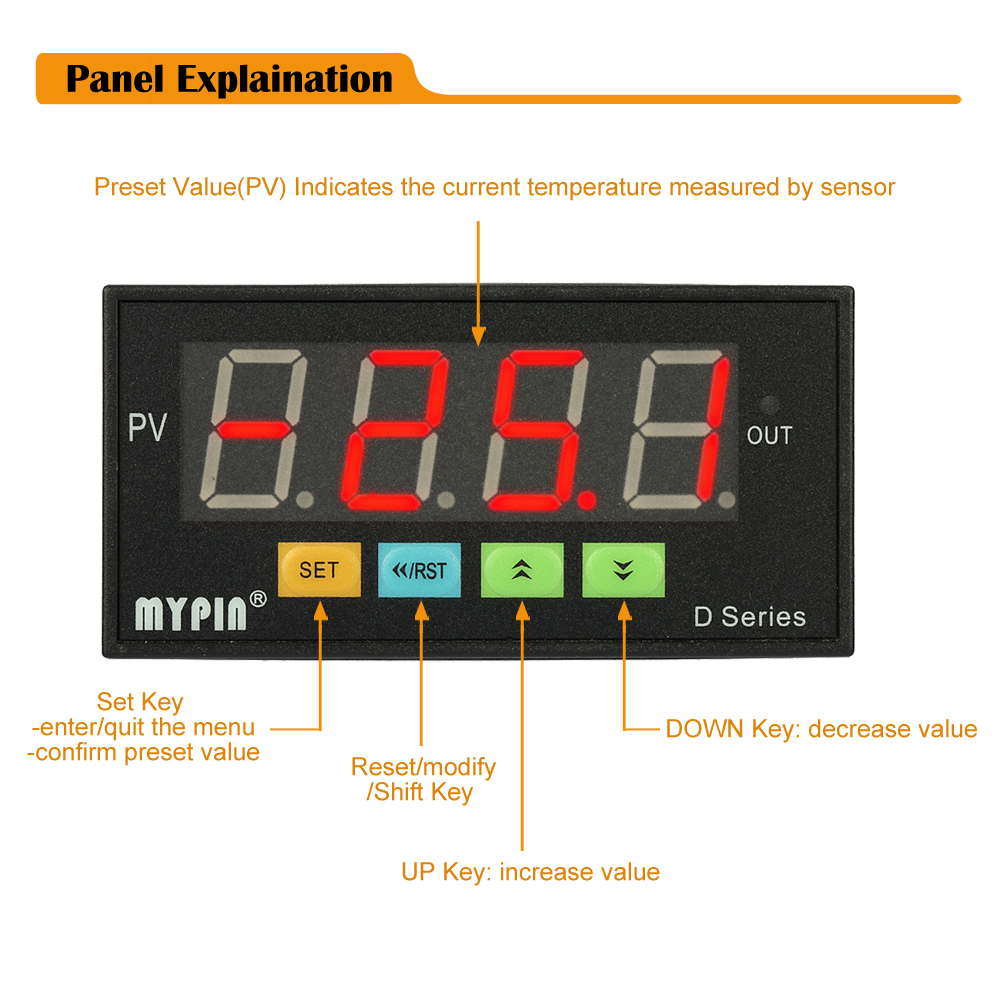

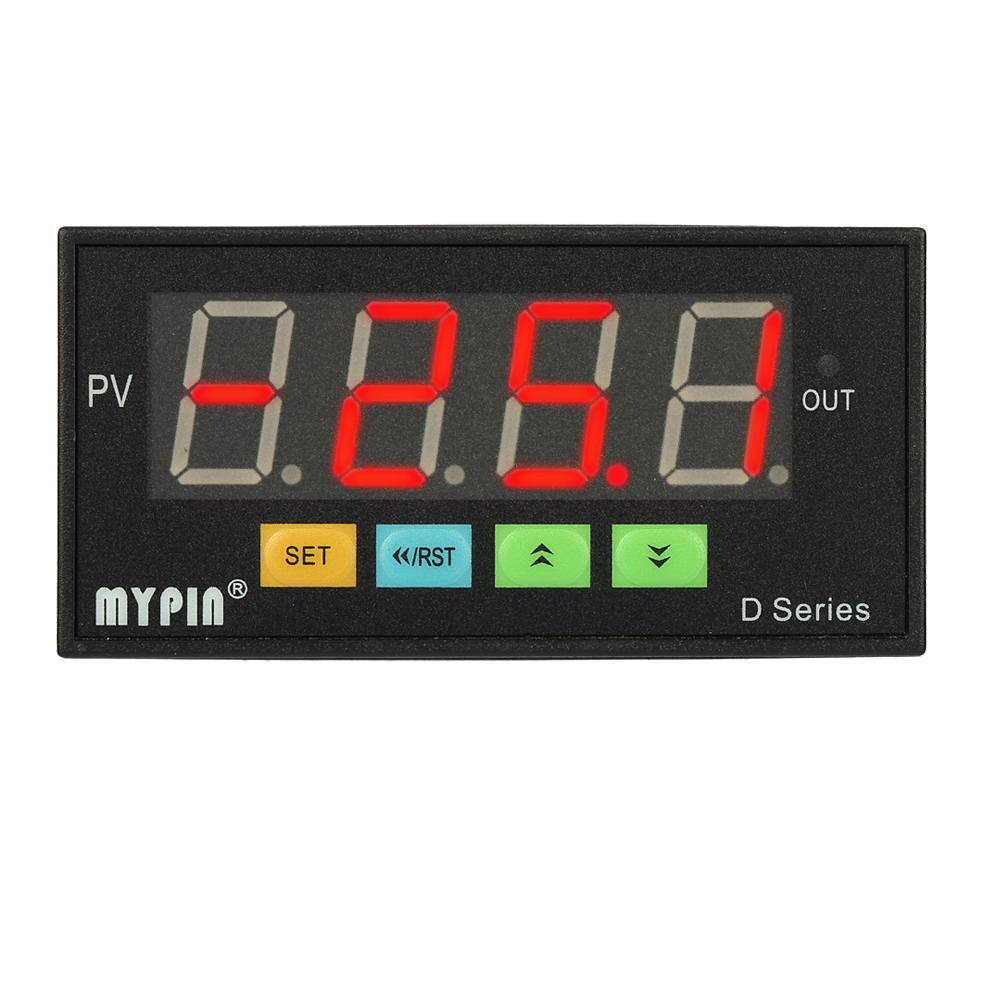

4-digit LED display for clear measurement readings.
Input signal: 4-20mA, 0-10V, 0-75mV.
The sampling rate for measurement input is 10 measurements per second.
It can be used with transmitter, pressure sensor, liquid level sensor, weighing sensor and so on.
Specifications:

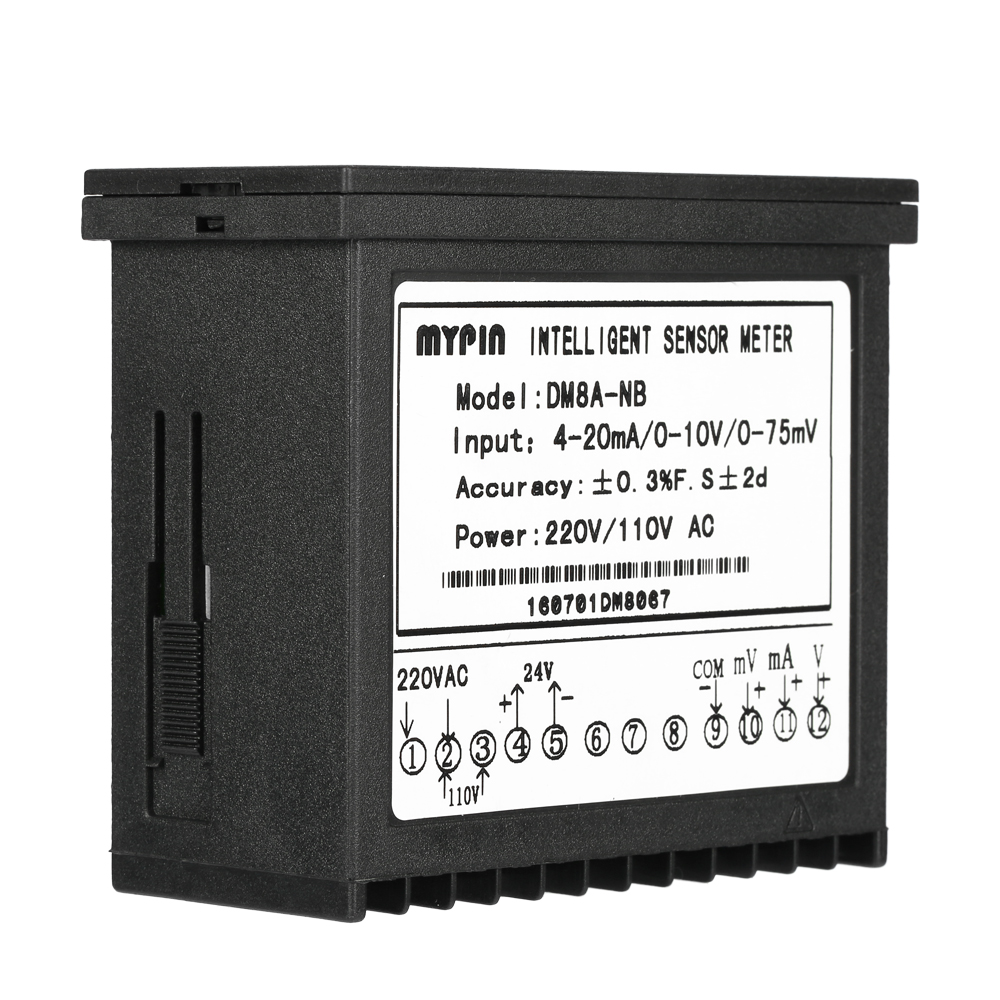

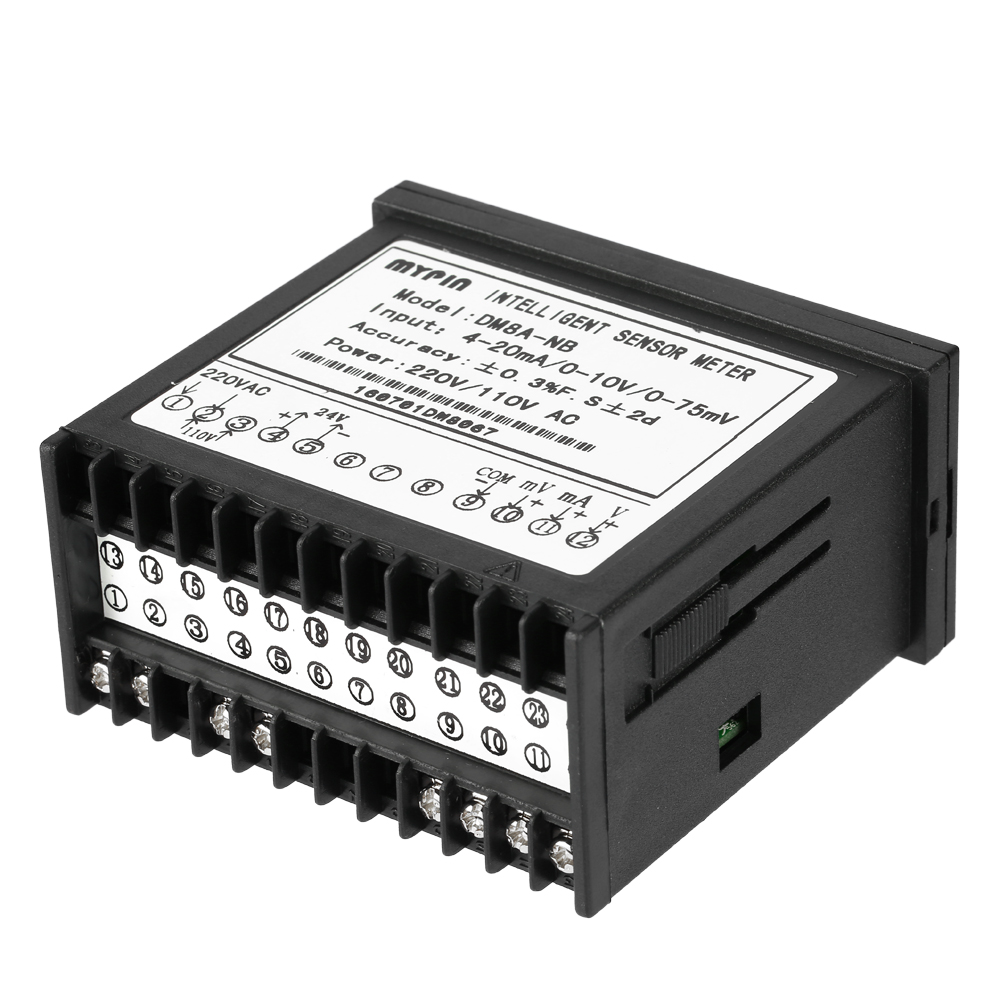

Model: DM8A-NB
Power Supply: 110/220V AC
Auxiliary Power Supply: 24V DC
Power Consumption: <3W
Accuracy: 0.3%F.S±2dgt
Sampling Rate: ≤8 times/second

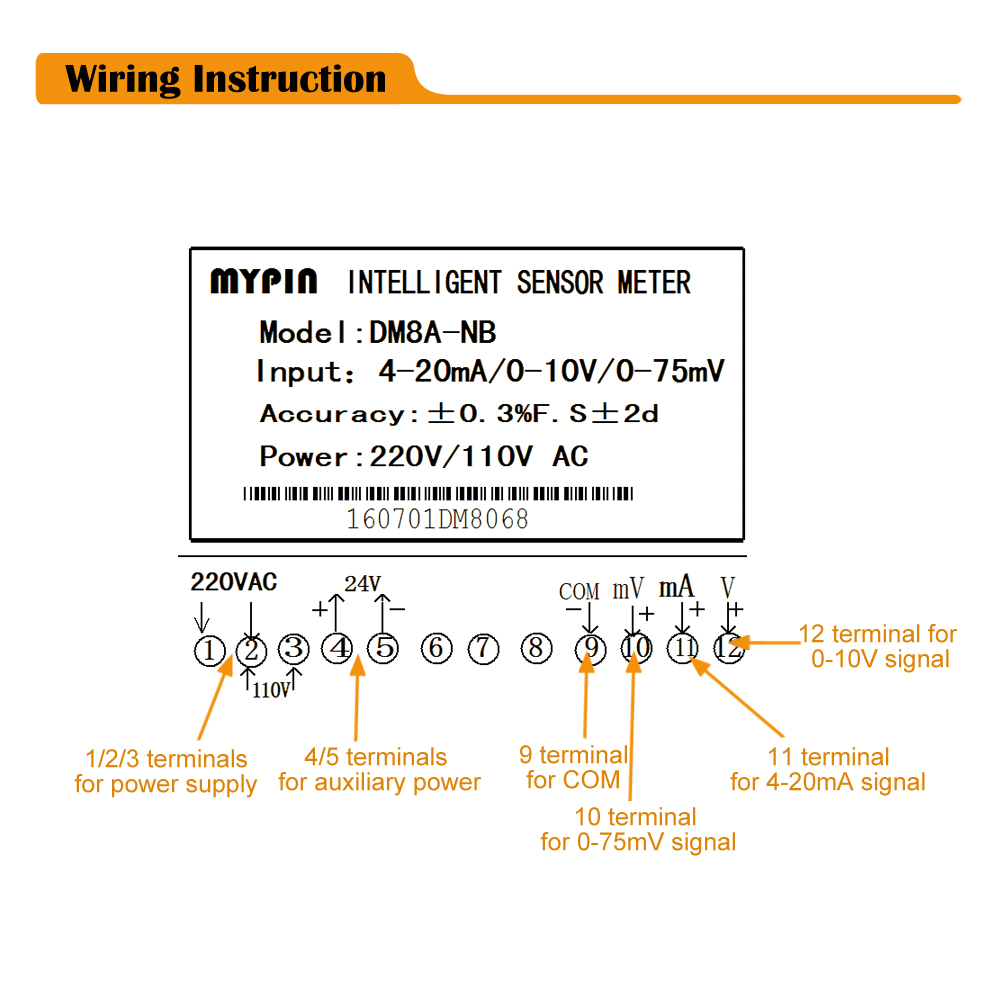

Input: 4-20mA, 0-10V, 0-75mV
Output: None

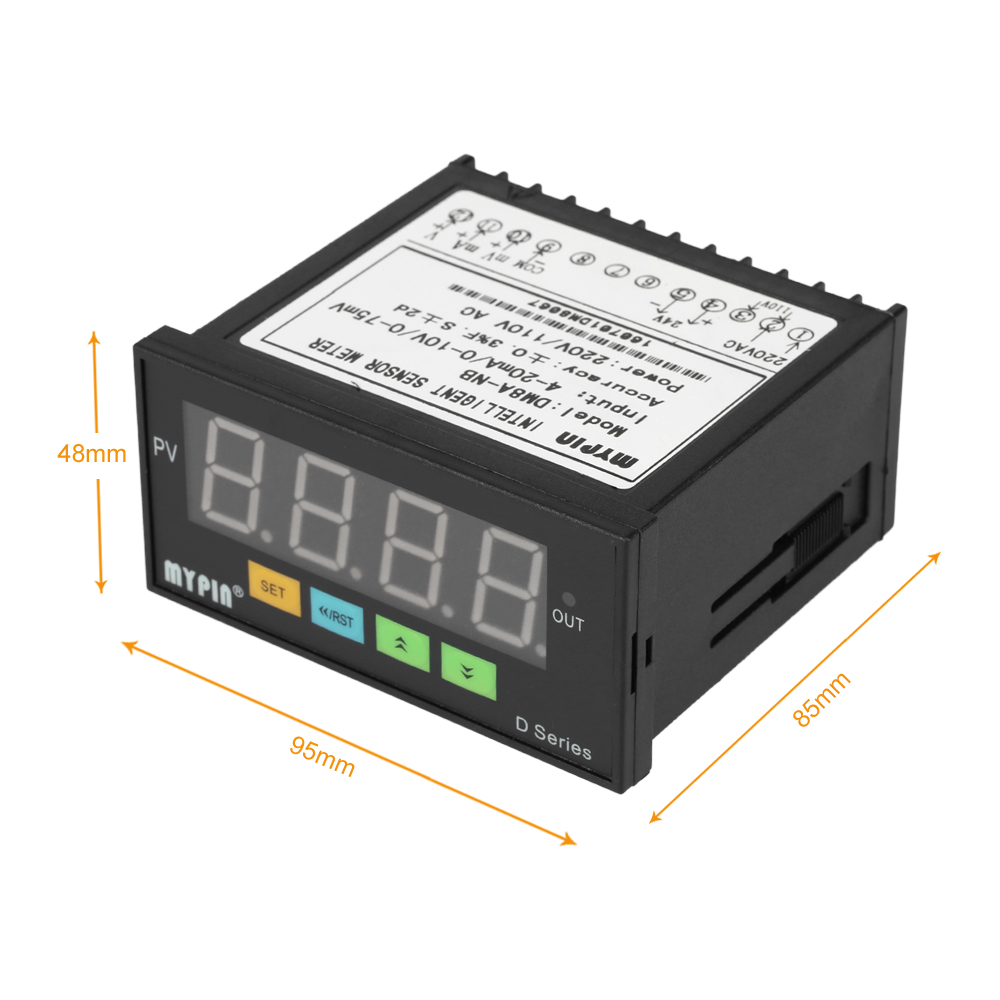

Item Size: 95 * 85 * 48mm / 3.74 * 3.35 * 1.89in
Item Weight: 241g / 8.51oz
Package Size: 11 * 10 * 5.5cm / 4.33 * 3.94 * 2.16in
Package Weight: 278g / 9.83oz

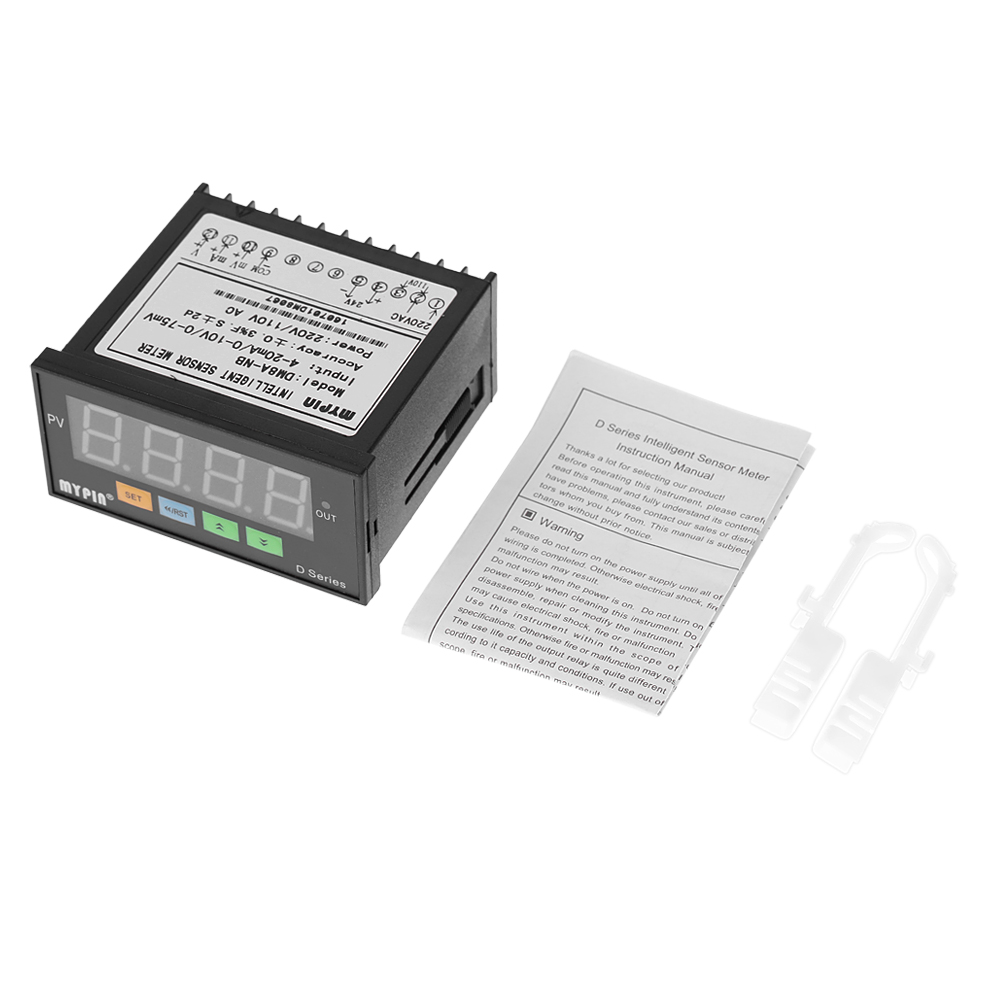

Package List:
1 * Universal Sensor Meter
2 * Bracket
1 * User Manual (English)
