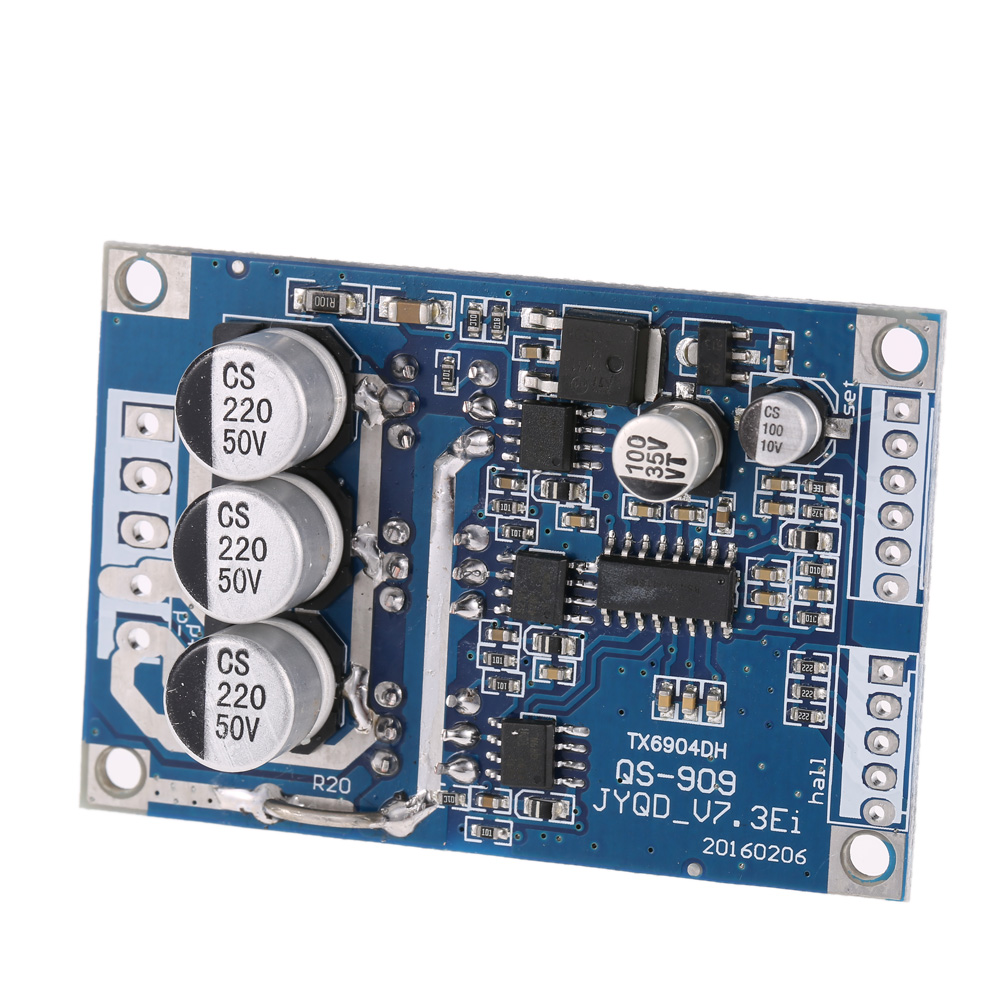

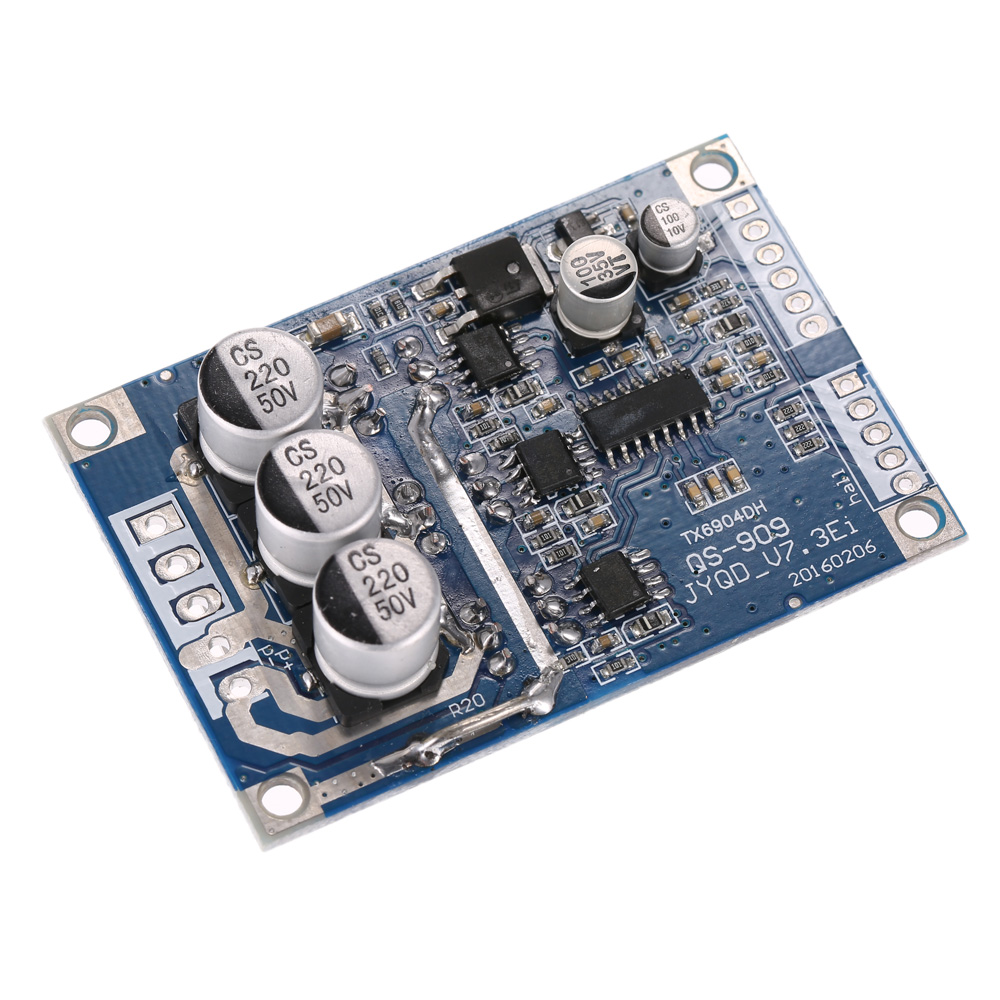

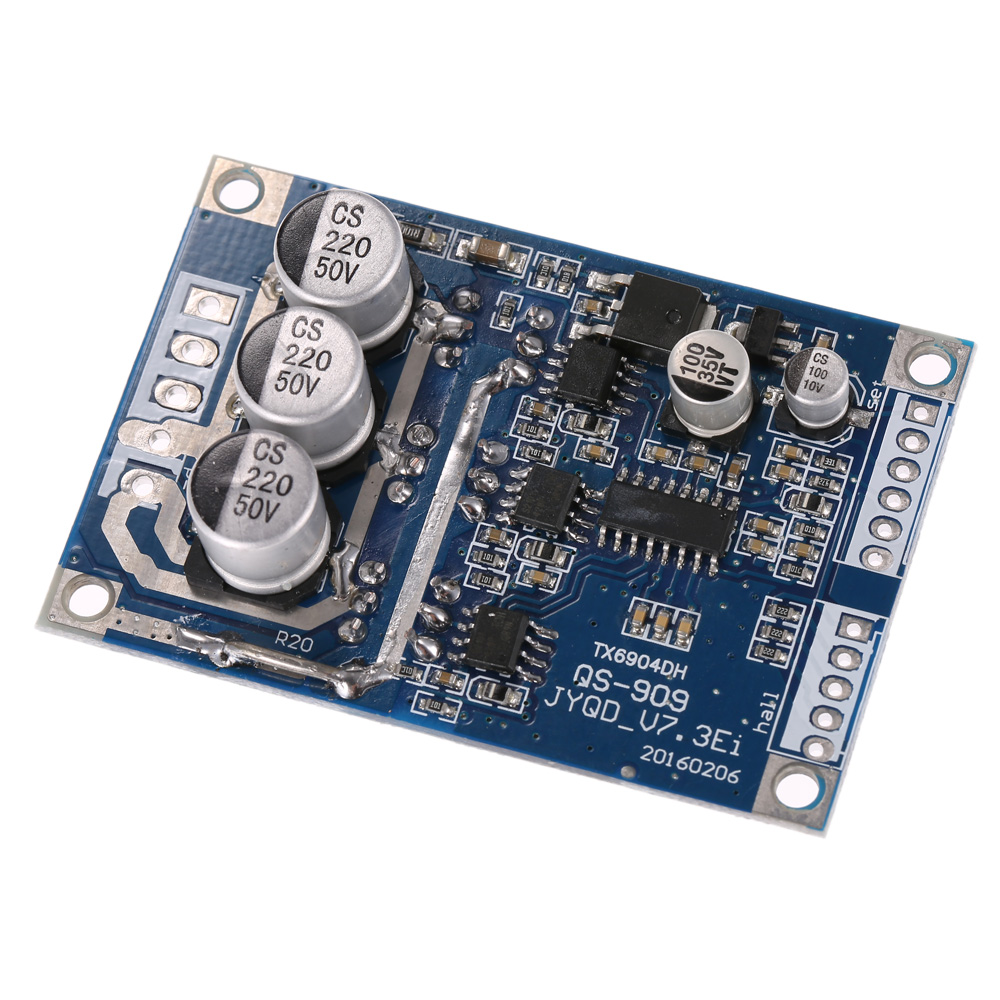

Motor Controller DC Car Driver Board 12V-36V 500W Brushless Motor Controller Hall Motor Balanced Car Driver Board SMT process

Features:
SMT process, high quality.
DC brushless motor driver board.
Operating voltage: DC 12V to 36V; operating current ≤15A.
With speed regulation function, 0.1V-5V speed voltage.
Stall protection, over-current protection, enable control, steering control and speed control signal.
Specifications:
Operating Voltage: DC12-36V
Operating Current: ≤15A
Drive Power: ≤500W
Speed Voltage: 0.1V-5V
Operating Temperature: -40~85°C
Humidity: ≤90%RH
Stall Protection: Yes
Enable Control: Yes
Over-current Protection: Yes
Steering Control: Yes
Speed Control Signal: Yes

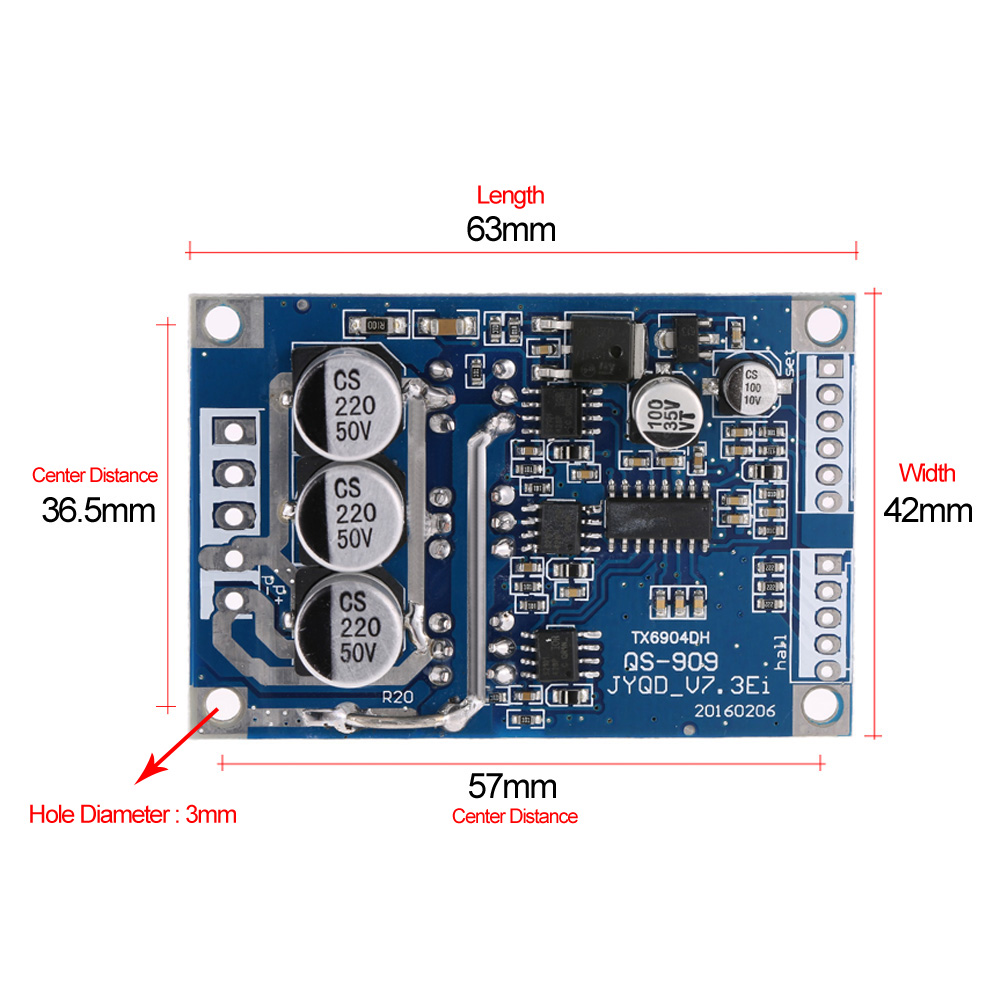

PCB Size: 63 * 42 * 17mm
Weight: 30g

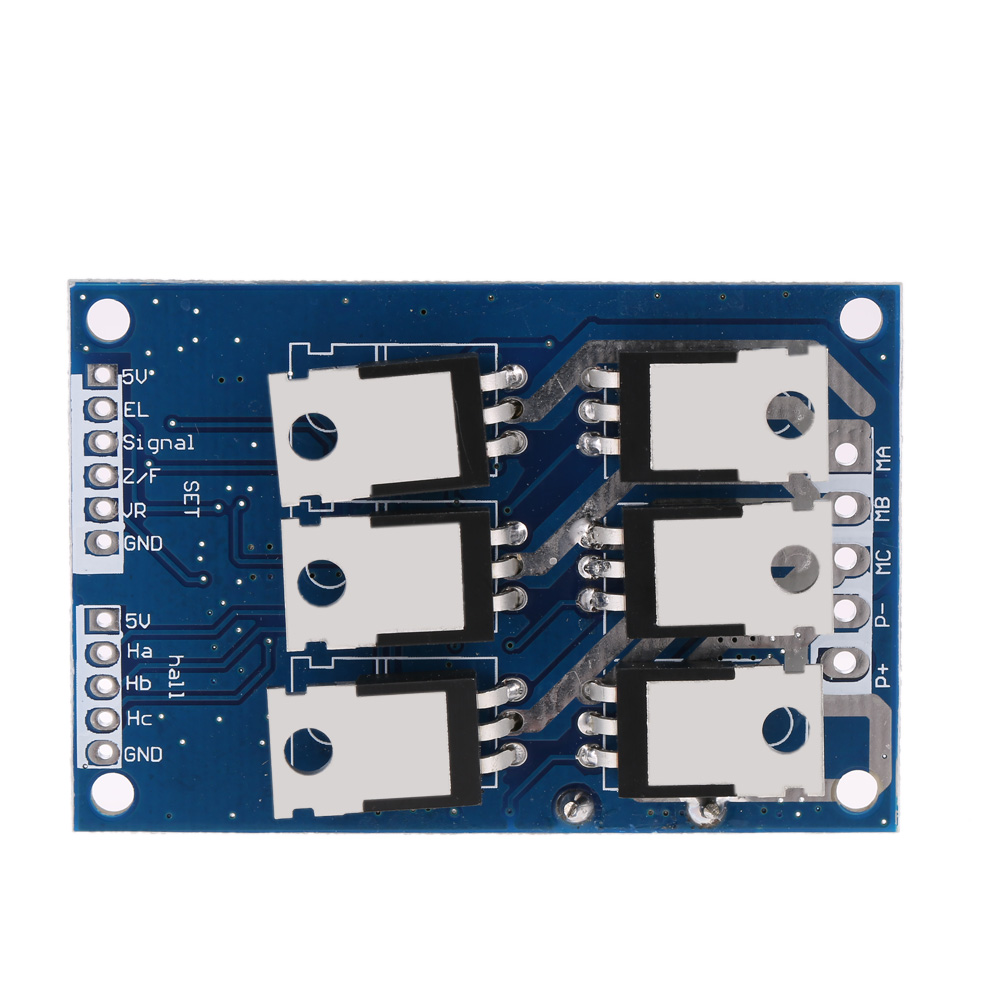

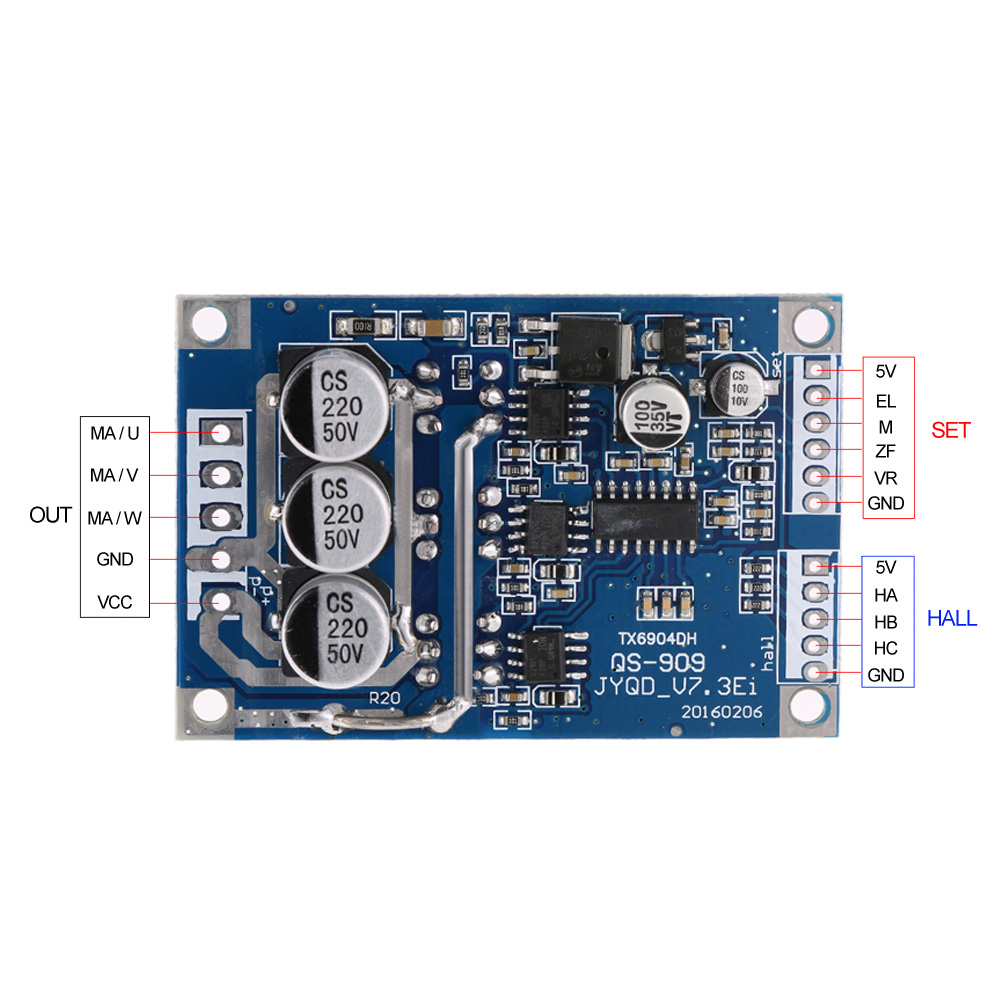

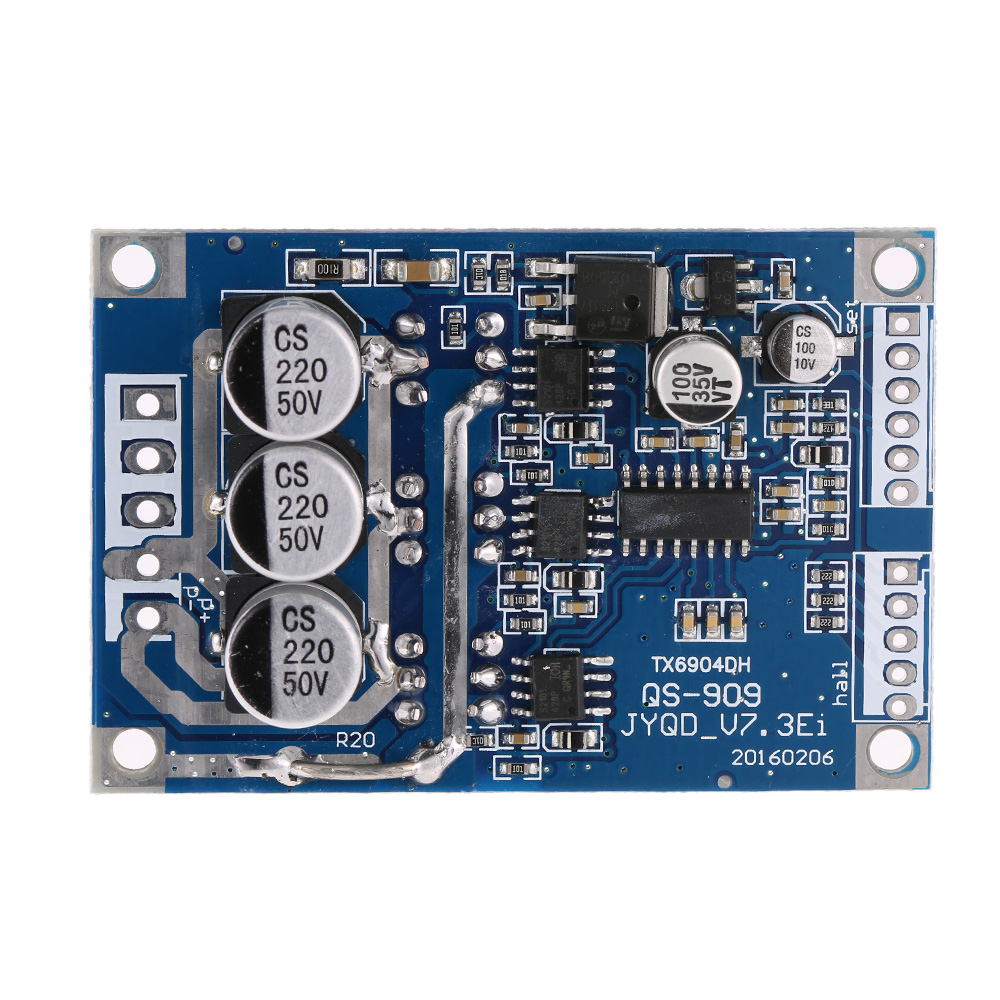

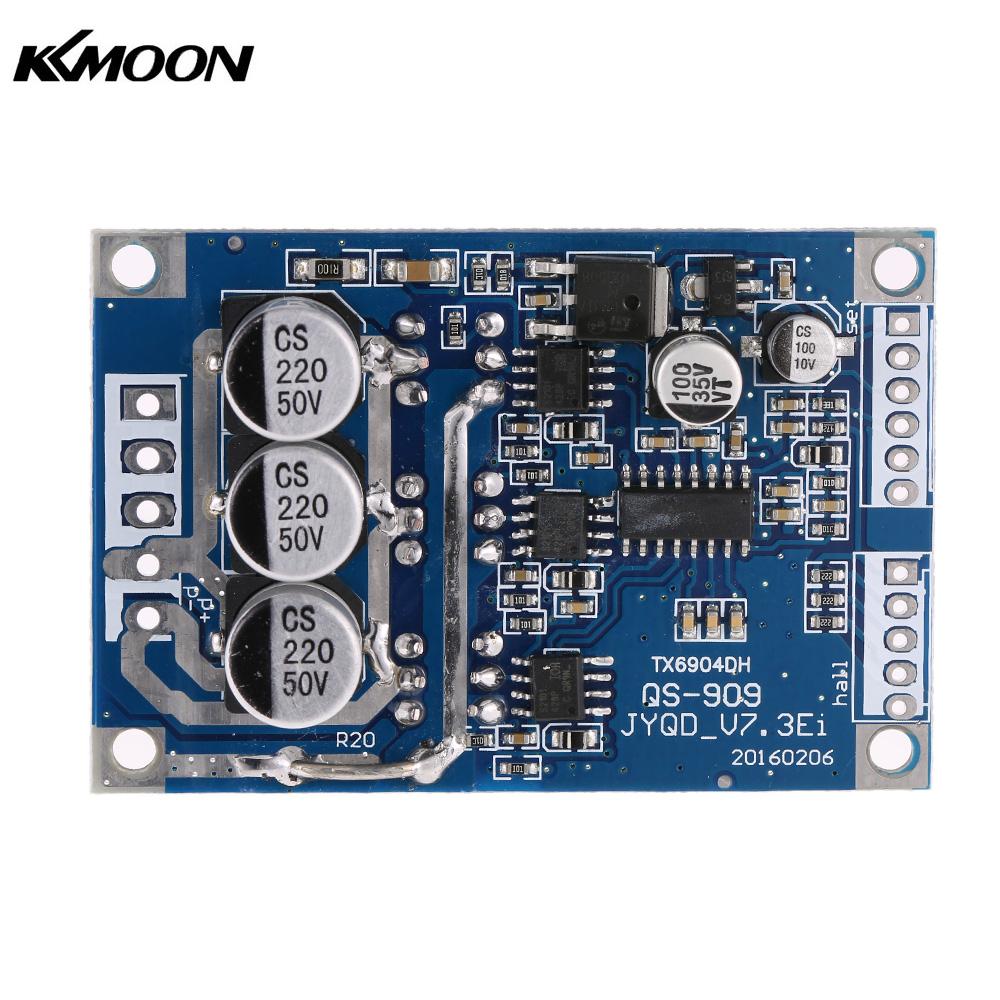

Power terminal OUT:
VCC (positive power supply)
GND (negative one)
MC (motor phases W)
MB (motor phases V)
MA (motor phases U)SET for the control side:
GND  control terminal ground
VR   the governor end 0-5V(corresponding to 10% of motor speed - 100%)
ZF   reversing control(connected to 5V or ground can change the motor rotation direction)
M   tachometer pulse output(depending on the number of motor poles corresponding to the number of pulses per revolution of the output number)
EL  enable control terminal(connected to 5V or ground running then 5V, grounding the motor stops)HALL for the Hall terminals:
5V, Hall power positive
Ha, Hall signal
Hb, Hall signal
Hc, Hall signal
GND, Hall negative
Note:
Due to different Hall motor manufacturers, the Hall line order may show difference from the pictures, you need to adjust the sequence.
If the line sequence is wrong, it will not work as expected, such as start-up abnormally, with large current or even burn the driver board.
Tips: If you use less than 60W, without additional heat sink; please make sure to add heat sink when exceed 60W.
When installing the heat sink, you must pay attention to the insulation for 6pcs MOS on the back of module. It will damage the driver board permanently without insulation.  Package List:
1 * Brushless Motor Controller
