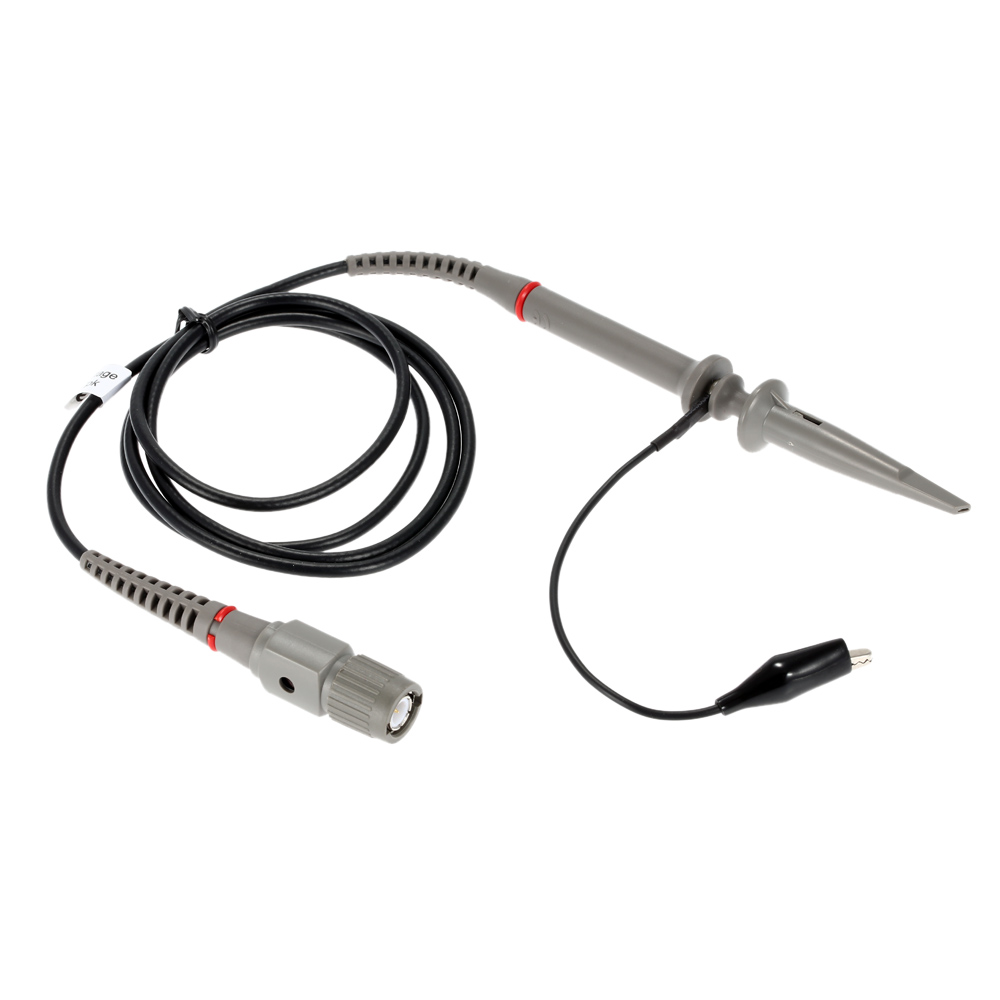

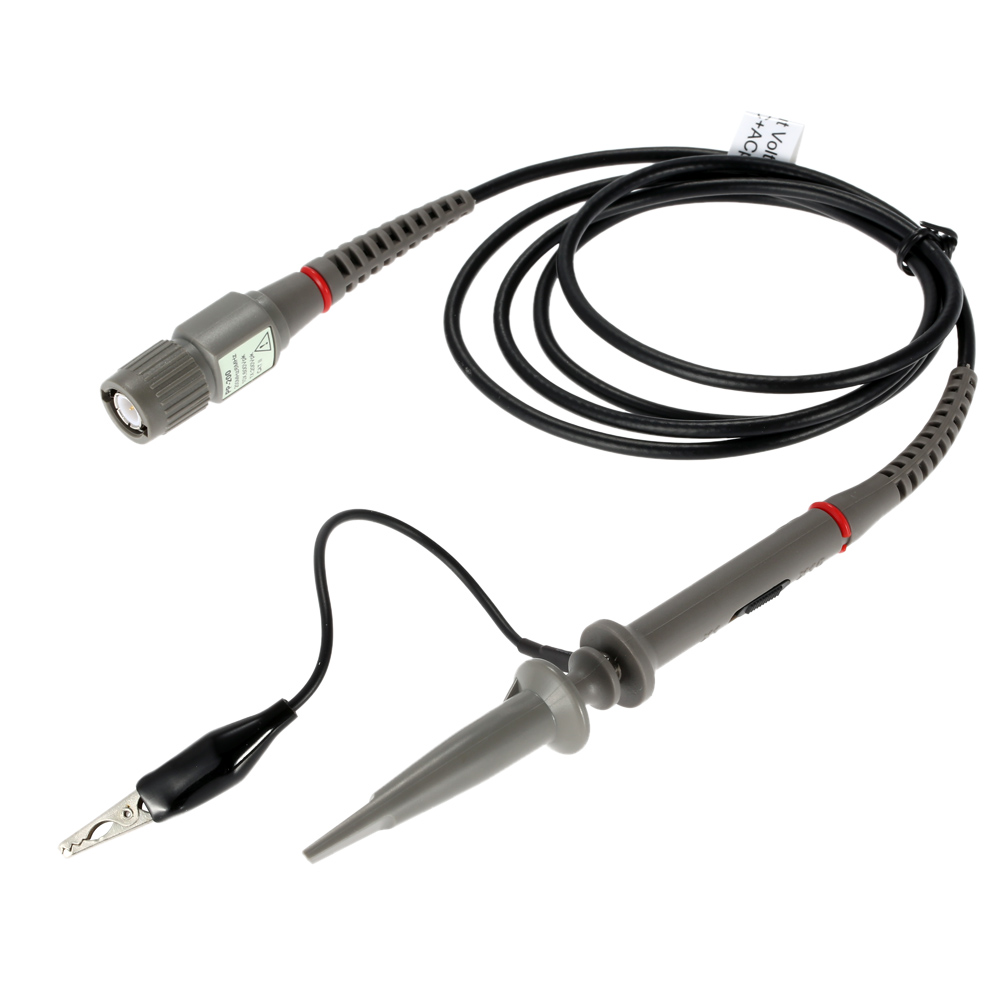

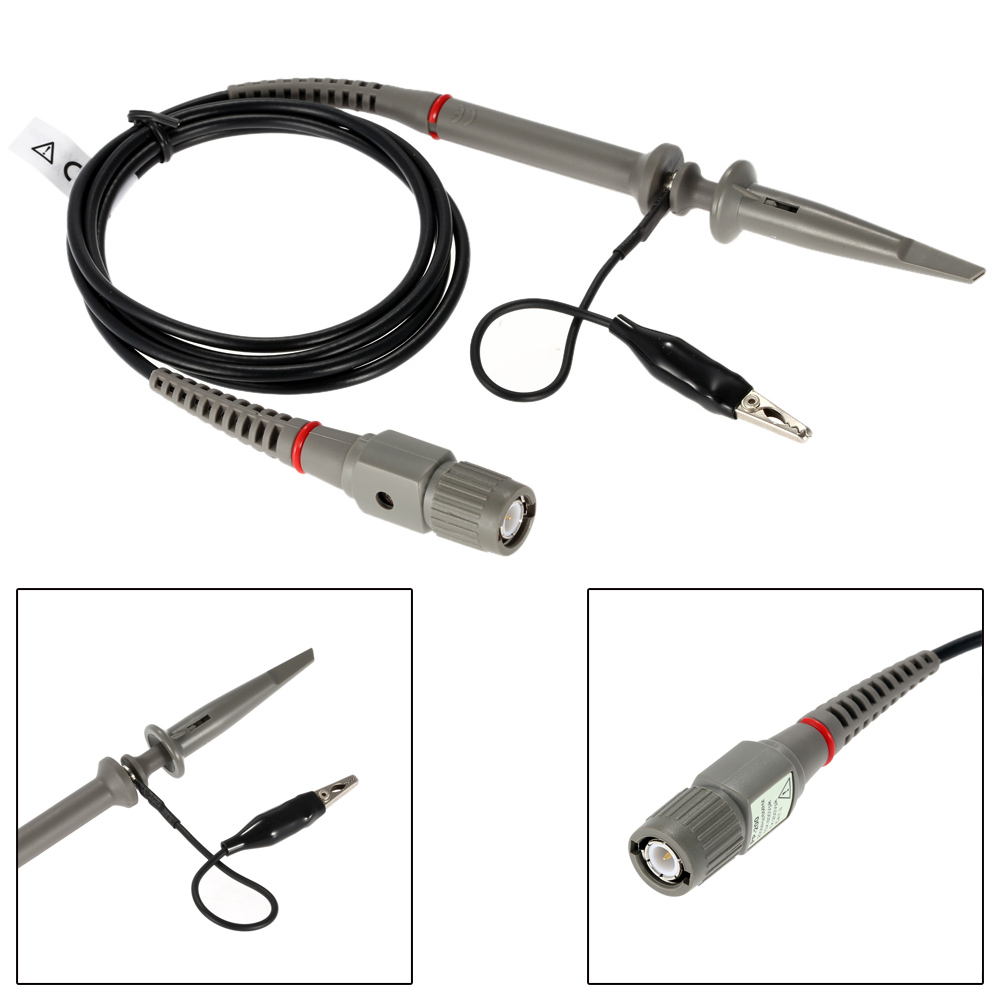

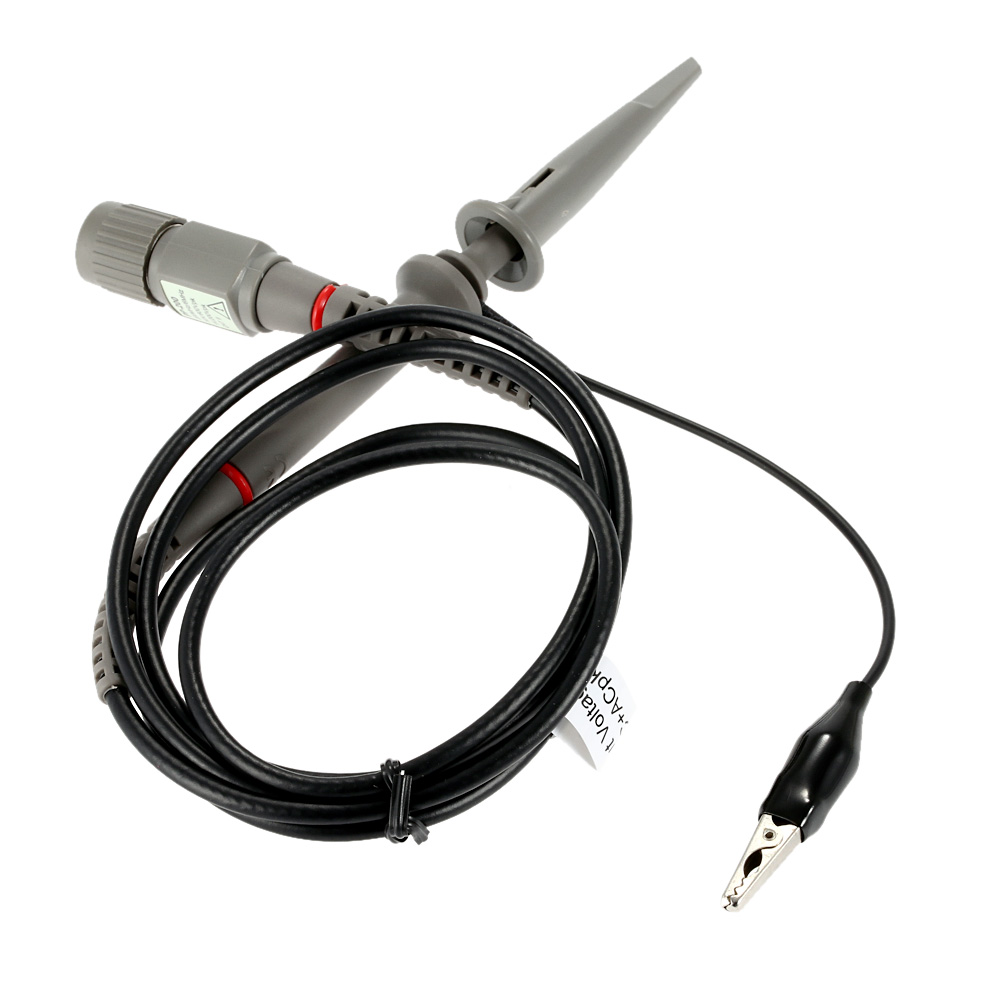

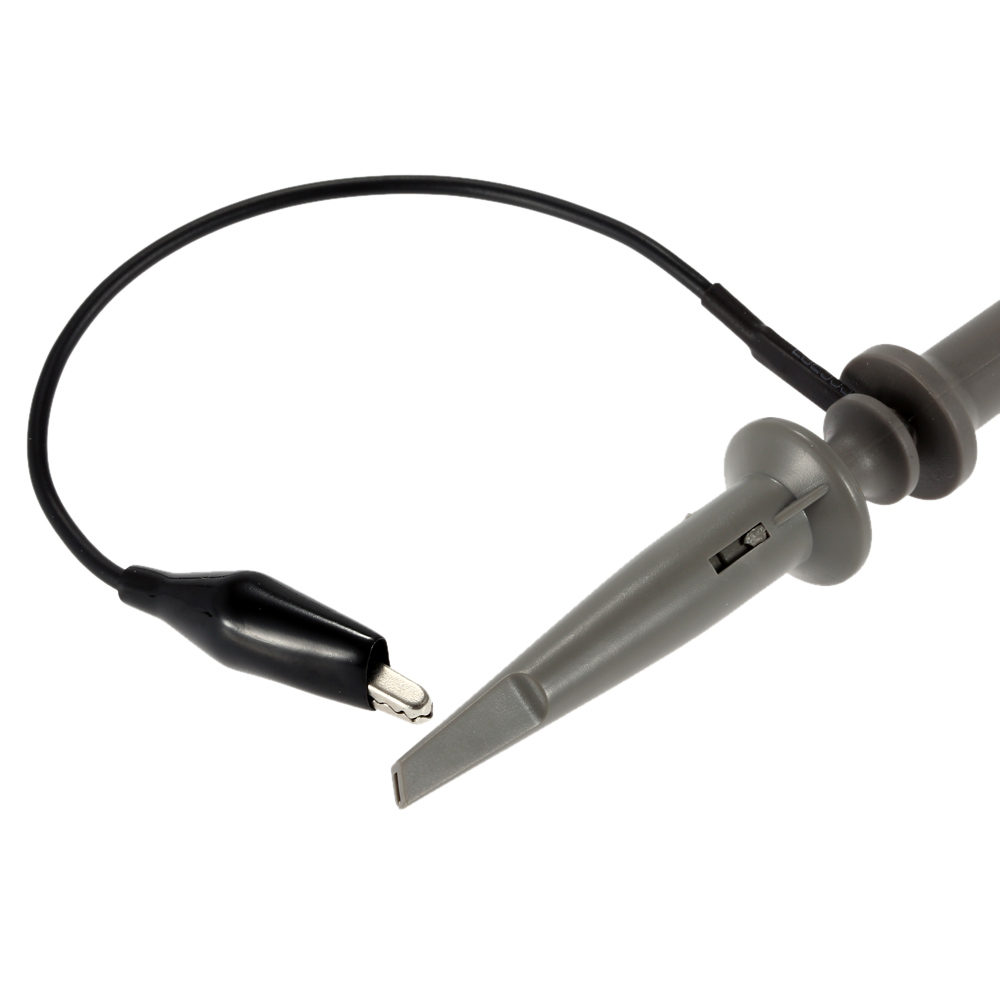

Hantek High Quality Reliable Oscilloscope Probe 200MHz Oscilloscope Clip Probe with Accessories Max.600V DC Peak AC x1 x10

Integral injection molding makes the usage more flexible and the oscilloscope able to adapt more testing situations. Attenuation ratio: 1x and 10x optional. Compatible with domestic and international digital and analog oscilloscopes in relevant frequency.
Features:
High quality and reliable.
Attenuation ratio: 1× and 10× adjustable.
Portable design according with ergonomics.
Integral injection molding makes the usage more flexible and the oscilloscope able to adapt more testing situations.
Safety standards: it has passed the CE Attestation of European Community.
Application Fields:
Compatible with domestic and international digital and analog oscilloscopes in relevant frequency.
 Measurement in intermediate and low frequency signals.
Specifications:
Color: Black + Grey
Type: PP-80 / PP-150 / PP-200 (Optional)
Attenuation: x1  x10
Input Resistance: 1MΩ: 10MΩ
Input Capacitance: x1: 85pF-115pF
            x10: 18.5pF-22.5pF
Compensation Range: 15pF ~ 35pF
System Bandwidth: x1: DC-8MHz
            x10: DC-200MHz
Input Voltage: x1: <200V DC +Peak AC
          x10: <600V DC +Peak AC
Operating Temperature: -10 Centigrade ~ +50 Centigrade / 14 Fahrenheit ~ 122 Fahrenheit
Non Operating Temperature:-20 Centigrade ~ +75 Centigrade / -4 Fahrenheit ~ 167 Fahrenheit
Humidity: ≤85% (Relative Humidity)
Cable Length: 120cm / 47.2in
Item Size: Approx. 17 * 2 * 2cm / 6.7 * 0.8 * 0.8in (ONLY Probe)
Item Weight: Approx. 49.7g / 1.7oz
Package Size: Approx. 20 * 13 * 2cm / 7.9 * 5.1 * 0.8in
Package Weight: Approx. 74.4g / 2.6oz

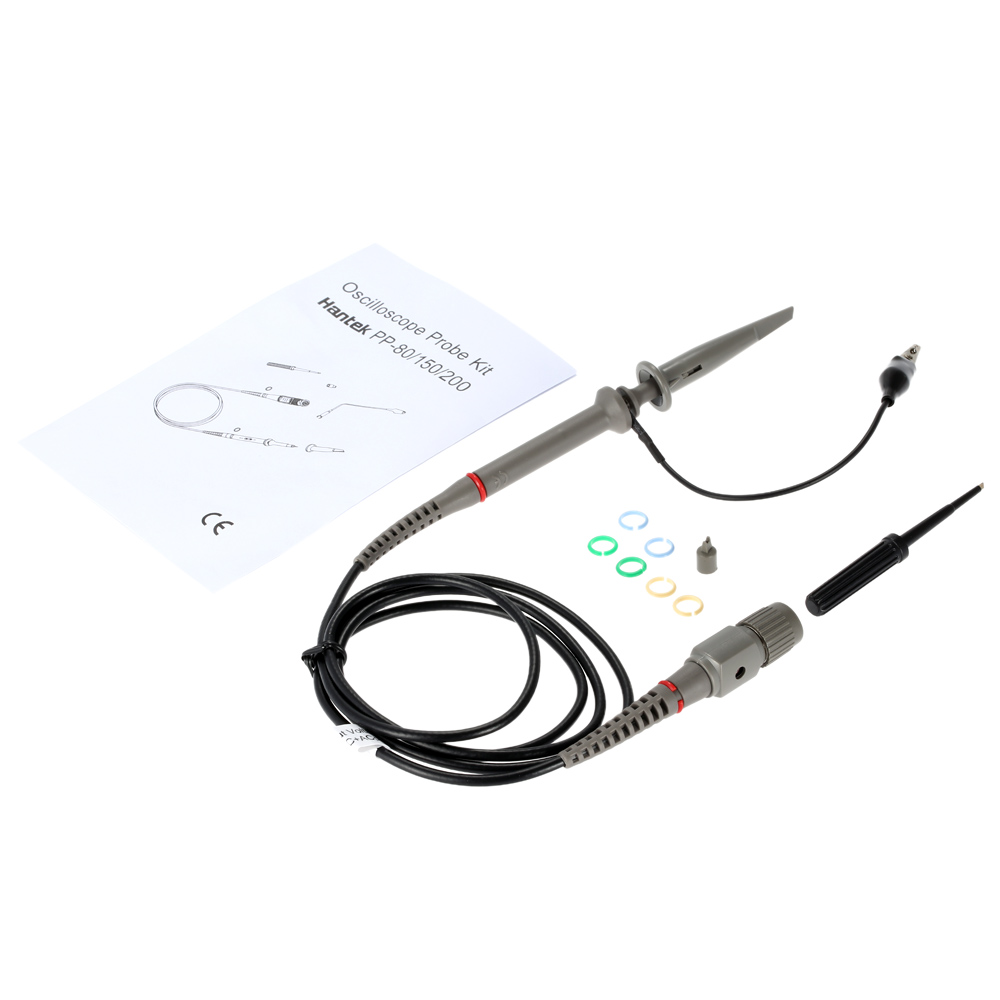

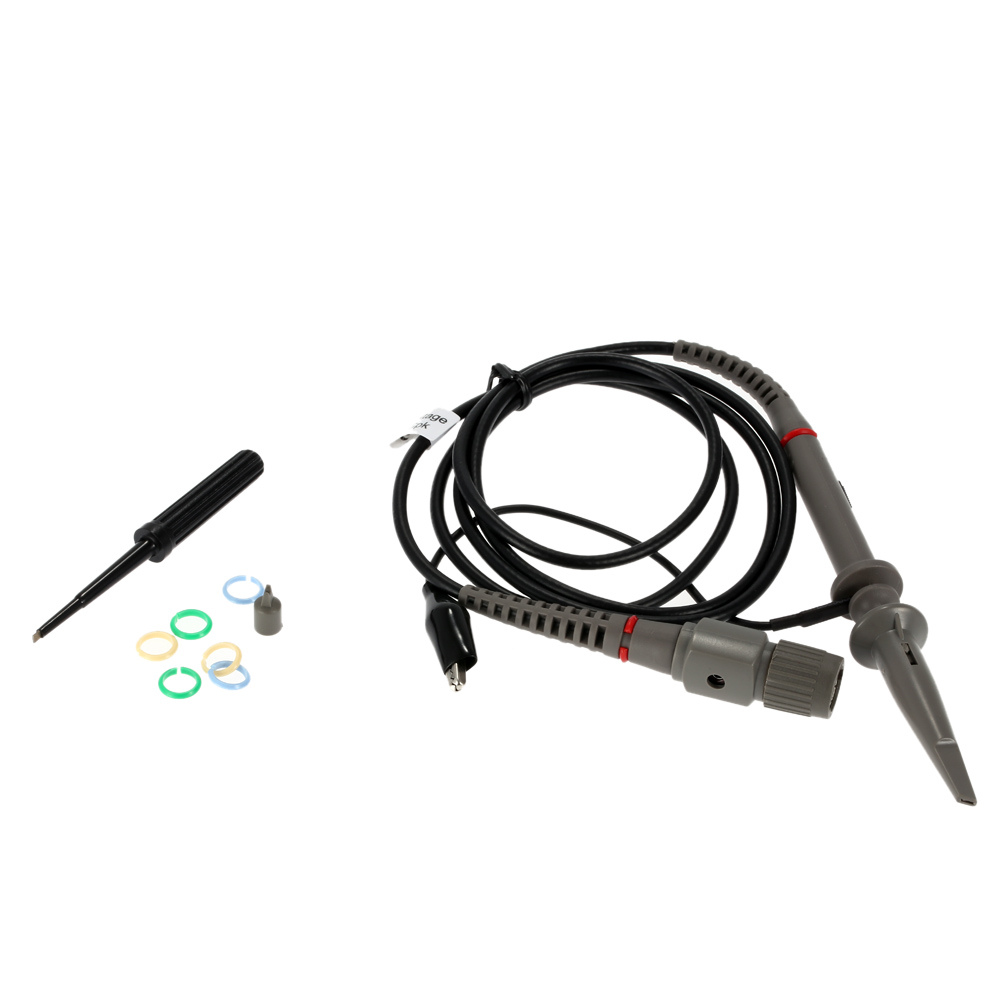

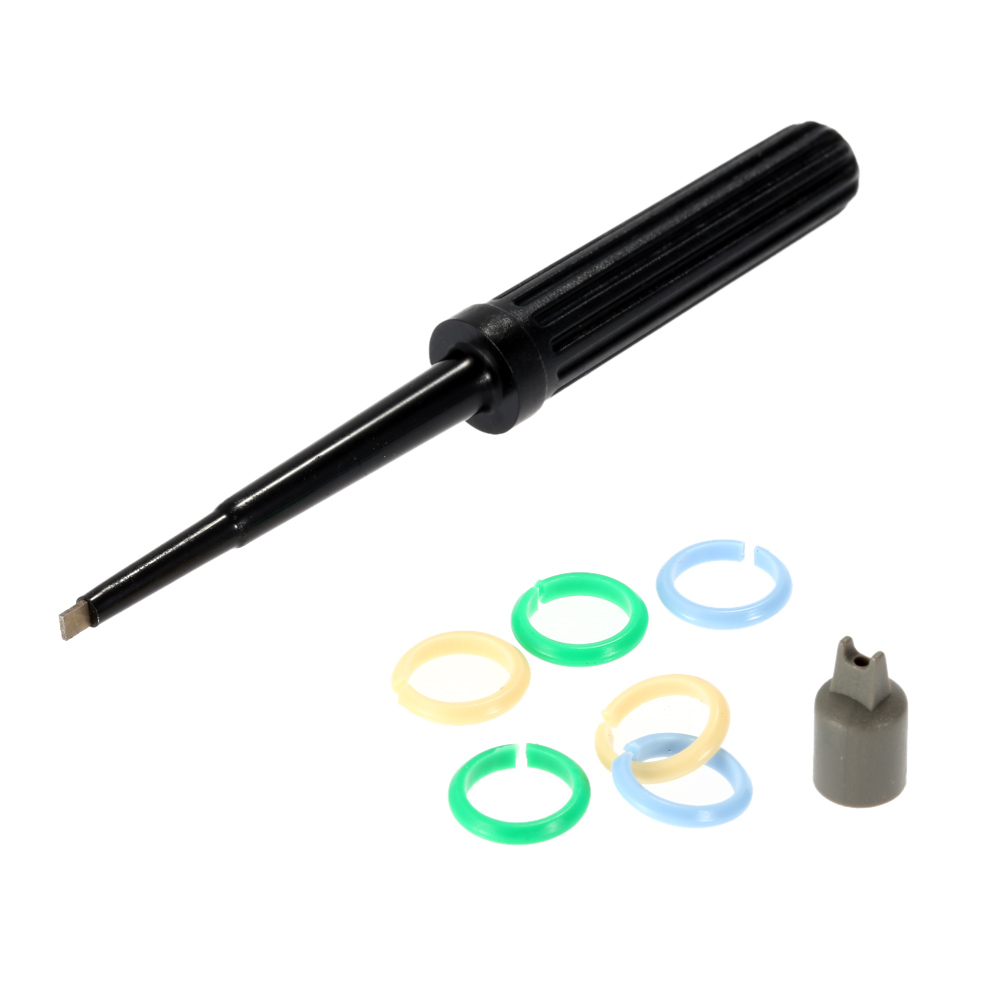

Package List:
1 * Oscilloscope Probe
1 * Adjustment Tool
1 * Tip Locating Sleeve
6 * Color Circle
1 * Instruction
