System

Main processor

Hi3535 chip

Screen display

1/4/8/9/16/24/32

Video

Video standar

PAL(625TVL,50 Fields / sec  :NTSC(525TVL,60 Fields / sec. )

Video quality

Monitor :D1;VGA: HD;HDMI:HD

Coding capacity

1080P/720P/960H/D1/HD1/CIF/QCIF

Digital input

16ch 3mp / 8ch 5mp

Motion Detection

Each screen can be set to 192 (16 x 12) detection area; multi-level sensitivity can be set

Video playback

Video mode

Manual  Alarm   Motion detection  timing

Local Playback

4ch 1080p

Video inquiry

Point-in-time retrieval, calendar search, event search, channel search

Storage backup

Space

CIF: 5G / day / channel   D1: 20G / day / channel   720P: 40G / day /channel   1080P: 80 G/ day/channel

Video save

HDD.  Network

Backup mode

Network  backup,USB mobile HDD,USB Burner,DVD CD burning

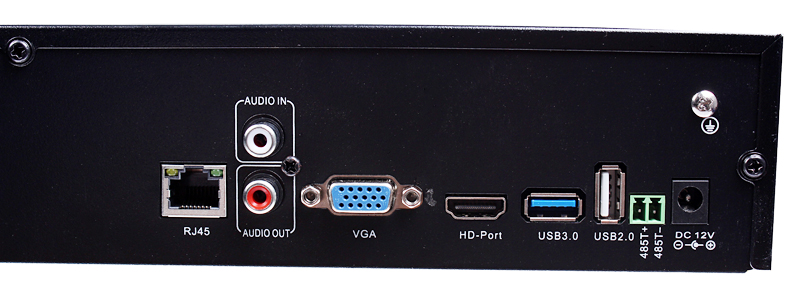

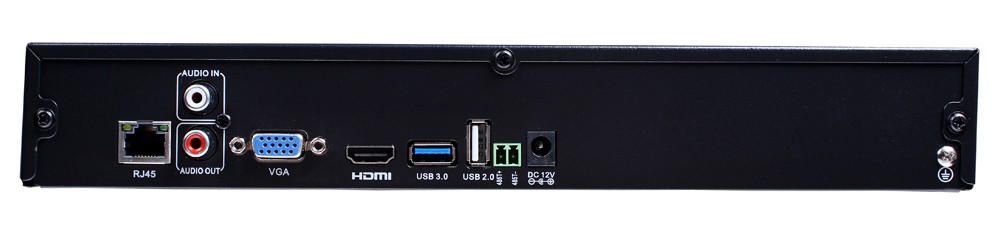

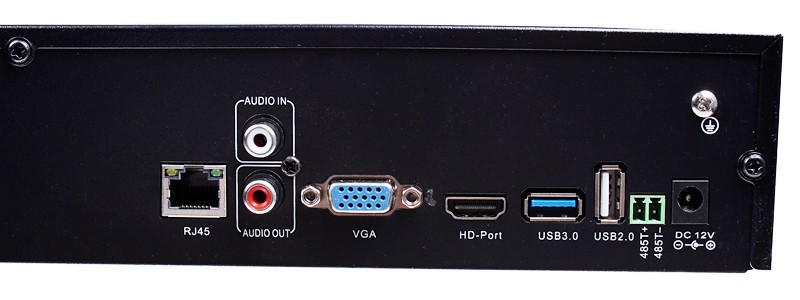

Interface

Video input

No

Video output

1ch VGA output,1ch HDMI output( 1920x1080P)

Audio input

1ch

Audio output

1ch

Alarm input

no

Alarm output

no

Network interface

RJ45 10M/100M/1000M  (Adaptive Ethernet port )

PTZ control

One  RS485 ptz control interface

USB interface

2xUSB interface

HDD

2xSATA (MAX 6TB each disk )

Others

Power supply

12V,4A

Nvr Size

360(width)X300(deepth)x60(height)mm

Nvr weight

1.68kg

Packing size

345(width)X330(deepth)x94(hight)mm

Packing weight

1.8kg(not including HDD)
