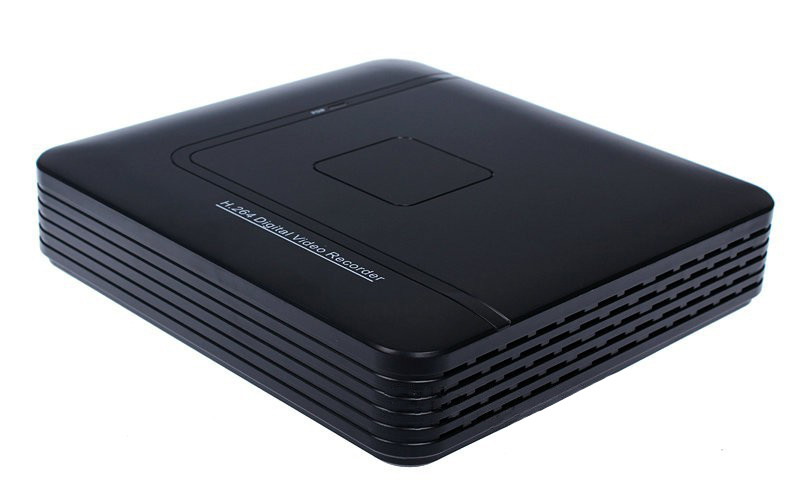

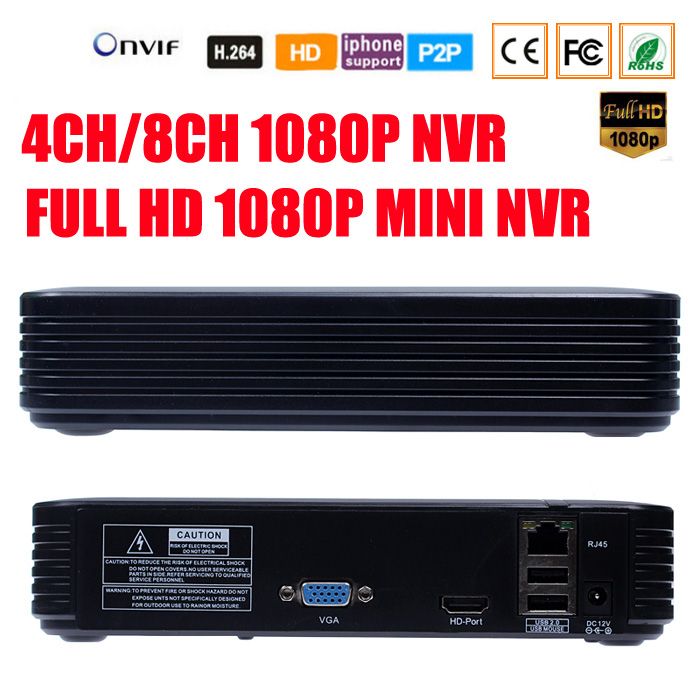

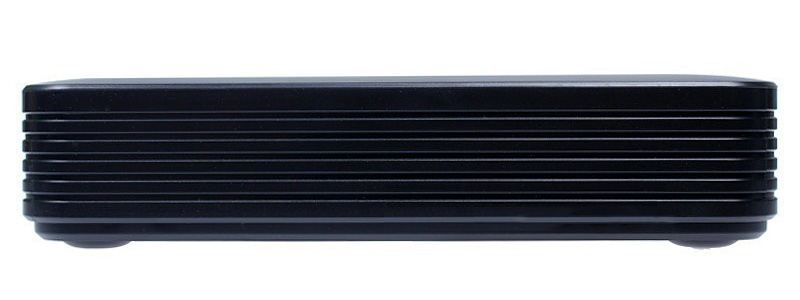

Newest Mini NVR Full HD 4 Channel 8 Channel Security Standalone CCTV NVR 1080P 4CH 8CH ONVIF 2.0 For IP Camera System 1080P

SKU:

CK28844

Category: NVR

$44.89

Enquiry

Footer Group

Description

Features :

1.H.264 High profile compression algorithm ideal for standalone NVR

2.Realtime live display up to 4/8 cameras

3.Pentaplex function:live,recording,playback,backup & remote access;

4.Support Dual-streams,to make mobile monitoring very easy,flexible for network transmission

5.Smart video detection:motion detection,video blind,video loss

6.Smart camera settings:privacy masking,camera lock,color setting,and tittle display

7.Easy backup methods: USB devices,remote network and client software backup

8.Alarm triggering screen tips,buzzer,PTZ preset,e-mail &FTP upload

9.Smart HDDs Management:non-working HDD hibernationg,HDD faulty alarm,Raid function

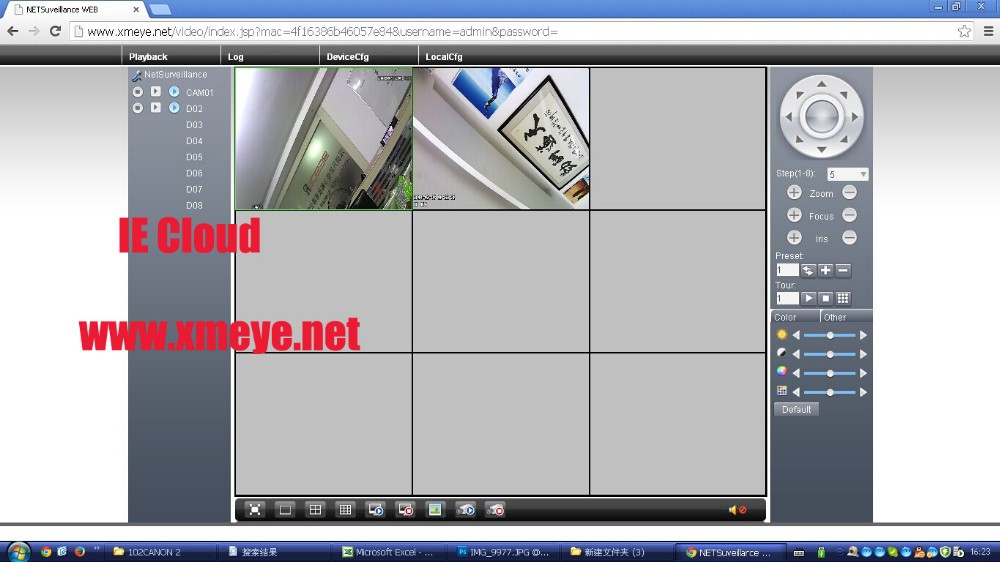

10.Powerful network software:built-in web server,multi-DVR client &SMS Networking access for remote live viewing,recording,playback,setting,system statu,event log,e-mail & ftp function

11.Support DHCP / PPPOE / FTP / DNS / DDNS / NTP / Email alarm / IP right management / IP search / network alarm center functions, support web client, standalone client and SDK.

12.With the sound system for the protection circuit, unique triple watchdog function, very low power consumption, to ensure the equipment never be hang up.

With the unique black box technology, can monitor the whole run process of the equipment, can greatly reduce the maintenance costs.

13.Enable strong multi-way synchronization with max 1/4 channel playback, realize the zero-delay between playback channels

14. Support Standard Onvif 2.0 protocal

15.Real P2P : Cloud : XMEYE.NET ; APP :XMEYE

Specification:

4 Channel NVR :

Overview	Model	150629-N7904
	Operating System	Embedded LINUX/ 3515C Main Processor
	System Resources	Pentaplex function:live,recording,playback,backup & remote access

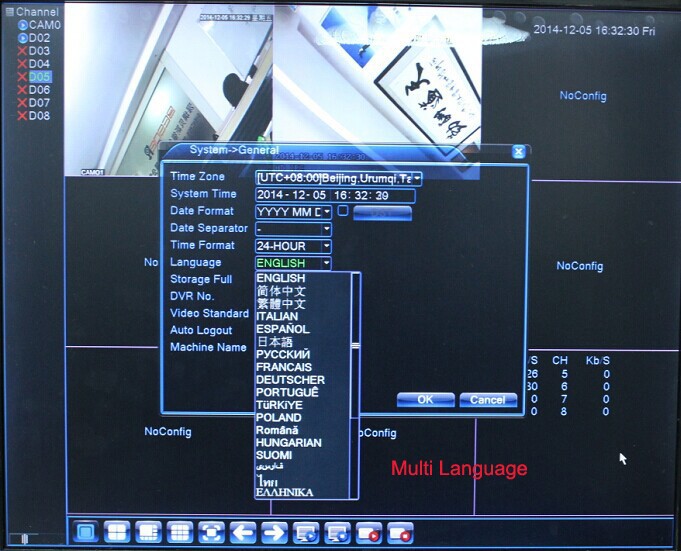

	Operation interface	16-bit true color graphic menu operation interface, support mouse operation
	Preview	1/4
Video	Video Standards	PAL 625 line,50 f/s;NTSC 525 line,60 f/s
	Video Compression	H.264 High profile
	quality supervision	Monitor: D1; VGA: high definition; HDMI: hd
	Video Recording	1080P/720P/960H/D1/HD1/CIF/QCIF
	Vidie input(IP)	41080P/8D1
	Motion Detection	Supports ( Depends on Camera ,the front-end ip camera must have this function )
Audio	Audio Conpression	G.711a
Audio	Bidrectional Talk	N/A
Record & Playback	Recording Mode	Manual>Alarm>Dynamic>Timing
	Playback	11080P/4D1
	Search Mode	Time/Date,Alarm,Motion Detection & exact search(accurate to second)
Storage & Playback	Space Occupation	Video: 1080p 40G/day/ch, 720p 20-30G/day/ch D1 8-10G/day/ch Audio:691.2M/day*channel
	Video saved	Local HDD,network
	Backup Mode	Network download/Flash stick/USB/SATA

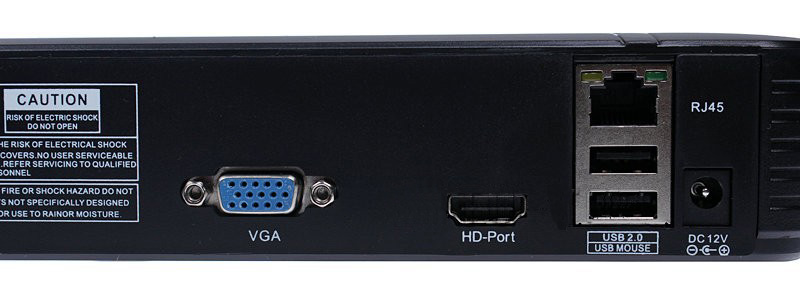

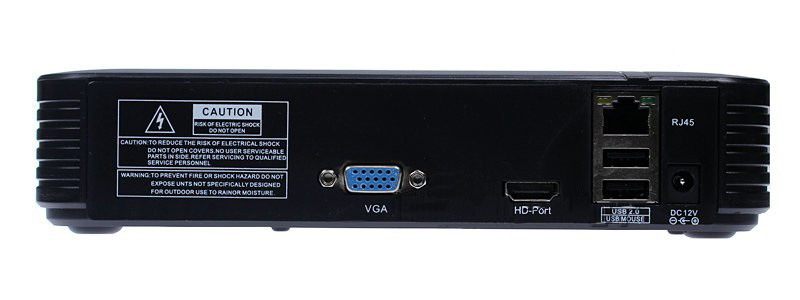

Interface	Video Input(bnc)	N/A

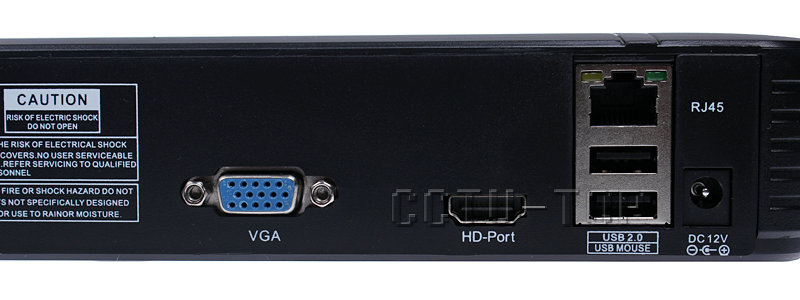

	Video Output	1CH VGA output, 1CH HDMI
	Audio Input	N/A
	Audio Output	N/A
	Alarm Input	N/A
	Relay Output	N/A
	Net Interface	RJ-45 10M/100M

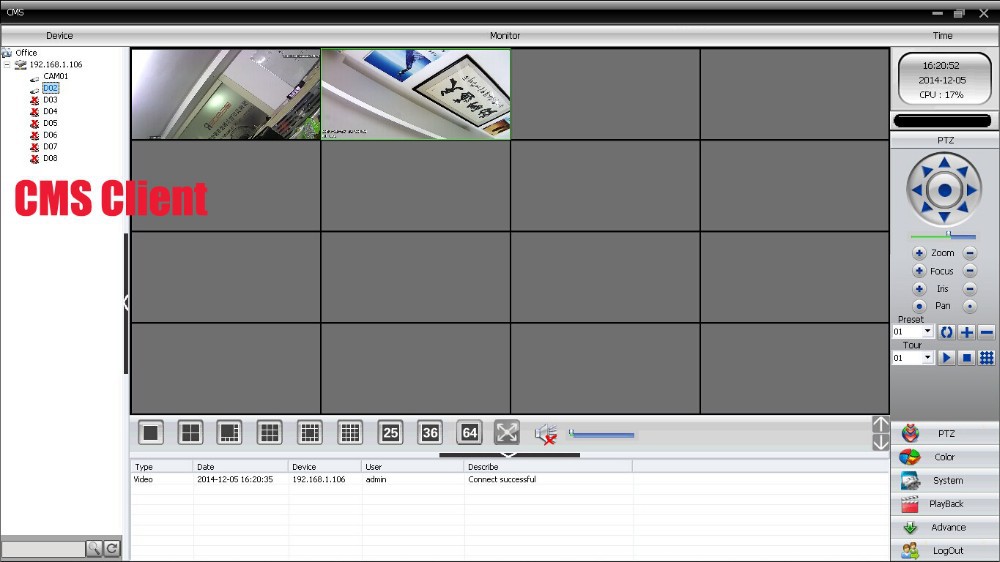

	PTZ Control	N/A ( Operate in CMS software or Web interfact )
	3G/WIFI	N/A
	USB Interface	2* USB2.0 port for mouse and backup
	Hard Disk	1 SATA port(Max 1 x 4T)

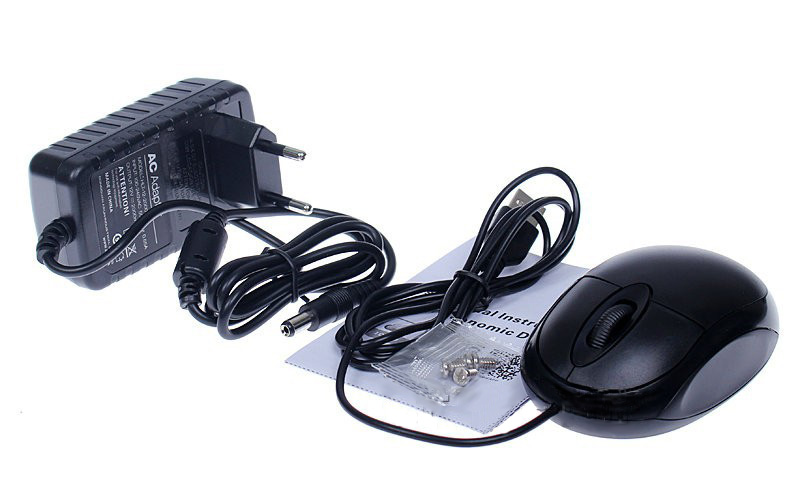

Environmental	Power Supply	12V/2A
	Dimension	210x 200 x 40mm
	ONVIF	Standard 2.0

8 Channel NVR :

Overview	Model	150629-N7908
	Operating System	Embedded LINUX/ 3520D Main Processor
	System Resources	Pentaplex function:live,recording,playback,backup & remote access
	Operation interface	16-bit true color graphic menu operation interface, support mouse operation
	Preview	2/8
Video	Video Standards	PAL 625 line,50 f/s;NTSC 525 line,60 f/s
	Video Compression	H.264 High profile
	quality supervision	Monitor: D1; VGA: high definition; HDMI: hd
	Video Recording	1080P/720P/960H/D1/HD1/CIF/QCIF
	Vidie input(IP)	81080P/16D1
	Motion Detection	Supports ( Depends on Camera ,the front-end ip camera must have this function )
Audio	Audio Conpression	G.711a
Audio	Bidrectional Talk	N/A
Record & Playback	Recording Mode	Manual>Alarm>Dynamic>Timing
	Playback	21080P/8D1
	Search Mode	Time/Date,Alarm,Motion Detection & exact search(accurate to second)
Storage & Playback	Space Occupation	Video: 1080p 40G/day/ch, 720p 20-30G/day/ch D1 8-10G/day/ch Audio:691.2M/day*channel
	Video saved	Local HDD,network
	Backup Mode	Network download/Flash stick/USB/SATA
Interface	Video Input(bnc)	N/A
	Video Output	1CH VGA output, 1CH HDMI
	Audio Input	N/A
	Audio Output	N/A
	Alarm Input	N/A
	Relay Output	N/A
	Net Interface	RJ-45 10M/100M
	PTZ Control	N/A ( Operate in CMS software or Web interfact )
	3G/WIFI	N/A
	USB Interface	2* USB2.0 port for mouse and backup
	Hard Disk	1 SATA port(Max 1 x 4T)
Environmental	Power Supply	12V/2A
	Dimension	210x 200 x 40mm
	ONVIF	Standard 2.0
