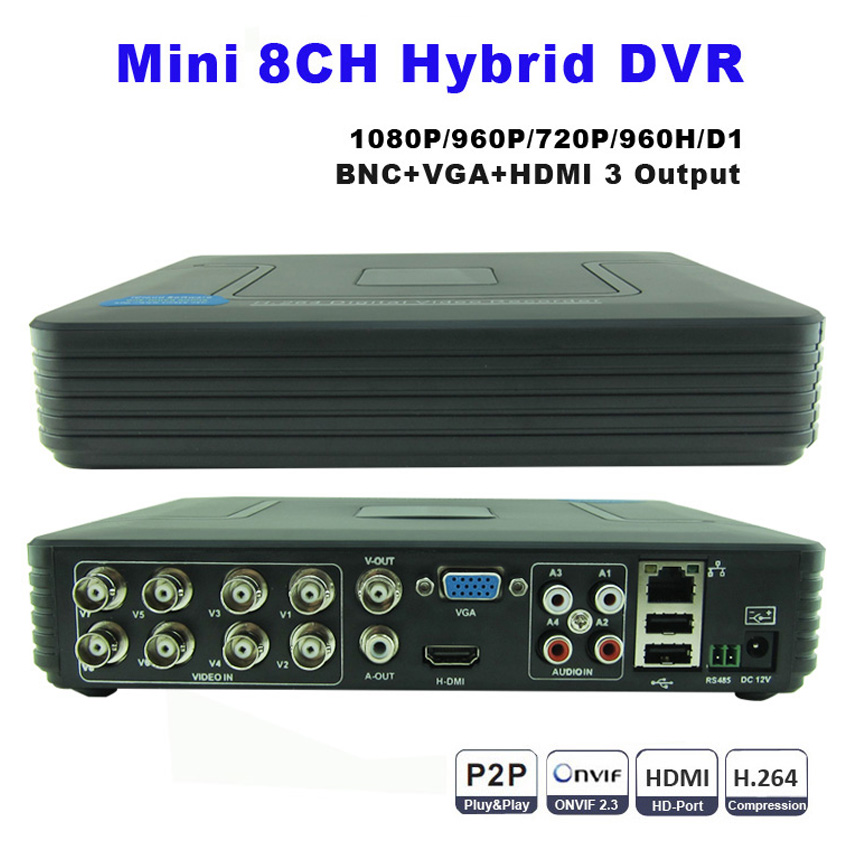

Mini 8CH Full D1 H.264 HDMI Security System CCTV DVR 8 Channel 720P 1080P NVR Hybrid DVR Recorder Mobile DVR RS485 PTZ Hot

SKU:

CK71900

Category: DVR

$53.26

Enquiry

Footer Group

Description

Mini 8CH Full D1 H.264 HDMI Seurity System CCTV DVR 8 Channel 720P 1080P NVR Hybrid DVR Recorder Mobil DVR RS485 PTZ Hot

Mini 8CH Full D1 H.264 HDMI Security System CCTV DVR 8 Channel 720P 1080P NVR Hybrid DVR Recorder Mobile DVR RS485 PTZ Hot

1. 8 Channel Support ONVIF

2. Support BNC,VGA,HDMI output.

3. 1) Don’t support 720P/960P/1080P AHD Camera;

2)Support 8*AHDL(960H)Analog Camera,Non Real-time,Only 12fps/sec;or 8*D1 Analog Camera,Real-time;

3)Support 2*D1 +1*1080P IP Camera+1*720P IP Camera Real time;

4)Support 4*720P IP Camera, or 8*720P IP Camera;

5)Support 4*1080P IP Camera, or 8*1080P IP Camera;

4. Video Compression: H.264

5. Video Input/Output: BNC 8CH / BNC 1CH

6. Audio Input/Output: RCA 4CH / RCA 1CH

7. Display Frame Rate:NTSC:240fps/ PAL:200fps,Recording Frame Rate:220fps / PAL:200fps

8. P2P Cloud Easy Remote View by Device Serial Number..

9. Pentaplex Function: Live View, Video Recording, Playback, Mobile Phone View & Network Monitoring

8. Supports Motion Detection and Email Notification

9. Mobile monitor: Support various mobile monitoring(iPhone, Windows Mobile, BlackBerry, Symbian, Android).

10. Browsers:Support IE.Chrome.Firefox.Safari browsers.

11. Multi-language OSD (27 kinds of languagess):

12. Supports remote view by 3G Mobile phone, Mobile Phone view based on Symbian, Windows OS Mobile phone, iPhone, Blackberry & Android operation system

13. Video & Audio back-up to USB 2.0, USB flash disk ,USB hard disk, USB CD/DVD-RW & Network

14. System self-recovery with recording & settings memory after power restores

15. Remote access view, recording, playback, DVR setup and video file back-up via IE

16. Support one IE browser centralized monitoring and CMS Software for multiple DVR (up to 20 DVR simultaneously)

Mini 8CH Full D1 H.264 HDMI Security System CCTV DVR 8 Channel 720P 1080P NVR Hybrid DVR Recorder Mobile DVR RS485 PTZ Hot

	Model	SAE3000-A1108E
System	Main processor	Hi3520D
	Video compression	H.264(High Profile)
	Operating System	Embedded Linux
	System Resources	Simultaneous multi-channel real-time recording, playback, network operation, USB backup
Interface	User Interface	Support 16-bit true color graphical menu interface and mouse operation
	Preview Screen	(take analog as an example)
	Preview Screen	1/4/9
Video	vdieo standards	PAL(625line,50f/s);NTSC(525line,60f/s)
	display quality	Monitor:D1,VGA,HDMI:HD
	playback quality	Max.1080P;under analog mode
	playback quality	960H/D1/HD1/CIF/QCIF
	Encode capacity	8ch 960H(12 Frame)/8ch D1 real-time
	Decode capacity	8ch 960H(12 Frame)/4ch D1 real-time

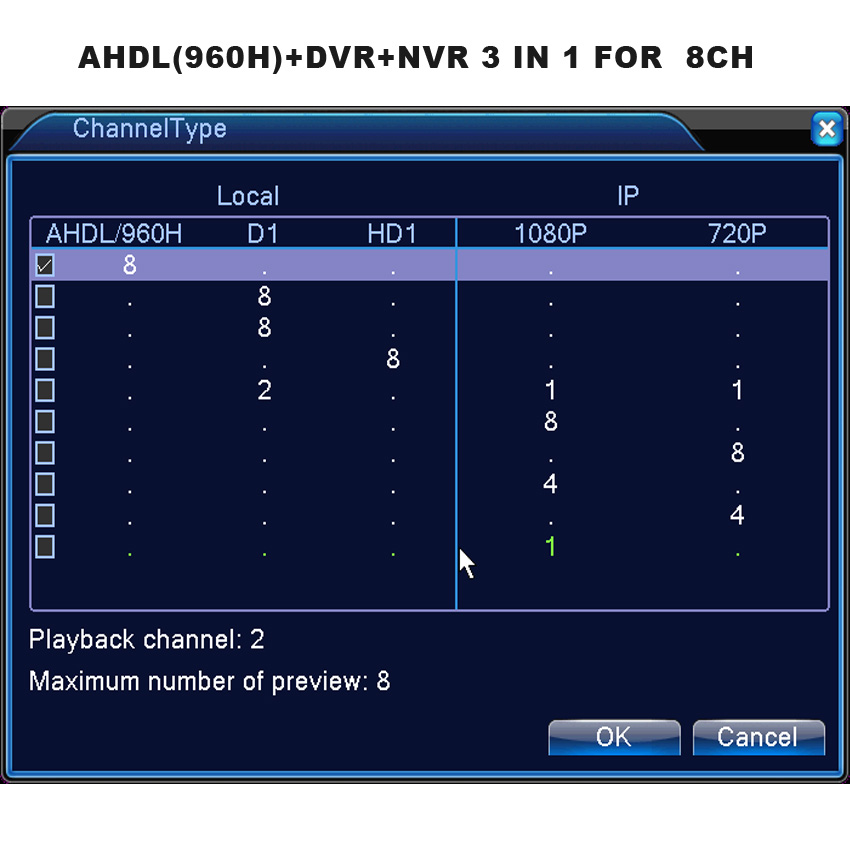

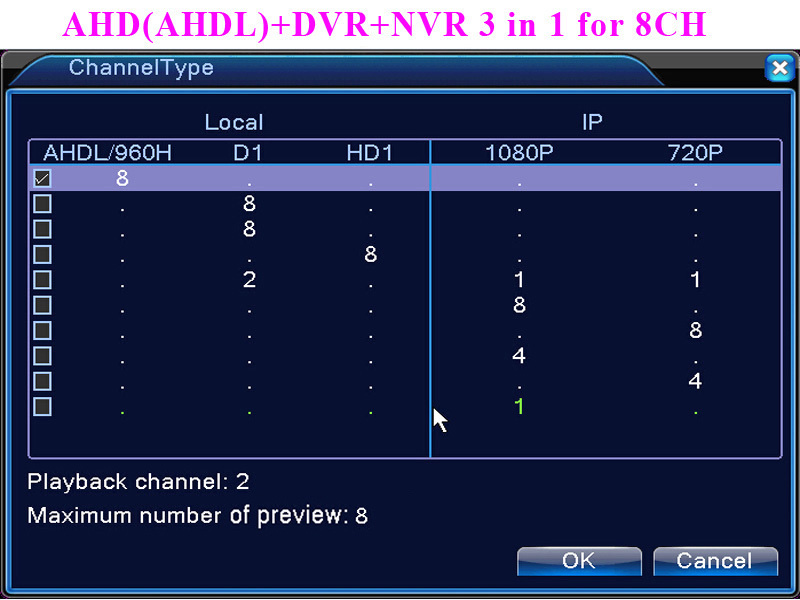

	Hybrid mode	Only analog(DVR):8AHD-(960H)L,8D1 analog(DVR)+ IP(NVR):2 D1+1720P+11080P Only IP(NVR):4720P/8720P; 41080P/8*1080P
	Motion Detcet	Zones: 192(16*12)detection zones,sensitivity: multi-level sensitivity (Only local channels)
Audio	Audio compression	G.711A
Audio	Intercom	support
Record & playback	Record mode	manual>alarm>motion detection>timing
	local playback	1~4 ch playback,Under analog mode 4*D1,up to 4 ch playback
	search mode	Time/calendar/event/channel search
Storage & backup	Space occupation	Video CIF:4~5G/ daychannel D1:8~10G/ daychannel audio 691.2M/ day*channel
	Record Storage	3.5''HDD&Network
	Backup mode	Network backup,USB HDD, USB writer

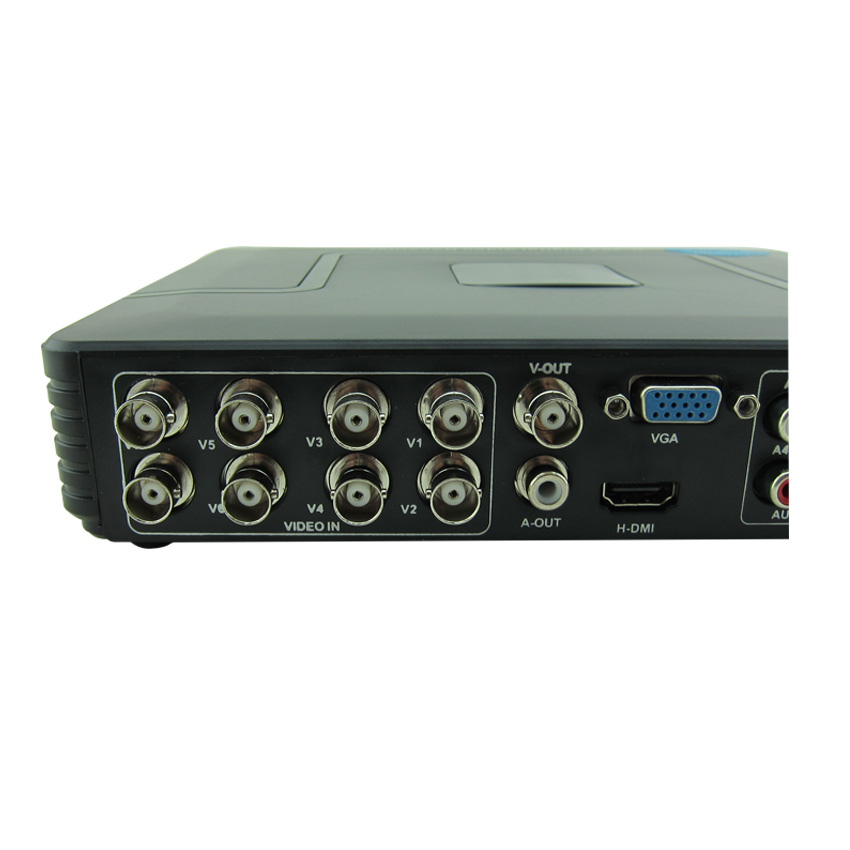

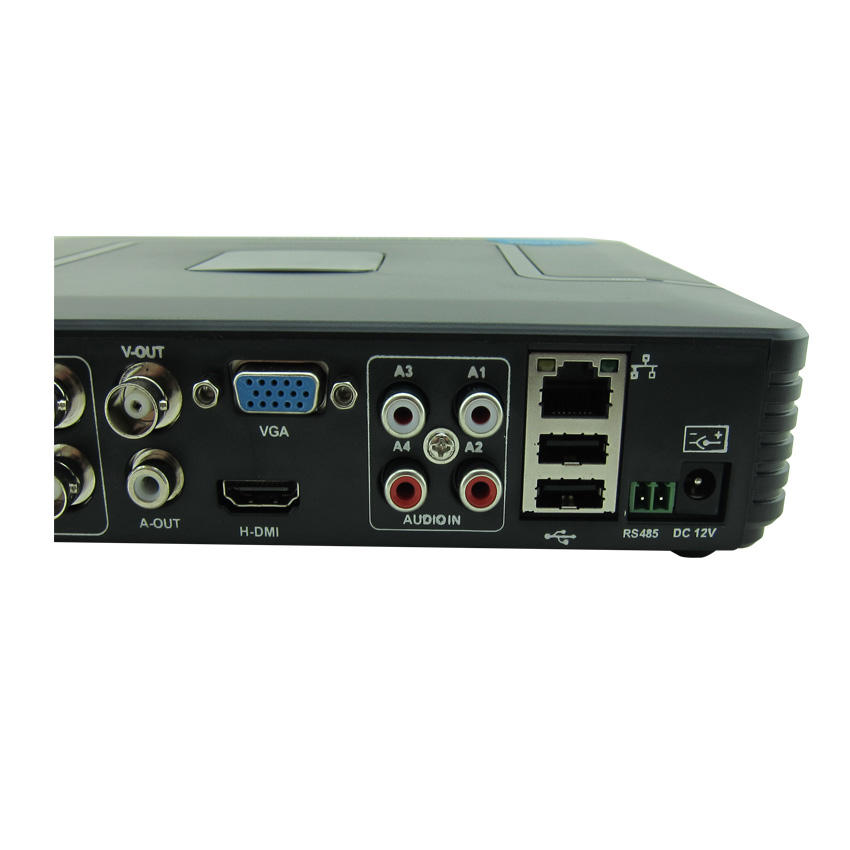

Interface	Video input	8ch BNC
	Video output	1ch BNC,1ch VGA, 1ch HDMI
	Audio input	4ch RCA
	Audio output	1ch RCA
	Alarm input	No
	Alarm output	No
	Network interface	RJ45 10M/100M
	PTZ control	YES,Support PTZ
	USB	2* USB 2.0
	HDD	1*SATA port (Max 4TB/per)
	Wireless	No
Other	Power supply	12V/2A
	Dimension	230mm(length)200mm(width) 45mm(height)
	Weight	0.98KG

Mini 8CH Full D1 H.264 HDMI Security System CCTV DVR 8 Channel 720P 1080P NVR Hybrid DVR Recorder Mobile DVR RS485 PTZ Hot

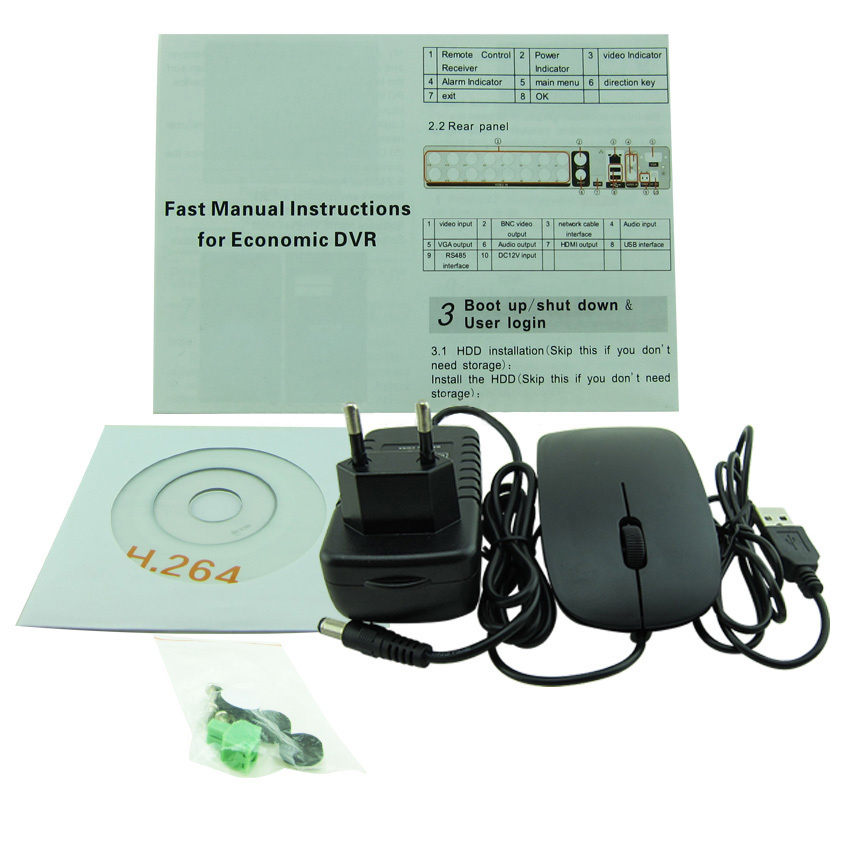

Mini Hybrid DVR x 1

User Manual x 1

USB Mouse x 1

Power Plug x 1

CD Software x 1

Mini 8CH Full D1 H.264 HDMI Security System CCTV DVR 8 Channel 720P 1080P NVR Hybrid DVR Recorder Mobile DVR RS485 PTZ Hot

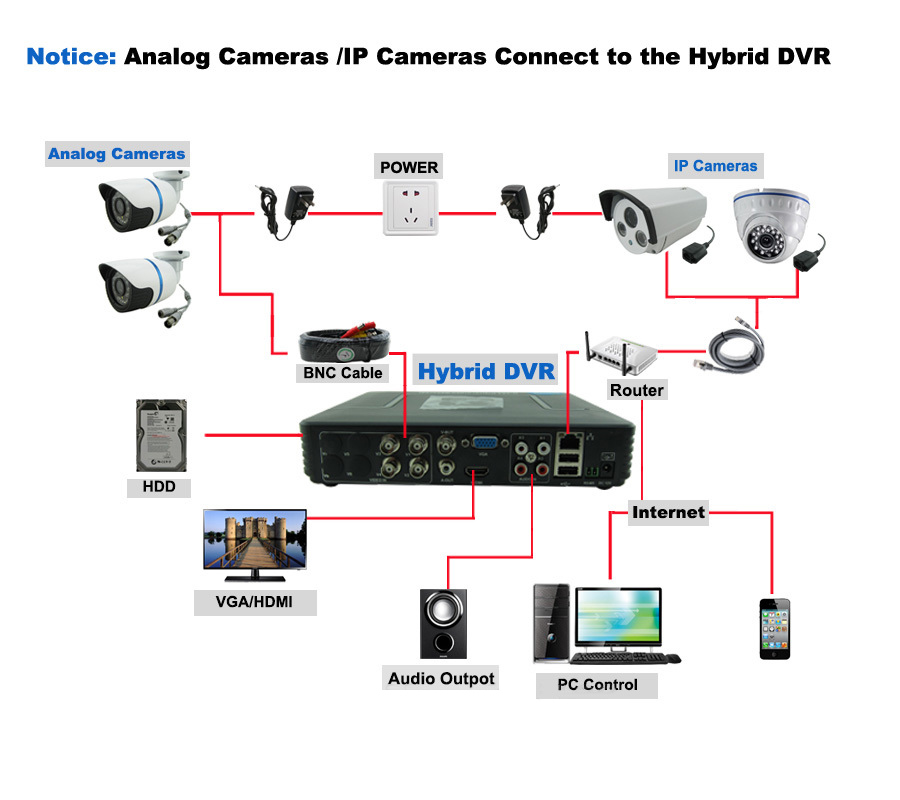

This DVR Support ONVIF protocol, It's can compatible with our own brand of the network video products, but also compatible with other brand of the network video products for Onvif, It can implement multiple devices connected to each other, mutual communication.

PC & Smartphone Remote View

Anytime, Anywhere...Using the latest network technology, plug and play, you can remote view via smart phones, tablets, notebook or PC

Mini 8CH Full D1 H.264 HDMI Security System CCTV DVR 8 Channel 720P 1080P NVR Hybrid DVR Recorder Mobile DVR RS485 PTZ Hot

Smartphone Surveillance

Support all kinds of Mobile phone monitoring(iPhone, Windows, Mobile, BlackBerry, Symbian, Android), But support P2P function only (Android, iPhone). Mini 8CH Full D1 H.264 HDMI Security System CCTV DVR 8 Channel 720P 1080P NVR Hybrid DVR Recorder Mobile DVR RS485 PTZ Hot

How to remote view through Mobile phone?

1. You must be installed a APP in your mobile phone,where to find or download APP?

2. Please used your mobile phone to scan the following QR code.(iPhone APP,Android APP)

Mini 8CH Full D1 H.264 HDMI Security System CCTV DVR 8 Channel 720P 1080P NVR Hybrid DVR Recorder Mobile DVR RS485 PTZ Hot

Advanced Motion Detection Recording

The motion detection recording function: when motion is detected the DVR will save the footage into hard disk without missing any important events.
You can even ensure that false alarms are avoided by setting the motion detection “mask” to block areas with constant movement.

Mini 8CH Full D1 H.264 HDMI Security System CCTV DVR 8 Channel 720P 1080P NVR Hybrid DVR Recorder Mobile DVR RS485 PTZ Hot

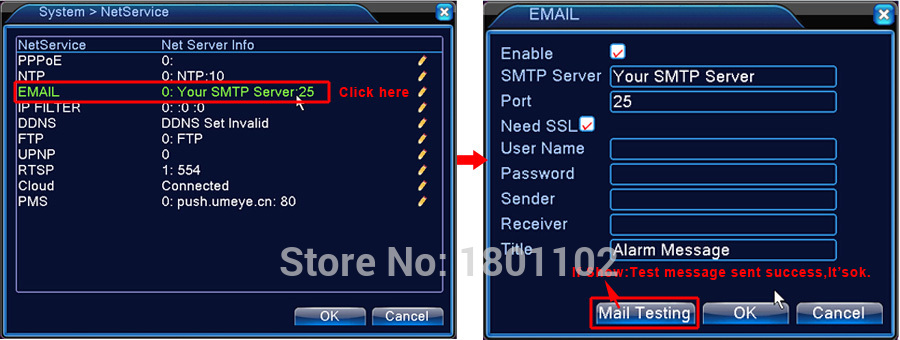

E-mail Alerts

DVR will send you mail automatically if there is any motion detected.

Mini 8CH Full D1 H.264 HDMI Security System CCTV DVR 8 Channel 720P 1080P NVR Hybrid DVR Recorder Mobile DVR RS485 PTZ Hot

Please note: SMTP Server only support these Email Box:126, 163, gmail, sina, 139, 156, qq format, And the recipient can set up 5 valid mail.

Mail Testing: Test message ent success. (It’s ok)

Mail Testing:Failed to connect to server. (It’s failure)

Mini 8CH Full D1 H.264 HDMI Security System CCTV DVR 8 Channel 720P 1080P NVR Hybrid DVR Recorder Mobile DVR RS485 PTZ Hot
