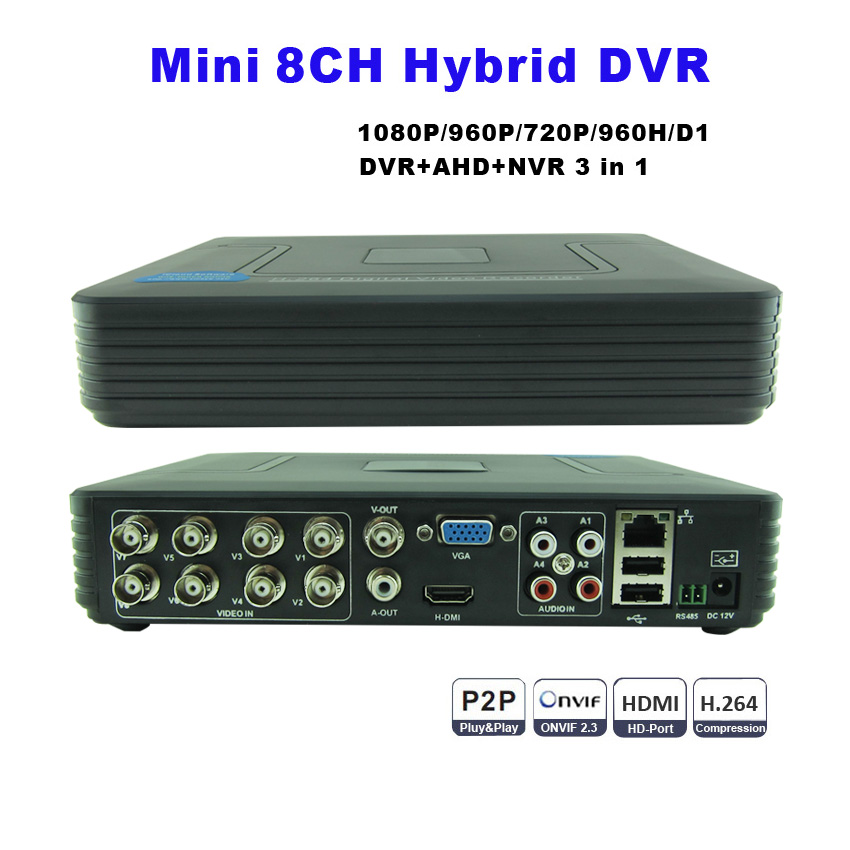

Features Of 8CH DVR

1. 8 Channel Support ONVIF

2. Support BNC,VGA,HDMI output.

3. 1)Don’t support 720P/960P/1080P AHD Camera;

    2)Support 8*(960H)Analog Camera,Non Real-time,Only 12fps/sec; or 8*D1 Analog Camera,Real-time;

    3)Support 2*D1 +1*1080P IP Camera+1*720P IP Camera Real time;

    4)Support 4*720P IP Camera, or 8*720P IP Camera;

    5)Support 4*1080P IP Camera, or 8*1080P IP Camera;

4. Video Compression: H.264

1. Video Input/Output: BNC 8CH / BNC 1CH
2. Audio Input/Output: RCA 4CH / RCA 1CH

5. Display Frame Rate:NTSC:240fps/ PAL:200fps,Recording Frame Rate:220fps / PAL:200fps

6. P2P Cloud Easy Remote View by Device Serial Number..

7.  Pentaplex Function: Live View, Video Recording, Playback, Mobile Phone View & Network Monitoring

8.  Supports Motion Detection and Email Notification

9.  Mobile monitor: Support various mobile monitoring(iPhone, Windows Mobile, BlackBerry, Symbian, Android).

10. Browsers:Support IE.Chrome.Firefox.Safari browsers.

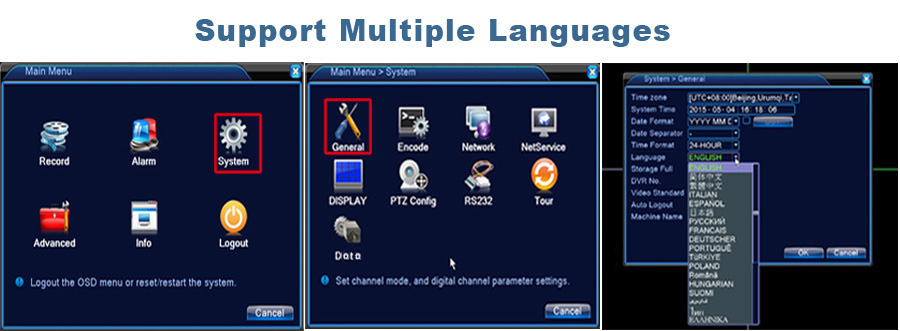

11. Multi-language OSD (27 kinds of languagess):

12. Supports remote view by 3G Mobile phone, Mobile Phone view based on Symbian, Windows OS Mobile phone, iPhone, Blackberry & Android operation system

13. Video & Audio back-up to USB 2.0, USB flash disk ,USB hard disk, USB CD/DVD-RW & Network

14. System self-recovery with recording & settings memory after power restores

15. Remote access view, recording, playback, DVR setup and video file back-up via IE

16. Support one IE browser centralized monitoring and CMS Software for multiple DVR (up to 20 DVR simultaneously)

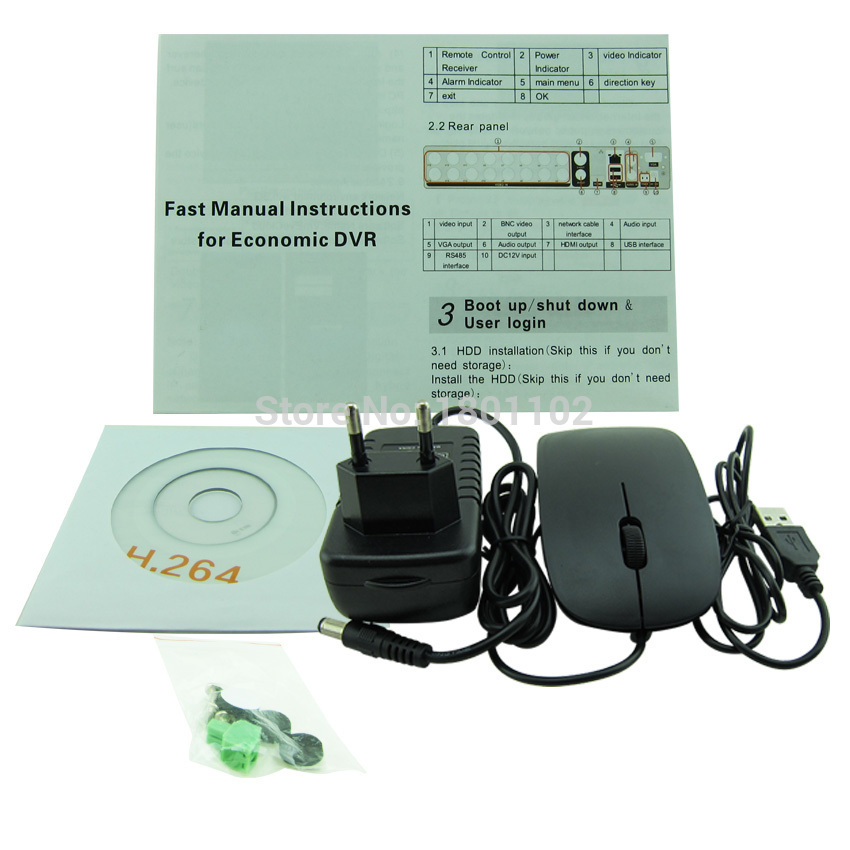

Mini Hybrid DVR x 1,

User Manual x 1,

USB Mouse x 1,

Power Plug 12v2a x 1

CD Software x 1

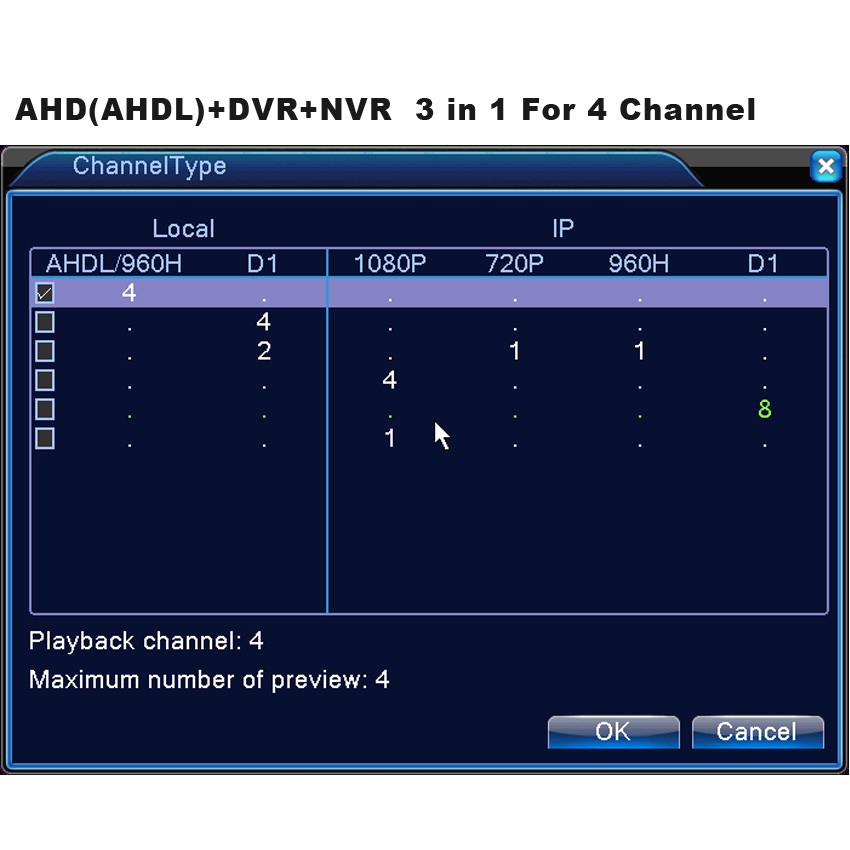

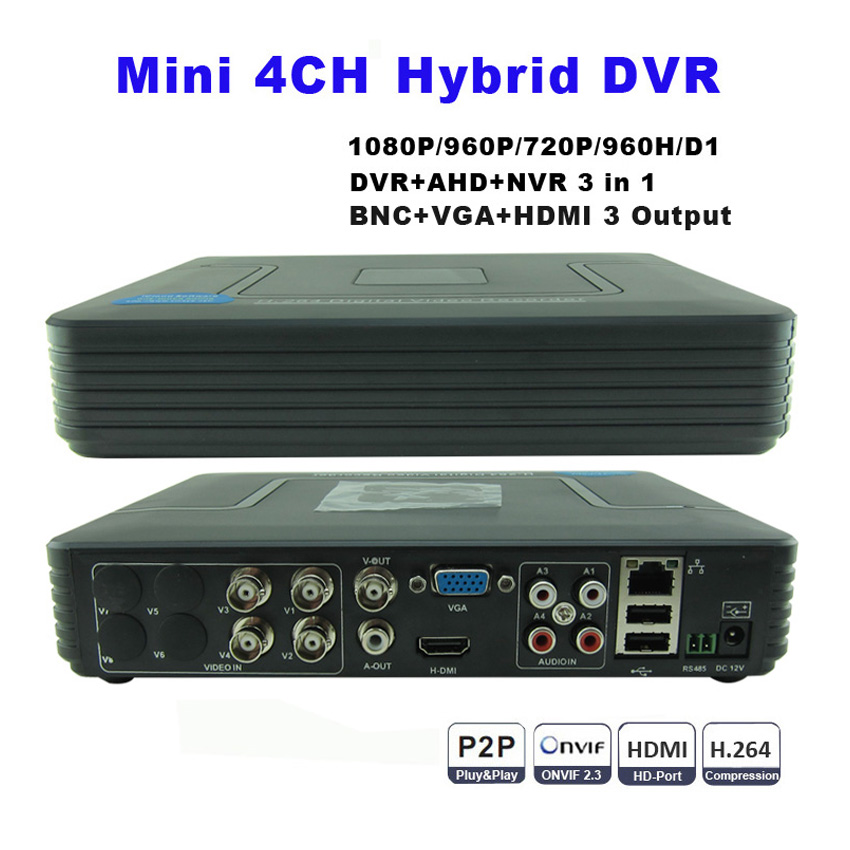

Picture for 4 Channel DVR

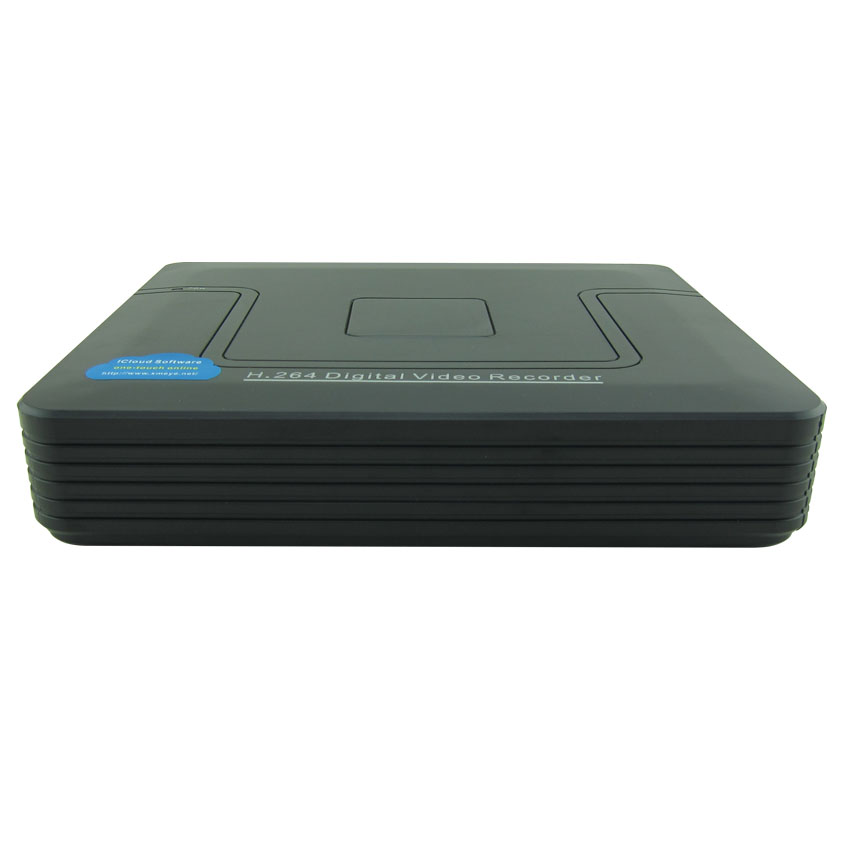

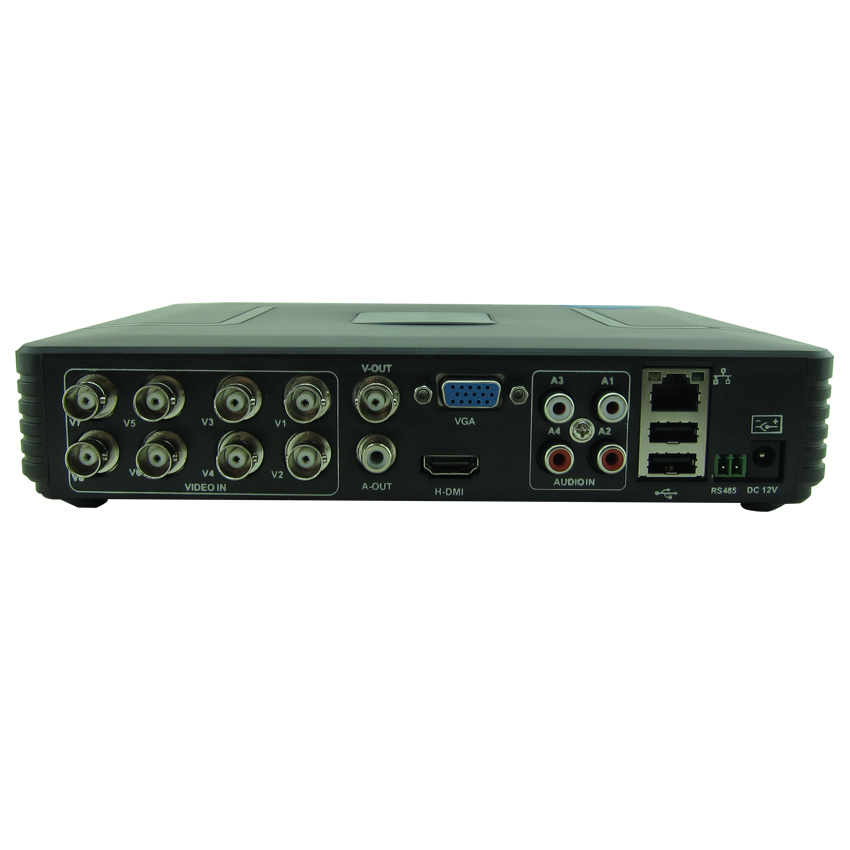

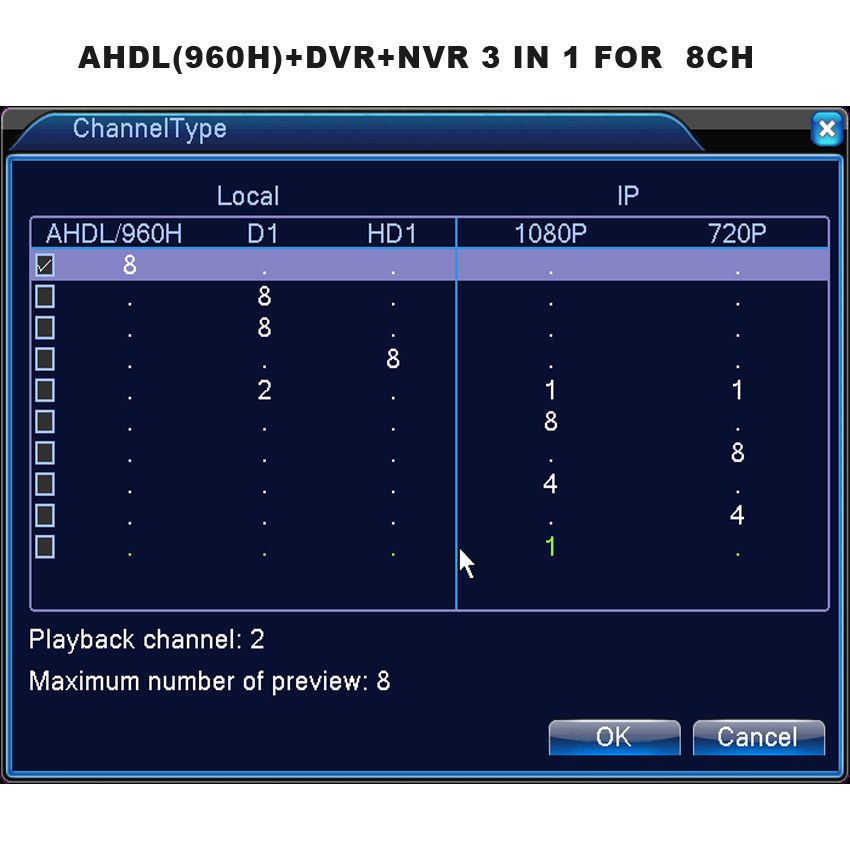

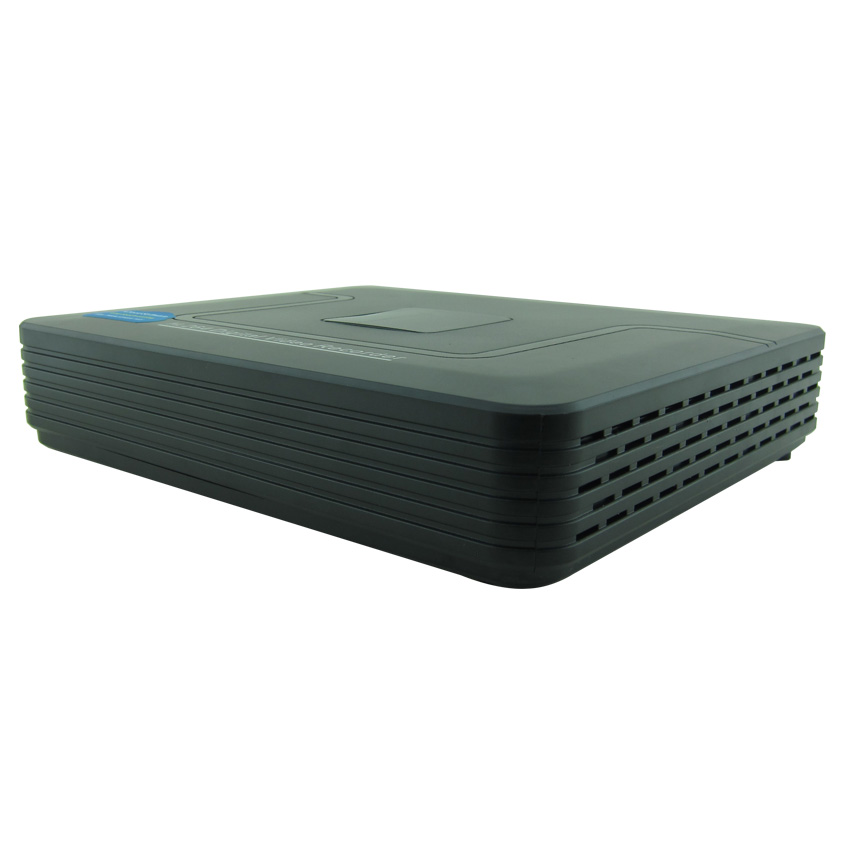

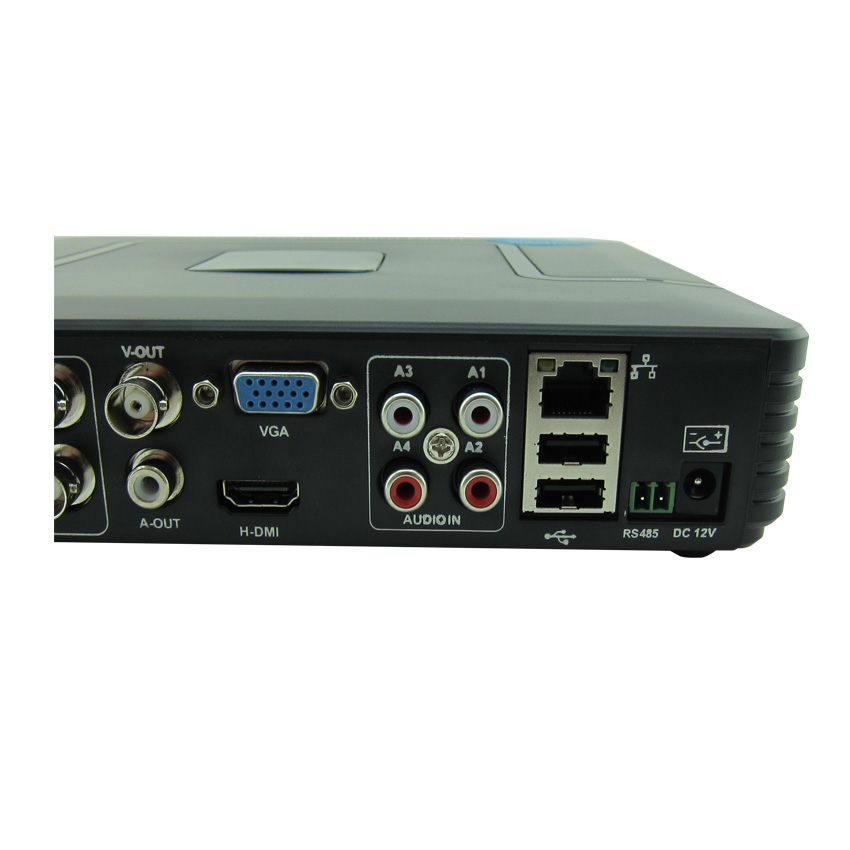

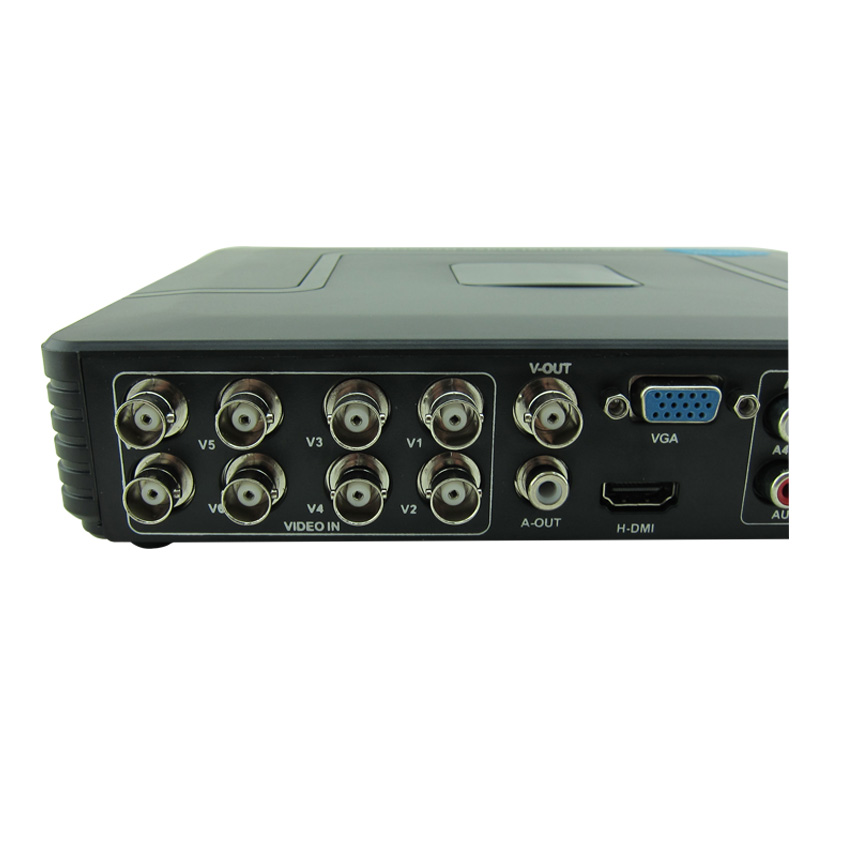

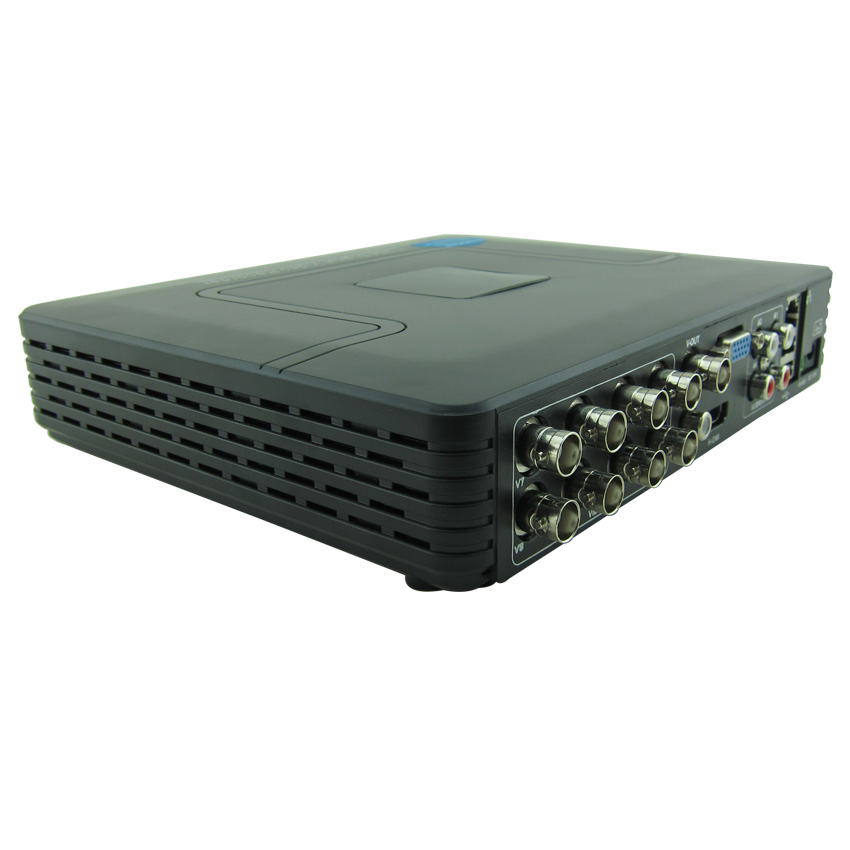

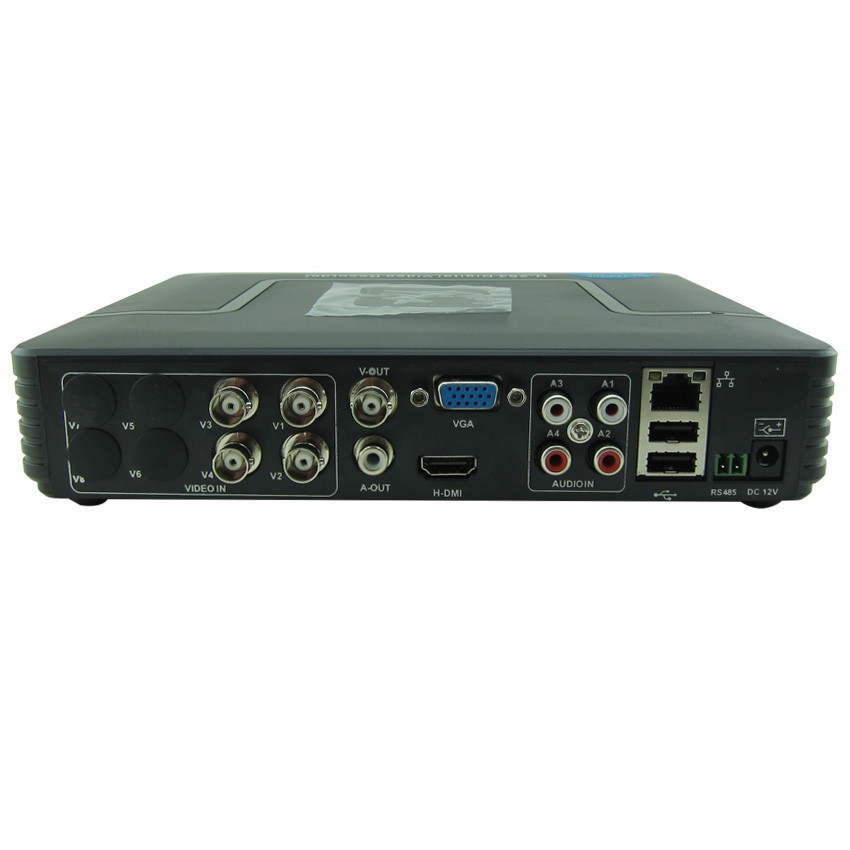

Picture for 8 Channel DVR

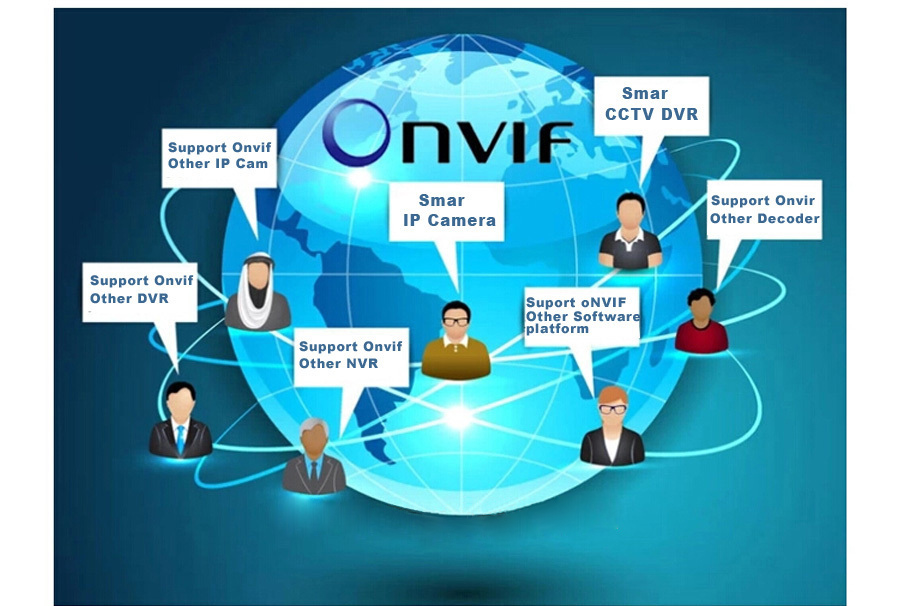

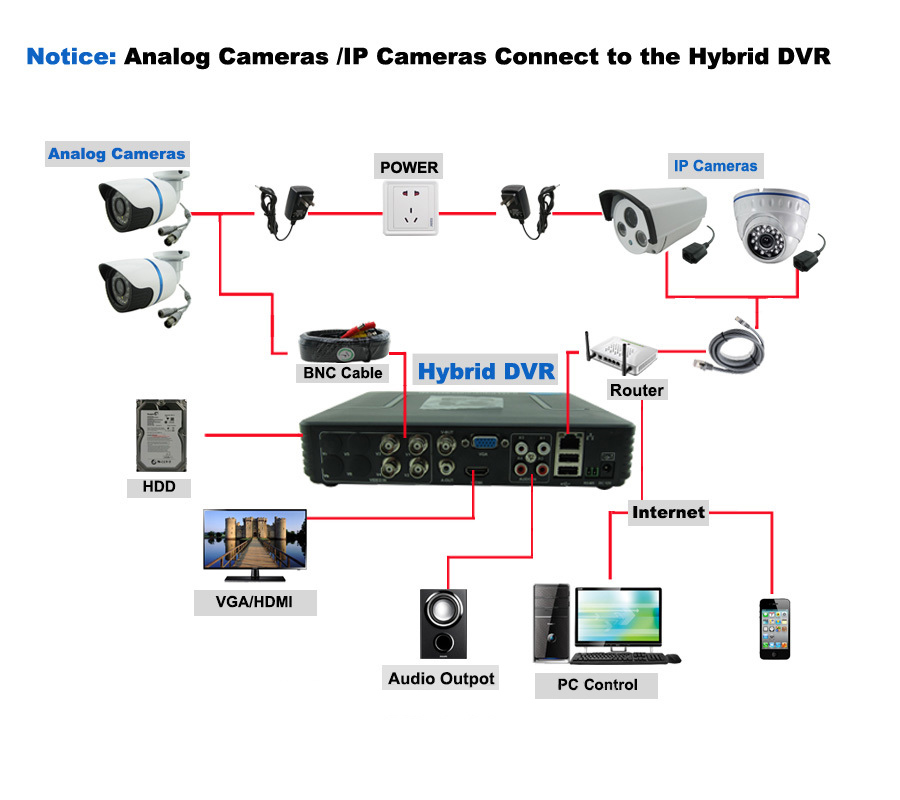

This DVR Support ONVIF protocol, It's can compatible with our own brand of the network video products, but also compatible with other brand of the network video products for Onvif, It can implement multiple devices connected to each other, mutual communication.

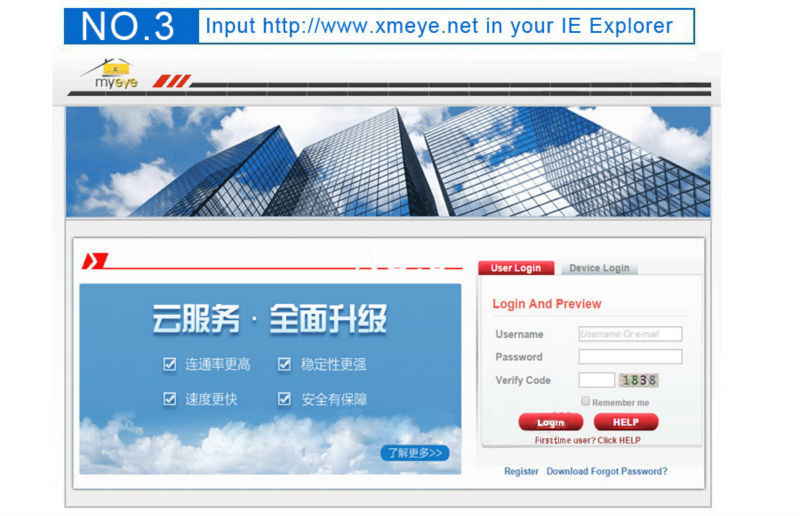

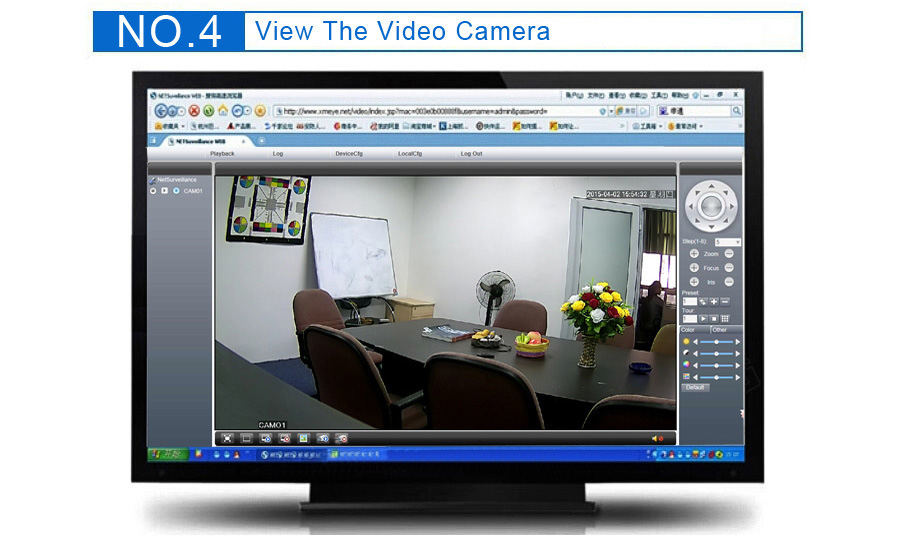

PC & Smartphone Remote View

Anytime, Anywhere...Using the latest network technology, plug and play,  you can remote view via smart phones, tablets, notebook or PC

Smartphone Surveillance

Support all kinds of Mobile phone monitoring(iPhone, Windows, Mobile, BlackBerry, Symbian, Android), But support P2P function only (Android, iPhone).

How to remote view through Mobile phone?

1.    You must be installed a APP in your mobile phone,where to find or download APP?

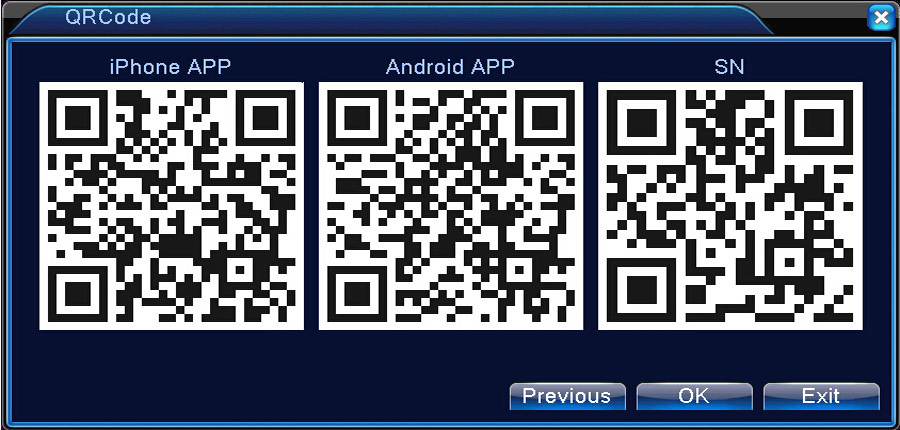

2.    Please used your mobile phone to scan the following QR code.(iPhone APP,Android APP)

Advanced Motion Detection Recording

The motion detection recording function: when motion is detected the DVR will save the footage into hard disk without missing any important events.
You can even ensure that false alarms are avoided by setting the motion detection “mask” to block areas with constant movement.

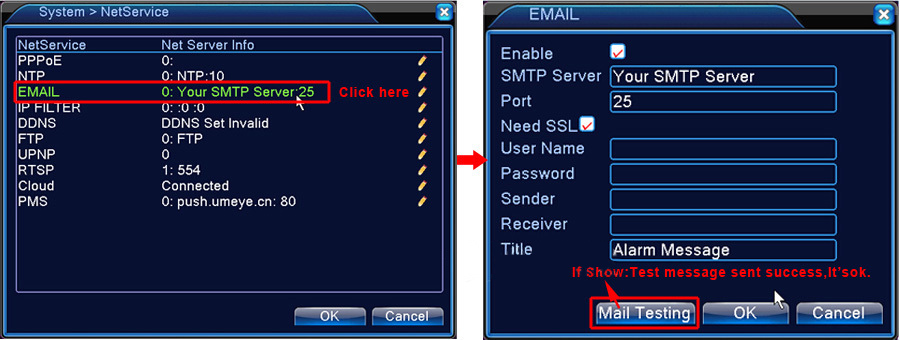

E-mail Alerts

DVR will send you mail automatically if there is any motion detected.

Please note: SMTP Server only support these Email Box:126, 163, gmail, sina, 139, 156, qq format, And the recipient can set up 5 valid mail.

Mail Testing: Test message ent success. (It’s ok)

Mail Testing:Failed to connect to server. (It’s failure)
