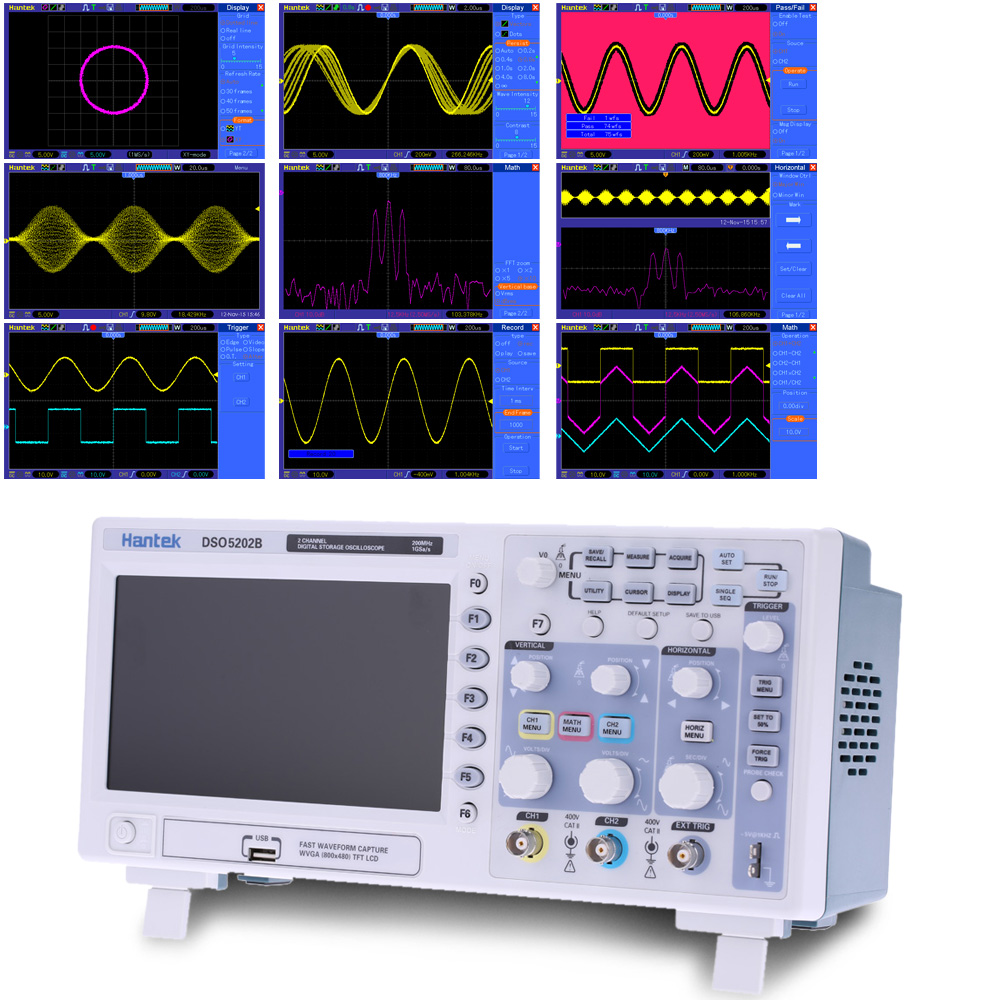

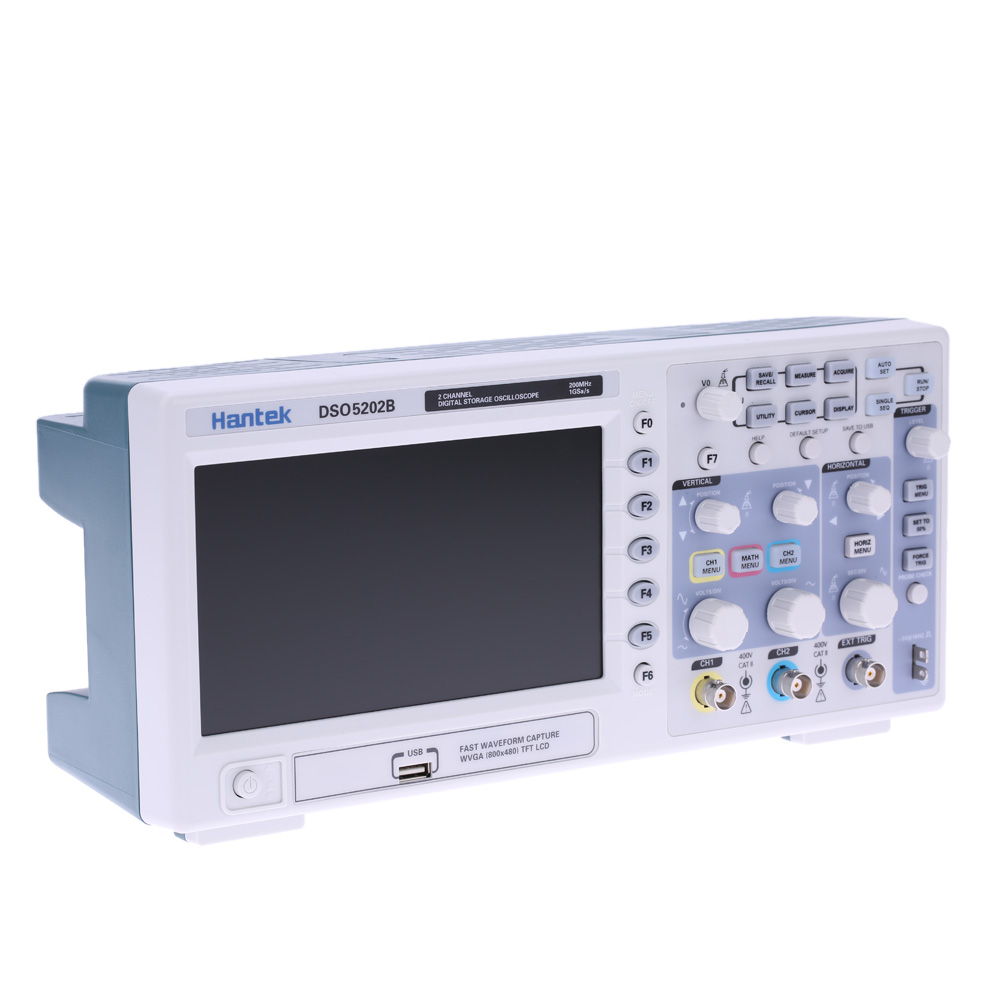

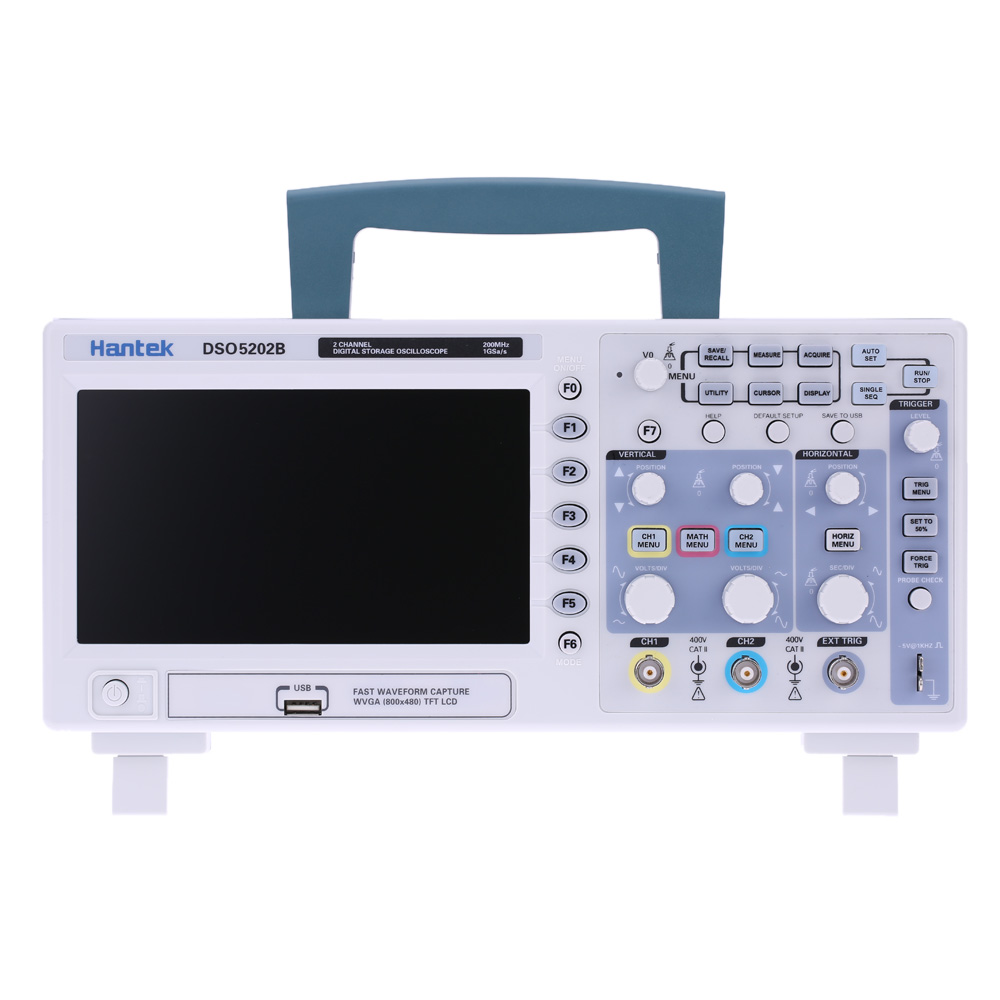

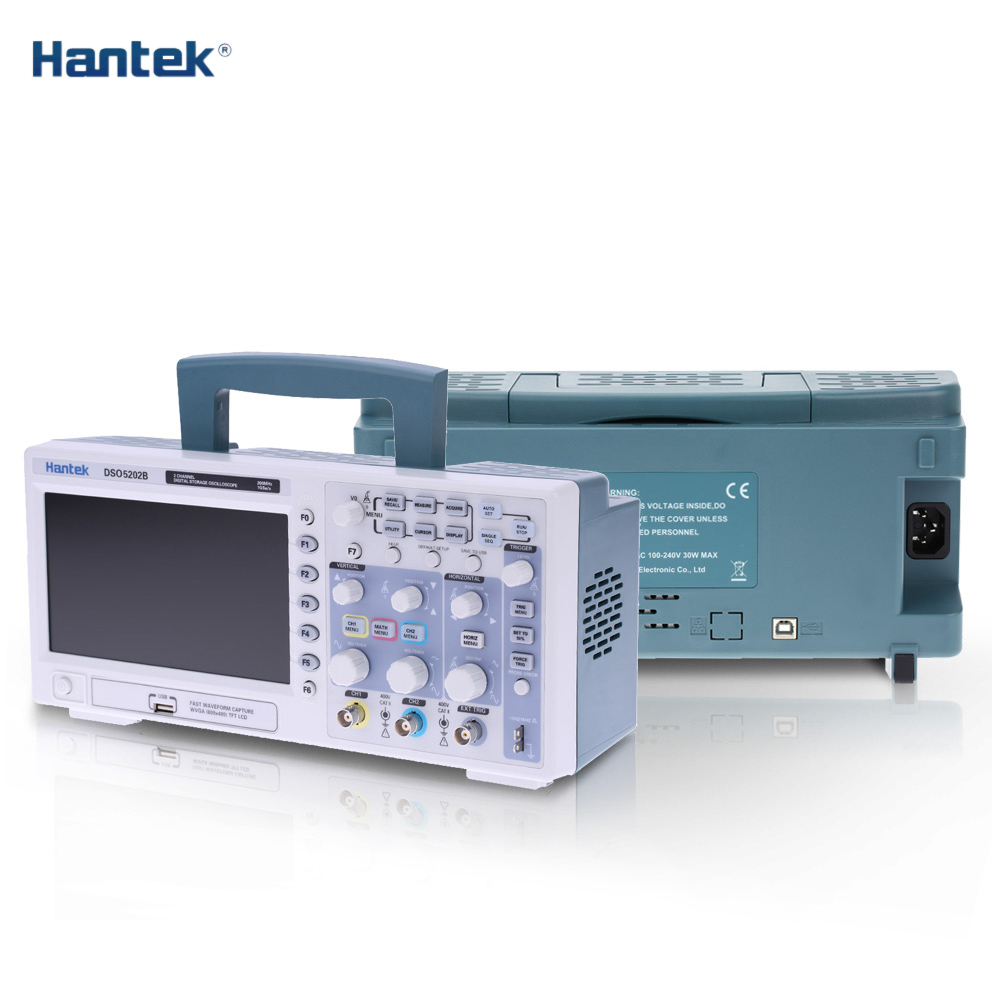

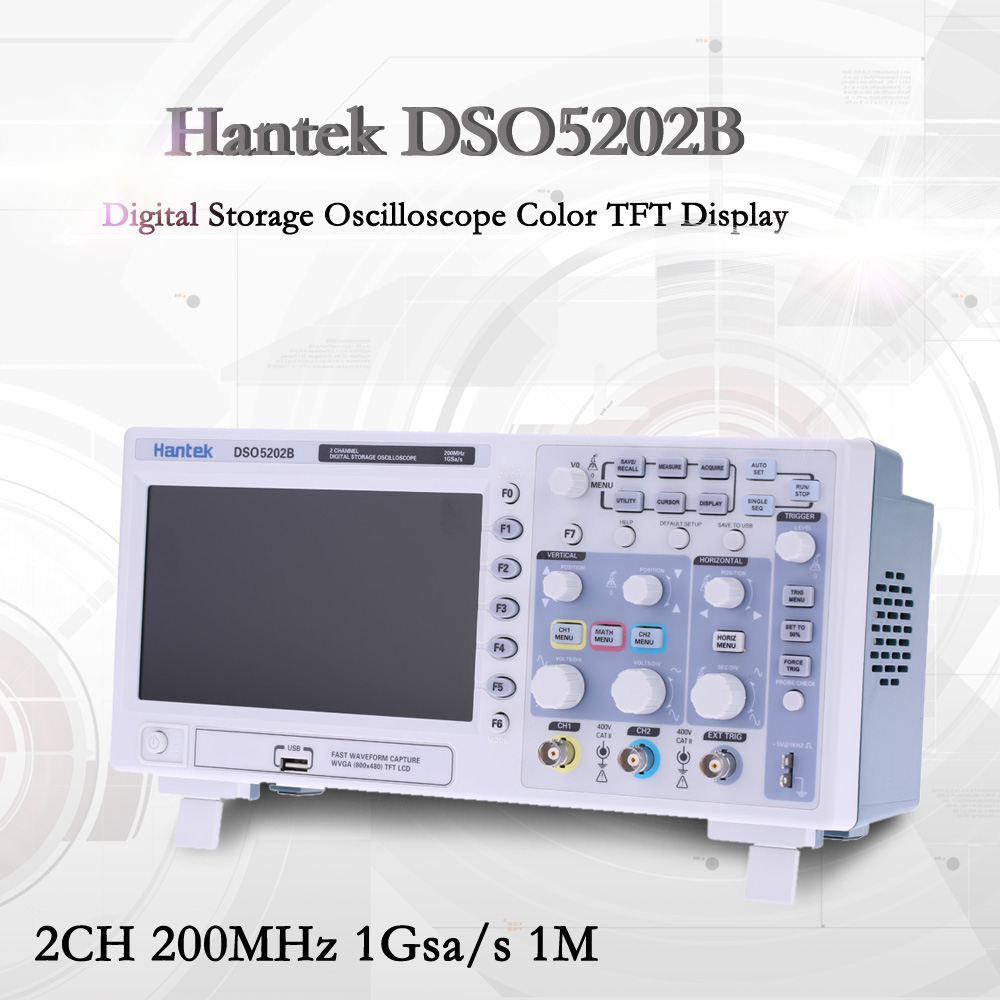

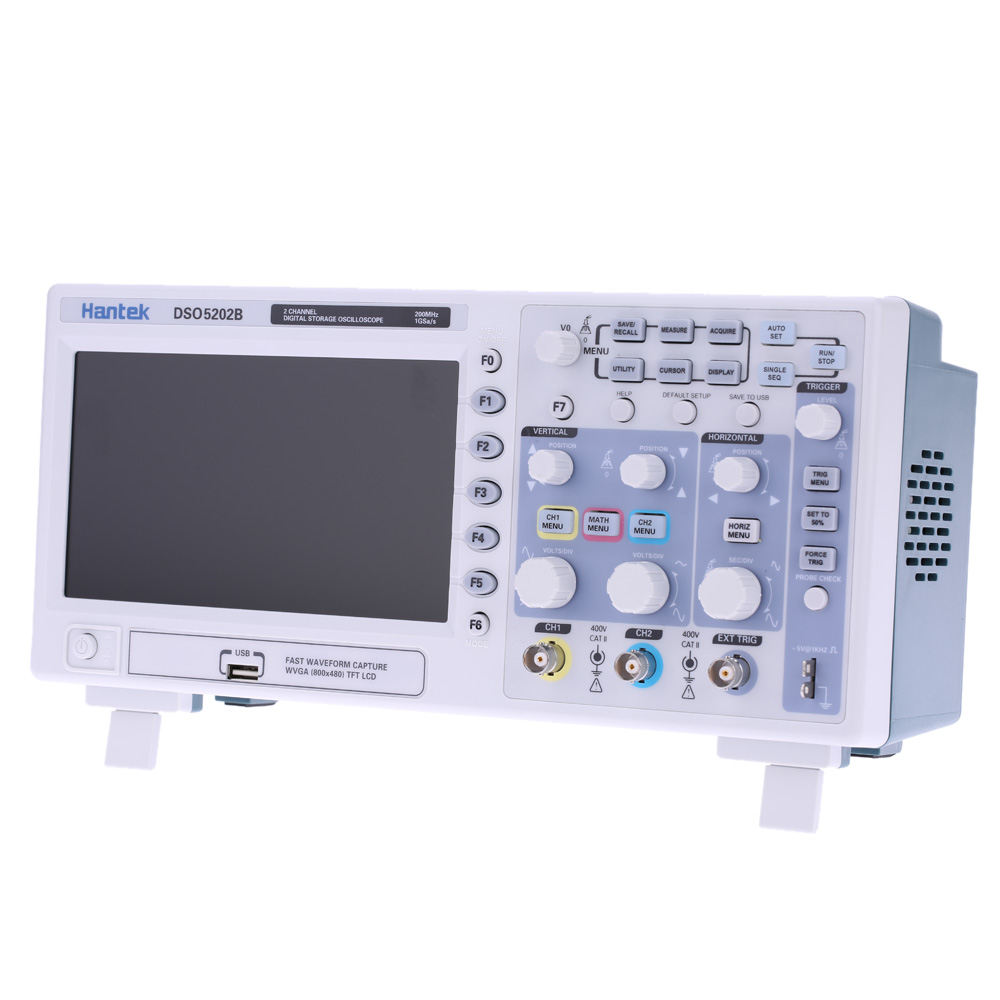

Hantek DSO5202B Professional Digital Storage Oscilloscope 2CH 200MHz 1Gsa/s 1M USB osciloscopio Color TFTDisplay diagnostic-tool



The oscilloscope can put the invisible power to the naked eye the electrical signals into visible image, convenient for people to study the changing process of various electrical phenomena. The item with ultrathin and compact design for portable use.

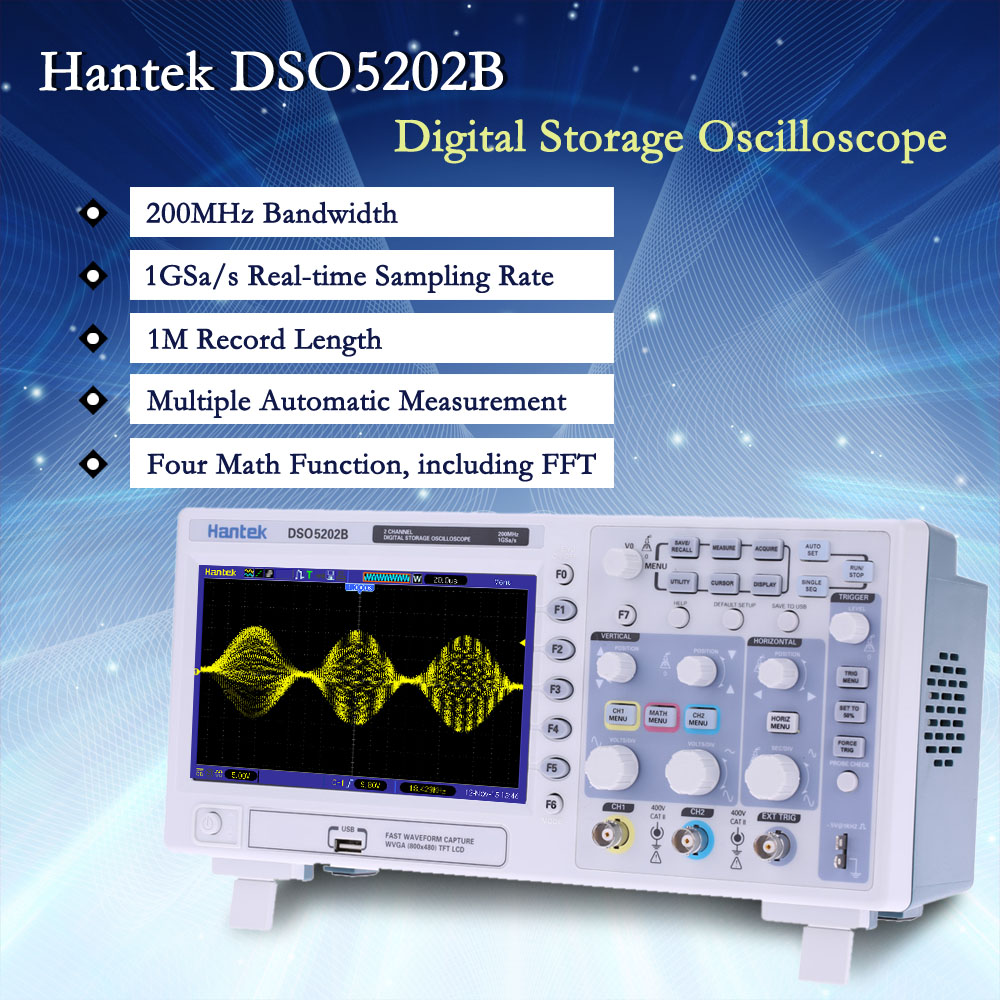

Features:
2-channel digital storage oscilloscope.
200MHz bandwidths.
Real time sampling rate up to 1GSa/s.

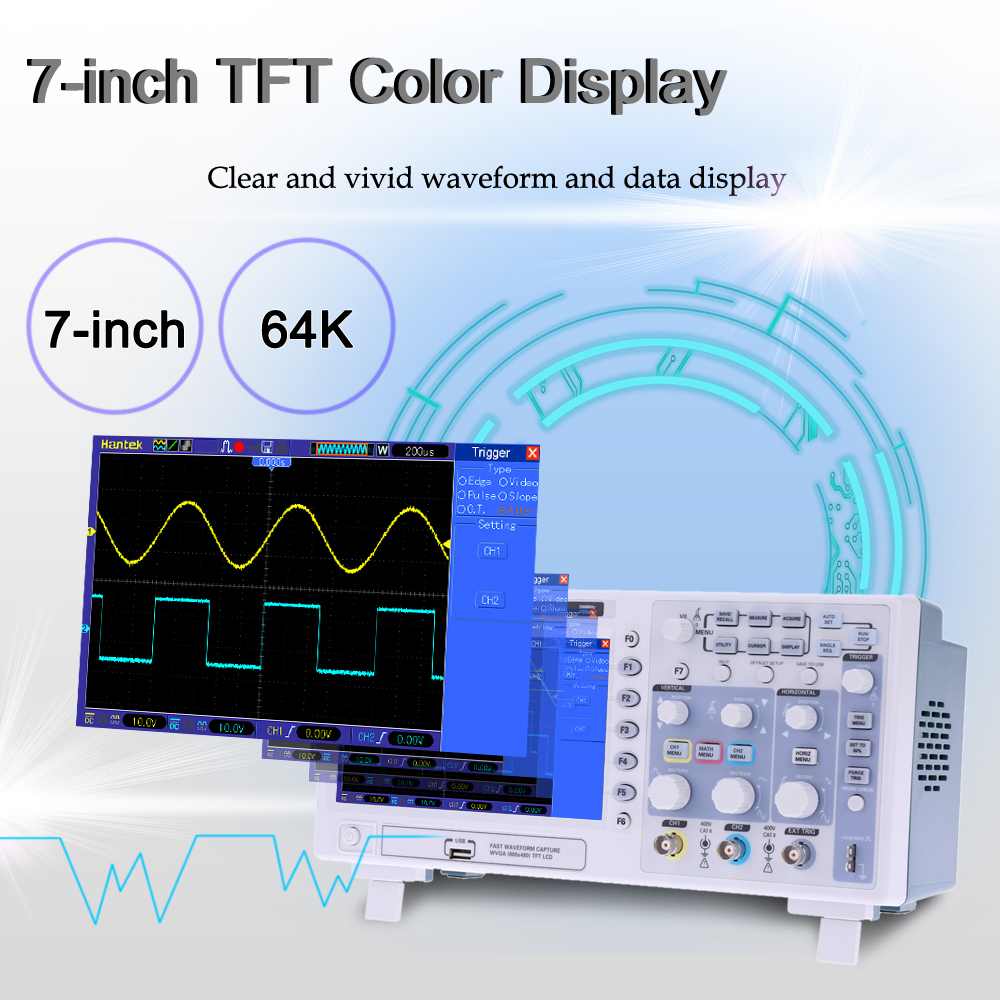

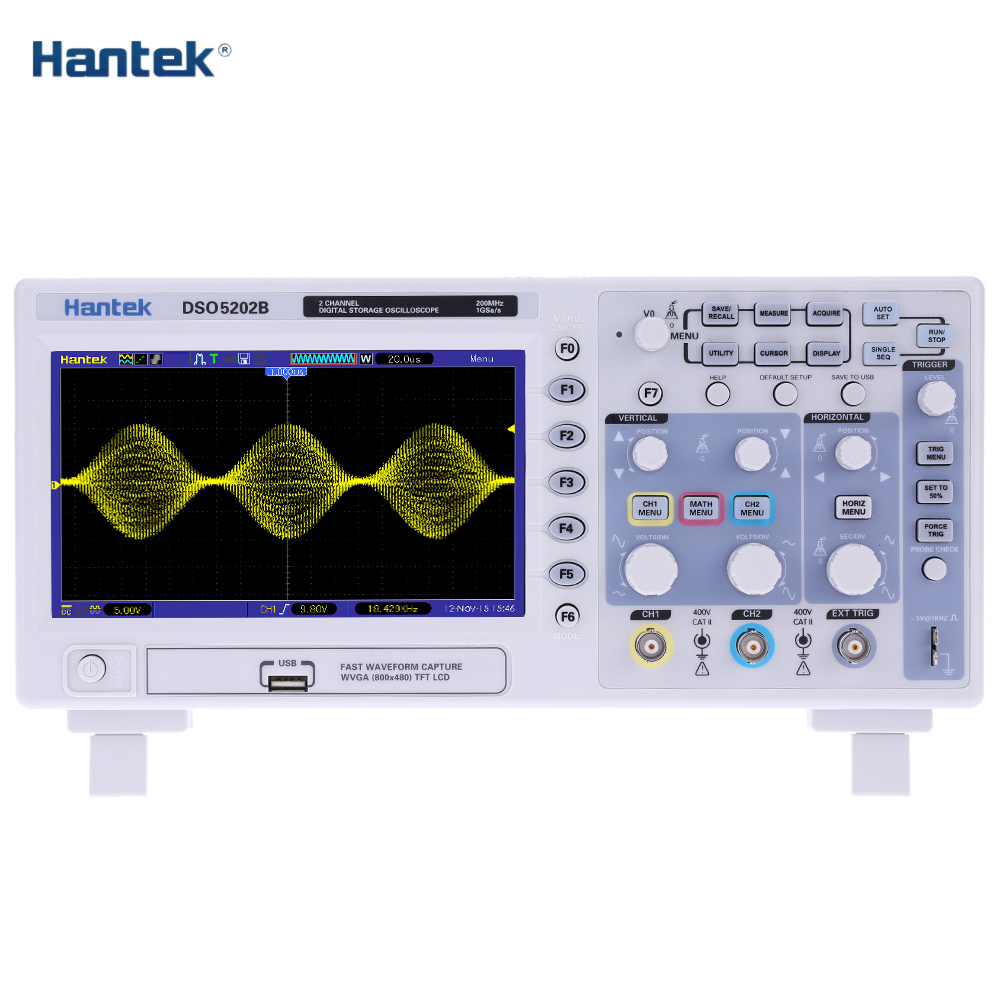

Large and clear display (7.0-inch color TFT, high resolution 800*480).
Record length up to 1M.
Trigger type: edge/pulse width/line selectable video/slop/overtime etc.

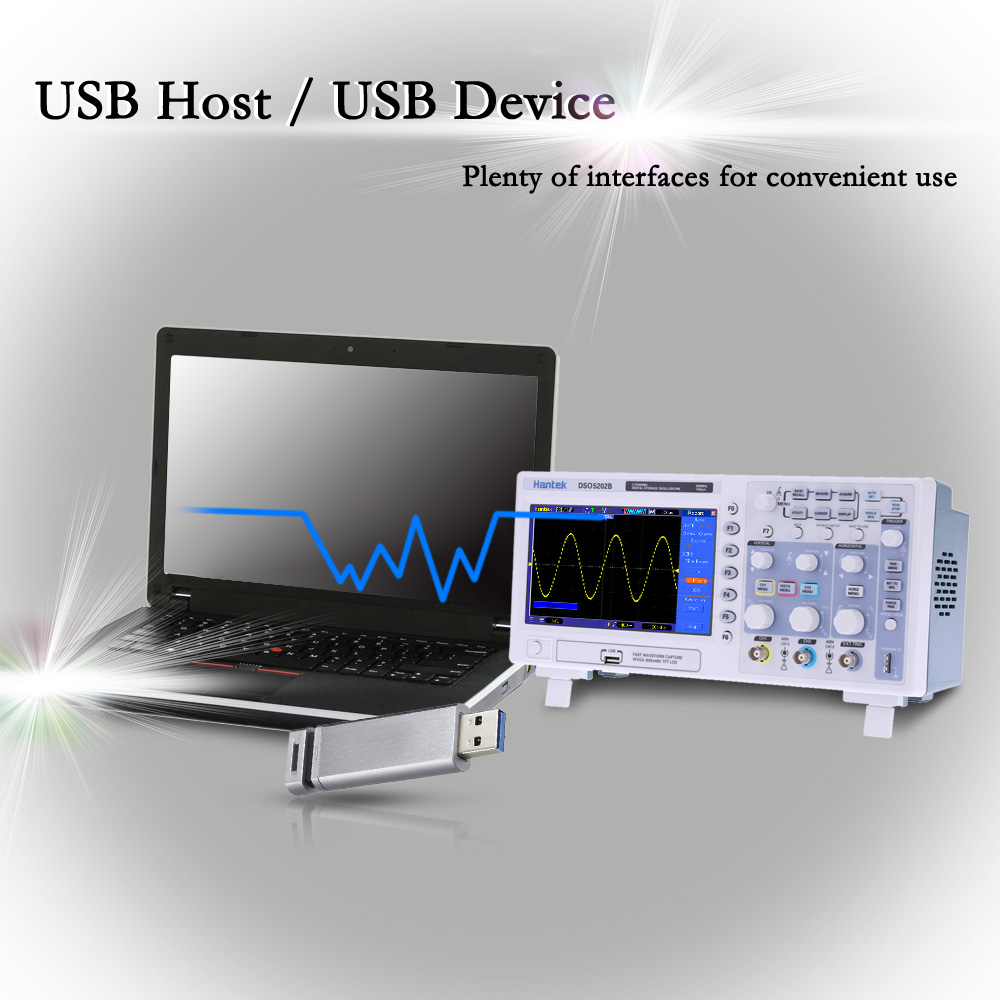

USB host and device connectivity, standard.
Multiple automatic measurements.
Four math functions, including FFT standard.
Provide software for PC real-time analysis. Specifications:

Model	DSO5202B
Acquisition
Sample Rate	Real-Time Sample: 1GS/s
Acquisition Modes
Normal	Normal data only
Peak Detect	High-frequency and random glitch capture
Average	Waveform Average, selectable 4,8,16,32,64,128
Inputs
Inputs Coupling	AC, DC, GND
Inputs Impedance	1MΩ±2% 20pF±3pF
Probe Attenuation	1X, 10X
Supported Probe Attenuation Factor	1X, 10X, 100X, 1000X
Maximum Input Voltage	CAT I and CAT II: 300VRMS (10×), Installation Category; CAT III: 150VRMS (1×); Installation Category II: derate at 20dB/decade above 100kHz to 13V peak AC at 3MHz* and above. For non-sinusoidal waveforms, peak value must be less than 450V. Excursion above 300V should be of less than 100ms duration. RMS signal level including all DC components removed through AC coupling must be limited to 300V. If these values are exceeded, damage to the oscilloscope may occur.
Horizontal System
Sample Rate Range	500MS/s--1GS/s
Waveform Interpolation	(sin x)/x
Record Length	1M
SEC/DIV Range	2ns/div to 40s/div
Sample Rate and Delay Time Accuracy	±50ppm(at over any ≥1ms time interval)
Position Range	2ns/div to 10ns/div; (-4div x s/div) to 20ms;
Delta Time Measurement Accuracy(Full Bandwidth)	Single-shot, Normal mode:± (1 sample interval +100ppm × reading + 0.6ns); >16 averages:± (1 sample interval + 100ppm × reading + 0.4ns); Sample interval = s/div ÷ 200
Vertical System
Vertical Resolution	8-bit resolution, all channel sampled simultaneously
Position Range	2mV/div to 10V/div
Bandwidth	200MHz
Rise Time at BNC(typical)	1.8ns
Analog Bandwidth in Normal and Average modes at BNC or with probe, DC Coupled	2mV/div to 20mV/div, ±400mV; 50mV/div to 200mV/div, ±2V 500mV/div to 2V/div, ±40V; 5V/div, ±50V
Math	+, -, *, /, FFT
FFT	for Windows:Hanning,Flatop, Rectamgular,Bartlett,Blackman; 1024 sample point
Bandwidth Limit	20MHz
Low Frequency Response(-3db)	≤10Hz at BNC
DC Gain Accuracy	±3% for Normal or Average acquisition mode, 5V/div to 10mV/div; ±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div
DC Measurement Accuracy, Average Acquisition Mode	When vertical displacement is zero, and N ≥16:± (3% × reading + 0.1div + 1mV) only 10mV/div or greater is selected; When vertical displacement is not zero, and N≥16: ± [3% × (reading + vertical position) + 1% of vertical position + 0.2div]; Add 2mV for settings from 2mV/div to 200mV/div; add 50mV for settings from 200mV/div to 5V/div
Volts Measurement Repeatability, Average Acquisition Mode	Delta volts between any two averages of ≥16 waveforms acquired under same setup and ambient conditions
Trigger System
Trigger Types	Edge, Video, Pulse, Slope, Over time, Alternative
Trigger Source	CH1, CH2, EXT, EXT/5, AC Line
Trigger Modes	Auto, Normal, Single
Coupling Type	DC, AC, Noise Reject, HF Reject, LF Reject
Trigger Sensitivity(Edge Trigger Type)	DC(CH1,CH2): 1div from DC to 10MHz;1.5div from 10MHz to 100MHz; 2div from 100MHz to Full; DC(EXT): 200mV from DC to 100MHz; 350mV from 100MHz to 200MHz; DC(EXT/5): 1V from DC to 100MHz;1.75V from 100MHz to 200MHz; AC: Attenuates signals below 10Hz; HF Reject: Attenuates signals above 80kHz; LF Reject: Same as the DC-coupled limits for frequencies above 150kHz; attenuates signals below 150kHz
Trigger Level Range	CH1/CH2: ±8 divisions from center of screen; EXT: ±1.2V; EXT/5:±6V
Trigger Level Accuracy(typical) Accuracy is for signals having rise and fall times >=20ns	CH1/CH2: 0.2div × volts/div within ±4 divisions from center of screen; EXT: ± (6% of setting + 40mV); EXT/5: ± (6% of setting + 200mV);
Set Level to 50%(typical)	Operates with input signals ≥50Hz
Video Trigger
Video Trigger Type	CH1, CH2: Peak-to-peak amplitude of 2 divisions; EXT: 400mV; EXT/5: 2V
Signal Formats and Field Rates, Video Trigger Type	Supports NTSC, PAL and SECAM broadcast systems for any field or any line
Holdoff Range	100ns ~ 10s
Pulse Width Trigger
Pulse Width Trigger Mode	Trigger when (< , >, = , or ≠); Positive pulse or Negative pulse
Pulse Width Trigger Point	Equal: The oscilloscope triggers when the trailing edge of the pulse crosses the trigger level. Not Equal: If the pulse is narrower than the specified width, the trigger point is the trailing edge. Otherwise, the oscilloscope triggers when a pulse continues longer than the time specified as the Pulse Width. Less than: The trigger point is the trailing edge. Greater than (also called overtime trigger): The oscilloscope triggers when a pulse continues longer than the time specified as the Pulse Width
Pulse Width Range	20ns ~ 10s
Slope Trigger
Slope Trigger Mode	Trigger when (< , > , = , or ≠ ); Positive slope or Negative slope
Slope Trigger Point	Equal: The oscilloscope triggers when the waveform slope is equal to the set slope. Not Equal: The oscilloscope triggers when the waveform slope is not equal to the set slope. Less than: The oscilloscope triggers when the waveform slope is less than the set slope. Greater than: The oscilloscope triggers when the waveform slope is greater than the set slope.
Time Range	20ns ~ 10s
Overtime Trigger
Over Time Mode	Rising edge or Falling edge
Time Range	20ns ~ 10s
Alternative Trigger
Trigger on CH1	Internal Trigger: Edge, Pulse Width, Video, Slope
Trigger on CH2	Internal Trigger: Edge, Pulse Width, Video, Slope
Trigger Frequency Counter
Readout Resolution	6 digits
Accuracy (typical)	±30ppm (including all frequency reference errors and ±1 count errors)
Frequency Range	AC coupled, from 4Hz minimum to rated bandwidth
Signal Source	Pulse Width or Edge Trigger modes: all available trigger sources The Frequency Counter measures trigger source at all times, including when the oscilloscope acquisition pauses due to changes in the run status, or acquisition of a single shot event has completed. Pulse Width Trigger mode: The oscilloscope counts pulses of significant magnitude inside the 1s measurement window that qualify as triggerable events, such as narrow pulses in a PWM pulse train if set to < mode and the width is set to a relatively small time. Edge Trigger mode: The oscilloscope counts all edges of sufficient magnitude and correct polarity. Video Trigger mode: The Frequency Counter does not work.
Measurement
Cursor Measurement	Voltage difference between cursors: V Time difference between cursors: T Reciprocal of T in Hertz (1/ΔT)
Auto Measurement	Frequency, Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, FOVShoot, RPREShoot, BWIDTH, FRF, FFR, LRR, LRF, LFR, LFF
Display
Display Type	7 inch 64K color TFT (diagonal liquid crystal)
Display Resolution	800 horizontal by 480 vertical pixels
Display Contrast	Adjustable (16 gears) with the progress bar
Probe Compensator Output
Output Voltage (typical)	About 5Vpp into ≥1MΩ load
Frequency(typical)	1kHz
Power Supply
Supply Voltage	100-120VACRMS(±10%), 45Hz to 440Hz, CAT2 120-240VACRMS(±10%), 45Hz to 66Hz, CAT2
Power Consumption	<30W
Fuse	2A, T rating, 250V
Environmental
Temperature	Operating: 32 Fahrenheit to 122 Fahrenheit (0 Degrees to 50 Degrees); Non-operating: -40 Fahrenheit to 159.8 Fahrenheit (-40 Degrees to +71Degrees)
Cooling Method	Convection
Humidity	+104 Fahrenheit or below (+40Degrees or below): ≤90% relative humidity; 106 Fahrenheit to 122 Fahrenheit (+41 Degrees to 50 Degrees): ≤60% relative humidity
Altitude	Operating: Below 3,000m (10,000 feet); Non-operaring: Below 15,000m(50,000 feet)

Material: ABS

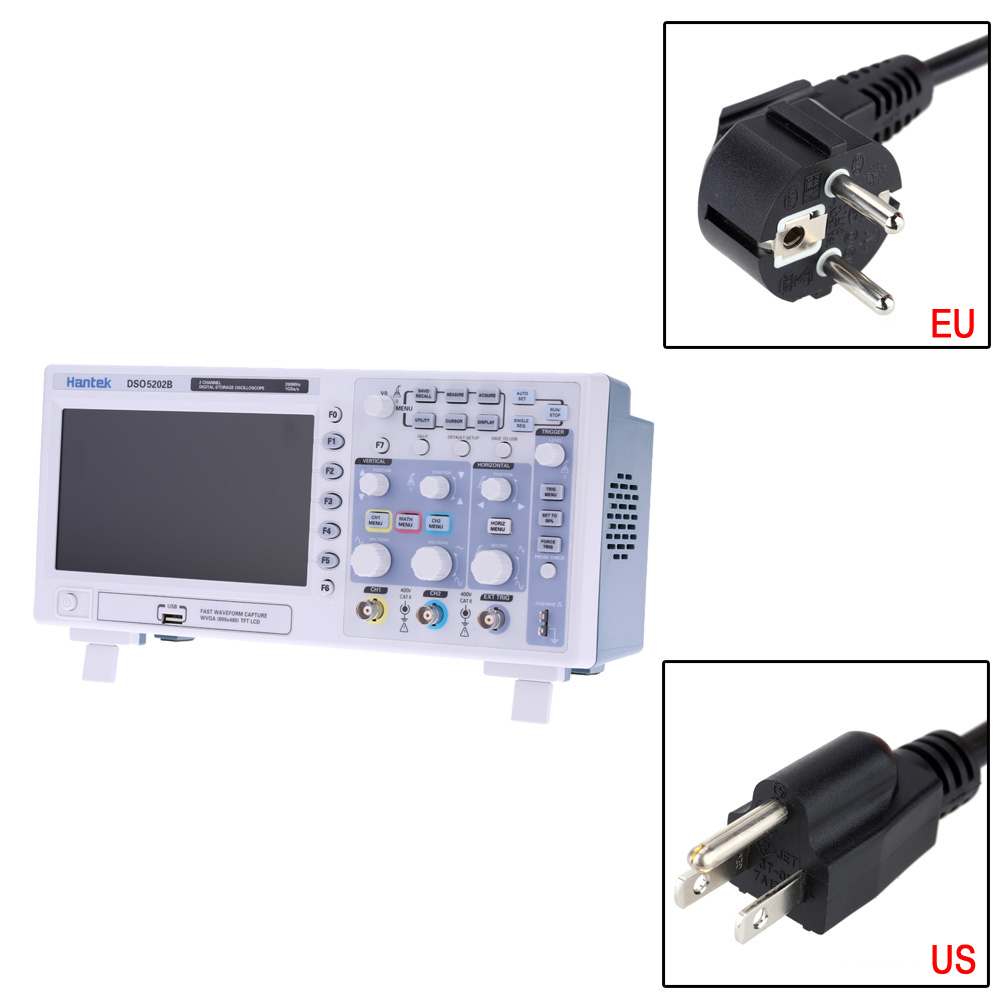

Plug Type: US / EU(optional)
Power Supply: AC230V(EU) / AC110V(US)
Oscilloscope Probe Model: PP-200

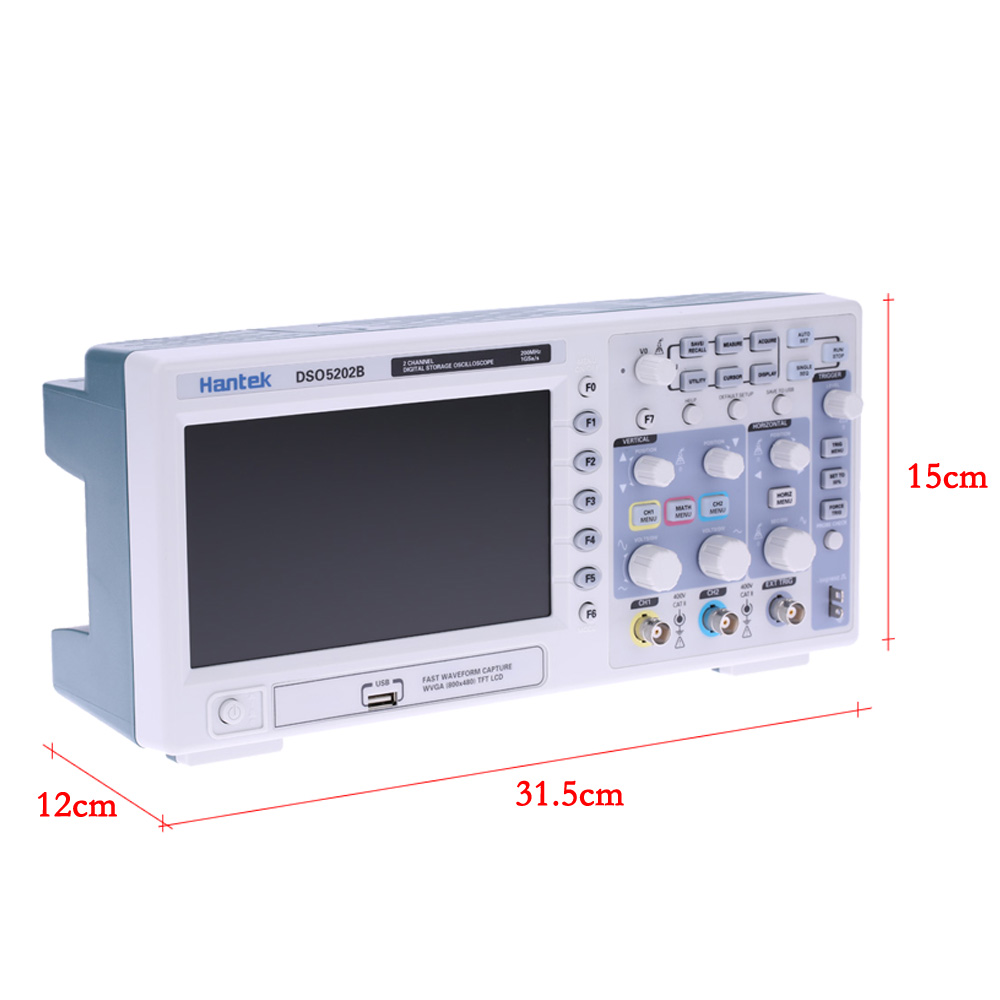

Item Size: Approx.31.5 * 12 * 15cm / 12.4 * 4.72 * 5.91in
Item Weight: 2.11kg / 4.65lb
Package Size: Approx.38 * 19.5 * 23.5cm / 14.96 * 7.68 * 9.25in

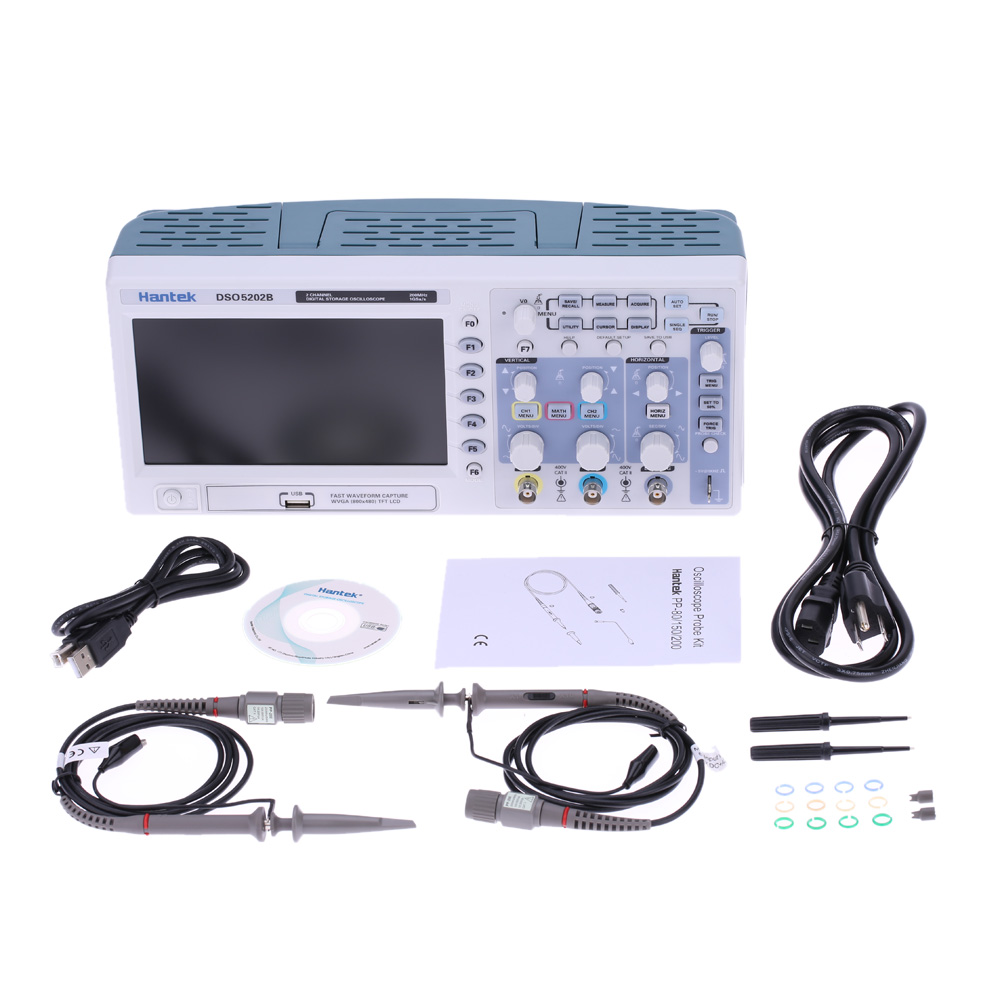

Package Weight: 2.99kg / 6.59lb Package List:
1 * Digital Storage Oscilloscope
2 * Oscilloscope Probes(with accessories)
1 * USB Cable
1 * Power Line
1 * Data CD
