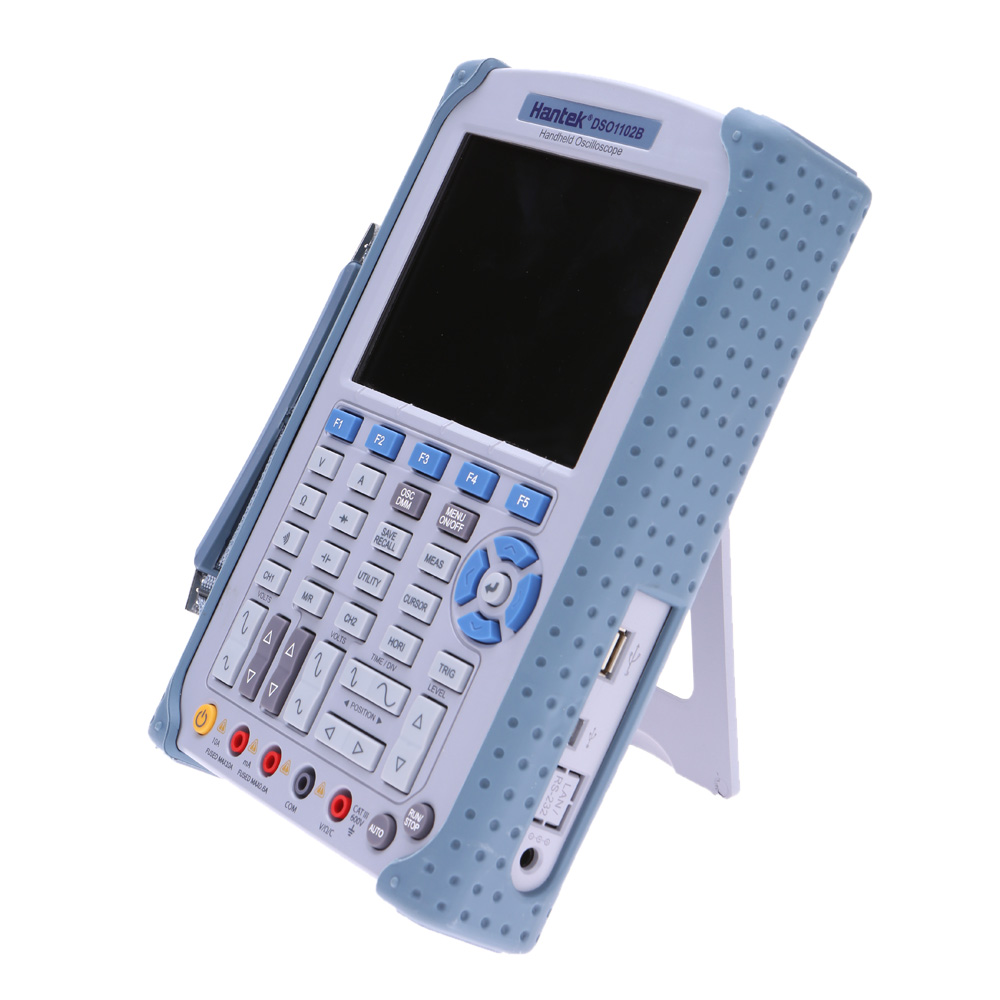

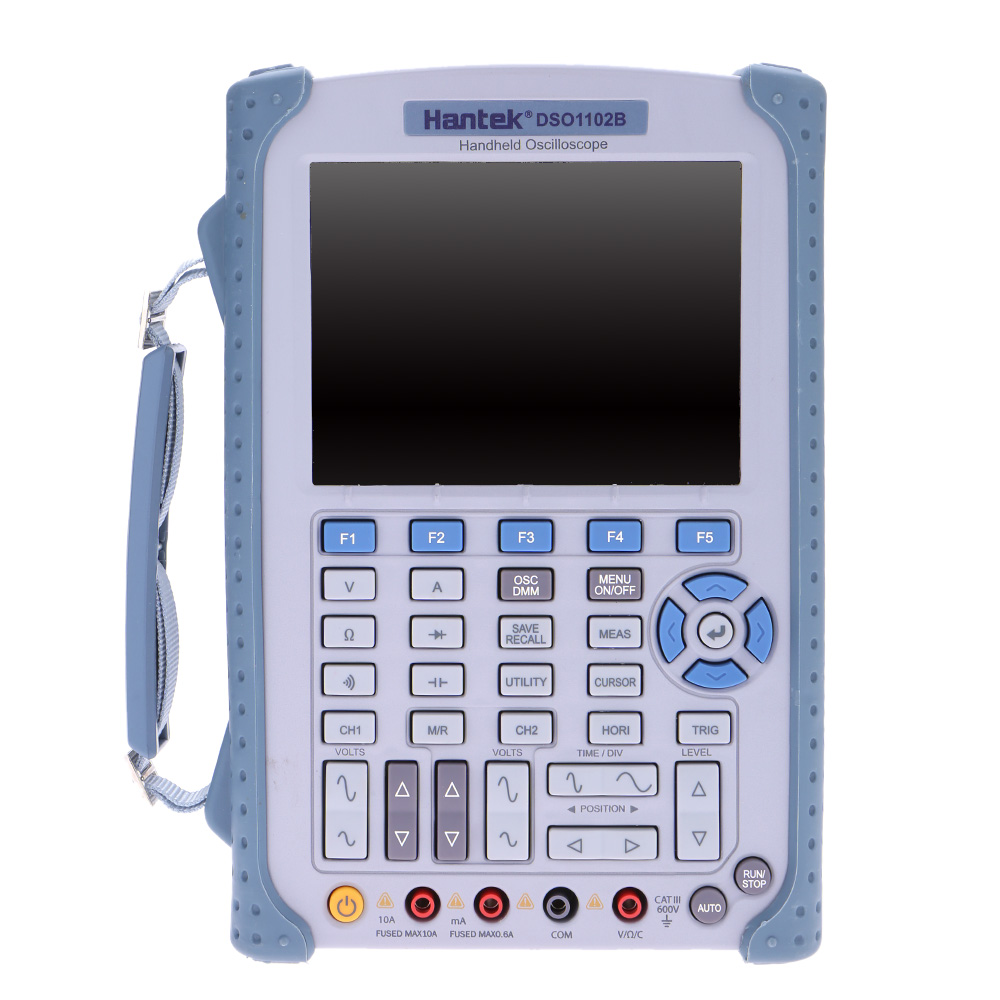

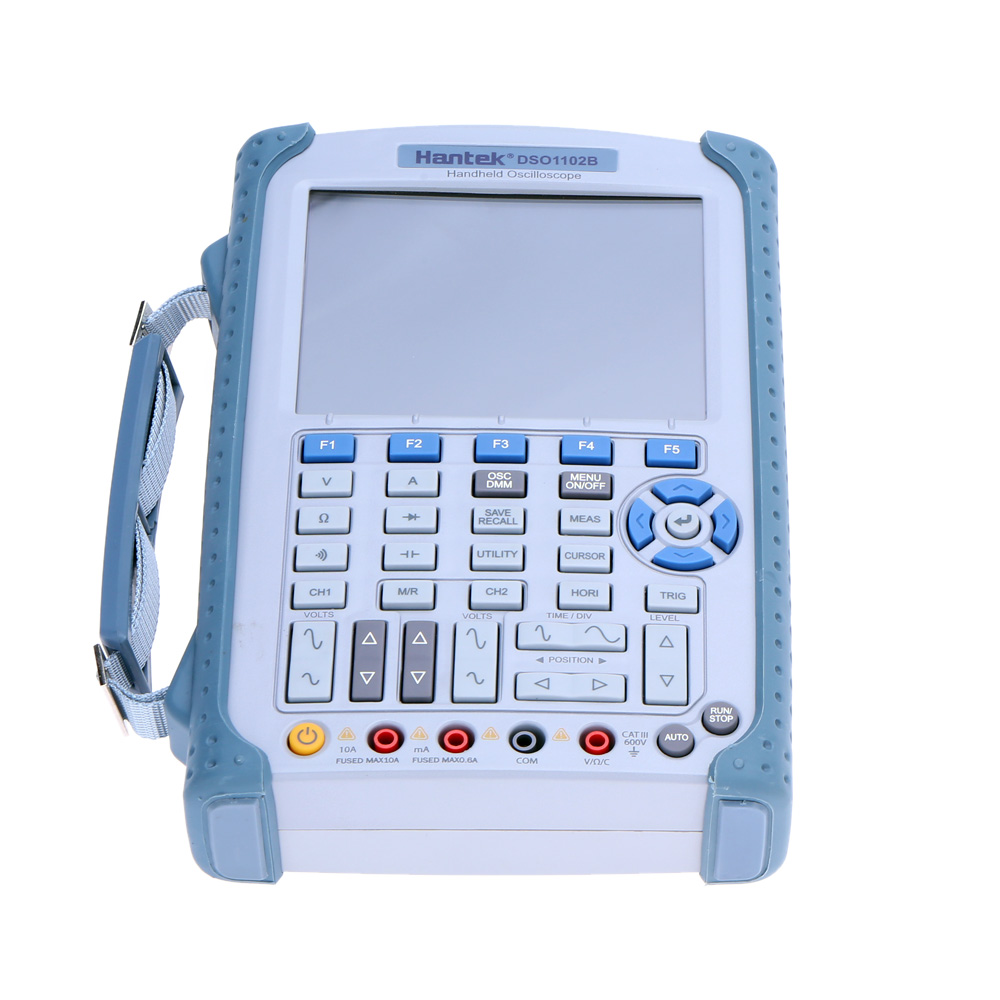

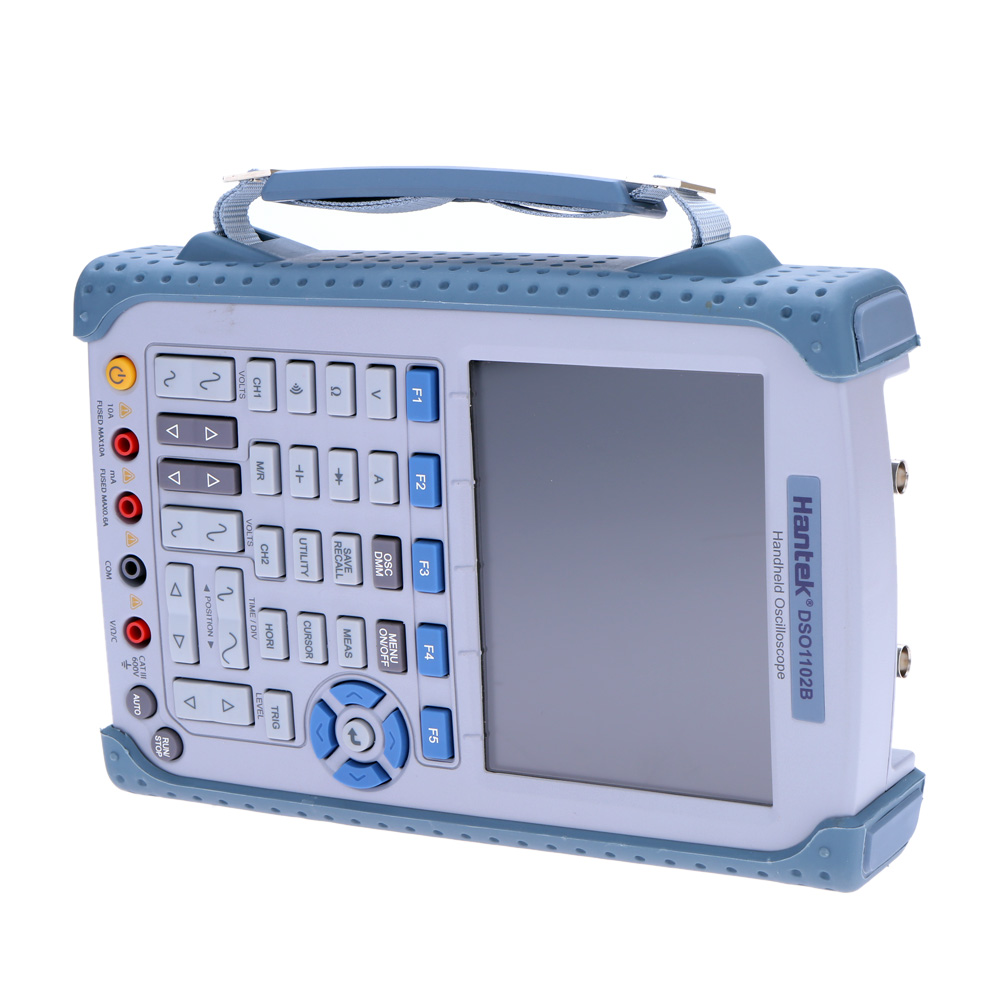

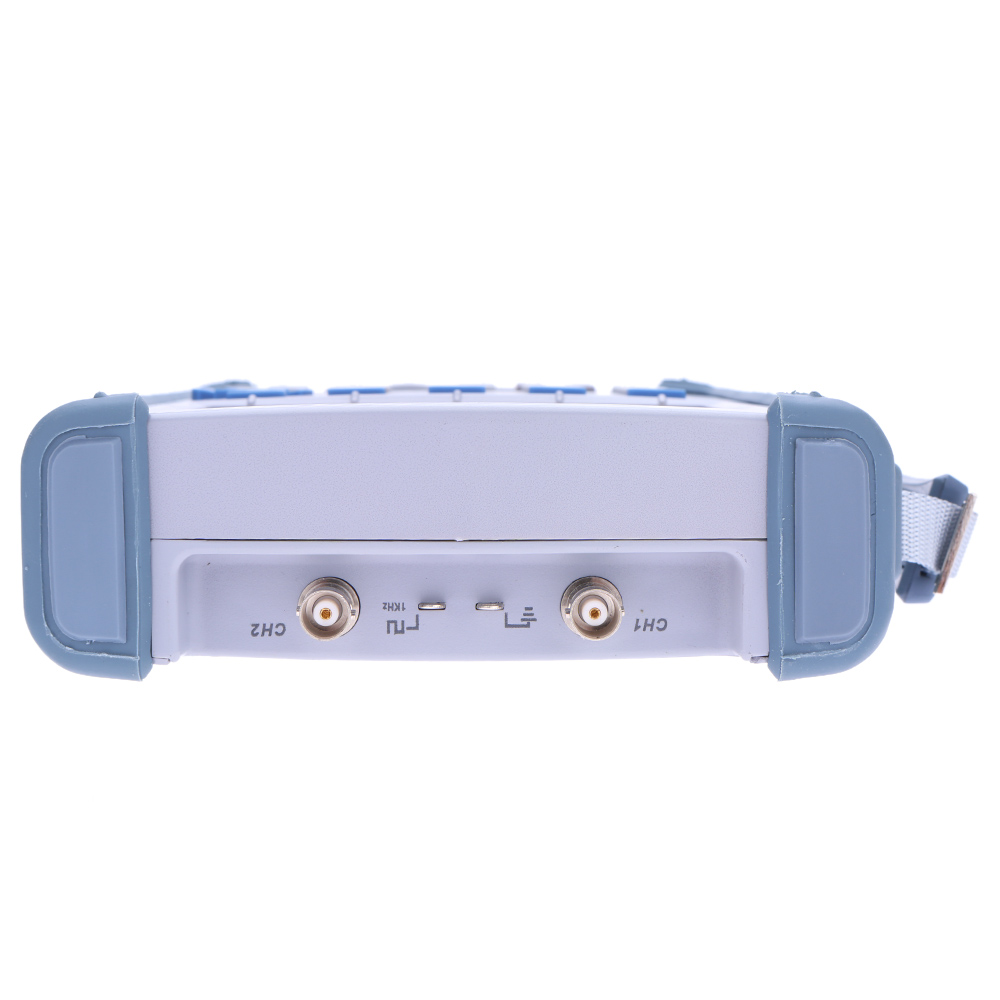

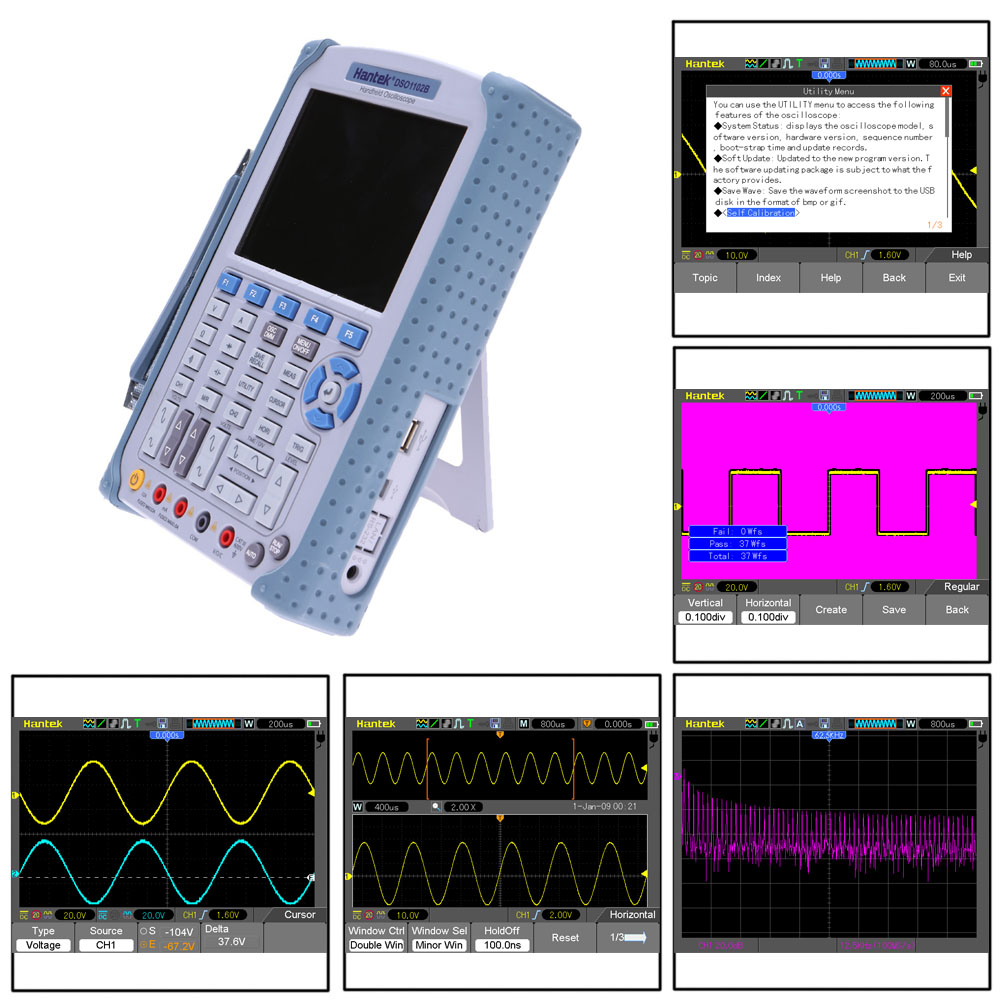

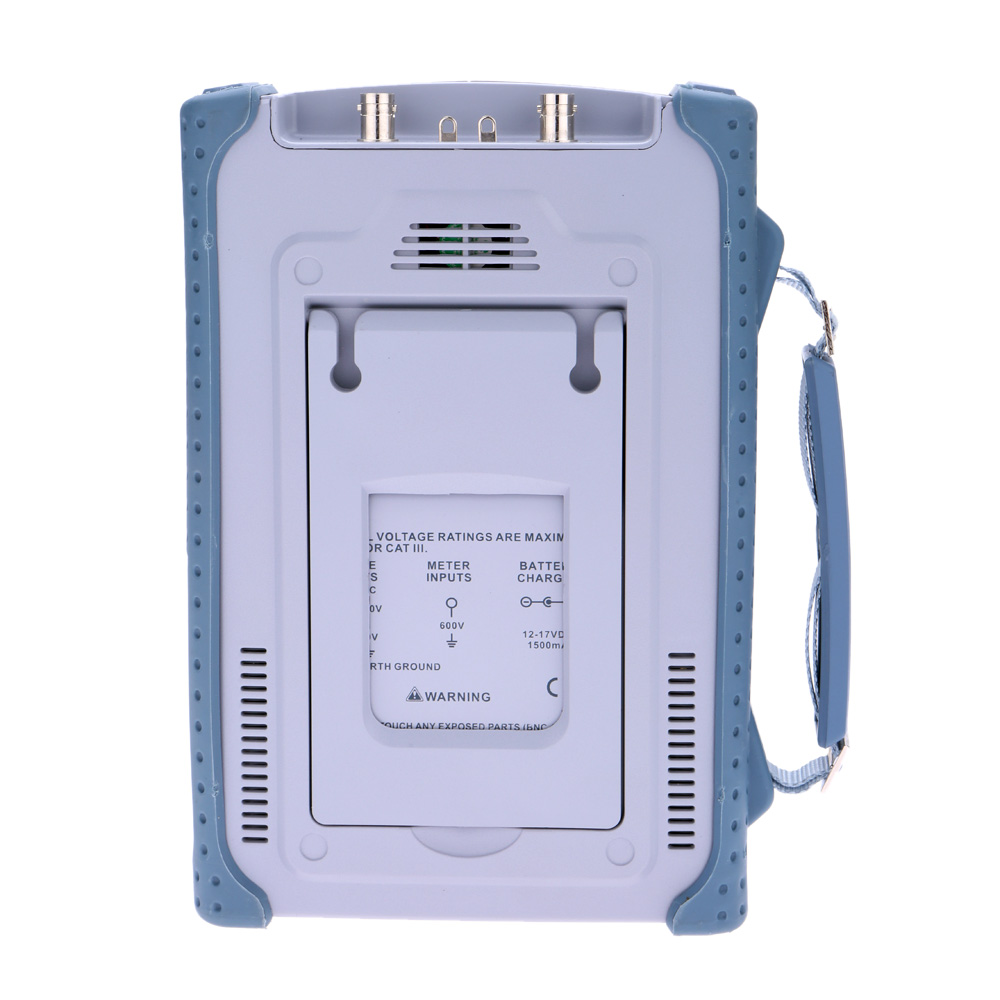

Hantek DSO1102B portable Digital Storage Oscilloscope 6000Counts USB Oscilloscope DMM100MHz 1GSa/s 2CH 5.6"TFT Color LCD Display

Please take notice that the oscilloscope contains three different plug type : AU/ US/ EU(optional) for your choosing ,so please choose the plug type or we will send them randomly thanks for your visit.

This handheld oscilloscope with multiple functions is really practical and professional. It has the functions of a multimeter which can measure voltage, current, capacitance, etc. Its sampling rate is 1GSa/s and its bandwidth is 60MHz-200MHz. 1M Memory Depth, and 6000 Counts DMM with analog bargraph; 5.6 inch TFT Color LCD Display, High Resolution(640*480).
Features:
High Bandwidth 100/60MHz Oscilloscope, 1GS/s sample rate, and 6000 Counts DMM with analog bargraph.
1M Memory Depth.
High Refresh Rate (2500 frames).
Large 5.6 inch TFT Color LCD Display; High Resolution(640*480); Dual-Window Design --More clear, More Detailed.
One-touch automatic setup optimizes the position, range, timebase, and triggering to assure a stable display of virtually any waveform.
Easy-to-use pop-up menu with built-in multi-language help system.
32 Automatic Measurements.
Waveform Math: Add, Subtract, Multiply, and Divide.
Store and recall over.
Automatic cursor tracking measurements.

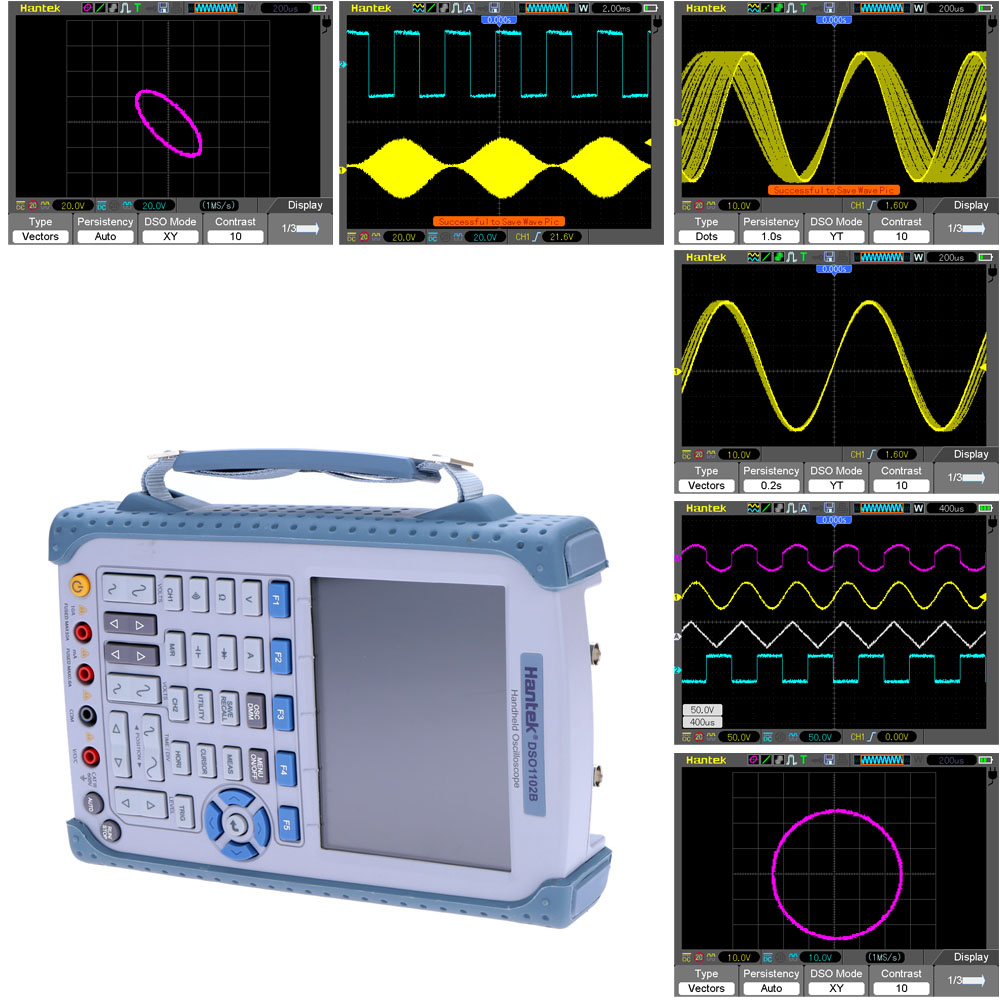

XY Mode.
Built-in FFT function converts a time-domain signal into its frequency components to measure harmonic content and distortion in systems.
Waveform Recorder to capture/replay input waveforms from CH1 and CH2 with a maximum record length of 1000 frames.
Pass/Fail function compares a stored waveform to an unknown input.
Average Mode for smoothing waveforms.
Square Wave Output (2V, 1kHz) for probe adjustment.
USB Host/Device 2.0 full-speed interface; support removable disk; LAN Option, easy to control by PC or long-distance.
Dimensions (mm): 245(L)x180(W)x55(H), be carried easily.
Specifications:
Brand: Hantek
Model:DSO1102B / DSO1062B (Optional)
Channel: 2 Channels
Bandwidth: 100MHz / 60MHz (Optional Model Corresponded)
Sampling Rate: 1GSa/s
Equivalent Sample Rate: 25GSa/s
Power Adapter: 100-240V 50/60Hz
Plug Type: AU / US / EU (All Included)
Battery: 1 * 727076 Lithium Battery
Current: 4500mAH
Voltage: 7.4V
Material: ABS
Oscilloscope Probe Model:PP-150B 100MHz / PP-80B 60MHz (Optional Model Corresponded)
Item Size: Approx. 24.5 * 18 * 5.5cm / 9.6 * 7.1 * 2.2in
Item Weight:
DSO1102B: Approx. 1197.8g / 42.2oz
DSO1062B: Approx. 1189.2g / 41.9oz
Package Size: Approx. 32 * 12 * 30cm / 12.6 * 4.7 * 11.8in
Package Weight:
DSO1102B: Approx. 2.35kg / 5.19b (2352.5g / 83.0oz)
DSO1062B: Approx. 2.35kg / 5.17b (2347.3g / 82.8oz)Hardware Specifications:

Model	DSO1202B	DSO1102B	DSO1062B
Acquisition
Sample Modes	Real-Time Sample: 1GS/s; Equivalent Sample: 25GS/s
Acquisition Modes
Normal	Normal data only
Peak Detect	High-frequency and randon glith capture
Average	Wavefom Average, selectable 4,8,16,32,64,128
Inputs
Inputs Coupling	AC, DC, GND
Inpits Impendance	1MΩ±2% 20pF±3pF
Probe Attenuation	1X, 10X
Supported Probe Attenuation Factor	1X, 10X, 100X, 1000X
Maximum Input Voltage	CAT I and CAT II: 300VRMS (10×), Installation Category; CAT III: 150VRMS (1×); Installation Category II: derate at 20dB/decade above 100kHz to 13V peak AC at 3MHz* and above. For non-sinusoidal waveforms, peak value must be less than 450V. Excursion above 300V should be of less than 100ms duration. RMS signal level including all DC components removed through AC coupling must be limited to 300V. If these values are exceeded, damage to the oscilloscope may occur.
Horizontal
Sample Rate Range	500MS/s--1GS/s
Waveform Interpolation	(sin x)/x
Record Length	1M
SEC/DIV Range	2ns/div~2000s/div,	4ns/div~2000s/div,
Sample Rate and Delay Time Accuracy	500ps(at over any ≥1ms time interval)
Position Range	2ns/div to10ns/div; (-4div×s/div) to 20ms;	4ns/div to 8ns/div; (-8div x s/div) to 40ms; 20ns/div to 80μs /div;(-8div×s/div)to 40ms; 200μs/div to 40s/div; (-8div×s/div)to 400s;
Delta Time Measurement Accuracy (Full Bandwidth)	Single-shot, Normal mode:± (1 sample interval +100ppm × reading + 0.6ns); >16 averages:± (1 sample interval + 100ppm × reading + 0.4ns); Sample interval = s/div ÷ 200
Vertical
Vertical Resolution	8-bit resolution, all channel sampled simultaneously
Position Range	2mV/div to 200mV/div, ±2V 200mV/div to 5V/div, ±50V
Bandwidth	200MHz	100MHz	60MHz
Rise Time at BNC( typical)	1.8ns	3.5ns	5.8ns
Analog Bandwidth in Normal and Average modes at BNC or with probe, DC Coupled	2mV/div to 20mV/div, ±400mV; 50mV/div to 200mV/div, ±2V; 500mV/div to 2V/div, ±40V; 5V/div, ±50V
Math	+, -, *, /, FFT
FFT	Windows: Hanning,Flatop,Rectamgular,Bartlett,Blackman; 1024 sample point
Bandwidth Limit	20MHz
Low Frequency Response (-3db)	≤10Hz at BNC
DC Gain Accuracy	±3% for Normal or Average acquisition mode, 5V/div to 10mV/div; ±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div
DC Measurement Accuracy, Average Acquisition Mode	When vertical displacement is zero, and N ≥16:± (3% × reading + 0.1div + 1mV) only 10mV/div or greater is selected; When vertical displacement is not zero, and N≥16: ± [3% × (reading + vertical position) + 1% of vertical position + 0.2div]; Add 2mV for settings from 2mV/div to 200mV/div; add 50mV for settings from 200mV/div to 5V/div
Volts Measurement Repeatability, Average Acquisition Mode	Delta volts between any two averages of ≥16 waveforms acquired under same setup and ambient conditions
Trigger
Trigger Types	Edge, Video, Pulse, Slope, Over time, Alternative
Trigger Source	CH1, CH2, AC Line
Trigger Modes	Auto, Normal
Coupling Type	DC, AC, Noise Reject, HF Reject, LF Reject
Trigger Sensitivity (Edge Trigger Type)	DC(CH1,CH2): 1div from DC to 10MHz; 1.5div from 10MHz to 100MHz; 2div from 100MHz to Full; AC: Attenuates signals below 10Hz ; HF Reject: Attenuates signals above 80kHz; LF Reject: Same as the DC-coupled limits for frequencies above 150kHz; attenuates signals below 150kHz
Trigger Level Range	CH1/CH2: ±8 divisions from center of screen;
Trigger Level Accuracy( typical)Accuracy is for signals having rise and fall times ≥20ns	CH1/CH2: 0.2div × volts/div within ±4 divisions from center of screen;
Set Level to 50%(typical)	Operates with input signals ≥50Hz
Video Trigger
Video Trigger Type	CH1, CH2: Peak-to-peak amplitude of 2 divisions;
Signal Formats and Field Rates, Video Trigger Type	Supports NTSC, PAL and SECAM broadcast systems for any field or any line
Holdoff Range	100ns ~ 10s
Pulse Width Trigger
Pulse Width Trigger Mode	Trigger when (< , >, = , or ≠); Positive pulse or Negative pulse
Pulse Width Trigger Point	Equal: The oscilloscope triggers when the trailing edge of the pulse crosses the trigger level. Not Equal: If the pulse is narrower than the specified width, the trigger point is the trailing edge. Otherwise, the oscilloscope triggers when a pulse continues longer than the time specified as the Pulse Width. Less than: The trigger point is the trailing edge. Greater than (also called overtime trigger): The oscilloscope triggers when a pulse continues longer than the time specified as the Pulse Width
Pulse Width Range	20ns ~ 10s
Slope Trigger
Slope Trigger Mode	Trigger when (< , > , = , or ≠ ); Positive slope or Negative slope
Slope Trigger Point	Equal: The oscilloscope triggers when the waveform slope is equal to the set slope. Not Equal: The oscilloscope triggers when the waveform slope is not equal to the set slope. Less than: The oscilloscope triggers when the waveform slope is less than the set slope. Greater than: The oscilloscope triggers when the waveform slope is greater than the set slope.
Time Range	20ns ~ 10s
Overtime Trigger
Over Time Modee	Rising edge or Falling edge
Time Range	20ns ~ 10s
Alternative Trigger
Trigger on CH1	Internal Trigger: Edge, Pulse Width, Video, Slope
Trigger on CH2	Internal Trigger: Edge, Pulse Width, Video, Slope
Trigger Frequency Counter
Readout Resolution	6 digits
Accuracy (typical)	±30ppm (including all frequency reference errors and ±1 count errors)
Frequency Range	AC coupled, from 4Hz minimum to rated bandwidth
Signal Source	Pulse Width or Edge Trigger modes: all available trigger sources The Frequency Counter measures trigger source at all times, including when the oscilloscope acquisition pauses due to changes in the run status, or acquisition of a single shot event has completed. Pulse Width Trigger mode: The oscilloscope counts pulses of significant magnitude inside the 1s measurement window that qualify as triggerable events, such as narrow pulses in a PWM pulse train if set to < mode and the width is set to a relatively small time. Edge Trigger mode: The oscilloscope counts all edges of sufficient magnitude and correct polarity. Video Trigger mode: The Frequency Counter does not work.
Measure
Cursor Measurement	Voltage difference between cursors: V Time difference between cursors: T Reciprocal of T in Hertz (1/ΔT)
Auto Measuerment	Frequency, Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS,
General Features
Display
Display Resolution	640 horizontal by 480 vertical pixels
Display Contrast	Adjustable (16 gears) with the progress bar
Probe Compensator Output
Output Voltage( typical)	About 5Vpp into ≥1MΩ load
Frequency(typical)	1kHz
Power Supply
Supply Voltage	AC Input:100-240VACRMS,0.6A MAX,50Hz~60Hz; DC Output:9V,2A
Power Consumption	<30W
Environmental
Temperature	Operating: 32 fahrenheit to 122fahrenheit (0 degrees to 50degrees); Nonoperating: -40fahrenheit to 159.8fahrenheit (-40degrees to +71degrees)
Cooling Method	Convection
Humidity	+104fahrenheit or below (+40degrees or below): ≤90% relative humidity; 106fahrenheit to 122fahrenheit (+41degrees to 50degrees): ≤60% relative humidity
Altitude	Operating: Below 3,000m (10,000 feet); Nonoperaring: Below 15,000m(50,000 feet)
Mechanical
Size	Length 245mm; Width 180mm; Height 55mm
Weight	2.4KG(with Packing); 1.2KG(without Packing)

DMM Mode
Max. Resolution	6000 Counts
DMM Testing Modes	Voltage, Current, Resistance, Capacitance, Diode & Continuity
Max. Input Voltage	AC:600V, DC: 800V
Max. Input Current	AC: 10A, DC:10A
Input Impedance	10MΩ
DMM TrendPlot	1.2M Point
Range	Resolution	Accuracy	Resolution
DC Voltage	60.00mV	±1%±3 digit	10uV
	600.0mV		100uV
	6.000V		1mV
	60.00V		10mV
	600.0V		100mV
	800V		1V
AC Voltage	60.00mV	±1%±3 digit	10uV
	600.0mV		100uV
	6.000V		1mV
	60.00V		10mV
	600.0V		100mV
DC Current	60.00mA	±1%±5 digit	10uA
	600.0mA	±1.5%±5 digit	100uA
	6.000A		1mA
	10.00A		10mA
AC Current	60.00mA	±1%±5 digit	10uA
	600.0mA	±1.5%±5 digit	100uA
	6.000A		1mA
	10.00A		10mA
Resistance	600Ω	±1%±3 digit	0.1Ω
	6.000KΩ		1Ω
	60.00KΩ		10Ω
	600.0KΩ		1KΩ
	6.000MΩ		10KΩ
	60.00MΩ	±1%±5 digit	100KΩ
Capacitance	40.00nF	±2%±5 digit	10pF
	400.0nF		100pF
	4.000uF		1nF
	40.00uF		10nF
	400.0uF		100nF
	Attention: the smallest capacitance value that can be measured in 5nF
Diode	0V~2.0V
ON-OFF test	<10Ω

Note:
Hantek DSO1202B/DSO1102B/DSO1062B Oscilloscope is for 3 years Warranty!
Please read the instruction manual data CD carefully to avoid injury and prevent damage to this product.

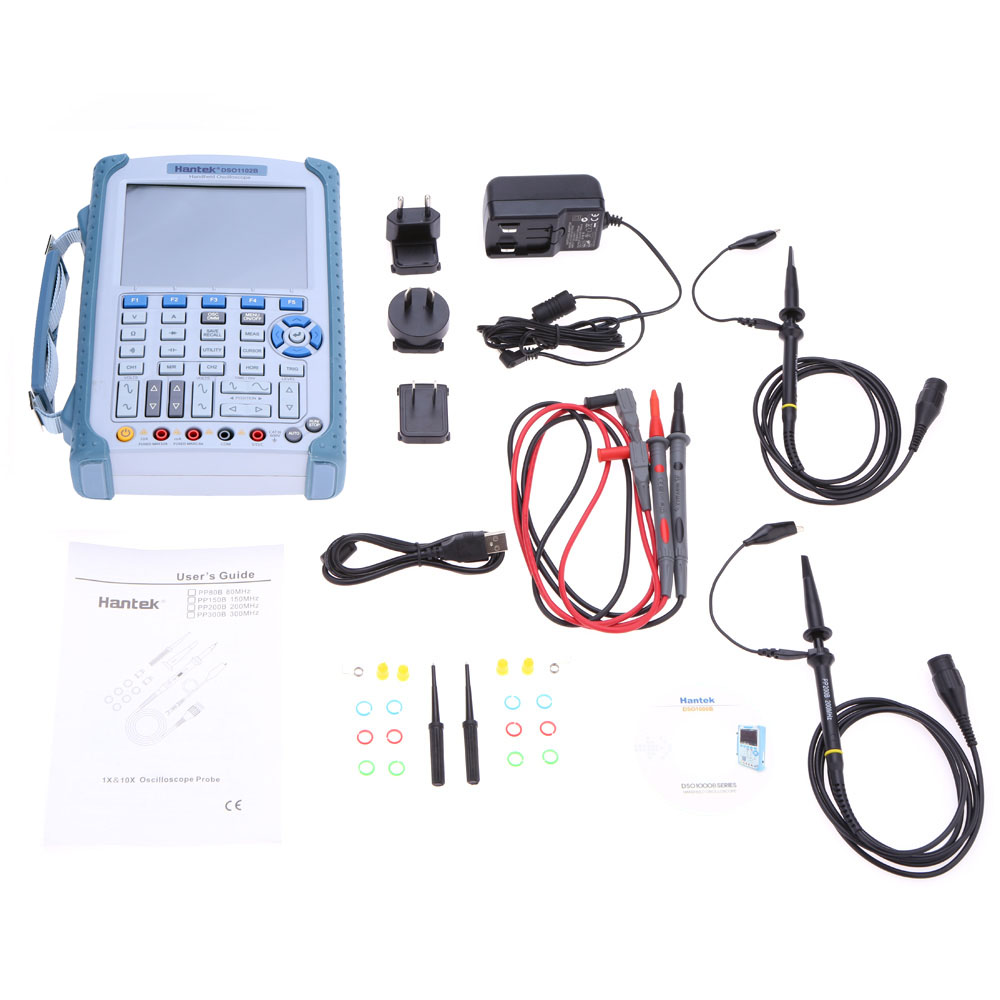

Package List:
