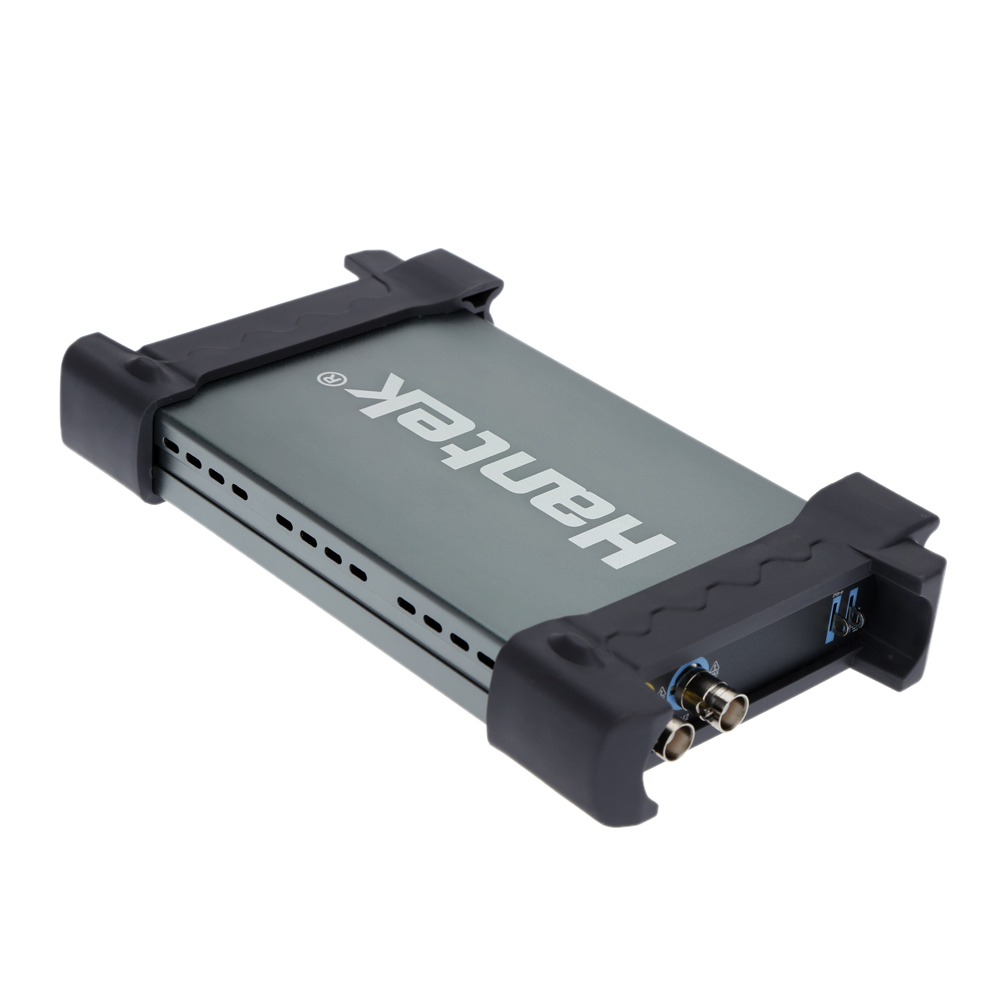

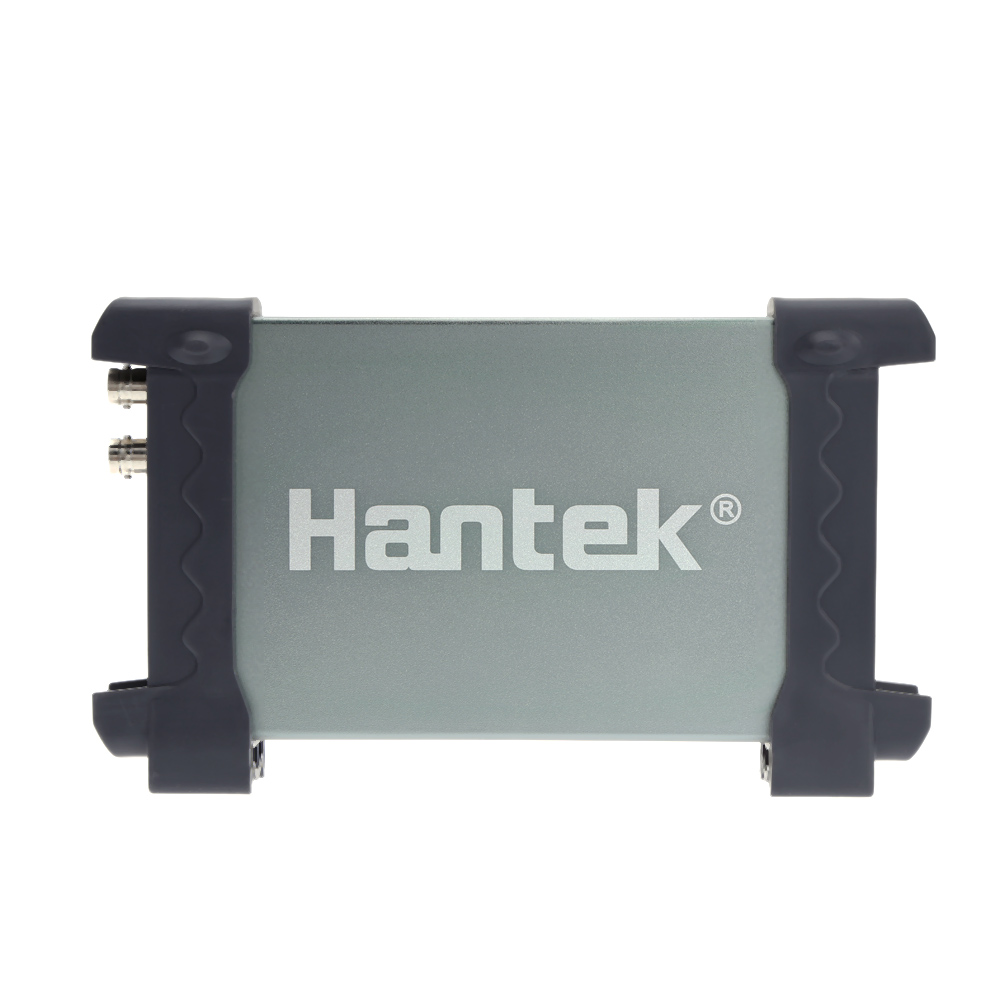

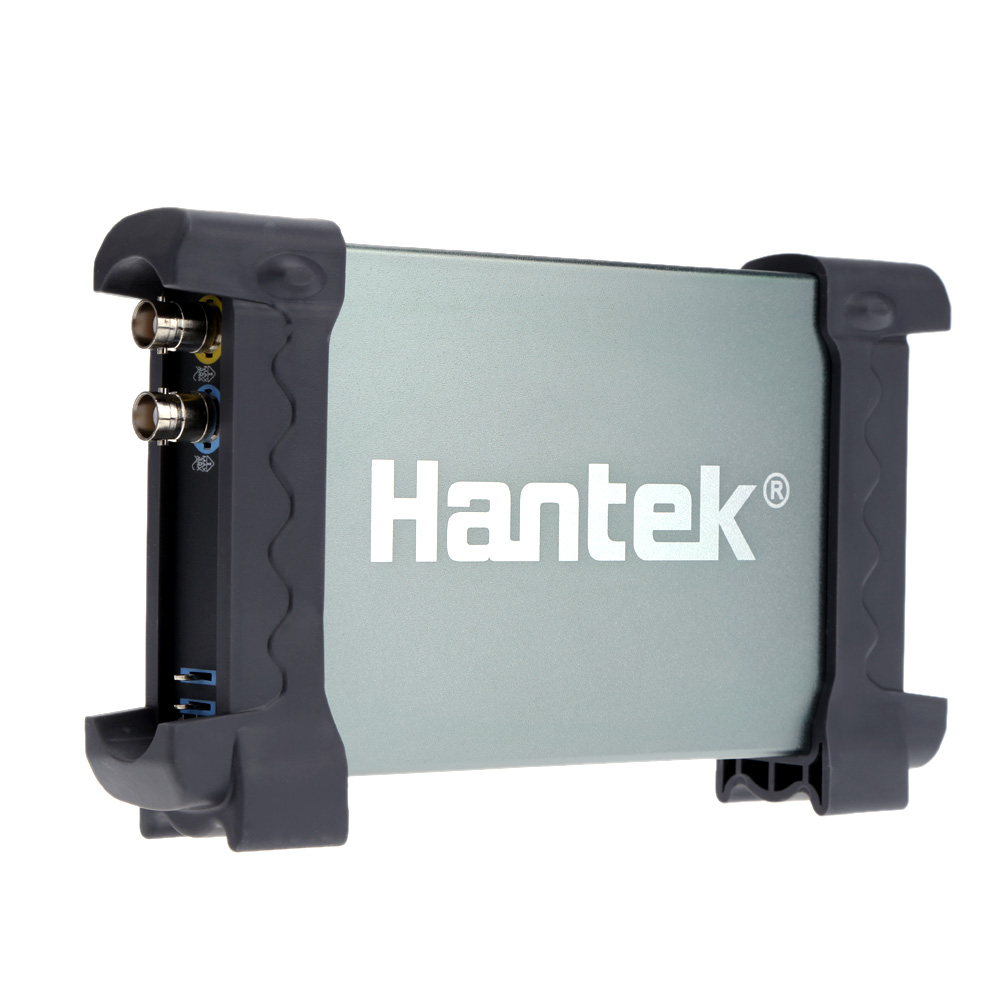

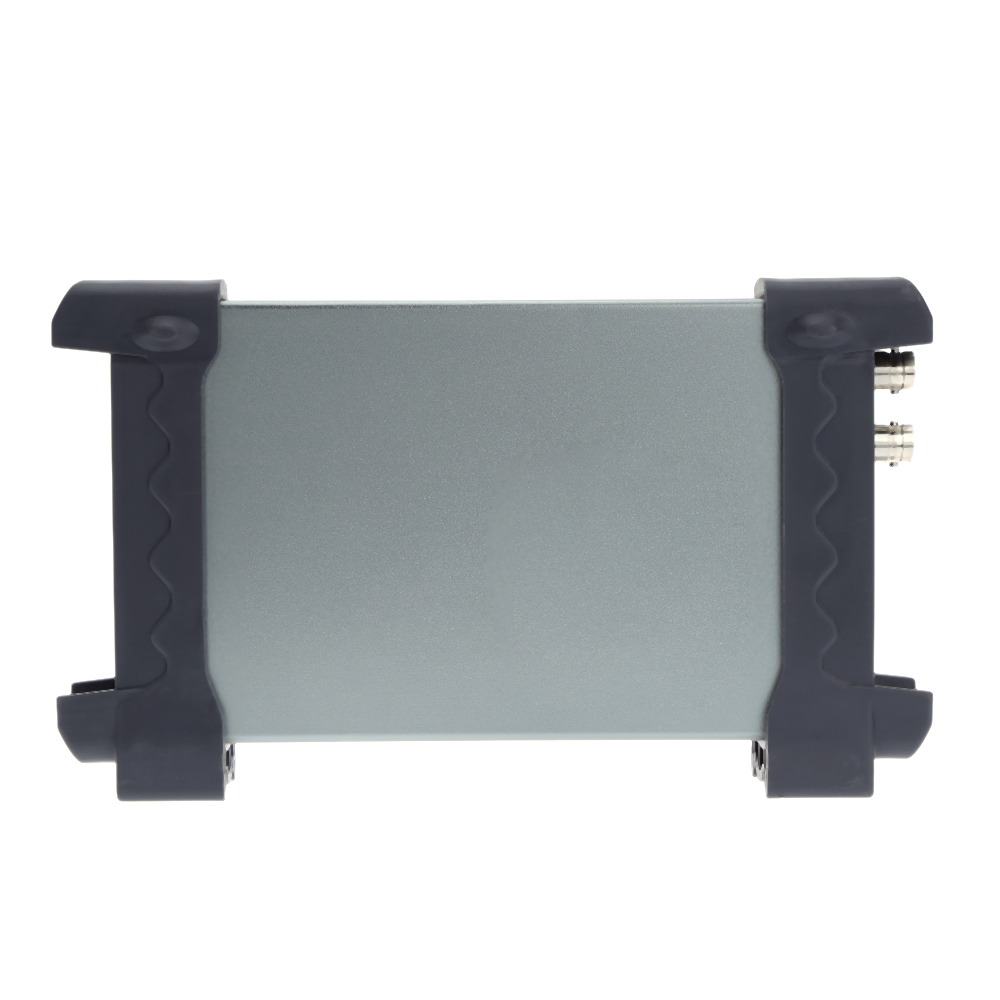

Hantek 6022BE Cost-effective Digital Storage Oscilloscope handheld USB PC Based osciloscopio 20MHz Bandwidth 48MSa/s oscilloskop

It's a highly efficient and cost-effective oscilloscope with 2 channels. The high quality anodized aluminum case is extremely durable and heat-resistant. The bandwidth is 20MHz and the sample rate is 48MSa/s.
Features:
Great industrial design, the high quality anodized aluminum case is extremely durable and heat-resistant.

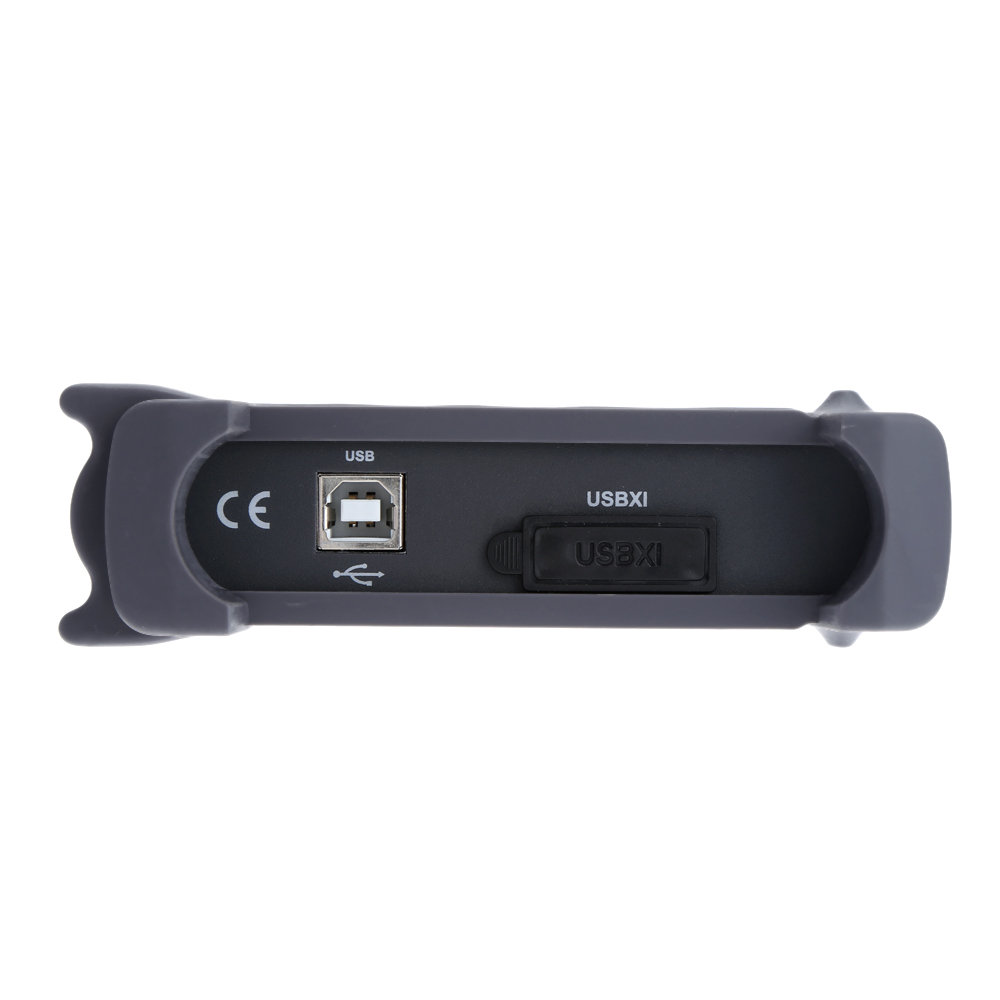

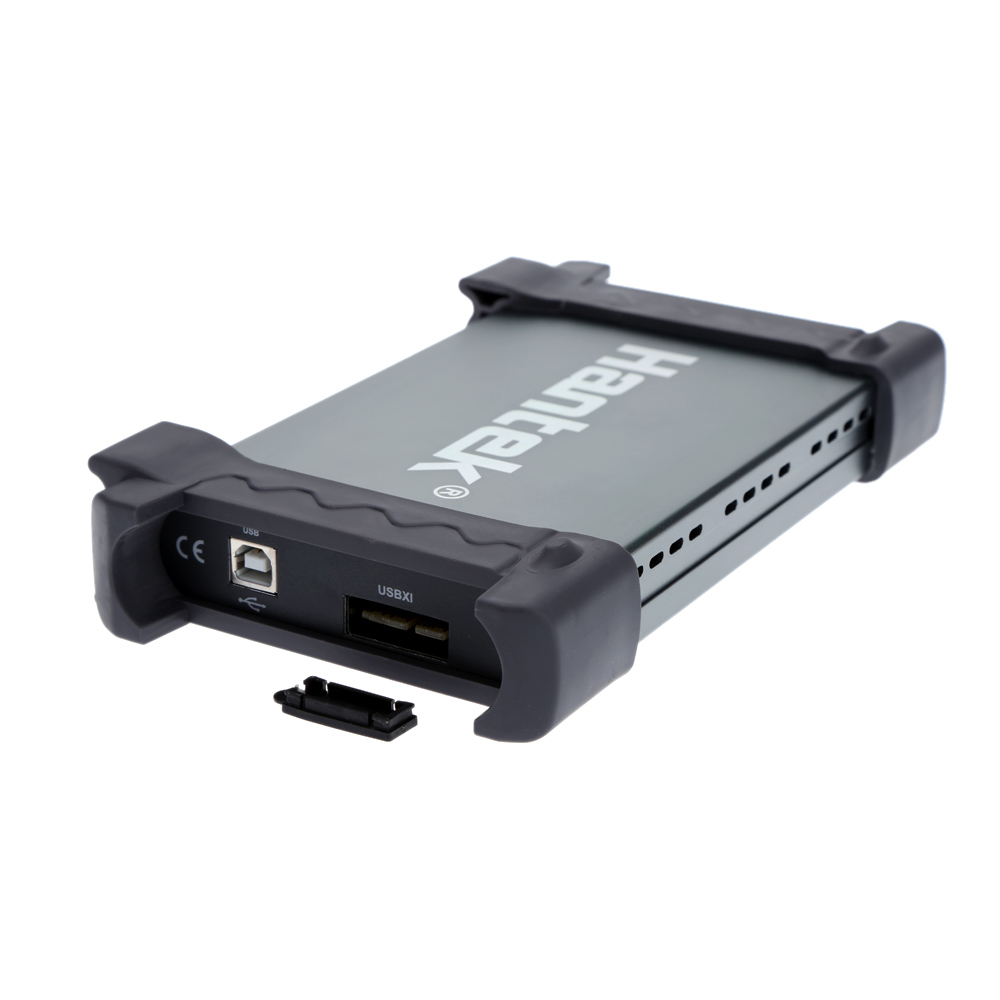

Standard USBXI(TM) interface, easily inserts into USBXI(TM) housing to make up a combination instrument.
USB2.0 interface, no external power source required, easy to use.
Be suitable for notebook computer, product line maintenance, be used easily on business.
High performance, 48MSa/s real-time sampling, 20MHz bandwidth.
16 channels logic analyzer, 20MHz bandwidth.
Operating system: support for Windows 7, Windows NT, Windows XP ,VISTA.
More than 20 kinds of automatic measurement functions.
Intensity, invert, addition, subtraction, multiplication, division, X-Y plot.
Saves waveform on screen in JPG/BMP, Excel formats.
FFT spectral analysis function.
One computer can connect many DSO, extend channel easily.
Specifications:

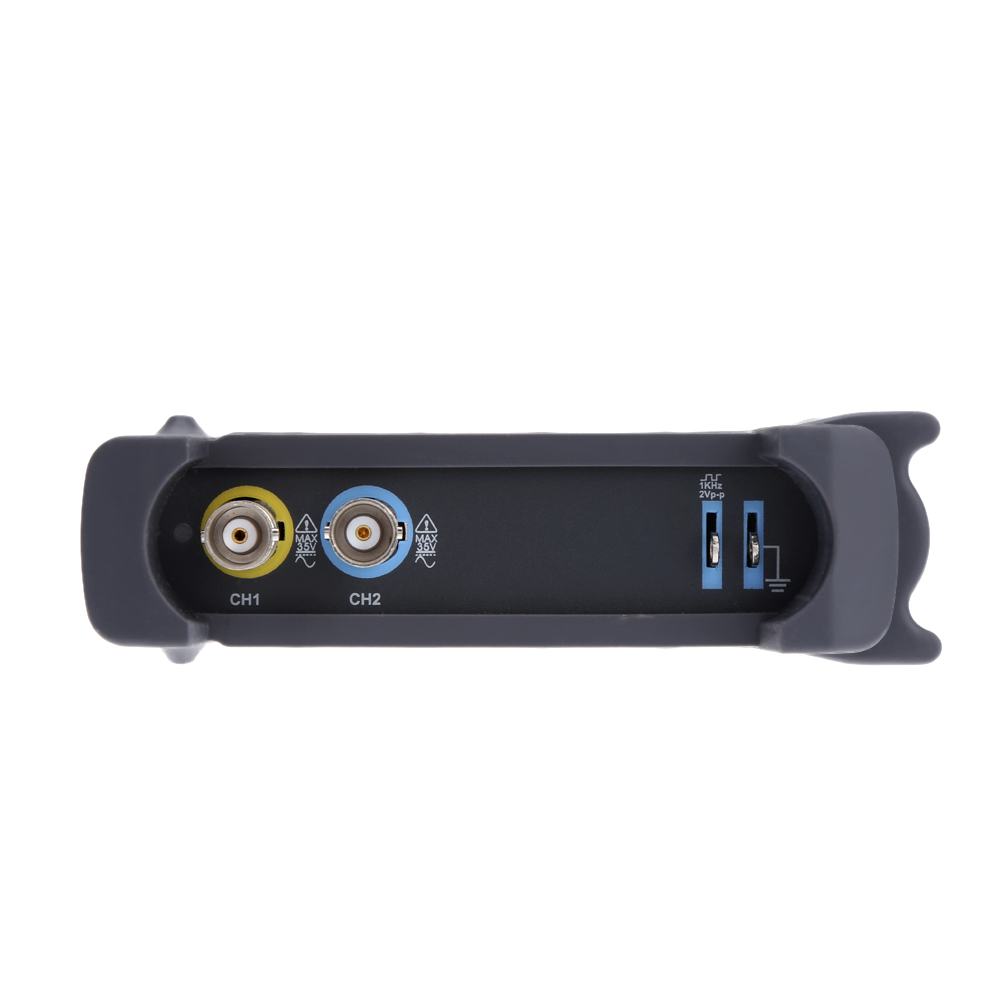

Channel: 2 Channels
Bandwidth: 20MHz
Max. Sample Rate: 48MSa/s
Storage Depth: 1M
Vertical Resolution: 8 Bit
Impedance: 1MΩ 25pF
Coupling: DC
Voltage Range: 20mV-5V, 8Steps
Vertical Accuracy: ±3%
Timebase Range: 1ns-5000s, 39 Steps
Vertical Adjustable: Yes
Input Protection: Diode Clamping
X-Y: Yes
Horizontal Mode: Auto, Normal and Single
Trigger Slope: +/-
Trigger Level Adjustable: Yes
Trigger Source: CH1, CH2
Pre Trigger: 0-100%
Sampling Selection: Yes
Waveform Display: Port/Line, Intensity
Network: Open/Close
Cursor Measurement: Yes
Math: FFT, Invert, Addition, Subtraction, Multiplication, Division
Cursor Display: Frequency, Voltage
Package Size: 23 * 17 * 7.5cm / 9.05 * 6.7 * 2.95in (L * W * H)
Package Weight: 724g / 25.54oz

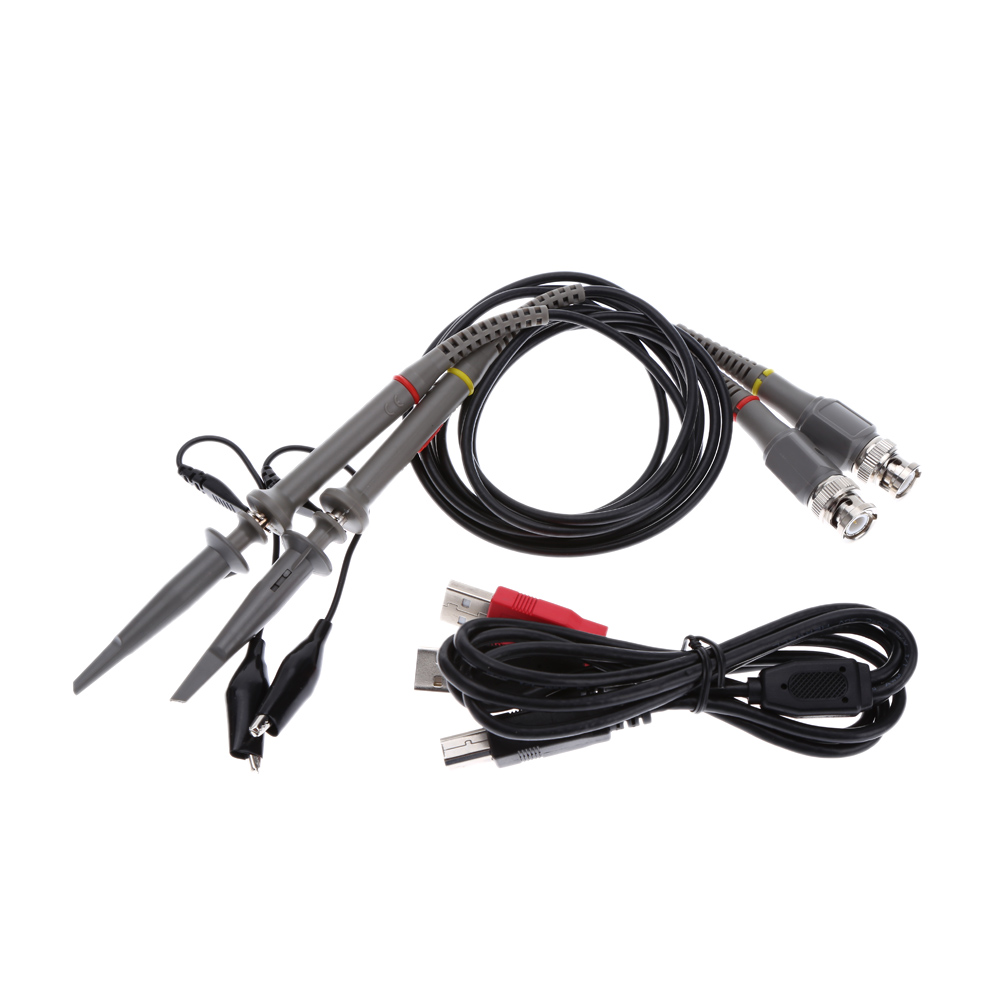

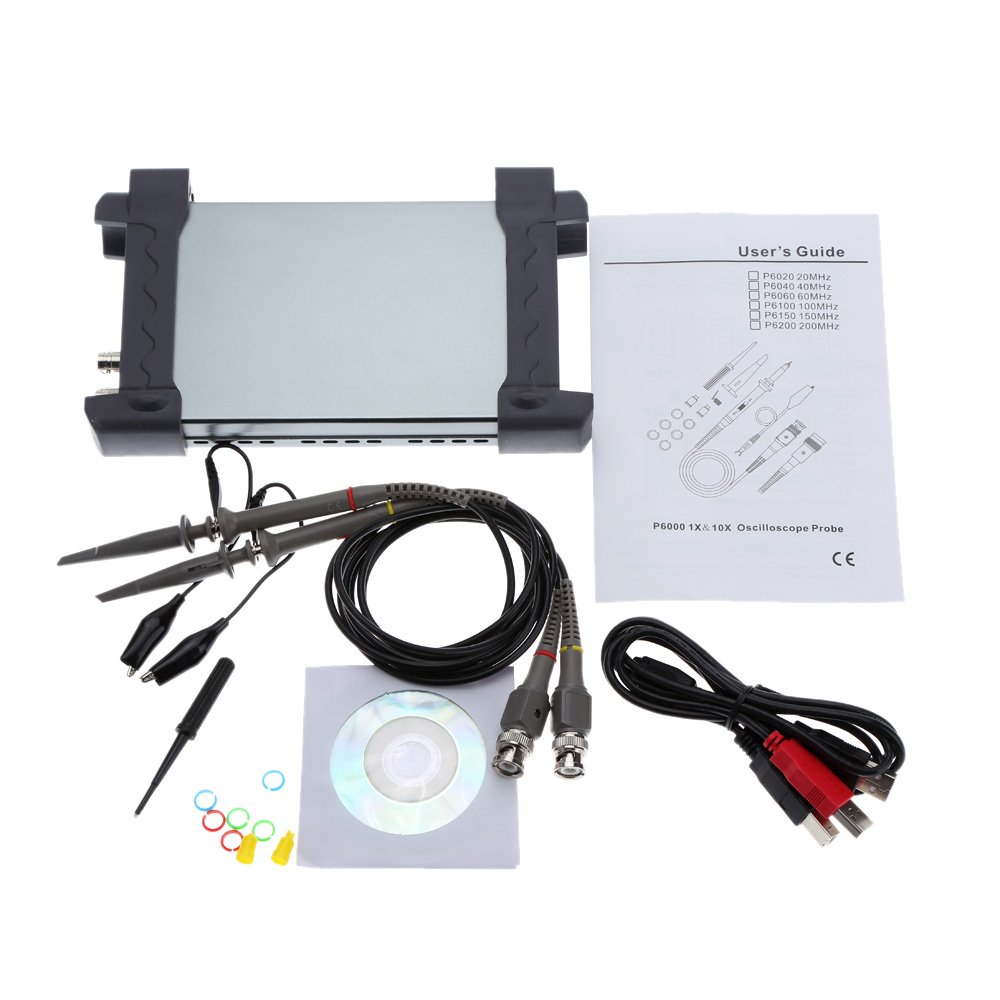

Package List:
1 * Oscilloscope
1 * USB Cable
1 * CD
2 * Probes
1 * User Manual (English)
