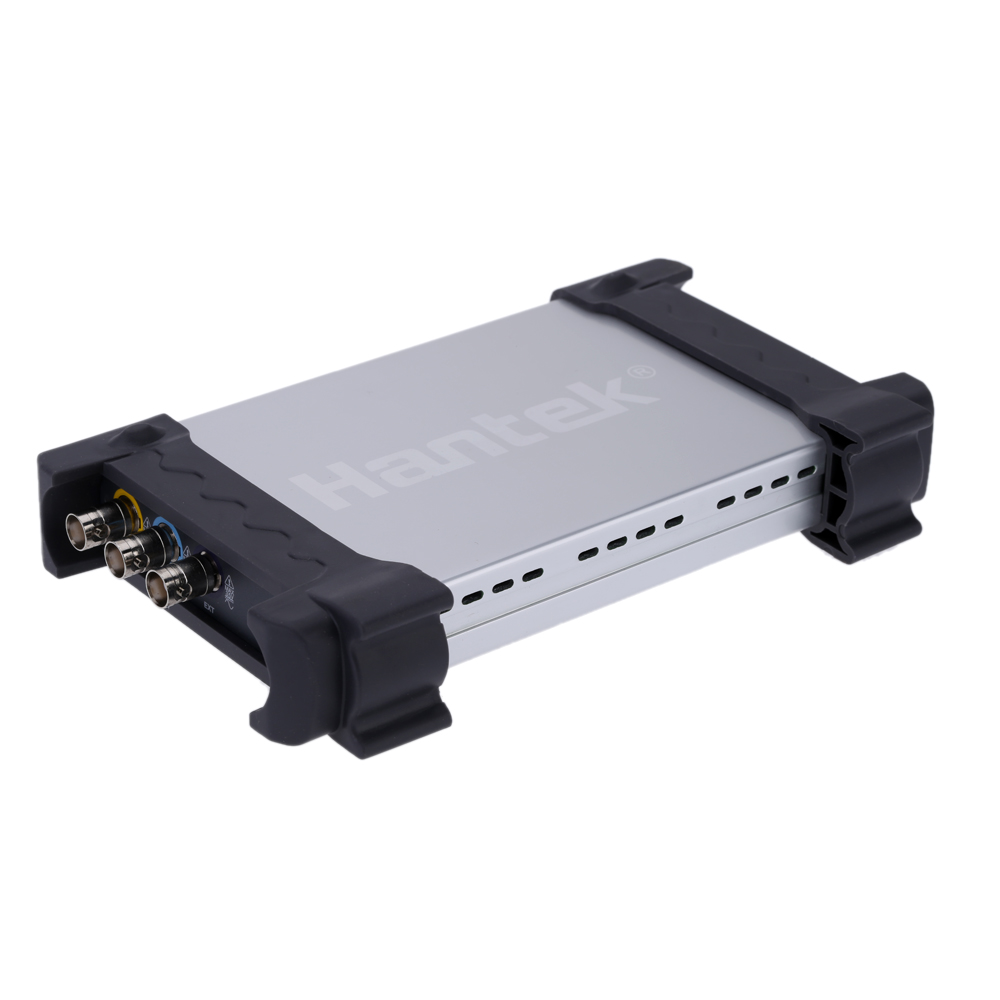

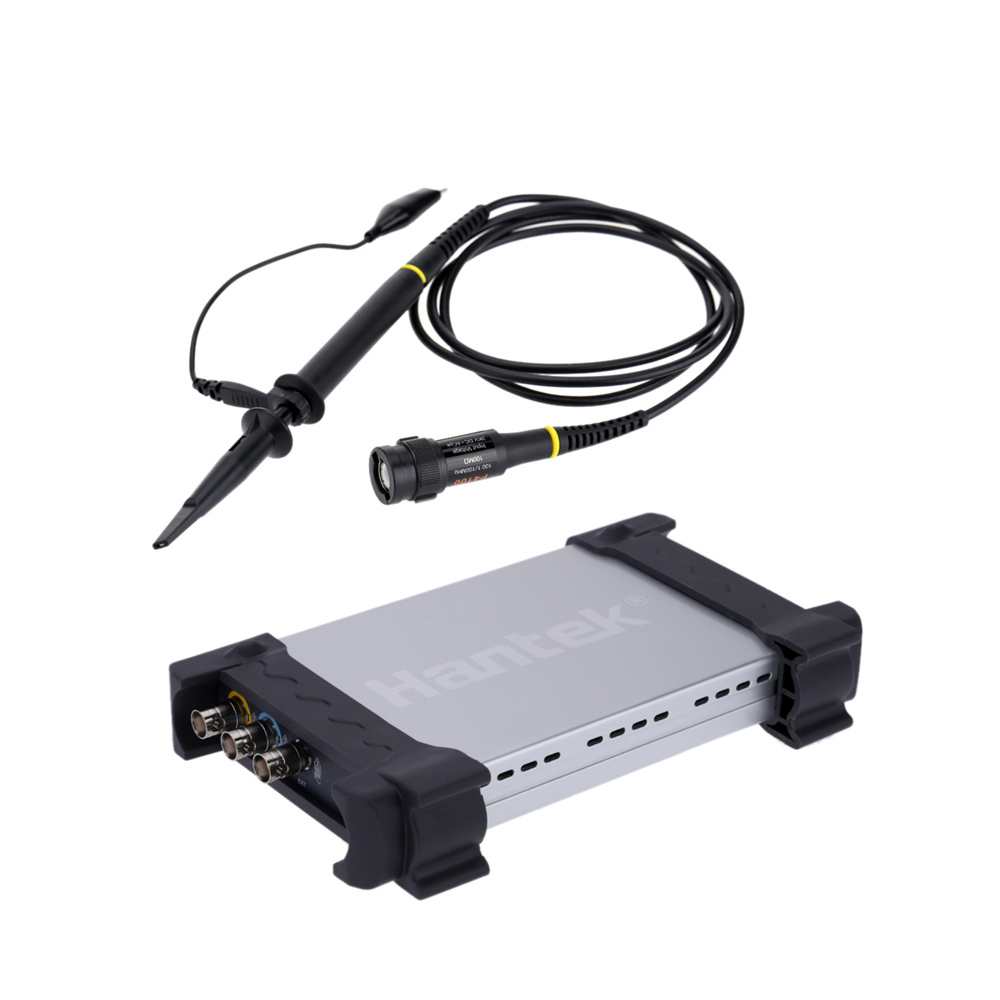

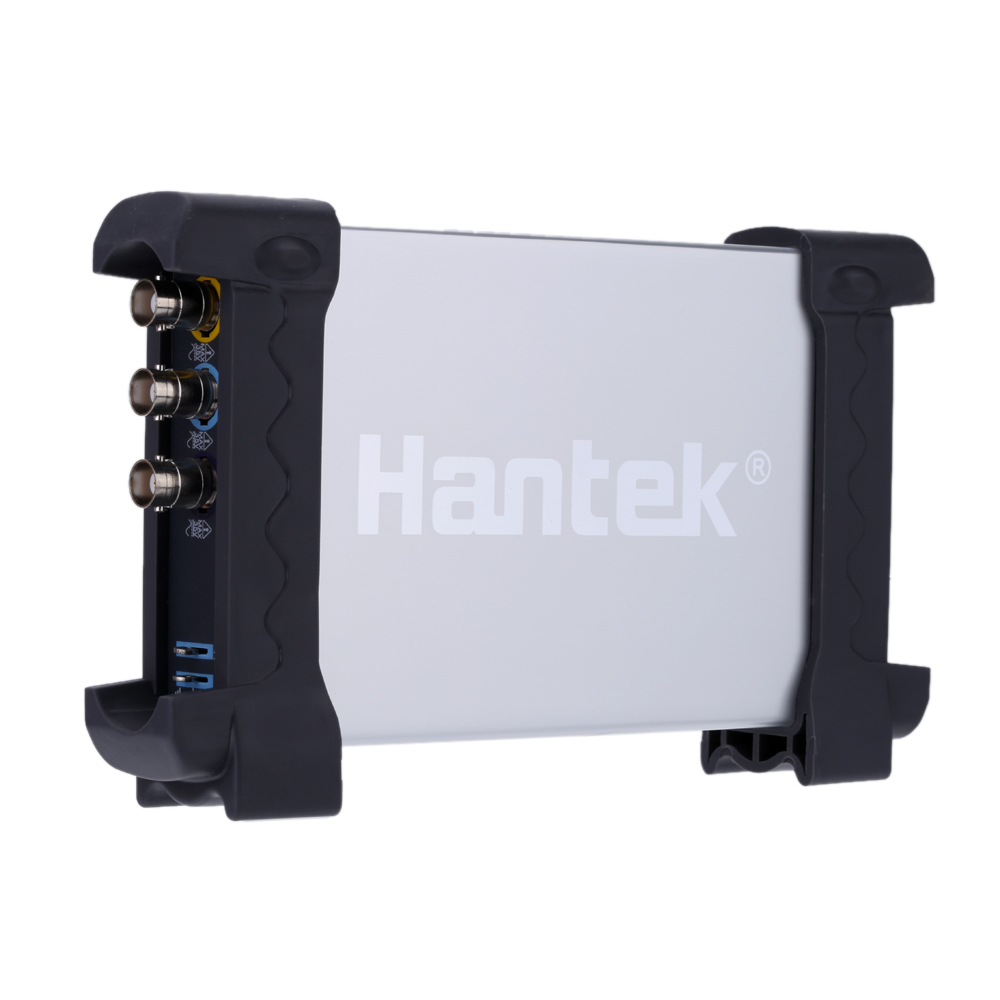

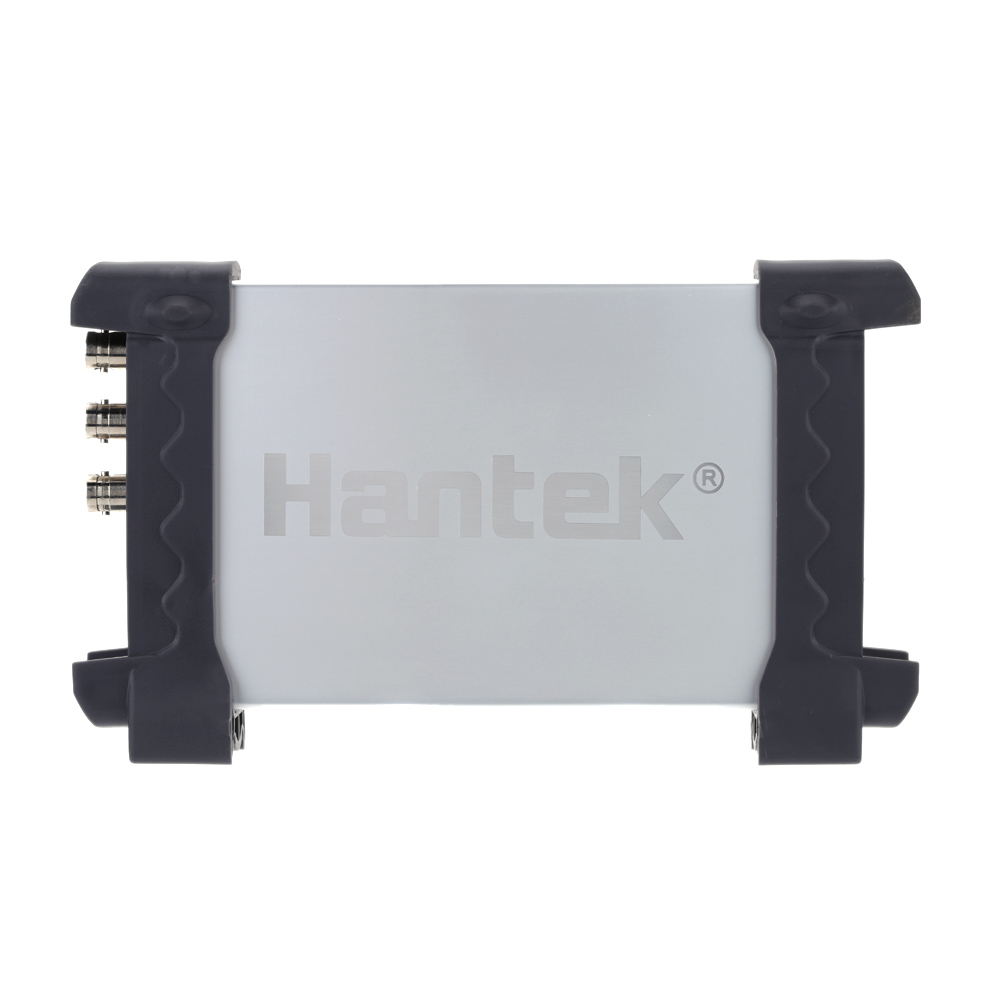

Hantek 2 Channels 50MHz PC Based USB Digital Storage Oscilloscope+P4100 High Voltage Oscilloscope Probe 2KV 100:1 Test Probe

The oscilloscope is a brand new and professional PC based USB digital storage oscilloscope. The high quality anodized aluminum case is extremely durable and heat-resistant.
The probe is designed to make measurement process simple. It has compact size and stable performance.
Features:
Oscilloscope:
Great industrial design, the high quality anodized aluminum case is extremely durable and heat-resistant.
Features one USB 2.0 port and the standard USBXI(TM) interface, no extra power cord needed.
Compact size, easy to carry; more suitable for laptop.
50MHz bandwidth, 150MSa/s real-time sampling.
Supported Windows 7, Windows NT, Windows XP ,VISTA.
More than 20 kinds of measurement functions, PASS/FAIL Check functions, suitable for engineering applications.
Waveform average, persistence, intensity adjustment, addition, subtraction, multiplication, division and X-Y display.
Saves Waveform on screen in JPG/BMP, Excel formats.
FFT spectral analysis function.

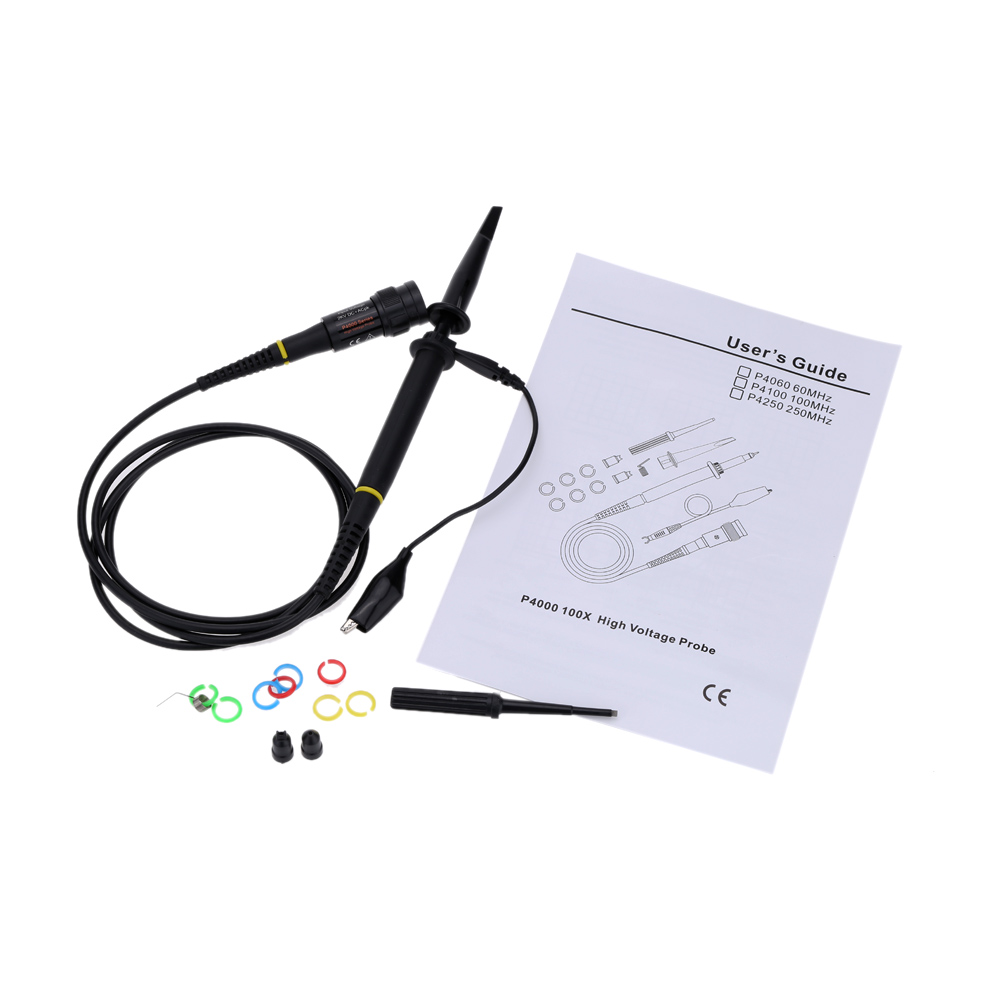

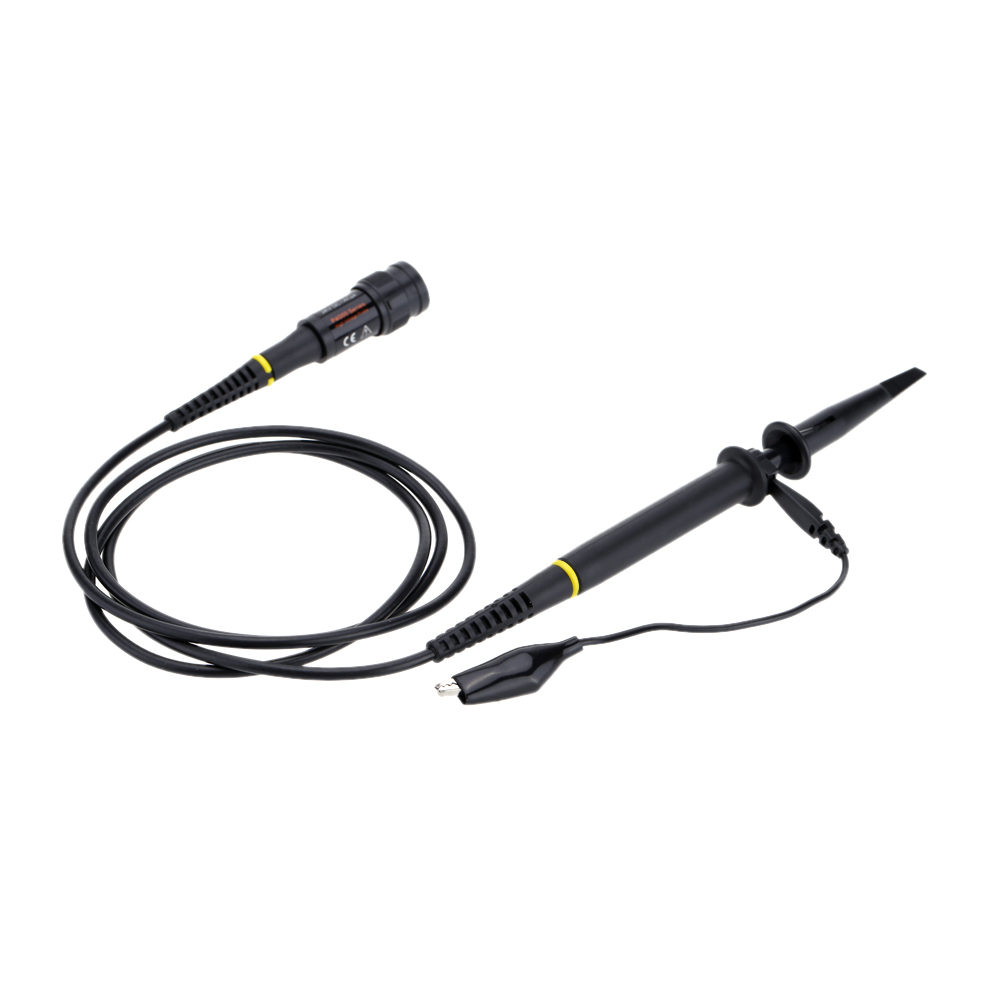

Test Probe:
Compact size, several functions combined in one, this probe is convenient to use.
Detachable hook tip, the hook is well protected by the plastic case.
Locating sleeves ensure the stability and reliability of the tip exposed to the test point.
Marker rings in different colors help to identify different channels.
Great choice for oscilloscope probe.
Specifications:
Oscilloscope:
Channel: 2 Channels
Bandwidth: 50MHz
Max. Sample Rate: 150MSa/s
Storage Depth: 10K-64KB/CH
Vertical Resolution: 8 Bit
Input Impedance: 1MΩ 25pF
Coupling: AC/DC/GND
Voltage Range: 10mV-5V, 9Steps
Vertical Accuracy: ±3%
Timebase Range: 4ns-1h, 38 Steps
Vertical Adjustable: Yes
Input Protection: Diode Clamping
X-Y: Yes
Autoset: Yes (30Hz to 50MHz)
EXT. Input: Yes
Trigger Mode: Auto, Normal and Single
Trigger Slope: +/-
Trigger Level Adjustable: Yes
Trigger Type: Analog
Trigger Source: CH1, CH2, EXT
Pre Trigger: 0-100%
Sampling Selection: Yes
Waveform Display: Port/Line, Waveform Average, Persistence, Intensity
Network: Open/Close
Vertical Mode: CH1, CH2, Dual, ADD
Cursor Measurement: Yes
Math: FFT, Addition, Subtraction, Multiplication, Division
Cursor Display: Frequency, Voltage
Data Samples: 10K-64K/Channel
Package Size: 23 * 17 * 7.5cm / 9.05 * 6.7 * 2.95in (L * W * H)
Package Weight: 800g / 28.24oz
Test Probe:
Band Width: 100MHz
Rise Time: 3.5ns
Attenuation Ratio: 100:1
Input Resistance: 100MΩ±2%
Input Capacitance: 6pF
Maximum Input: 2KV Working Voltage(Vp-p)
Compensation Range: 10pF-35pF
Operating Voltage: 0-50°C
Operating Humidity: 0-80%RH
Item Length: 15cm
Item Weight: 51g / 1.8oz
Package List:
1 * Oscilloscope
1 * USB Cable
1 * CD
3 * Probes
3 * User Manual (English)
1 * Bag of Accessories
