Specifications:

Hardware specifications

ATHEROS AR7240 400MHZ CPU AR927 RF 64MB DDR 8M Flash

Frequency Range & Channels:

2.3~2.7GHz;5MHz,10MHz,20MHz,40MHz

RF Power Output:

24dBm

Modulation Mode:

DBPSK,DQPSK,CCK,OFDM,16-QAM,64-QAM

Response Rate:

300M: -68dBm@10%PER

270M: -68dBm@10%PER

150M: -68dBm@10%PER

130M: -68dBm@10%PER

108M: -68dBm@10%PER

54M: -68dBm@10%PER

11M: -85dBm@10%PER

6M: -88dBm@10%PER

1M: -90dBm@10%PER

Data and operational parameters

Auto transmission rate selection:

802.11n: 6.5-300Mbps

802.11g: 6/9/12/18/24/36/48/54/108Mbps

802.11b: 1/2/5.5/11Mbps

Support WLAN Standards:

IEEE 802.11b/g/n, IEEE 802.3u, IEEE 802.3af

Support Protocols:

CSMA/CA, TCP/IP, IPX/SPX, NetBEUI, DHCP, NDIS3/4/5

Using Environment & Physically Properties

Using Environment

Physically Properties

Working Temperature:

-30°C~65°C

Product Weight:

0.855KG(Net) / 1.24KG(Gross)

Storage Temperature:

-50°C~80°C

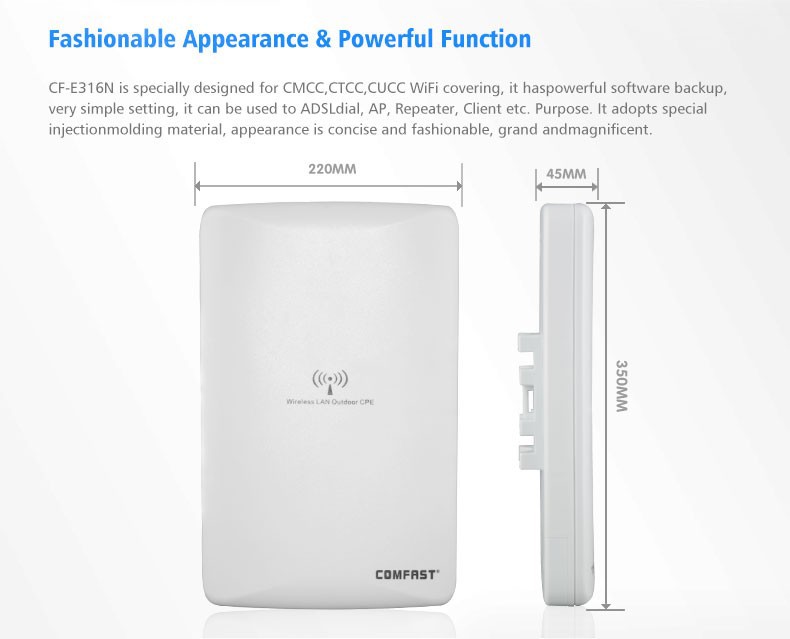

Product Size:

350x220x45(mm)

Humidity(Non Condensing):

≤95%

Package Size:

350x250x90(mm)

Management

Based on WEB Management:

Support

SNMP MIB:

Support

Telnet:

Support

Security

MAC Address Control:

Support

Encryption:

Support 64/128 bits WEP, WPA, WPA2, 802.1X

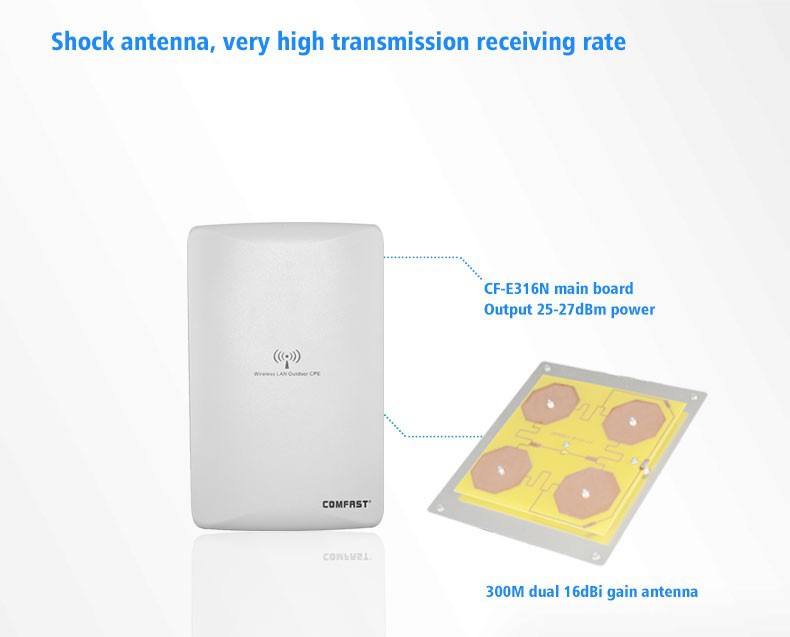

Antenna

Frequency Range:

2300~2700 MHz

Polarization Mode:

Vertical & Horizontal

Antenna Gain:

Dual 16dBi
