DS202 Mini 2-channel Digital Oscilloscope USB Interface Full Color TFT Display 8MB Memory Storage 1MHz 10MSa/s

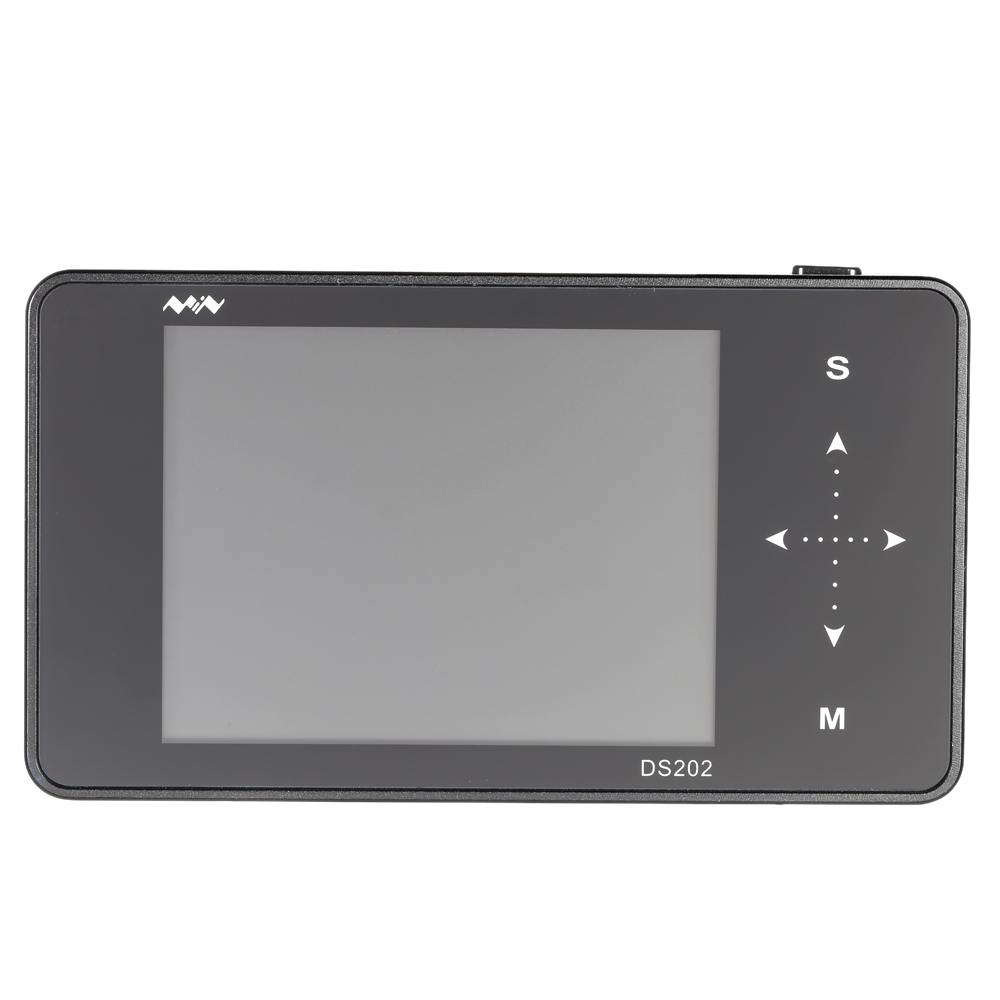

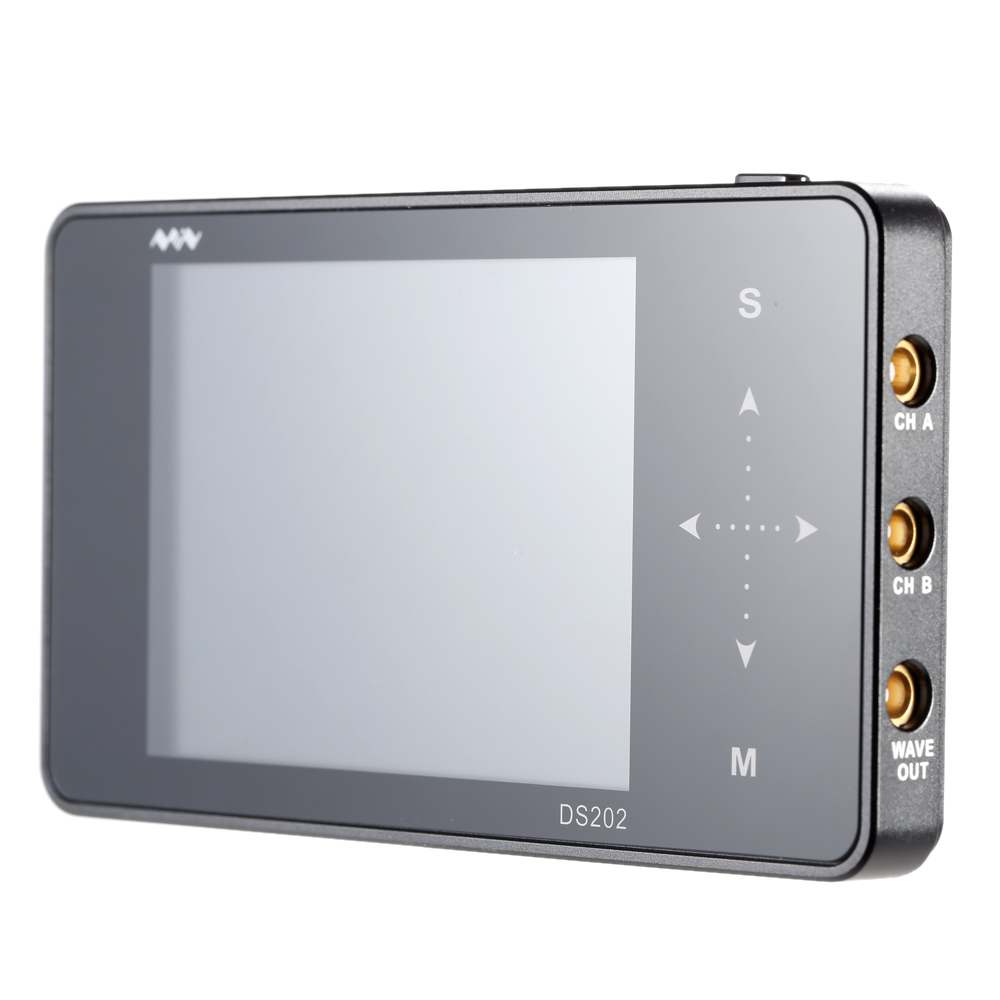

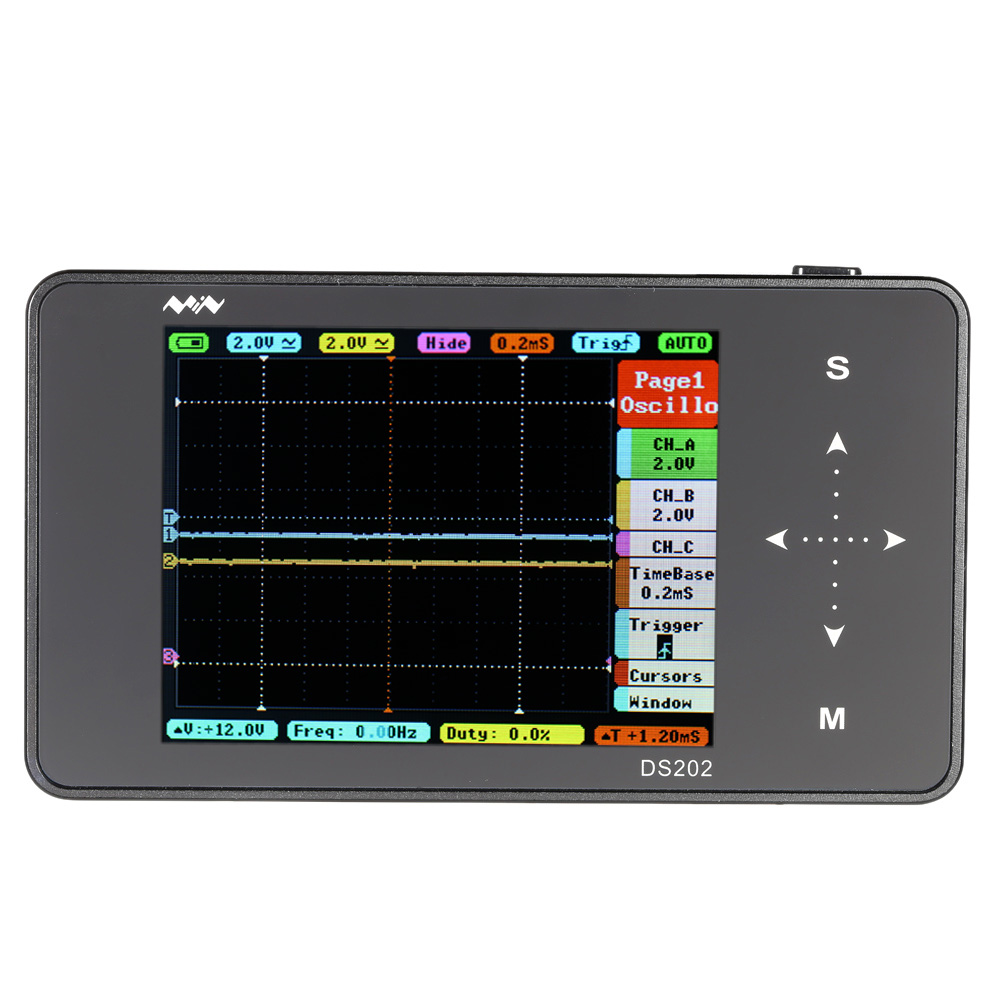

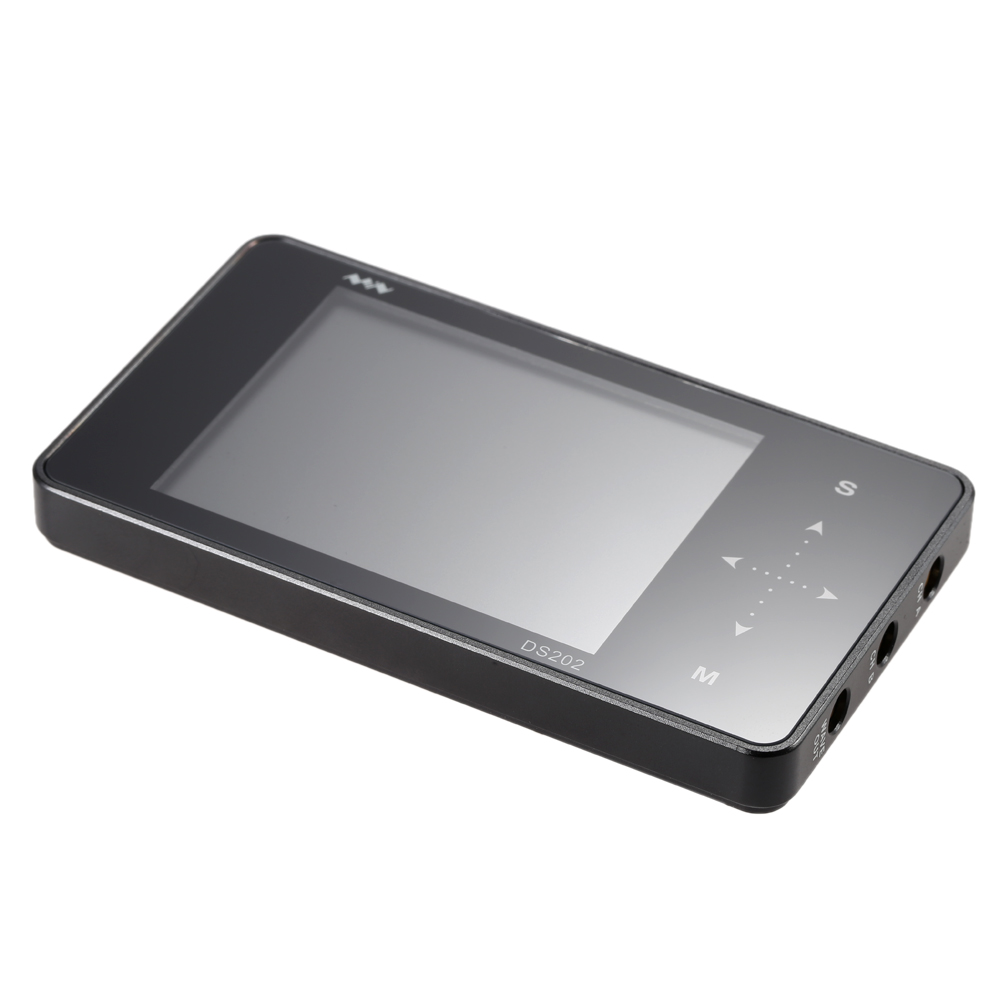

DS202 pocket-size oscilloscope is a 2-channel digital oscilloscope. You will find it compact and fashionable because it is merely 10mm in thickness and enjoys an aluminum alloy appearance. It has touch keys with 320*240 full color TFT display. It supports 8MB storage capacity and USB charging. It is widely applicable in academic experiment, electronics maintenance, electronic engineering tasks, etc.
Features:
320*240 Colorful TFT display, mini and compact design with aluminum alloy appearance.
2-channel, 1MHz bandwidth, 1MΩ input impedance, 10MSa/s Max. sample rate.
With rising/falling edge, high/low level trigger mode.
Math waveform: -A, -B, A+B, A-B,Rec A, RecB, etc.
Synchronous mode: Auto, Normal, Single, None, Scan.
Inbuilt 8MB U-disk storage for waveform data and images.
Modes of vertical precise, horizontal precise measurement and triggering threshold.
Auto measurement: frequency, cycle time, duty cycle, DC RMS voltage/Vpp /Vmax/Vmin/Vavg.
Inbuilt signal generator/10Hz—1MHz square wave (duty adjustable) or 10Hz—20KHz Sine/Square/Triangle/Sawtooth wave.
Built-in 3.7V 550mAh lithium battery, adopts USB interface for charging.

Specifications:
Display: 320*240 Color TFT LCD display
Coupling: AC/DC

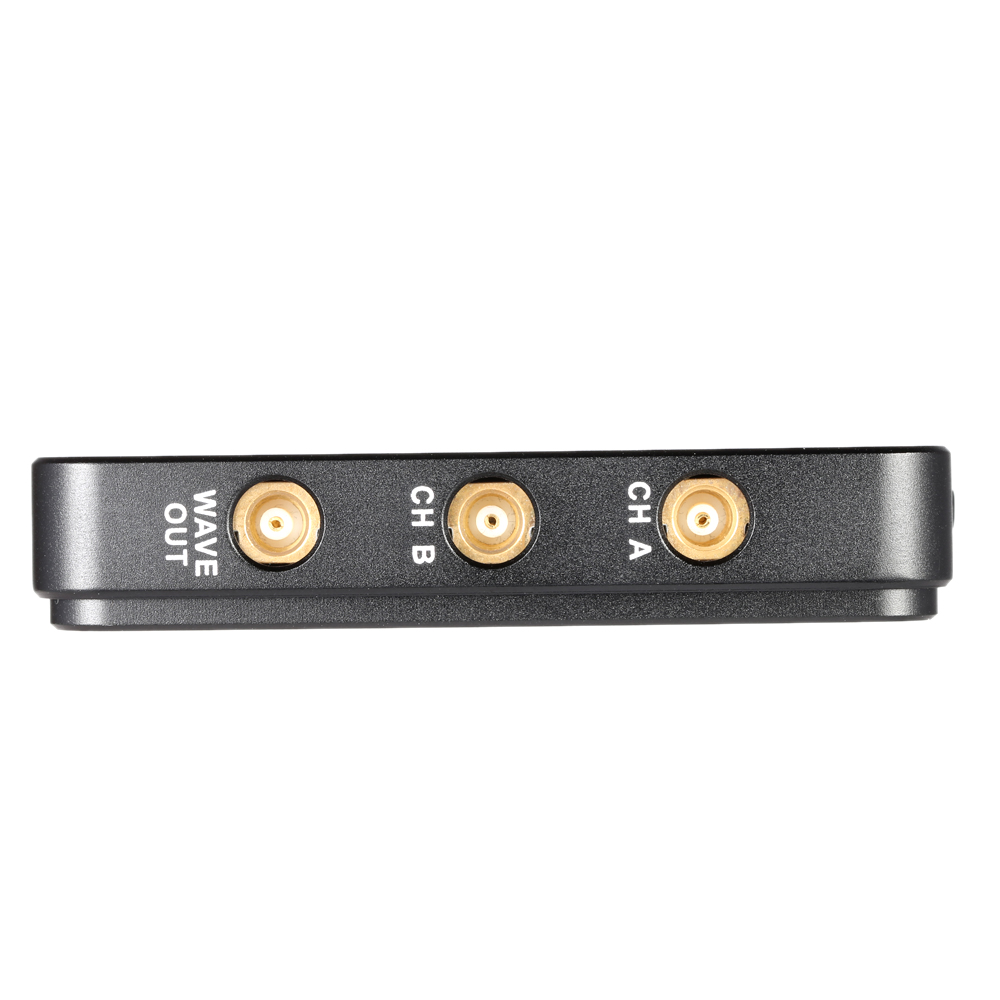

Channel: 2-channel
Analog Bandwidth: 1MHz
Max. Sample Rate: 10MSa/s
Analog Input Impedance: 1MΩ
Max. Sample Memory Depth: 8K
Max. Input Voltage: ±40V(X1 probe)
Horizontal Sensitivity: 1uS/Div~2S/Div(1-2-5 sequence step)
Vertical Sensitivity: 20mv/Div~10V/Div (1-2-5 sequence step)
Power Supply: Built-in 550mAh Lithium Battery

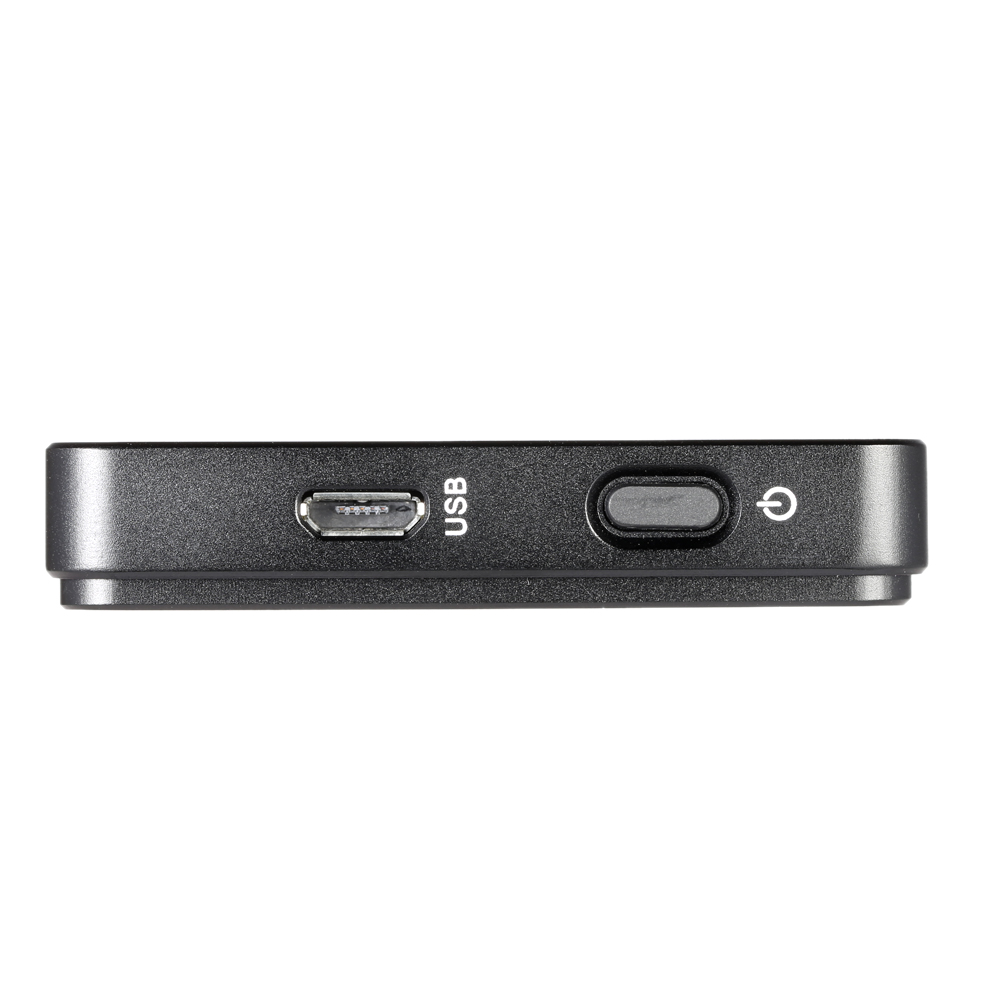

Charging Interface: USB Interface
Operating Temperature: 0~50°C
Storage Temperature: -20~60°C
Dimension: 100 * 56.5 * 10mm / 3.94 * 2.22 * 0.4in
Weight(with Battery): 90g / 3.17oz
Package Size: 14.5 * 9 * 4cm / 5.7 * 3.54 * 1.57in
Package Weight: 195g / 6.9oz

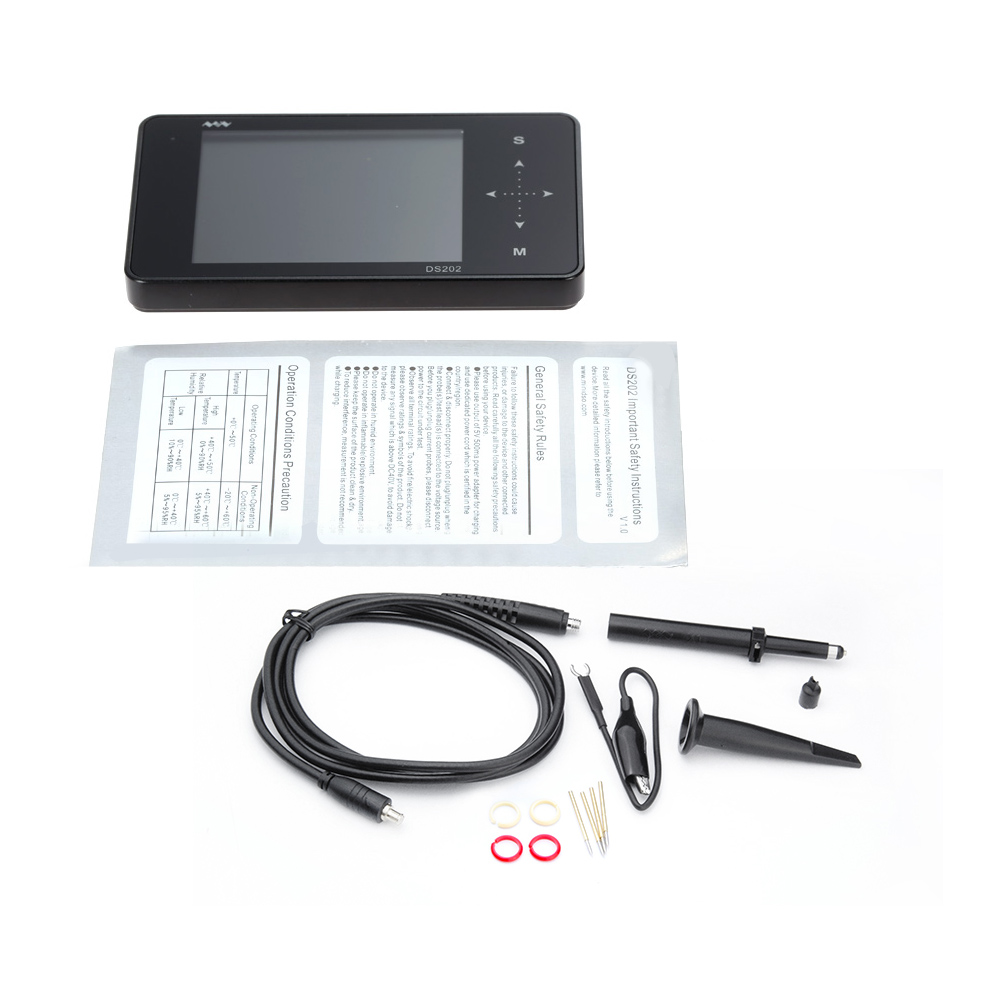

Package List:
1 * DS202 Oscilloscope

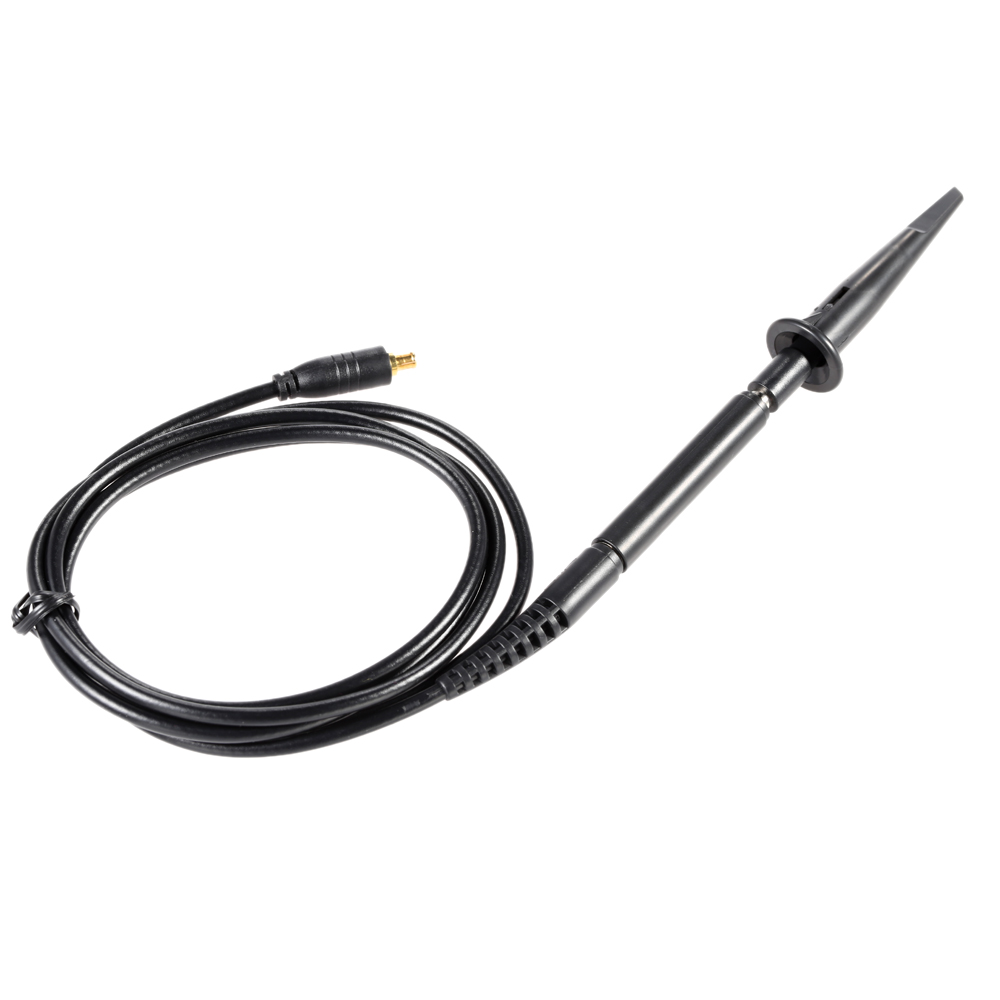

1 * Probe Cable
1 * Hex Key
1 * Pack of Accessories
