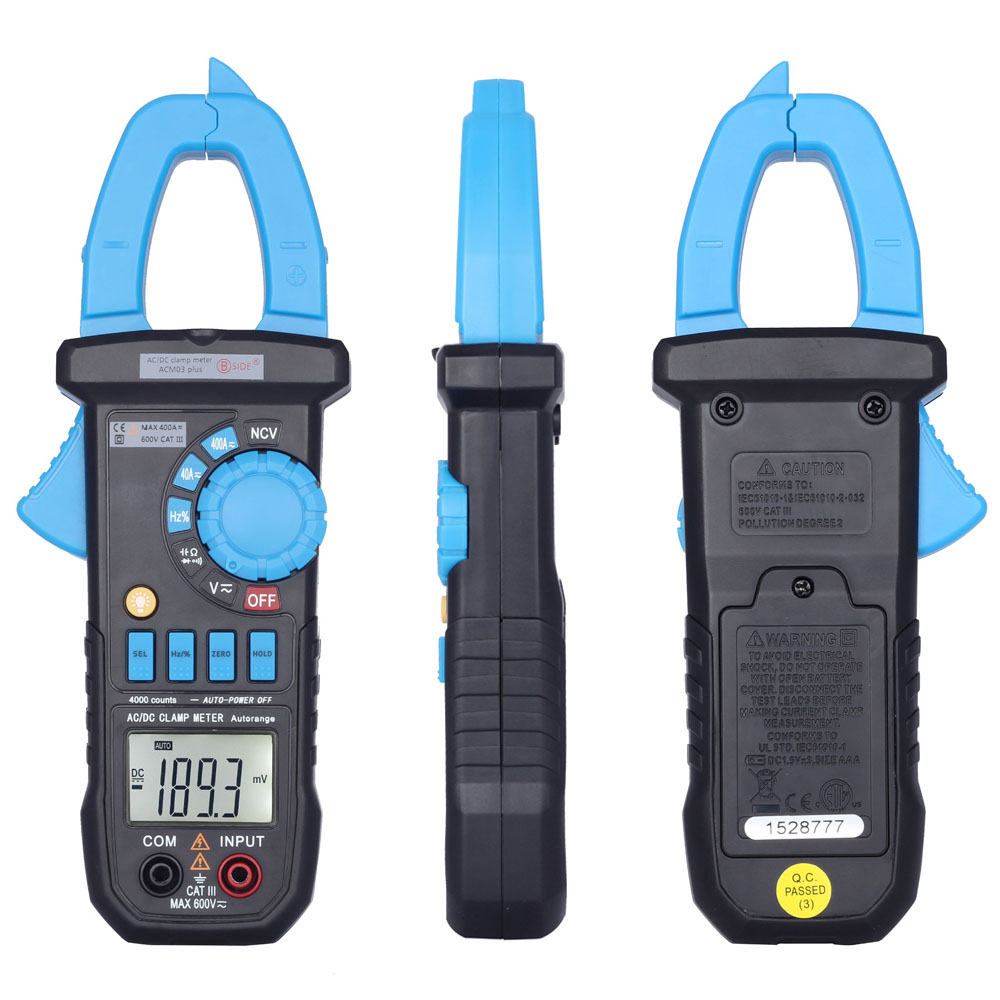

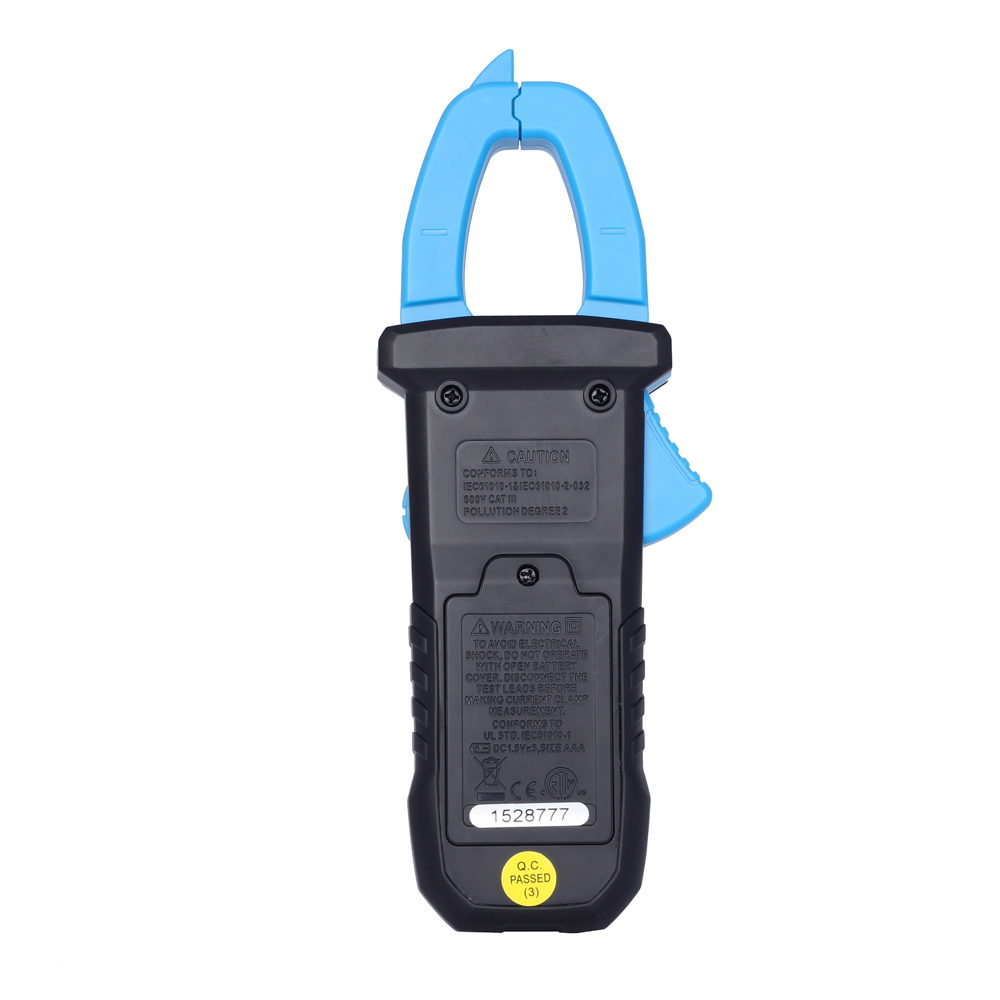

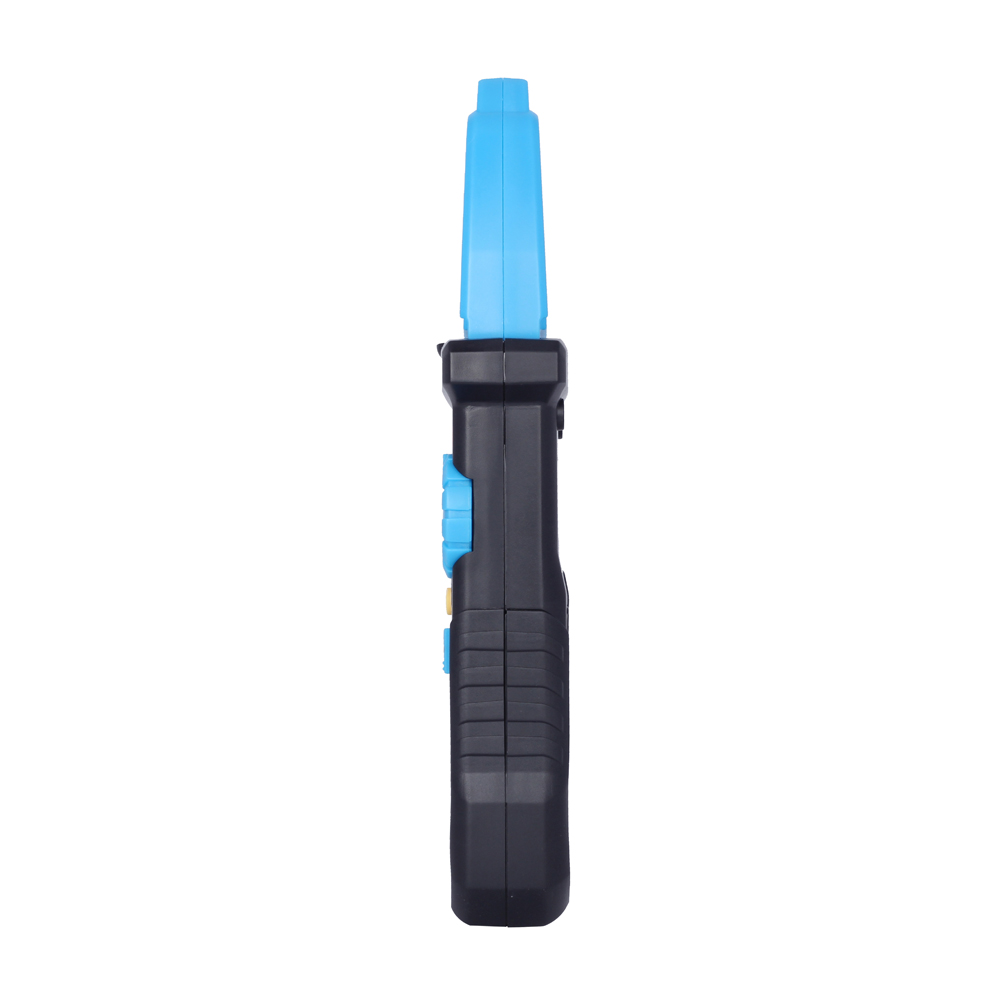

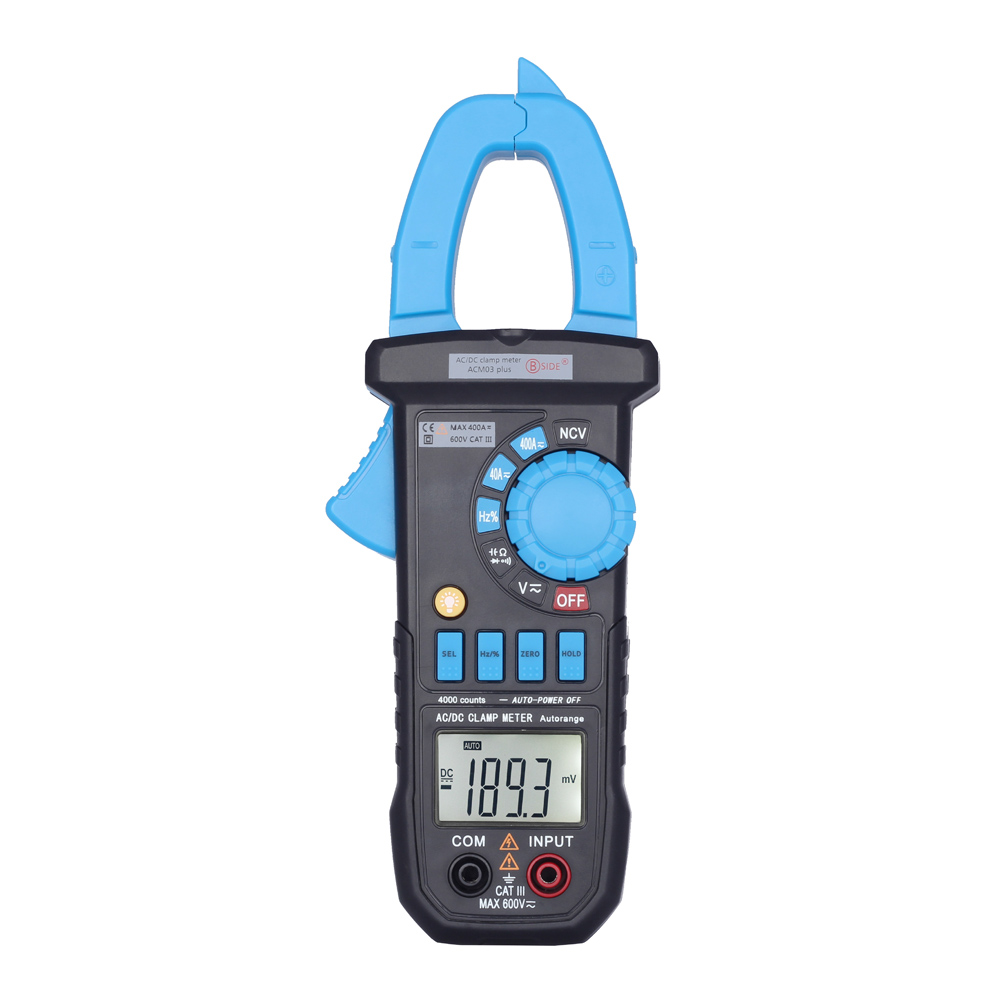

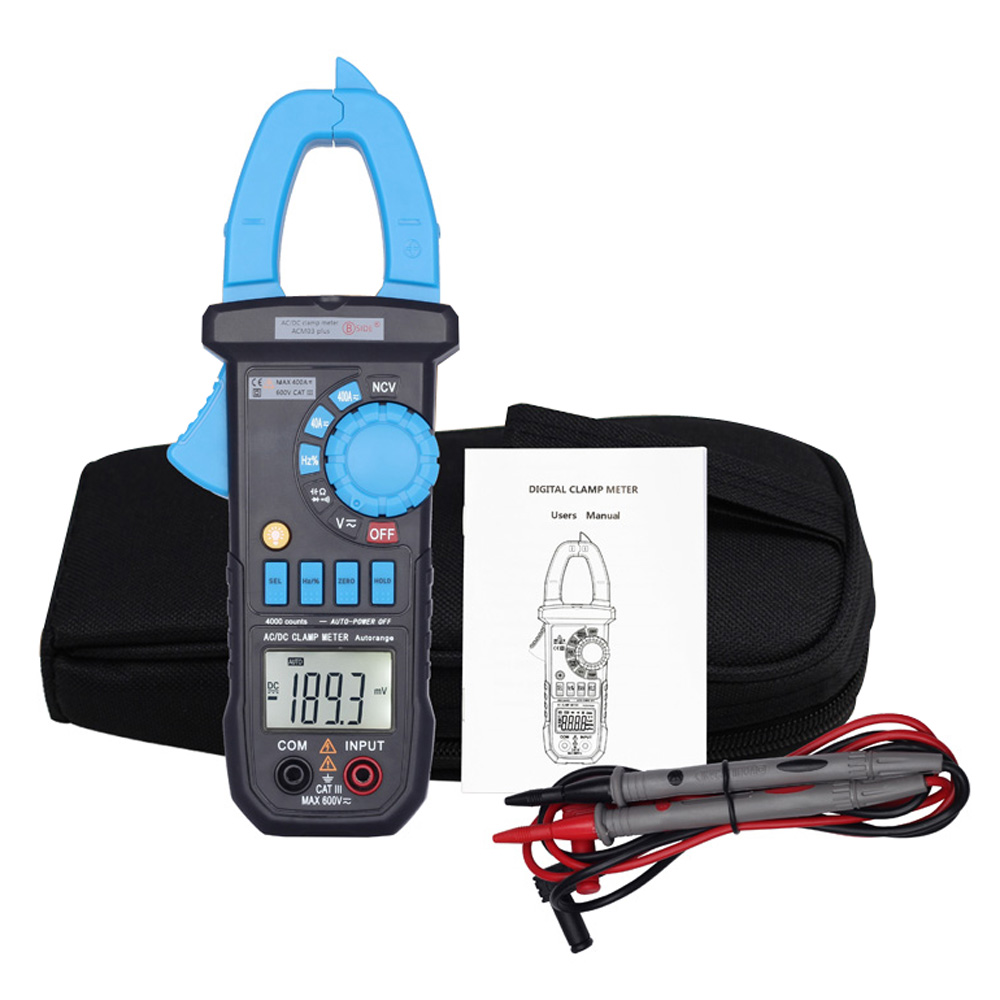

Digital Multimeter LCD Clamp Meter the Current Tongs DC/AC Voltage/Resistance Capacitance Diode Frequency Tester NCV Function

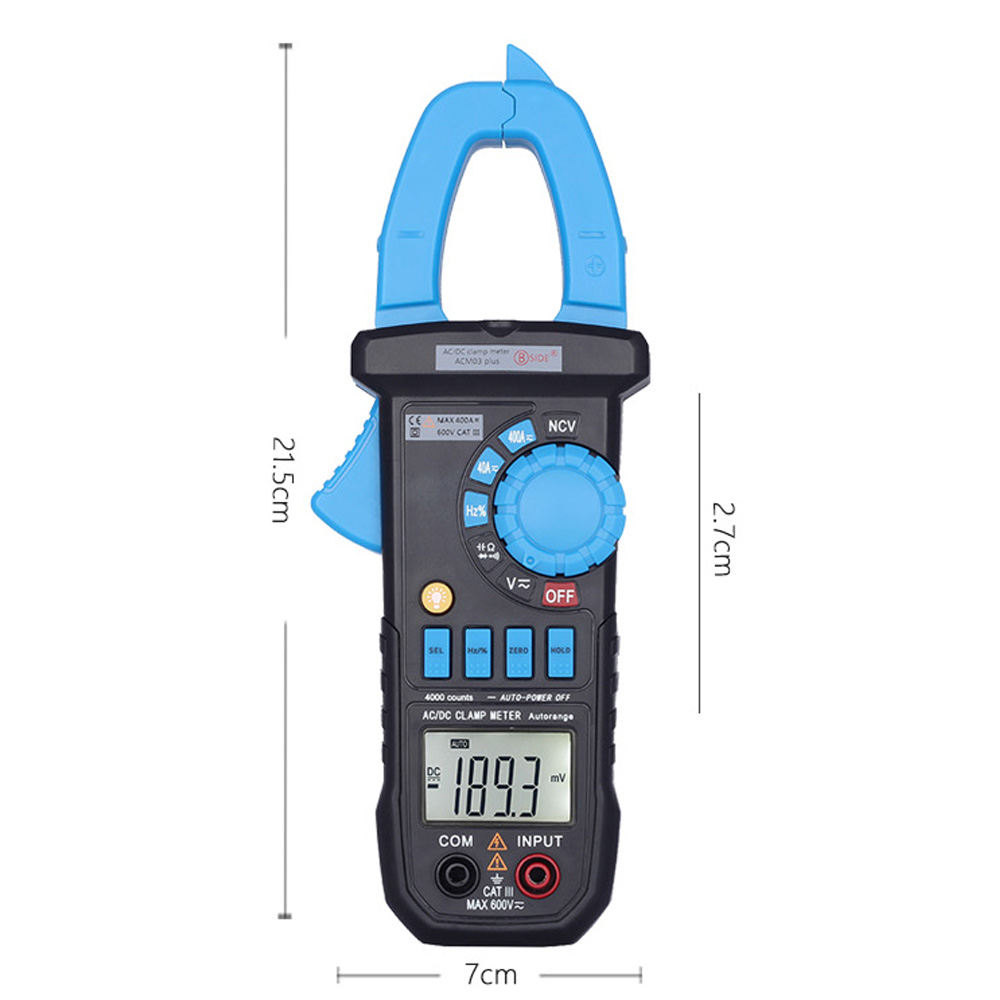

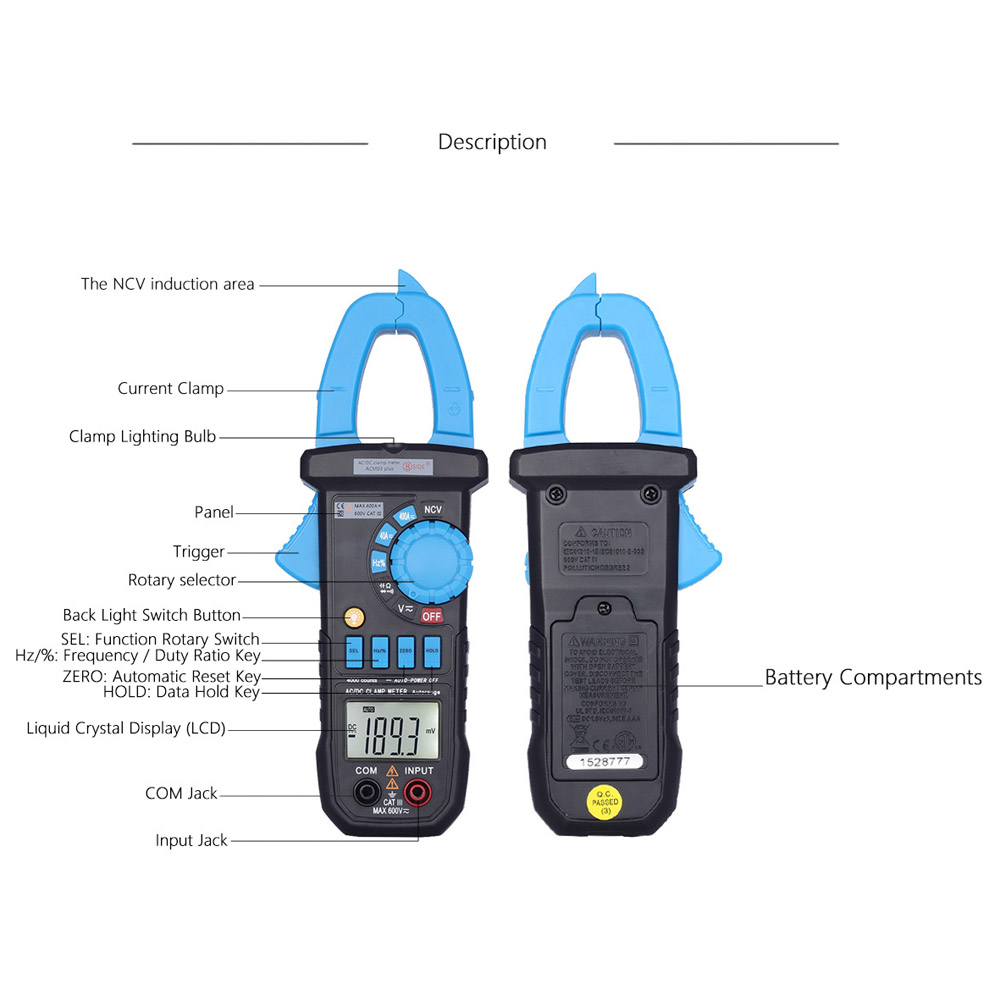

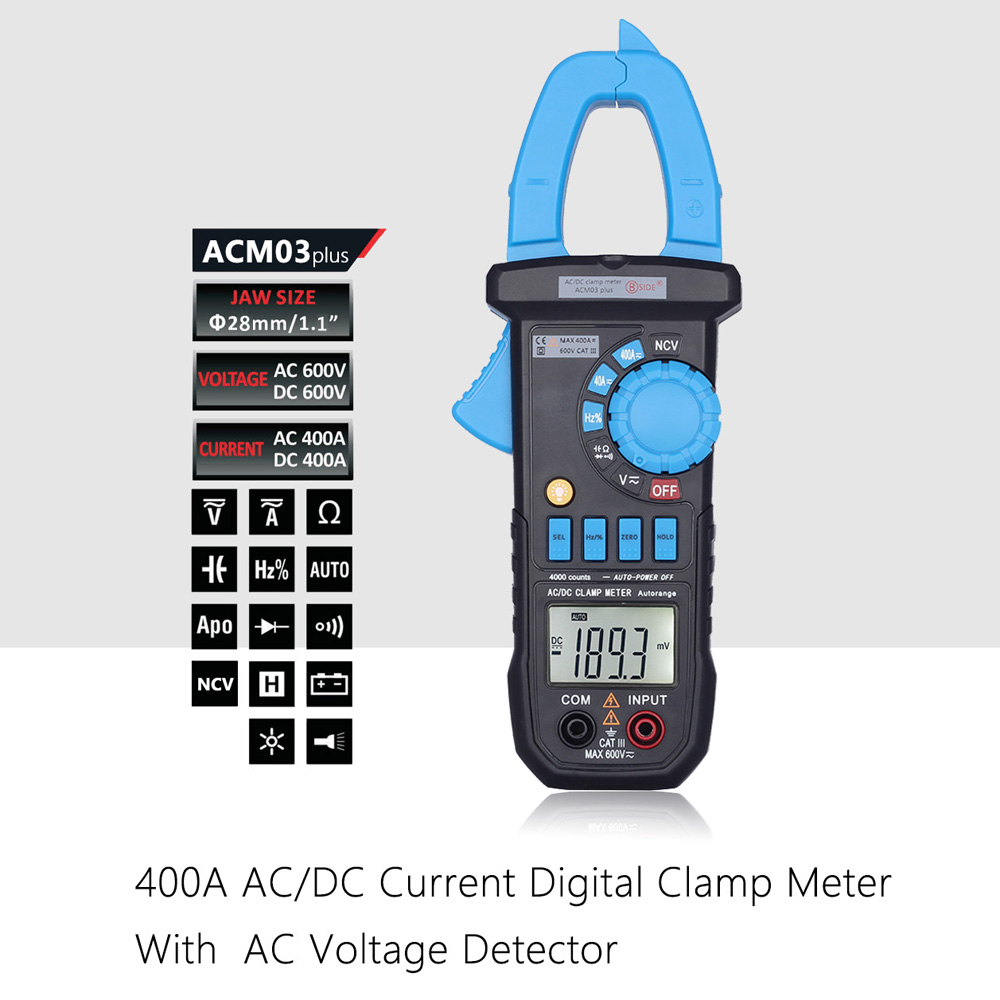

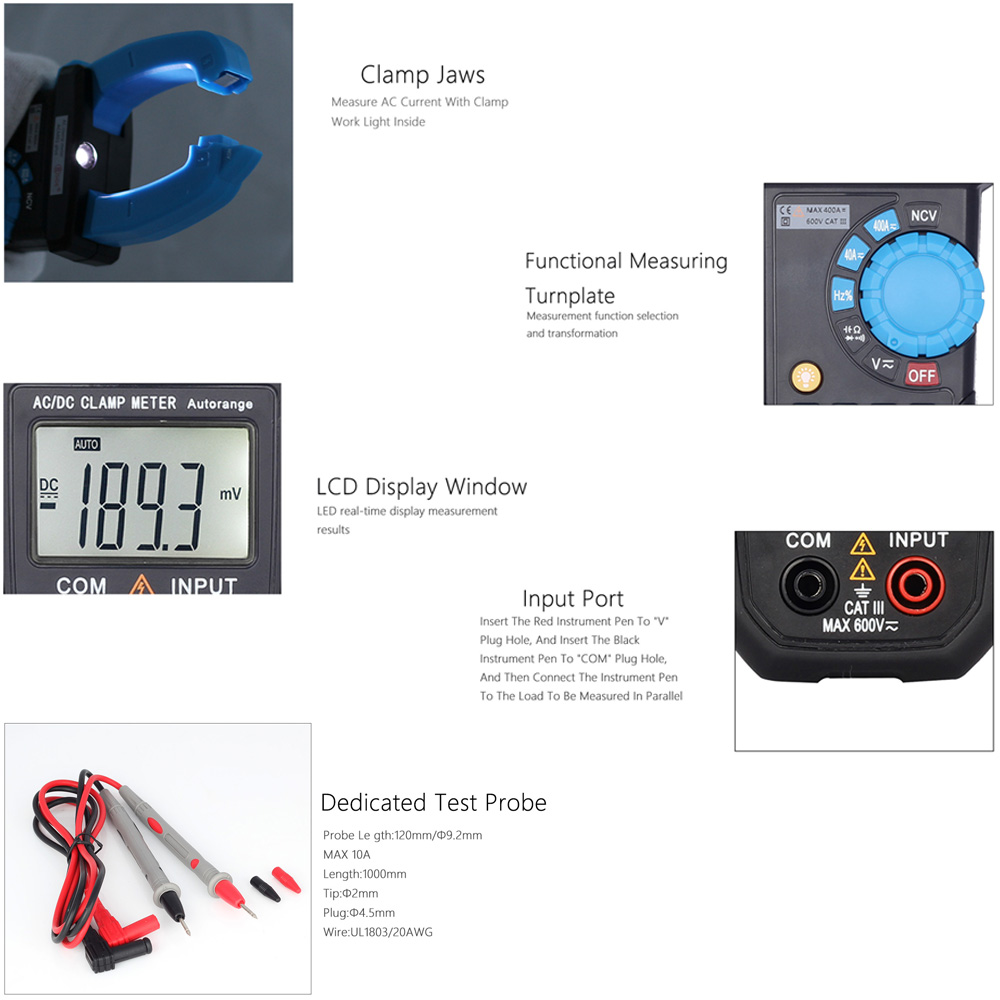

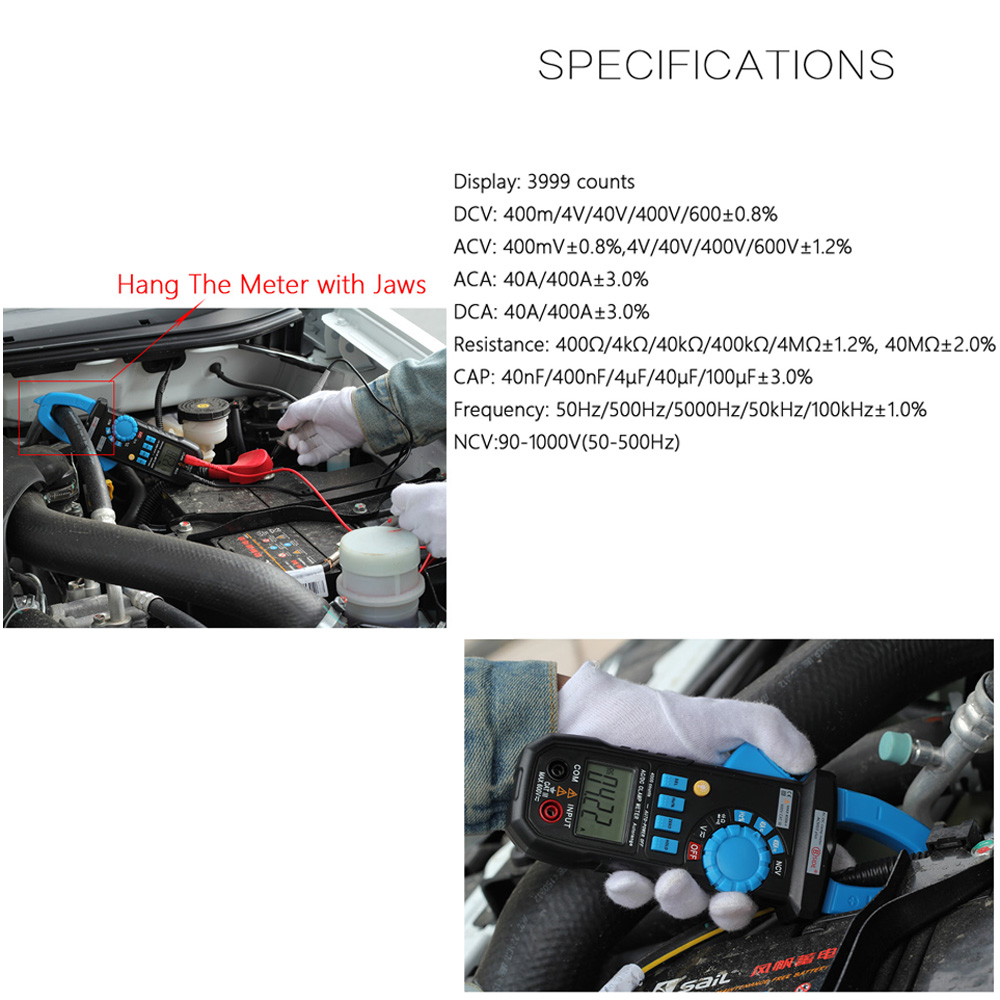

The Meter measures AC/DC voltage/current, resistance, capacitance, frequency, duty cycle, diode, continuity, NCV(non contact ac voltage detector). It's the portable and great tool for users.Features: Maximum display value: 3999. LCD display with backlight, and has work light, convenient to operate and read. Can measure AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, diode, continuity. Auto/manual range, convenient to use. Data hold, low battery indication and overload indication. NCV function(Non contact voltage detector). Auto power off function after 15 mins non-use. Suitable for electrical equipment testing and maintenance.Specifications: Display: 3 3/4 LCD with Backlight Max. Display: 3999 Counts Max. Size of Jaw Opening: 26mm / 1.02" Range: Auto/Manual NCV: Non-Contact AC Voltage Detector DCV: 400mV/4V/40V/400V ±(0.8%+2); 600V ±(1.0%+2) ACV: 4V/40V/400V/600V ±(1.2%+10) Voltage Resolution: 0.1mV(DC)/0.001V/0.01V/0.1V/1V(DC/AC) Input Impedance: 10MΩ AC Current: 40A/400A ±(3%+6) DC Current: 40A/400A ±(3%+6) Current Resolution: 0.01A/0.1A Resistance Range: 400Ω/4kΩ/40kΩ/400kΩ/4MΩ ±(1.2%+2); 40MΩ, ±(2.0%+5) Resistance Resolution: 0.1Ω/0.001kΩ/0.01kΩ/0.1kΩ/0.001MΩ/0.1MΩ Capacitance Range: 40nF/400nF/4μF/40μF/100μF ±(3.0%+10) Capacitance Resolution: 0.01nF/0.1nF/0.001μF/0.01μF/0.1μF Frequency: 50Hz/500Hz/5KHz/50KHz/100KHz ±(1.0%+3) NCV: 50Hz-500Hz(Frequency Range), 90-1000V(Voltage Range) Diode Test: Yes Continuity Test(Build-in buzzer sounds when resistance is less than 50Ω) Overload Protection: 600V DC or Ture RMS AC Duty Cycle: 0.1%-99.9% Power Supply: 3 * 1.5V AAA Batteries(NOT Included) Operating Temperature: 0°C~40°C Storage Temperature: -10°C~60°C Item Size: 215 * 70 * 27mm / 8.5 * 2.75 * 1.06in Item Weight: 255g / 9.02oz Package Size: 23.5 * 11 * 5cm / 9.25 * 4.33 * 1.97in Package Weight: 474g / 16.73ozPackage List: 1 * Clamp Meter 1 * Pair of Test Leads 1 * Storage Bag 1 * User Manual (English)
