Bluetooth 4.0 Sound Quality Digital Amplifier Board Module 2*25W Wireless Power Amplifier Board Audio Receiver TDA7492P

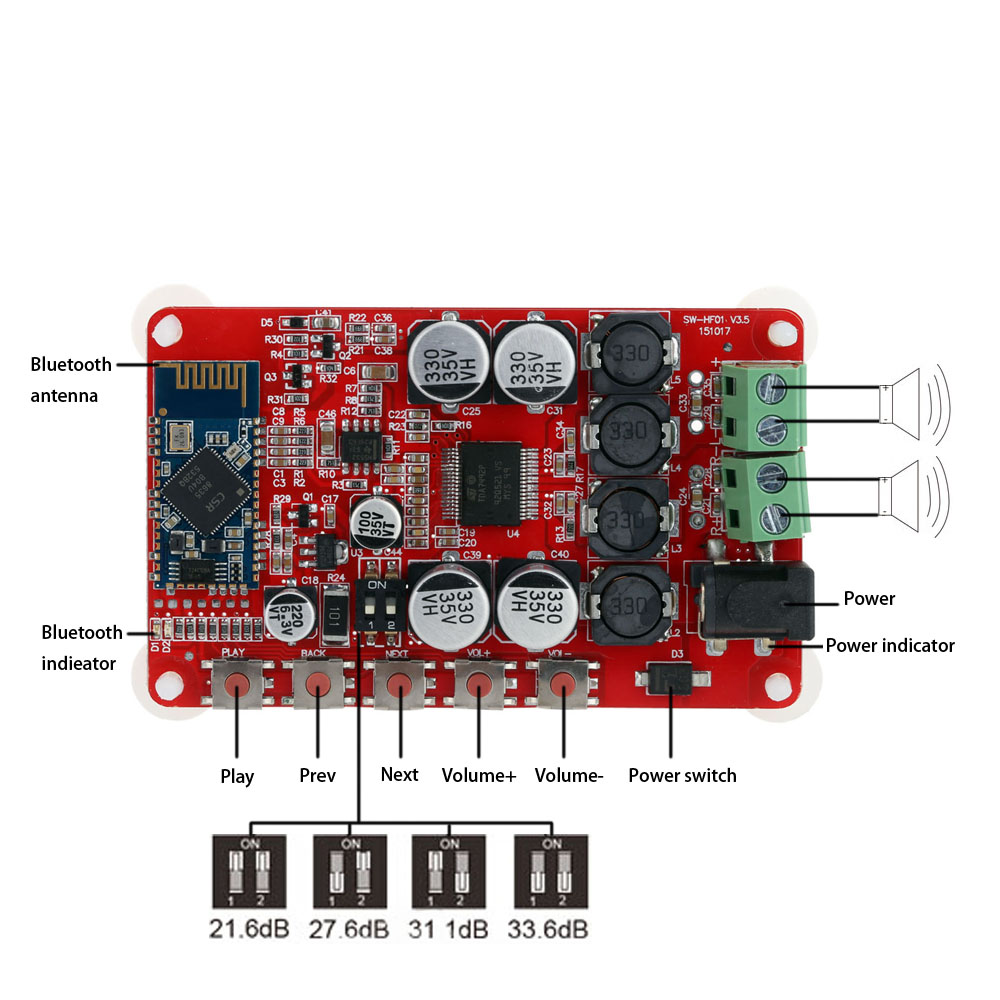

Sound quality is very good and it can drive 4/6/8/16 ohm speakers. Bluetooth V4.0, it has sufficient power output 2*25W.Features: Sound quality is very good by using this module. Upgraded version, with power input reverse protection. Using CSR8635 Bluetooth chip, Bluetooth V4.0, high software compatibility. After power on, automatically enter into pairing mode, search the name: SANWU Audio. With 5 buttons for adjustment, convenient and easy operation. Applicable speaker impedance: 4/6/8/16 ohm (8 ohm is the best).Specifications: Supply Voltage: DC 8-25V Power Interface: 2.1 DC Socket Audio Input: Bluetooth Receiver V4.0 Audio Output: Terminals Output Power: Add Pre-5532 Output Foot Applicable Speaker Impedance: 4/6/8/16 ohm Number of Channels: Two-channel Stereo PCB Board Size: 82 * 50mm / 3.23 * 1.97in Weight: 37g / 1.3ozNote: If you use external audio, you need connect 3.5mm audio line; If you directly use Bluetooth, when power on, wait 3-10s, until LED blue and red light flashing alternately, then you can use your device to find the Bluetooth module then connect it. You can directly use it.Package List: 1 * Bluetooth 4.0 Audio Receiver Power Amplifier Board
