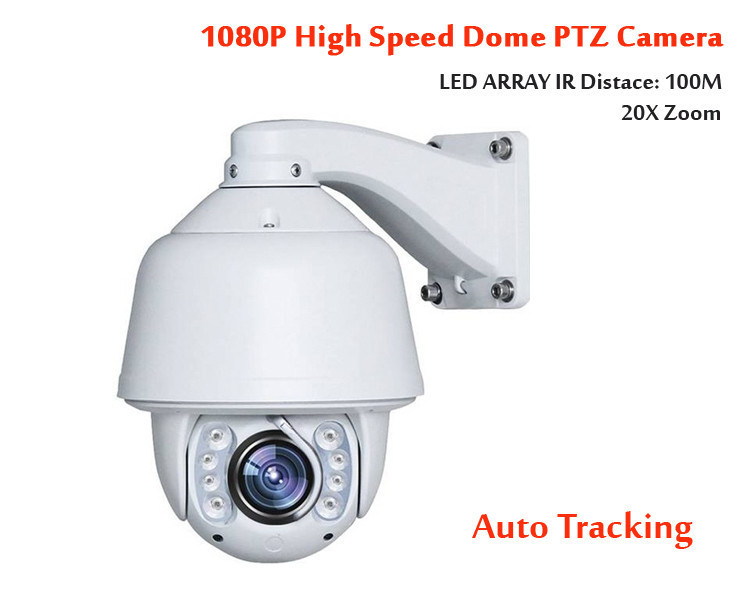

Model

6116-IR-Z

Image Sensor

1/2.7" Exmor CMOS

Effective Pixels

1920(H)x1080(V)

Minimum Illumination

Color: 0.5Lux F1.6, B/W: 0.02Lux F1.6

White Balance

Auto / Manual / One Touch WB / ATW

Min. Illumination

Color: 0.05Lux (F1.6, AGC ON), B/W: 0.005Lux (F1.6, AGC On); 0 Lux with IR

White Balance

Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp

AGC

Auto/Manual

S/N Ratio

>50dB

Day & Night

IR Cut Filter

Digital Noise Reduction

3D DNR

Wide Dynamic Range

Digital WDR

Shutter Speed

50Hz: 1~1/30,000s; 60Hz: 1~1/30,000s

Focus Mode

Auto/Semiautomatic/Manual

Enhancement

Smart Defog: on/off

Focal Length

4.7 ~ 94mm, 20x

Zoom Speed

Approx 2.7s(Optical Wide-Tele)

Angle of View

58.3 ~ 3.2 degree (Wide-Tele)

Min. Working Distance

10 ~ 1,500mm (Wide-Tele)

Aperture Range

F1.6 ~ F3.5

IR Distance

150M

Day& Night

ICR

Auto Focus

Auto / Semi-automatic / Manual

Ethernet

10Base -T, /100Base-TX, RJ45 Connector

Max.Image Resolution

1920×1080

Frame Rate

50Hz:25fps( 1920×1080P),25fps((1280×720P)

60Hz:30fps( 1920×1080P),30fps((1280×720P)

Image Compression

H.264

Protocols

TCP/IP, HTTP, DHCP, DNS, RTP/RTCP, RTSP, PPPoE, SMTP, NTP (FTP, SNMP optional)

No. of Users

Up to 6 user

Dual Stream

Support

User/Host Level

3 Levels: Administrator, Camera control, Live view online

Protocols

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE

Simultaneous Live View

Up to 10

Streams

Three Streams

SD

User/Host Level

Up to 32 users, 3 Levels: Administrator, Camera control, Live view only

Application programming

Open-ended API, support Onvif, PSIA and CGI

Camera Control

Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode

Client software

Support iVMS-4200 PCNVR

Web Browser

IE 7, IE 8, IE 9, Chrome 8+, Firefox 3.5+, Safari 5+, support multi-language

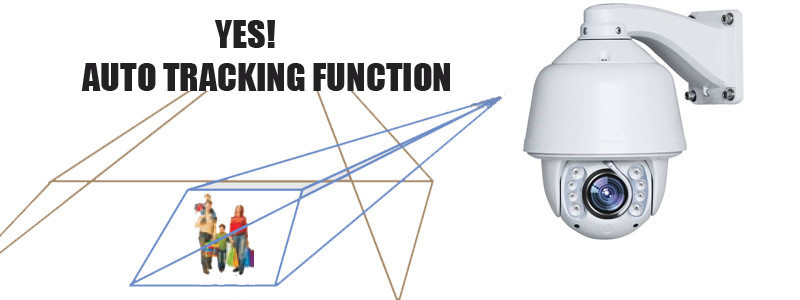

Auto tracking

support

Security Measures

User authentication (ID and PW), host authentication (MAC address)

Pan Range

360° endless

Pan Speed

High Speed: 0.01° ~ 200° /s Low Speed: 0.01° ~ 35° /s

Tilt Range

-5° ~ 92° (auto flip )

Tilt Speed

High Speed: 0.01° ~ 120° /s Low Speed: 0.01° ~ 35° /s

Pan preset speed

High Speed: 250° /s Low Speed: 35° /s

Number of Preset

255

Pattern

4 patterns, with the recording time not less than 10 min per pattern

3D Position

Yes

Proportional Zoom

Rotation speed can be adjusted automatically according to zoom multiples

Working Temperature/

Humidity

-40°C ~ 75°C (-22° F ~ 149° F), 90% or less

Protection Level

IP66 with TVS 4000V lightning protection, surge protection and voltage transient protection

Power Supply

DC12V±10% (AC24V±10% optional)

Power Consumption

40W MAX

Color / Material

White / Aluminum

Net Weight(approx.)

8.0Kg (8.8Ibs)
