34CH 500MHz USB PC Digital Logic Analyzer for test diagnostics analysis of digital circuits Built-in 250MHz Frequency Counter

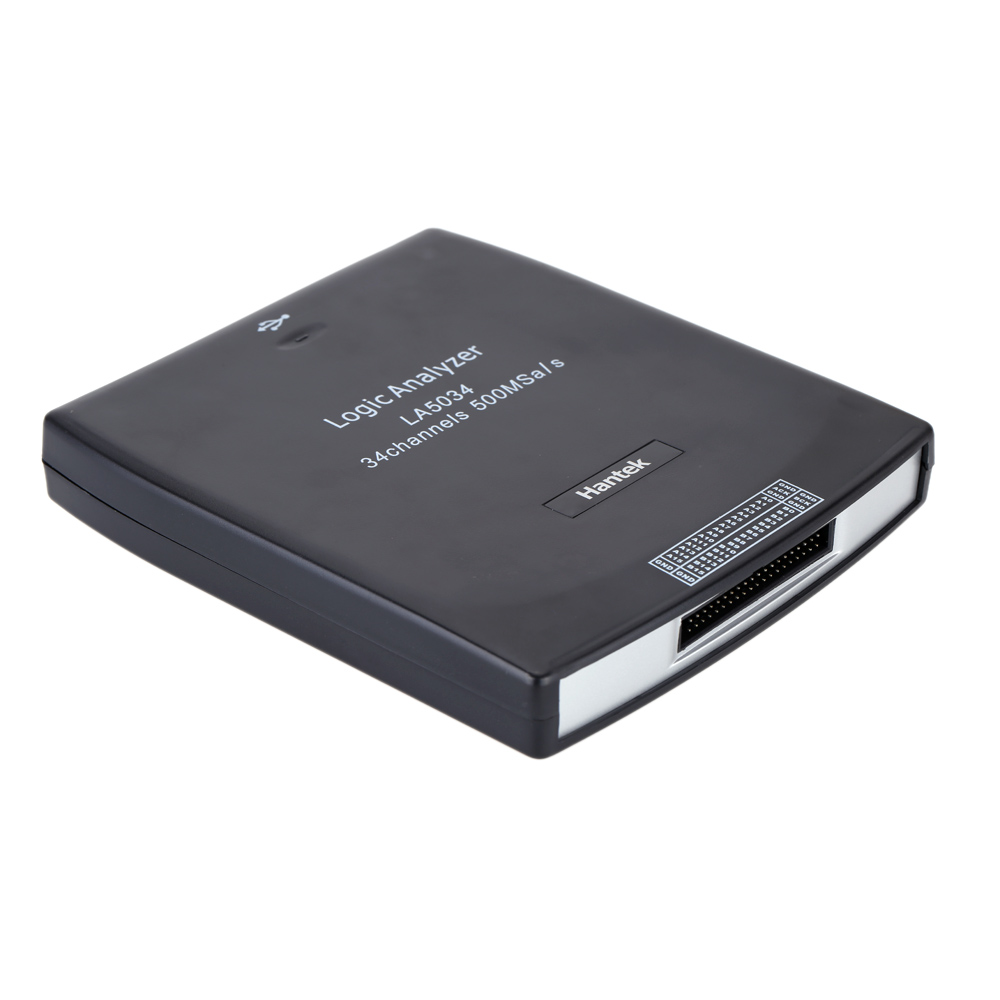

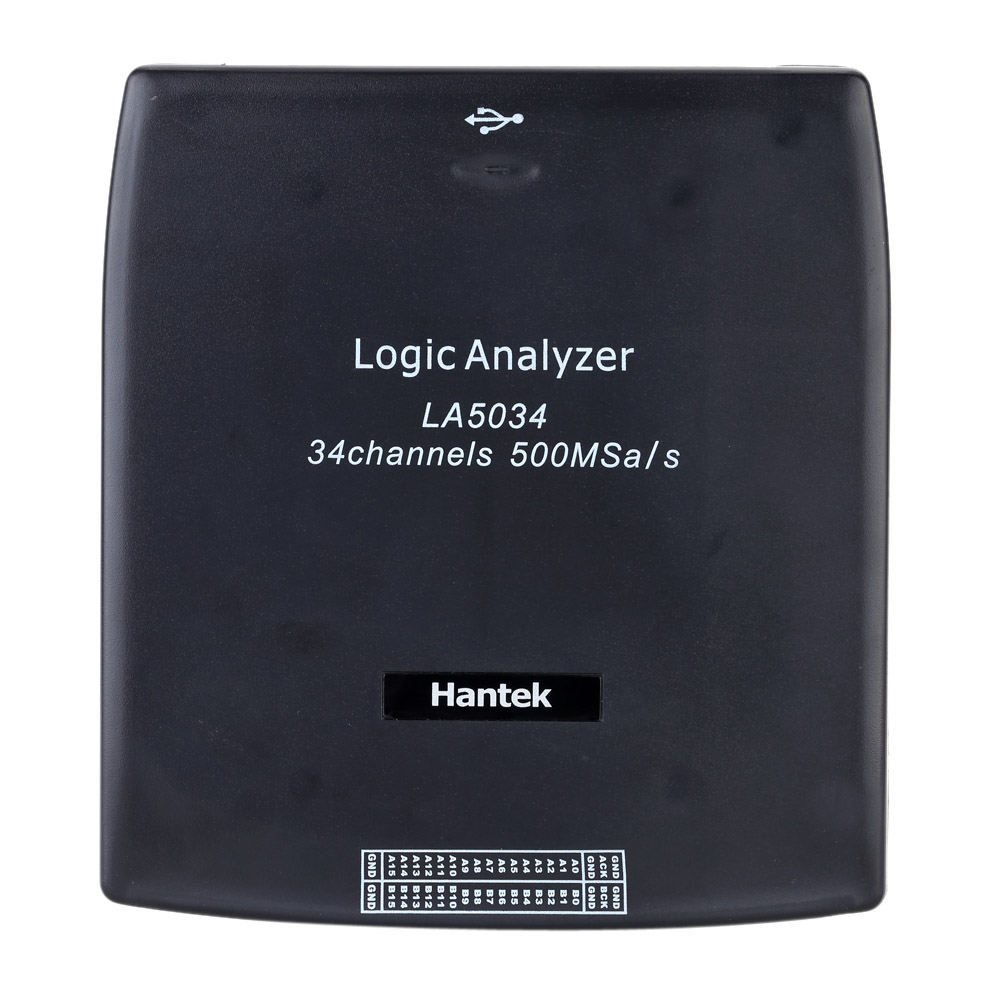

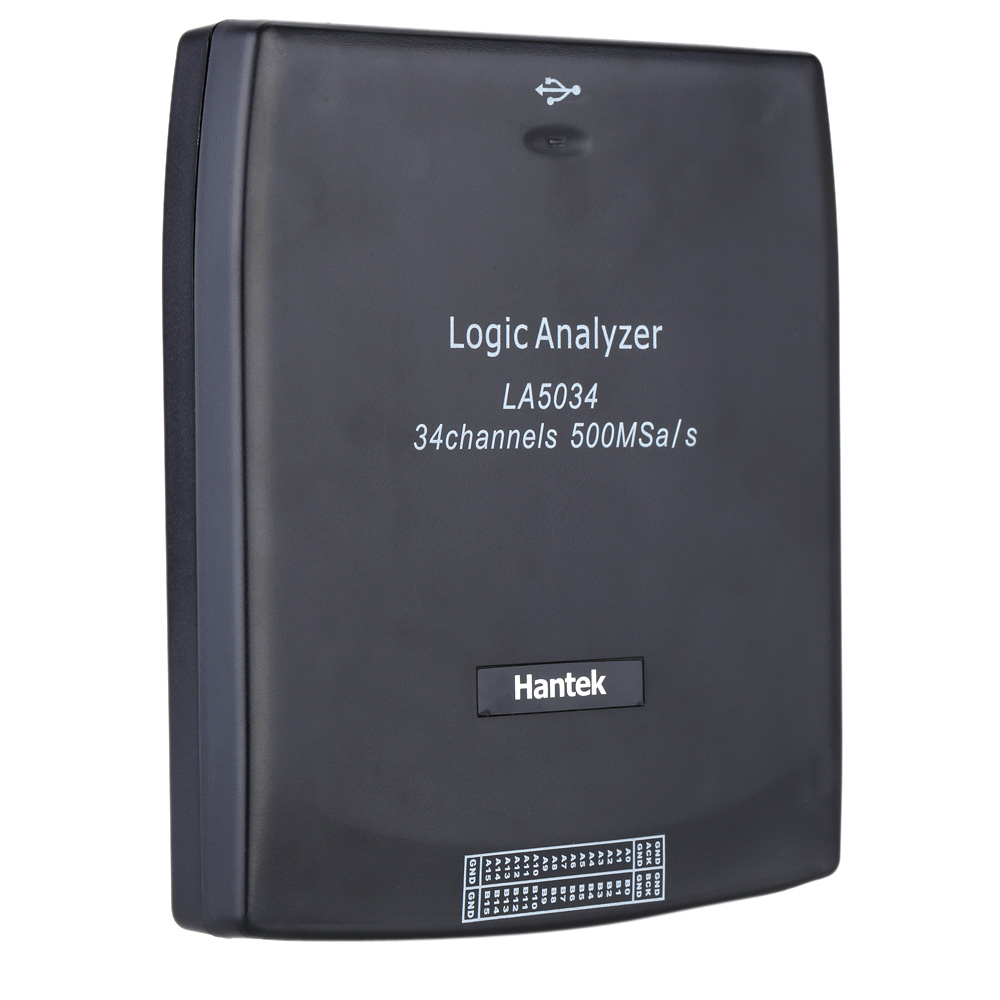

The LA5034 is a 500MHz, 34-channel logic analyzer for test, diagnostics, and analysis of digital circuits. It has the features of the multi-channel oscilloscopes and other expensive bench type instruments. The adoption of advanced large-scale integrated circuits, the integrated USB 2.0, CPLD, FPGA, the high-frequency digital circuit, the embedded systems, and the other advanced technologies, make the LA5034 portable, easy-to-use and good for extension. It is your best choice in pc-based logic analyzers. The LA5034 is very suitable for electronics engineers and college students in scientific research and development.


Features:
Up to 34 data input channels.
High speed operation, 500MHz Timing-Mode (Internal Clock), 200MHz State-Mode (External Clock).
Continuously variable pre/post trigger position, Advanced Multi-Level Triggering.
+6V to -6V Adjustable Logic Threshold.
CAN, I2C, SPI and RS232 Interpreters.
Built-in 250MHz Frequency Counter.
USB 1.1 and 2.0 Compatible.
Specifications:
Channel: 34
Input Impedance: 200K (C=10p)
Input Voltage Range: -60V~60V
Voltage Threshold Range: -6V~6V
Max. Sample Rate: 500 MHz
Max. Input Signal Bandwidth: 150 MHz
Min Time Resolution: 2ns
Sample Depth: 2KSample
Memory Depth: 68Kbits
Compatible Input: TTL, LVTTL, CMOS, LVCOMS, ECL, PECL, EIA
Electrostatic Protected Area: 15KV

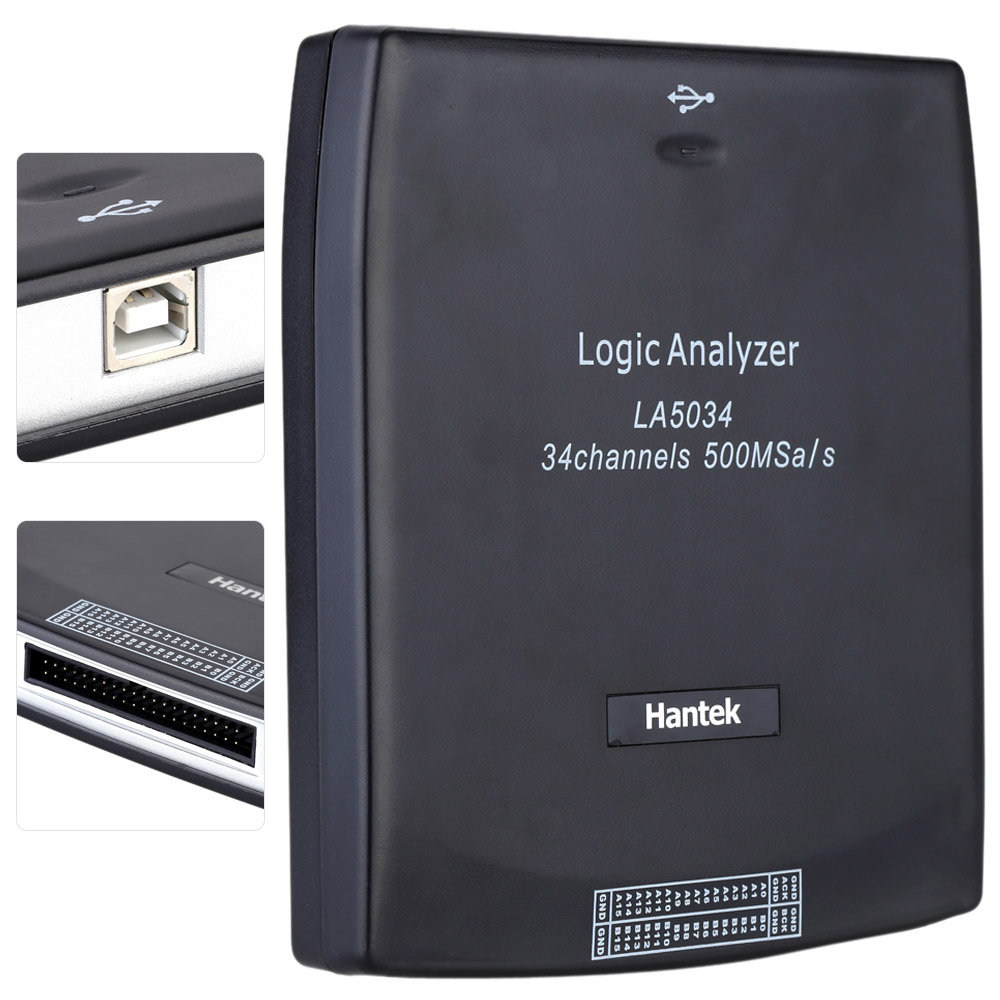

Interface: USB Port
Voltage Range: 4.5V~5.5V
Power: Max. 3.5W
Temperature Range: Operation: -10°C~60°C; Storage: -40°C~60°C
Operating System: WinXP/2000/Win7 32bits
Analyzer Size: 150 * 165 * 25mm / 5.9 * 6.5 * 0.98in (L * W * H)
Analyzer Weight: Approx. 224g / 7.92oz
Package Size: 23.5 * 17 * 7.5cm / 9.25 * 6.7 * 2.95in (L * W * H)
Package Weight: 552g / 19.47oz

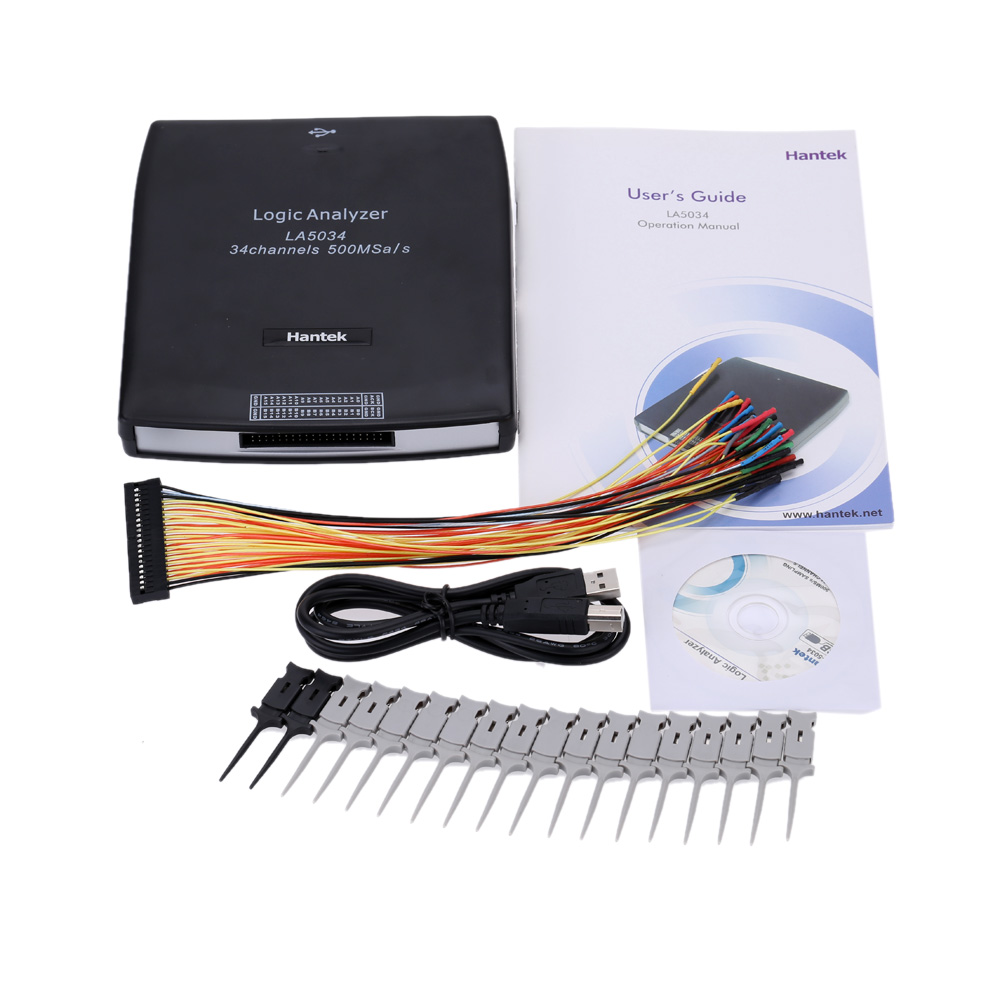

Package List:
1 * Logic Analyzer

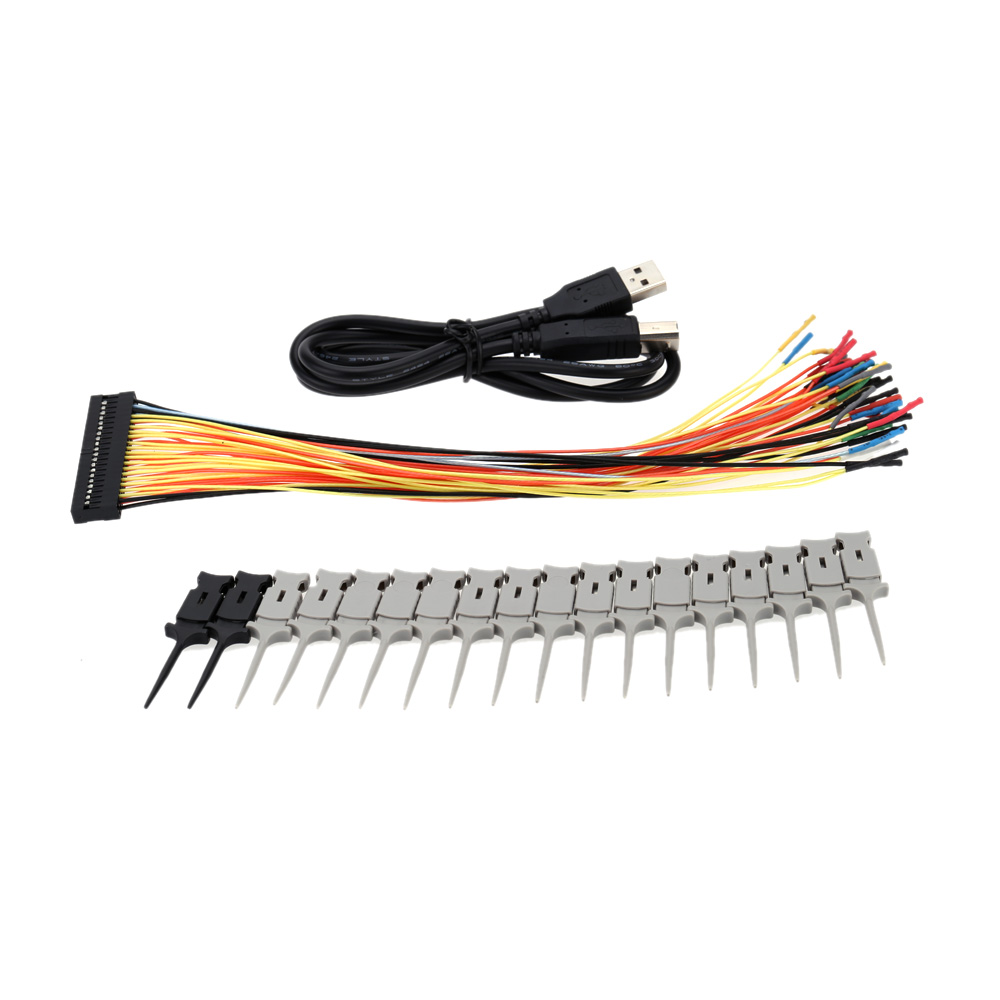

1 * USB Cable
1 * CD
1 * Flat Cable
1 * Set of Test Clips
1 * User Manual (English)
