2016 2MHZ DDS Function Signal Generator Signal Source Frequency Counter Synchronized TTL/Impulse Output Square Wave Sweep Panel

This product combines the function of DDS function signal & impulse signal generator, synchronized TTL output, frequency counter. It does well in the field of signal generation, wave sweep, measurement of parameters. Perfect for electronic engineer, laboratory, factory, teaching, scientific research, electronic enthusiasts.
Features:

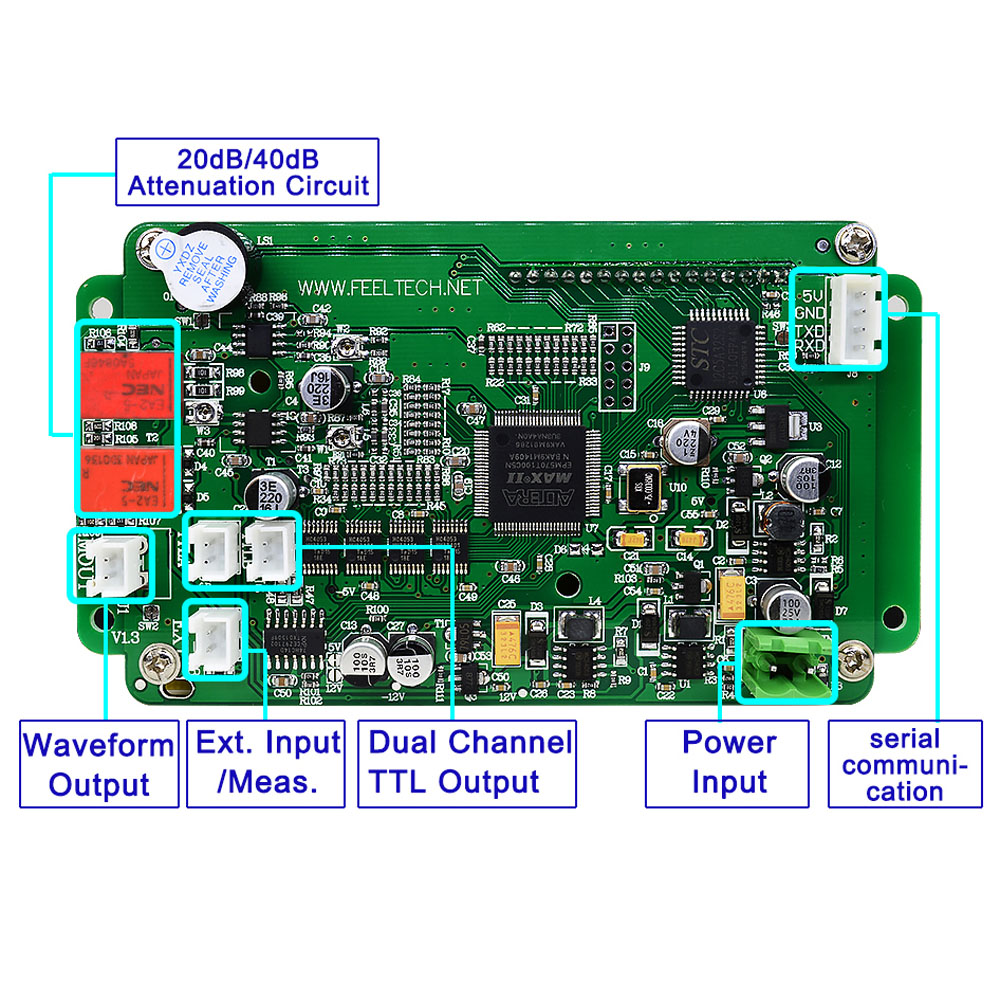

Apply DDS technology, FPGA integrated circuit, high-speed MCU micro controller to keep high stability of signal output.
All parameters can be calibrated by internal program.
Can output normal sine / Square / triangle / sawtooth / impulse / step wave etc.
Sweep function: linear sweep, logarithmic sweep, can set starting and stop frequency optionally.
Impulse string trigger function: support manual & external triggering way and output 1-65536 pulse string.
With 60MHz frequency counter to test frequency of external signal and counter to calculate the quantity of impulse.
Support external TTL serial port to control this equipment, simplify further development.
-10V to 10V DC bias function: resolution is to 0.01V and can achieve 0-10V CMOS electrical level.
Other functions: can save 30 data, output short circuit protection, with 20DB & 40DB attenuation function.
Embedded panel mounting structure, easy to integrate with customer products or used separately.

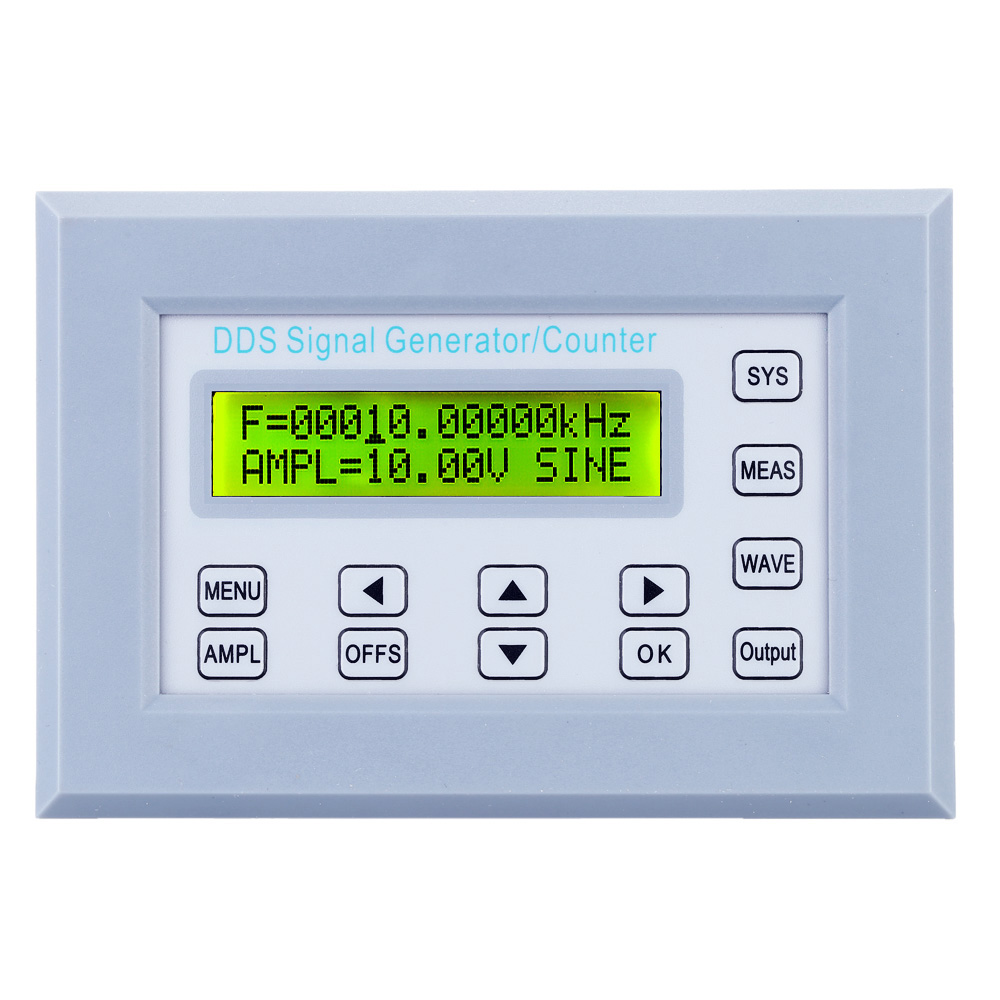

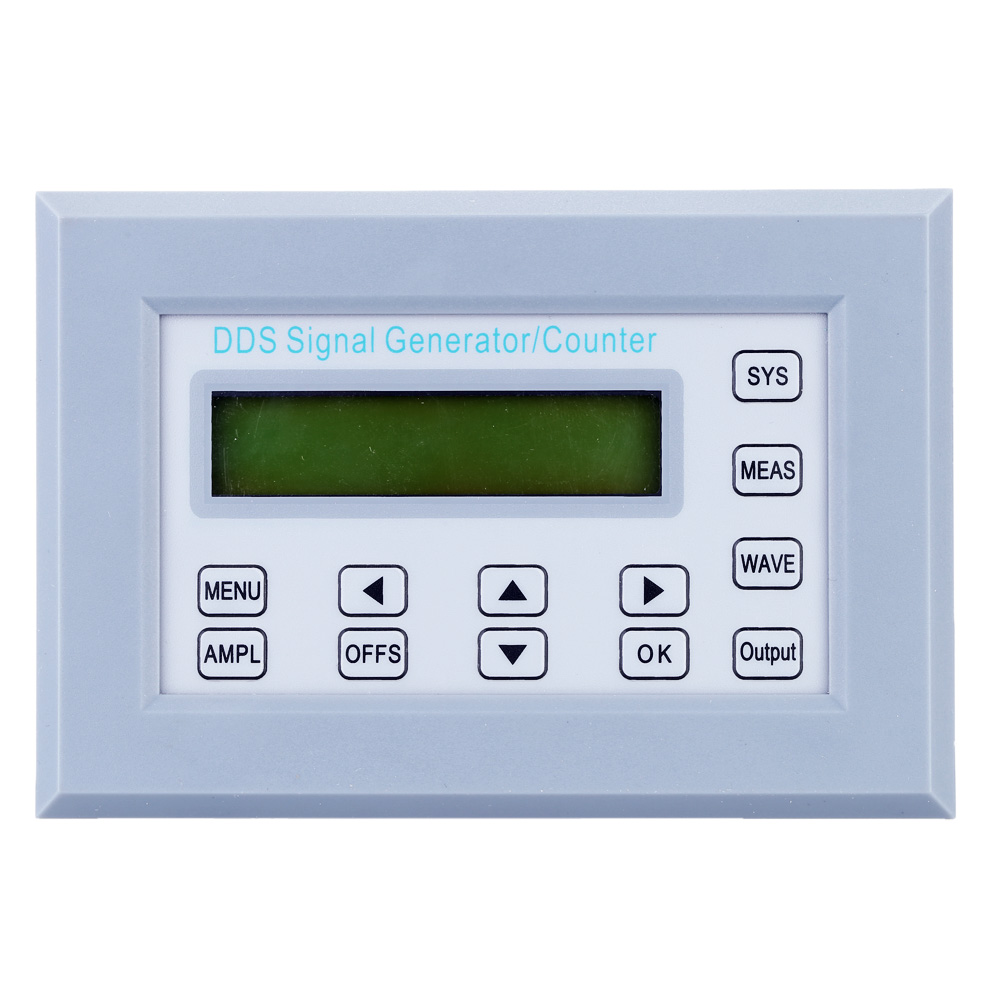

LCD screen with high resolution and one button operation to easier your work.
Specifications:
Wave Form: sine / square(Adjustable Duty cycle) / triangle / sawtooth / impulse(Adjustable impulse width) / step wave
Frequency Range:
Sine: 0-2MHz/0-5MHz/0-10MHz/0-12MHz (Optional)
Square/triangle/sawtooth/impulse/TTL digital wave/other wave: 0-5MHz(Except the 2MHz Model)
Resolution: 10mHz (0.01Hz)(At least)
Frequency Error: ±5×10^(-6)
Frequency Stability: ±1×10^(-6)
Output Impedance: 50Ω±10%
Wave Length: 2048 point
Wave Sampling Rate: 200MSa/s
Output Range: 10mVpp-20Vpp
Built-in attenuation: -20dB, -40dB
TTL Electrical Level: >5Vpp
TTL Fan-out coefficient: >20 TTL Load
External Measurement:
Frequency Measuring Range: 1Hz-60MHz
Counter Range:0-4294967295  Way: AC Coupling
Voltage: DC 12V
AC/DC Adapter: input: 100-240V 50/60Hz   Output: DC 15V 2A
Working condition: Temperature: 0-40 Degrees  Humidity: less than 80%
Item Size: Approx.13 * 9 * 2.5cm / 5.12 * 3.54 * 0.98in
Item Weight: 304g / 10.72oz
Package Size: 22.5 * 15 * 7.5cm / 8.86 * 5.91 * 2.95in
Package Weight: 442.5g / 15.6oz
Note: The last two number of the model represent the upper limit value of the frequency of sine wave. For example: SGP2102 means the output frequency of sine wave can reach to 2MHz.
Package List:
1 * DDS Function Signal Generator
1 * DC/AC Adapter
1 * BNC Wire
1 * Accessory Set
