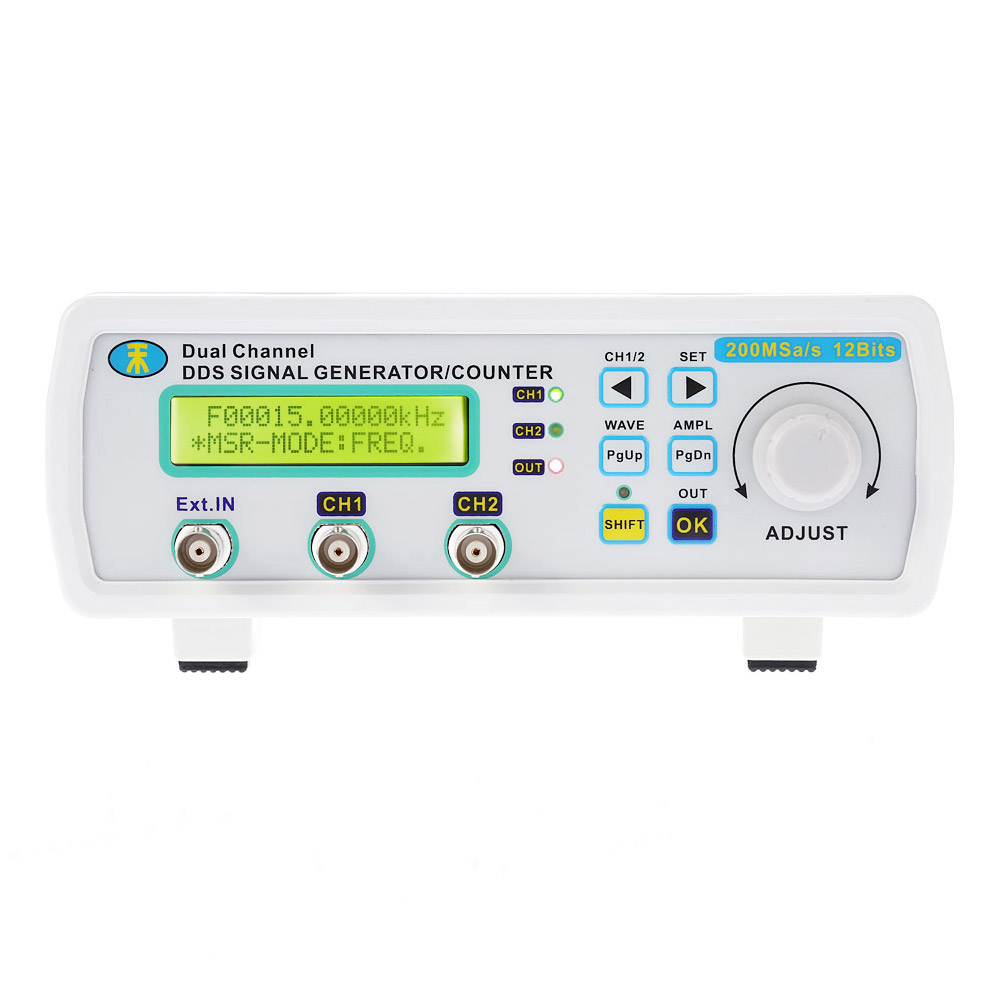

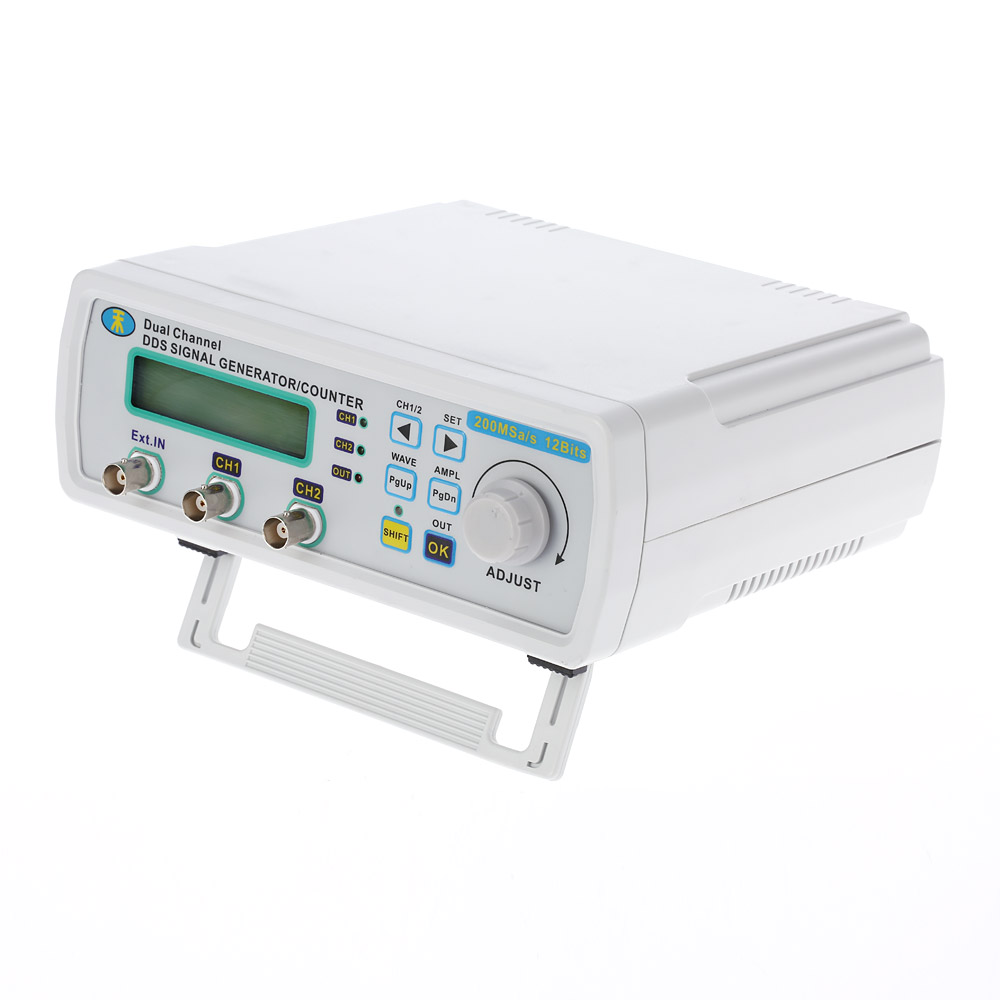

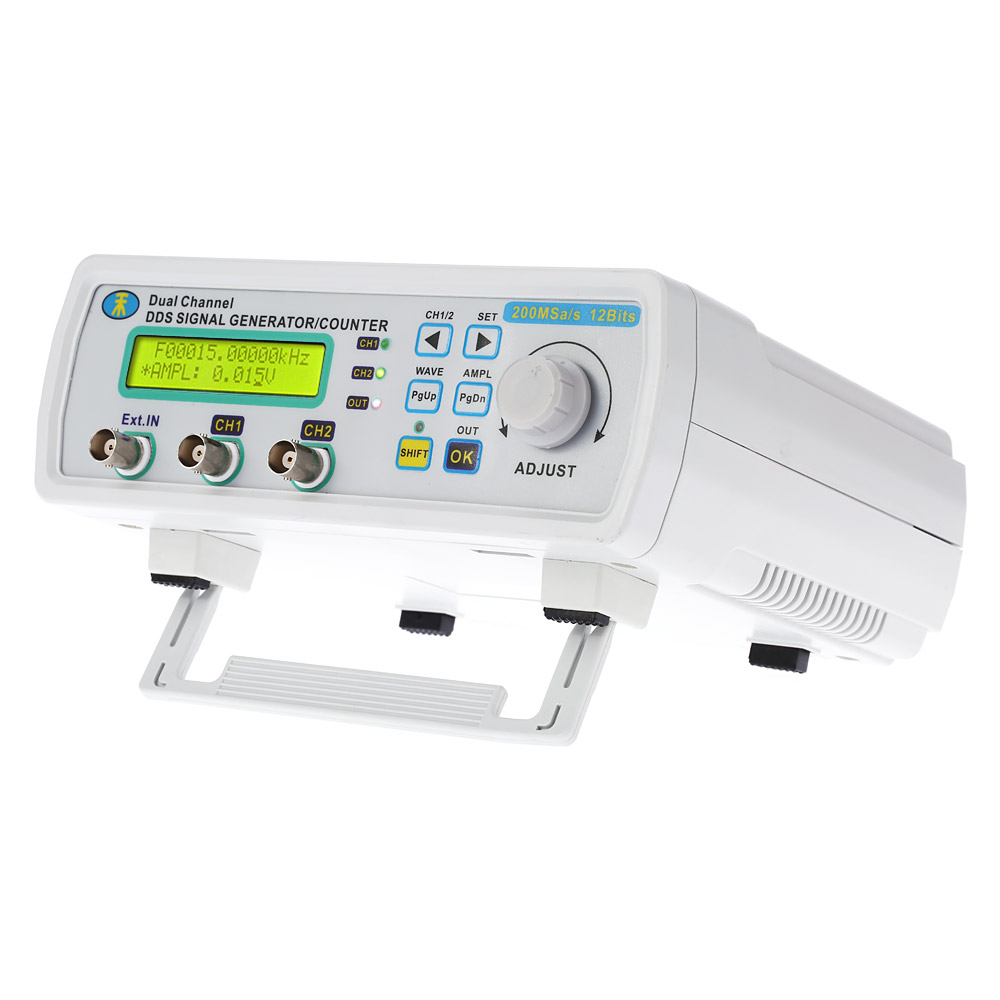

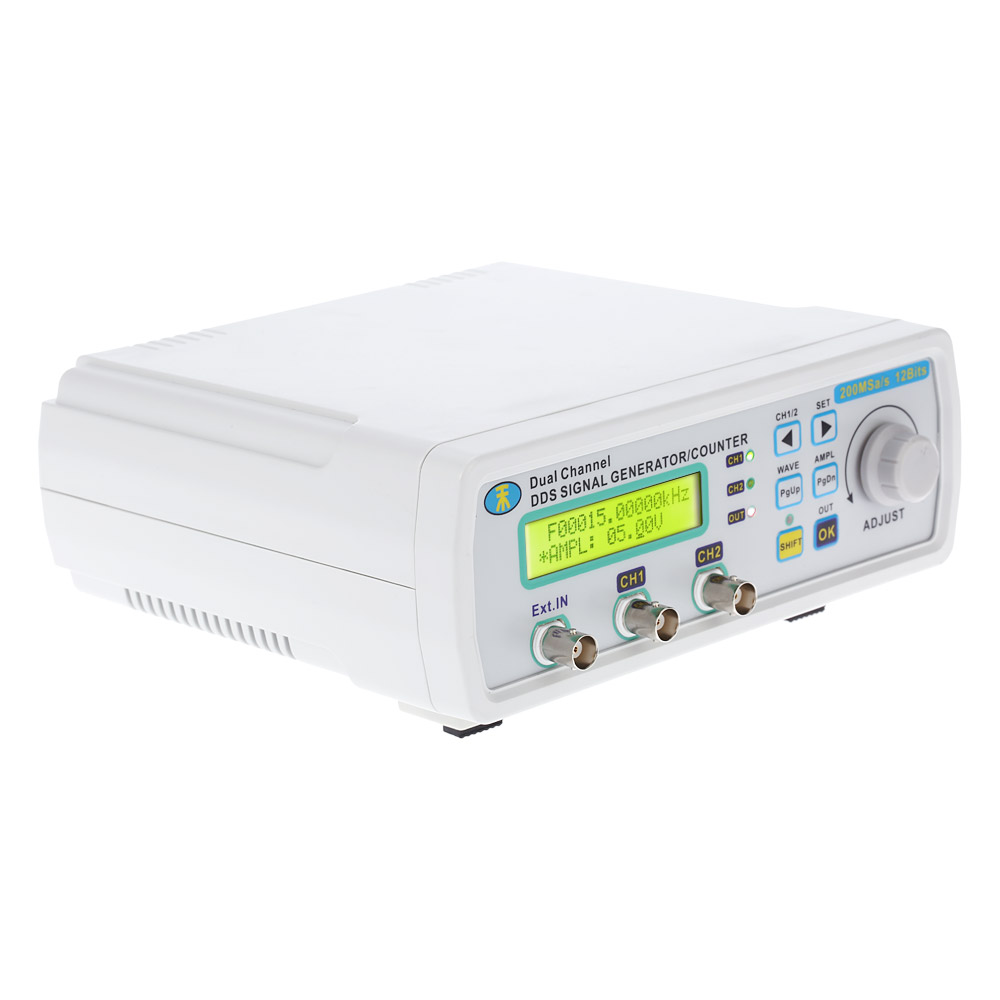

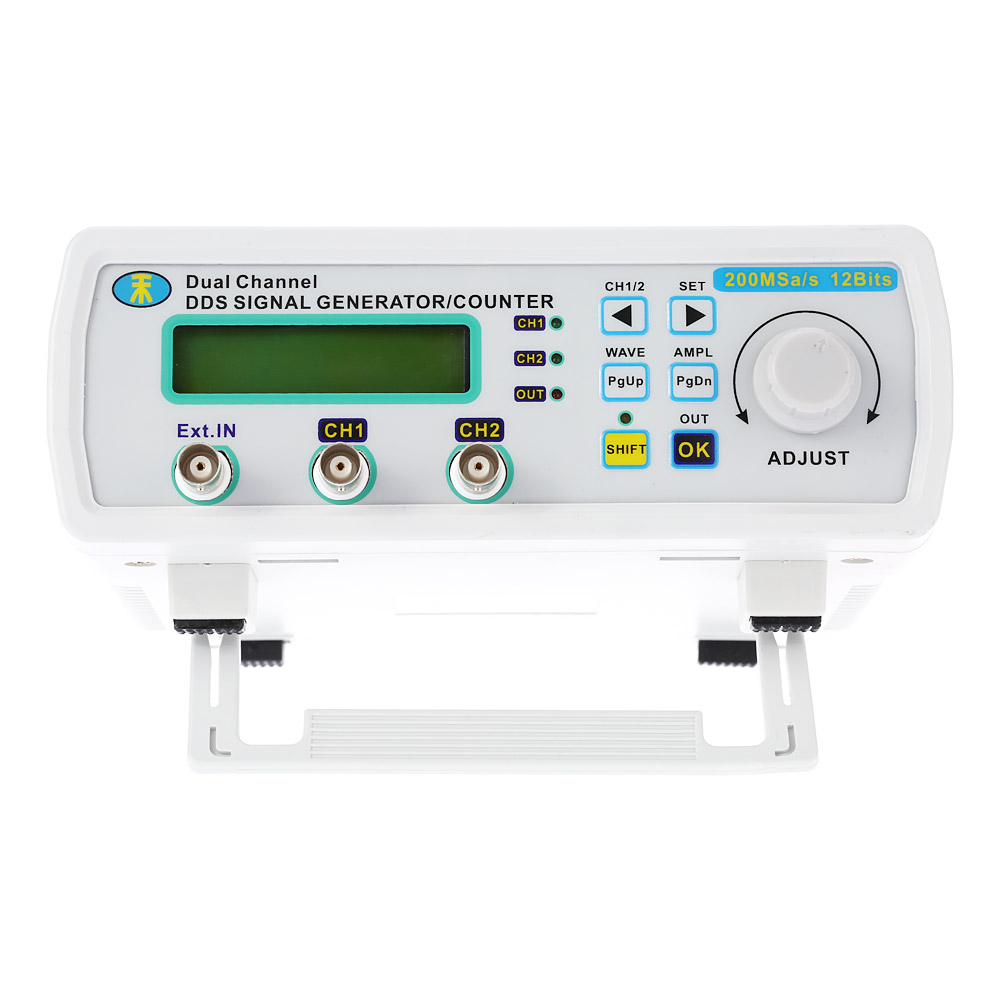

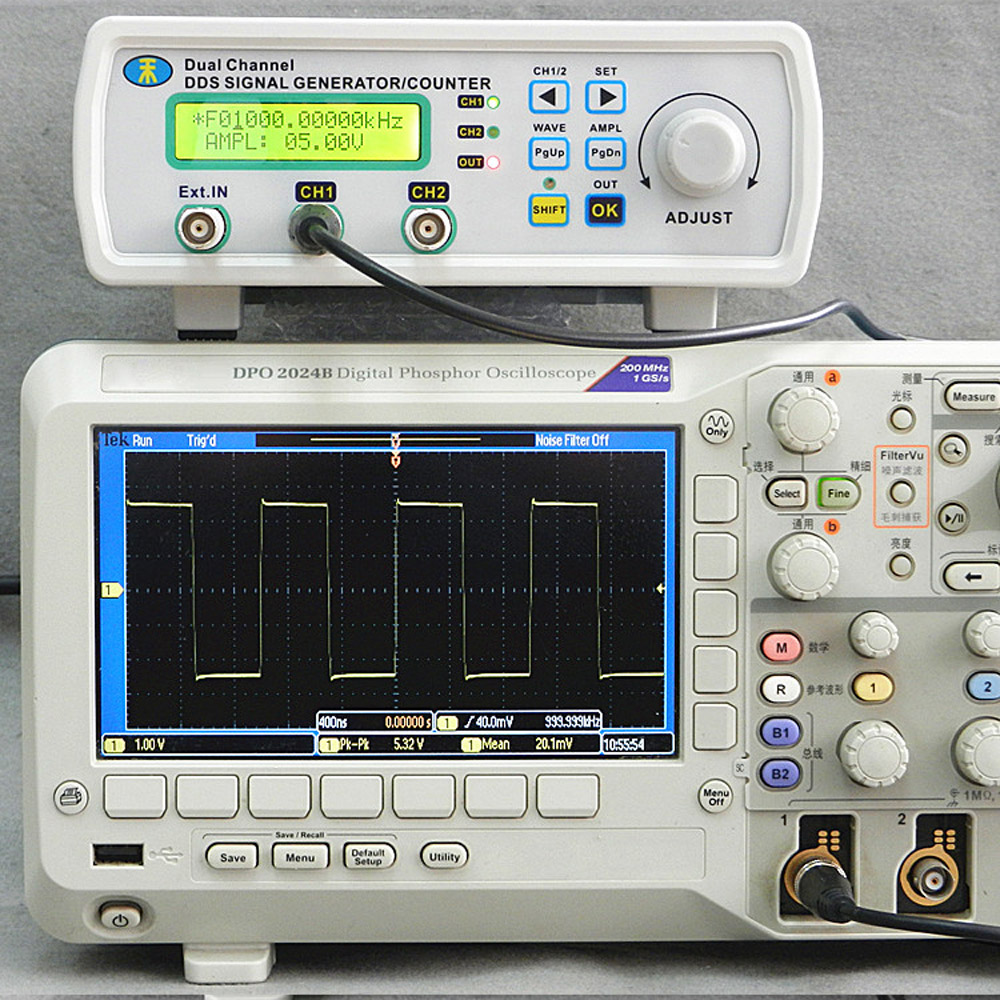

200MSa/s 6MHz Digital DDS Function Signal Generator Arbitrary Waveform Dual-CH Frequency Generator 0-80KHzPower Signal Bandwidth

DDS function signal generator from this series is a multi-functional signal generator with high precision and high performance. It adopts large scale of FPGA integrated circuits, high-speed MCU microprocessor and with high precision oscillator as base in the inner circuit, which make the signals more stable. SMT process can greatly improve the anti-interference and lifetime of the instrument. It has entirely independent dual-channel DDS signal and TTL level output, can generate signals of sine/triangle/square/sawtooth/pulse wave, white noise, etc. This instrument is of great advantage in generating signal, scanning waveform, measuring parameters, etc. It's an ideal testing or measuring instrument for electronics engineer, electronic laboratory, teaching and researching.
The most distinctive feature is that it adds dual-channel signal output interface, the frequency range of the output power signal is 0~80KHz, amplitude 30mVp-p~30Vp-p, maximum current to 1A; these two channels are independent of signal power and can be used in parallel, so that the output current up to 2A; it can also be used in tandem, so that the output amplitude up 60Vp-p. Amplitude and frequency can be displayed on the screen, and you can use the knob or PC software Continuously adjustable.
Features:
Using DDS direct digital synthesis technology to generate precise, stable, low distortion output signal.
CH1 and CH2 completely symmetrical two channels, each channel can be independently set the parameters.
Supports user-defined waveform, each arbitrary waveform memory depth 2048*12bits, 200MSa/s sampling rate.
With pulse trains burst output function, allow the unit output 1~1048575 arbitrary pulse trains.
Measurement functions: 60MHz frequency meter and counter function.
Signal output amplitude range is 5mVpp- 20Vpp(front panel), DC offset adjustment range is -120% to 120%, the resolution is 1%.
Built-in precise -20dB attenuator, achieve a minimum amplitude resolution 1mV.
Digital signal output function, CMOS output range 0~10V.
Waveform resolution up to 12 bits wide, the output waveform is more delicate, waveform distortion is low.
With full CNC functions, display and adjust of current output signal parameters, such as the amplitude, offset, frequency, duty cycle, and the phase difference of two signals.
After connected with computer, user can control signal generator functions and parameters, and can edit and download arbitrary waveform.
High frequency accuracy and resolution: frequency accuracy up to 10^(-6) magnitude, total range frequency resolution is 10mHz.
Tracking function: built-in frequency, amplitude, offset, duty cycle, waveform and other parameters follow function, easy to use.
Scanning features: frequency linear sweep and logarithmic sweep function, start and end points of scanning can be set freely.
Storage features: can store 10 groups parameters set by the user(arbitrary wave can prestore 16 groups).
When connected to a PC, the PC can be used to control the instrument, and can be edited on a PC to download arbitrary waveform output waveform to the instrument.
With output short circuit protection and input over voltage protection.
PC Software and English Manual:
https://www.dropbox.com/sh/t5i0j1h8a5rt7wh/AAD3C7DN_vT2G3E_TOrx4caFa?dl=0
Specifications:
Power Signal Bandwidth: 0KHz~80KHz
Output Signal Amplitude: 30mVp-p~30Vp-p(Rear Panel)
Maximum Output Current: 1A
Maximum Power Output: 15W*2(Dual-Channel Power Amplifier)
Output Short Circuit Protection: Have(Limiting)
Output Impedance: ≤1Ω
Output Phase: In phase with the signal terminal
Distortion: <1%
Output Signal Flatness: ±1dB
