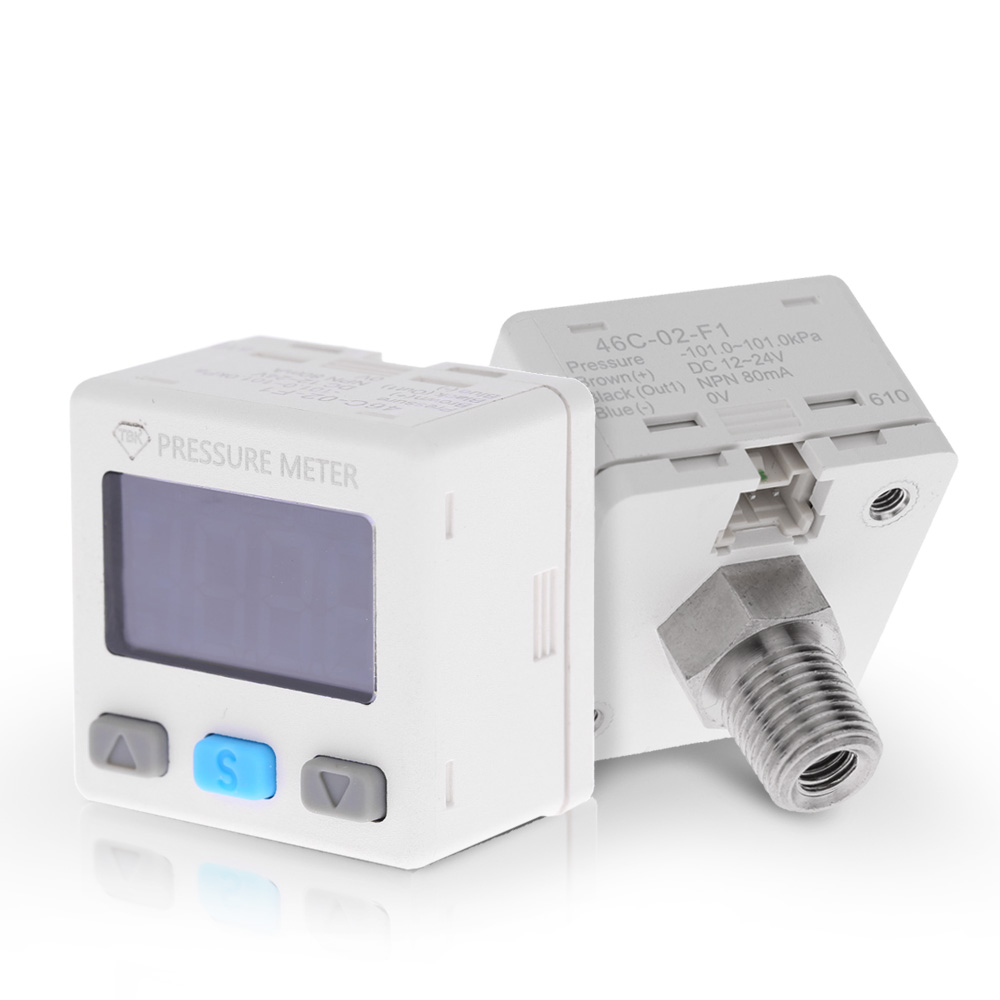

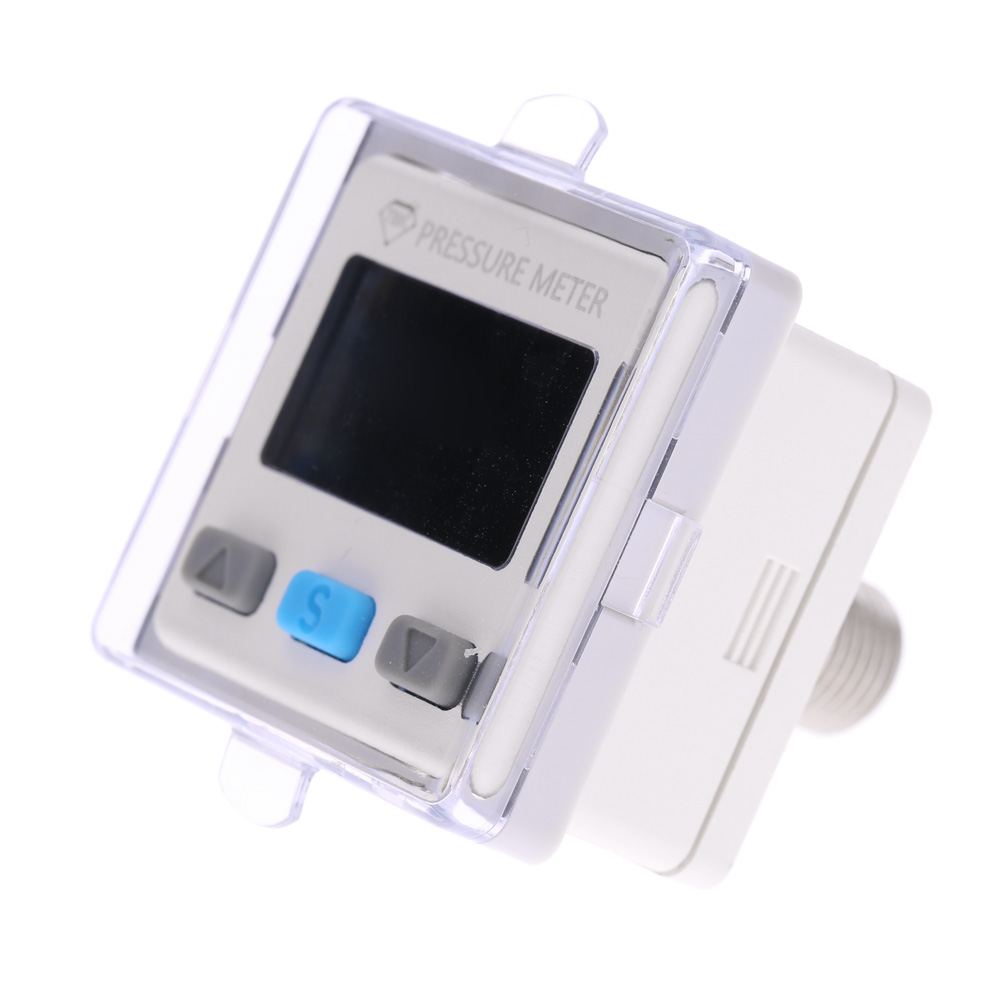

-100.0~100.0kPa 12V~24V Mini Digital Vacuum Pressure Sensor Meter Tester pressure Gauge vacuum meter pressure diagnostic-tool

Mini digital vacuum pressure meter with good performance which is designed for control and monitor vacuum pressure for many machines. Come with some accessories for easy installation.
Features:

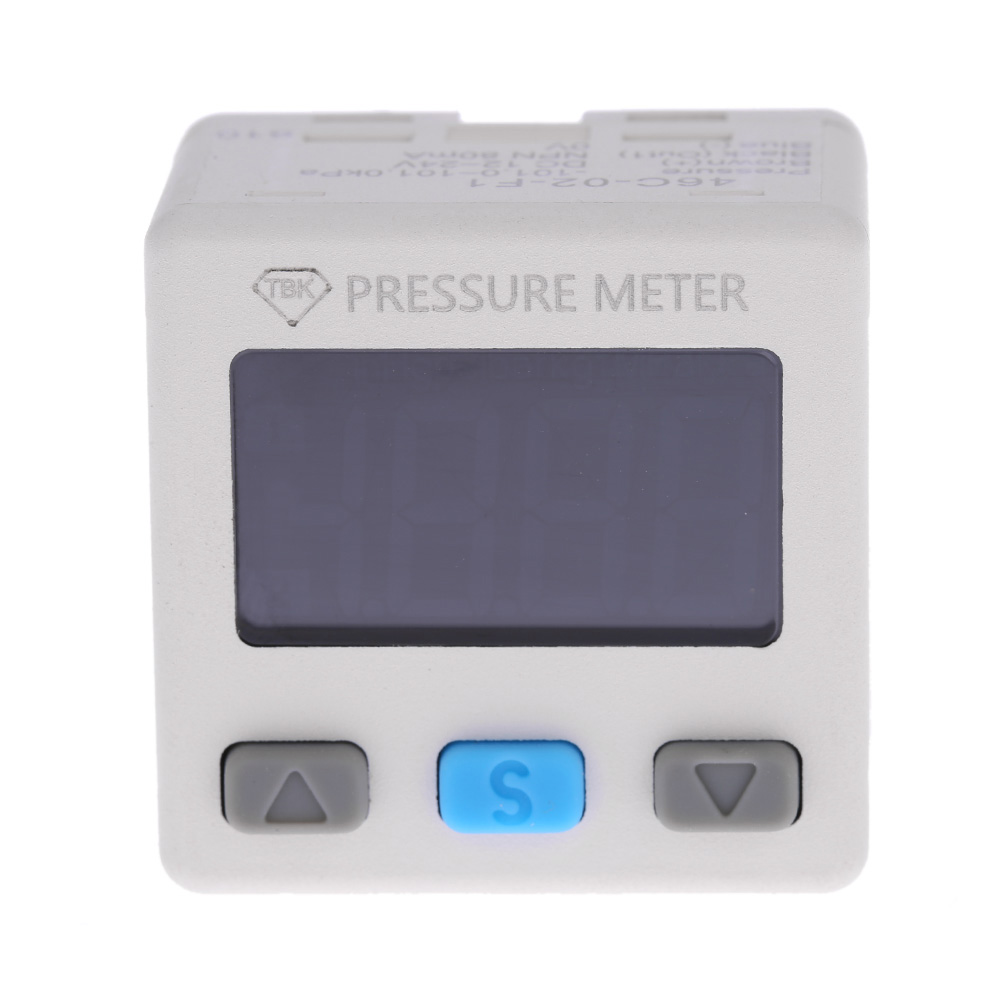

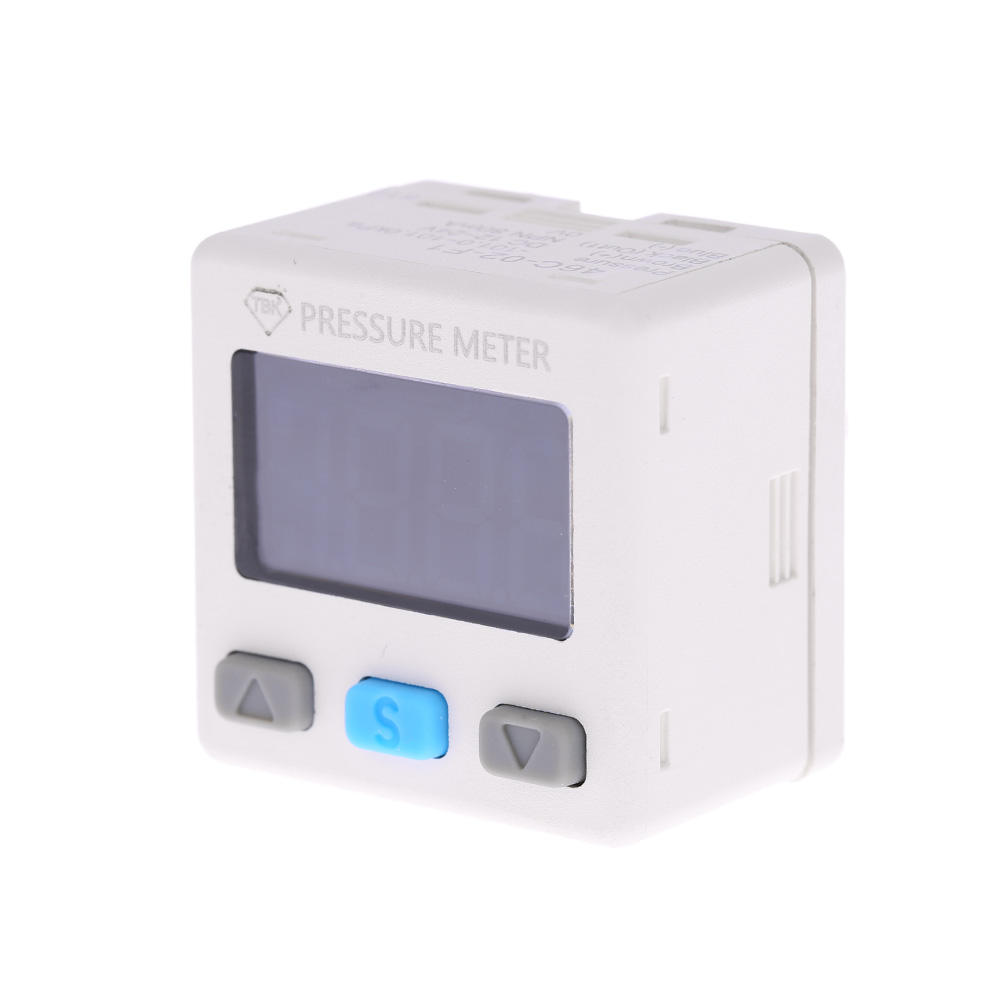

Digital vacuum pressure meter, easy to read.
Rated pressure range: -100.0~100.0kPa.
Output type: 1 NPN output.
3 keys to operate, convenient to use.

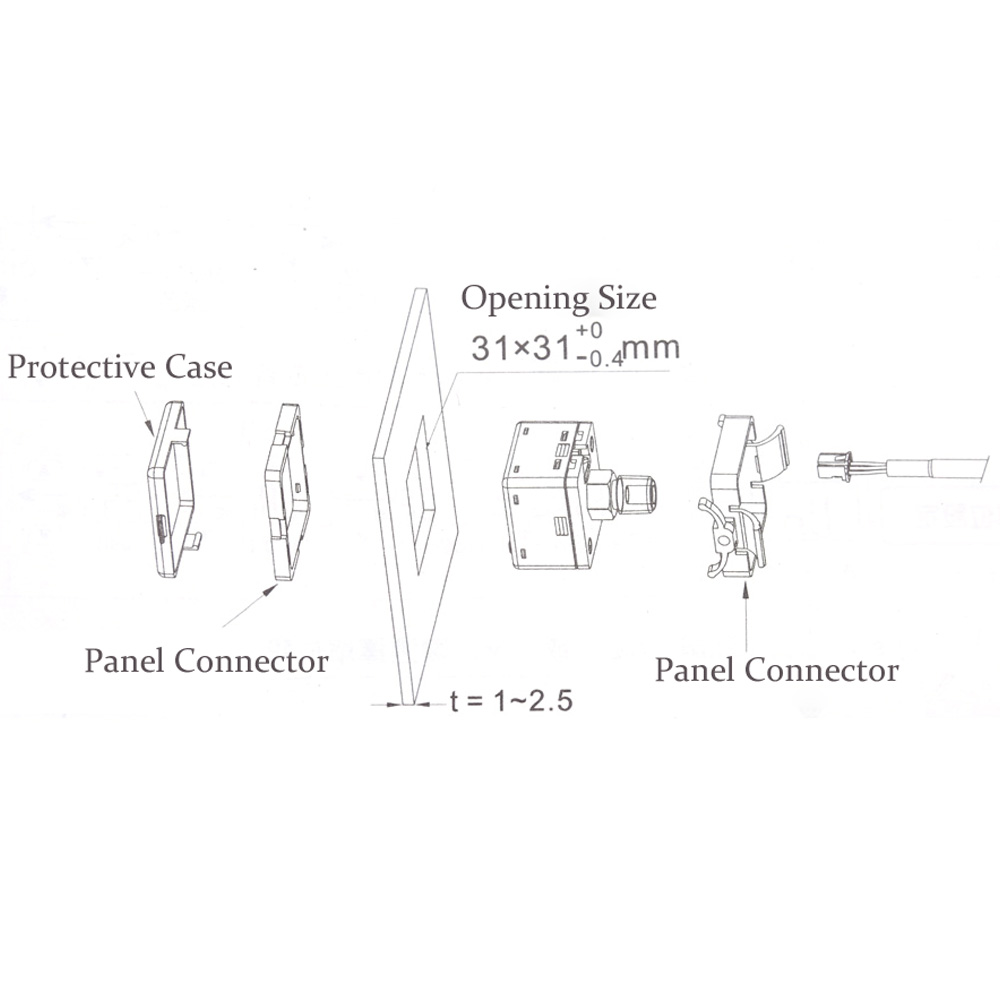

Come with protective case and connectors, easy installation.
Specifications:
Rated Pressure Range: -100.0~100.0kPa
Setting Pressure Range: -101.0~101.0kPa
Pressure Resistance: 500kPa
Unit: Kpa; kgf/cm^2; bar; psi; inHg
Power Supply: 12~24V DC ±10%
Current Consumption: <=40mA

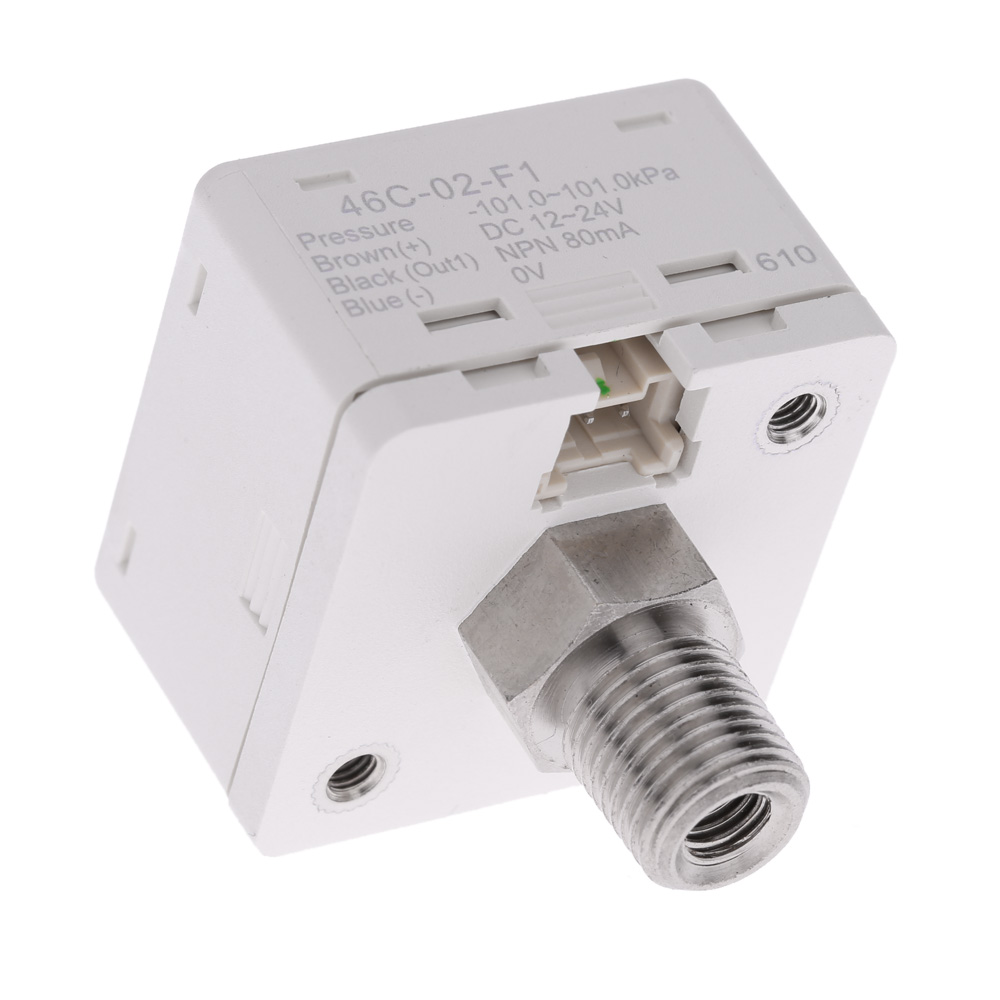

Switch output: 1 NPN Output
Short Circuit Protection: Yes
Working Temperature: 0~50°C
Storage Temperature: -10~60°C
Humidity: 35-85%RH(No condensation)

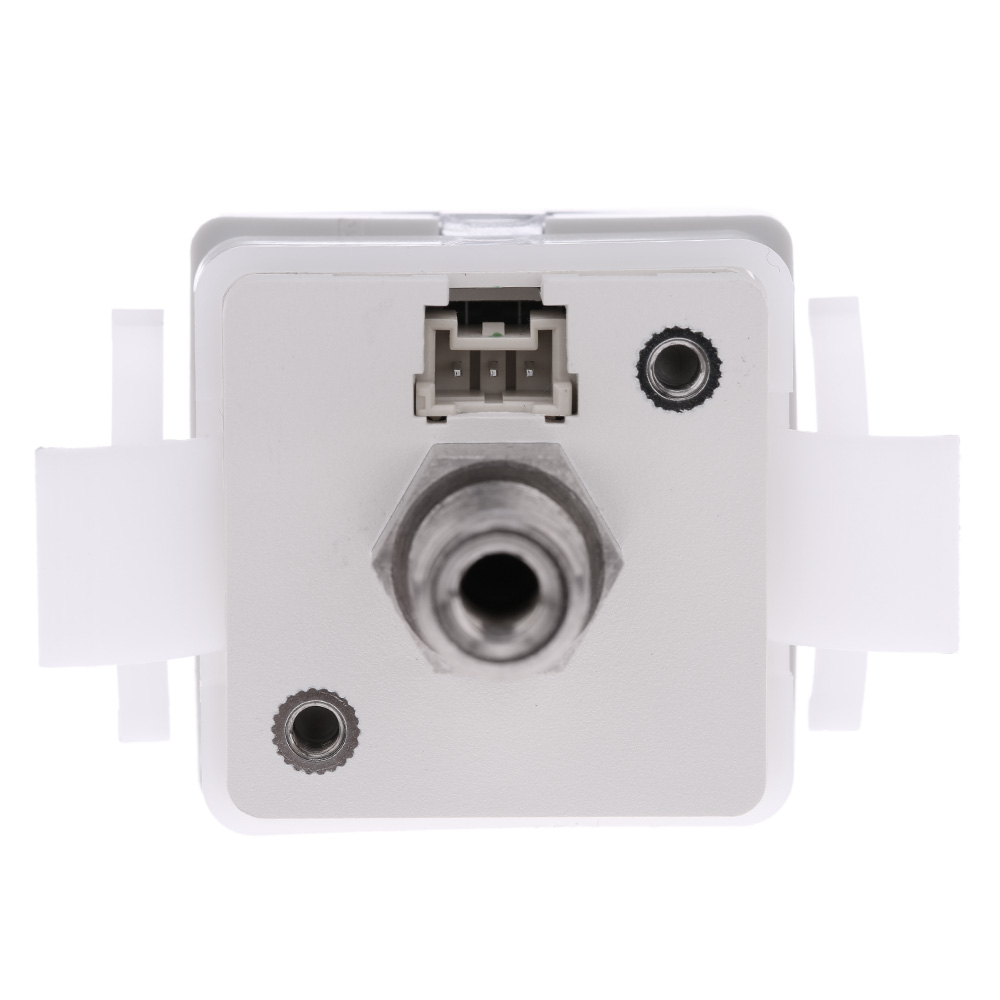

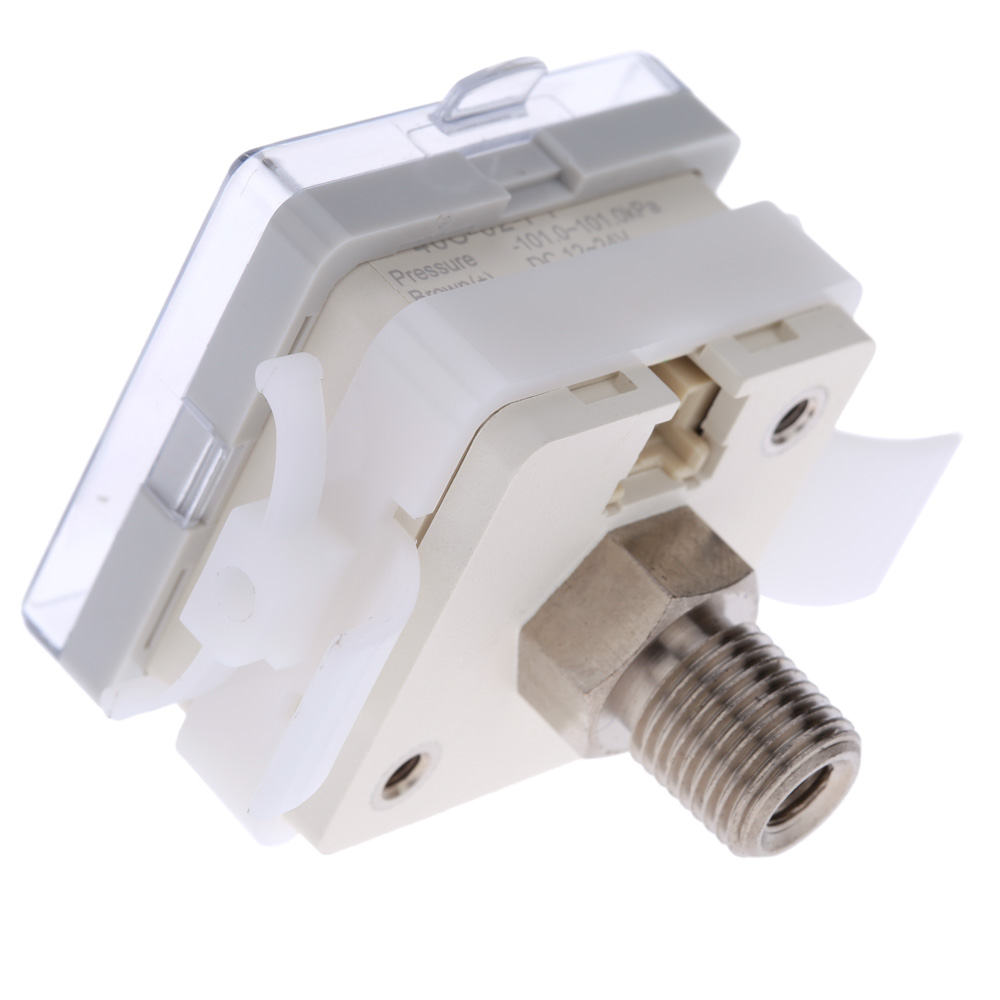

Cable Type: R1/8", M5
Item Size: 2.8 * 2.8 * 4cm / 1.10 * 1.10 * 1.57in
Item Weight: 30g / 1.08oz
Package Size: 9 * 7 * 6cm / 3.54 * 2.76 * 2.36in
Package Weight: 97g / 3.42oz

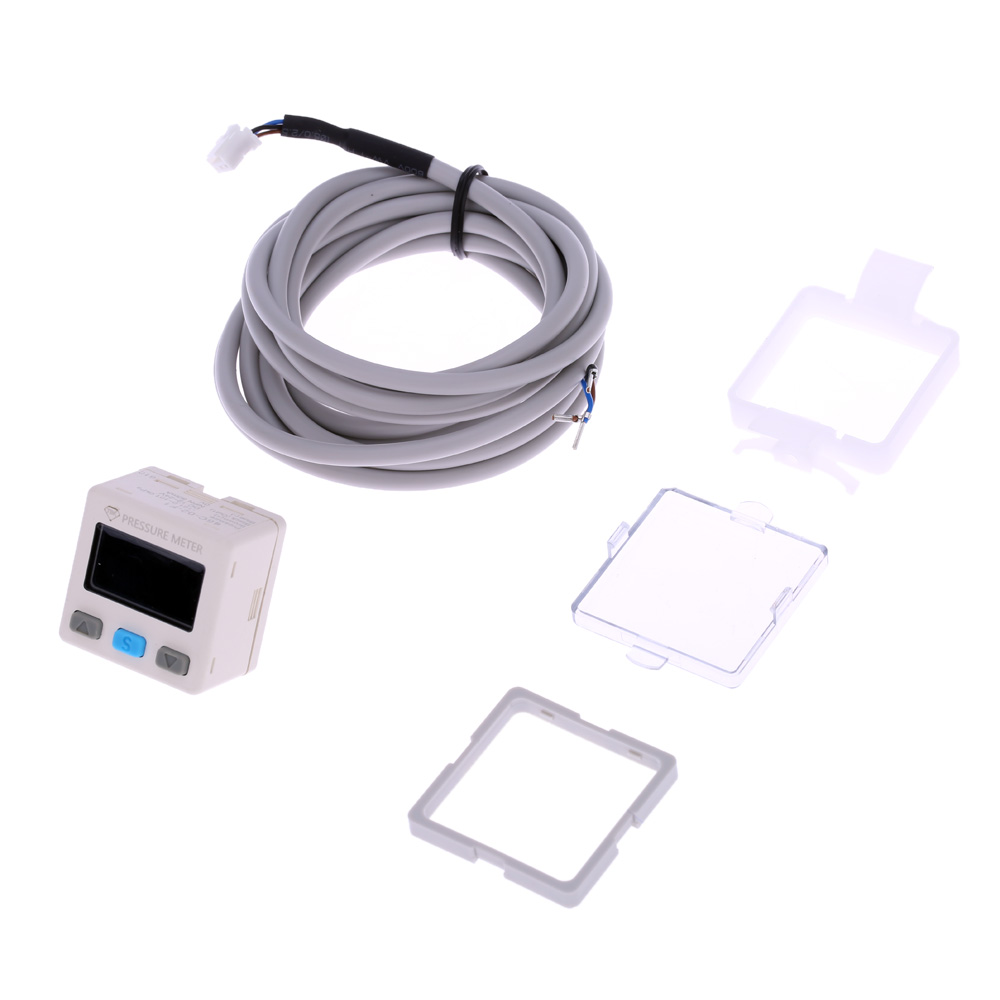

Package List:
1 * Vacuum Pressure Meter
1 * Protective Case
2 * Connectors

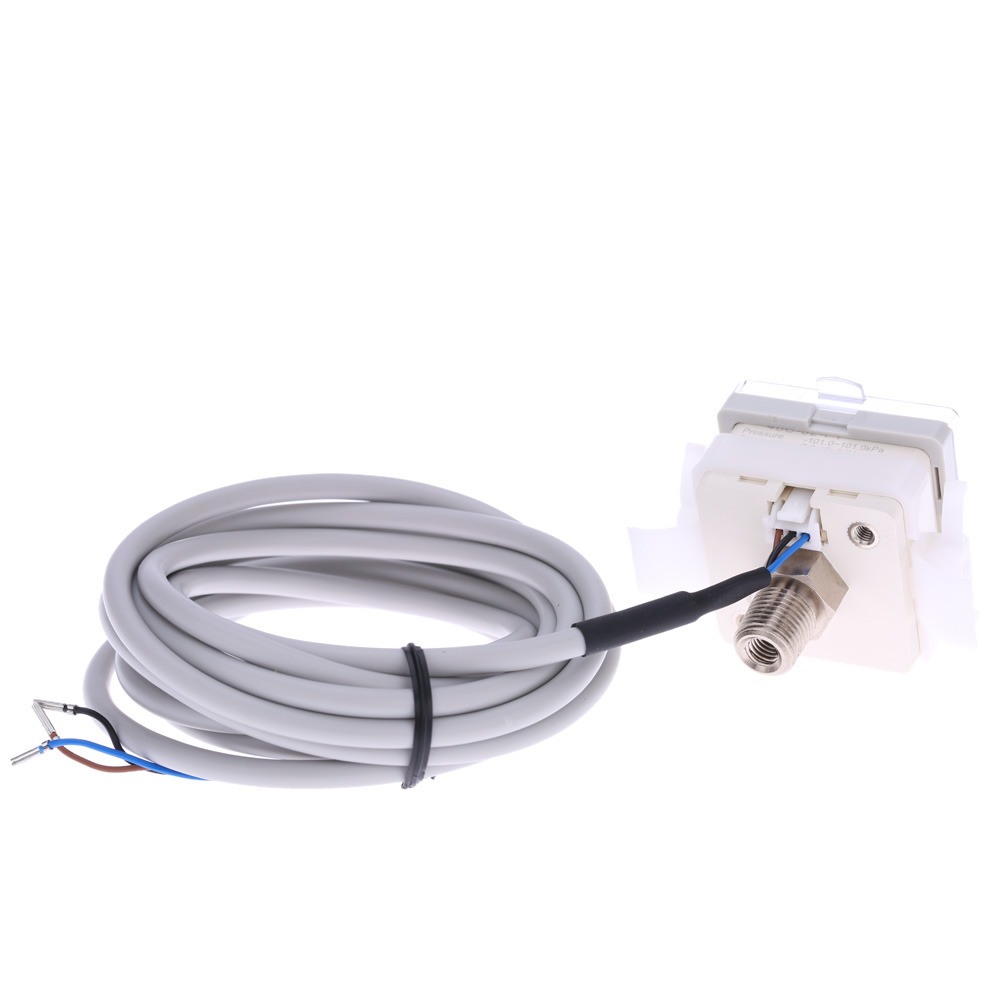

1 * Cable
